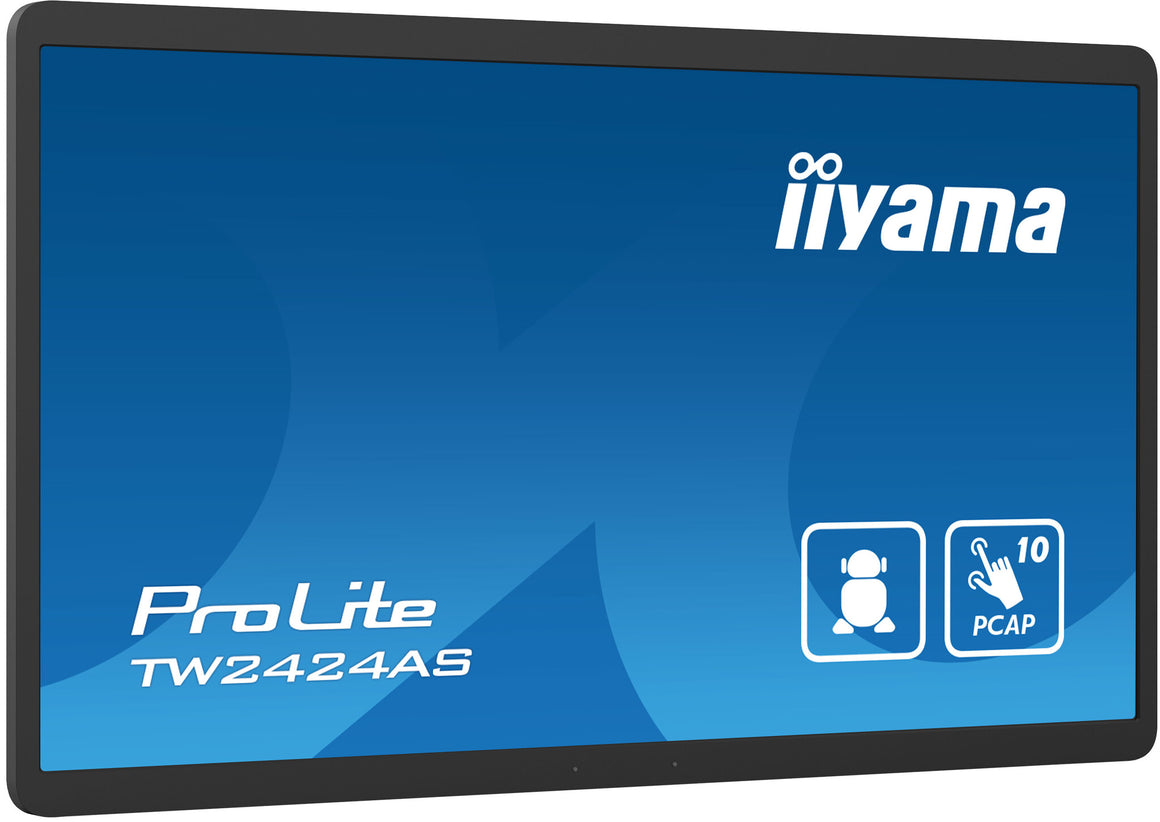

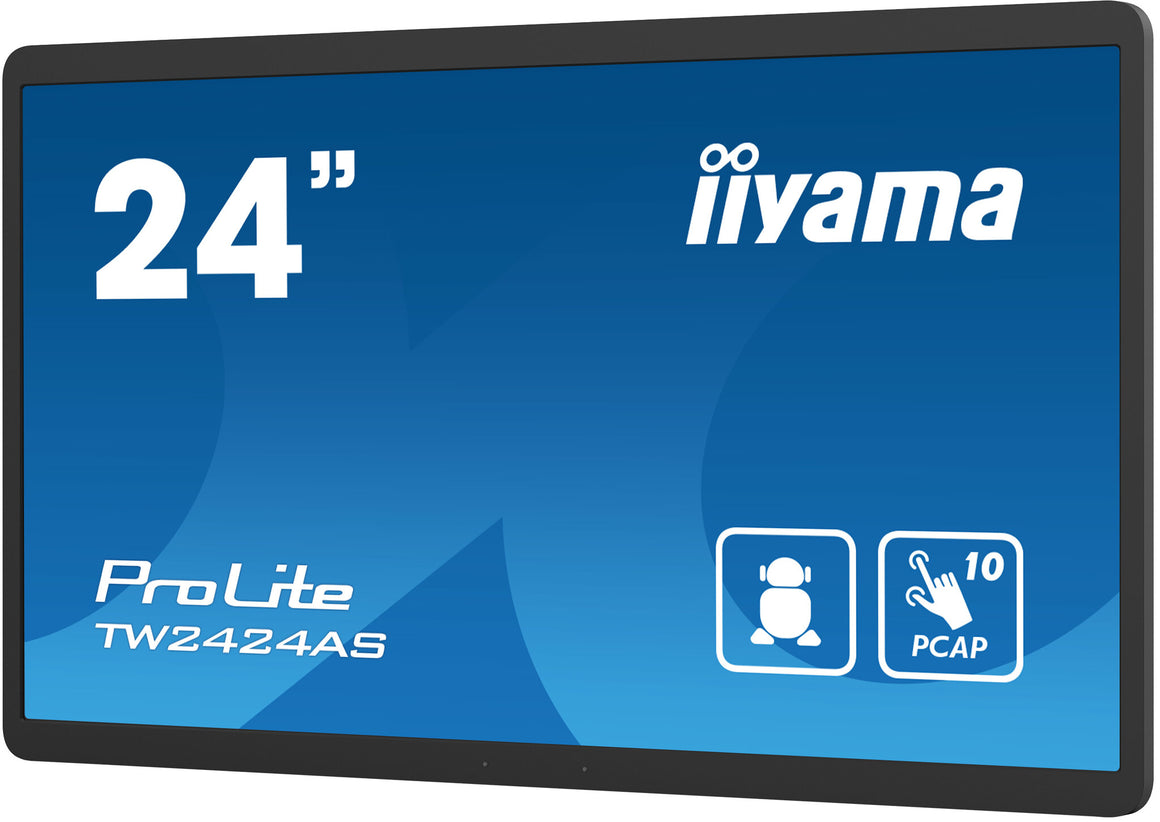

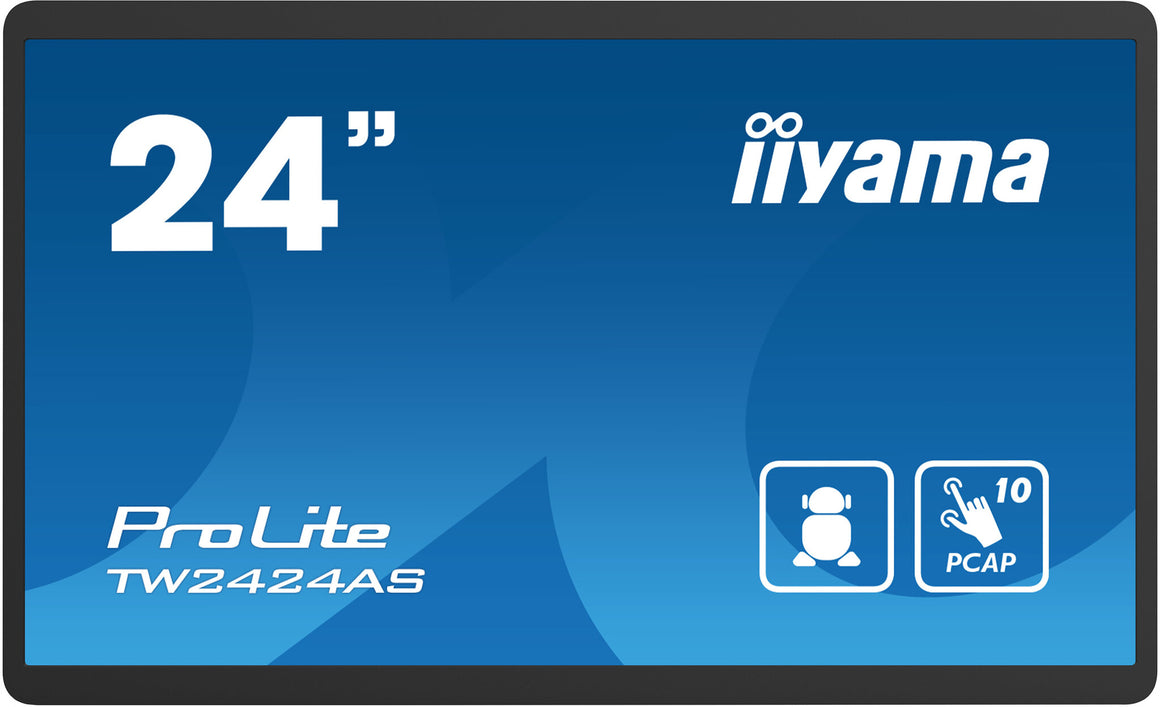

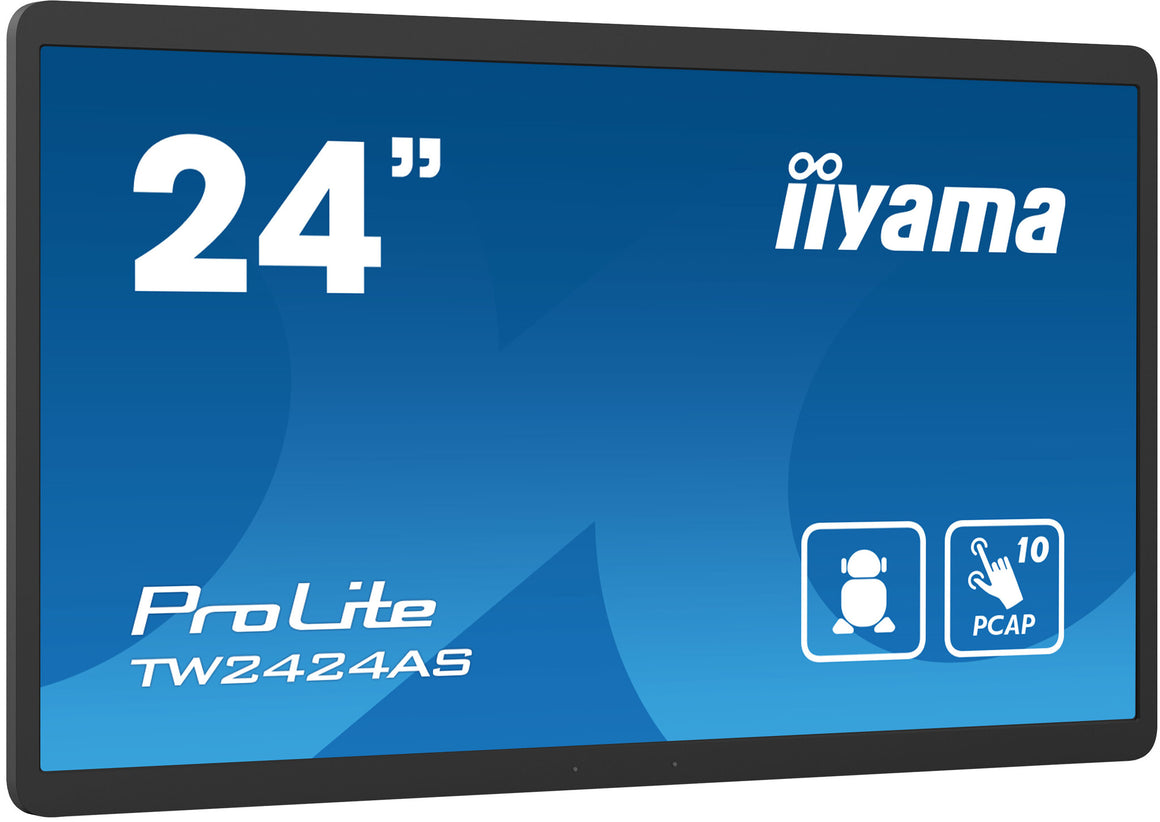

The ProLite TW2424AS-B1 interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
| Display |
|---|
| Surface hardness |
3H |
| Horizontal scan range |
31 - 83 kHz |
| Panel life |
50000 h |
| Display diagonal (metric) |
60.5 cm |
| Active display area (W x H) |
527 x 296.5 mm |
| Pixel pitch |
0.275 x 0.275 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1000:1 |
| Response time |
14 ms |
| Native aspect ratio |
16:9 |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen |
Yes |
| HD type |
4K Ultra HD |
| Display brightness |
250 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| LED backlighting type |
Direct-LED |
| Panel type |
IPS |
| Display diagonal |
60.5 cm (23.8") |
| Ports & interfaces |
|---|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 Type-B ports quantity |
2 |
| USB port |
Yes |
| VGA (D-Sub) input ports |
1 |
| HDMI input ports quantity |
1 |
| HDMI ports quantity |
1 |
| Audio |
|---|
| RMS rated power |
10 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Anti-glare screen |
Yes |

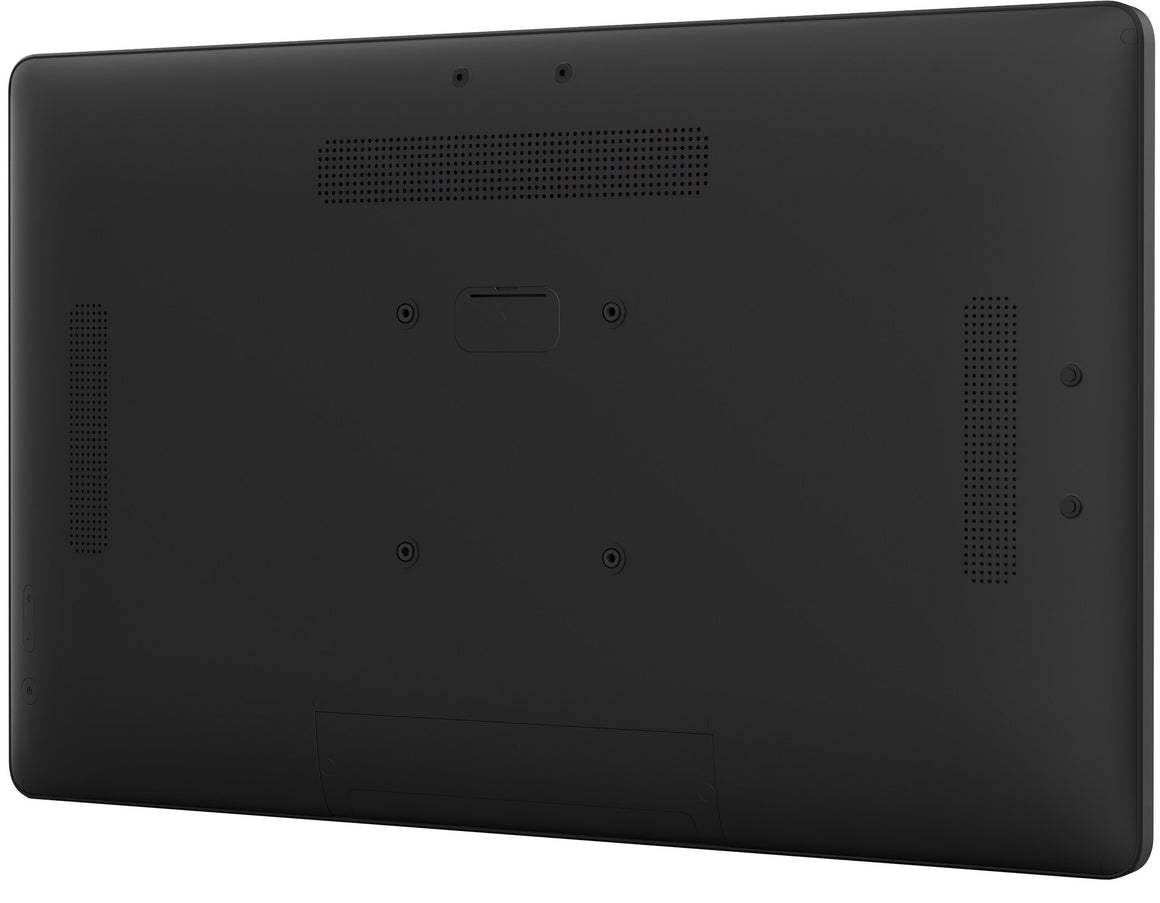

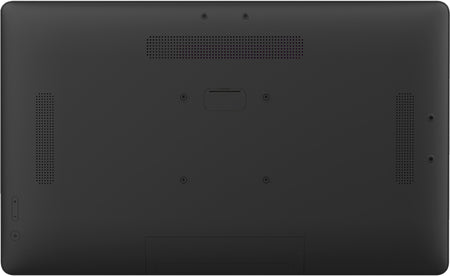

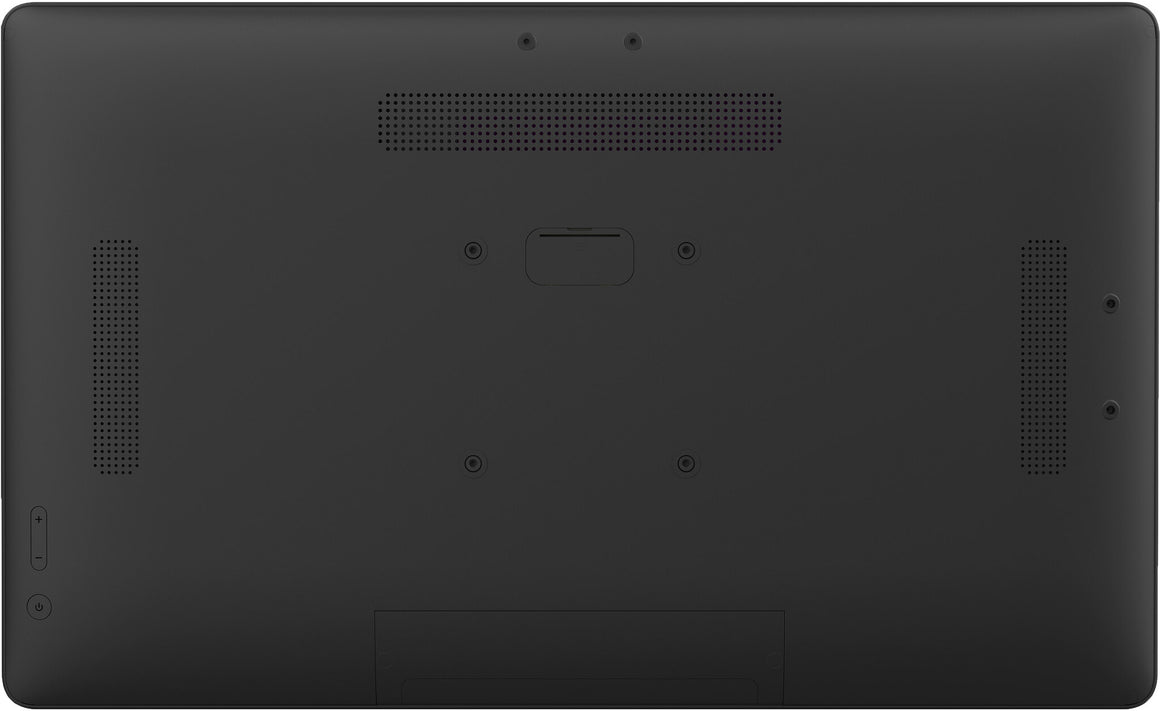

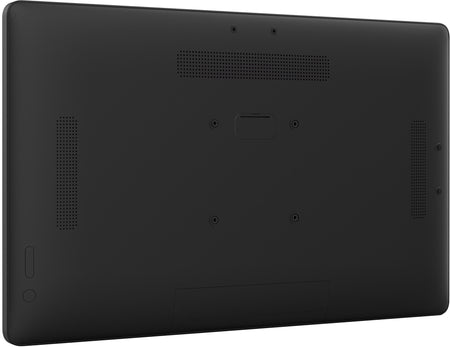

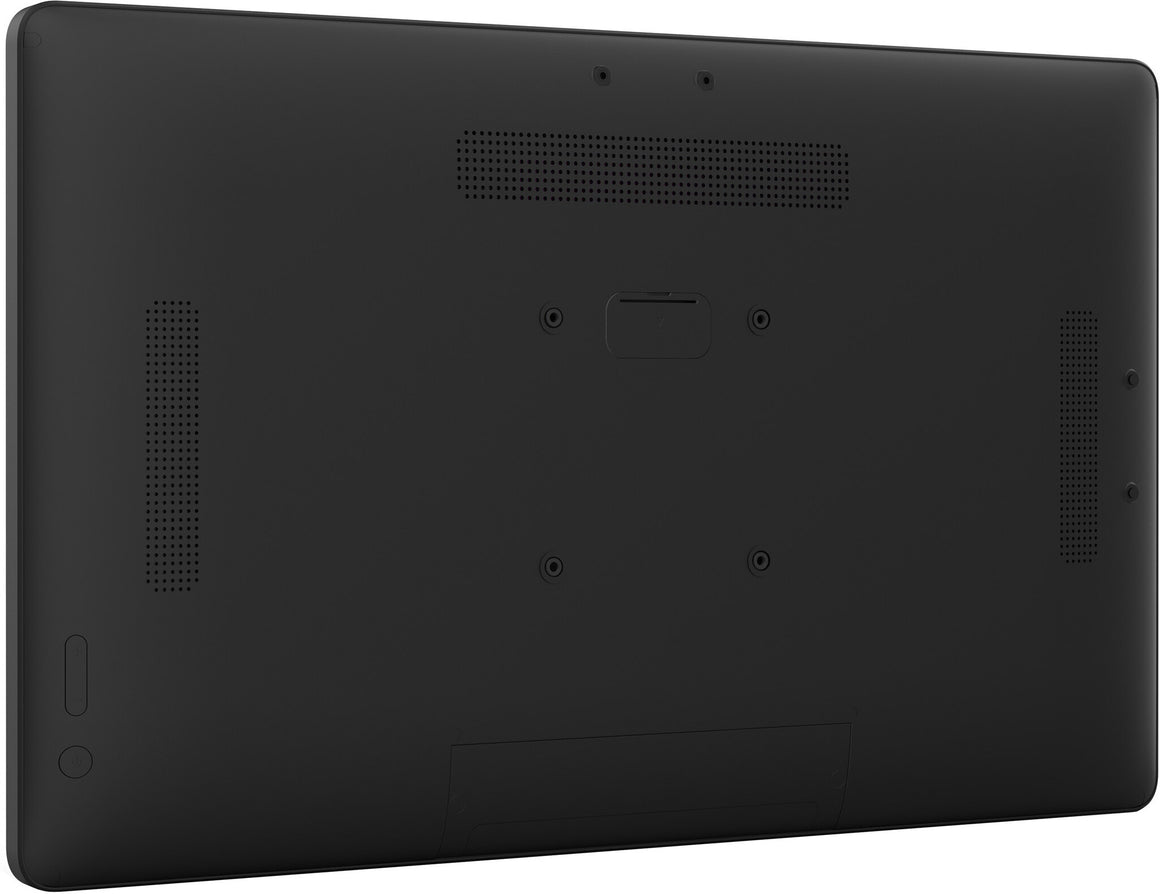

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| Operating hours (hours/days) |
24/7 |
| On Screen Display (OSD) |
Yes |
| Purpose |
Commercial |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
19 W |
| Computer system |
|---|
| Operating system version |
12 |
| Operating system installed |
Android |
| Internal storage capacity |
32 GB |
| Internal memory |
4 GB |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
| Processor model |
RK3399 |
| Processor family |
ARM Rockchip |
| Processor manufacturer |
Rockchip |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Weight (with stand) |
4.23 kg |
| Height (with stand) |
336 mm |
| Depth (with stand) |
28 mm |
| Width (with stand) |
549.5 mm |
| Display weight |
4.23 kg |
| Display height |
336 mm |
| Display depth |
28 mm |
| Display width |
549.5 mm |
| Packaging data |
|---|
| Package weight |
6.15 kg |
| Package height |
375 mm |
| Package depth |
580 mm |
| Package width |
580 mm |
| Packaging content |
|---|
| Cables included |
HDMI, Power, USB |
| Stylus pen |
Yes |
| Number of stylus pens |
4 |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Certificates |
|---|
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Features |
|---|
| Suitable for indoor use |
Yes |
| Base material |
Metal |
| Base colour |
Black |
| Technical details |
|---|
| OPS slot |
1 |
| Other features |
|---|
| Plug and Play |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Quick start guide |
Yes |
| Power supply type |
External |
| Built-in microphone |
Yes |
| Bluetooth version |
5.2 |
| Viewable size, horizontal |
52.7 cm |
| Viewable size, vertical |
29.6 cm |
| Bluetooth |
Yes |
