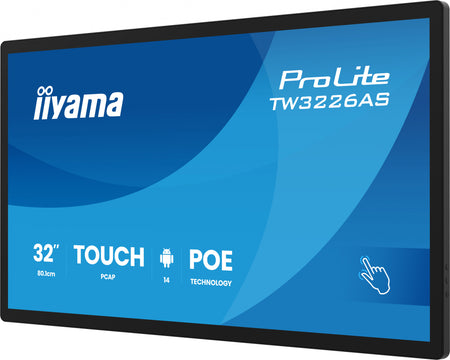

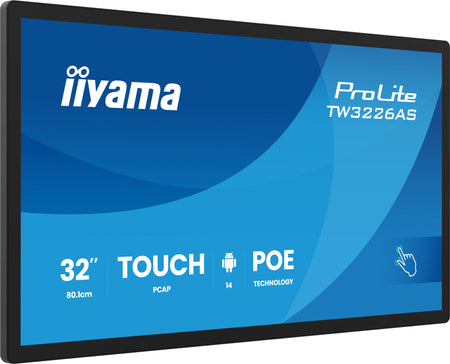

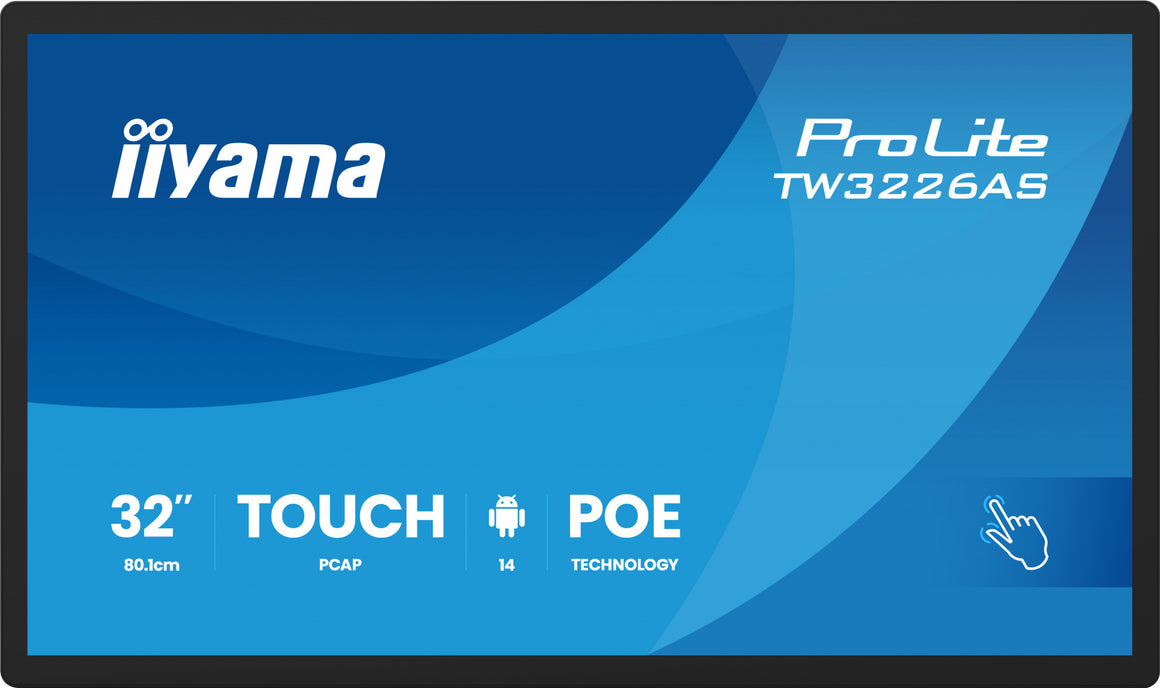

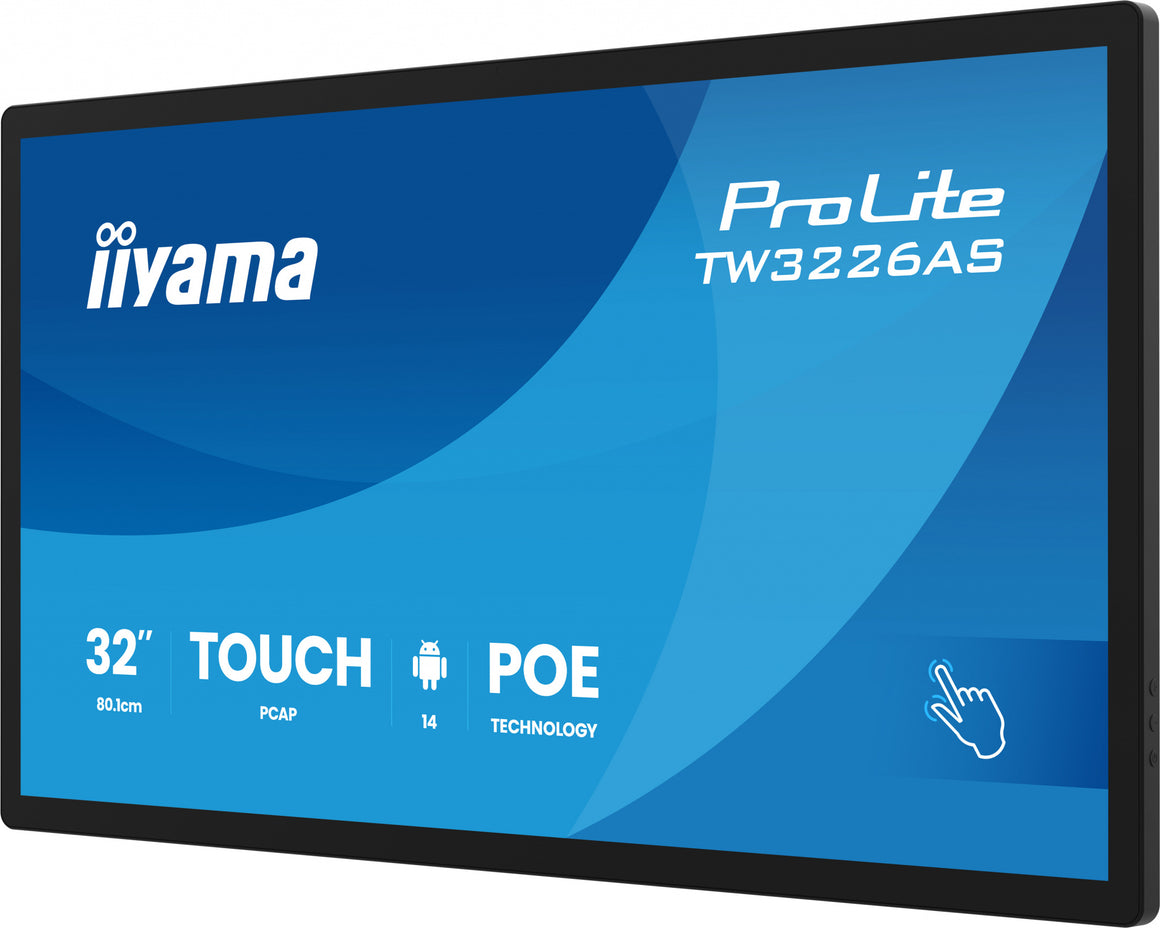

The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
| Display |
|---|
| Surface hardness |
3H |
| Colour depth |
8 bit |
| Display diagonal (metric) |
80.1 cm |
| Active display area (W x H) |
698.4 x 392.8 mm |
| Pixel pitch |
0.3637 x 0.3637 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
4000:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Multi-touch |
Yes |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen |
Yes |
| HD type |
Full HD |
| Display brightness |
500 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Panel type |
VA |
| Display technology |
LED |
| Display diagonal |
80 cm (31.5") |

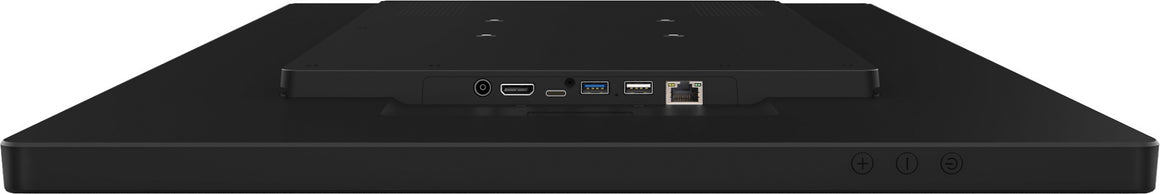

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Microphone in |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-C |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
3 |
| USB port |
Yes |
| DVI port |
No |
| HDMI input ports quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| Audio |
|---|
| RMS rated power |
10 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|

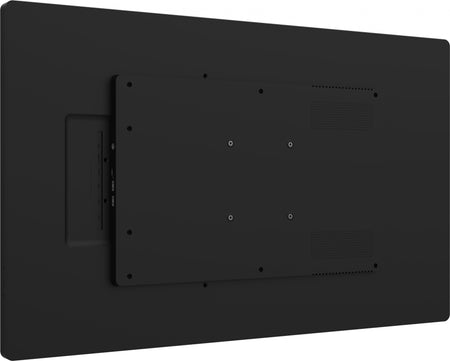

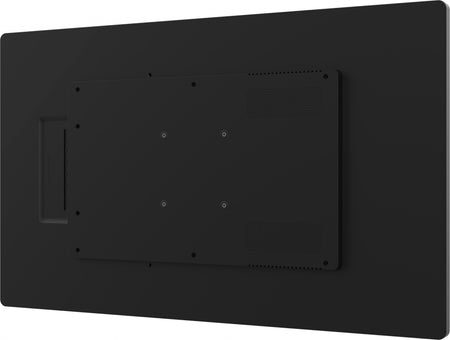

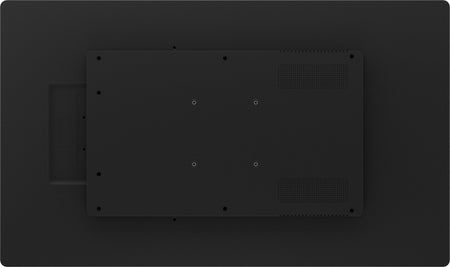

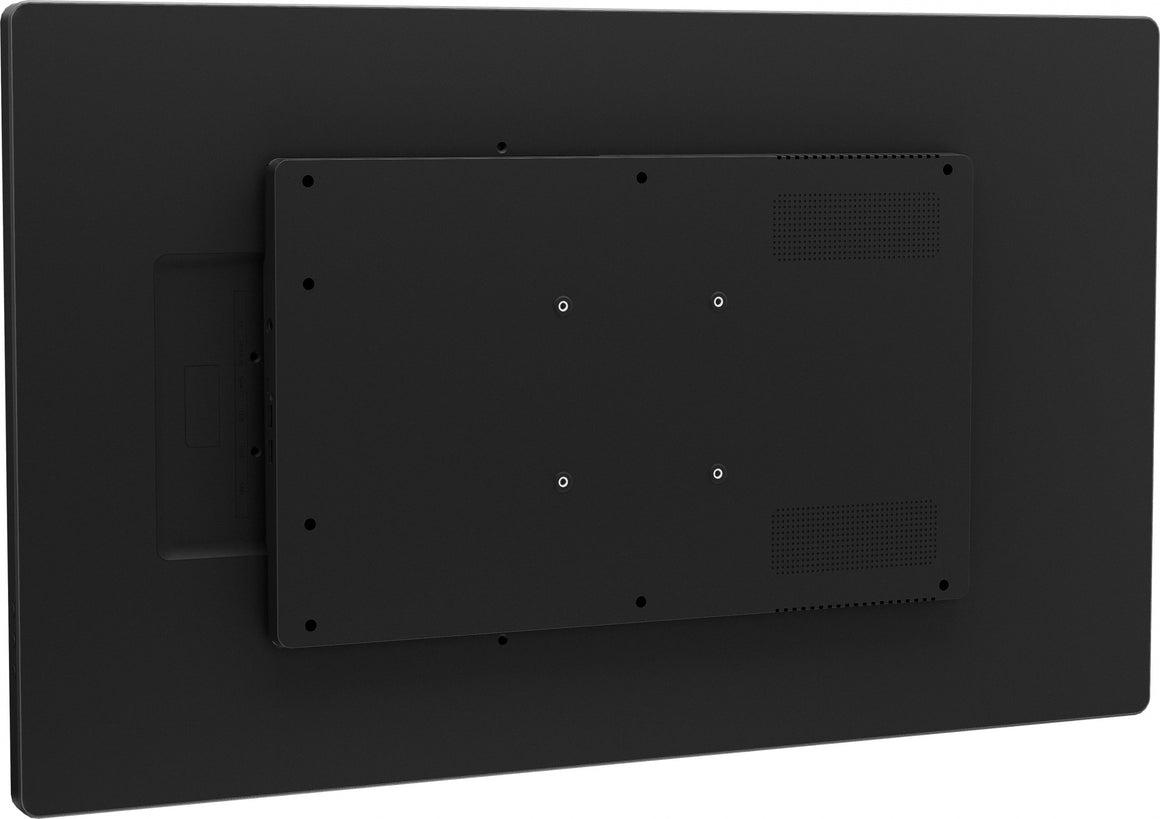

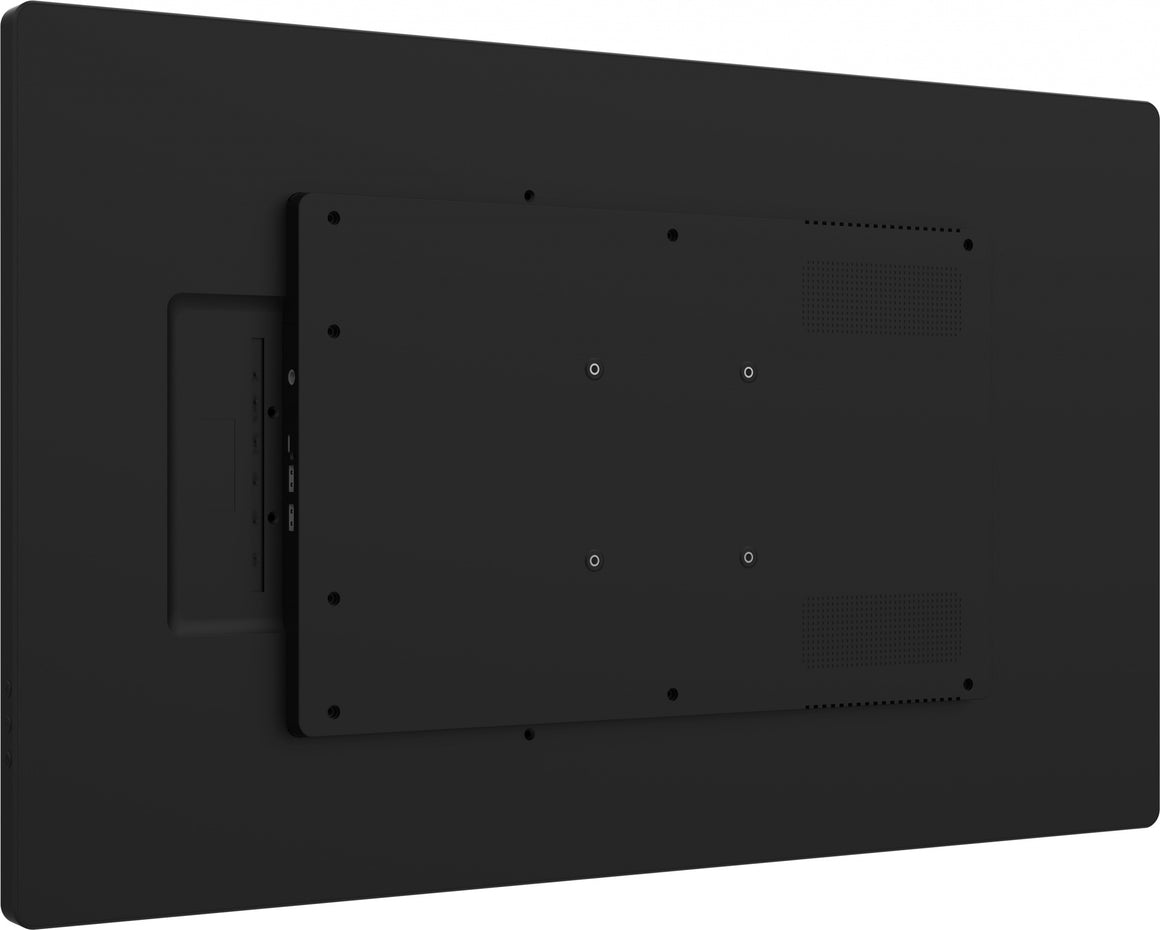

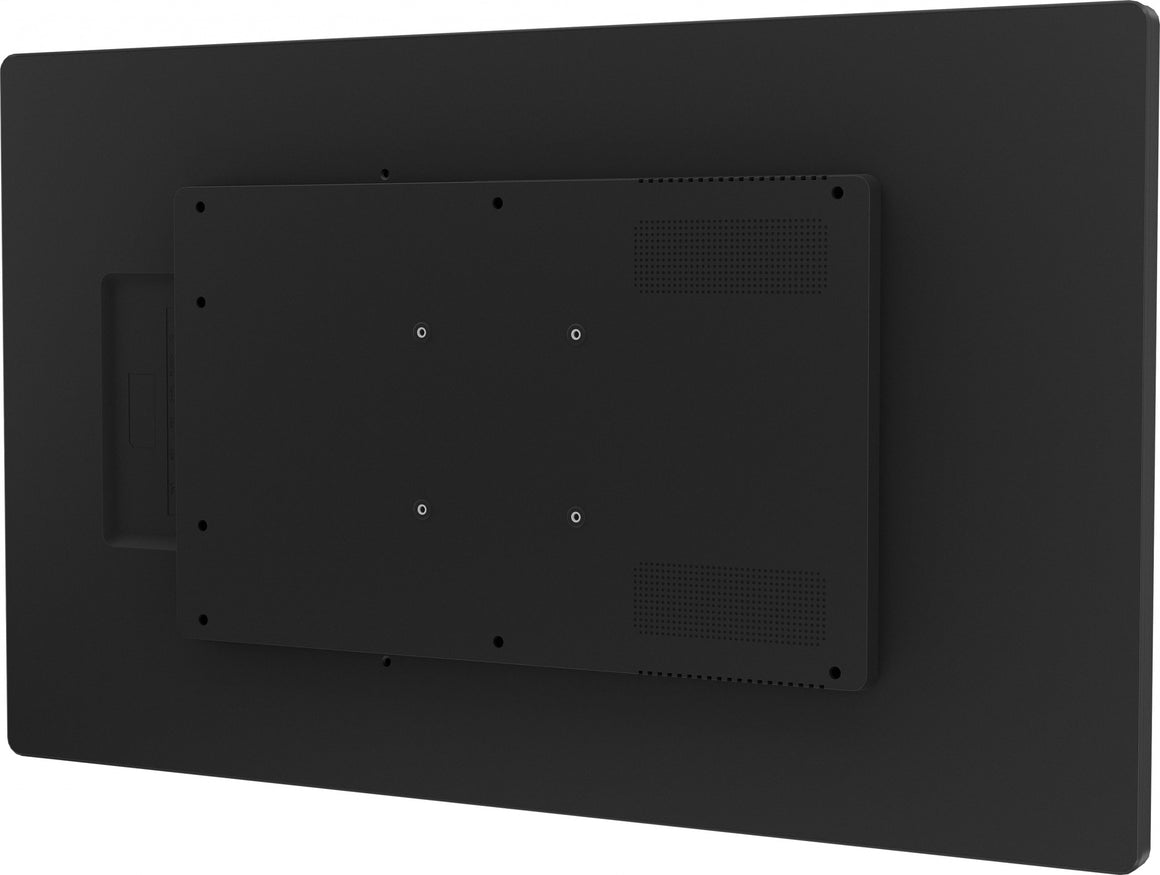

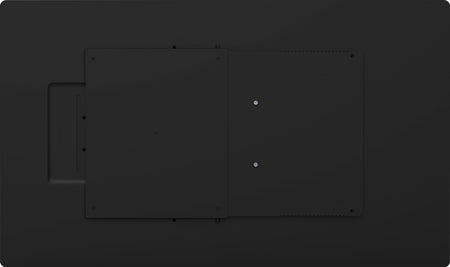

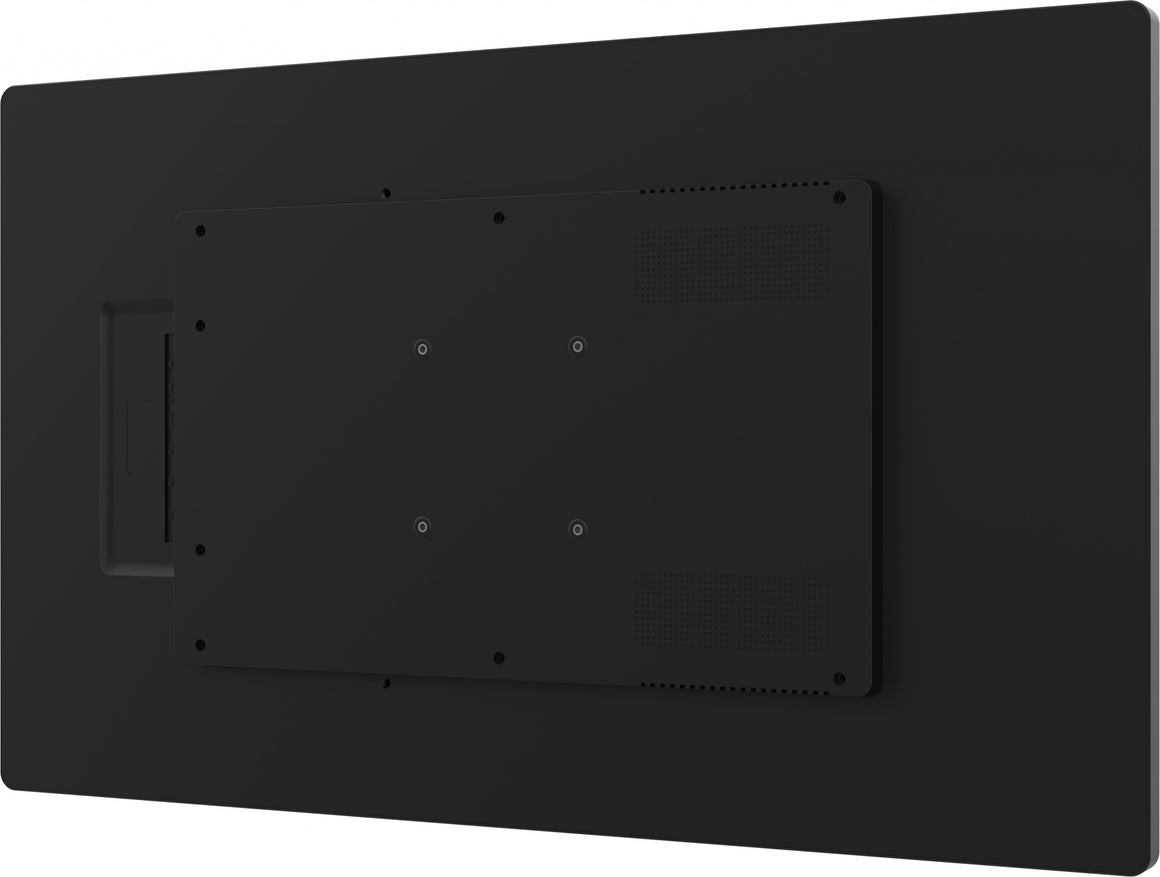

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |

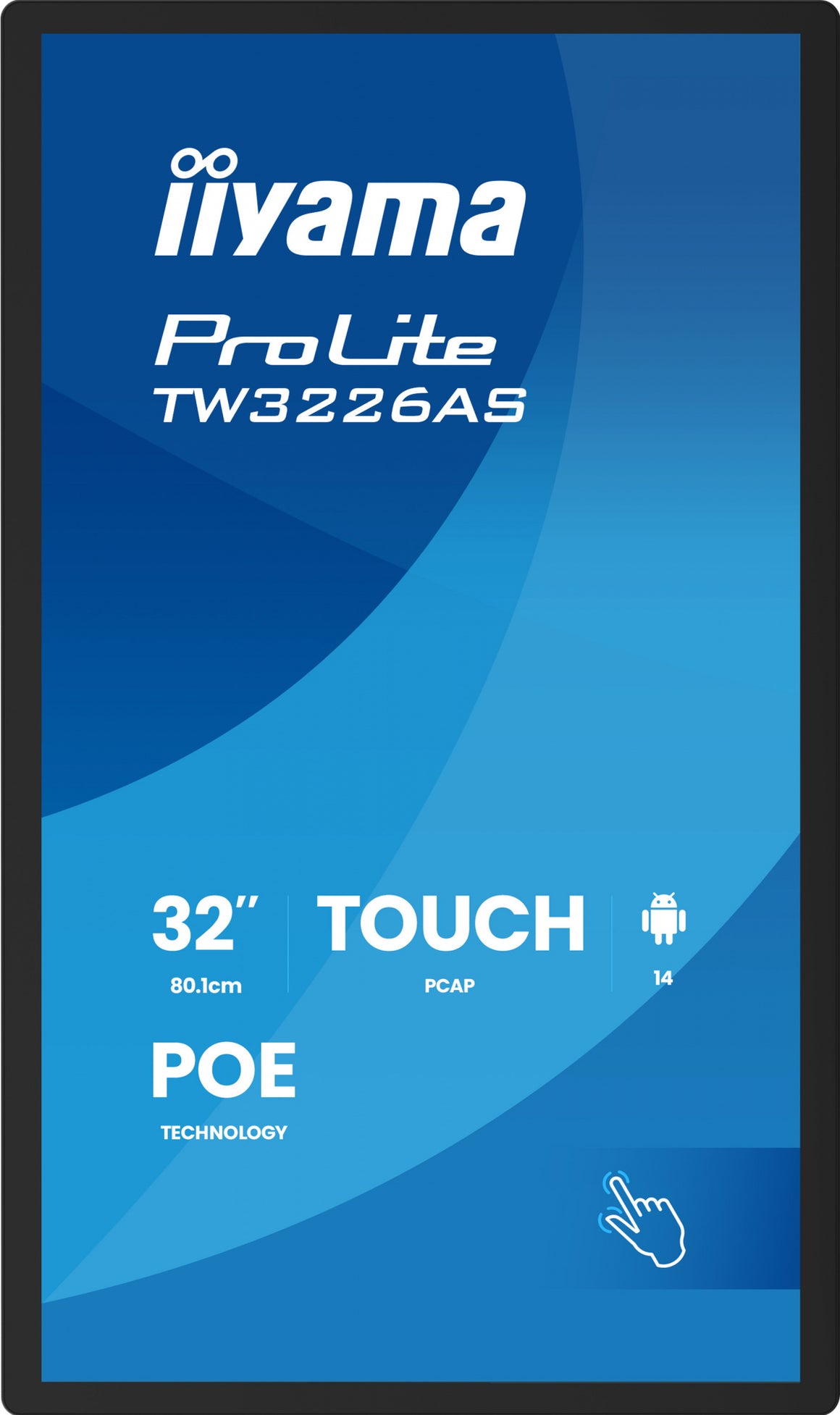

| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Interactive flat panel |
| Performance |
|---|
| HDCP |
Yes |
| Operating hours (hours/days) |
24/7 |
| Purpose |
Universal |
| Power |
|---|
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
36.34 W |
| Computer system |
|---|
| Operating system installed |
Android 14 |
| Internal storage capacity |
32 GB |
| On-board graphics card model |
Mali-G52 MC3 |
| Internal memory |
4 GB |
| Processor cores |
8 |
| Processor architecture |
ARM Cortex-A53+Cortex-A72 |
| Processor model |
Rockchip RK3576 |
| Processor family |
ARM Rockchip |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Weight (with stand) |
7.7 kg |
| Height (with stand) |
436 mm |
| Depth (with stand) |
35 mm |
| Width (with stand) |
735 mm |
| Display weight |
7.7 kg |
| Display height |
436 mm |
| Display depth |
35 mm |
| Display width |
735 mm |
| Packaging data |
|---|
| Package weight |
12.4 kg |
| Package height |
508 mm |
| Package depth |
833 mm |
| Package width |
833 mm |
| Packaging content |
|---|
| Cables included |
DC |
| Mounting kit |
Yes |
| Power adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Other features |
|---|
| Quick start guide |
Yes |
| Power supply type |
External |
| Bluetooth version |
5.3 |
| Viewable size, horizontal |
69.8 cm |
| Viewable size, vertical |
39.3 cm |
| Audio output |
Mini jack |
| Cable management |
Yes |
| Bluetooth |
Yes |
