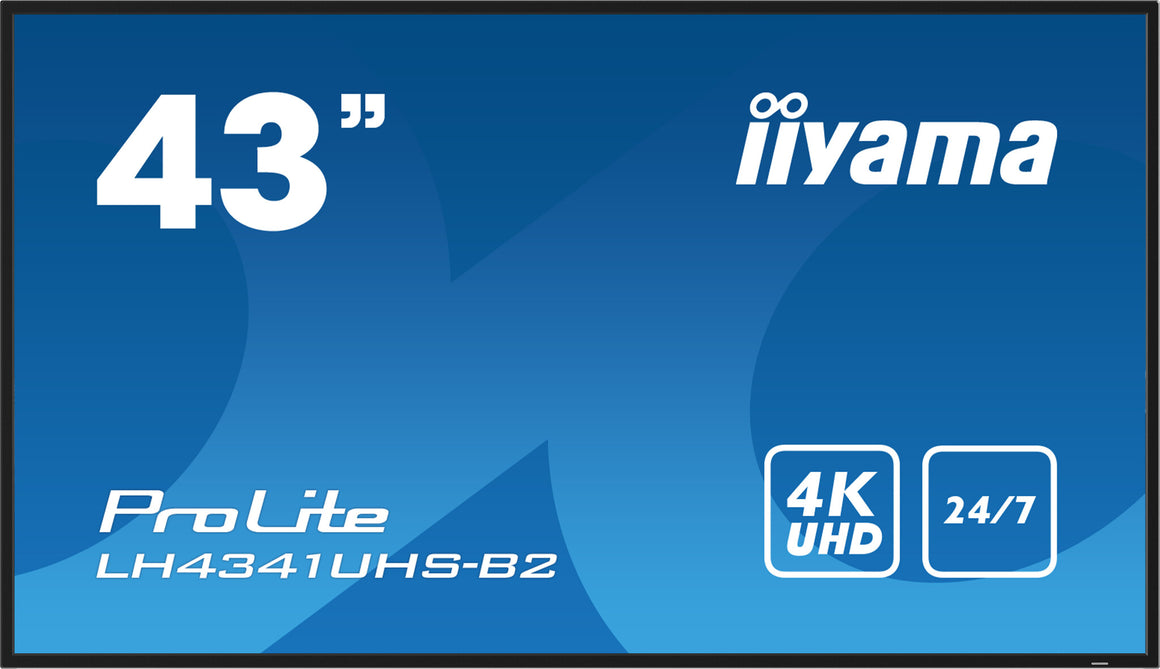

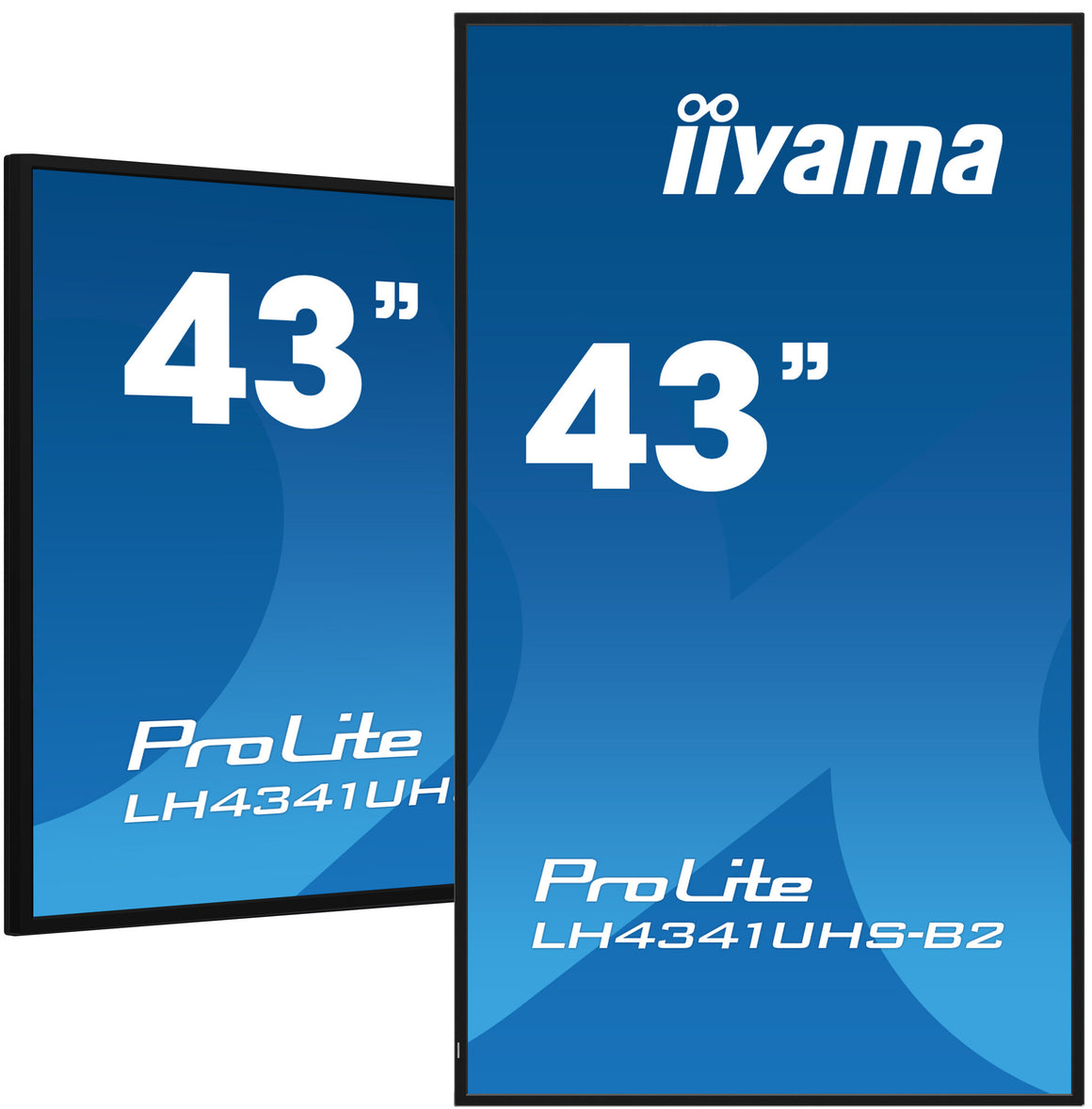

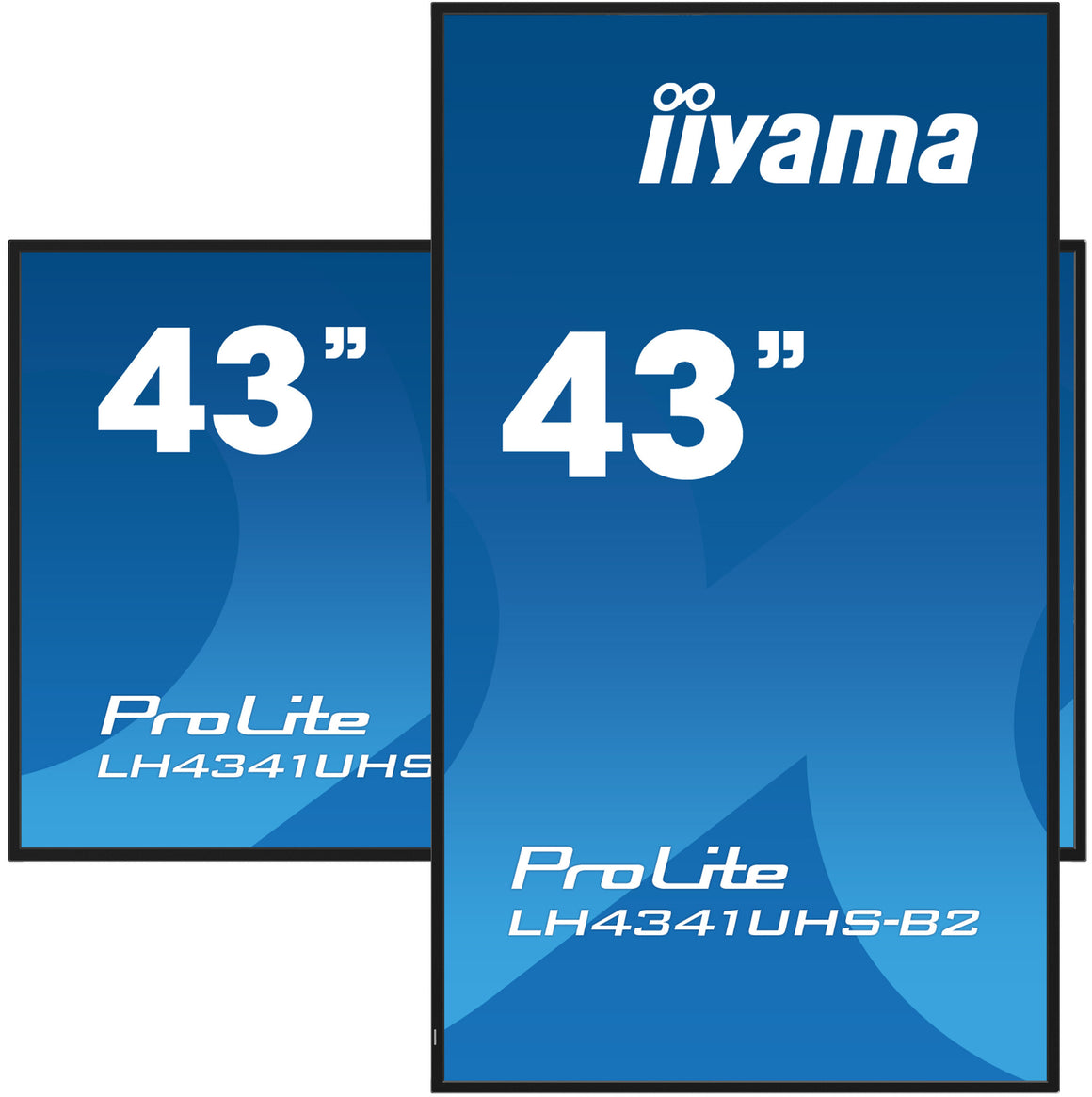

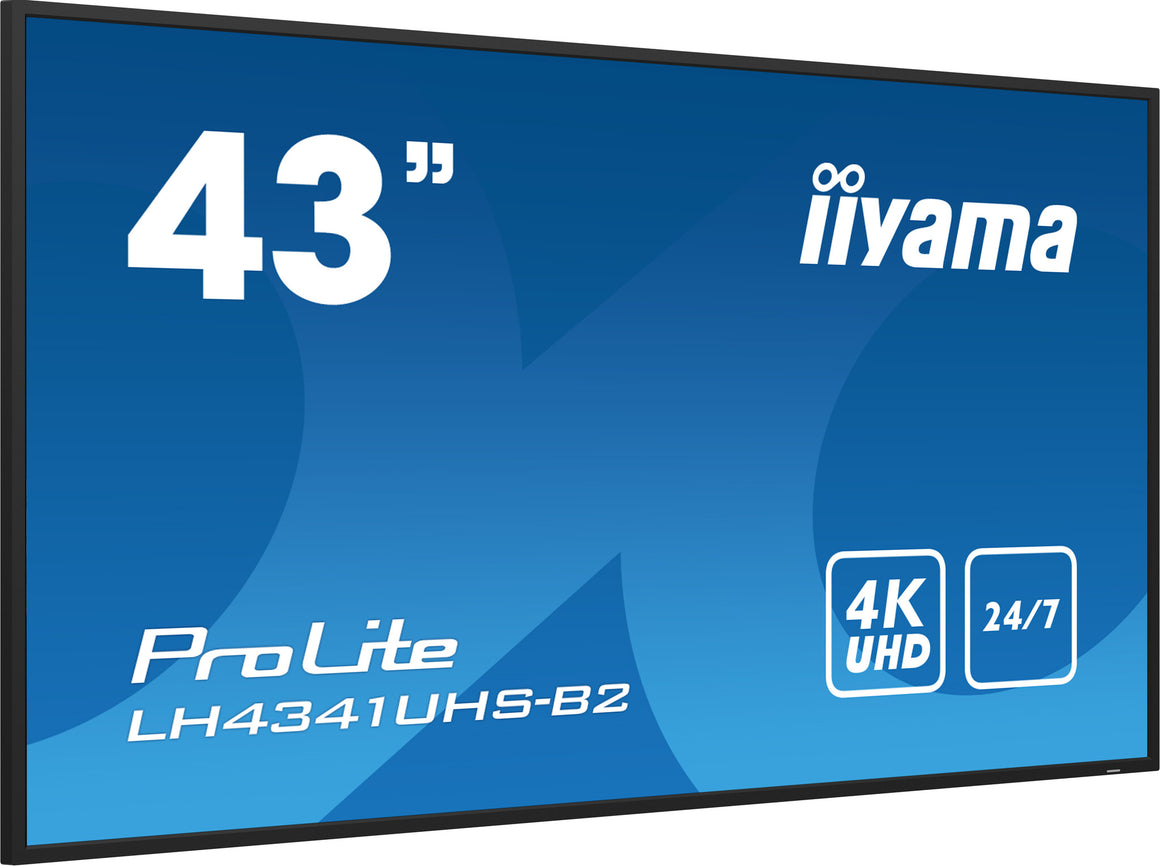

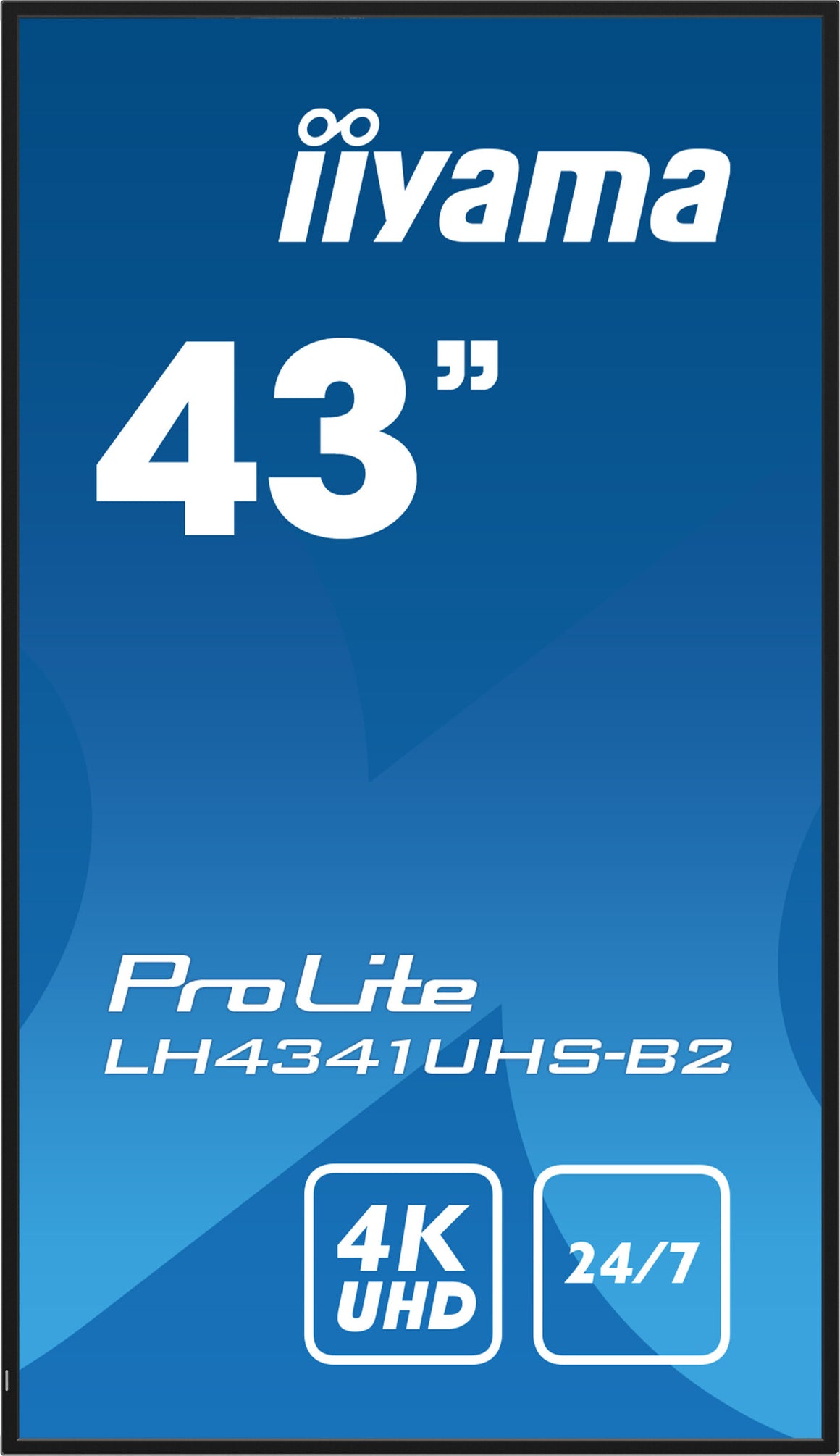

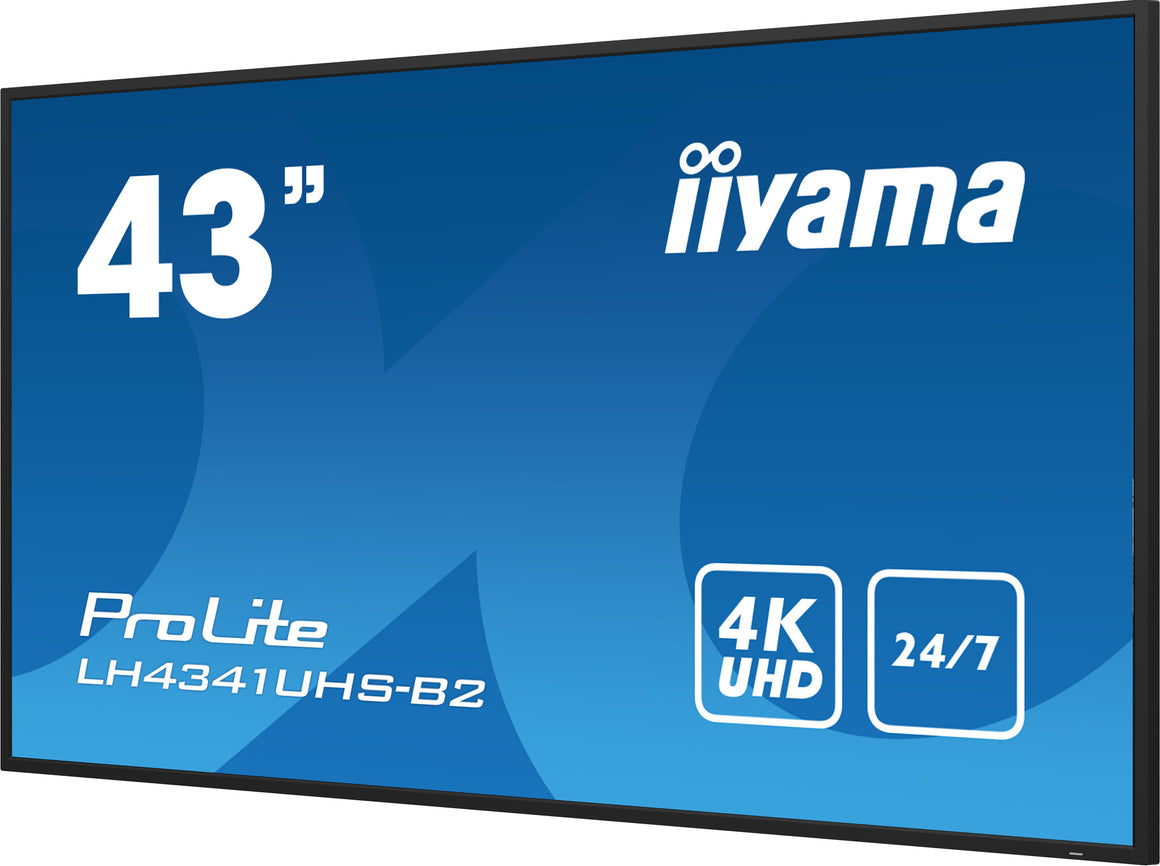

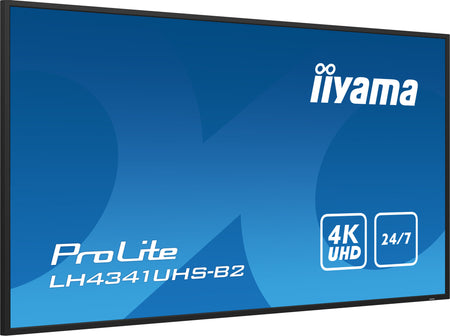

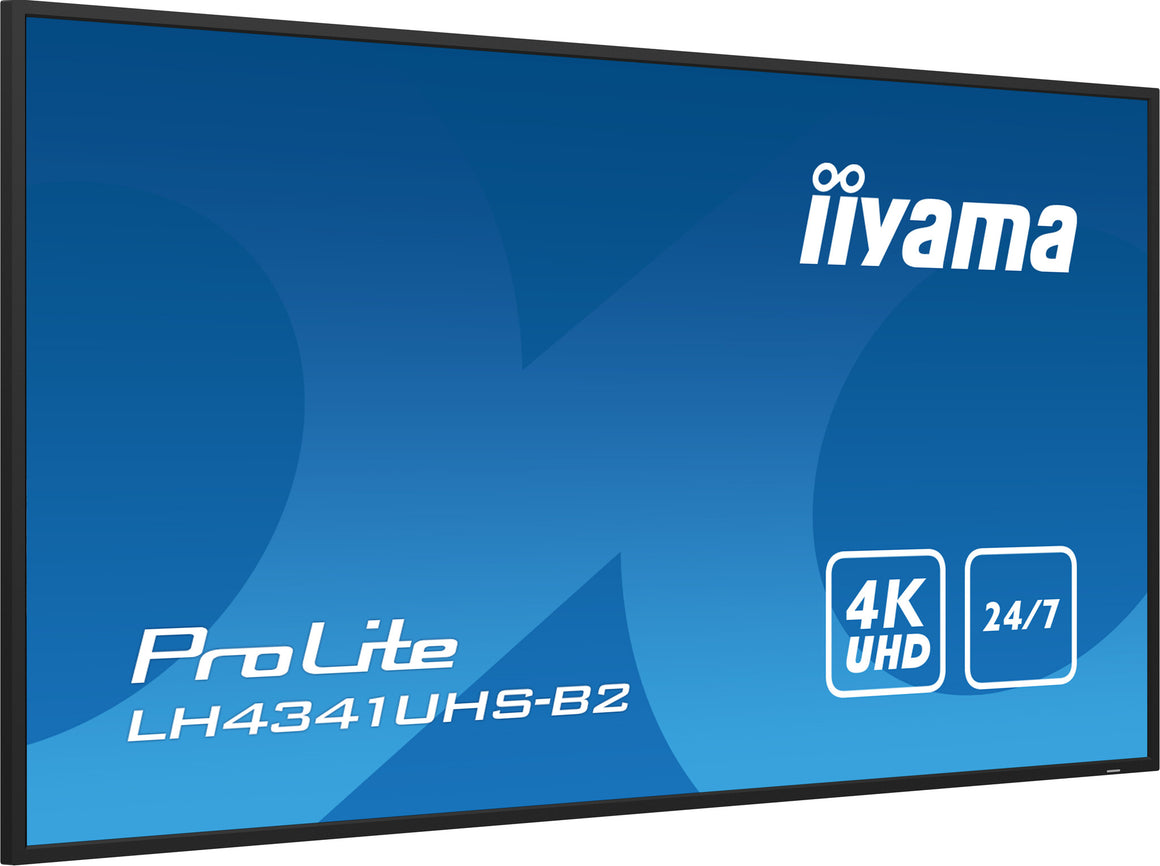

Set in a slim bezel, the iiyama LH4341UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. This 500cd/m² high brightness IPS panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.
| Display |
|---|
| Horizontal scan range |
30 - 80 kHz |
| Haze rate |
1% |
| Display diagonal (metric) |
108 cm |
| Active display area (W x H) |
941.2 x 529.4 mm |
| Pixel pitch |
0.245 x 0.245 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
500 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
IPS |
| Display technology |
LCD |
| Display diagonal |
108 cm (42.5") |
| Ports & interfaces |
|---|
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| PC Audio in |
Yes |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
1 |
| USB port |
Yes |
| DVI port |
Yes |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Bezel colour |
Black |
| Bezel width (top) |
1.4 cm |
| Bezel width (side) |
1.35 cm |
| Bezel width (bottom) |
1.4 cm |
| Panel mounting interface |
200 x 200 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
11 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy efficiency class (SDR) |
G |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
107 W |
| Computer system |
|---|
| Operating system installed |
Android 8.0 |
| Internal storage capacity |
16 GB |
| Internal memory |
2 GB |
| Processor model |
V810 |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Weight |
63.8 kg |
| Height |
1100 mm |
| Depth |
69.5 mm |
| Width |
1929 mm |
| Display weight |
8.9 kg |
| Display height |
557.5 mm |
| Display depth |
54 mm |
| Display width |
968 mm |
| Packaging data |
|---|
| Package height |
683 mm |
| Package depth |
1075 mm |
| Package width |
1075 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI, RS-232 |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Other features |
|---|
| Quick start guide |
Yes |
| Housing material |
Metal |
