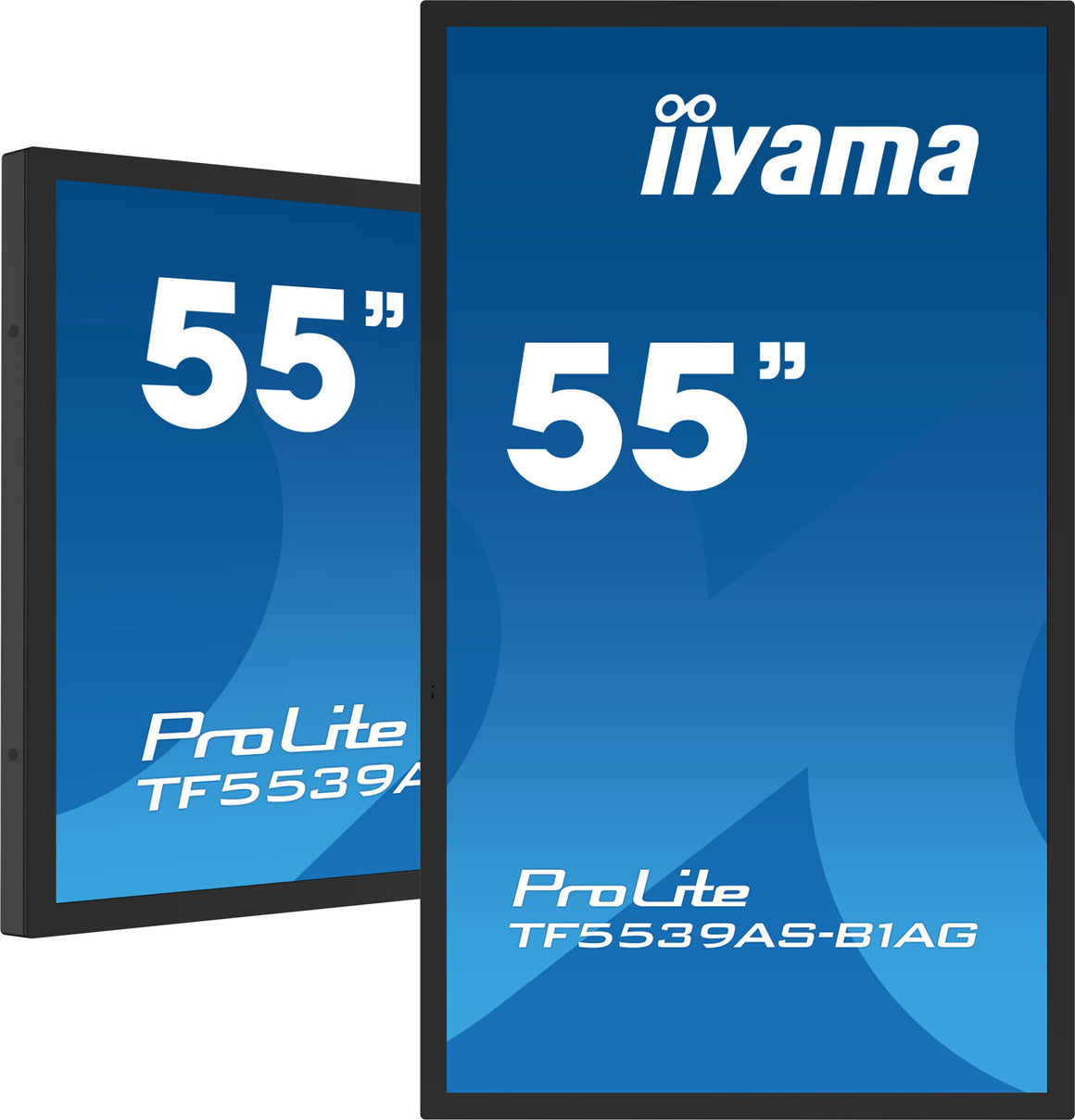

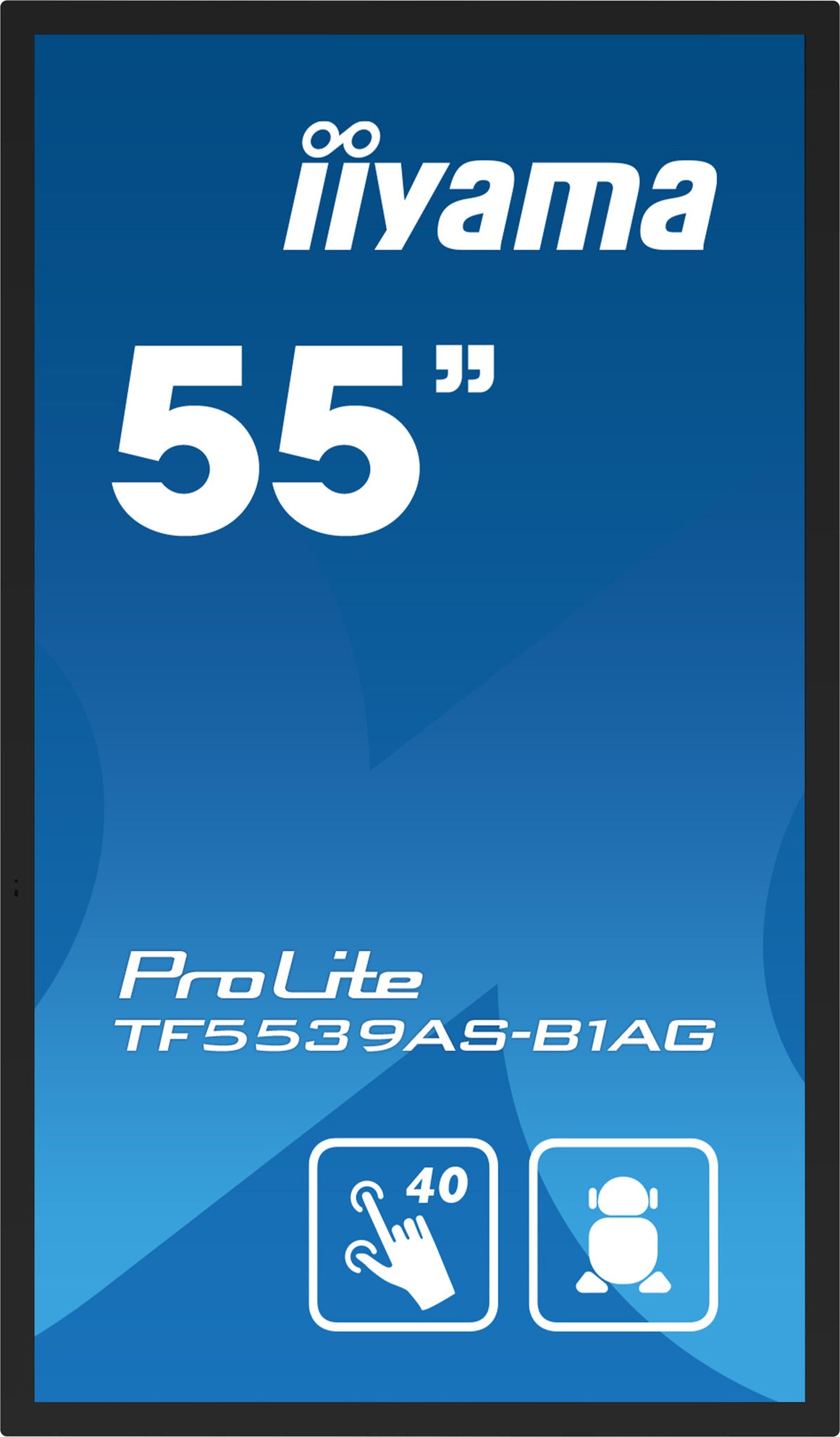

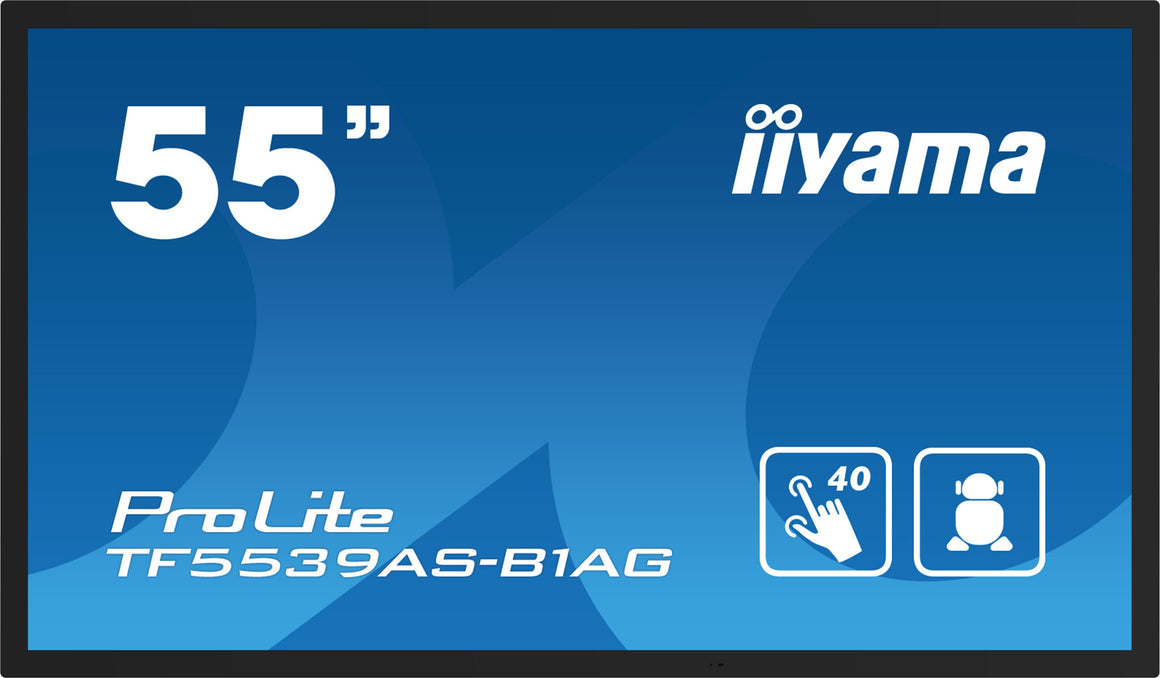

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF5539AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before. For ease of integration, the TF5539AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).
| Display |
|---|
| Native refresh rate |
60 Hz |
| Surface hardness |
7H |
| Glass thickness |
4 mm |
| Horizontal scan range |
28 - 160 kHz |
| Haze rate |
25% |
| Display diagonal (metric) |
139 cm |
| Active display area (W x H) |
1209.6 x 680.4 mm |
| Pixel pitch |
0.315 x 0.315 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Multi-touch |
Yes |
| Number of simultaneous touchpoints |
40 |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen |
Yes |
| HD type |
4K Ultra HD |
| Display brightness |
500 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlight |
Yes |
| Panel type |
IPS |
| Display technology |
LED |
| Display diagonal |
138.7 cm (54.6") |
| Ports & interfaces |
|---|
| RS-232C |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB 2.0 Type-B ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-B |
| USB ports quantity |
3 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| DVI port |
No |
| HDMI version |
2.0 |
| HDMI ports quantity |
2 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Anti-glare screen |
Yes |
| Bezel width (top) |
3 cm |
| Bezel width (side) |
3 cm |
| Bezel width (bottom) |
3 cm |

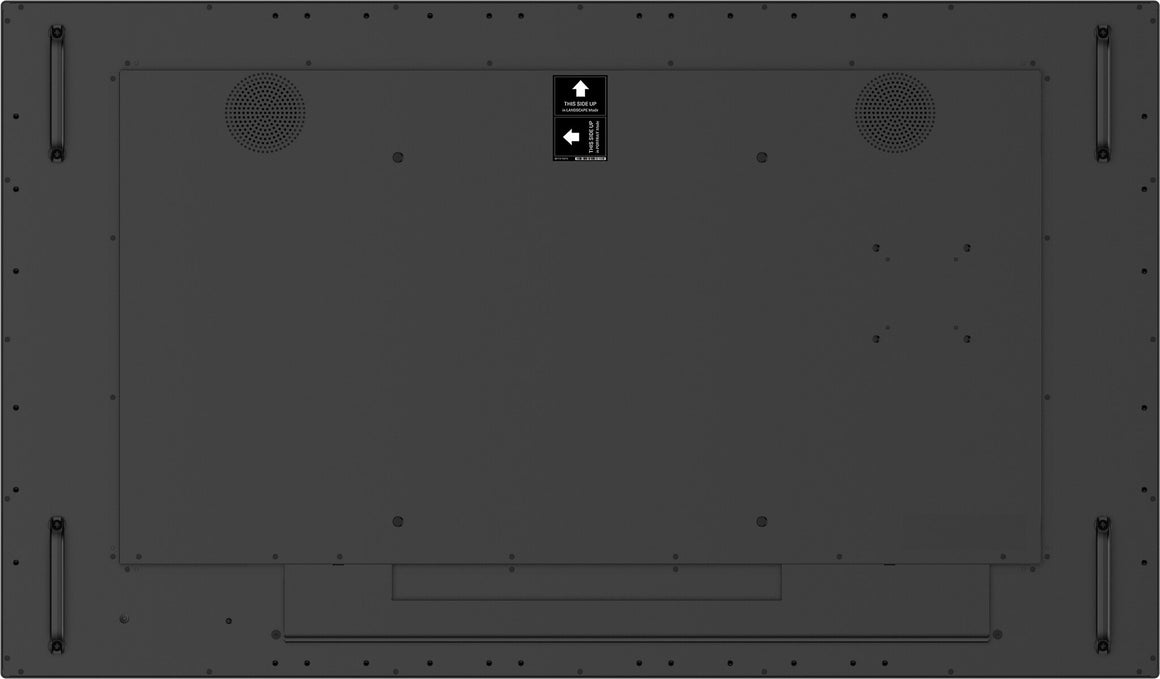

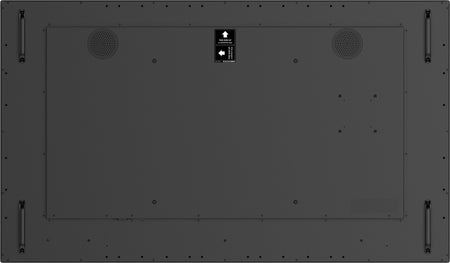

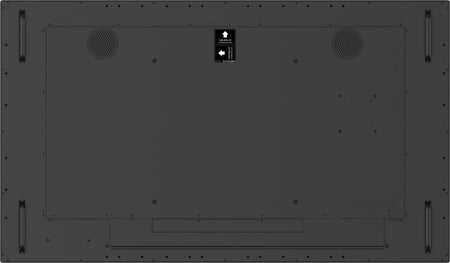

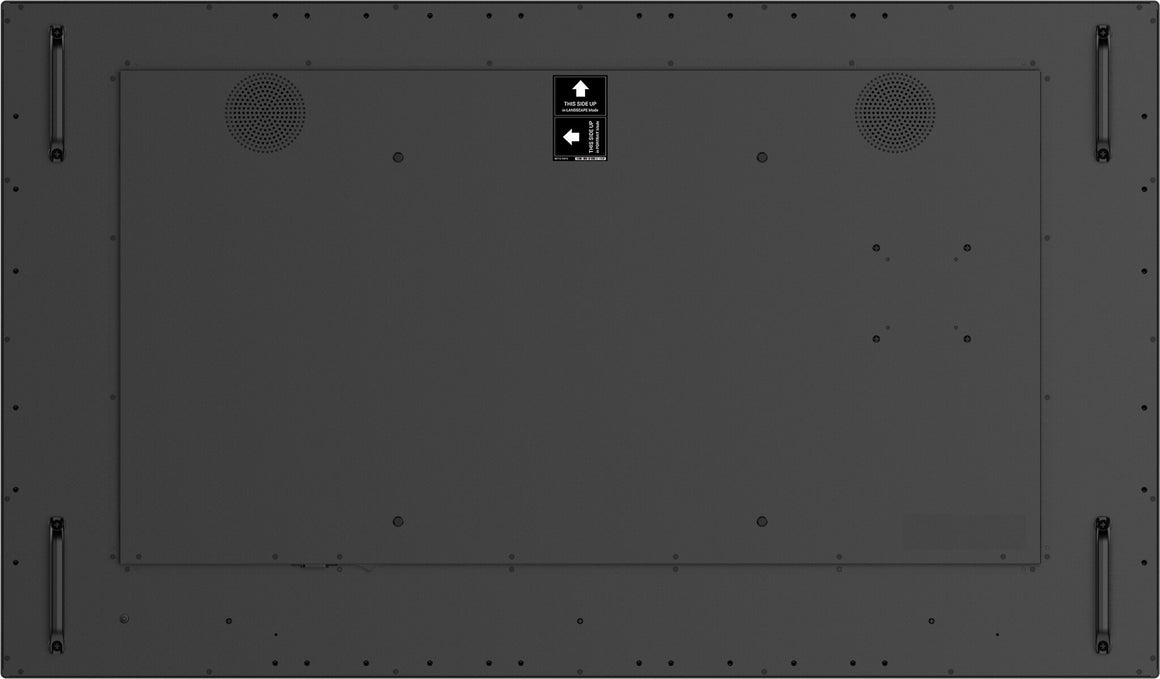

| Panel mounting interface |
400 x 400 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| International Protection (IP) code |
IP65 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
13 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
78 kWh |
| Energy efficiency class (SDR) |
F |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
139 W |
| Computer system |
|---|
| Operating system version |
11 |
| Operating system installed |
Android |
| Internal storage capacity |
32 GB |
| Internal memory |
4 GB |
| Processor architecture |
ARM Cortex-A53+Cortex-A73 |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Weight (with stand) |
39.6 kg |
| Height (with stand) |
744.8 mm |
| Depth (with stand) |
65.2 mm |
| Width (with stand) |
1274 mm |
| Display weight |
39.6 kg |
| Display height |
744.8 mm |
| Display depth |
65.2 mm |
| Display width |
1274 mm |
| Packaging data |
|---|
| Package weight |
47.2 kg |
| Package volume |
47200 cm³ |
| Package height |
894 mm |
| Package depth |
1428 mm |
| Package width |
1428 mm |
| Packaging content |
|---|
| Cables included |
AC, DisplayPort, HDMI, USB |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Other features |
|---|
| Display surface |
Matt |
| Quick start guide |
Yes |
| Power supply type |
Internal |
| Viewable size, horizontal |
121 cm |
| Viewable size, vertical |
68 cm |
| Maximum refresh rate |
60 Hz |
