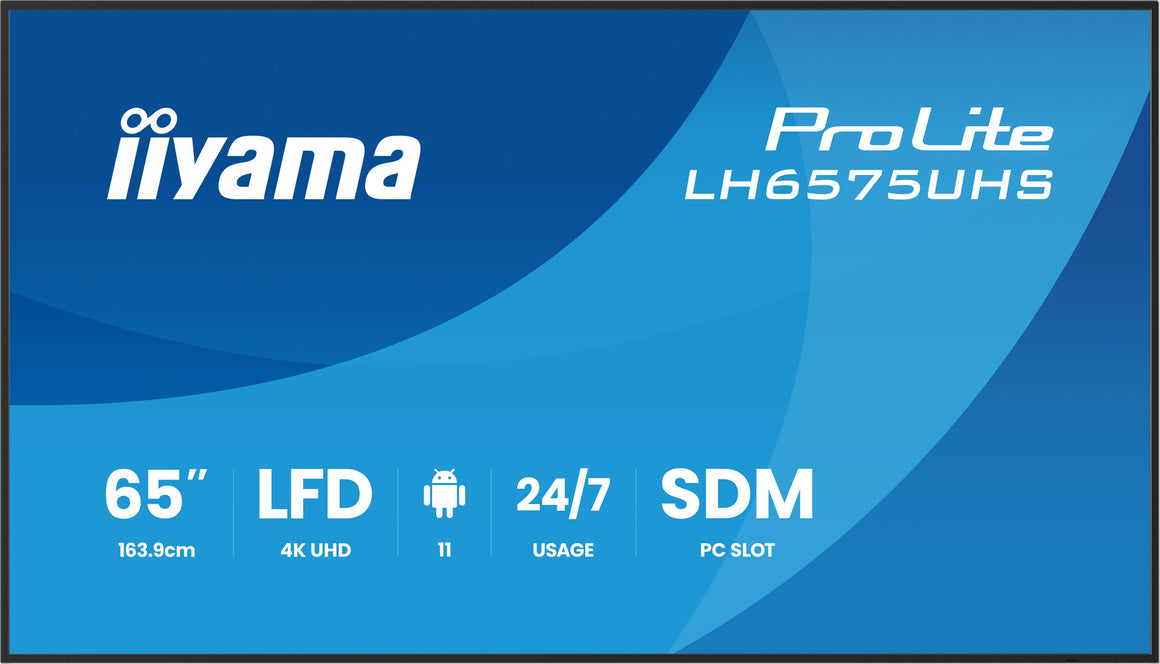

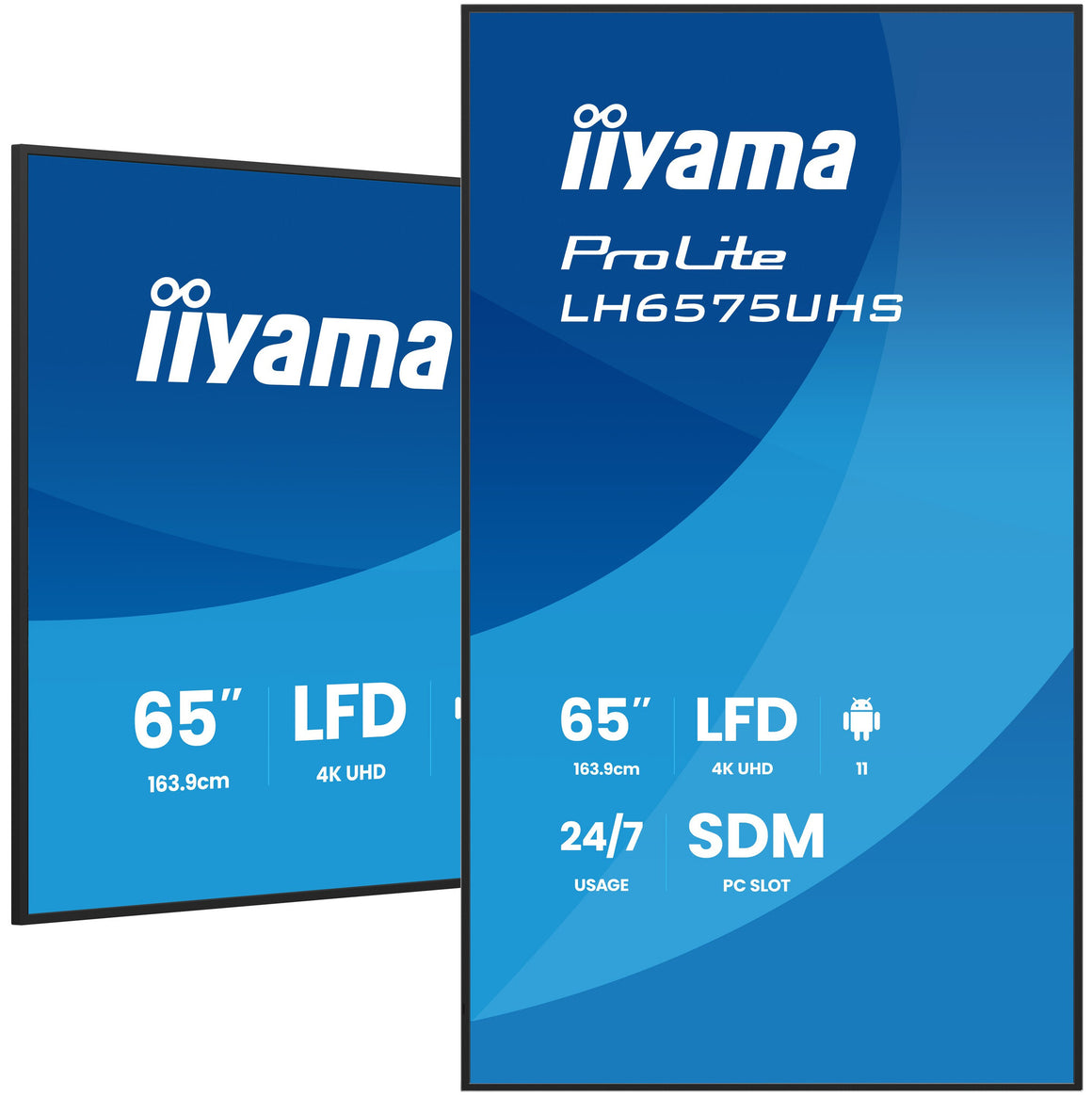

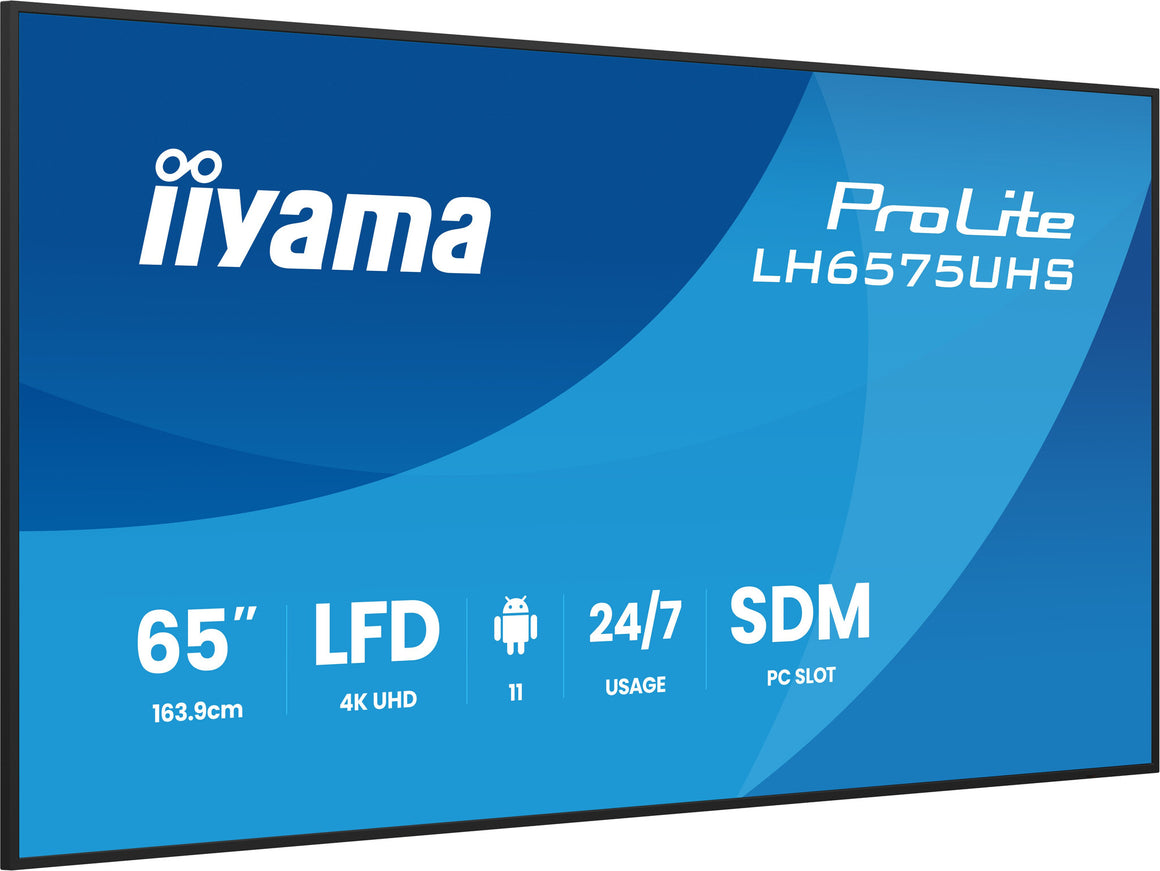

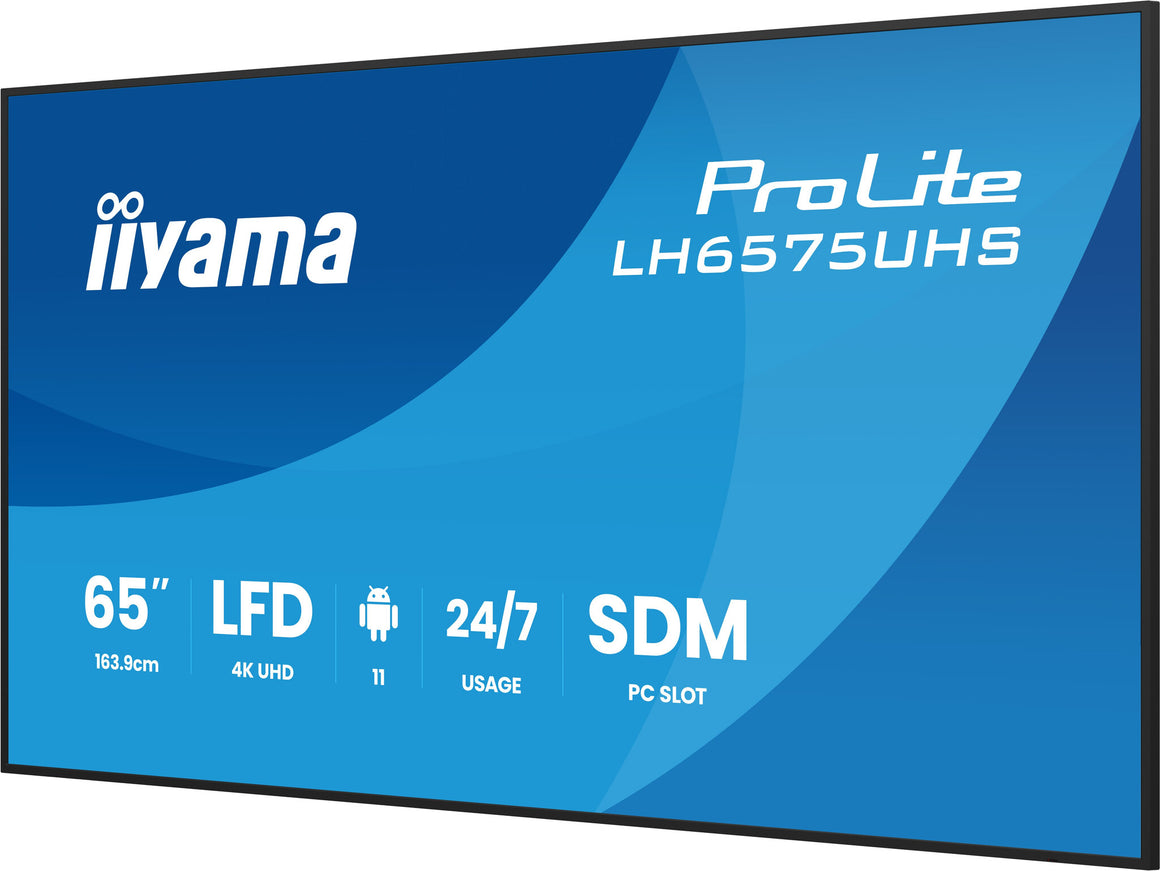

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH6575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. Now the display is also offering DP-Out from any input. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
| Display |
|---|
| Colour gamut |
72% |
| RGB colour space |
NTSC |
| Native refresh rate |
60 Hz |
| Colour depth |
8 bit |
| Horizontal scan range |
28 - 160 kHz |
| Haze rate |
25% |
| Display diagonal (metric) |
164 cm |
| Active display area (W x H) |
1428.5 x 803.5 mm |
| Pixel pitch |
0.372 x 0.372 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
500 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
IPS |
| Display technology |
LCD |
| Display diagonal |
163.8 cm (64.5") |
| Ports & interfaces |
|---|
| Audio Return Channel (ARC) |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| PC Audio in |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Mounting type |
Wall |
| Anti-glare screen |
Yes |
| Bezel colour |
Black |
| Bezel width (top) |
1.45 cm |
| Bezel width (side) |
1.4 cm |
| Bezel width (bottom) |
1.45 cm |
| Panel mounting interface |
400 x 400 mm |
| VESA mounting |
Yes |

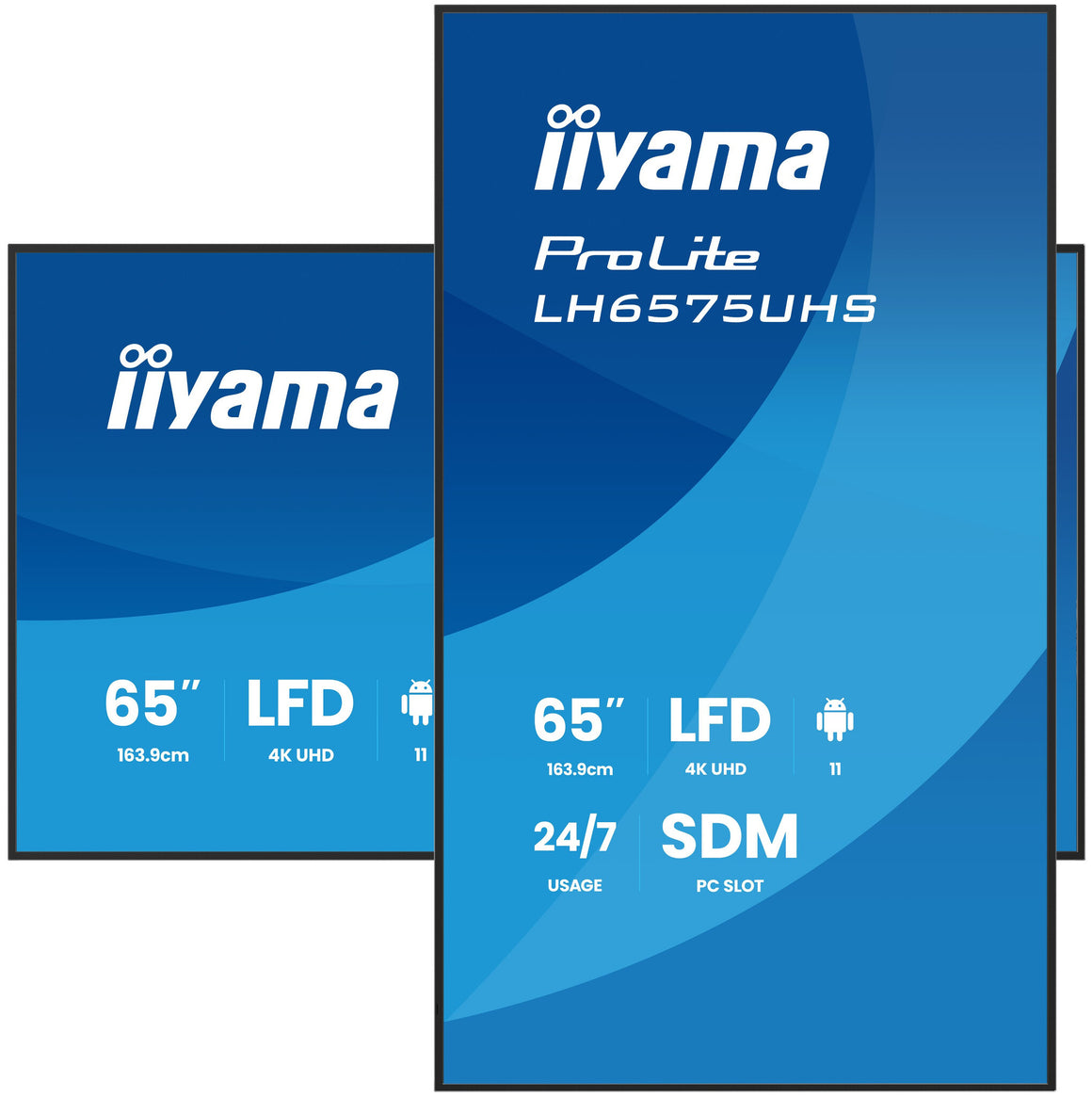

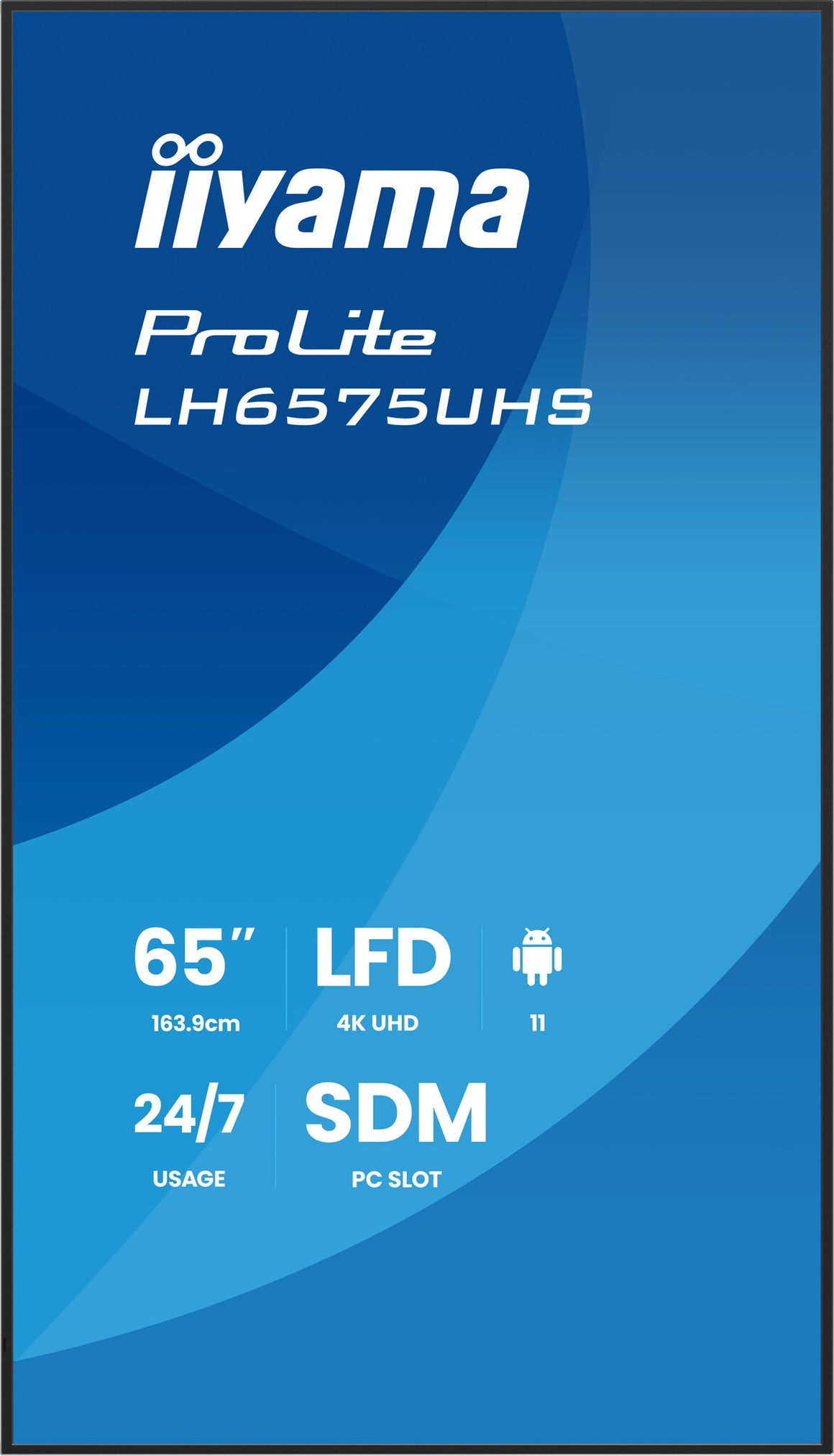

| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
44000 h |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
15 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
172 kWh |
| Energy efficiency class (SDR) |
G |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
172 W |
| Computer system |
|---|
| Operating system installed |
Android 11 |
| Internal storage capacity |
32 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
4 GB |
| Processor architecture |
ARM Cortex-A53+Cortex-A73 |
| Processor family |
ARM Cortex |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
21.2 kg |
| Display height |
832.5 mm |
| Display depth |
56 mm |
| Display width |
1456.5 mm |
| Packaging data |
|---|
| Package weight |
29.2 kg |
| Package height |
1016 mm |
| Package depth |
1645 mm |
| Package width |
1645 mm |
| Packaging content |
|---|
| Cables included |

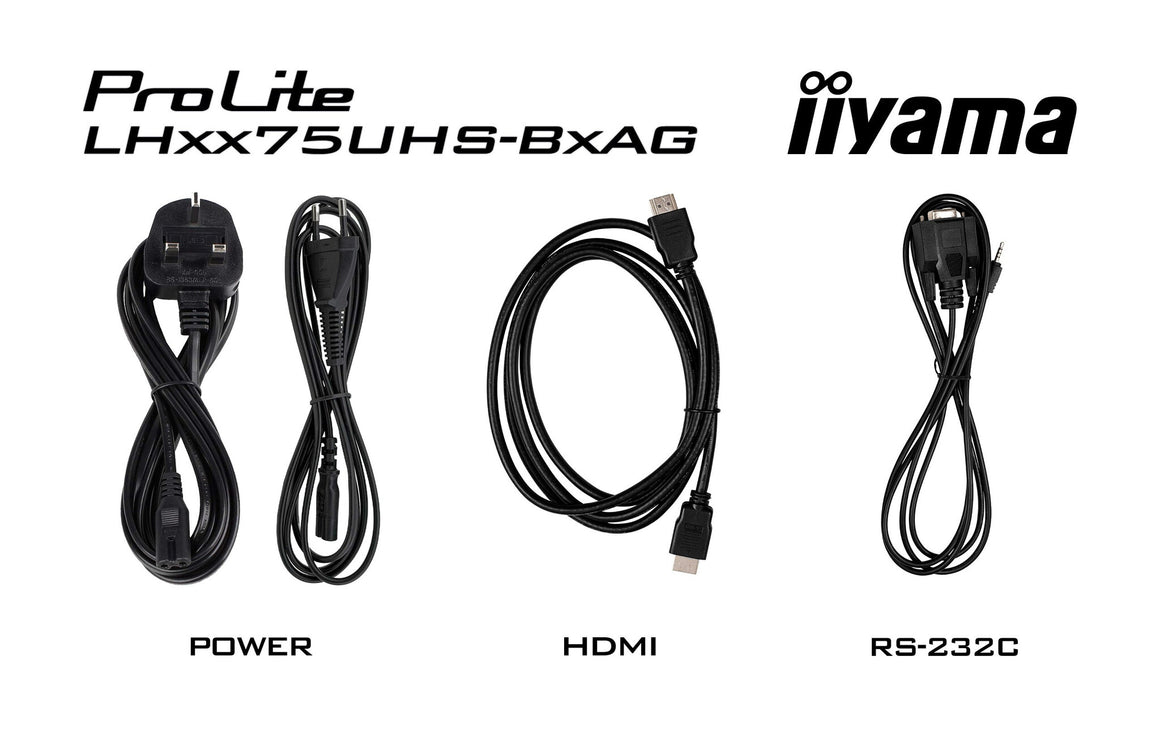

AC, HDMI, RS-232 |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Other features |
|---|
| Plug and Play |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Quick start guide |
Yes |
| Housing material |
Metal |
| Audio output |
3.5mm |
