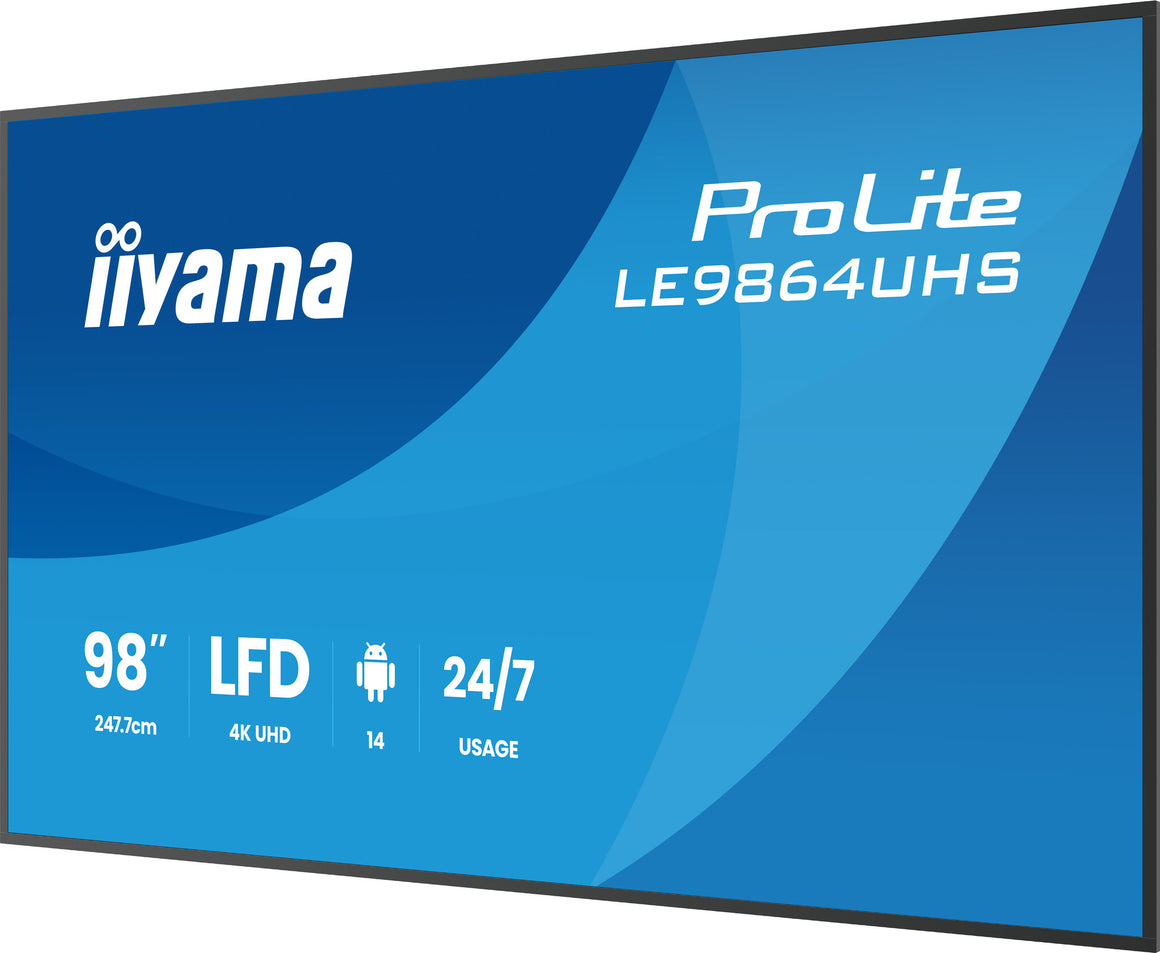

The ProLite LE9864UHS-B1AG is a 98" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness.
| Display |
|---|
| Native refresh rate |
60 Hz |
| Horizontal scan range |
57 - 62 kHz |
| Haze rate |
25% |
| Number of displays |
1 |
| Display diagonal (metric) |
247.7 cm |
| Active display area (W x H) |
2158.8 x 1214.4 mm |
| Pixel pitch |
0.487 x 0.487 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
5000:1 |
| Response time |
6.5 ms |
| Native aspect ratio |
16:9 |
| HD type |
4K Ultra HD |
| Display brightness |
500 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
VA |
| Display diagonal |
2.49 m (98") |

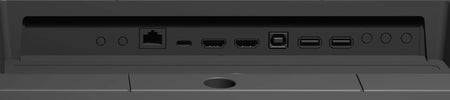

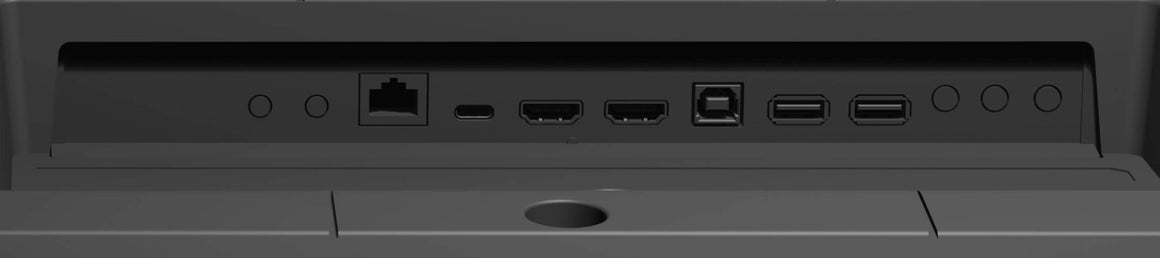

| Ports & interfaces |
|---|
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery up to |
15 W |
| USB Power Delivery (USB PD) |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| USB port |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
2 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Mounting type |
Wall |
| Anti-glare screen |
Yes |
| Bezel colour |
Black |
| Bezel width (top) |
2.18 cm |
| Bezel width (side) |
2.15 cm |
| Bezel width (bottom) |
2.18 cm |

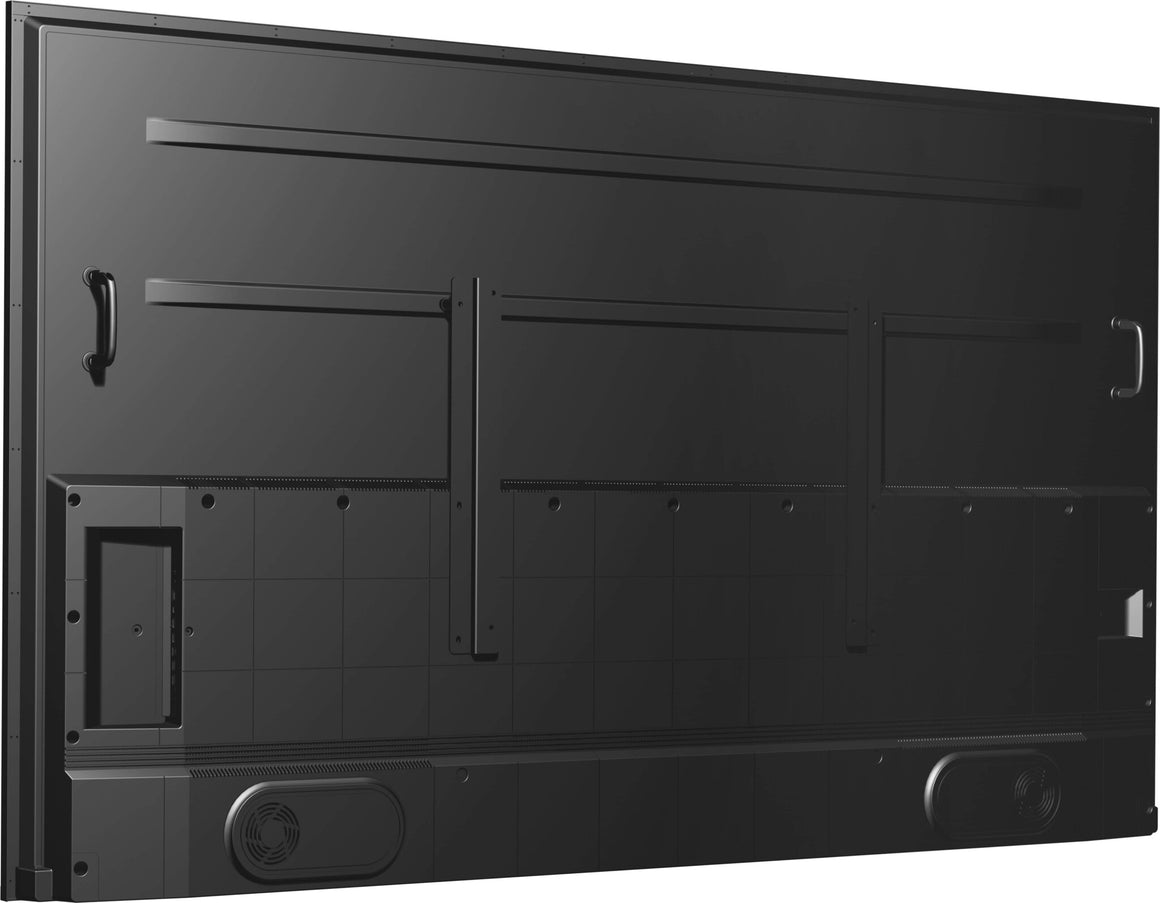

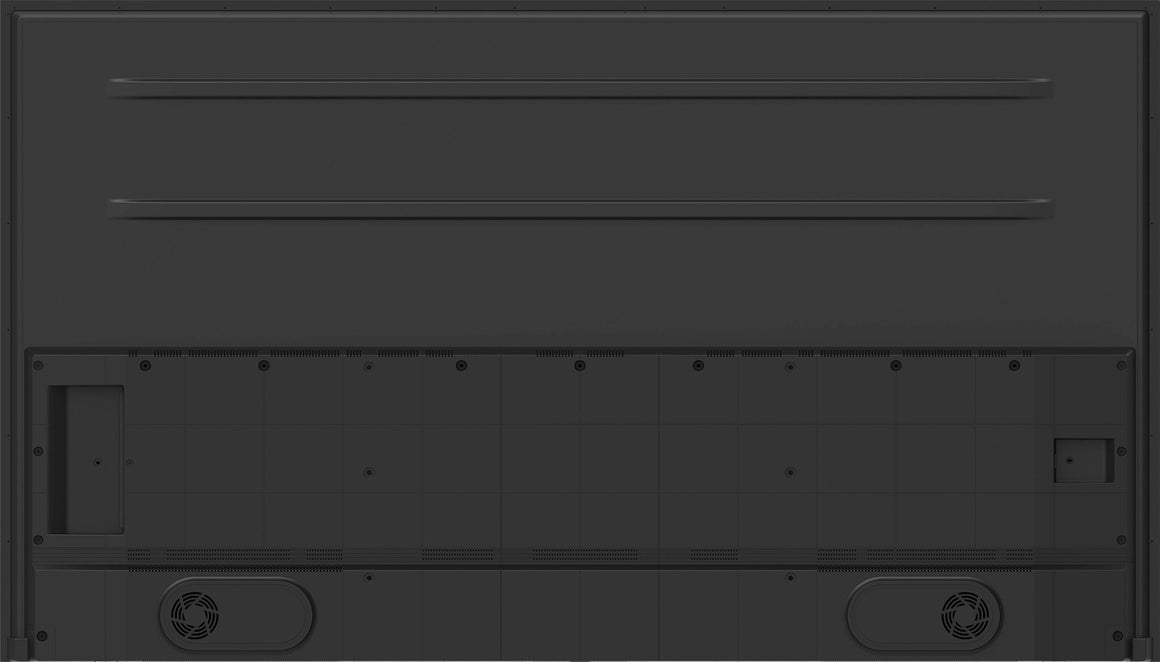

| Panel mounting interface |
700 x 500 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
1.4/2.0 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
15 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Slovenian |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
388 kWh |
| Energy efficiency class (SDR) |
G |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
388 W |
| Computer system |
|---|
| Operating system version |
14 |
| Operating system installed |
Android |
| Internal storage capacity |
32 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
4 GB |
| Processor architecture |
ARM Cortex-A73 |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
61 kg |
| Display height |
1257.7 mm |
| Display depth |
110.5 mm |
| Display width |
2202 mm |
| Packaging data |
|---|
| Package weight |
77.9 kg |
| Package height |
1500 mm |
| Package depth |
2390 mm |
| Package width |
2390 mm |
| Packaging content |
|---|

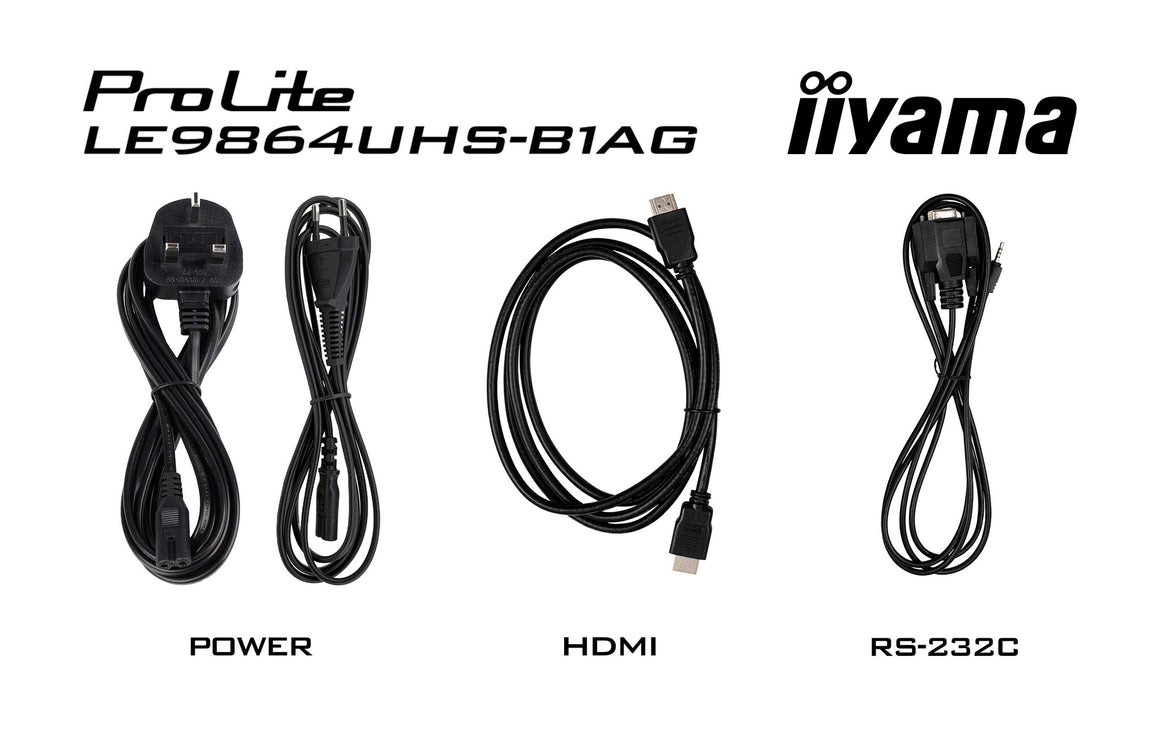

| Cables included |
HDMI, Power, RS-232 |
| Mounting kit |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
