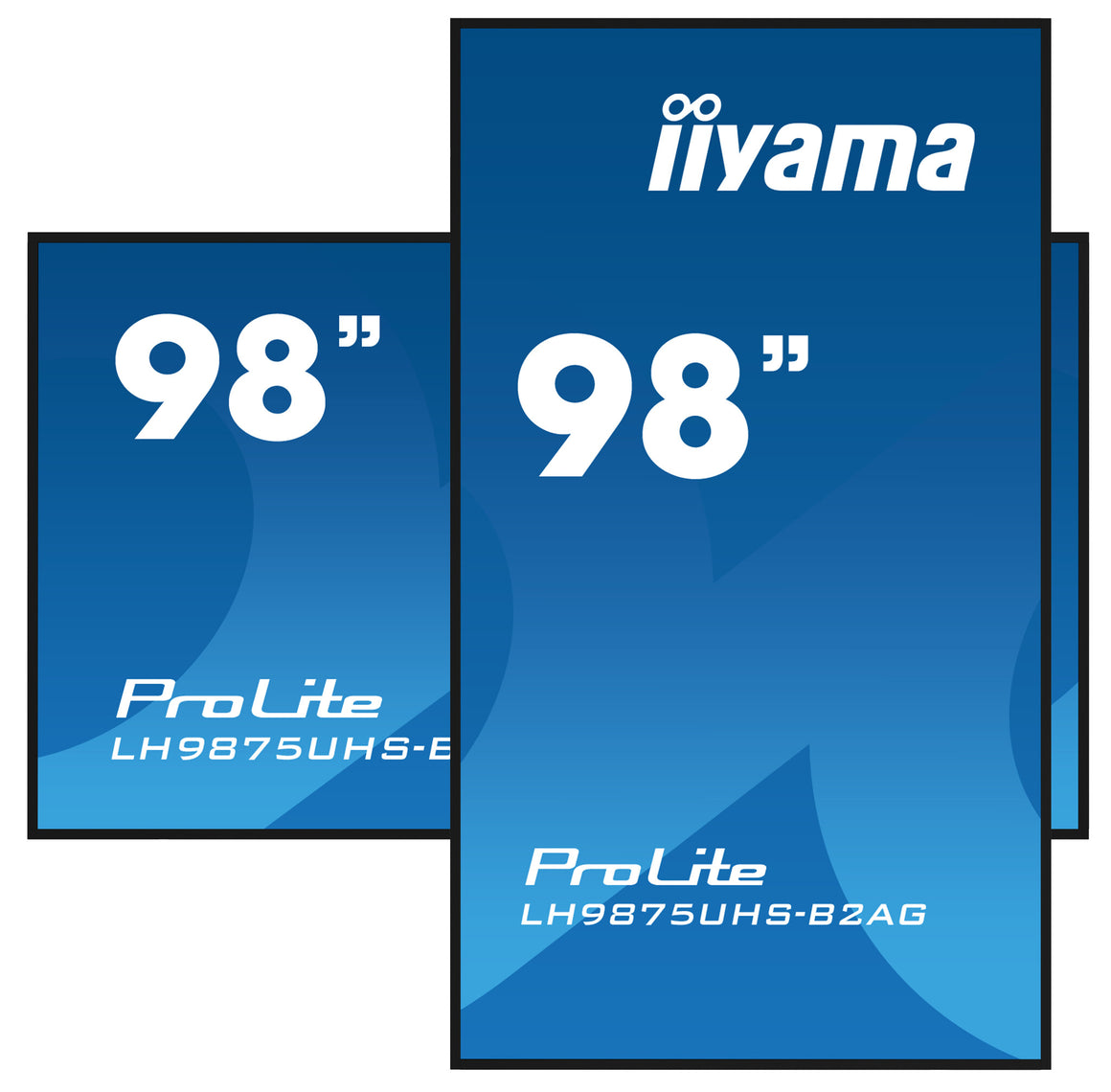

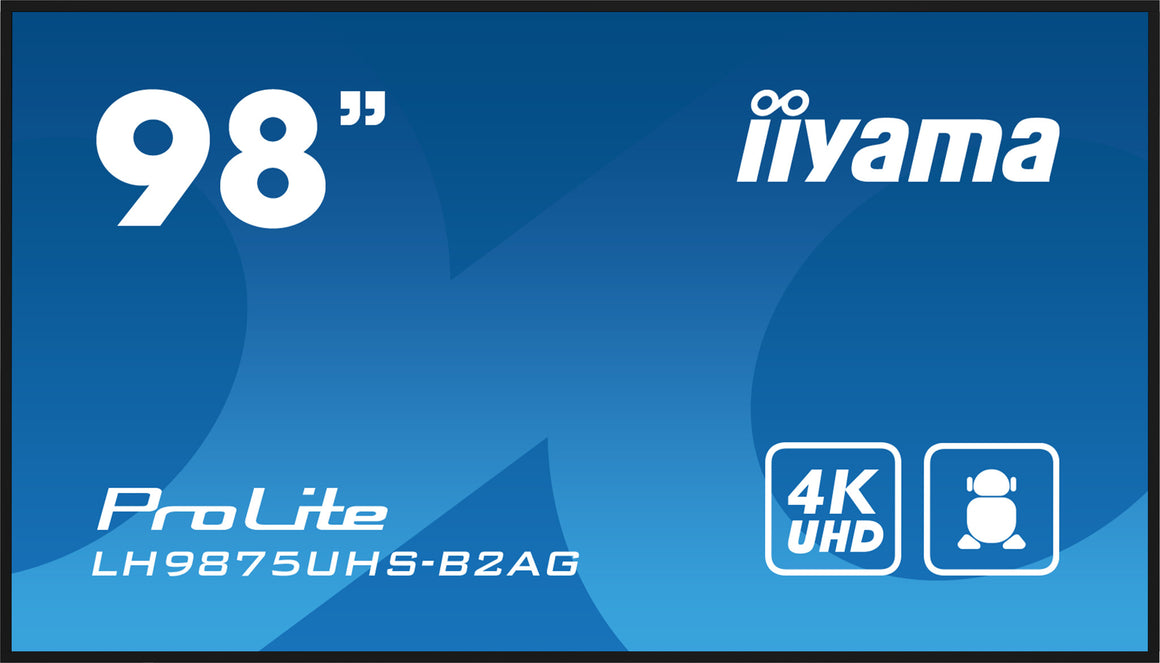

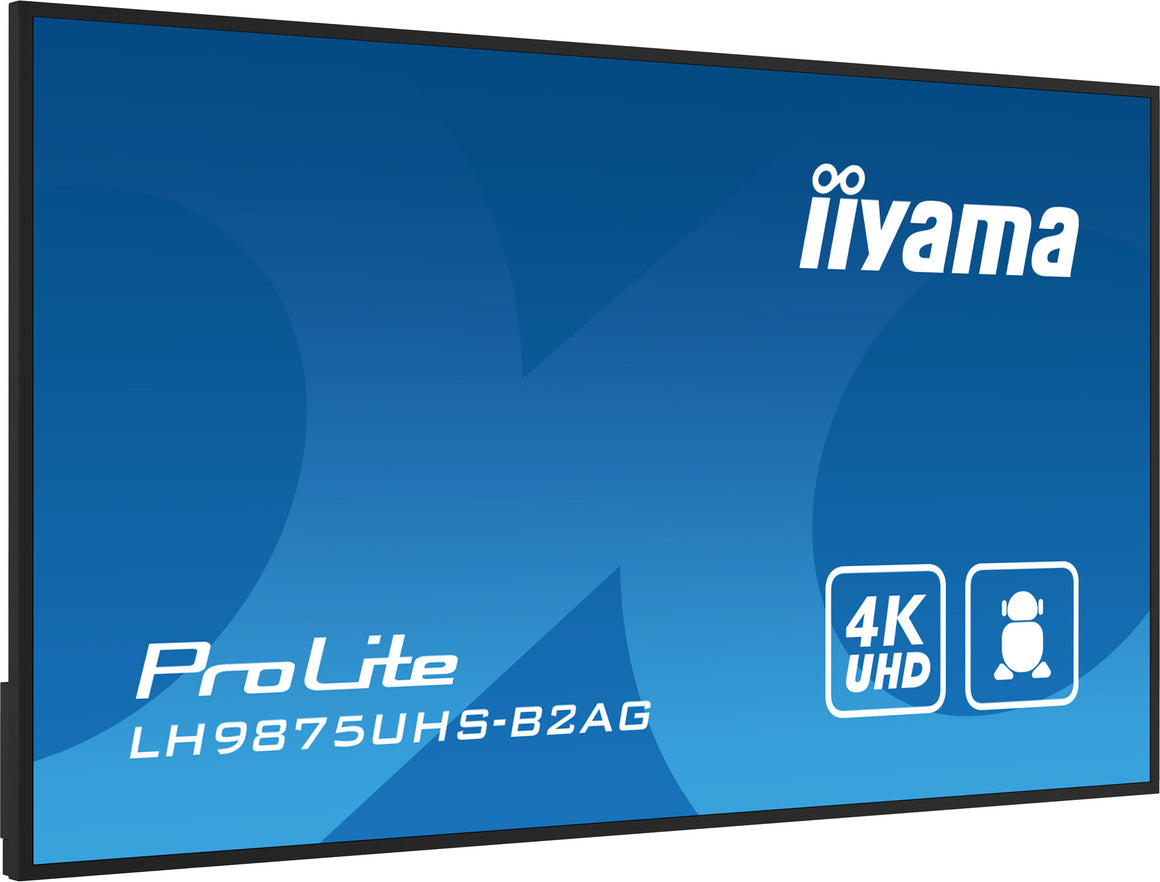

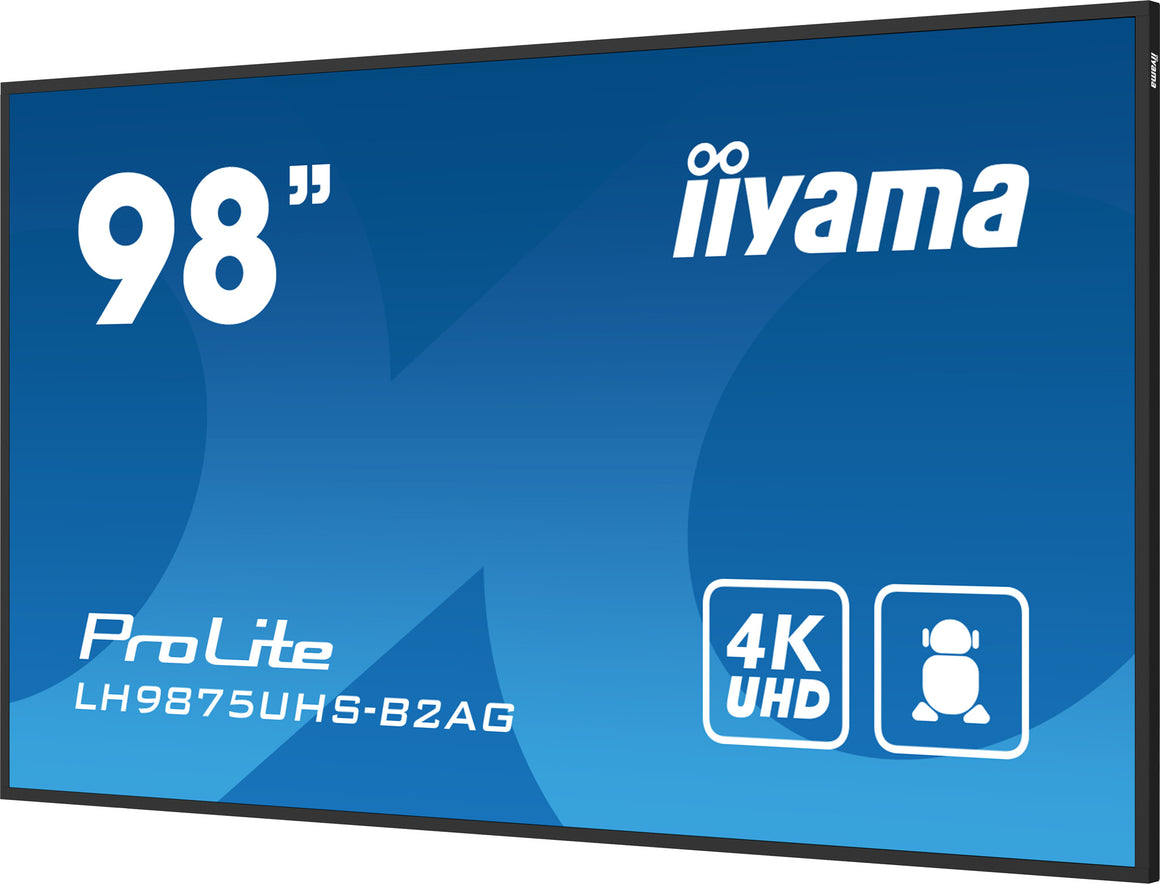

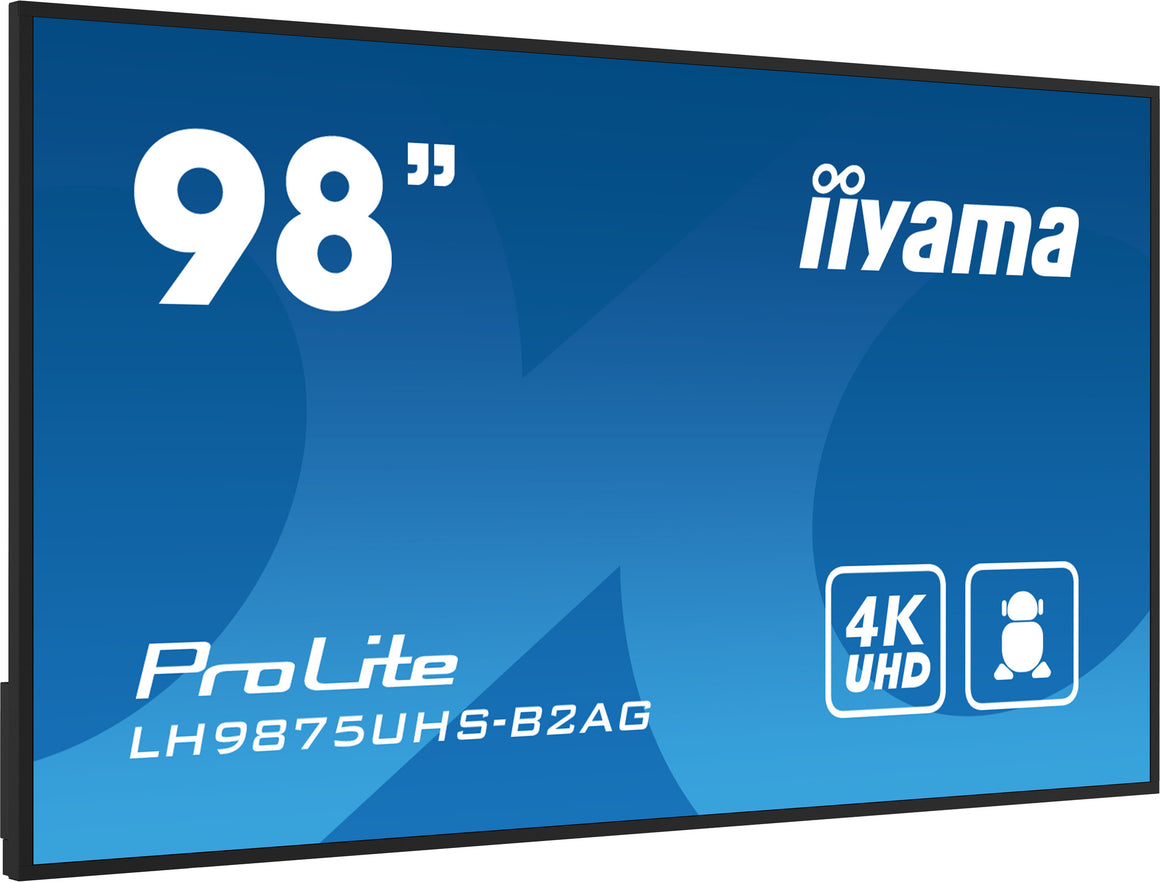

Choose non-stop high performance and uninterrupted reliability with the ideal all-in-one signage solution for mission critical environments. This 500cd/m² high brightness display featuring on-board Android 11 OS offers a straightforward user experience, making content creation, management, and sharing a breeze. The OPS PC Slot provides an embedded PC option for total flexibility, security and control. WiFi enabled, the LH9875UHS-B2AG is ready for remote content delivery using your network or you can choose to utilise LAN control. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before. Its versatile orientation, sleek design, and 24/7 reliability ensures seamless integration into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH9875UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.
| Display |
|---|
| Native refresh rate |
60 Hz |
| Horizontal scan range |
28 - 160 kHz |
| Haze rate |
25% |
| Display diagonal (metric) |
247.7 cm |
| Active display area (W x H) |
2159 x 1214 mm |
| Pixel pitch |
0.562 x 0.562 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
500 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
IPS |
| Display technology |
LED |
| Display diagonal |
2.48 m (97.5") |

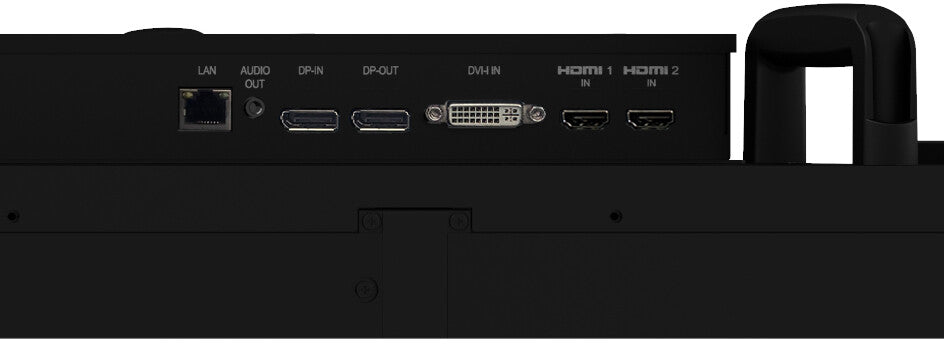

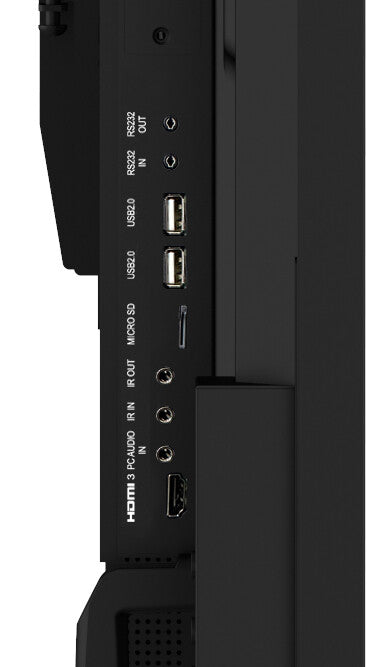

| Ports & interfaces |
|---|
| OPS module slot |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| Audio (L/R) out |
1 |
| Audio (L/R) in |
1 |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| USB port |
Yes |
| DisplayPorts out |
1 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) input ports |
1 |
| DVI-I ports quantity |
1 |
| DVI port |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
32 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Anti-glare screen |
Yes |
| Bezel colour |
Black |
| Bezel width (top) |
2.33 cm |
| Bezel width (side) |
2.3 cm |
| Bezel width (bottom) |
2.33 cm |

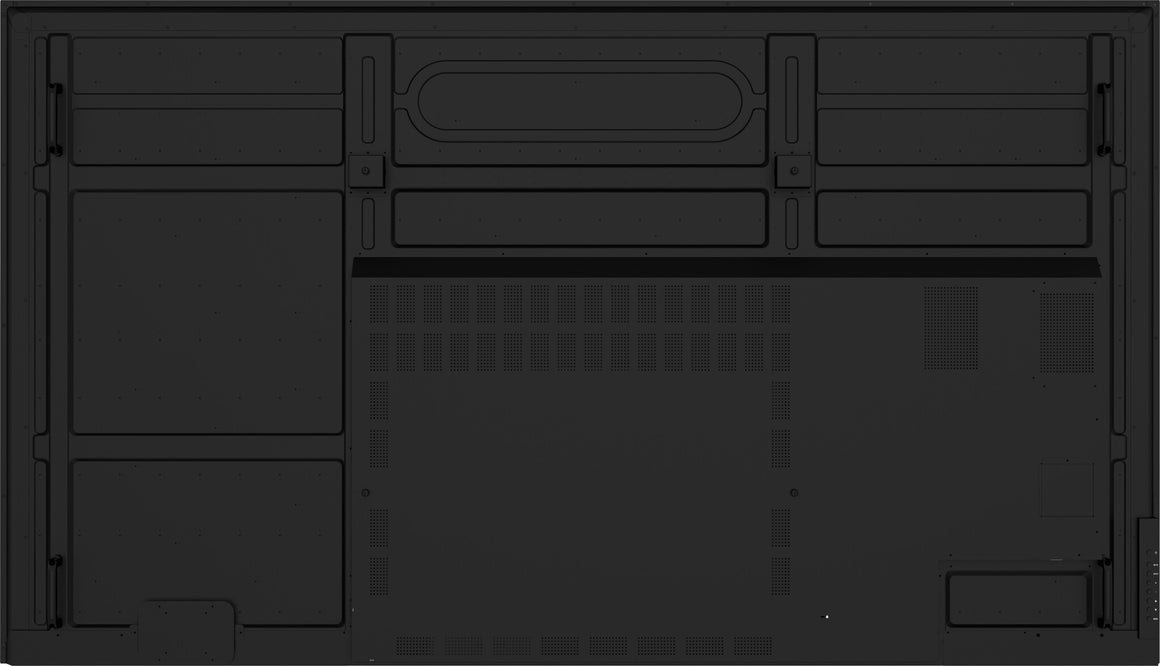

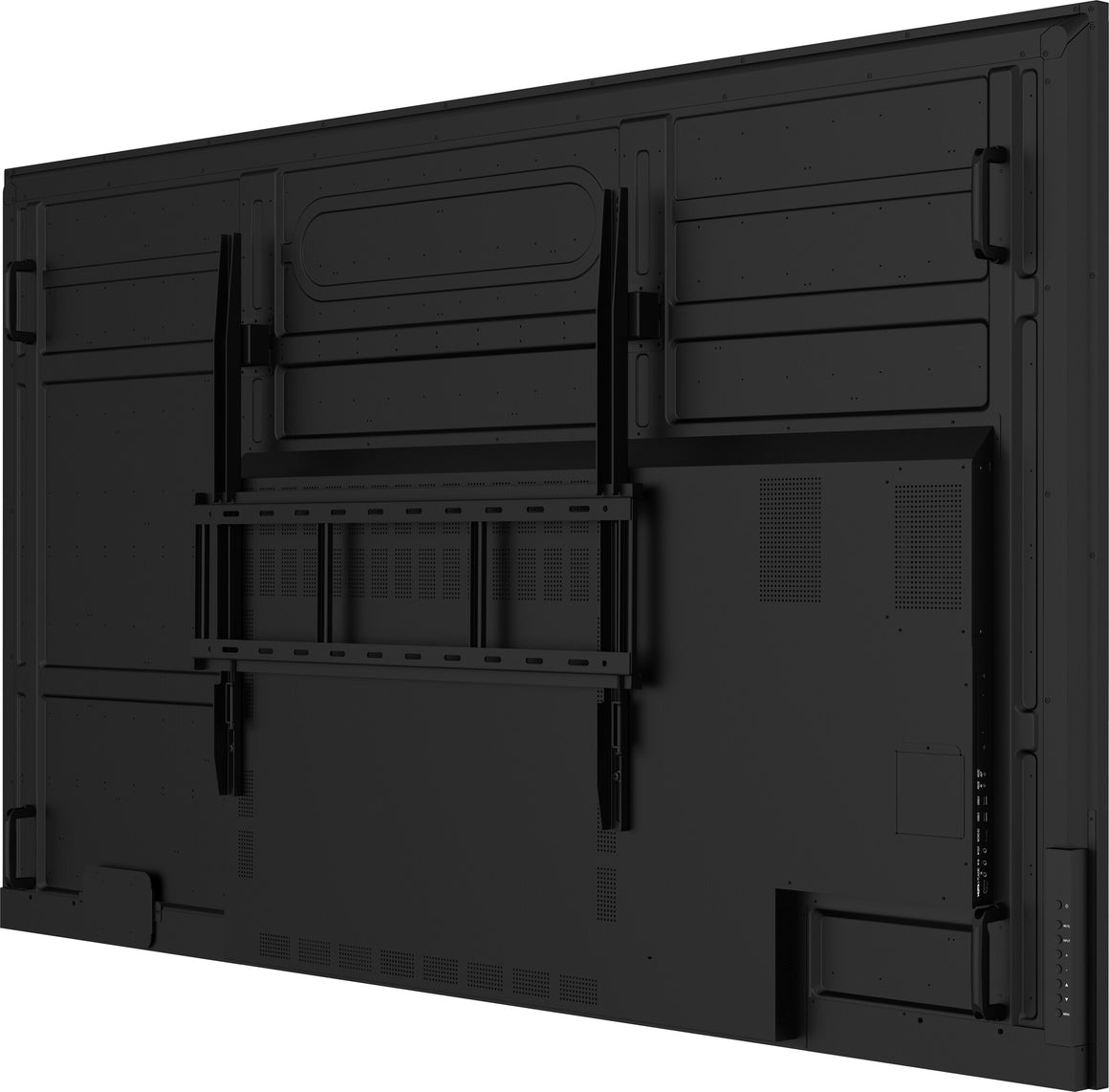

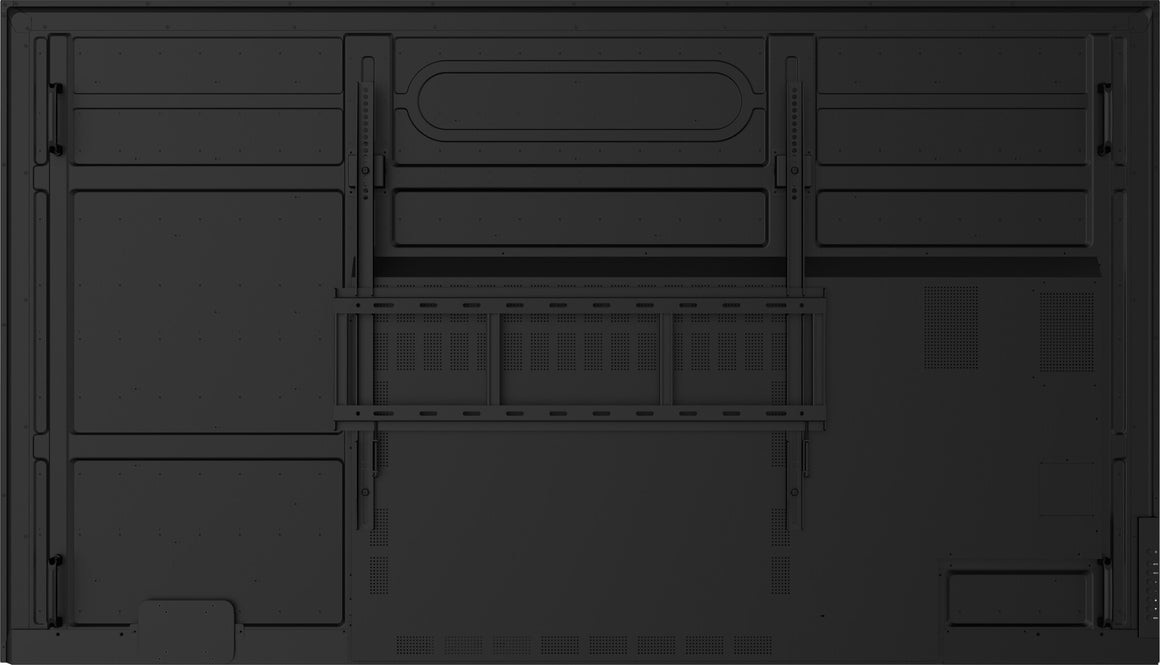

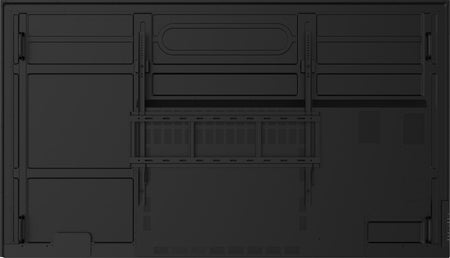

| Panel mounting interface |
800 x 600 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |

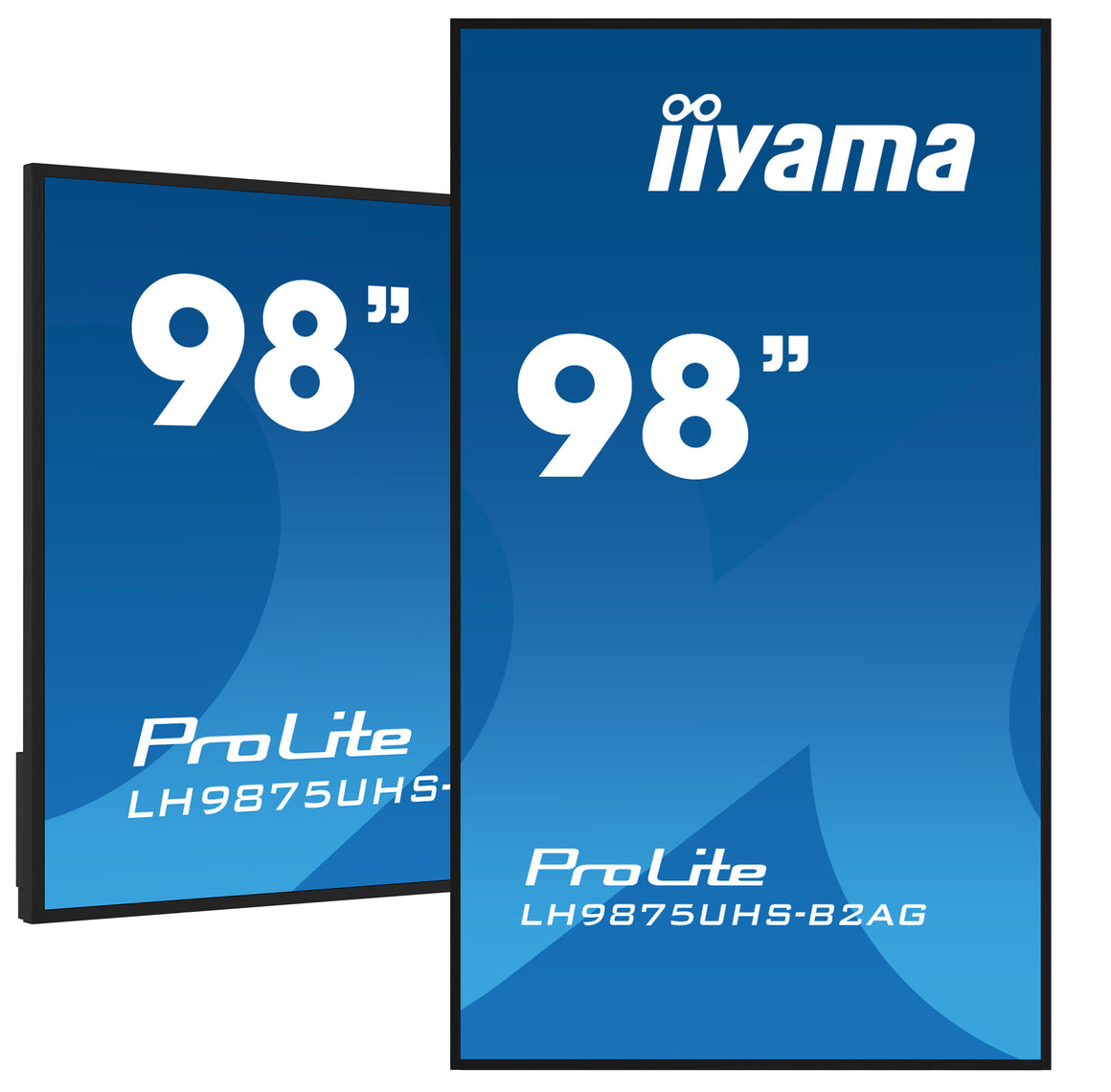

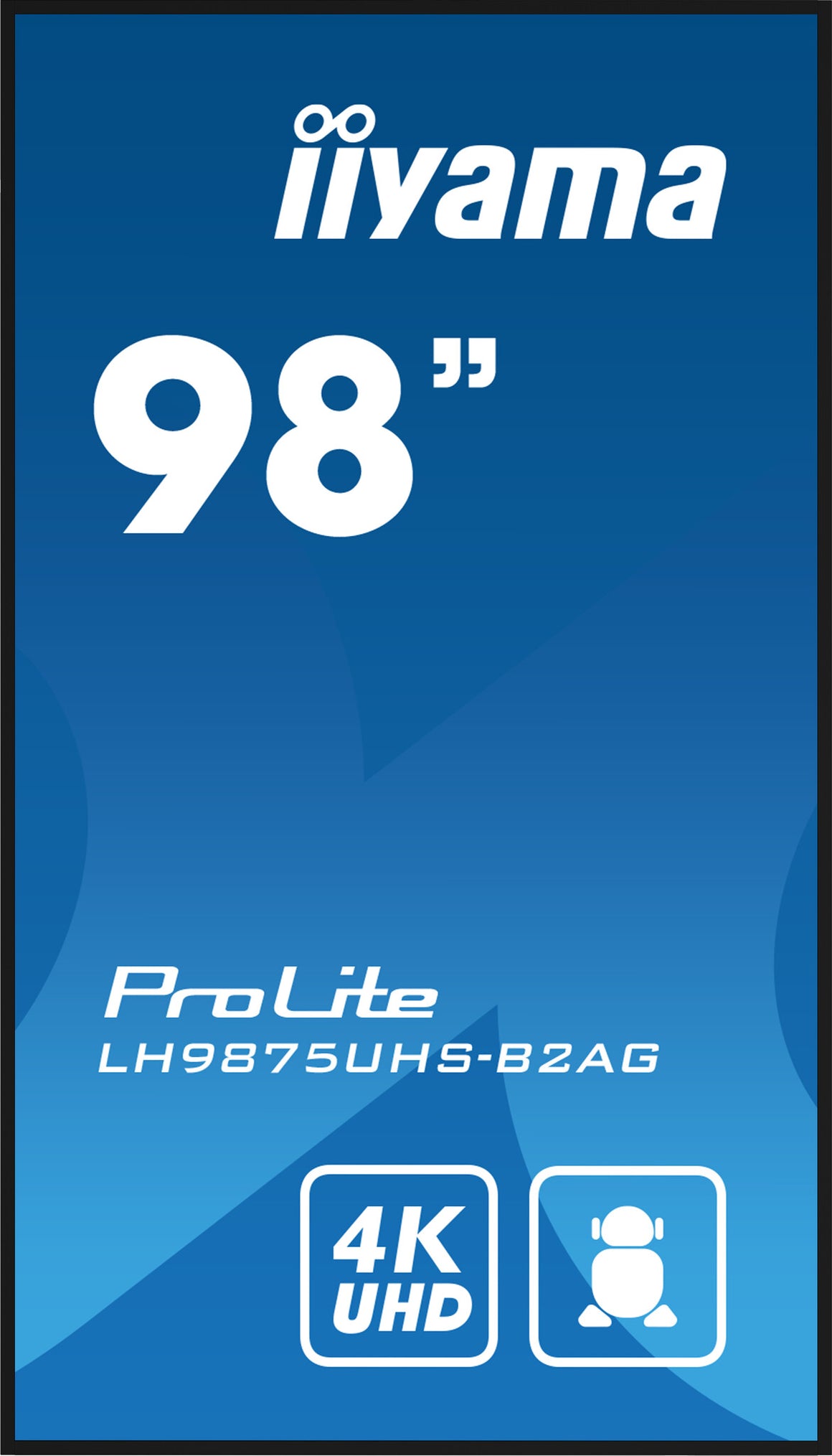

| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
1.4/2.2 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
15 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
173 kWh |
| Energy efficiency class (SDR) |
F |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
331 W |
| Computer system |
|---|
| Operating system installed |
Android 11 |
| Internal storage capacity |
32 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
4 GB |
| Processor cores |
4 |
| Processor architecture |
ARM Cortex-A73 |
| Processor family |
ARM Cortex |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
77.8 kg |
| Display height |
101.7 mm |
| Display depth |
1260.4 mm |
| Display width |
2204.9 mm |
| Packaging data |
|---|
| Package height |
280 mm |
| Package depth |
2360 mm |
| Package width |
2360 mm |
| Packaging content |
|---|

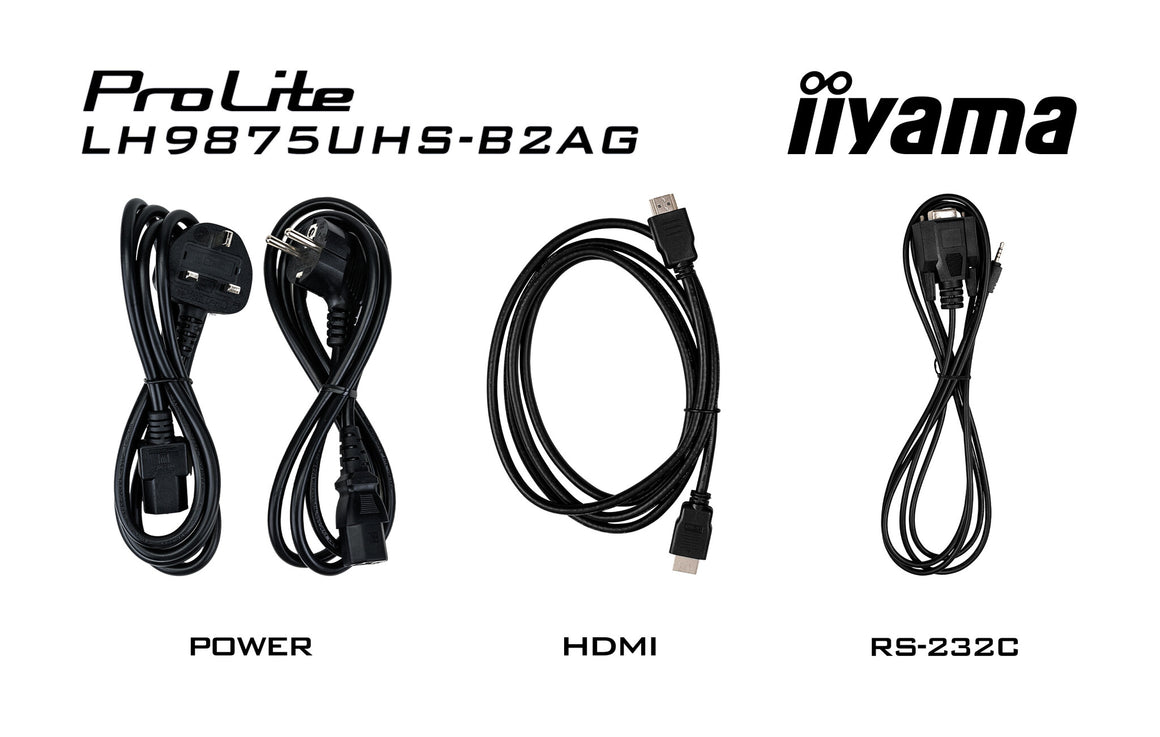

| Cables included |
HDMI, Power, RS-232 |

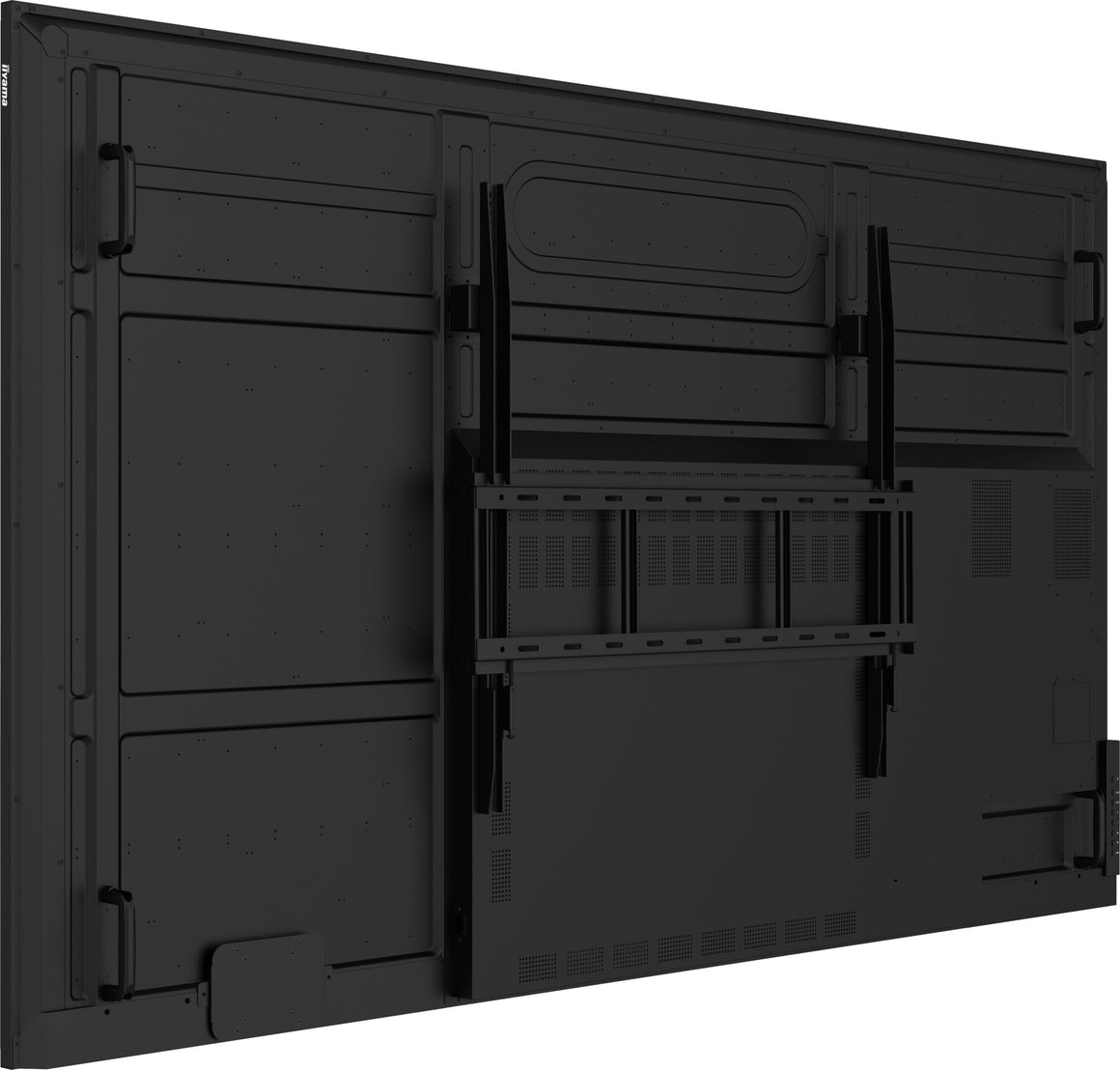

| Mounting kit |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Logistics data |
|---|
| Products per pallet |
12 pc(s) |
| Technical details |
|---|
| Pallet net height |
114 cm |
| Pallet net length |
156.6 cm |
| Pallet net width |
2.36 m |
