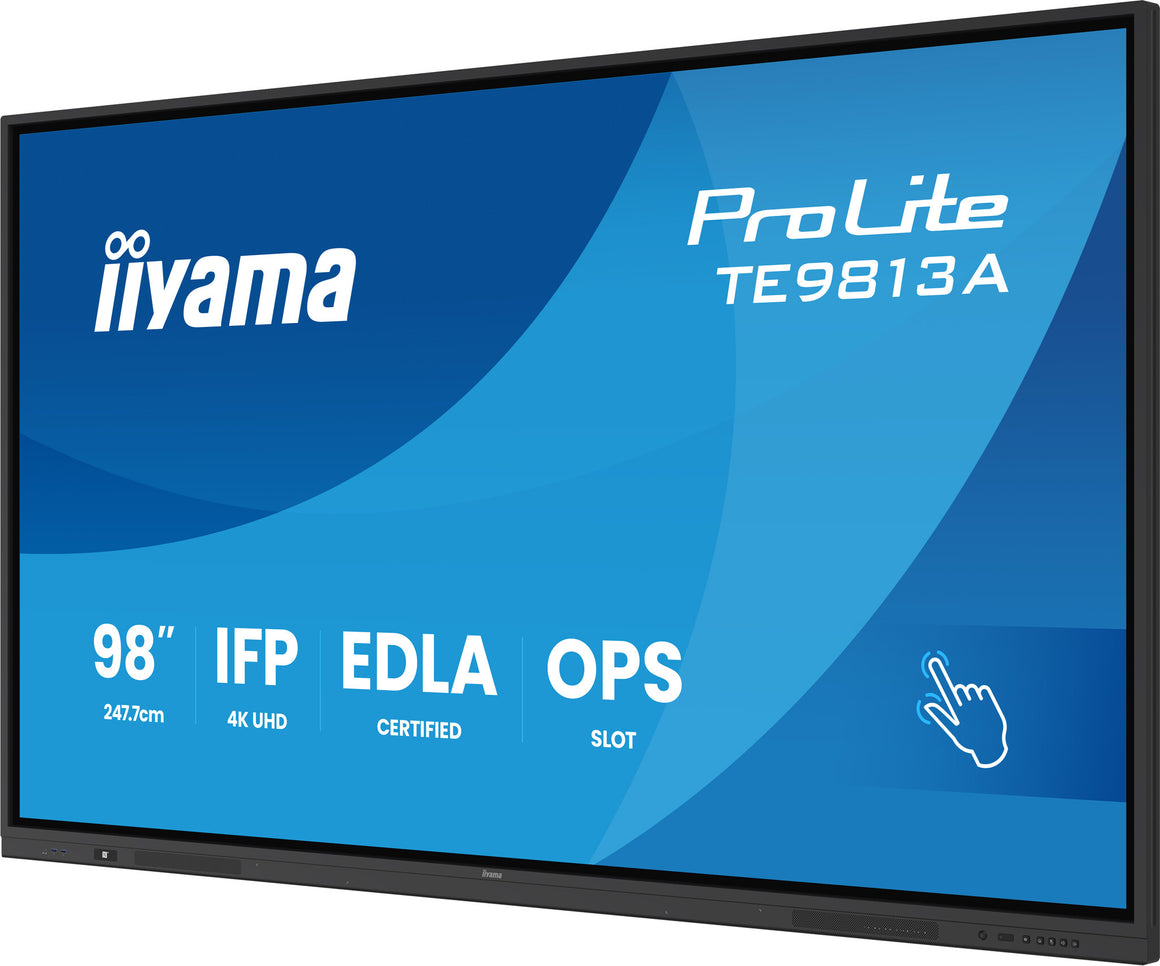

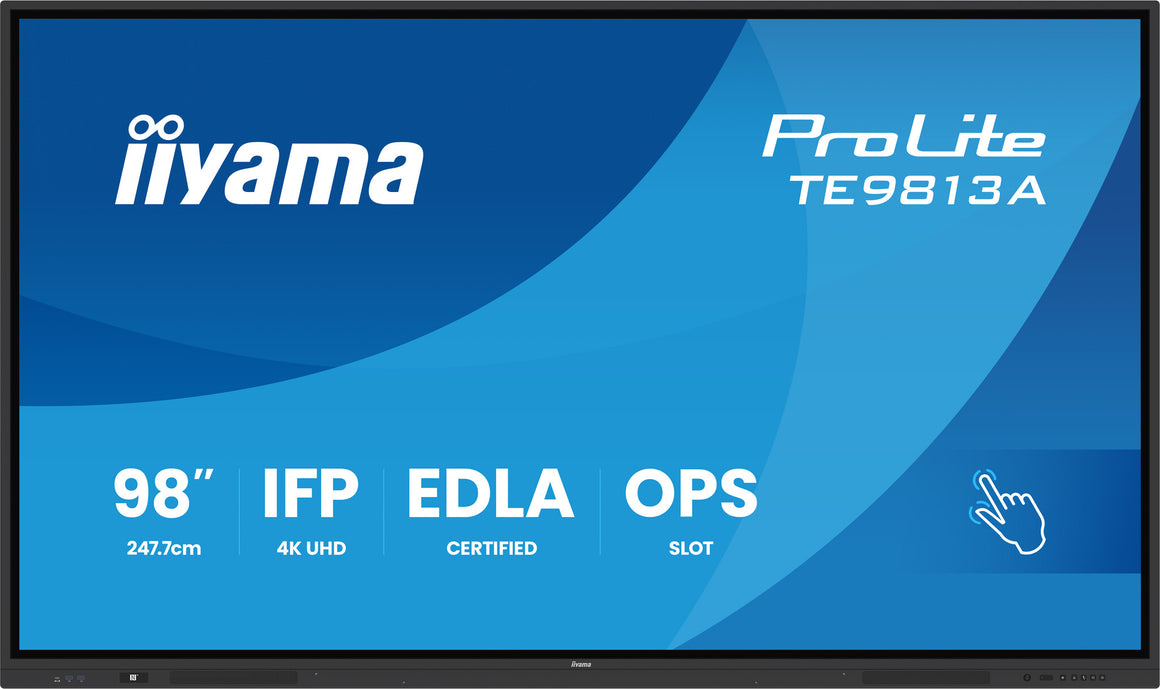

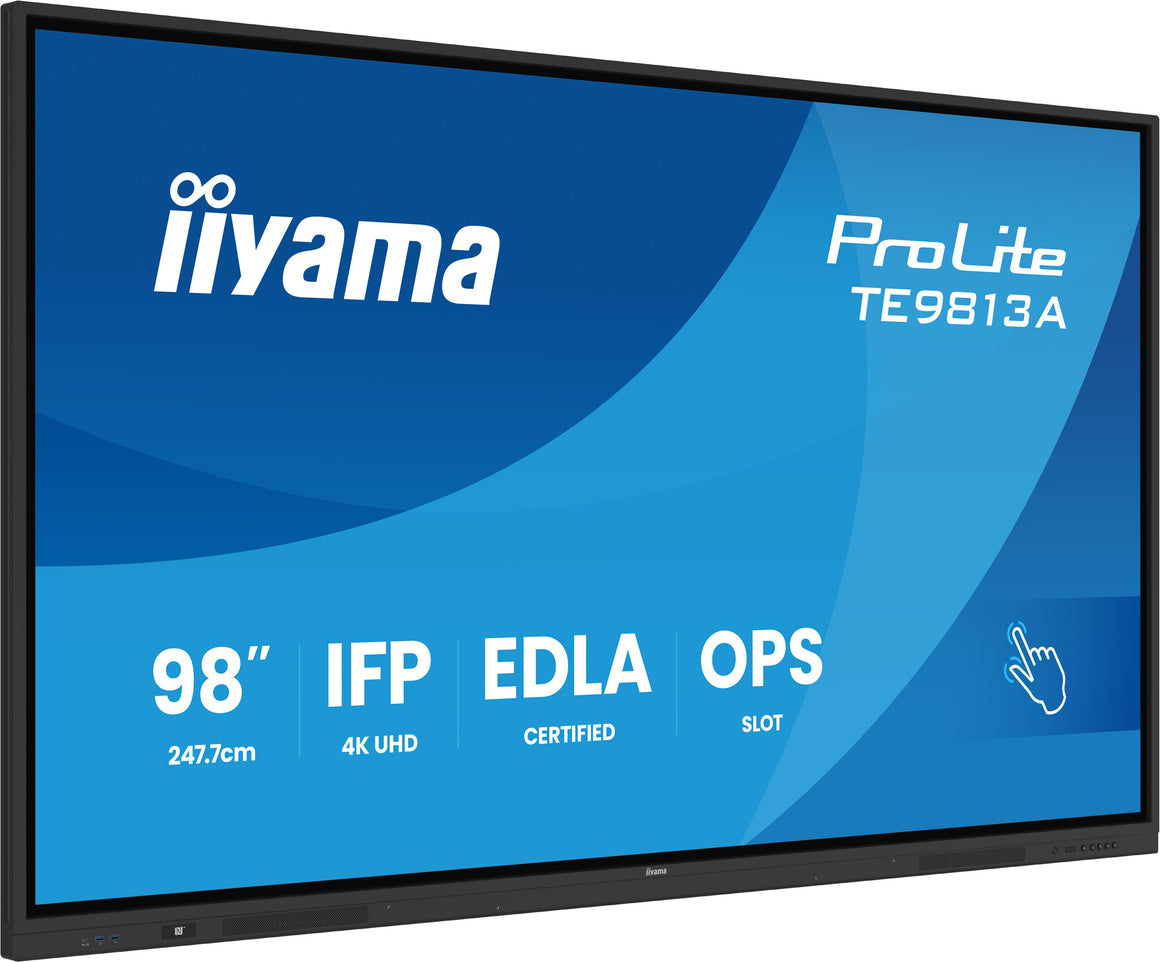

The TE9813A-B1AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, and iiControl (DMS), it integrates seamlessly into your ecosystem. Enjoy advanced wireless sharing with the intuitive iiShare app for streamlined collaboration and enjoy added features like a PIR motion sensor for energy efficiency. Perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress
| Display |
|---|
| Surface hardness |
7H |
| Glass thickness |
4 mm |
| Horizontal scan range |
30 - 135 kHz |
| Display diagonal (metric) |
247.7 cm |
| Active display area (W x H) |
2159 x 1214 mm |
| Pixel pitch |
0.562 x 0.562 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Number of simultaneous touchpoints |
40 |
| Touchscreen technology |
PureTouch-IR |
| Touchscreen |
Yes |
| HD type |
4K Ultra HD |
| Display brightness |
450 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
IPS |
| Display diagonal |
2.48 m (97.5") |
| Ports & interfaces |
|---|
| OPS module slot |
Yes |
| Audio Return Channel (ARC) |
Yes |
| RS-232C |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB ports quantity |
5 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI output ports quantity |
1 |
| HDMI input ports quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
60 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Positioning accuracy |
1 mm |
| Anti-glare screen |
Yes |
| Bezel colour |
Black |

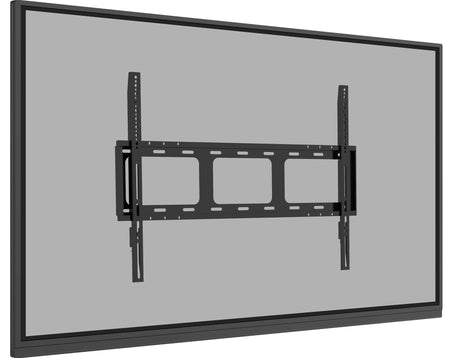

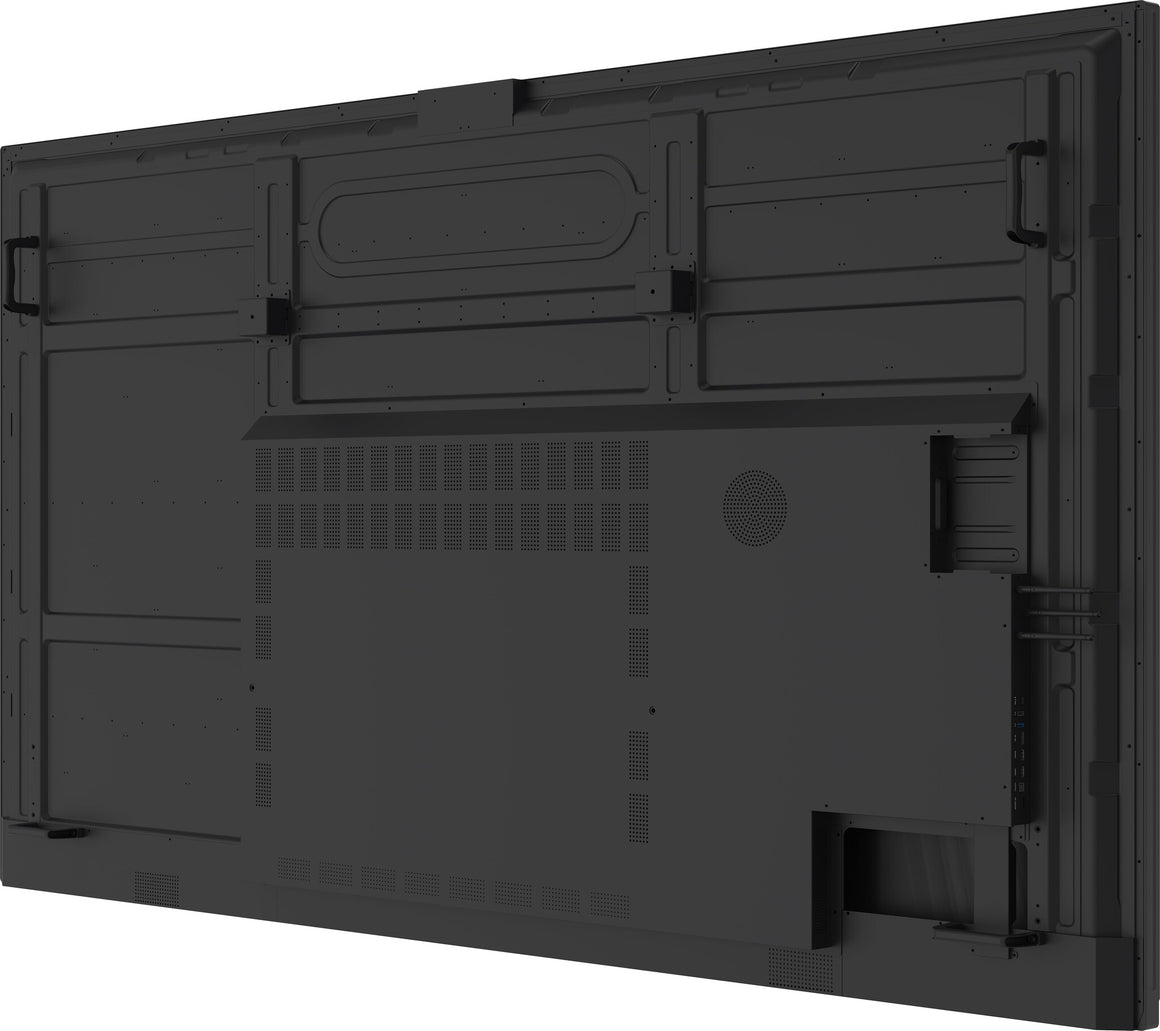

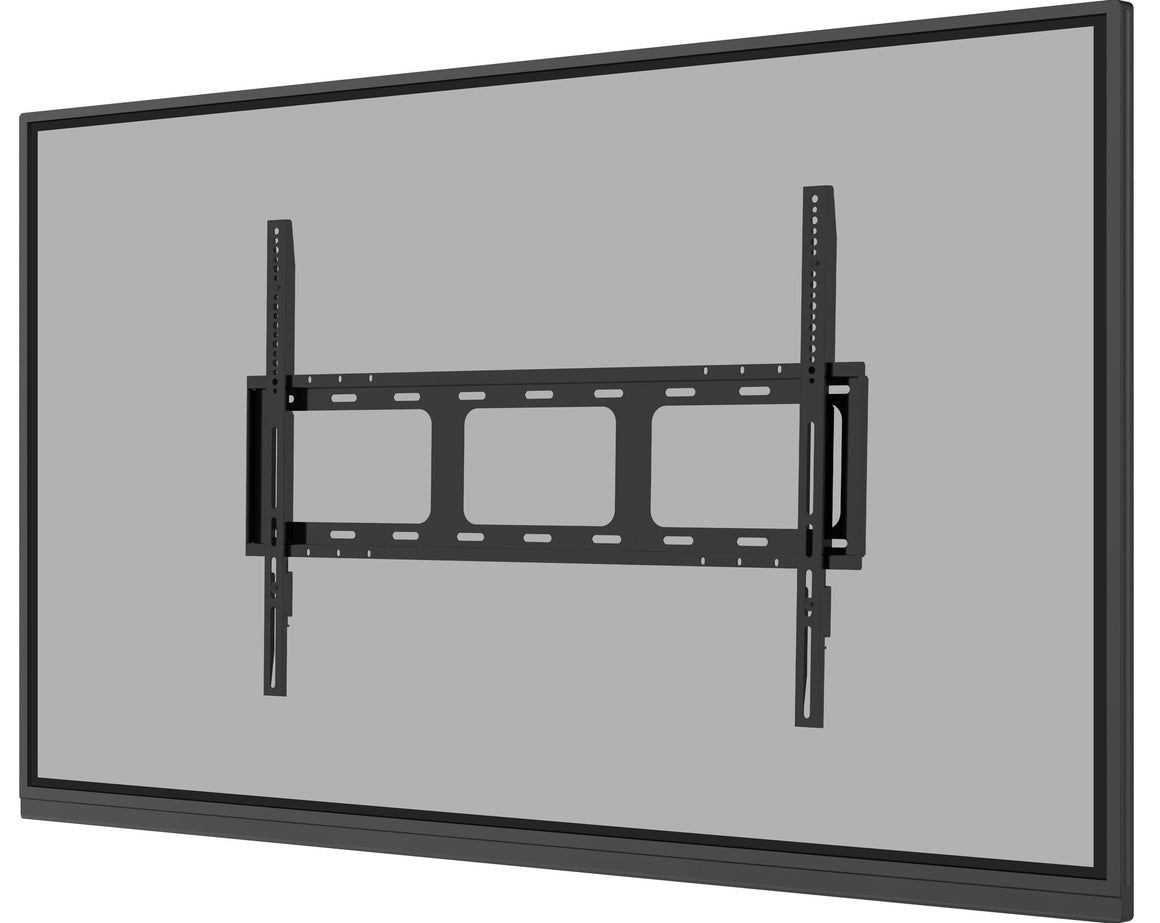

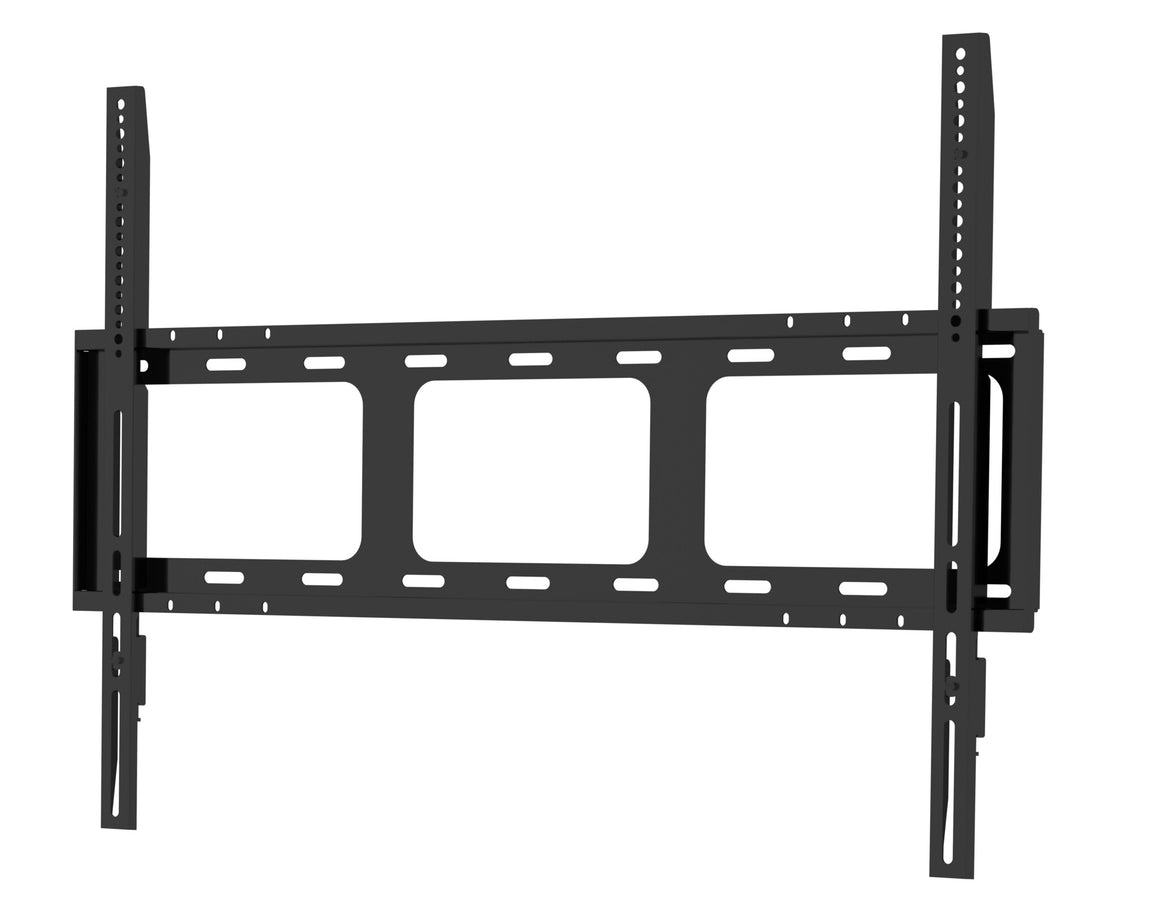

| Panel mounting interface |
800 x 600 mm |

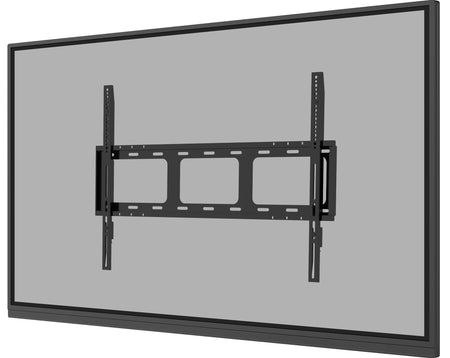

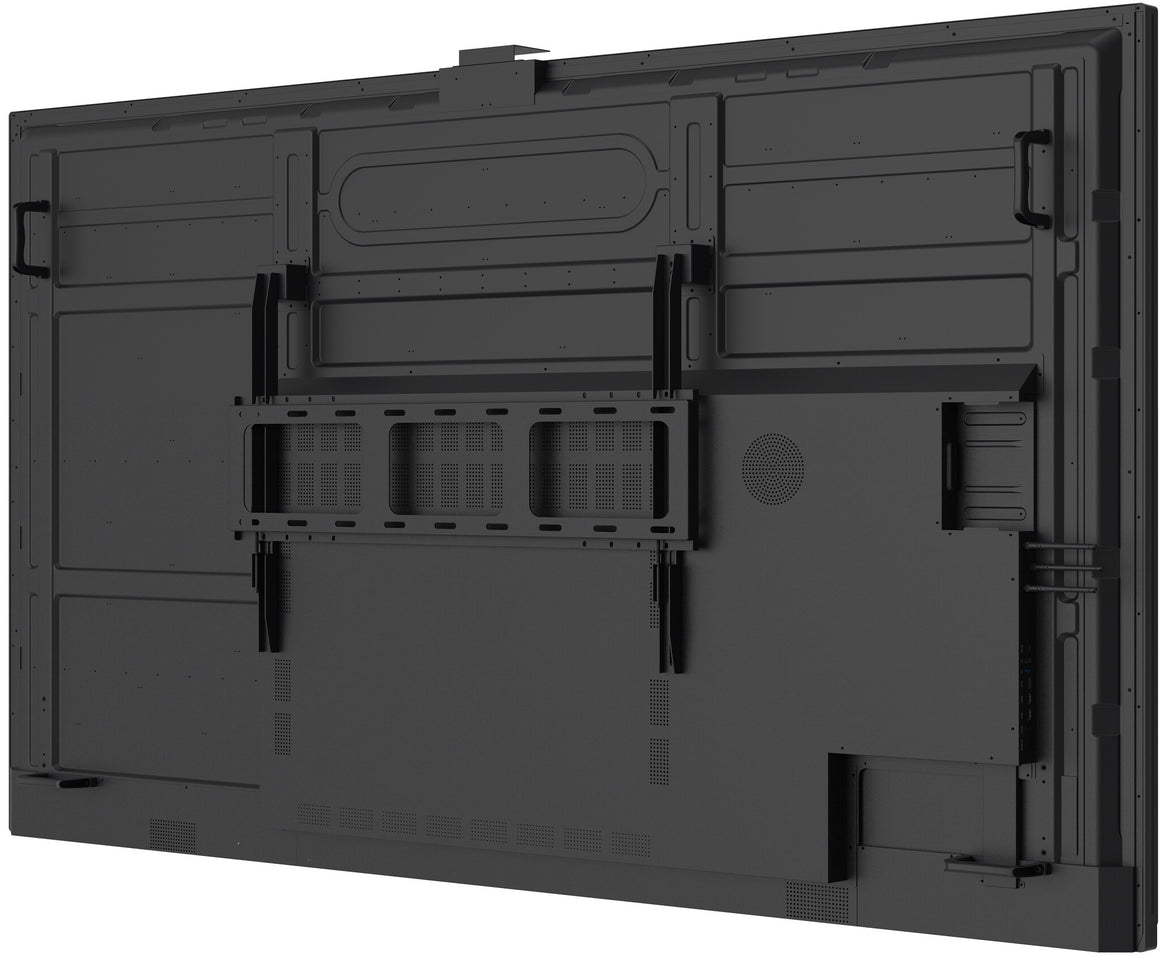

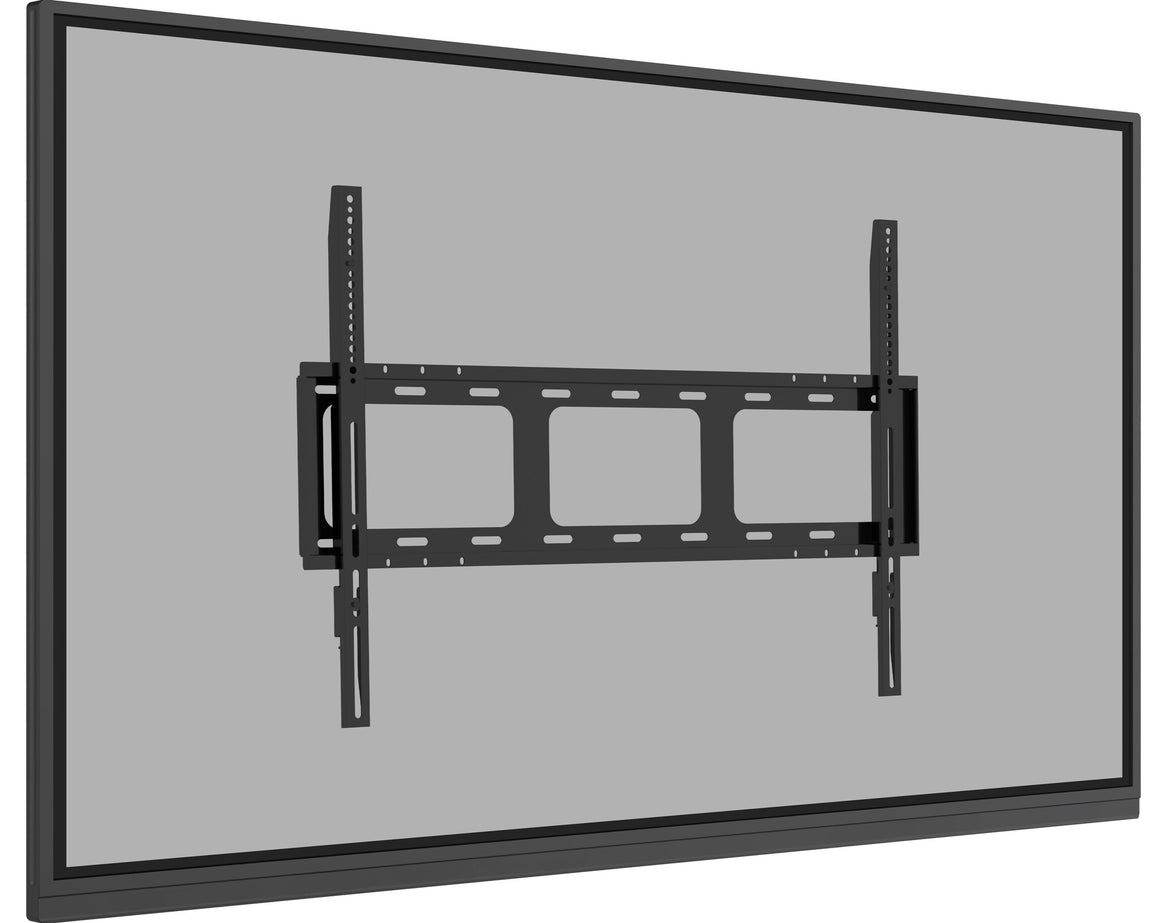

| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Interactive flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Operating hours (hours/days) |
18/7 |
| Number of OSD languages |
13 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian |
| Purpose |
Education |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
303 kWh |
| Energy efficiency class (SDR) |
G |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
303 W |
| Computer system |
|---|
| Operating system version |
14 |
| Operating system installed |
Android |
| Internal storage capacity |
128 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
8 GB |
| Processor cores |
4 |
| Processor frequency |
1.4 GHz |
| Processor architecture |
ARM Cortex-A73 |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
109.6 kg |
| Display height |
1326 mm |
| Display depth |
103 mm |
| Display width |
2235.4 mm |
| Packaging data |
|---|
| Package weight |
132.2 kg |
| Package height |
1445 mm |
| Package depth |
2360 mm |
| Package width |
2360 mm |
| Packaging content |
|---|
| Cables included |
HDMI, Power, USB |

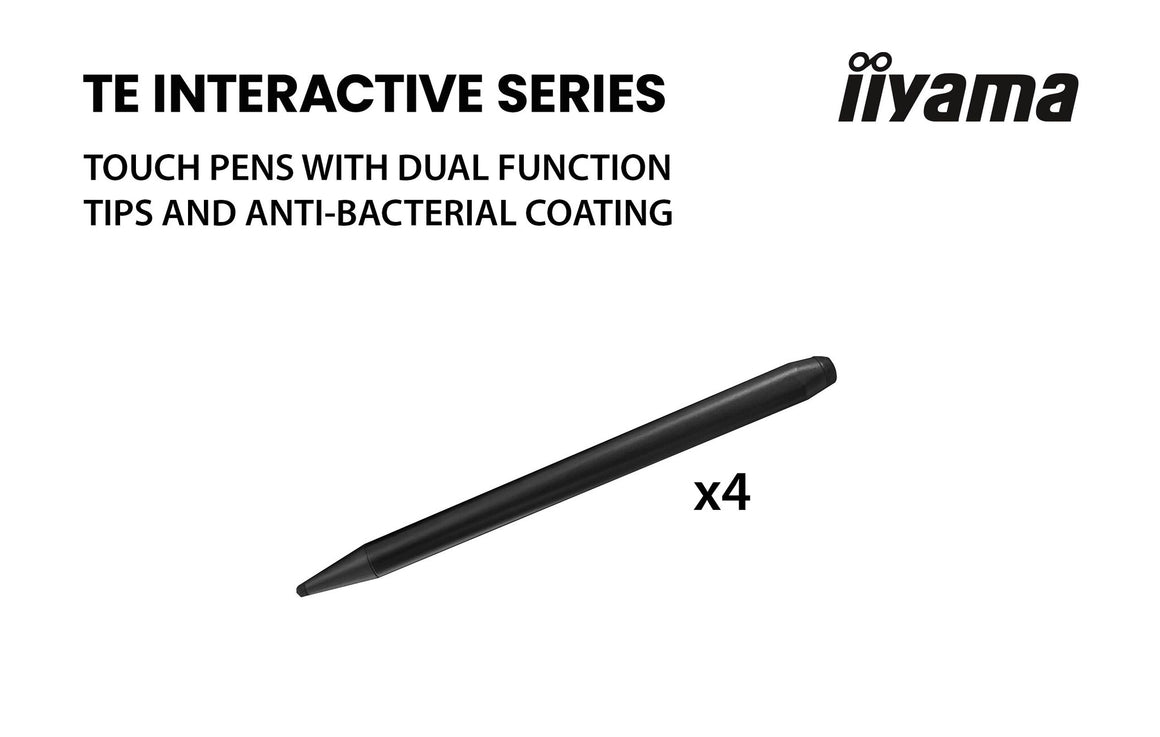

| Stylus pen |
Yes |
| Number of stylus pens |
4 |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| OPS slot |
1 |
