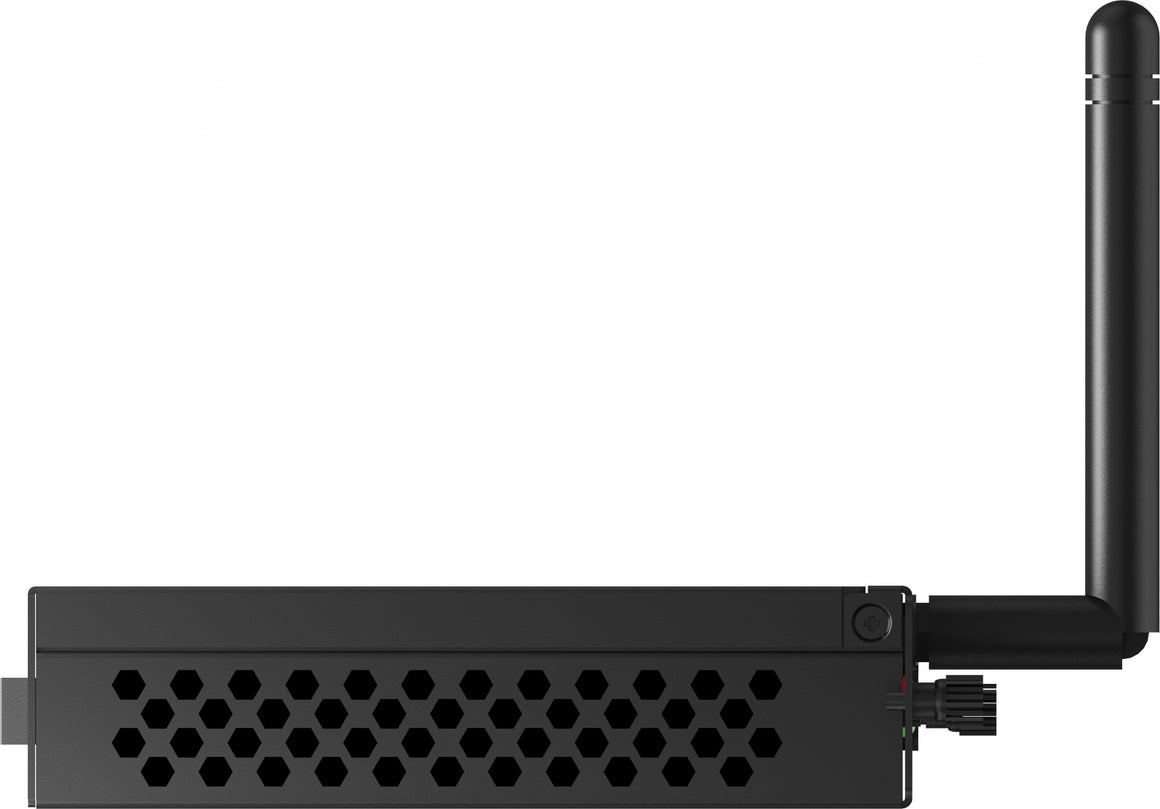

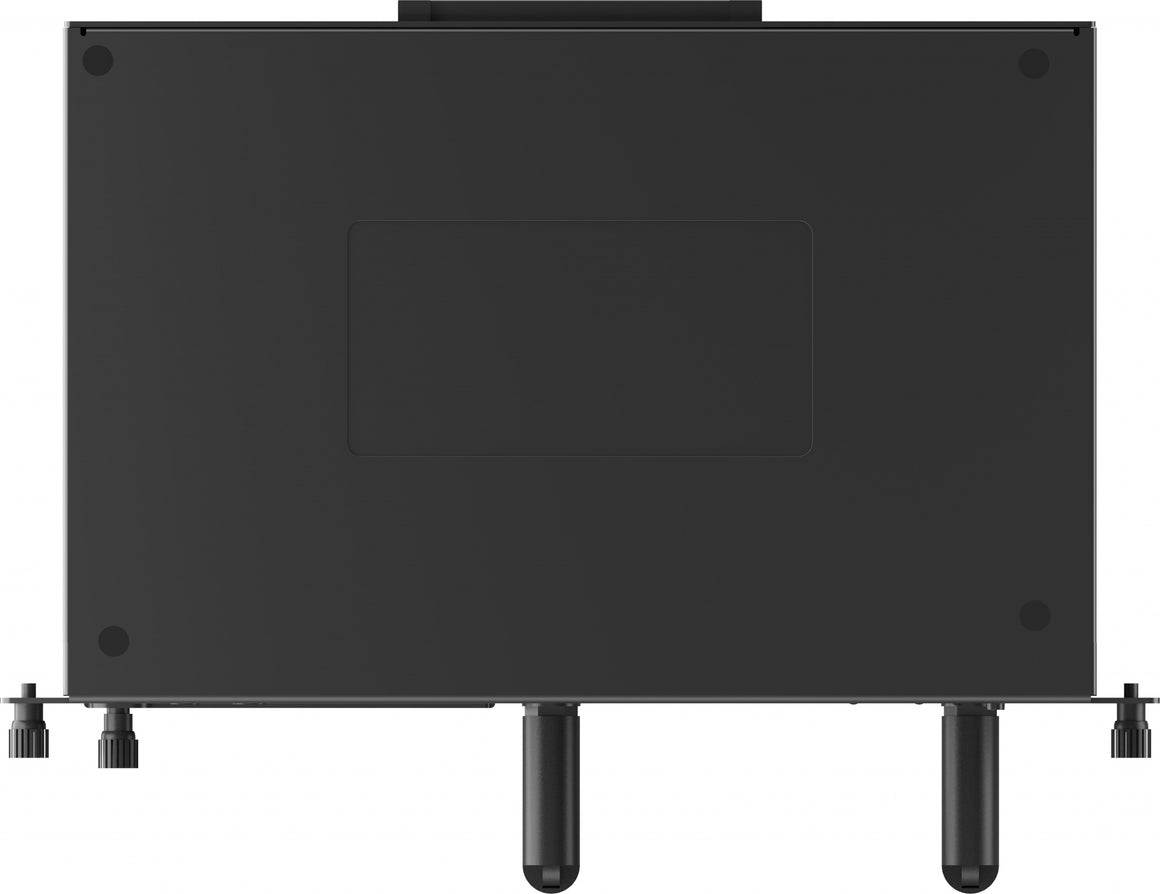

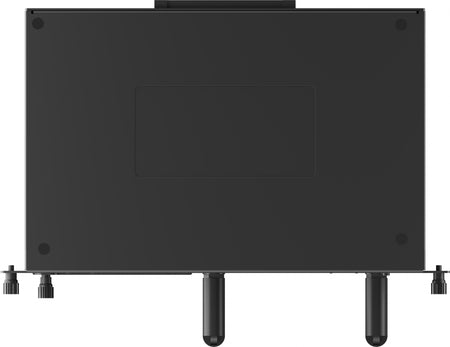

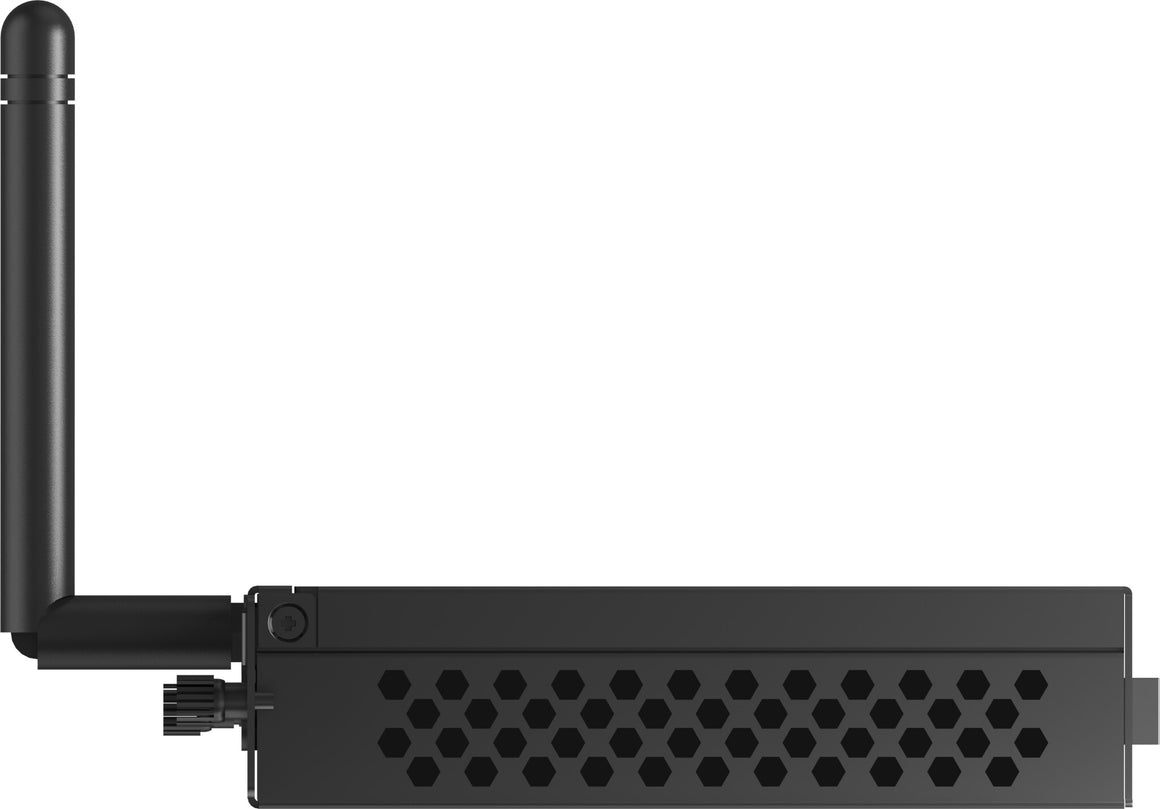

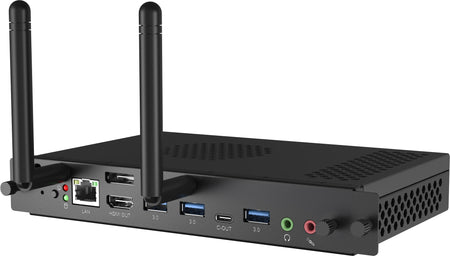

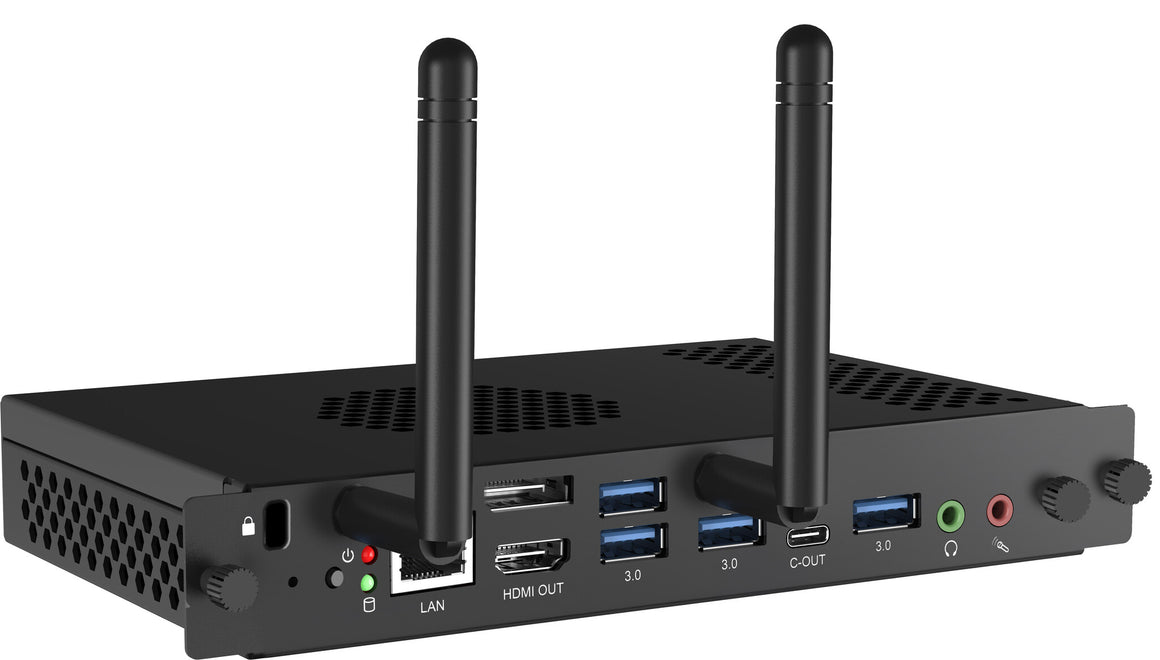

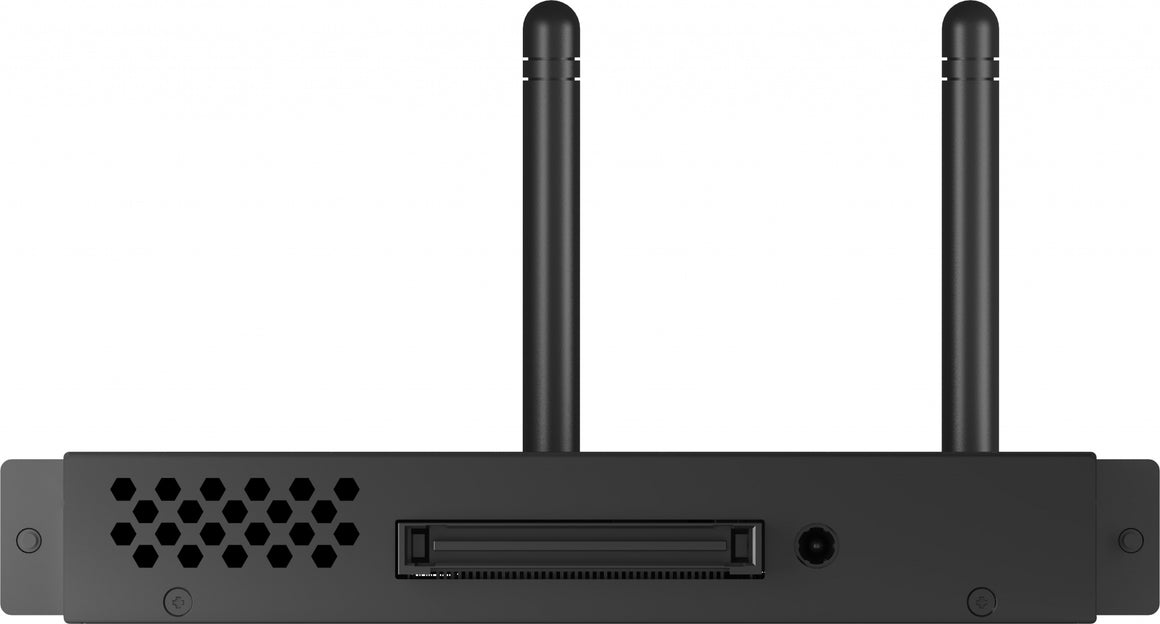

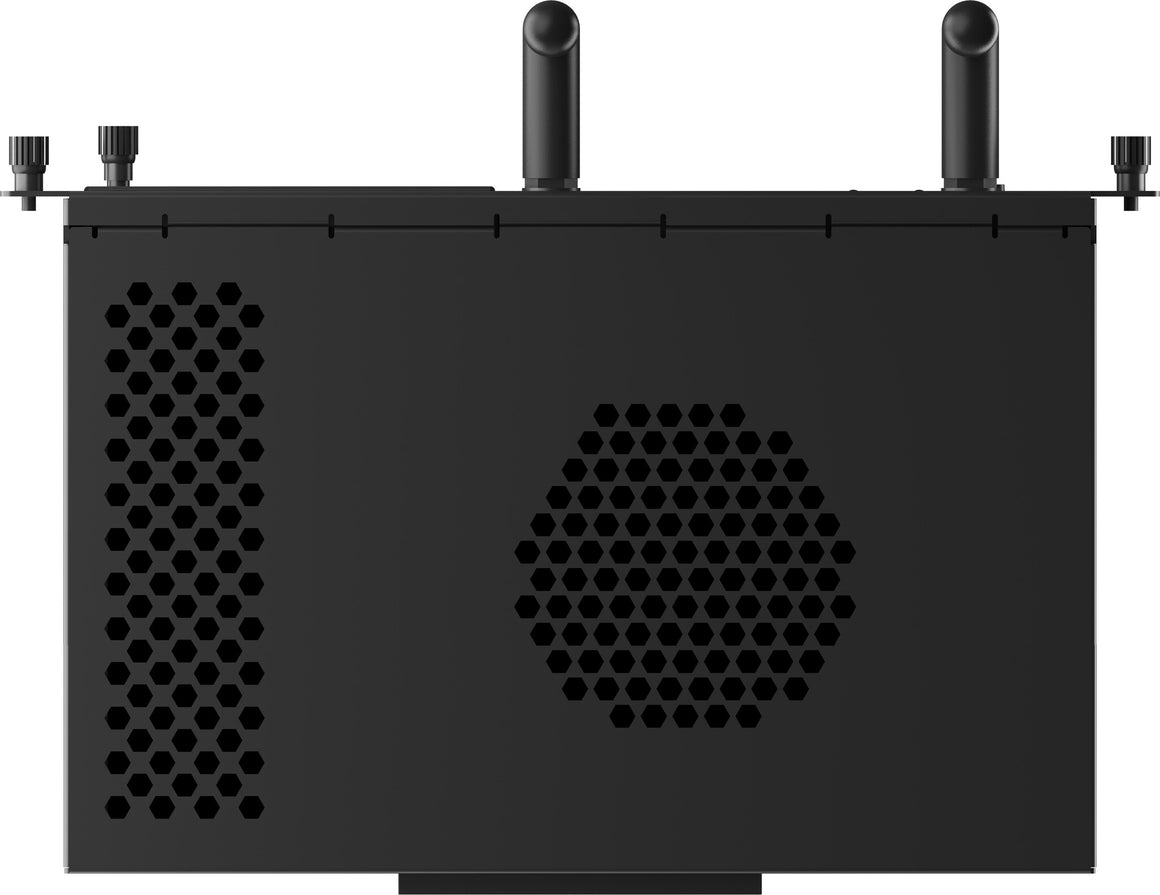

This mini OPS PC with Intel® Core i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51204BC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1 meter distance. Simply slide in the iiyama OPS slot PC and get started right away.
| Processor |
|---|
| Processor base power |
45 W |
| Maximum turbo power |
95 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Efficient-core Max Turbo Frequency |
3.3 GHz |
| Performance-core Max Turbo Frequency |
4.4 GHz |
| Efficient cores |
4 |
| Performance cores |
4 |
| Processor cores |
8 |
| Processor model |
i5-12450H |
| Processor generation |
12th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Memory clock speed |
3200 MHz |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
32 GB |
| Internal memory |
8 GB |
| Storage |
|---|
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
|---|
| Bluetooth version |
5.2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |

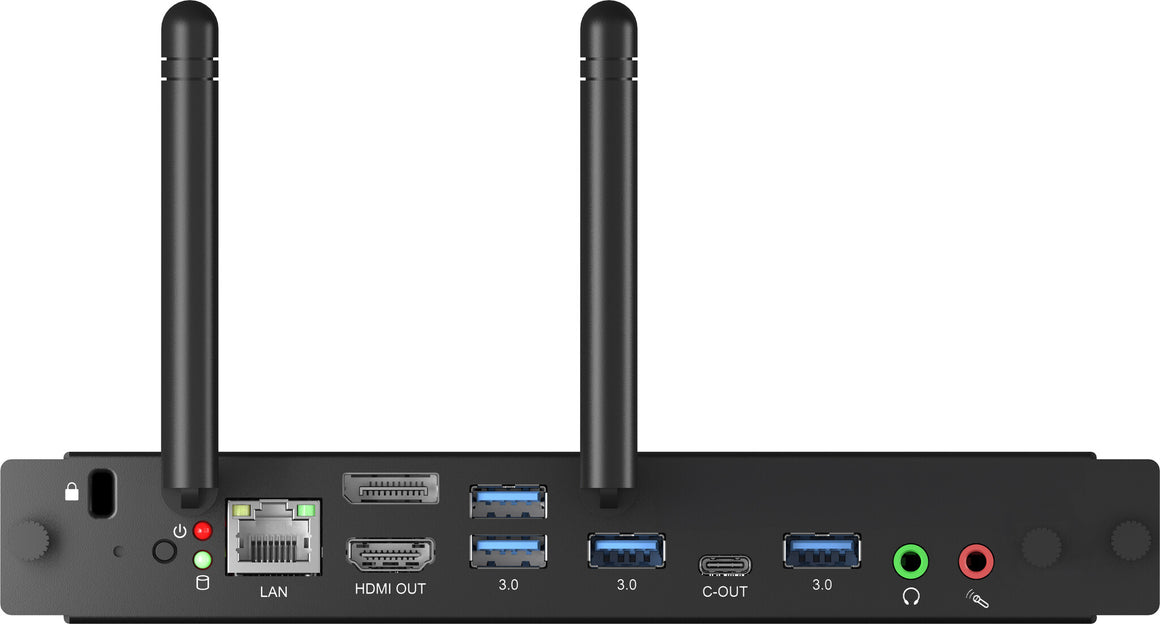

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| Performance |
|---|
| Product type |
Mini PC |
| Software |
|---|
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 IoT Enterprise |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-10 - 50 °C |
| Weight & dimensions |
|---|
| Package weight |
957 g |
| Package height |
192 mm |
| Package depth |
72 mm |
| Package width |
260 mm |
| Weight |
600 g |
| Height |
30 mm |
| Depth |
180 mm |
| Width |
119 mm |
| Packaging content |
|---|
| Display included |
No |
