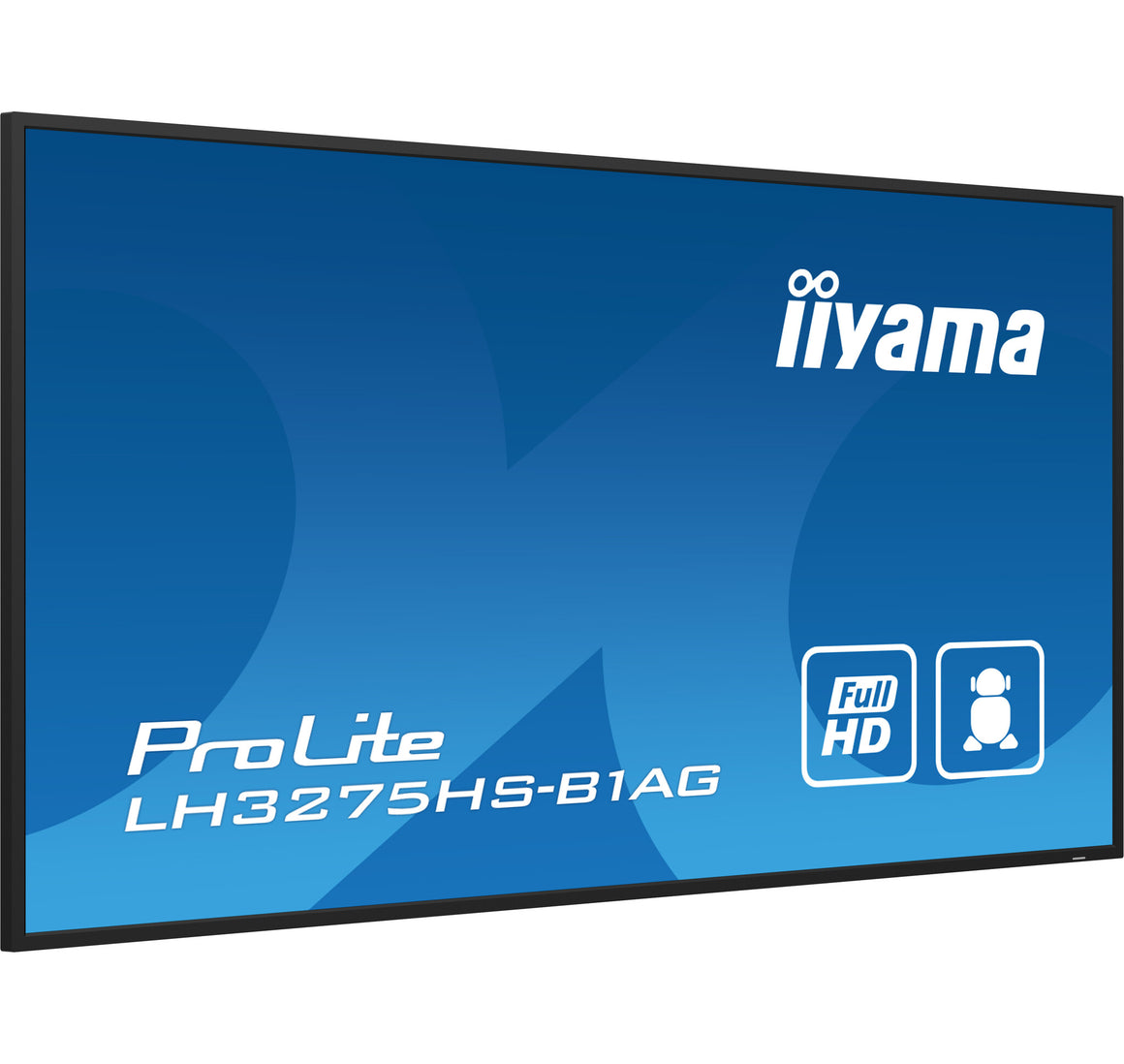

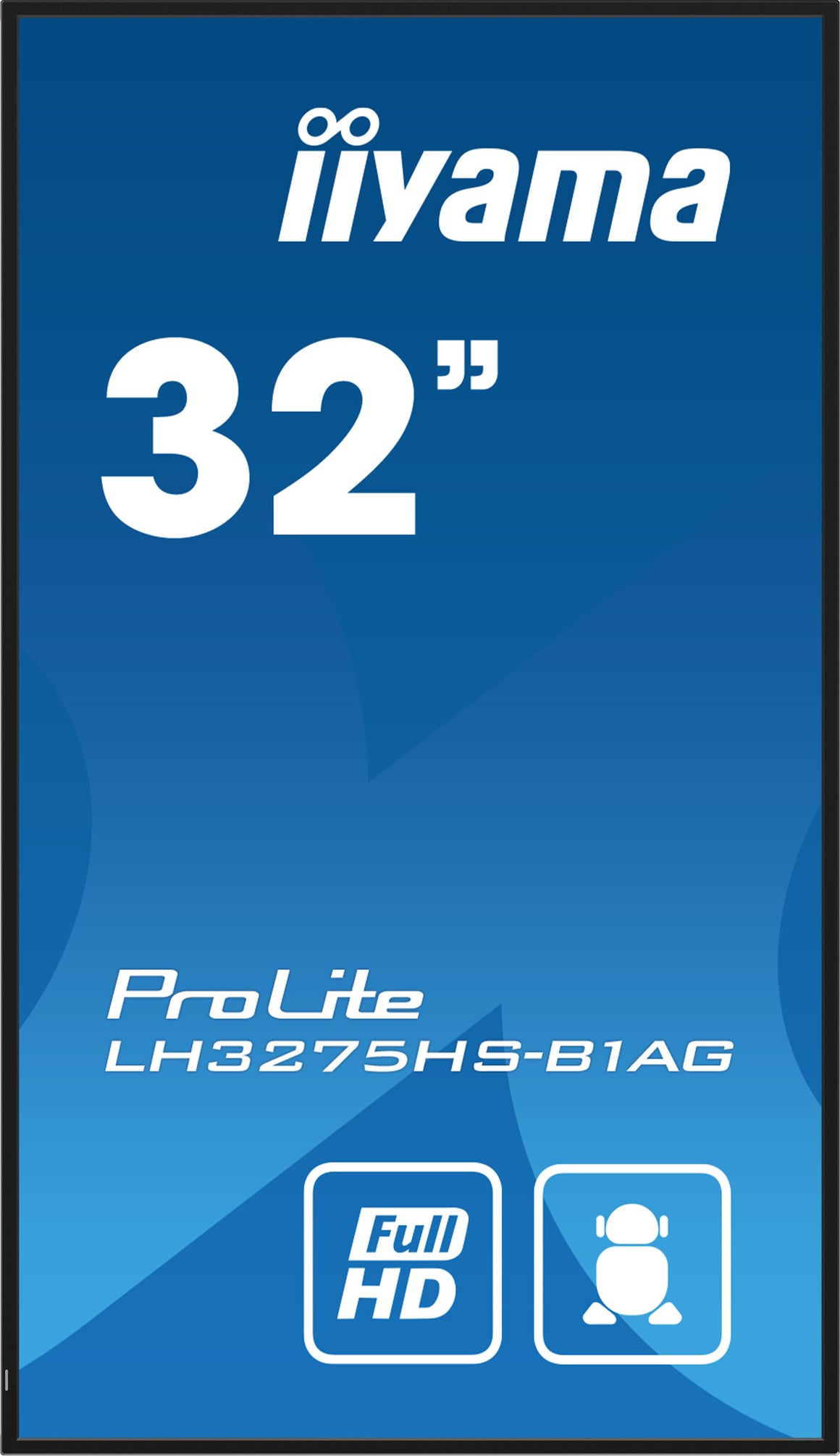

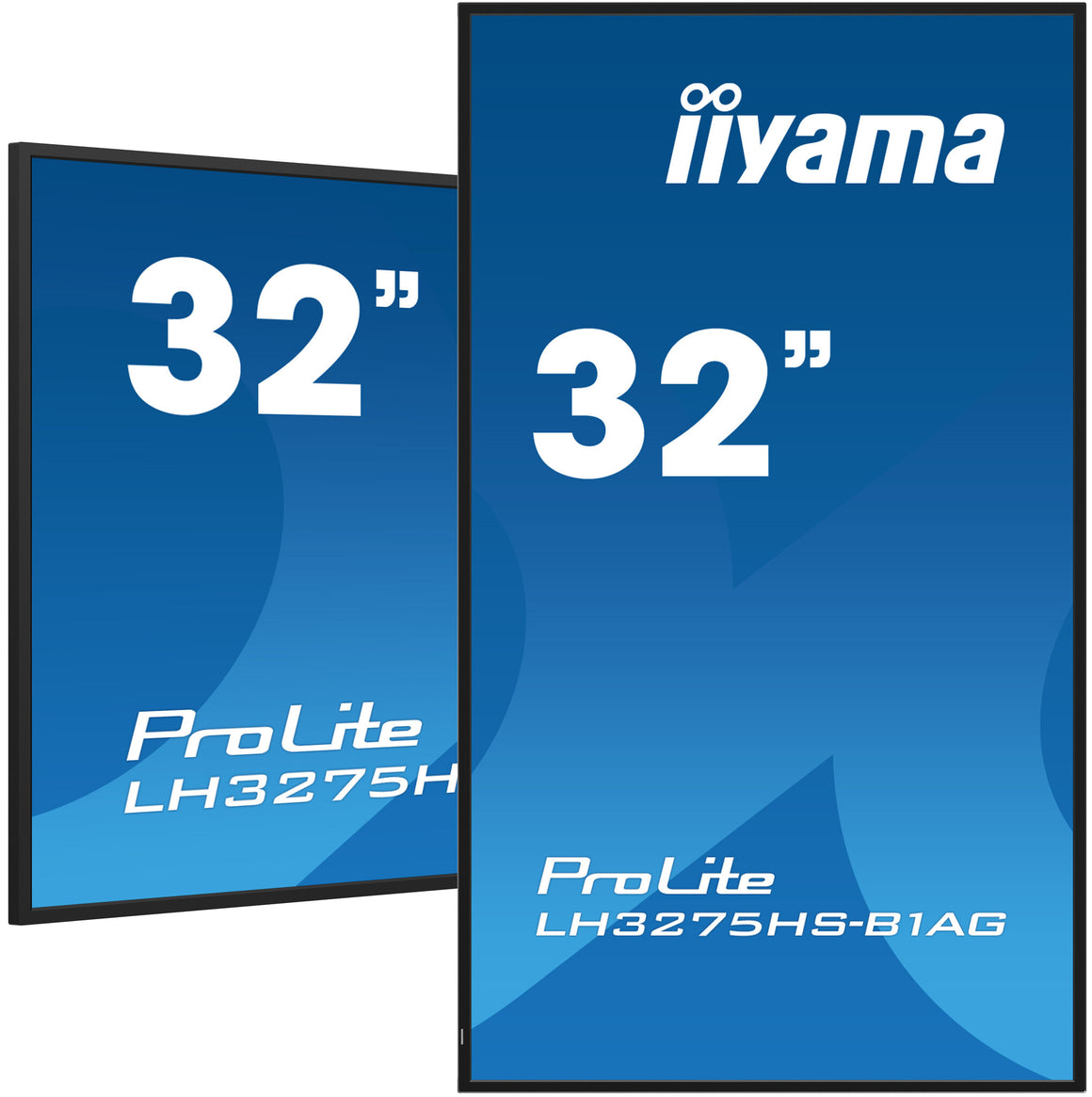

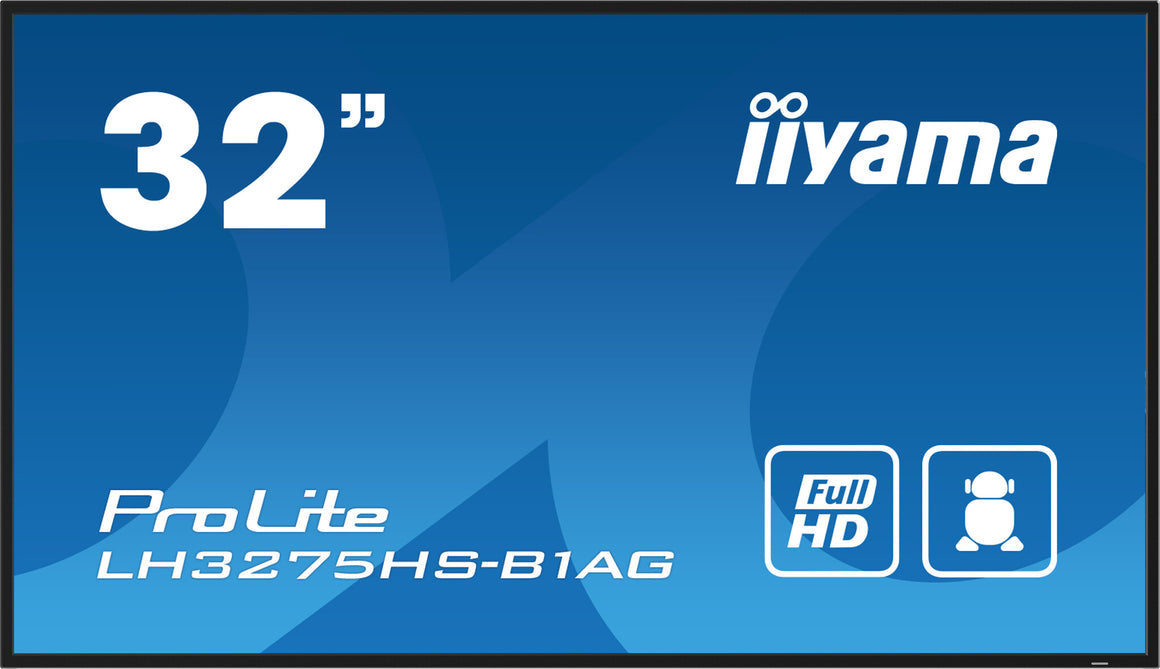

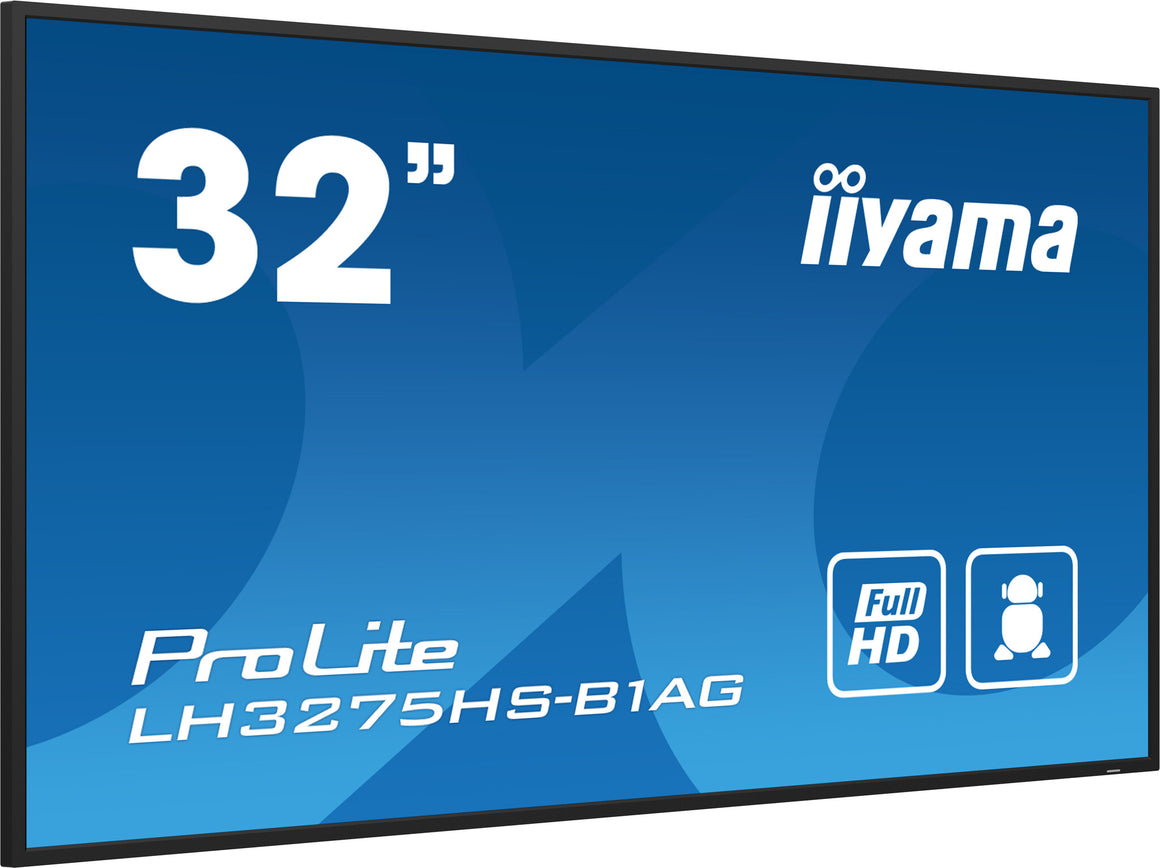

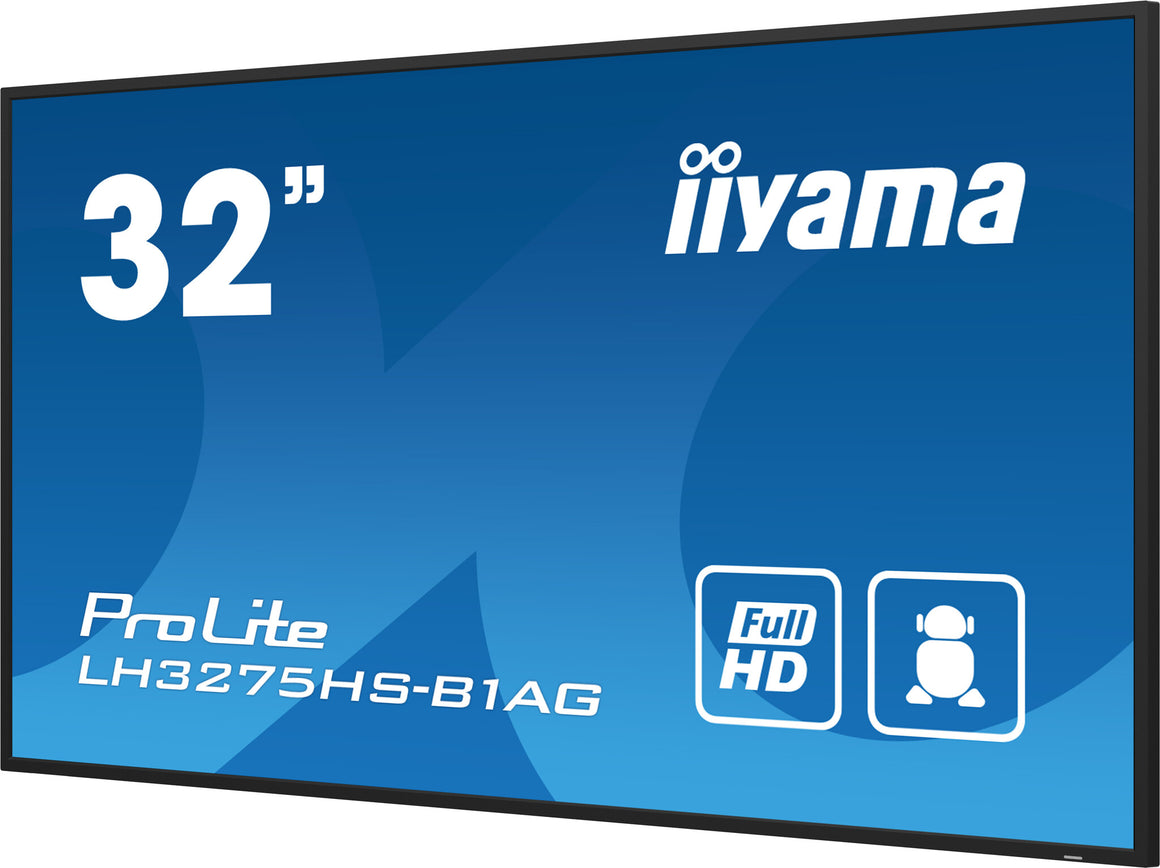

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH3275HS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
| Display |
|---|
| RGB colour space |
sRGB |
| Native refresh rate |
60 Hz |
| Horizontal scan range |
28 - 160 kHz |
| Haze rate |
25% |
| Maximum frame rate |
60 fps |
| Display diagonal (metric) |
80 cm |
| Active display area (W x H) |
698.4 x 392.85 mm |
| Pixel pitch |
0.364 x 0.364 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
Full HD |
| Display brightness |
500 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Panel type |
IPS |
| Display technology |
LCD |
| Display diagonal |
80 cm (31.5") |

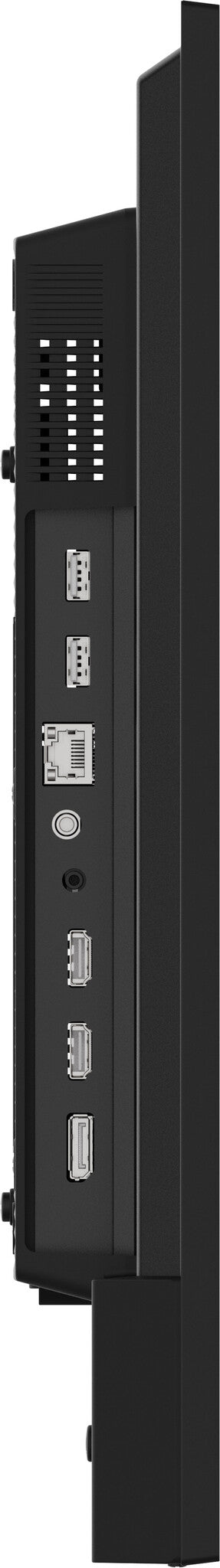

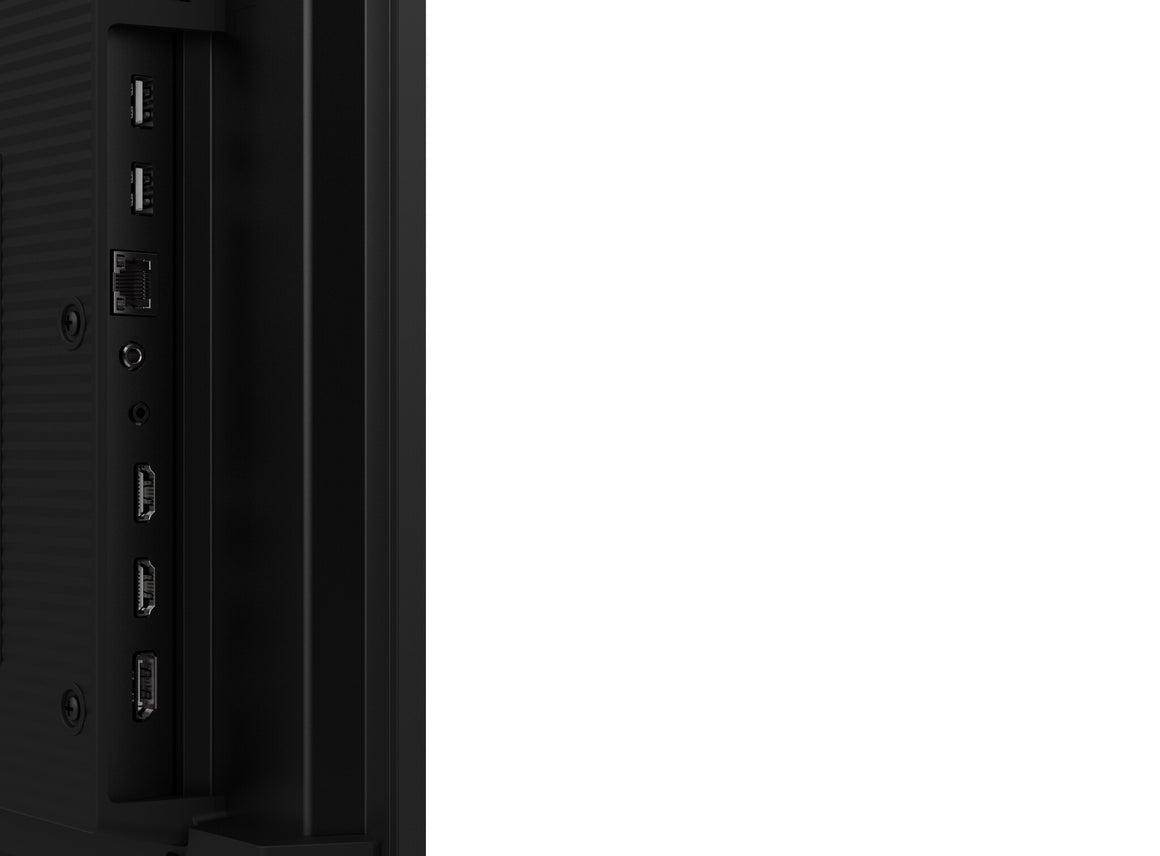

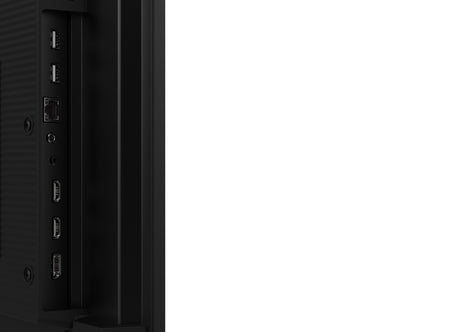

| Ports & interfaces |
|---|
| Audio Return Channel (ARC) |
Yes |
| RS-232C |
Yes |
| PC Audio in |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
2 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Anti-glare screen |
Yes |
| Bezel colour |
Black |
| Bezel width (top) |
1.19 cm |
| Bezel width (side) |
1.19 cm |
| Bezel width (bottom) |
1.19 cm |
| Panel mounting interface |
200 x 200 mm |
| VESA mounting |
Yes |

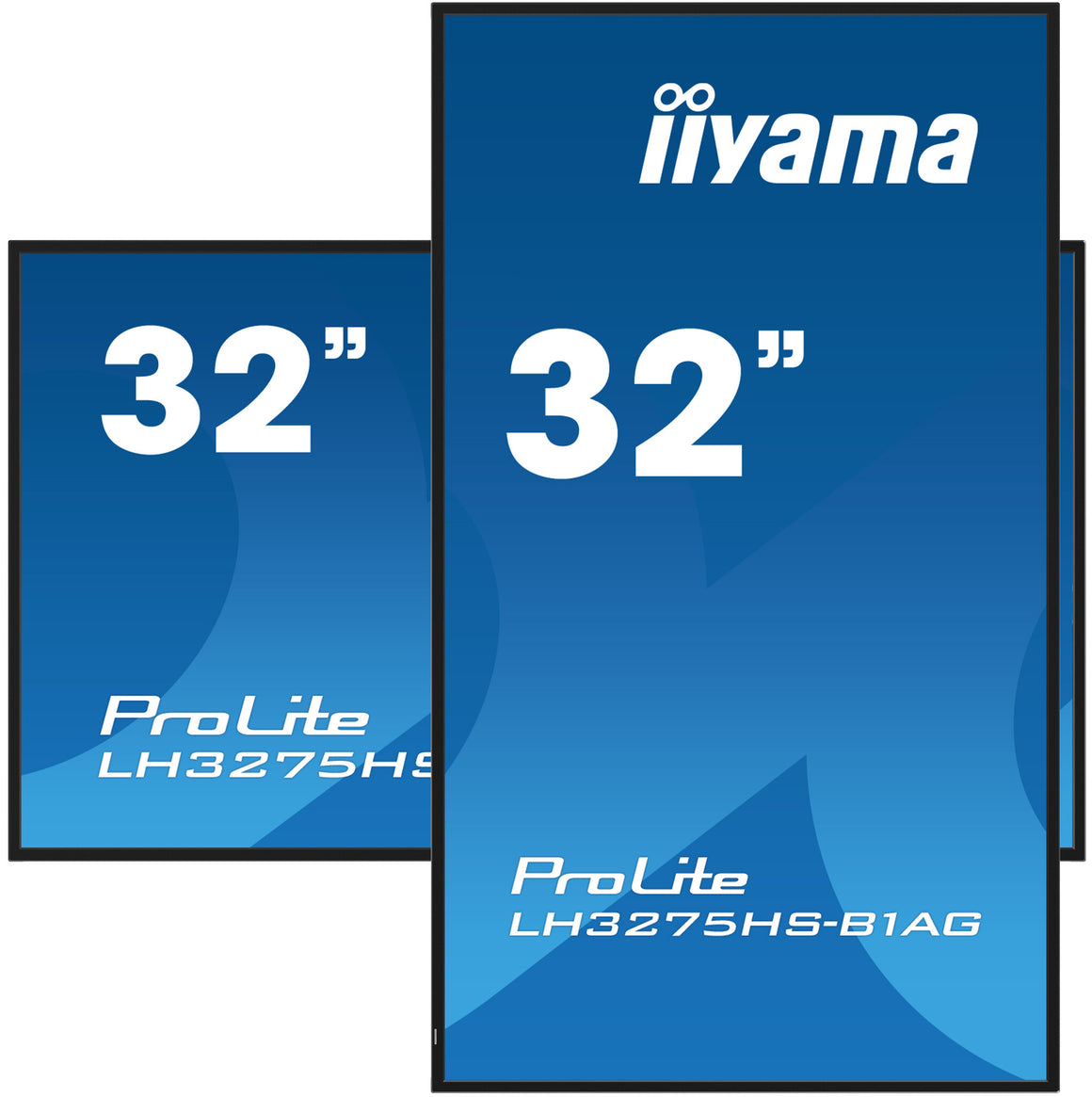

| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
44000 h |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
11 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
46 kWh |
| Energy efficiency class (SDR) |
G |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
46 W |
| Computer system |
|---|
| Operating system installed |
Android 11 |
| Internal storage capacity |
32 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
4 GB |
| Processor cores |
4 |
| Processor architecture |
ARM Cortex-A73 |
| Processor family |
ARM Cortex |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Display weight |
5.2 kg |
| Display height |
421.8 mm |
| Display depth |
54 mm |
| Display width |
725.5 mm |
| Packaging data |
|---|
| Package weight |
7.3 kg |
| Package height |
554 mm |
| Package depth |
824 mm |
| Package width |
824 mm |
| Packaging content |
|---|

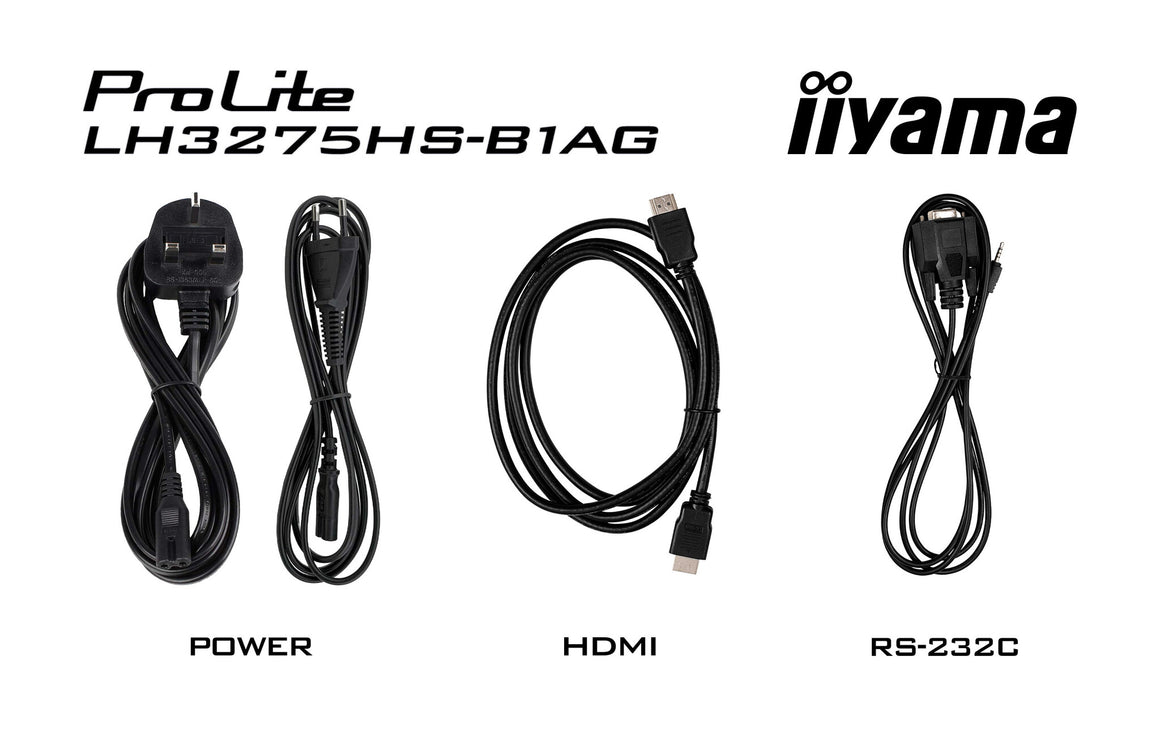

| Cables included |
AC, HDMI, RS-232 |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Other features |
|---|
| Quick start guide |
Yes |
| Housing material |
Metal |
