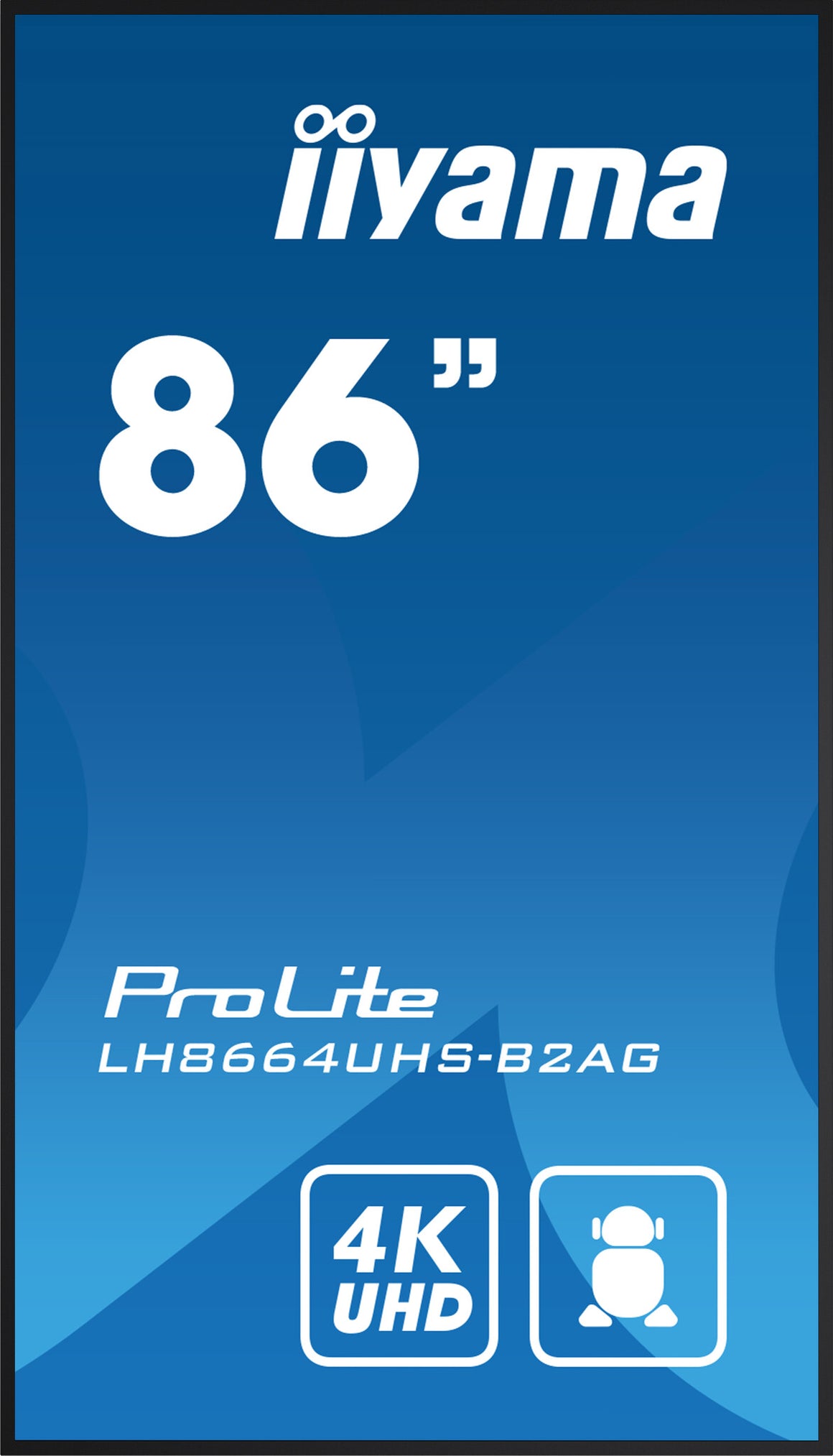

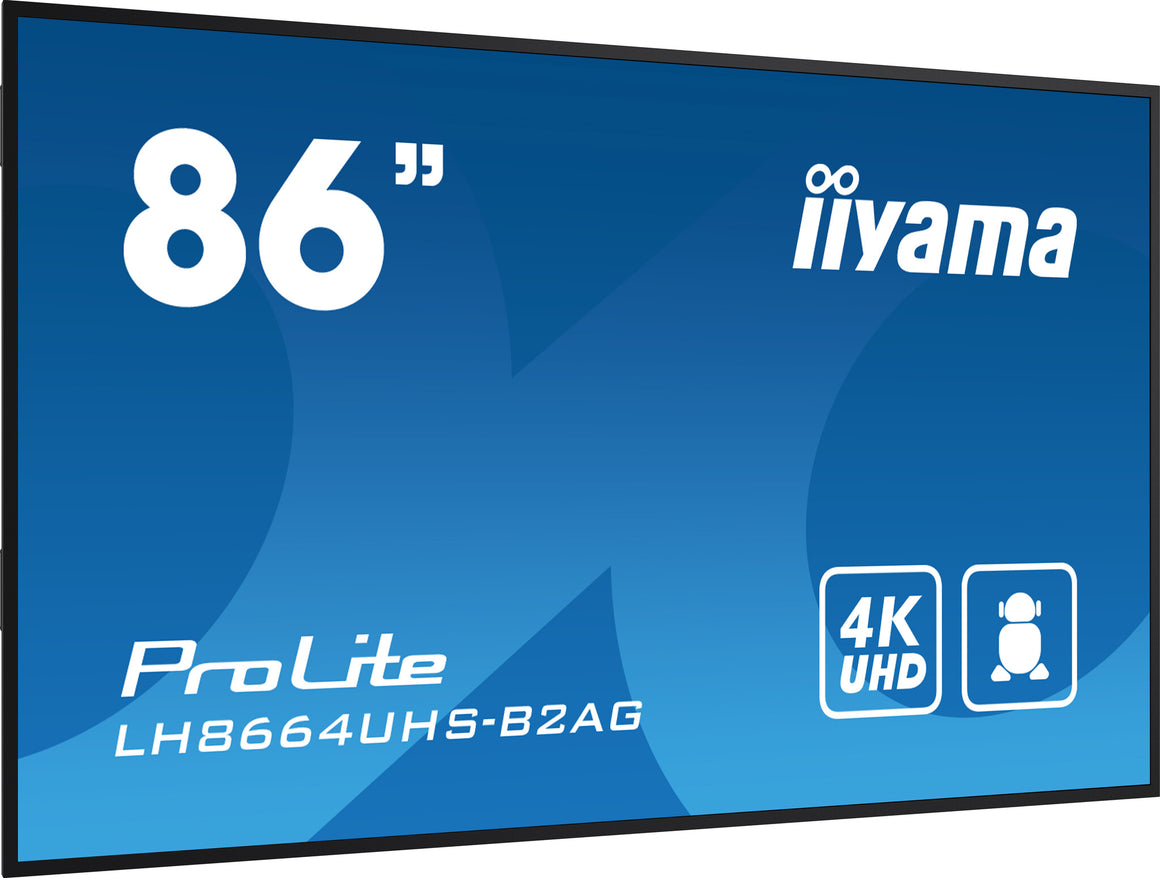

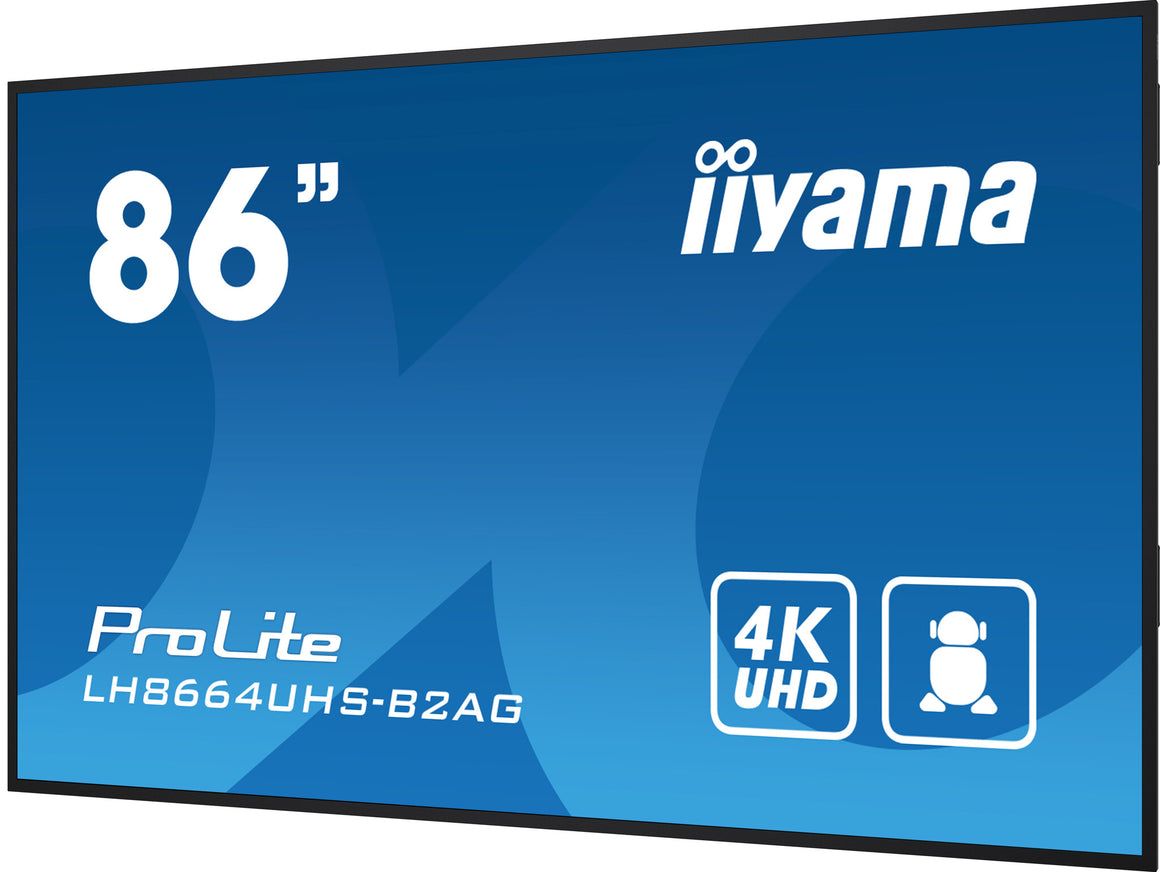

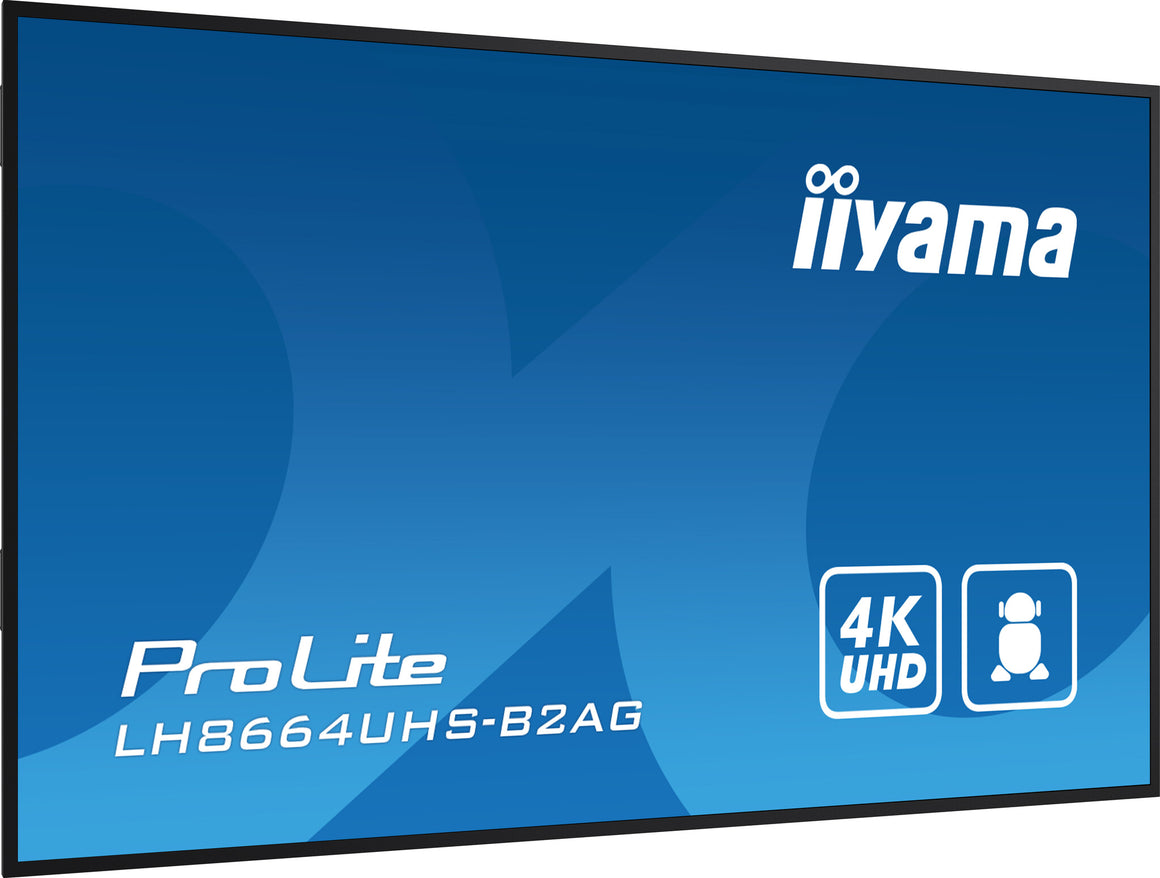

86" 4K UHD professional digital signage display with advanced control and connectivity options
Elevate your visual communication with the LH8664UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control.

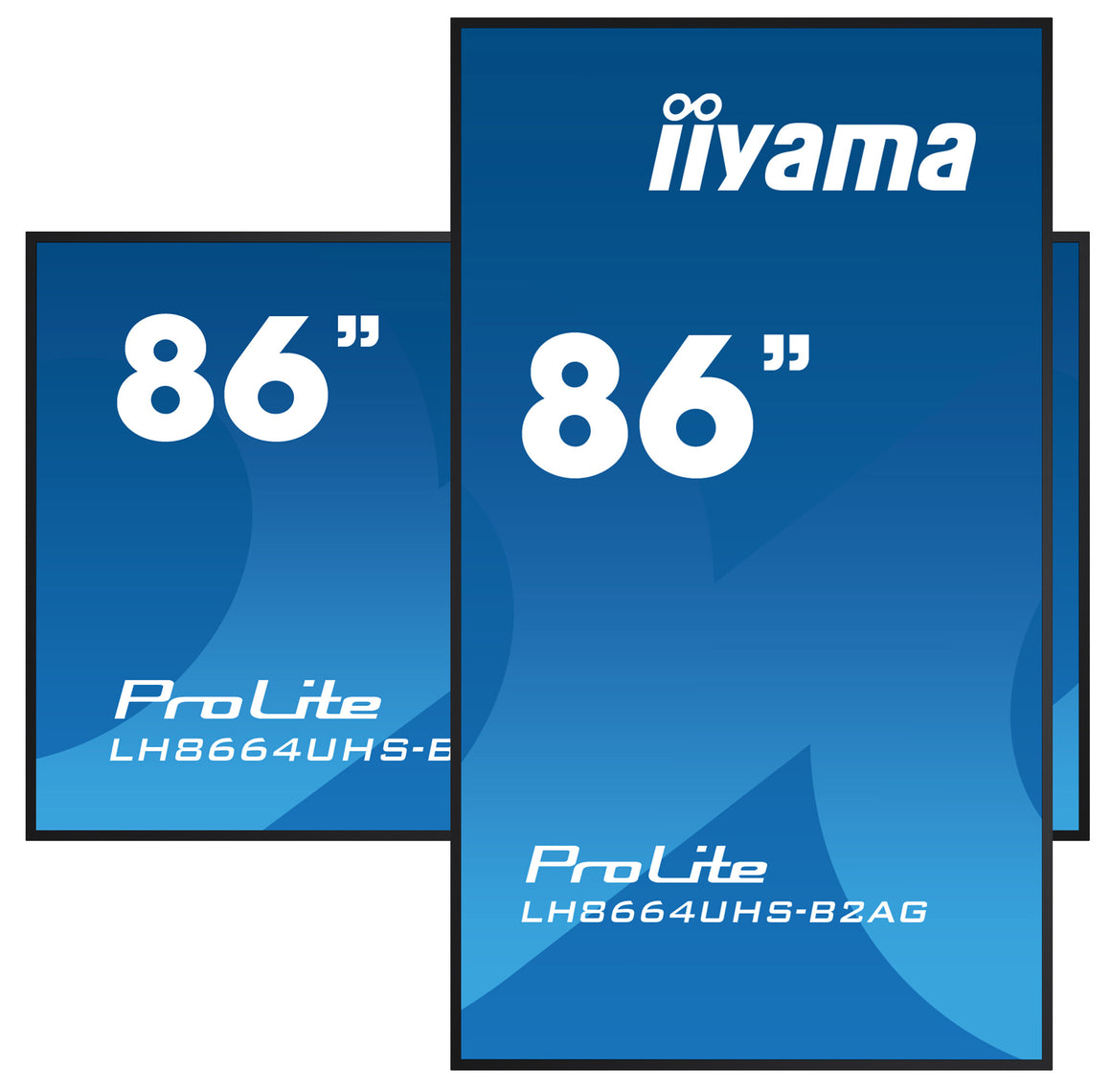

Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
Media player
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.
| Display |
|---|
| Native refresh rate |
60 Hz |
| Horizontal scan range |
28 - 160 kHz |
| Display diagonal (metric) |
217.4 cm |
| Active display area (W x H) |
1895 x 1066 mm |
| Pixel pitch |
0.493 x 0.493 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
500 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
IPS |
| Display diagonal |
2.18 m (86") |

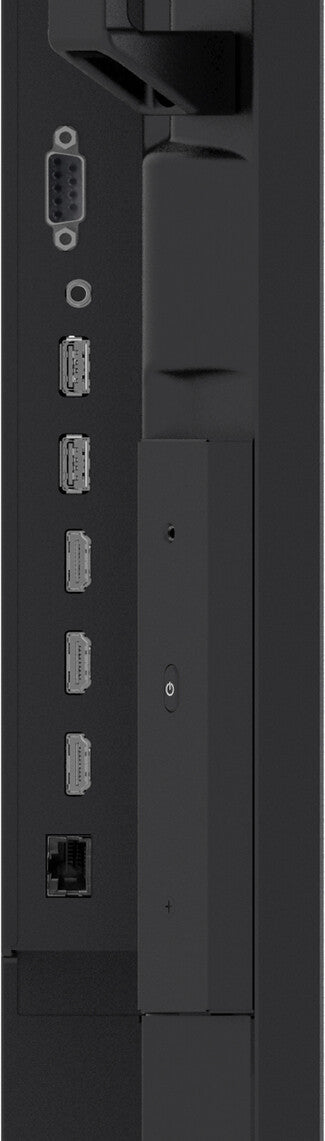

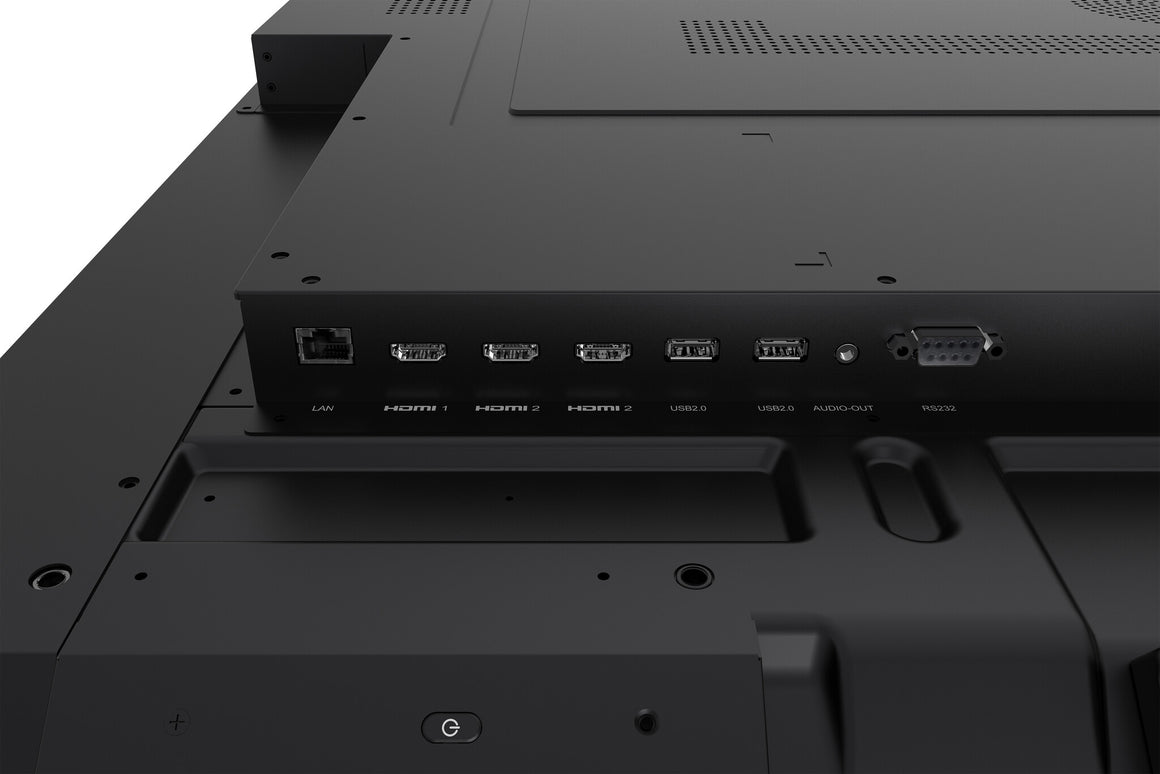

| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| USB port |
Yes |
| DVI port |
No |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
32 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Bezel width (top) |
1.4 cm |
| Bezel width (side) |
1.4 cm |
| Bezel width (bottom) |
1.6 cm |

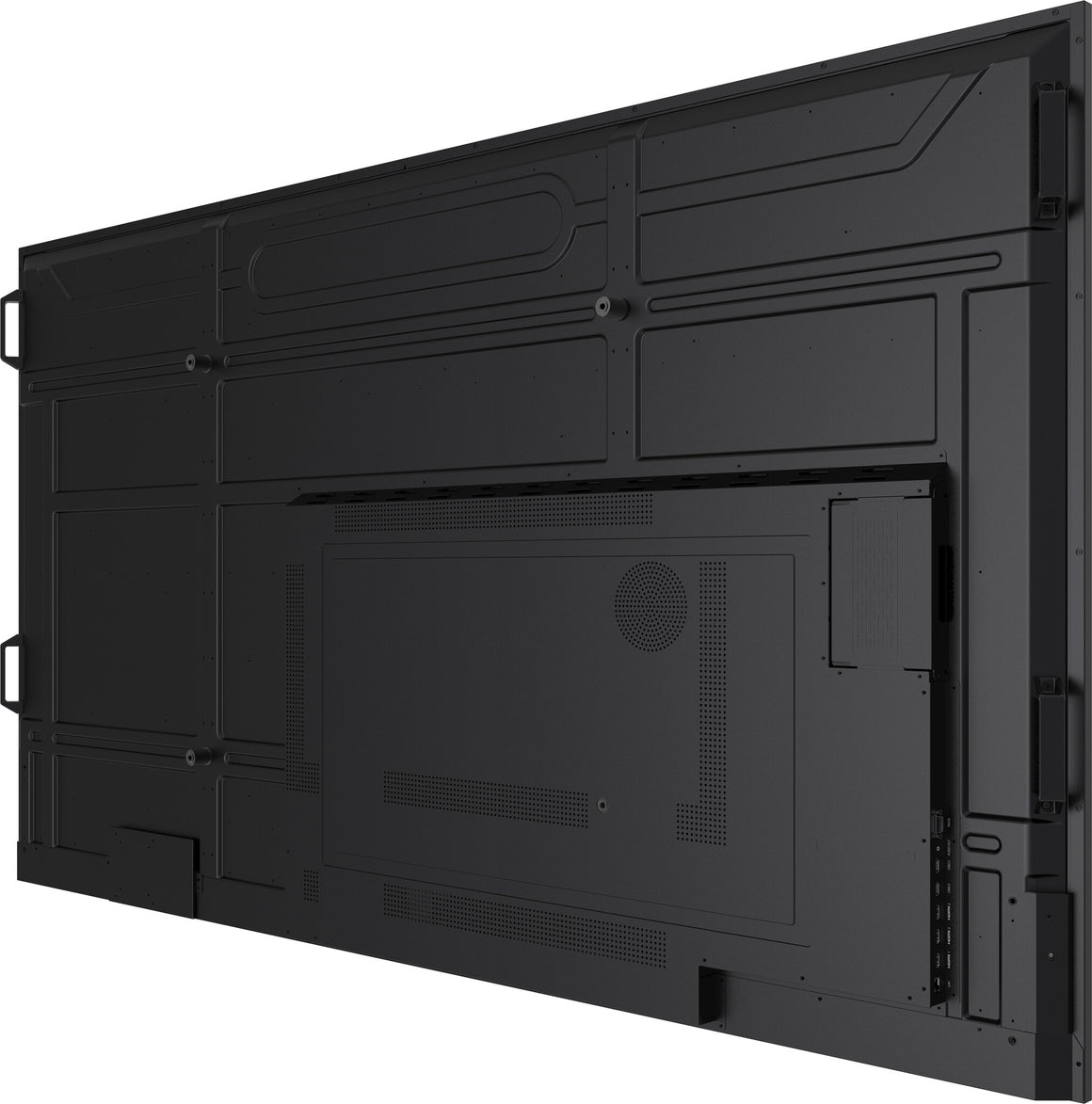

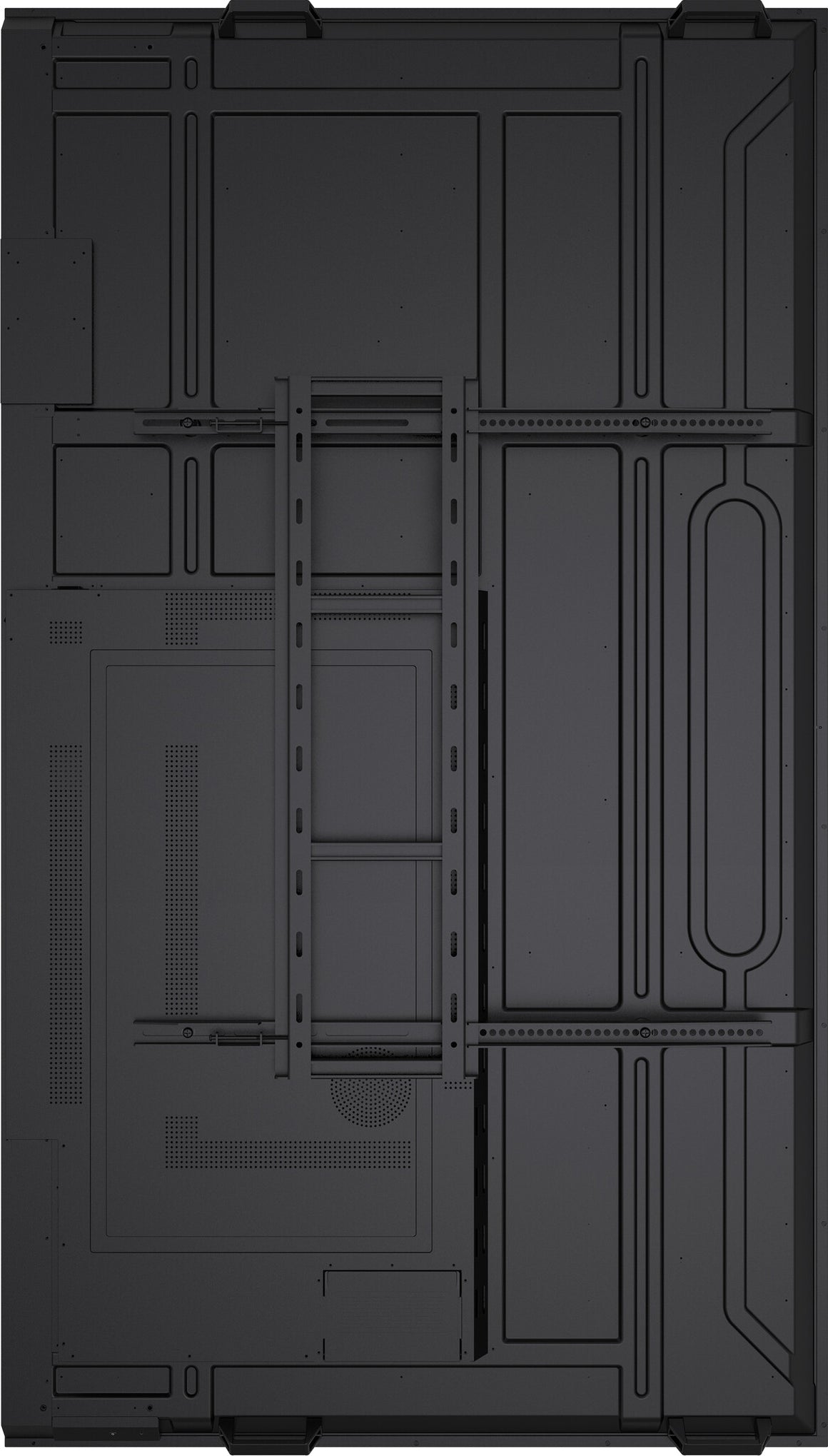

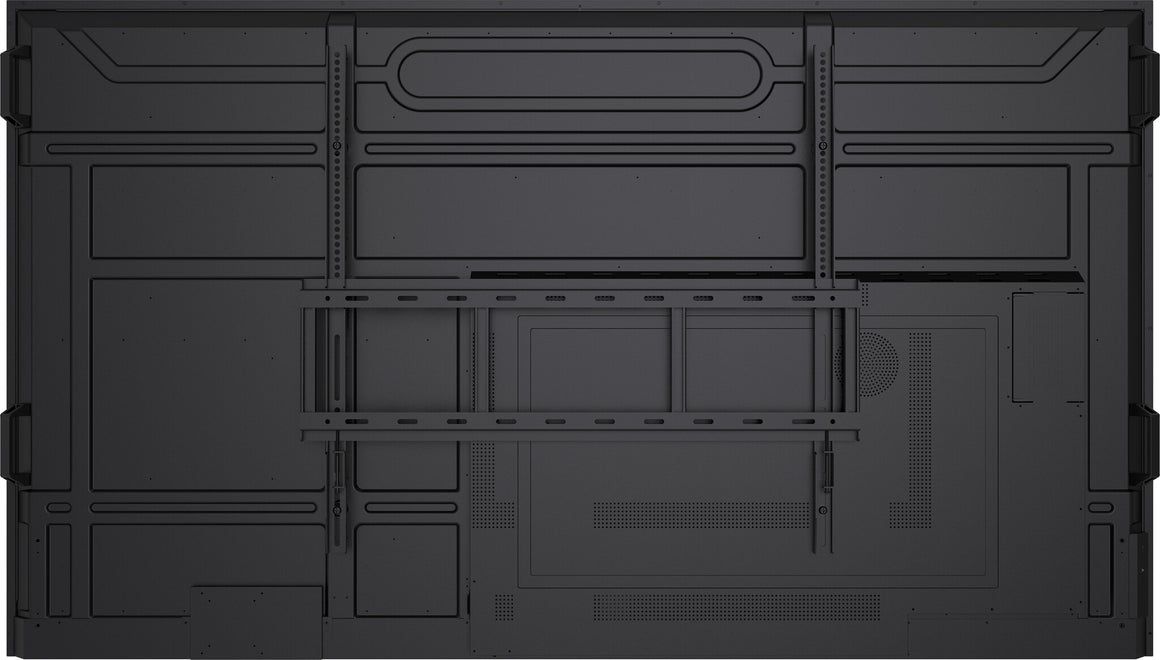

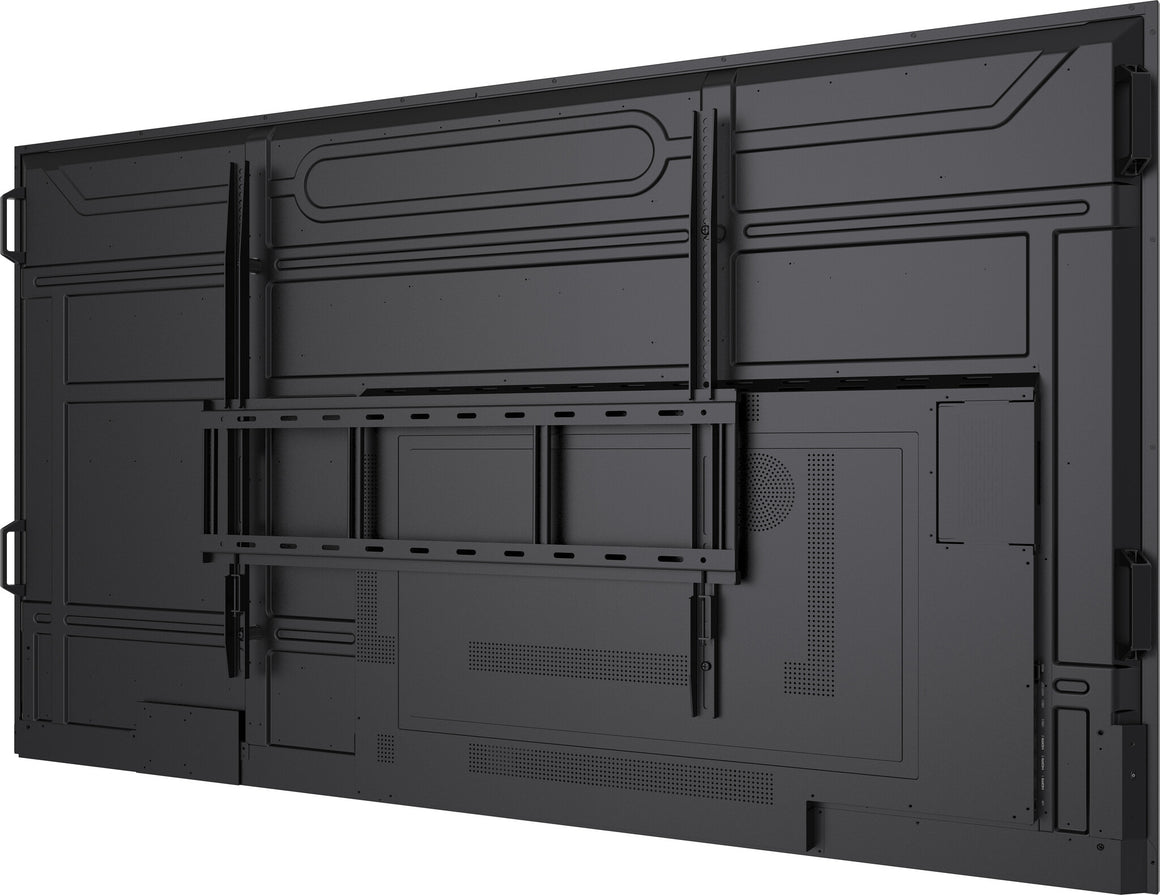

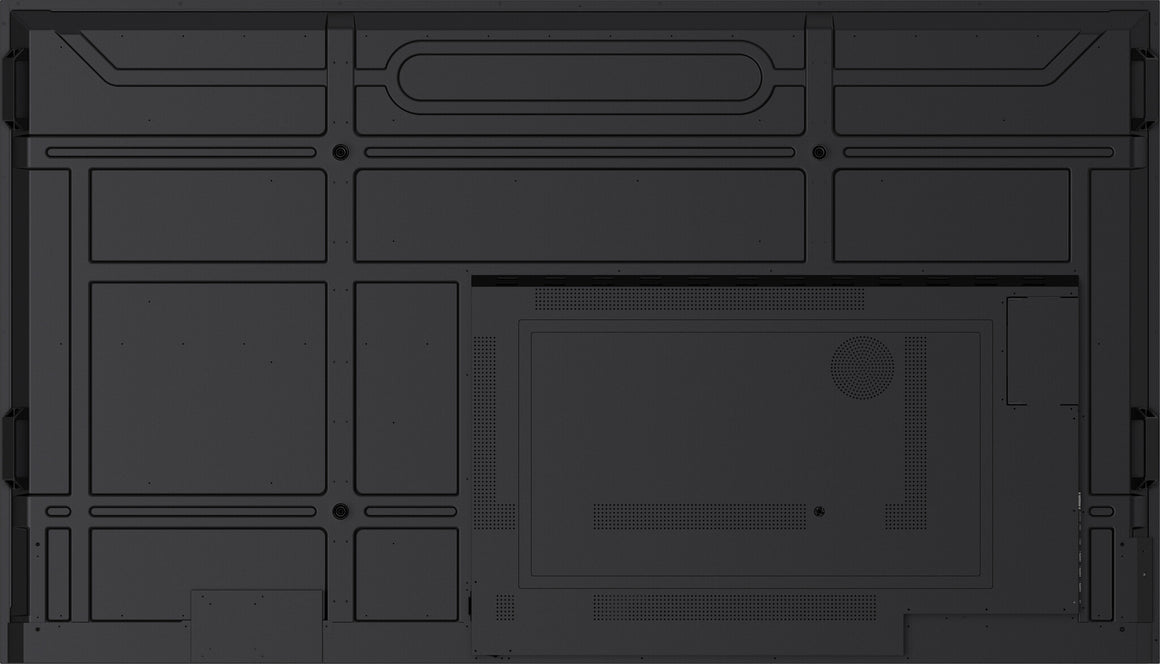

| Panel mounting interface |
800 x 600 mm |
| VESA mounting |
Yes |

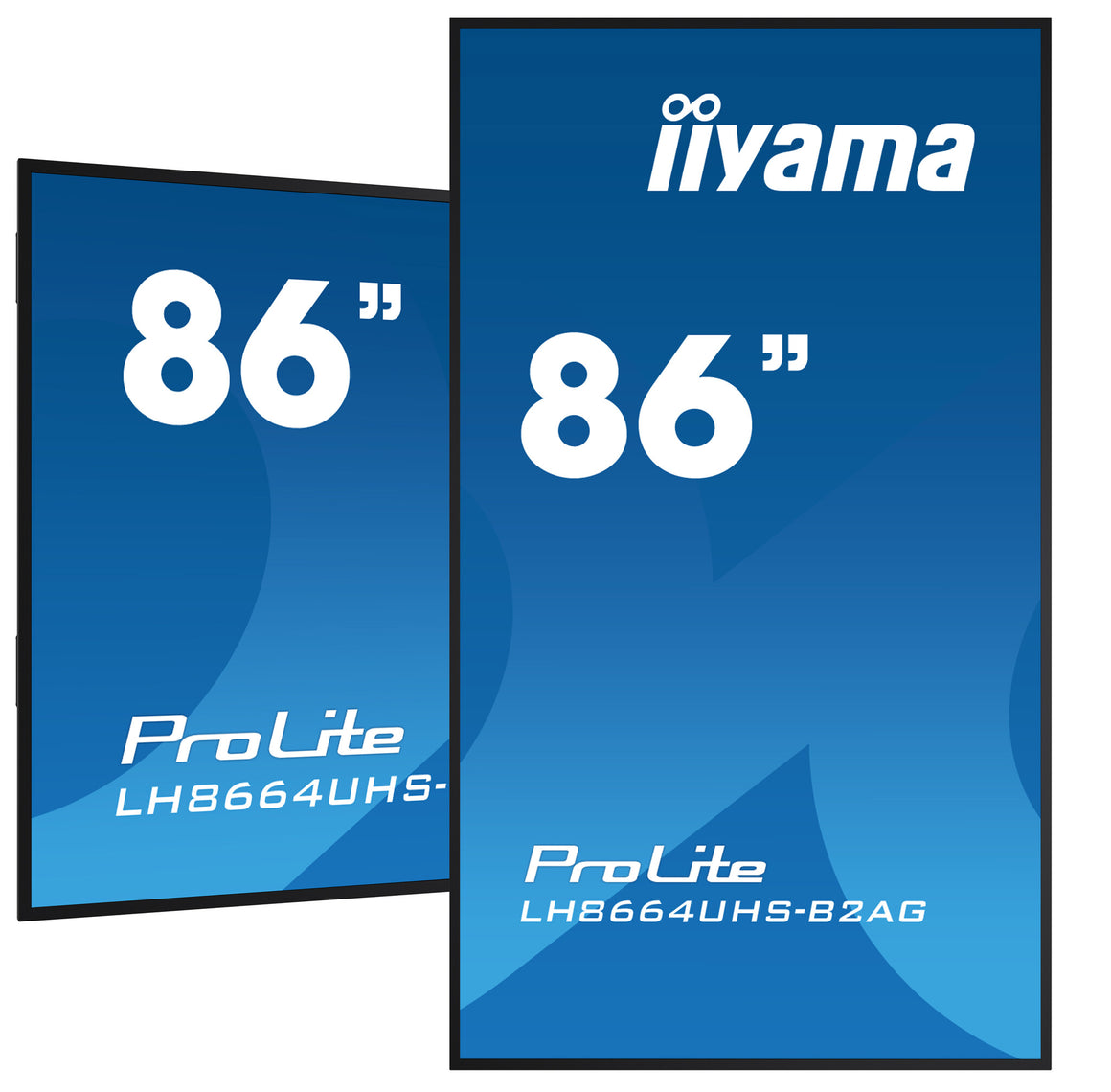

| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
1.4/2.2 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
15 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
145 kWh |
| Energy efficiency class (SDR) |
F |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
145 W |
| Computer system |
|---|
| Operating system version |
11 |
| Operating system installed |
Android |
| Internal storage capacity |
16 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
2 GB |
| Processor cores |
4 |
| Processor model |
A53 |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
55.2 kg |
| Display height |
1108.8 mm |
| Display depth |
79.6 mm |
| Display width |
1937.8 mm |
| Packaging data |
|---|
| Package volume |
73700 cm³ |
| Package height |
1275 mm |
| Package depth |
275 mm |
| Package width |
2125 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI |
| Mounting kit |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Technical details |
|---|
| Audio in (mini jack) |
Yes |
| Other features |
|---|
| Audio output |
Mini Jack |
