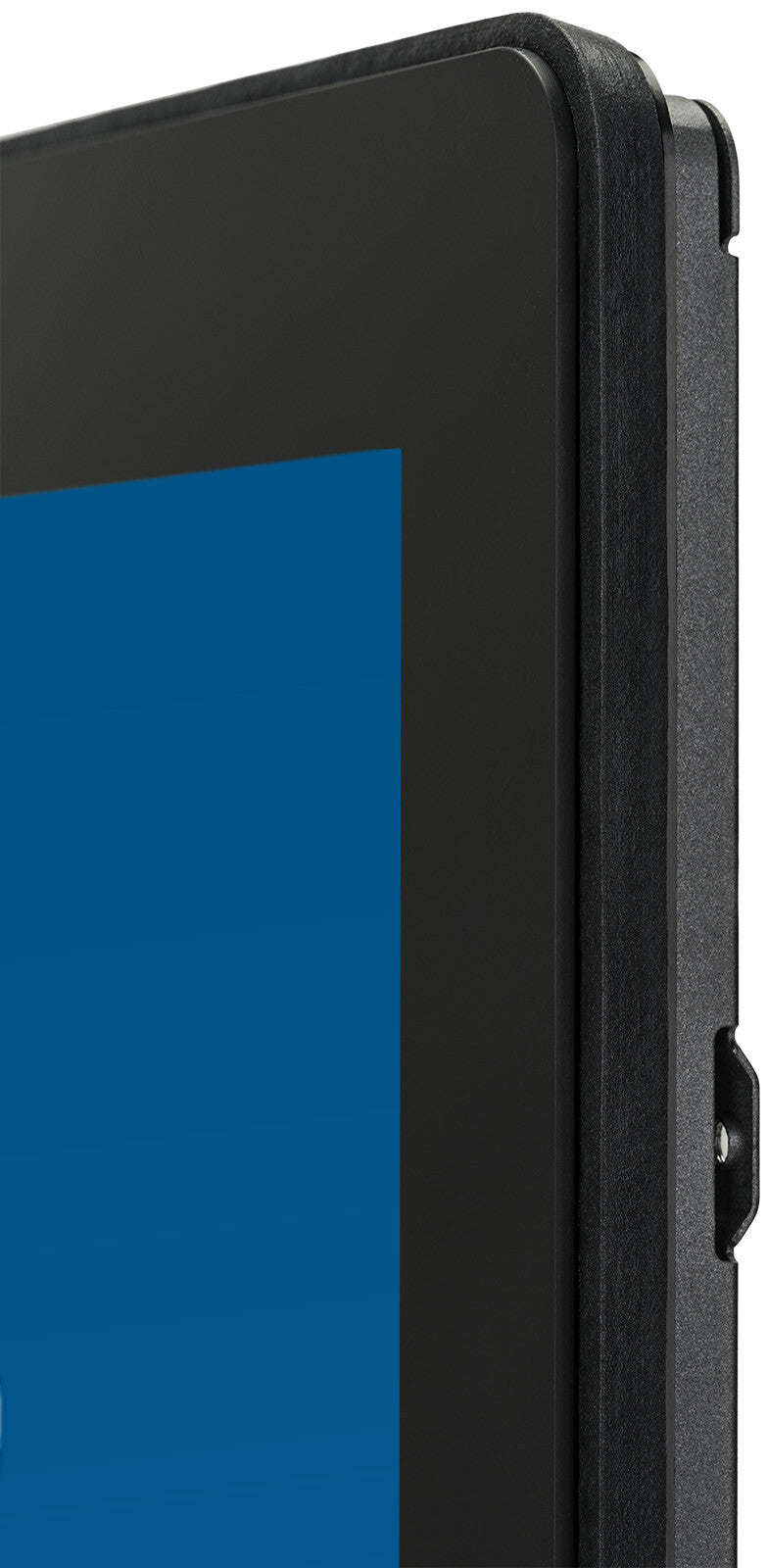

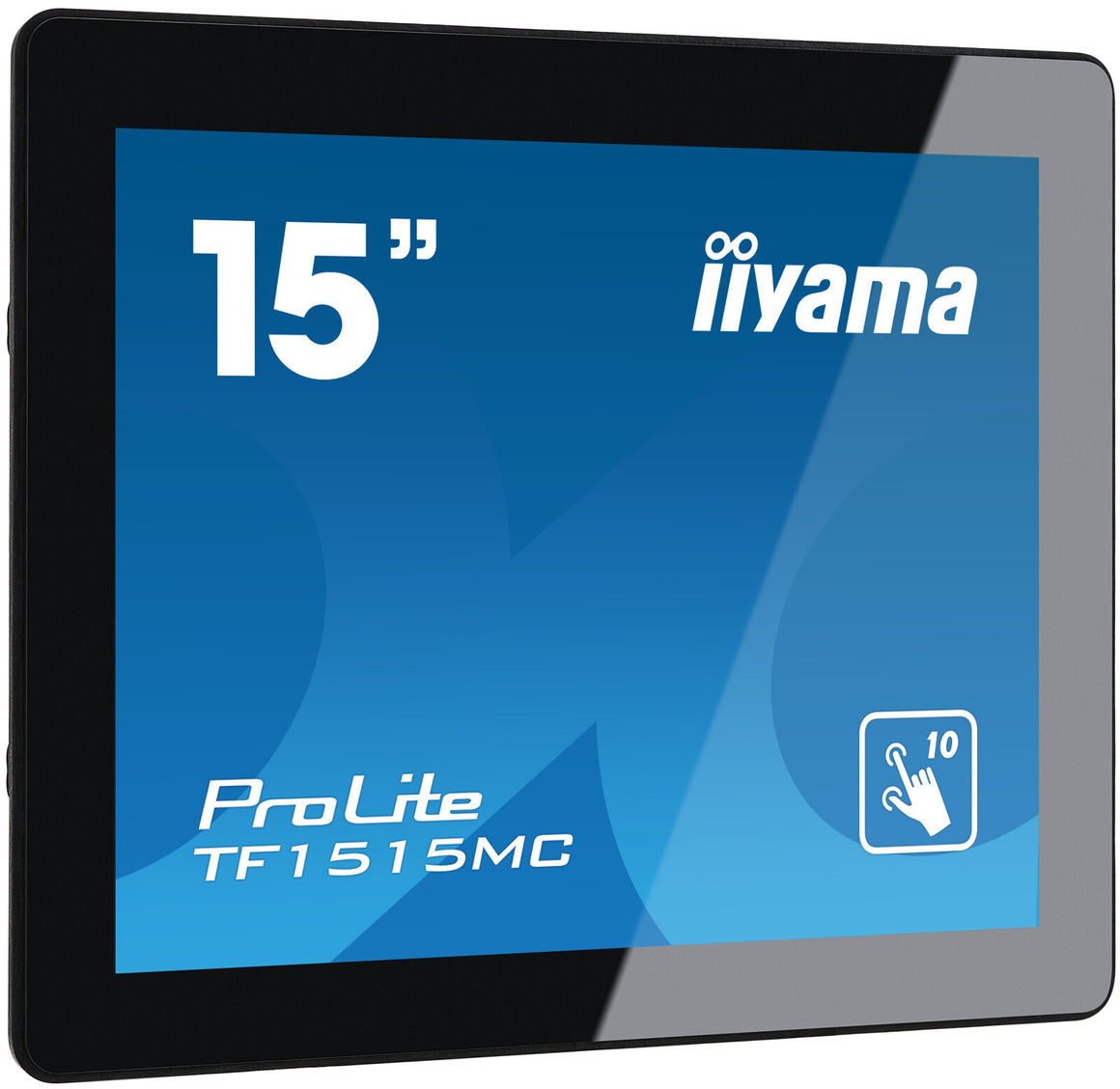

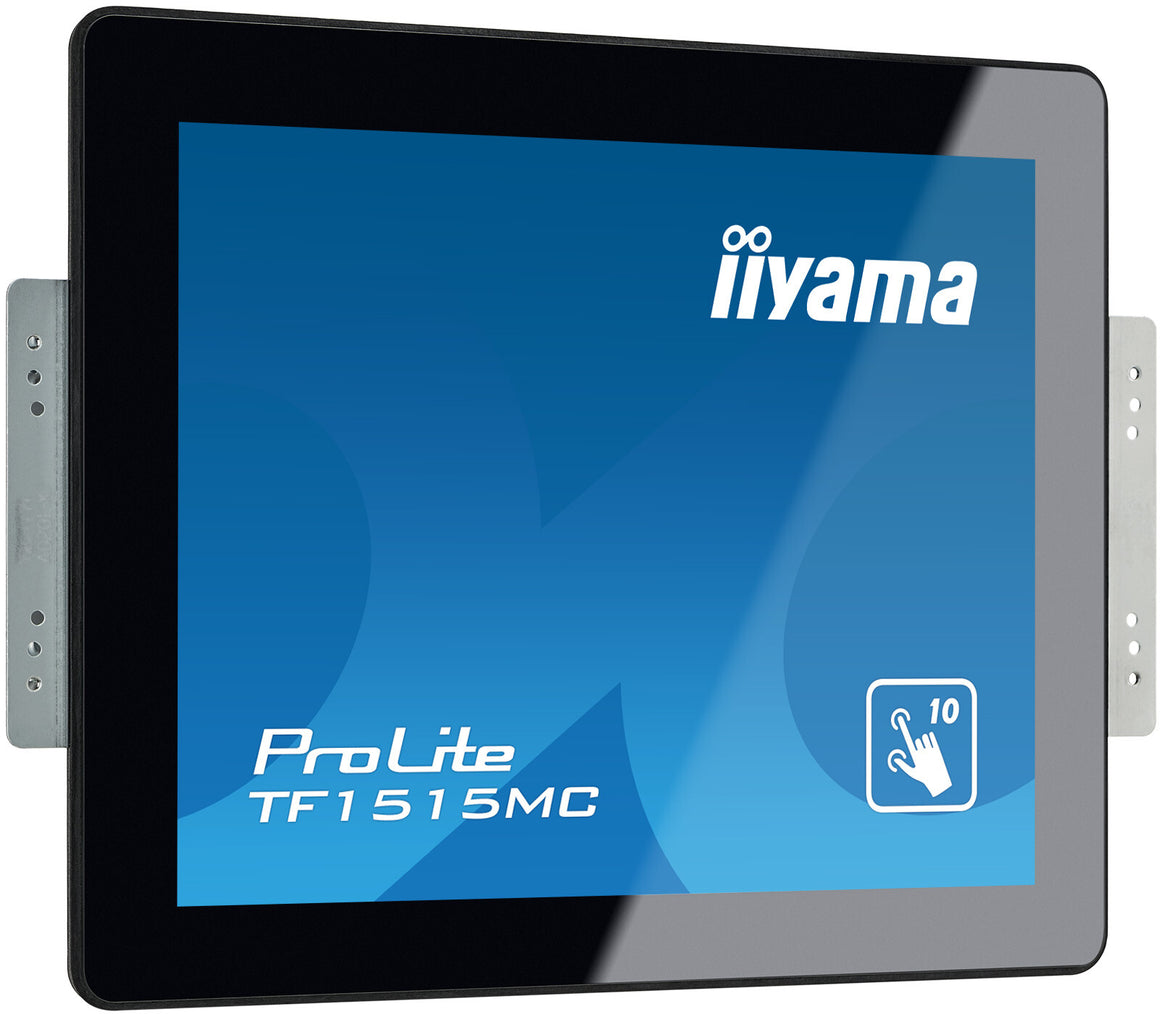

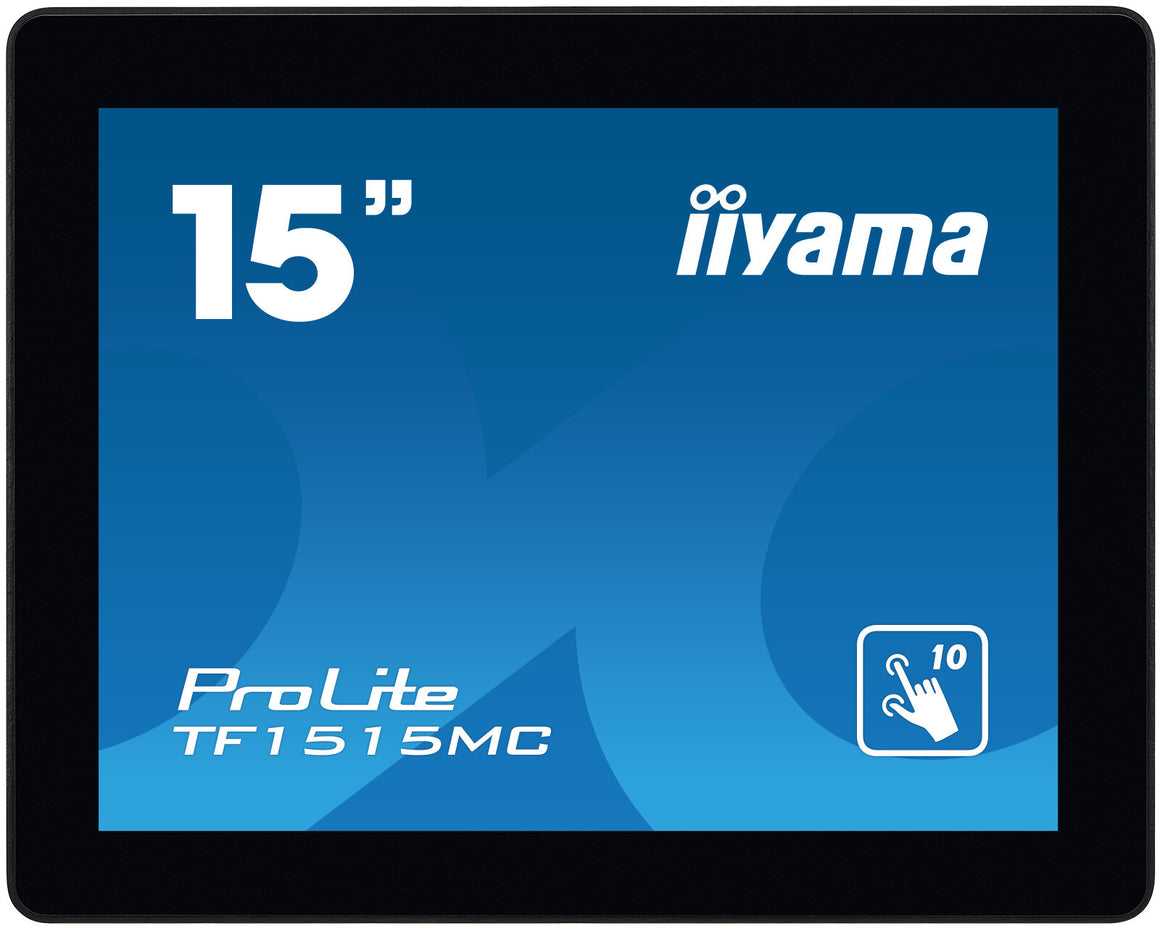

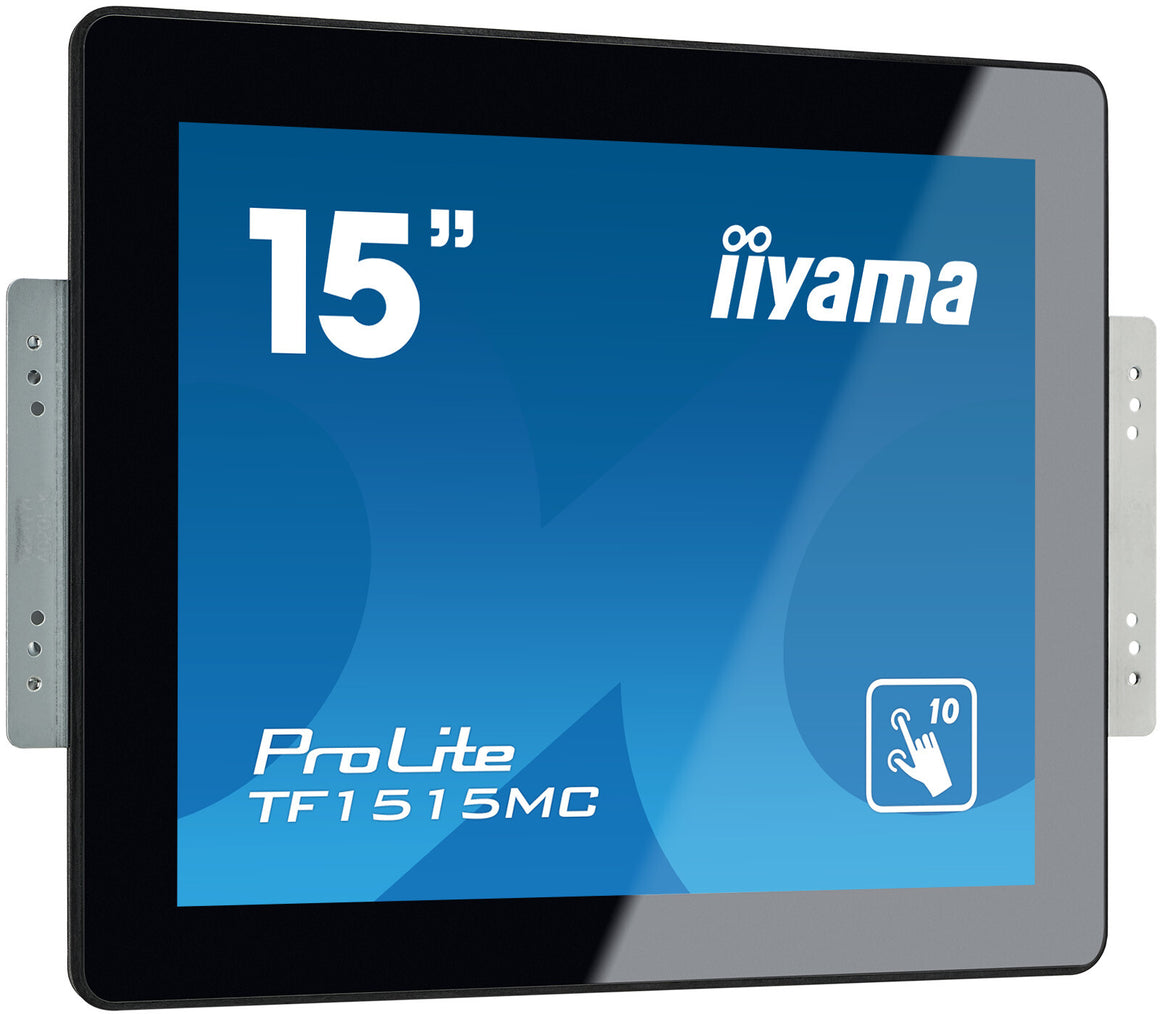

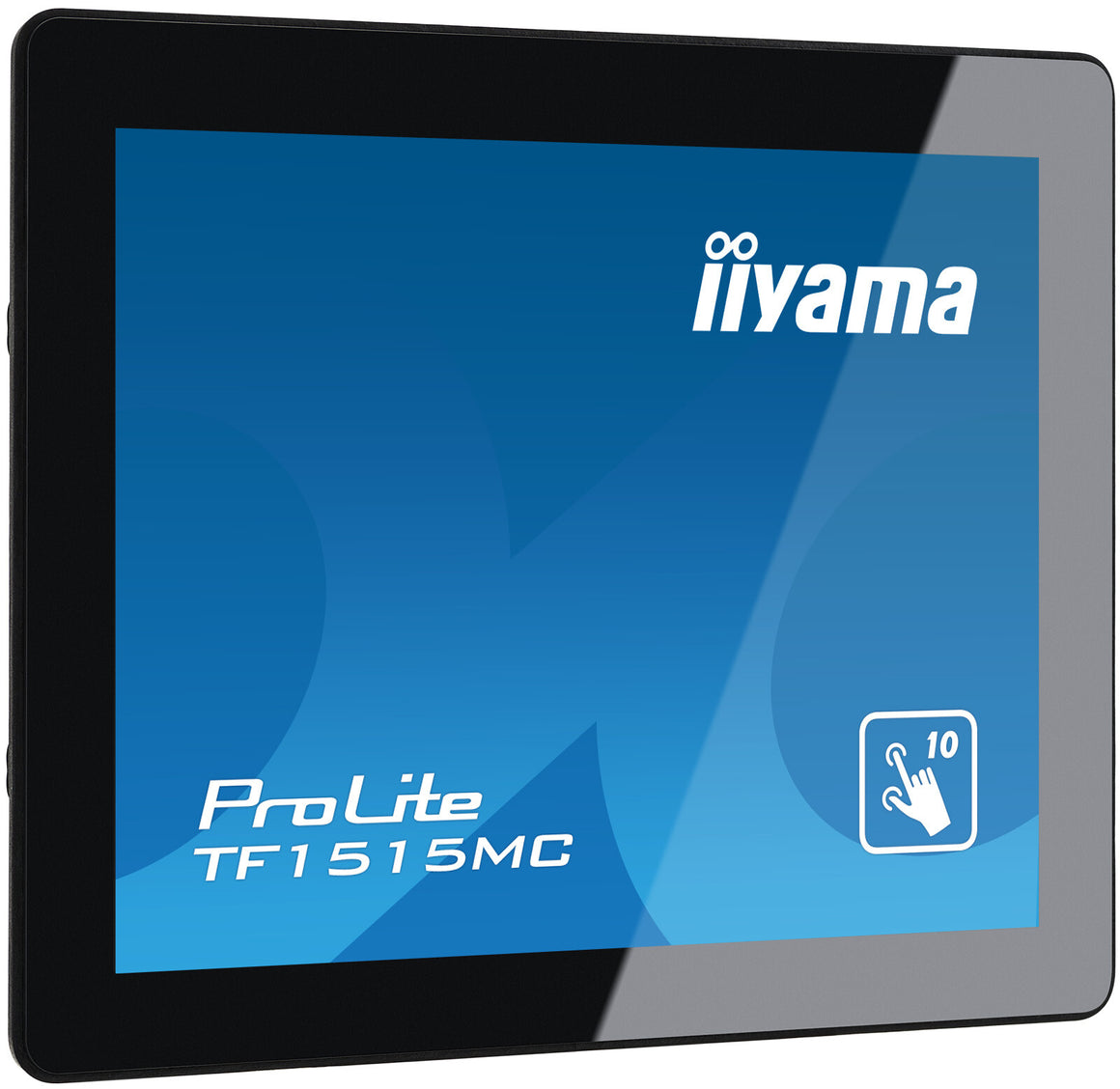

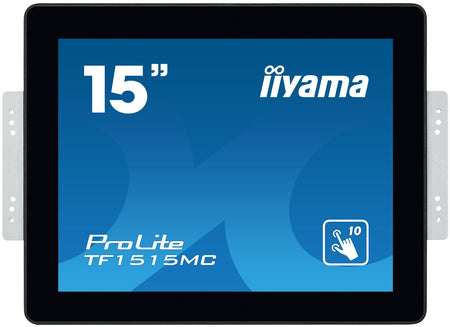

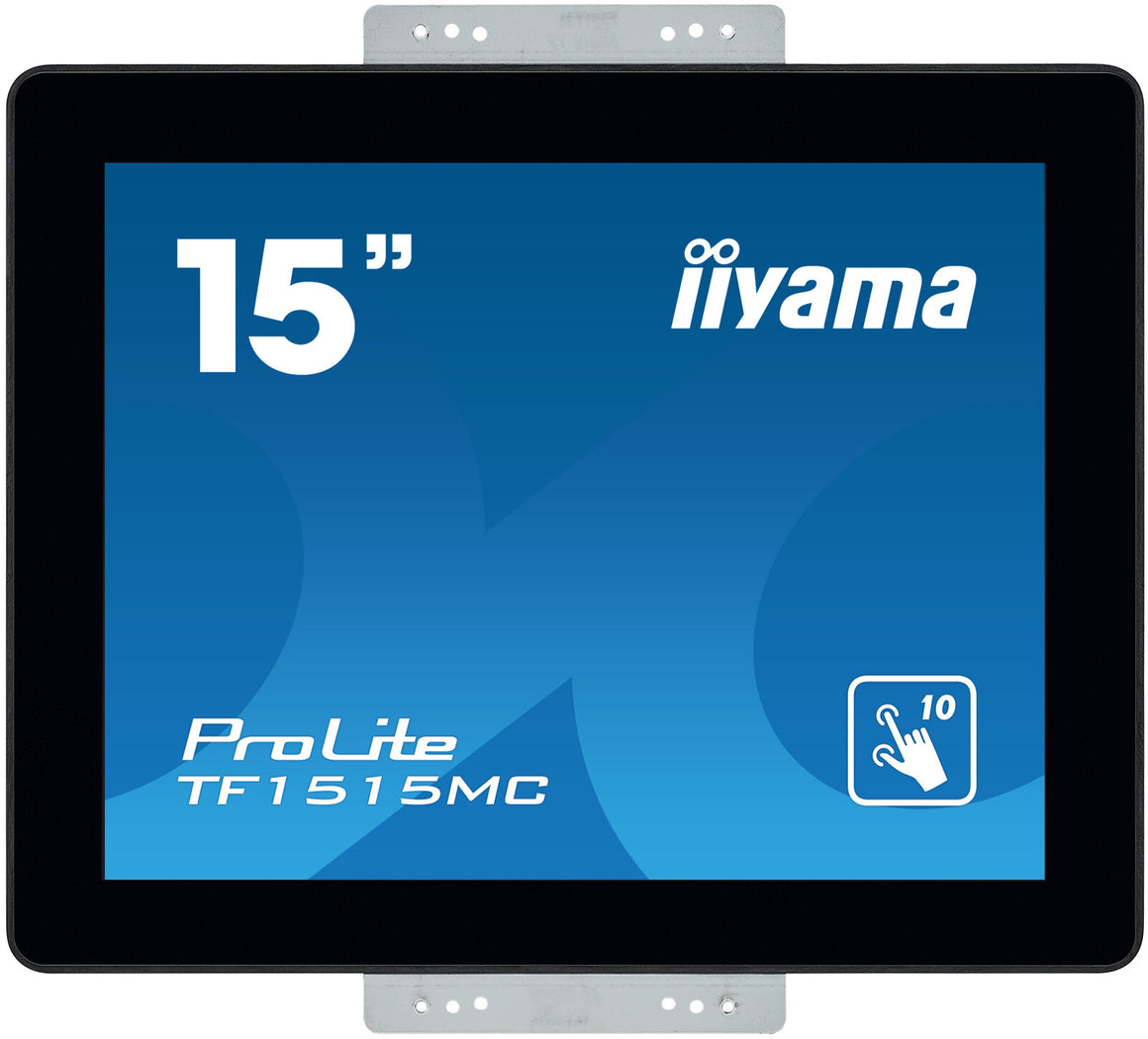

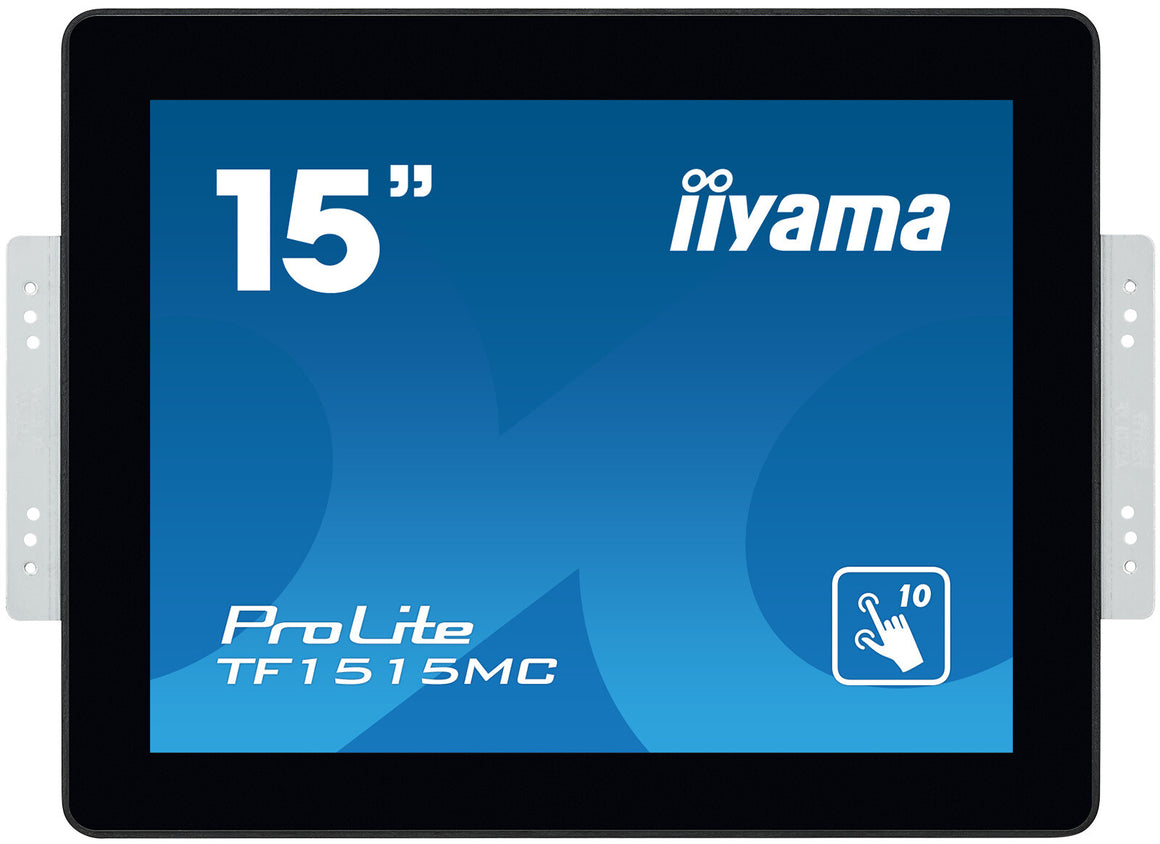

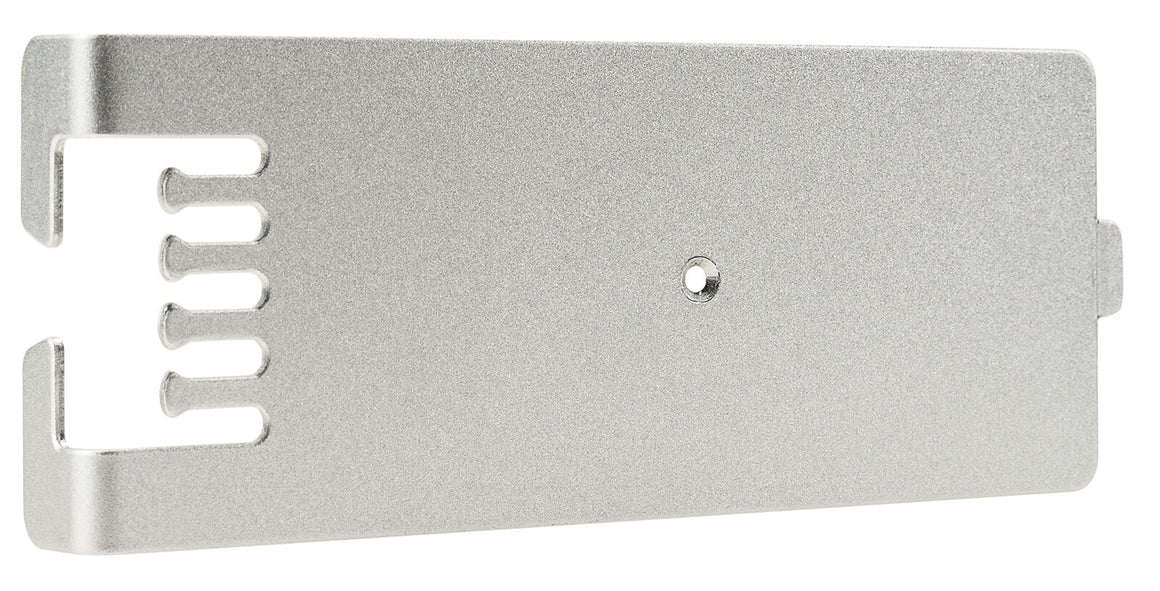

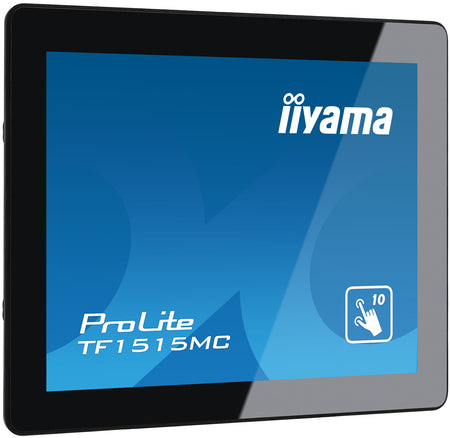

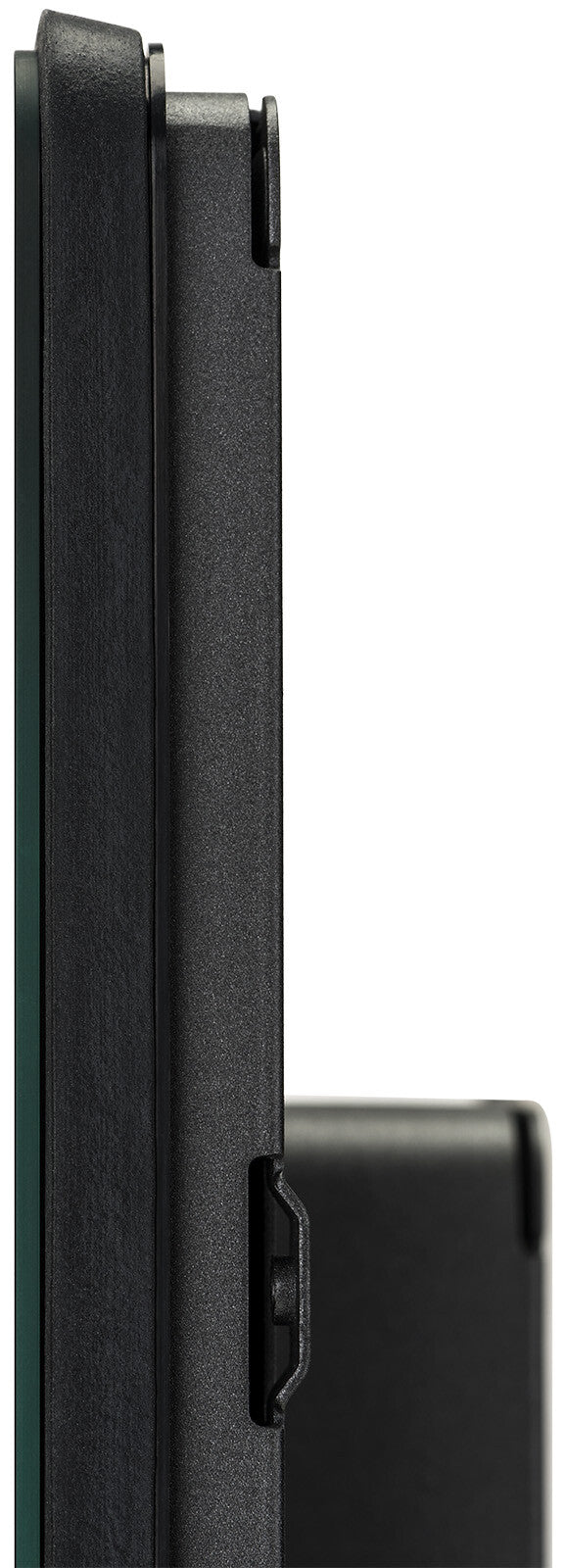

The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display |
|---|
| Surface hardness |
7H |
| Glass thickness |
6 mm |
| Horizontal scan range |
31.4 - 60 kHz |
| Display diagonal (metric) |
38 cm |
| Pixel pitch |
0.297 x 0.297 mm |
| Display number of colours |
16.2 million colours |
| Viewing angle, vertical |
150° |
| Viewing angle, horizontal |
160° |
| Contrast ratio (typical) |
800:1 |
| Response time |
8 ms |
| Native aspect ratio |
4:3 |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen |
Yes |
| HD type |
XGA |
| Display brightness |
350 cd/m² |
| Display resolution |
1024 x 768 pixels |
| Panel type |
TN |
| Display technology |
LED |
| Display diagonal |
38.1 cm (15") |

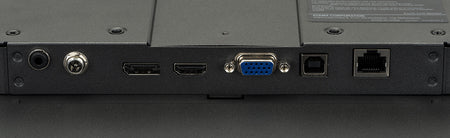

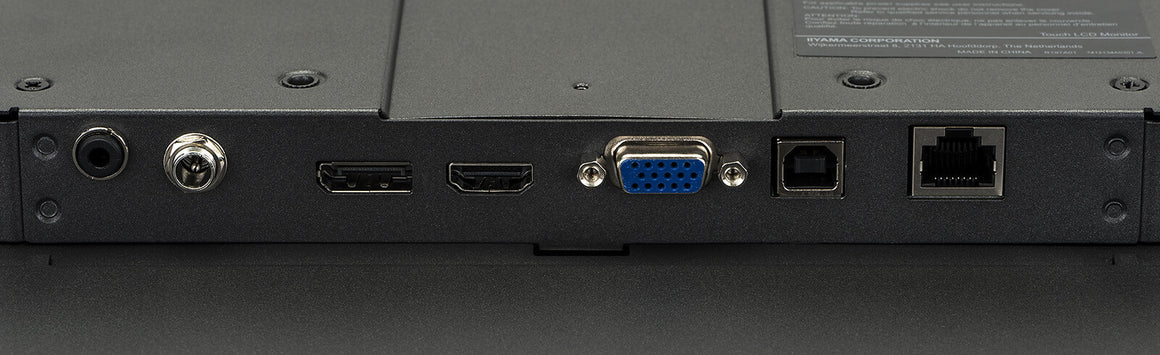

| Ports & interfaces |
|---|
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| Design |
|---|

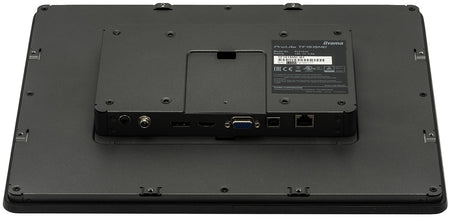

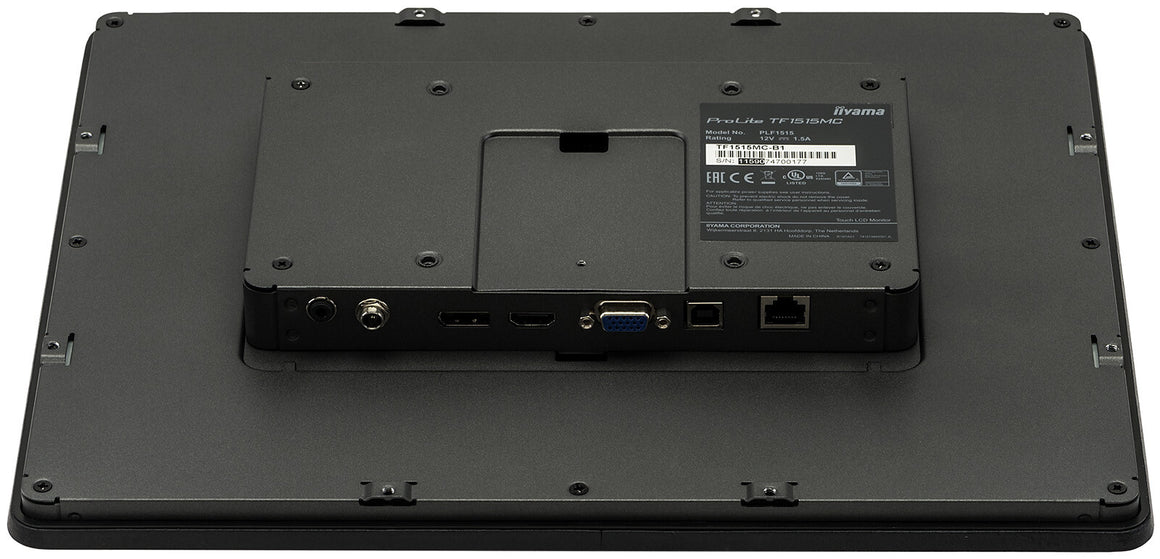

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Placement supported |
Horizontal/Vertical |
| Product colour |
Black |
| Performance |
|---|
| International Protection (IP) code |
IP65 |
| HDCP |
Yes |
| Number of OSD languages |
7 |

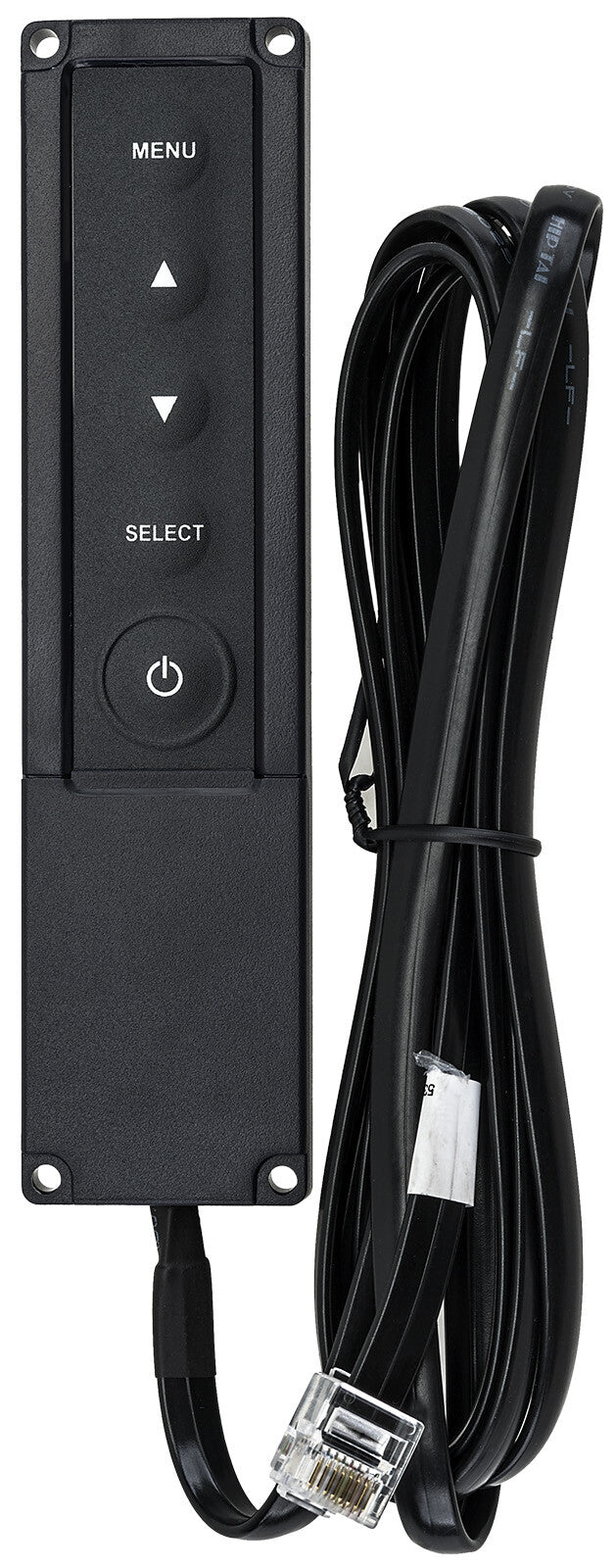

| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| Power |
|---|
| Energy efficiency scale |
A to G |
| Energy consumption (SDR) per 1000 hours |
10 kWh |
| Energy efficiency class (SDR) |
E |
| Power consumption (off) |
1.2 W |
| Power consumption (standby) |
1.2 W |
| Power consumption (typical) |
16 W |
| Computer system |
|---|
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight (with stand) |
2.9 kg |
| Height (with stand) |
291 mm |
| Depth (with stand) |
41.5 mm |
| Width (with stand) |
364 mm |
| Packaging data |
|---|
| Package weight |
4.6 kg |
| Package height |
470 mm |
| Package depth |
460 mm |
| Package width |
460 mm |
| Packaging content |
|---|
| Cables included |
AC, DisplayPort, HDMI, USB |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, cULus |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
378636 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Features |
|---|
| Wall mountable |
Yes |
| Other features |
|---|
| Plug and Play |
Yes |
| Built-in camera |
No |
| Aspect ratio |
4:3 |
| LED indicators |
Yes |
| Display viewable area (HxV) |
304.1 x 228.1 mm |
| Height (without stand) |
41.5 mm |
| Weight (without stand) |
2.9 kg |
| Depth (without stand) |
291 mm |
| Quick start guide |
Yes |
| Power supply type |
External |
| Built-in microphone |
No |
| Viewable size, horizontal |
30.4 cm |
| Viewable size, vertical |
22.8 cm |
| Maximum refresh rate |
75 Hz |
