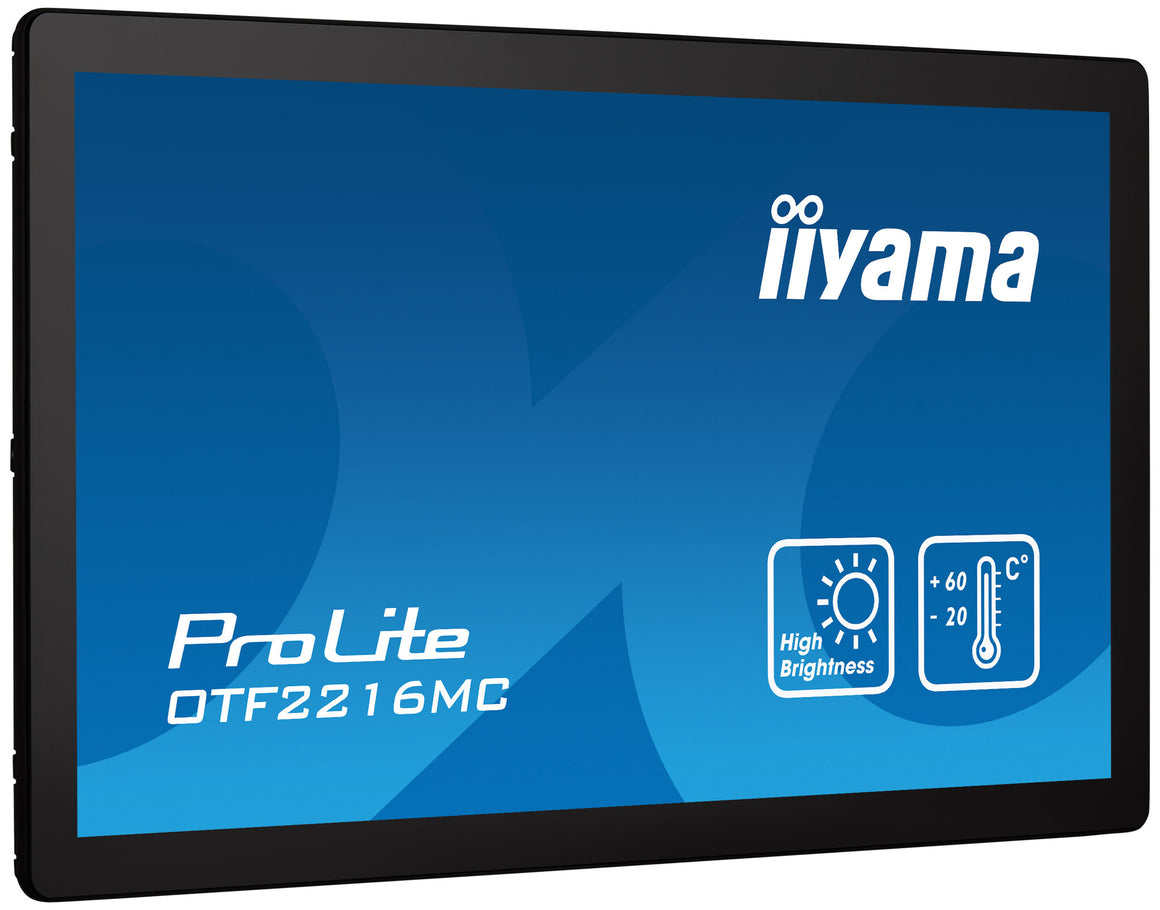

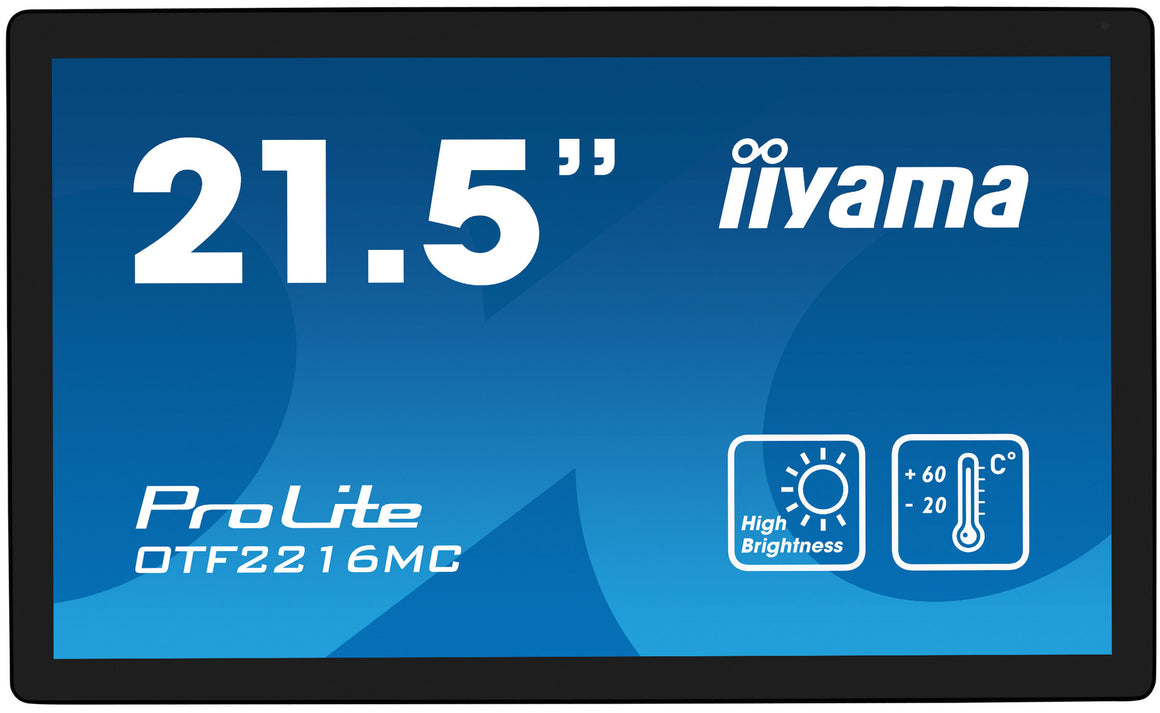

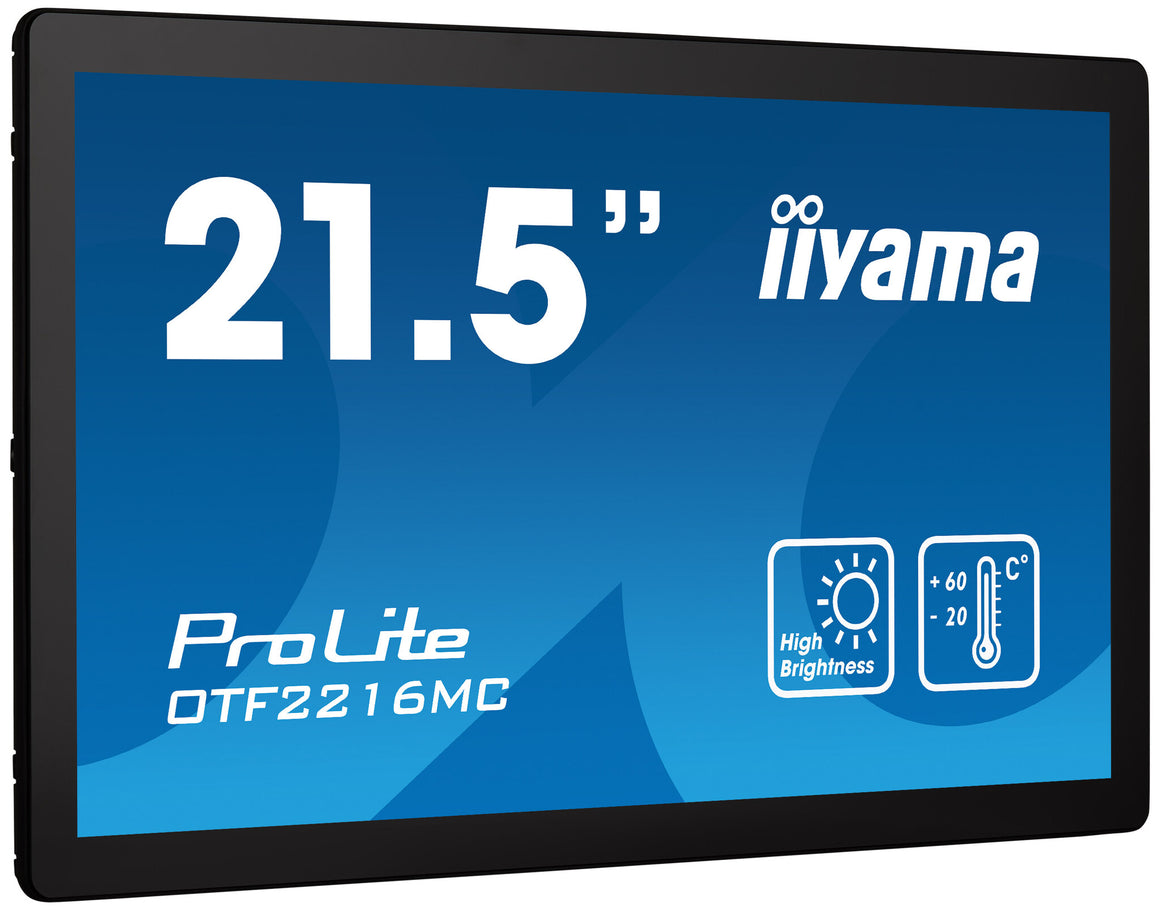

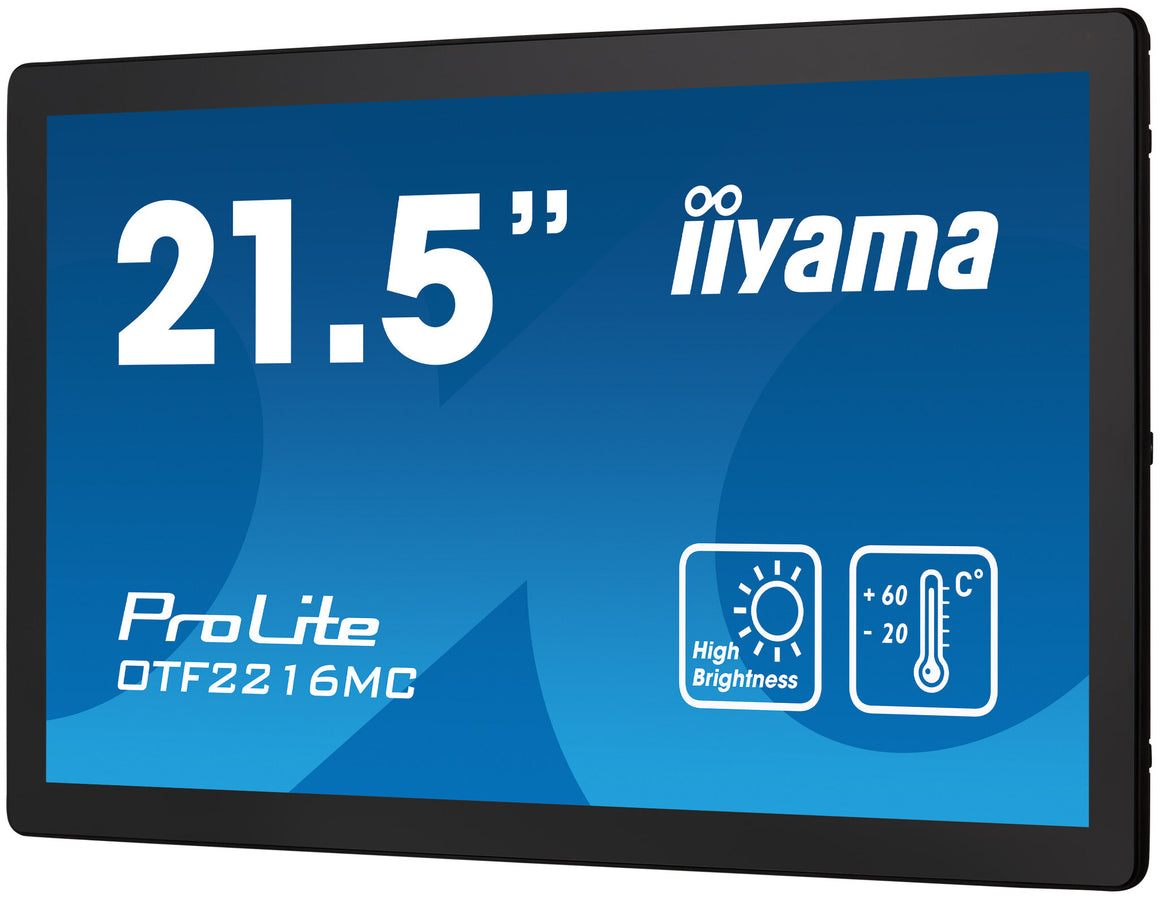

Built into a rugged, edge-to-edge glass bezel the ProLite OTF2216MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF2216MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display |
|---|
| Colour depth |
8 bit |
| Surface hardness |
7H |
| Display diagonal (metric) |
54.6 cm |
| Digital horizontal frequency |
31.8 - 82 kHz |
| Viewable size, vertical |
26.9 cm |
| Viewable size, horizontal |
47.7 cm |
| Horizontal scan range |
31.4 - 82 kHz |
| Pixel pitch |
0.248 x 0.248 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
5000:1 |
| Screen shape |
Flat |
| Response time |
25 ms |
| Display brightness |
1100 cd/m² |
| Display brightness (typical) |
1100 cd/m² |
| Display brightness (peak) |
1100 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Panel type |
VA |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5") |
| Design |
|---|
| Glass thickness |
3.15 mm |
| Front bezel colour |
Black |
| Product colour |
Black |
| Market positioning |
Office |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| Headphone out |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| DVI port |
No |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ergonomics |
|---|
| Number of OSD languages |
7 |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) |
Yes |
| Cable management |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Energy efficiency scale |
A to G |
| Power supply type |
External |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.6 W |
| Power consumption (typical) |
43 W |
| Energy consumption (SDR) per 1000 hours |
16 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
E |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Weight (without stand) |
4.6 kg |
| Height (without stand) |
315 mm |
| Depth (without stand) |
42.5 mm |
| Width (without stand) |
520 mm |
| Weight (with stand) |
4.6 kg |
| Height (with stand) |
315 mm |
| Depth (with stand) |
42.5 mm |
| Width (with stand) |
520 mm |
| Packaging data |
|---|
| Package weight |
4.5 kg |
| Package height |
400 mm |
| Package depth |
608 mm |
| Package width |
608 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Other features |
|---|
| Certification |
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Ethernet LAN (RJ-45) ports |
1 |
| Mean time between failures (MTBF) |
60000 h |
| Active display area (W x H) |
477 x 269 mm |
| Placement supported |
Indoor |
| International Protection (IP) code |
IP65 |
