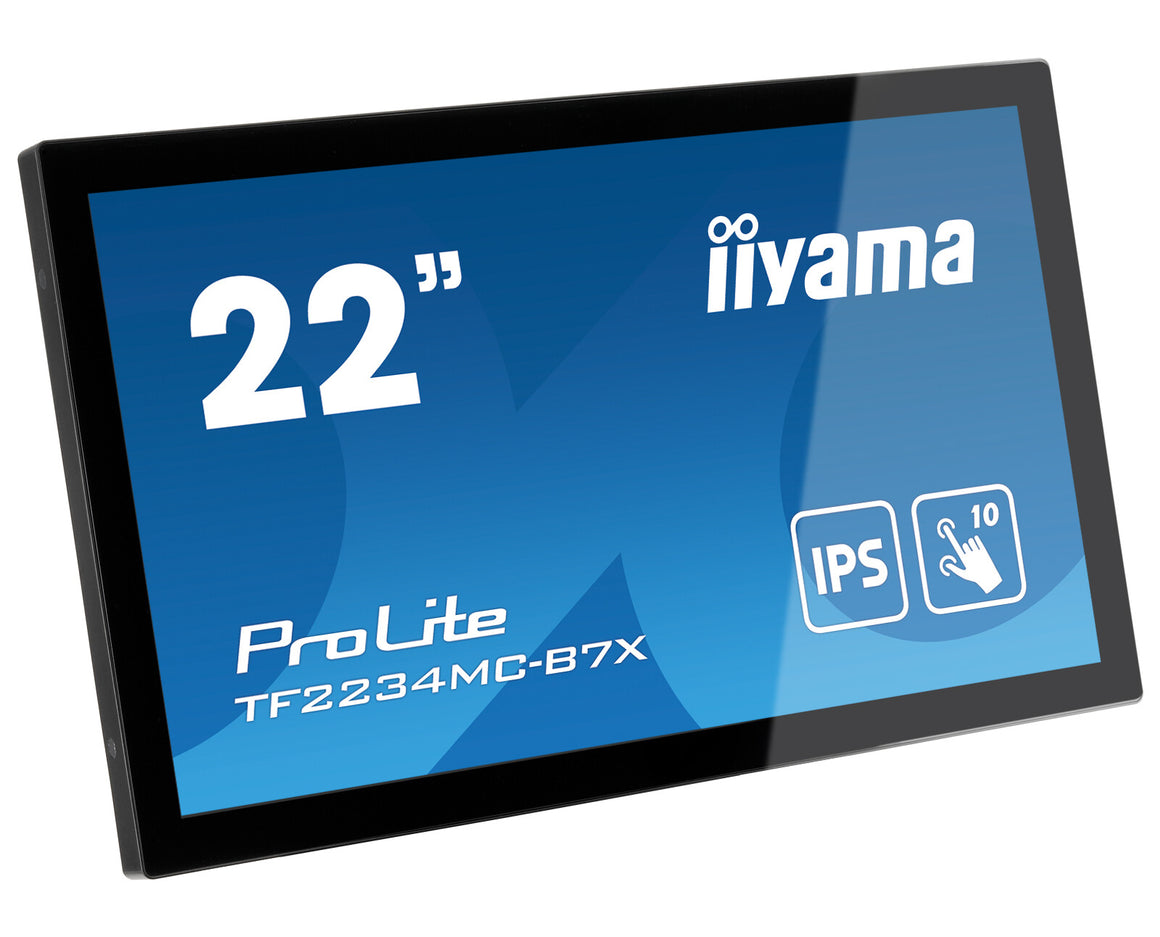

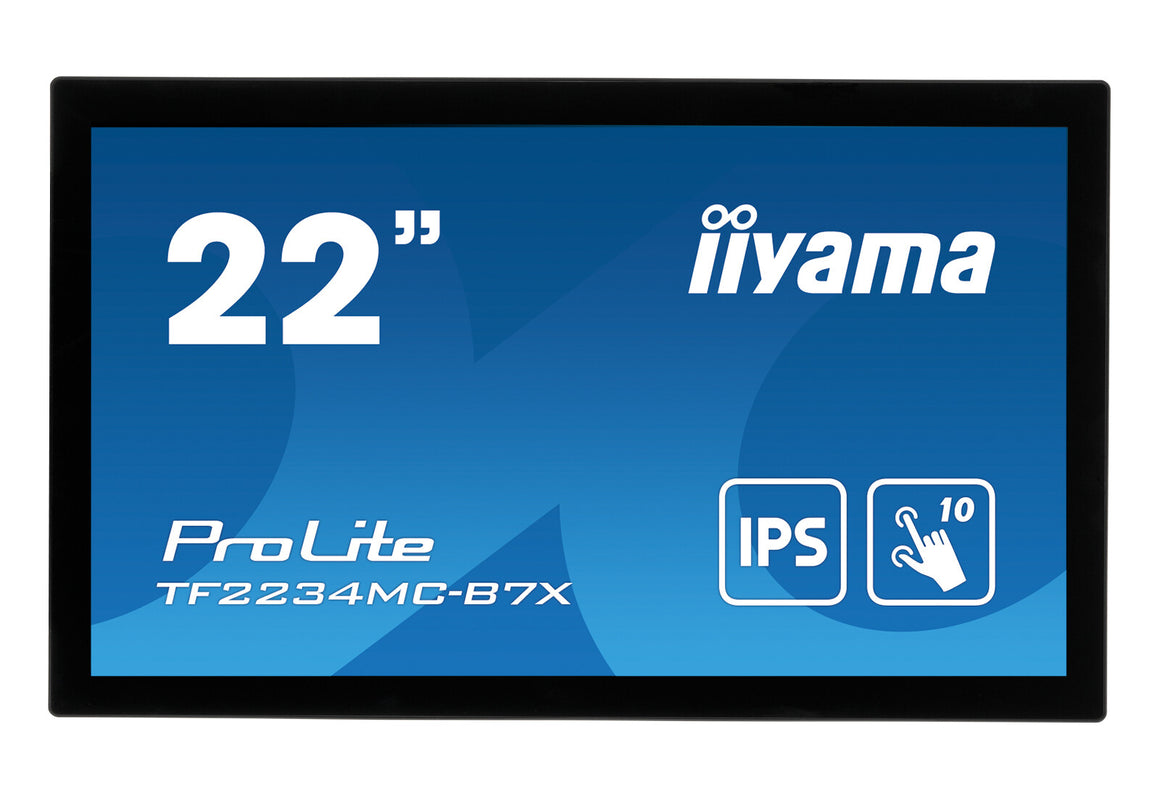

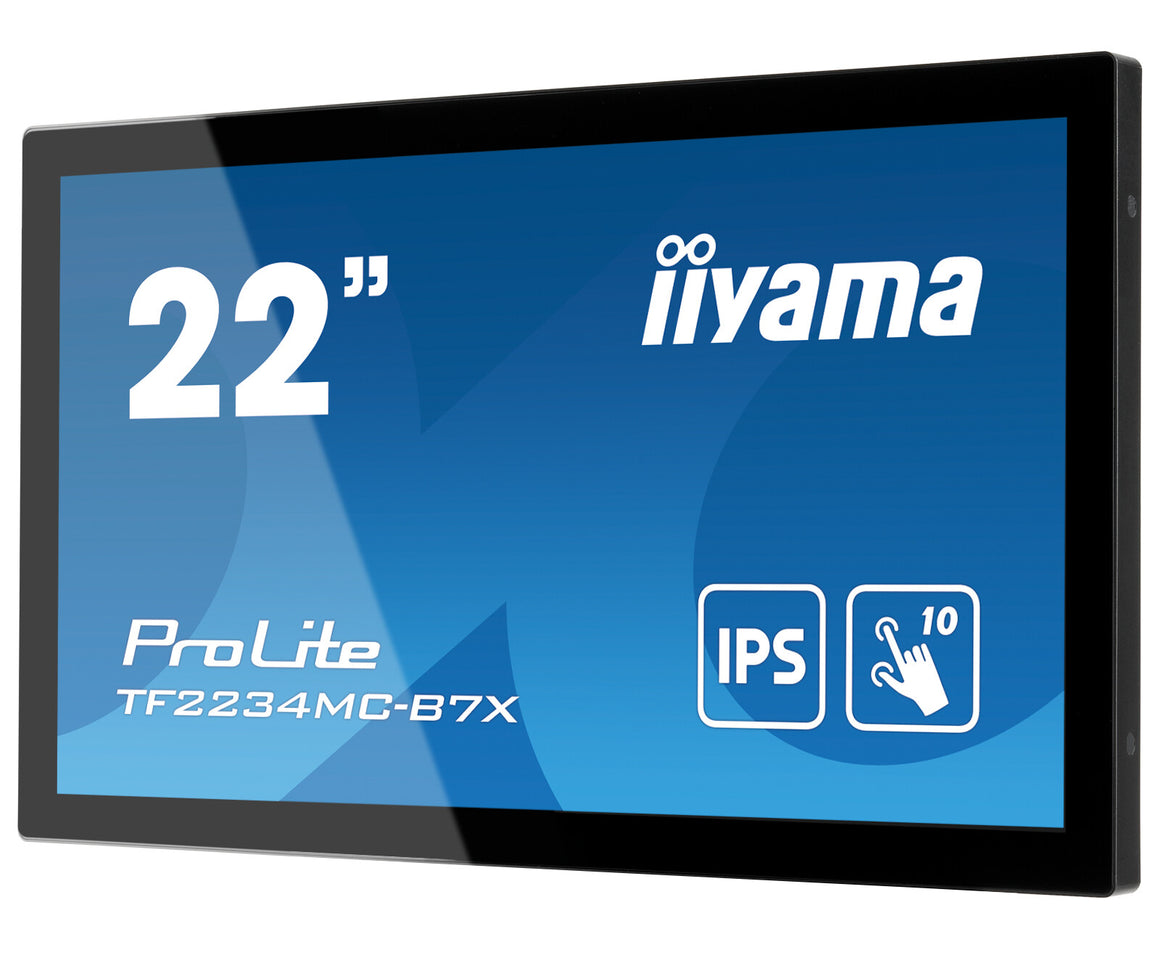

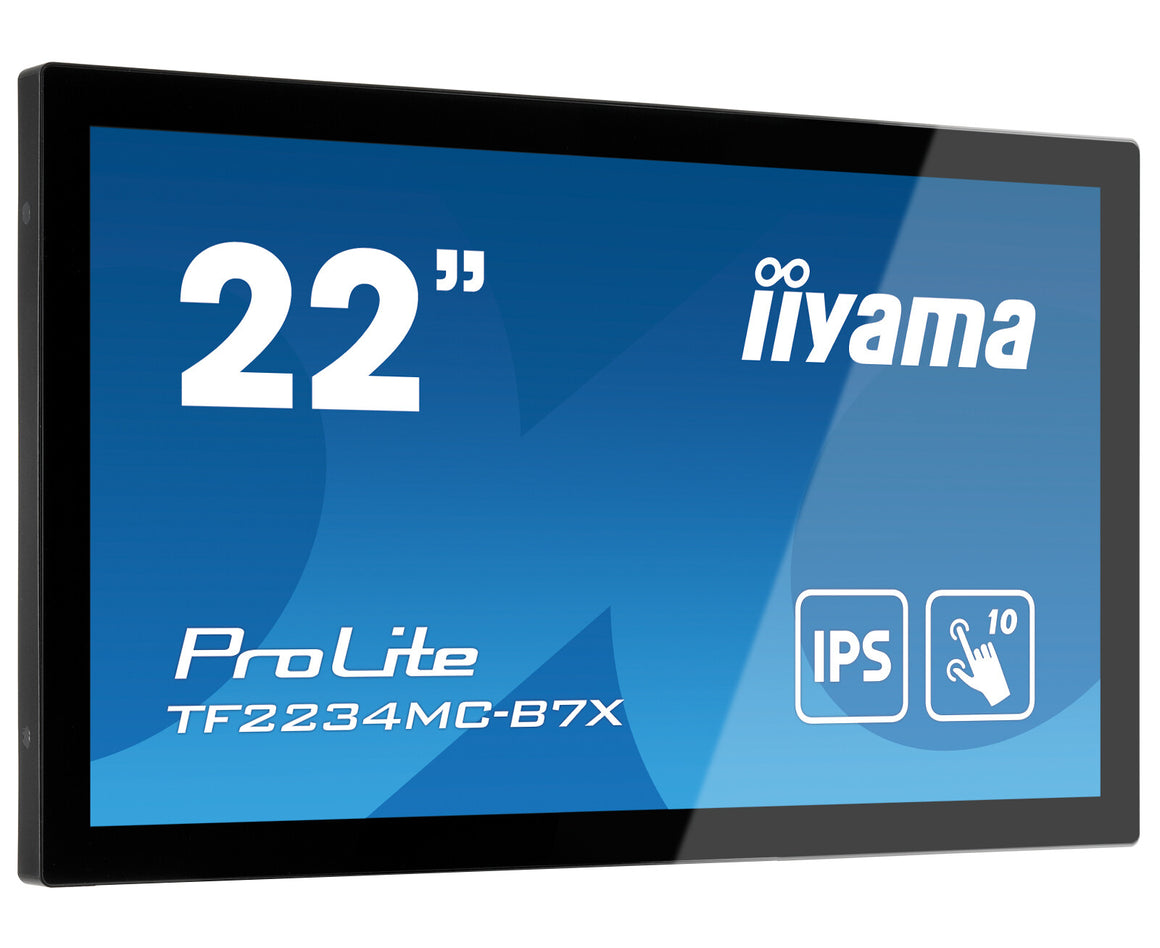

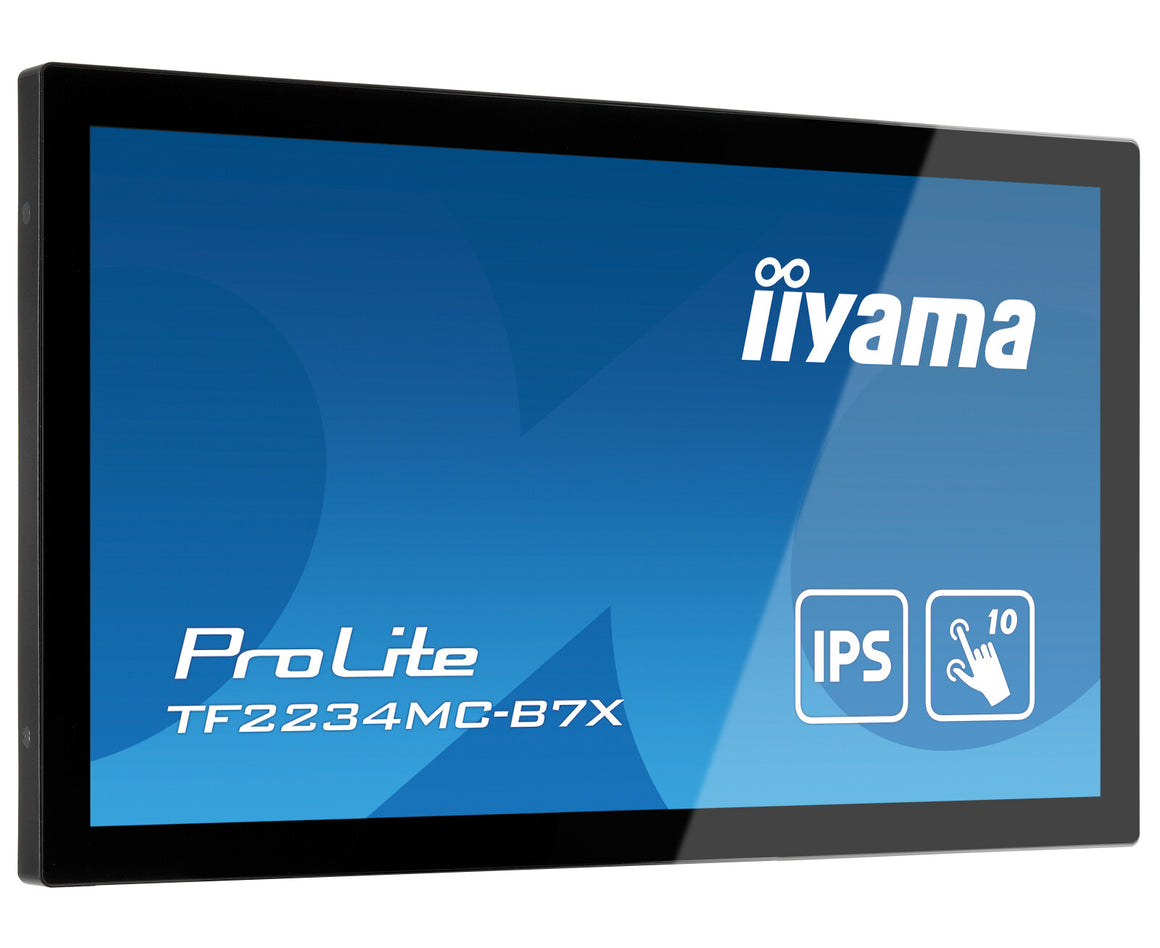

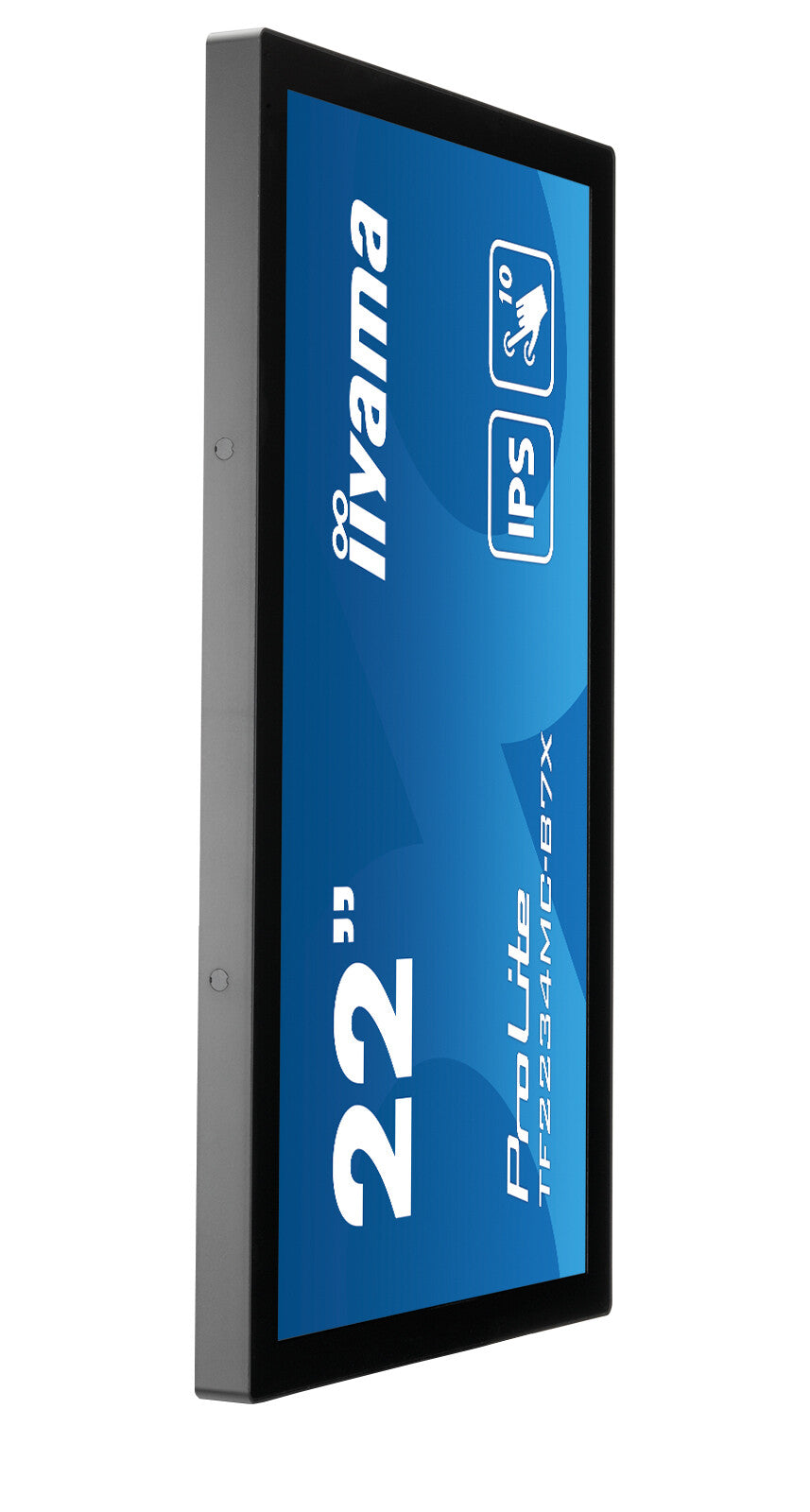

The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
| Display |
|---|
| Surface hardness |
7H |
| Display diagonal (metric) |
54.6 cm |
| Viewable size, vertical |
26.8 cm |
| Horizontal scan range |
30 - 84 kHz |
| Pixel pitch |
0.247 x 0.247 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
8 ms |
| Display brightness |
350 cd/m² |
| Display brightness (typical) |
350 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5") |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
|---|
| Glass thickness |
1.5 mm |
| Front bezel colour |
Black |
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Ergonomics |
|---|
| Number of OSD languages |
8 |
| On Screen Display (OSD) languages |
Czech, German, English, Spanish, French, Italian, Japanese, Russian |

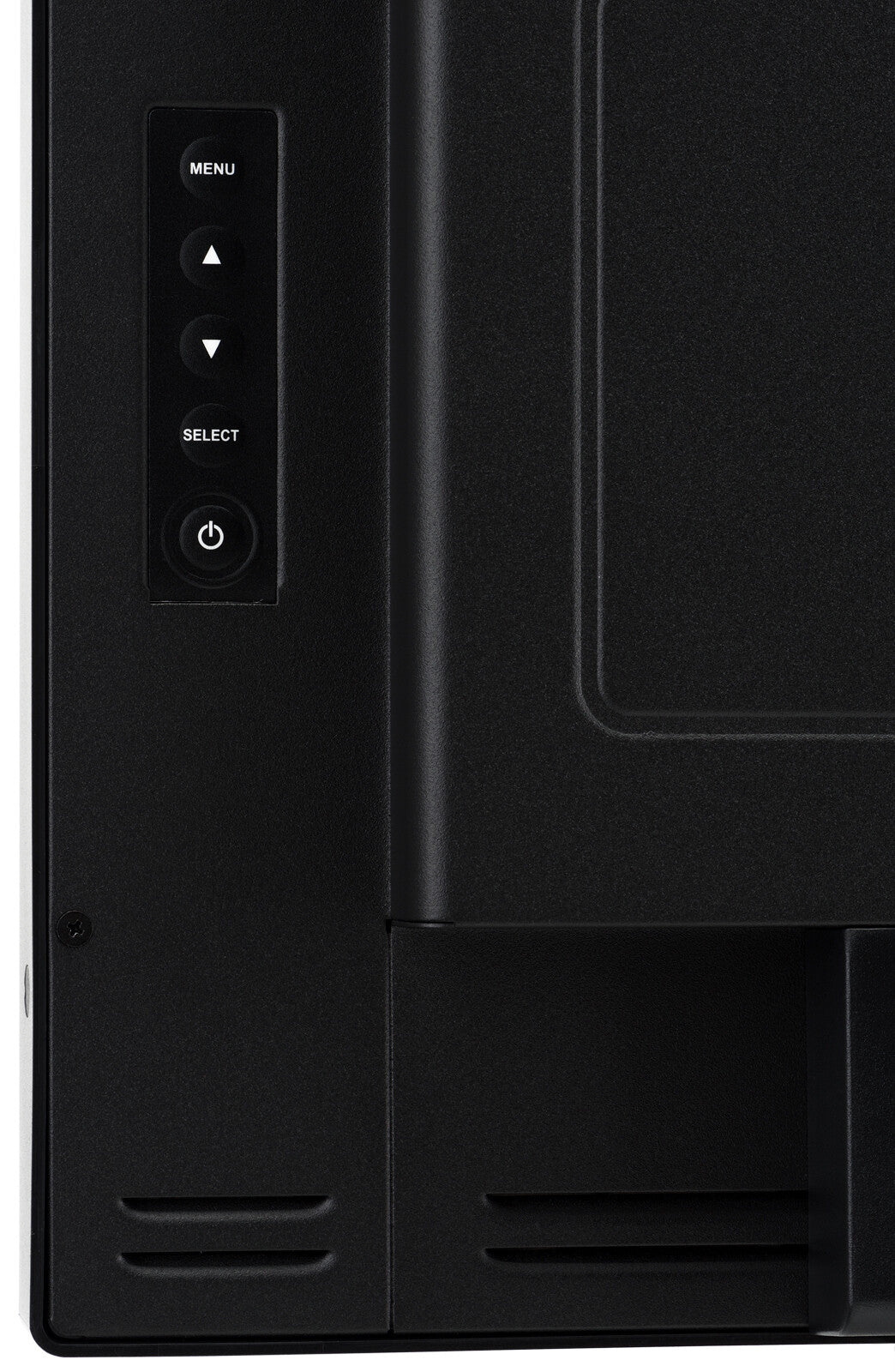

| On Screen Display (OSD) |
Yes |
| Wall mountable |
Yes |

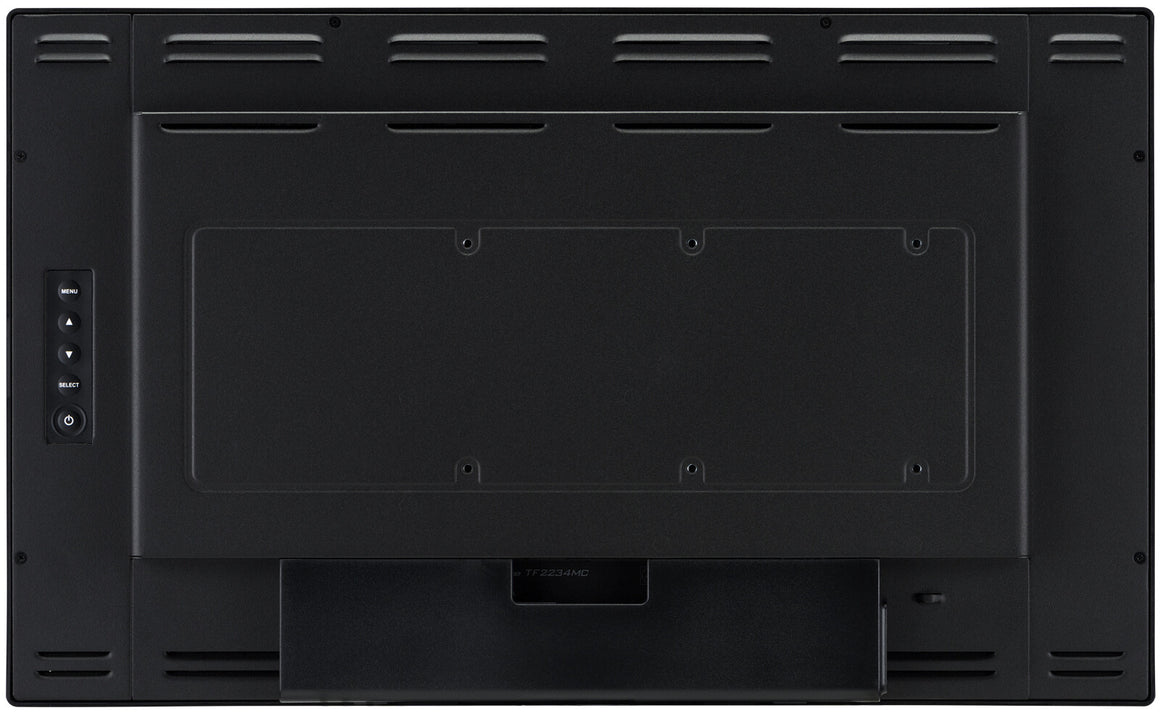

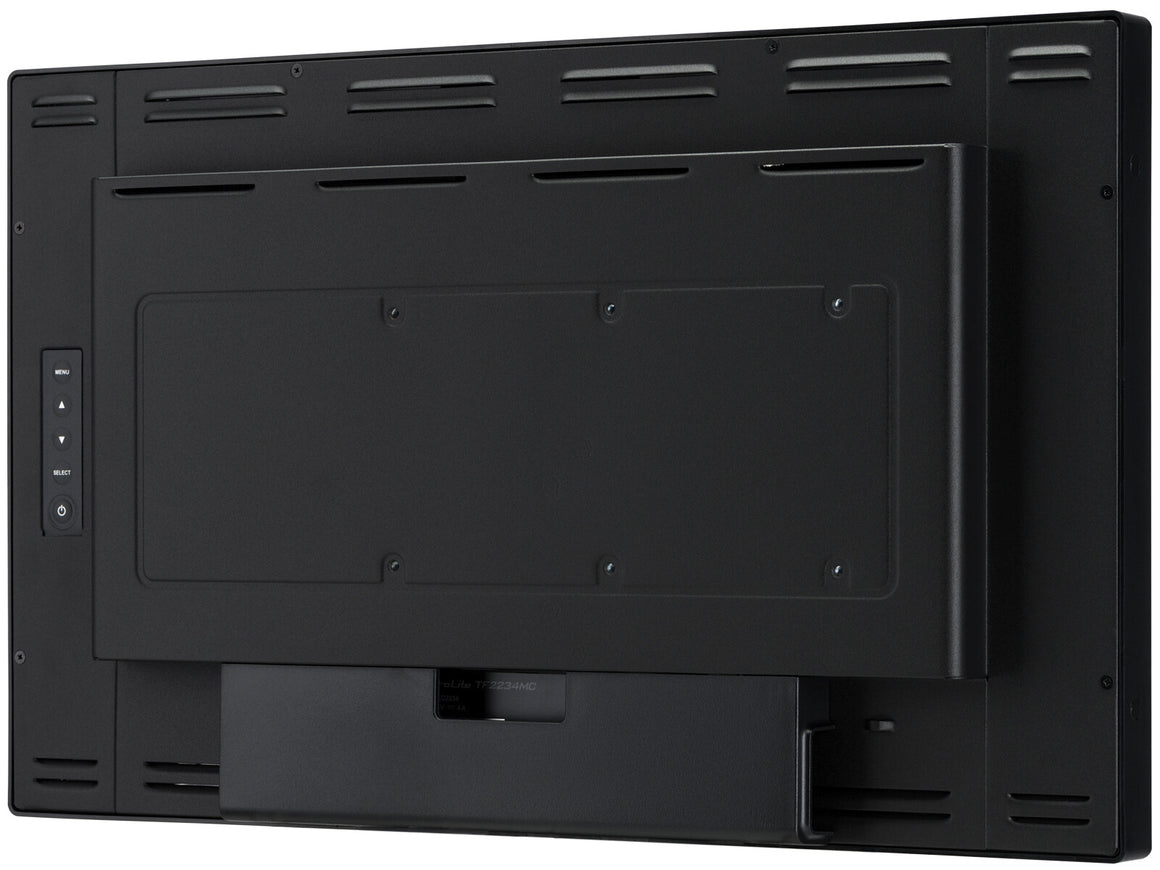

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
388725 |
| Energy efficiency scale |
A to G |
| Power supply type |
External |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
18 W |
| Energy consumption (SDR) per 1000 hours |
19 kWh |
| Energy efficiency class (SDR) |
F |
| Weight & dimensions |
|---|
| Weight (without stand) |
4.4 kg |
| Height (without stand) |
313.5 mm |
| Depth (without stand) |
46 mm |
| Width (without stand) |
517.5 mm |
| Weight (with stand) |
4.4 kg |
| Height (with stand) |
313.5 mm |
| Depth (with stand) |
46 mm |
| Width (with stand) |
517.5 mm |
| Packaging data |
|---|
| Package weight |
6.8 kg |
| Package height |
405 mm |
| Package depth |
610 mm |
| Package width |
610 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Sustainability |
|---|
| Sustainability certificates |
ErP |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Certification |
CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| Compliance certificates |
CE, REACH, RoHS |

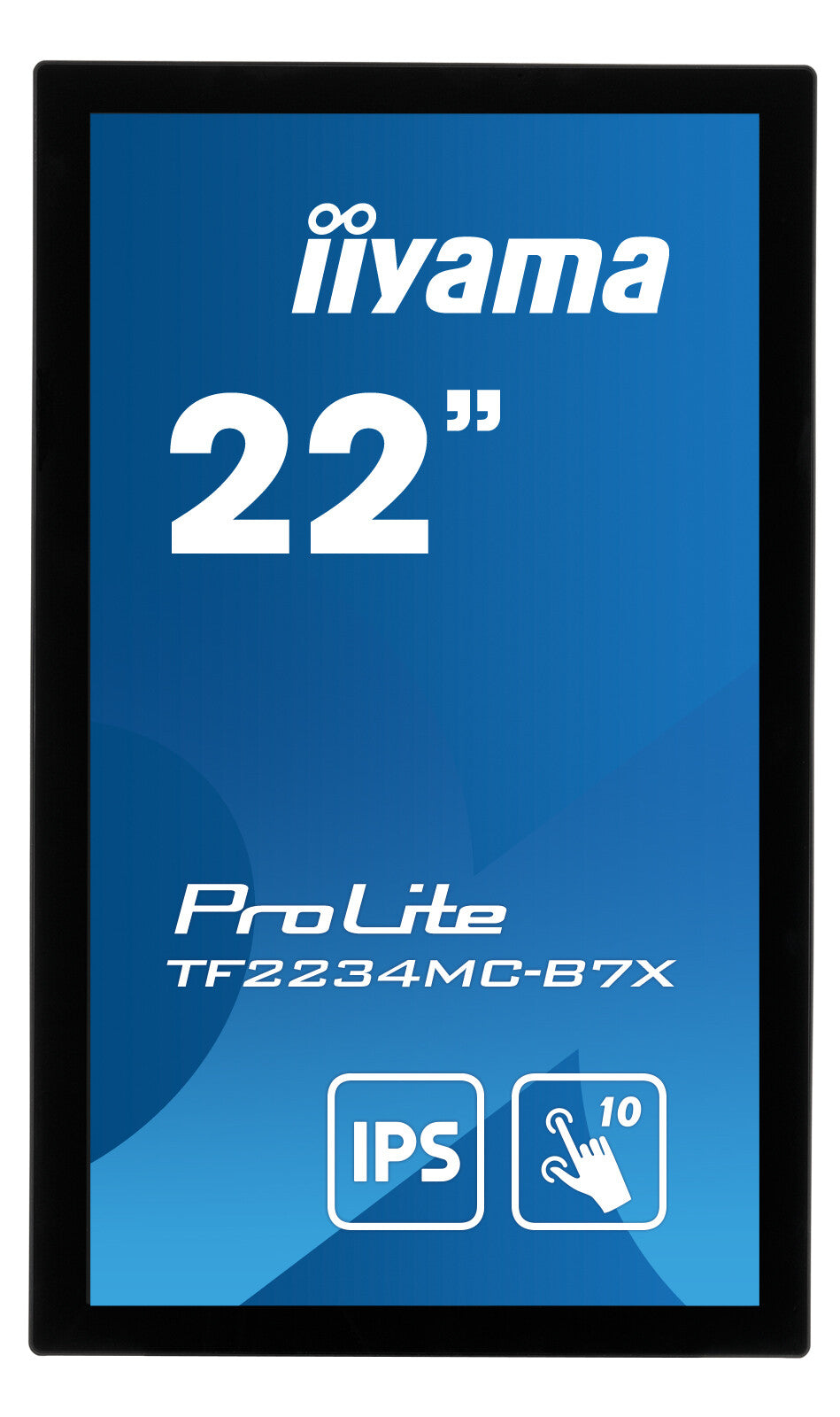

| Placement supported |
Horizontal/Vertical |
| Display viewable area (HxV) |
476 x 267.7 mm |
| International Protection (IP) code |
IP65 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
