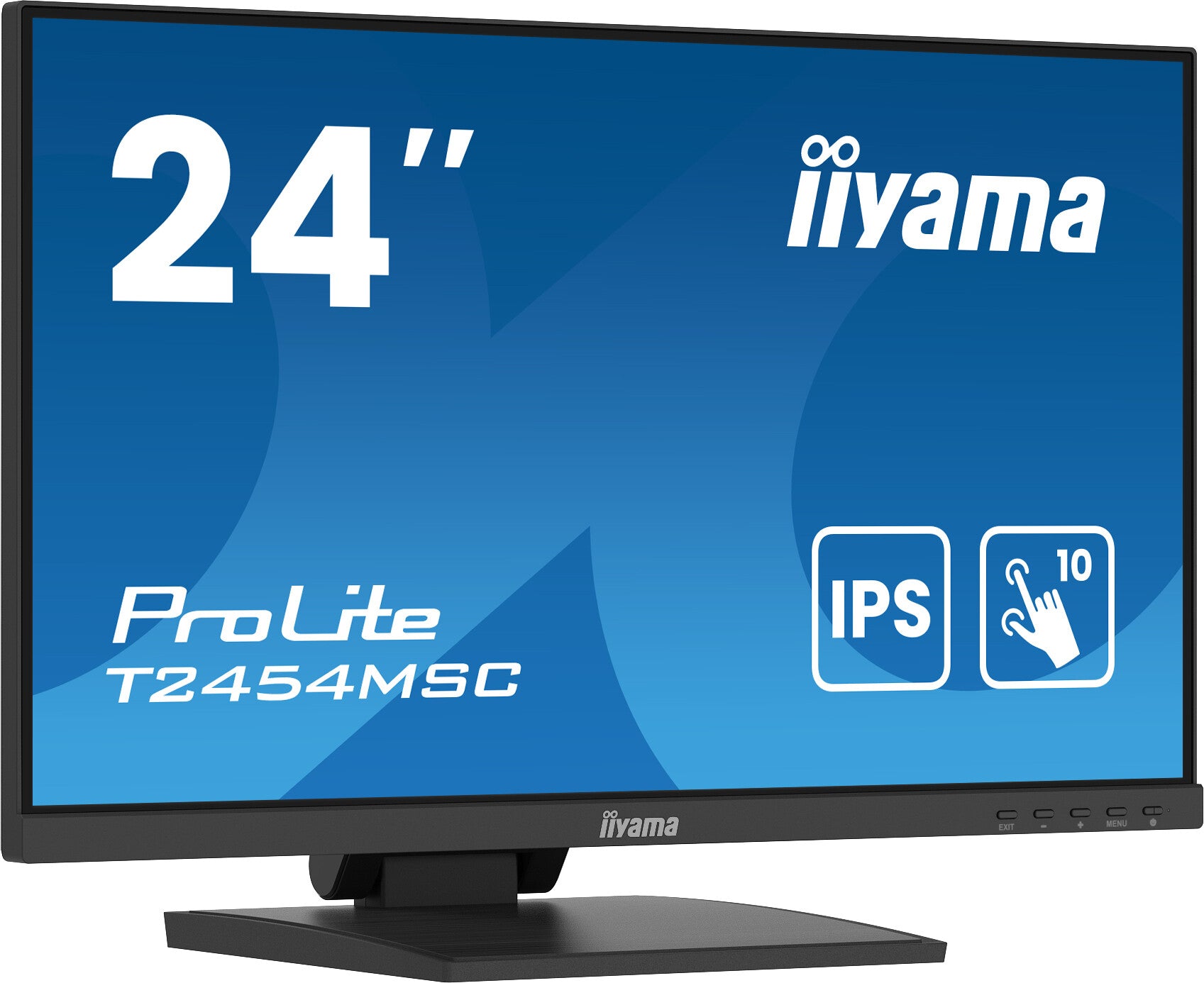

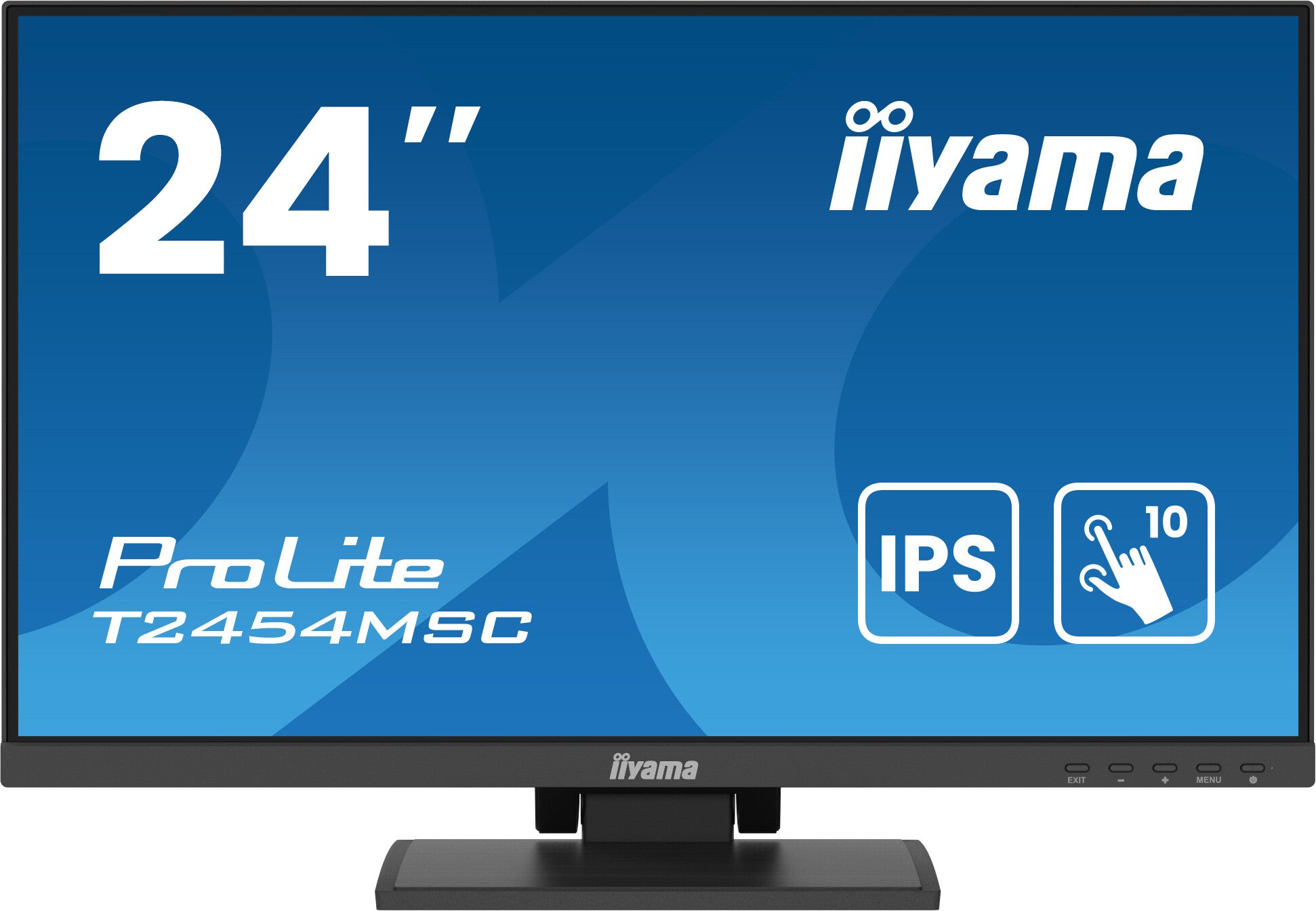

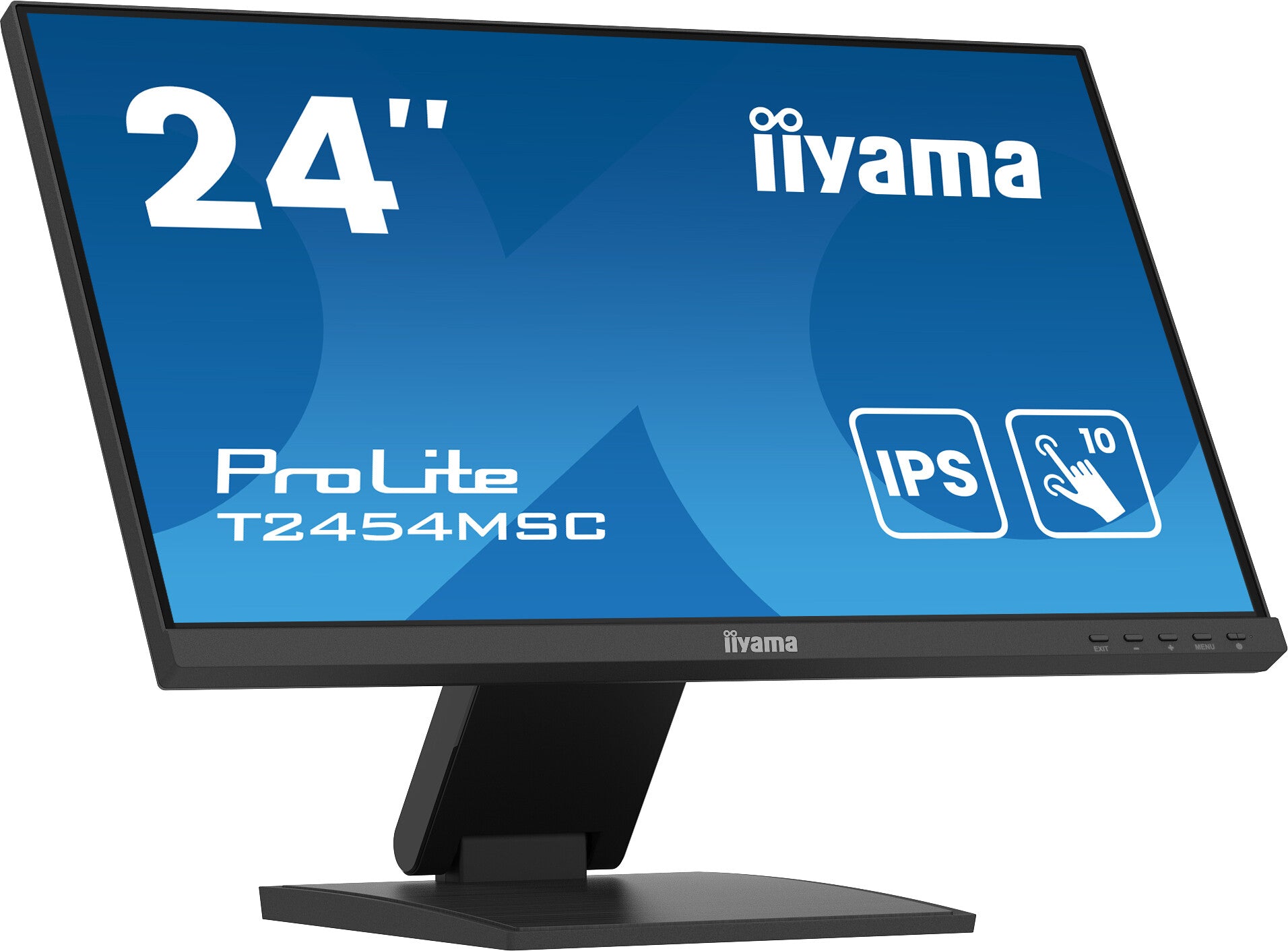

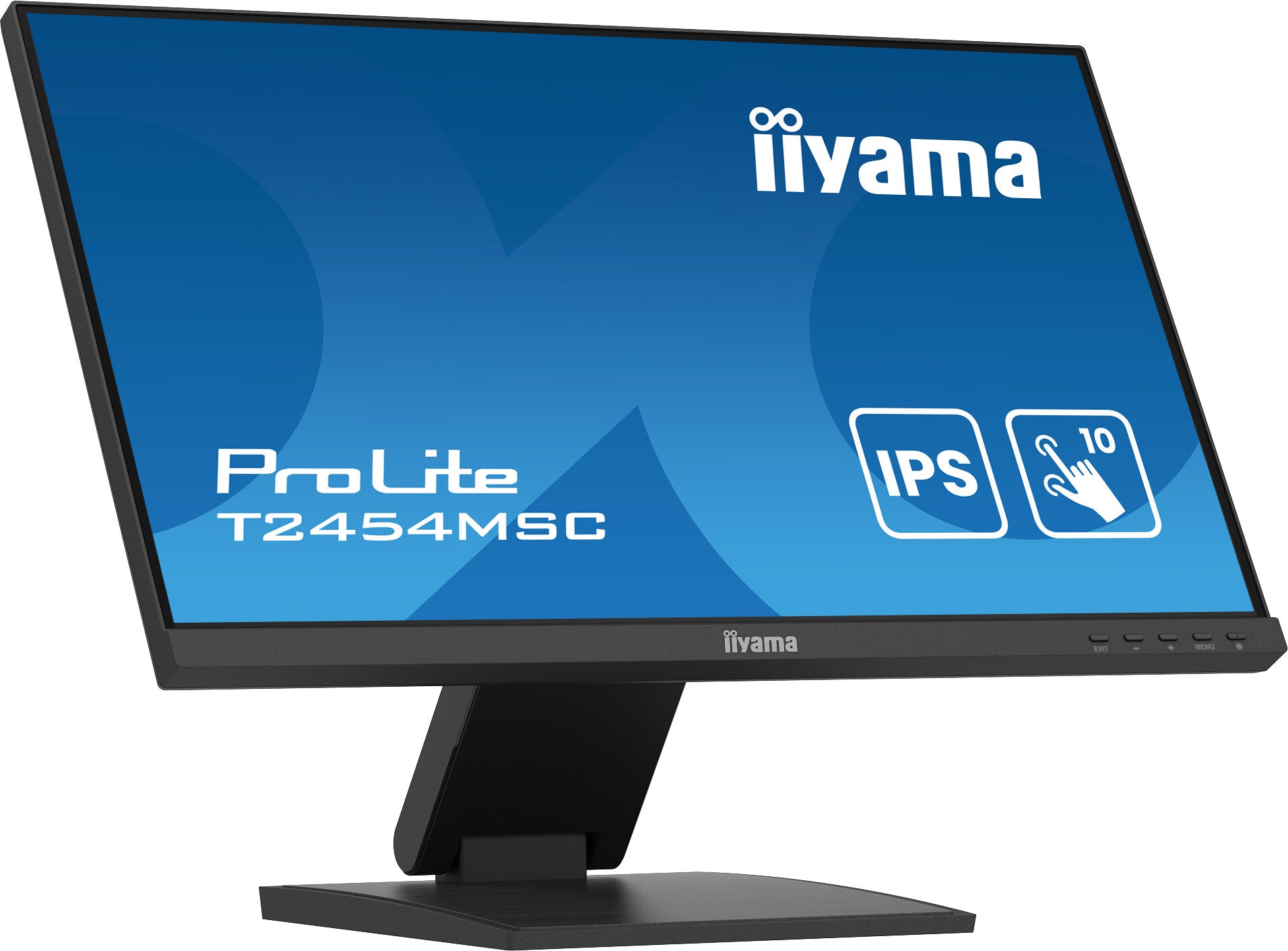

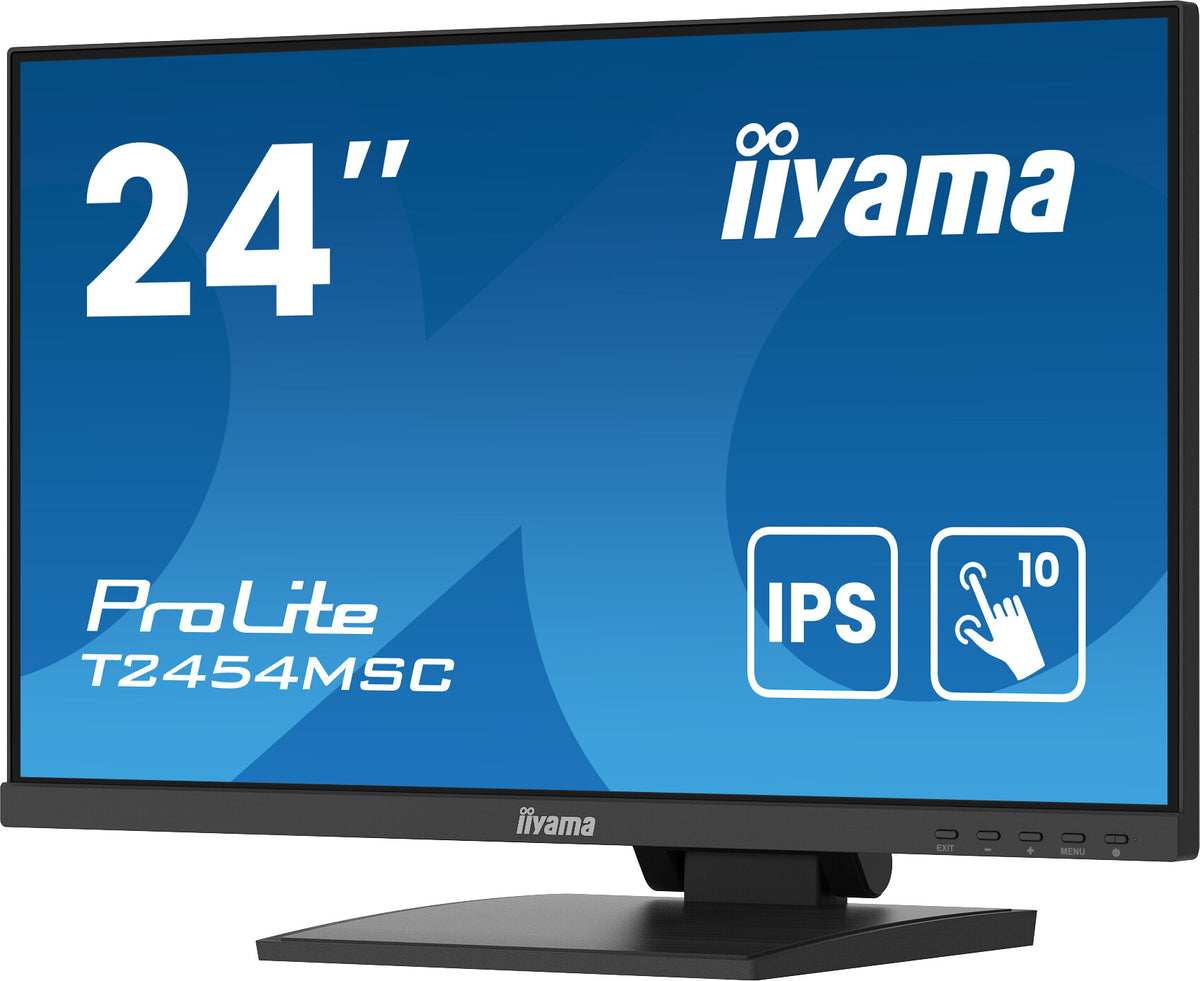

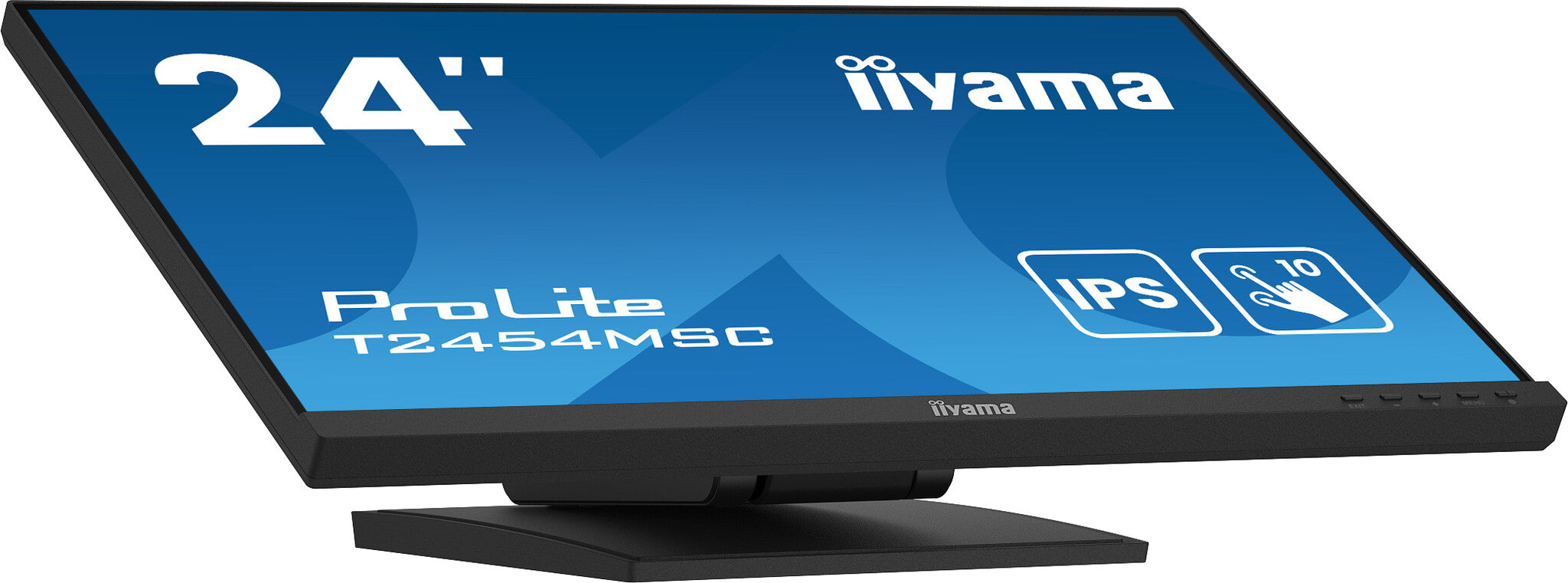

With its Full HD (1920x1080) resolution and accurate In-cell Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B2AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B2AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
| Display |
|---|
| Display diagonal (metric) |
60.5 cm |
| Vertical scan range |
56 - 75 Hz |
| Horizontal scan range |
30 - 80 kHz |
| Pixel pitch |
0.274 x 0.274 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
5000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Screen shape |
Flat |
| Response time |
4 ms |
| Display brightness |
250 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
|---|
| OmniTapps Multitouch compatibility |
No |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in microphone |
No |
| Megapixel (approx.) |
2.1 MP |
| Built-in camera |
No |
| RMS rated power |
4 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| USB Type-A downstream ports quantity |
1 |
| Number of upstream ports |
1 |
| Ergonomics |
|---|

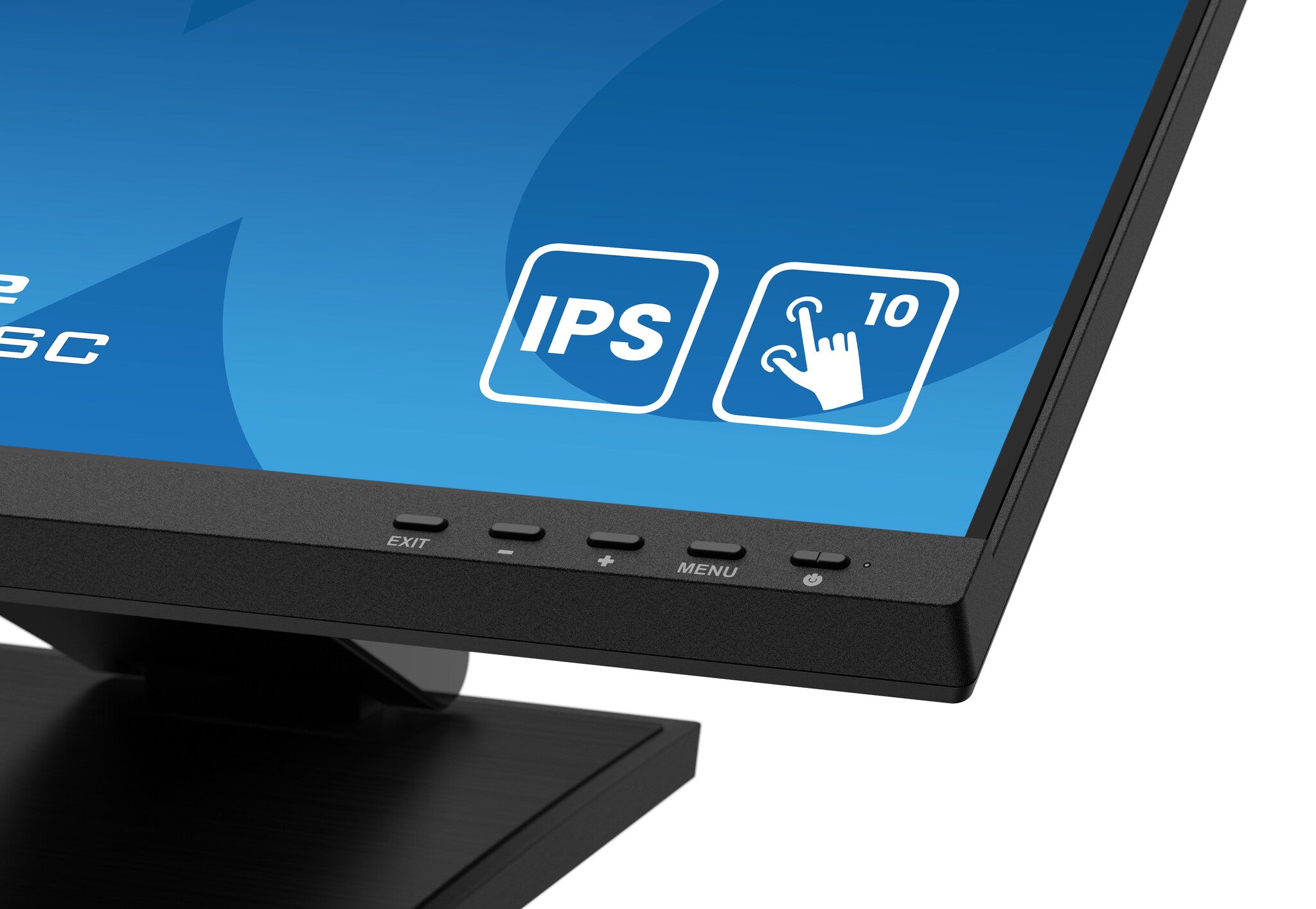

| Plug and Play |
Yes |
| Number of OSD languages |
10 |
| On Screen Display (OSD) languages |
German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |

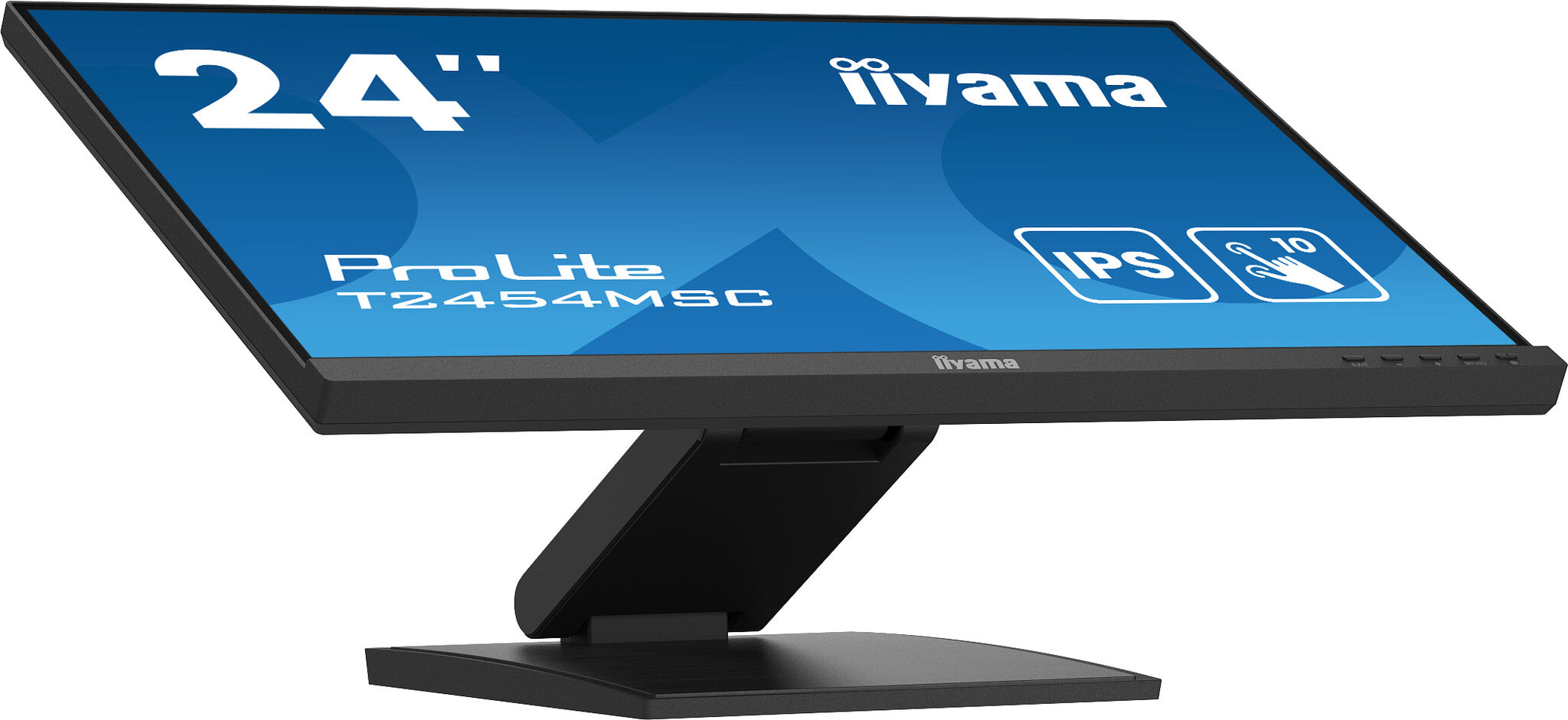

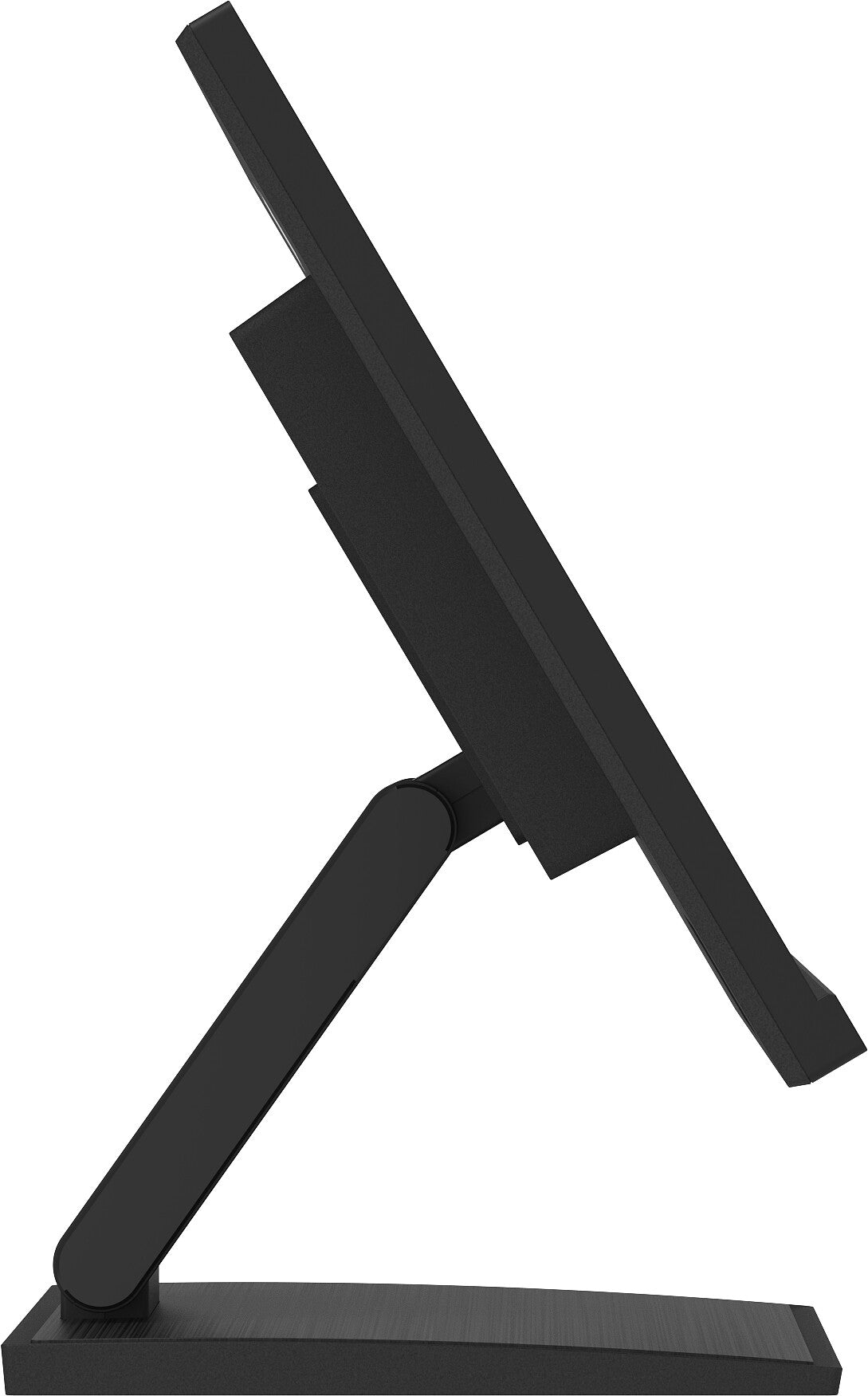

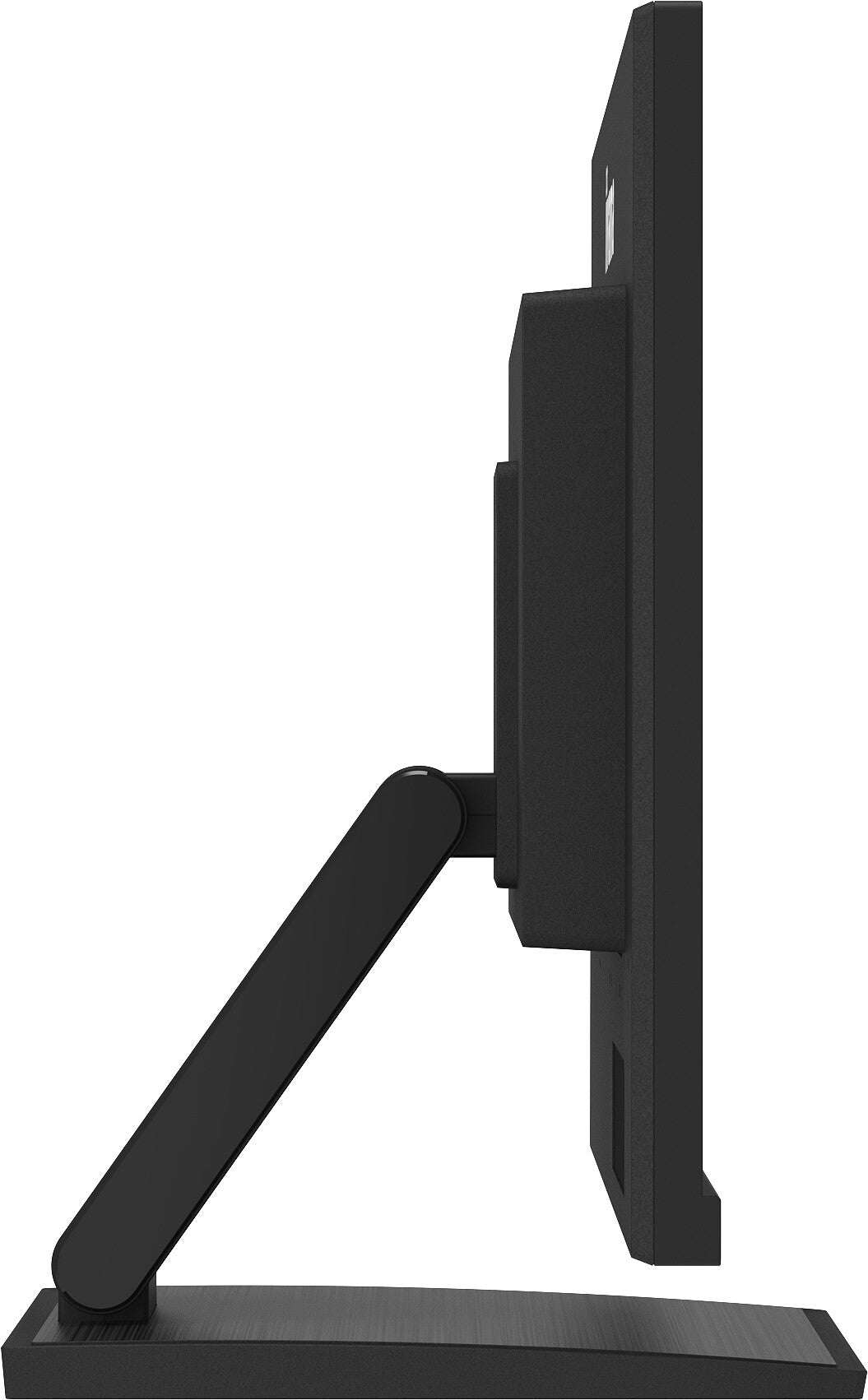

| Tilt angle range |
-5 - 90° |
| Tilt adjustment |
Yes |
| Adjustable height (max) |
7 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
366281 |
| Energy efficiency scale |
A to G |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
24 W |
| Energy consumption (SDR) per 1000 hours |
20 kWh |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Height (without stand) |
322.5 mm |
| Depth (without stand) |
46.5 mm |
| Width (without stand) |
540.5 mm |
| Weight (with stand) |
5.5 kg |
| Height (with stand) |
388 mm |
| Depth (with stand) |
128 mm |
| Width (with stand) |
540.5 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, HDMI, USB, VGA |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Certification |
CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB |
| Mean time between failures (MTBF) |
30000 h |
| Full HD |
Yes |
| Compliance certificates |
RoHS |
| Placement supported |
Horizontal/Vertical |
| Display viewable area (HxV) |
527.04 x 296.46 mm |
| Dimensions (W x D x H) with stand |
540.5 x 128 x 388 mm |
| International Protection (IP) code |
IPX1 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
