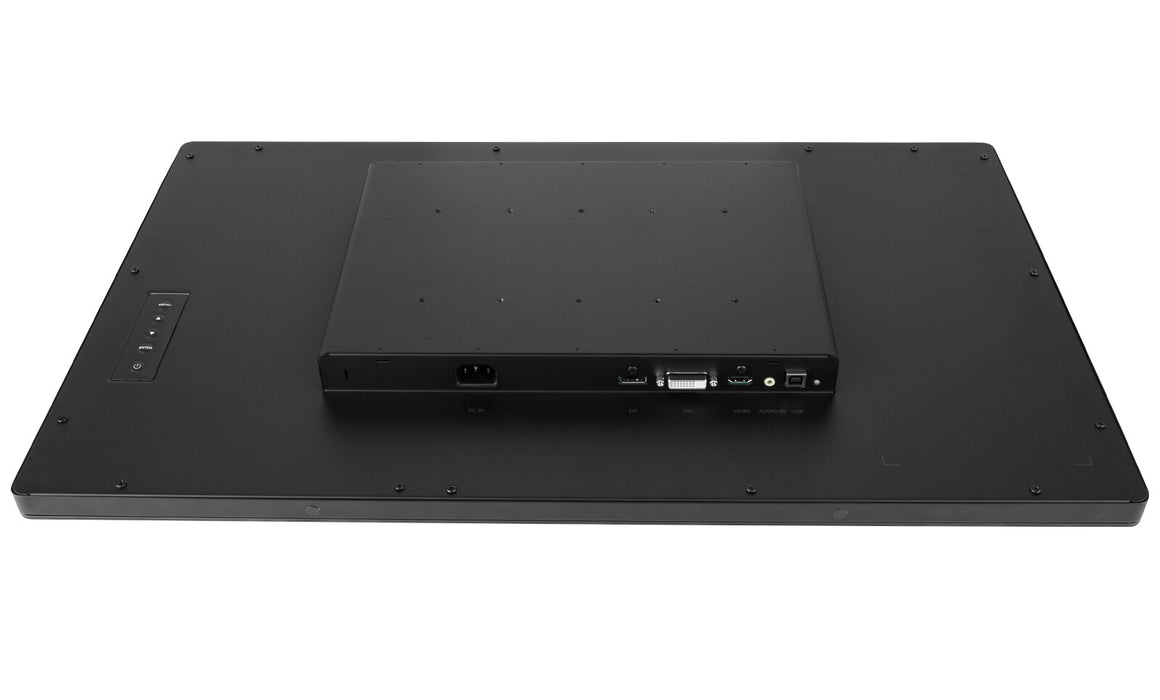

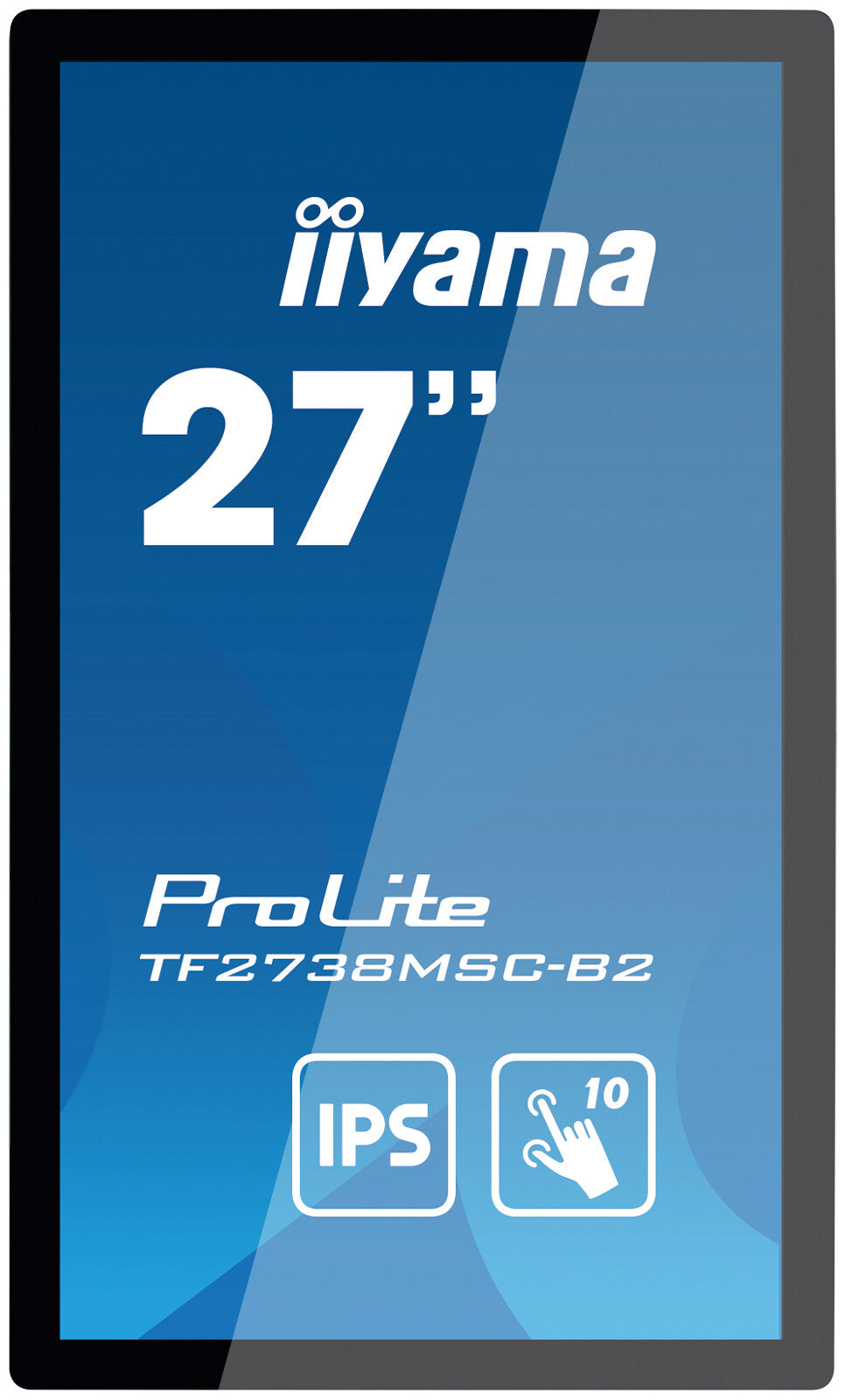

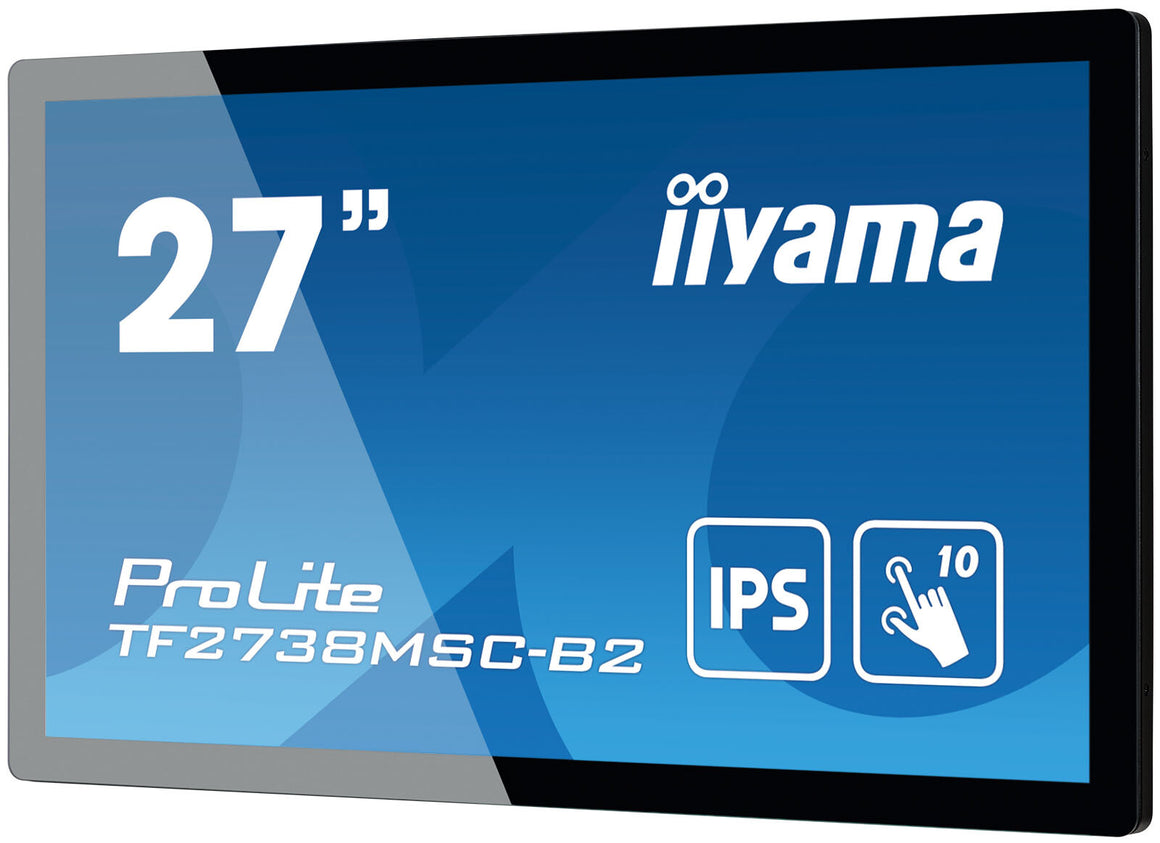

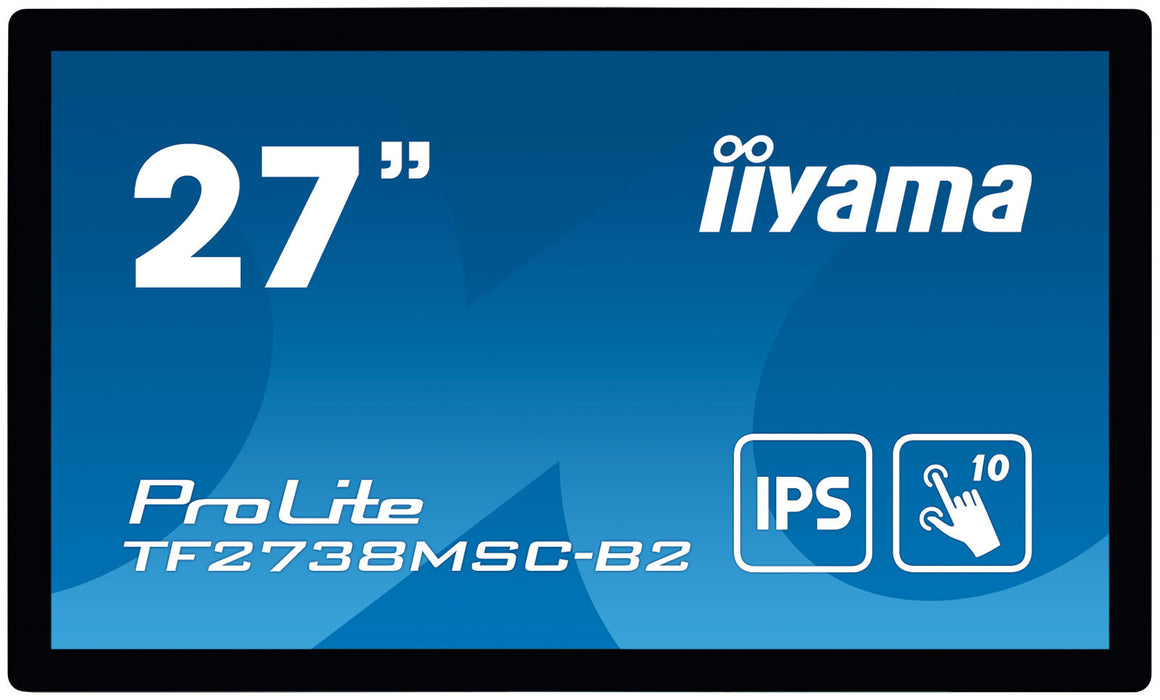

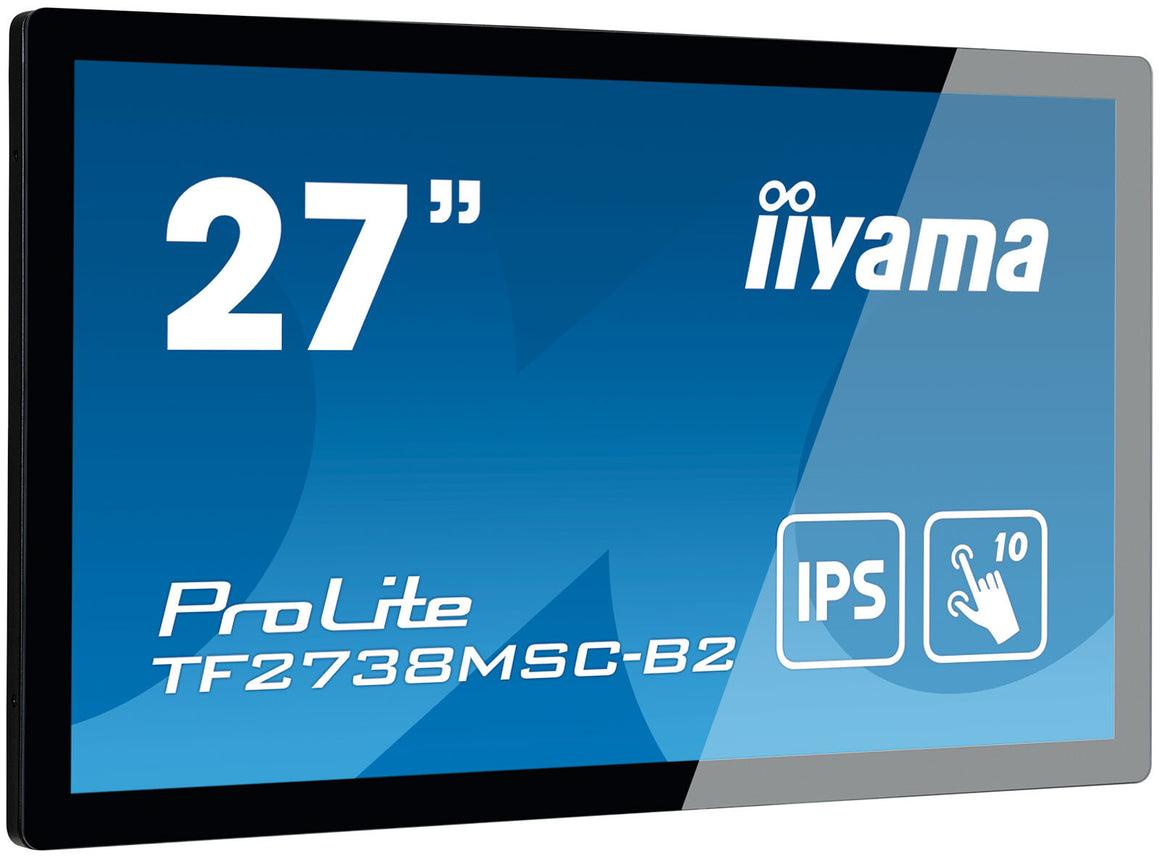

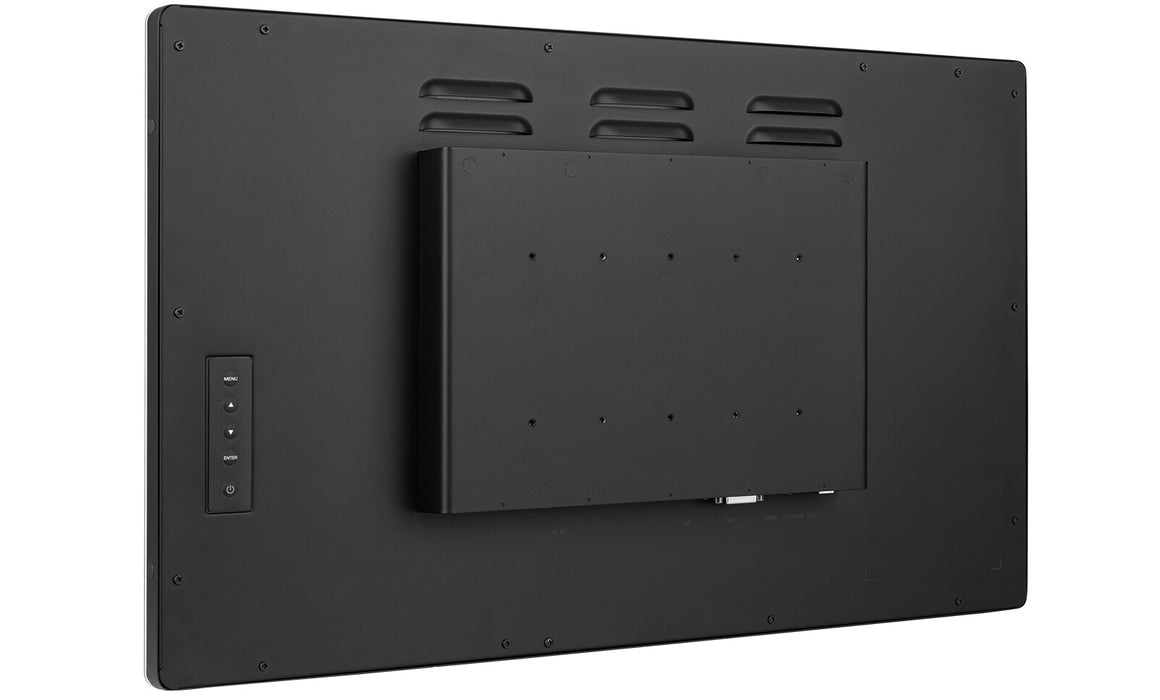

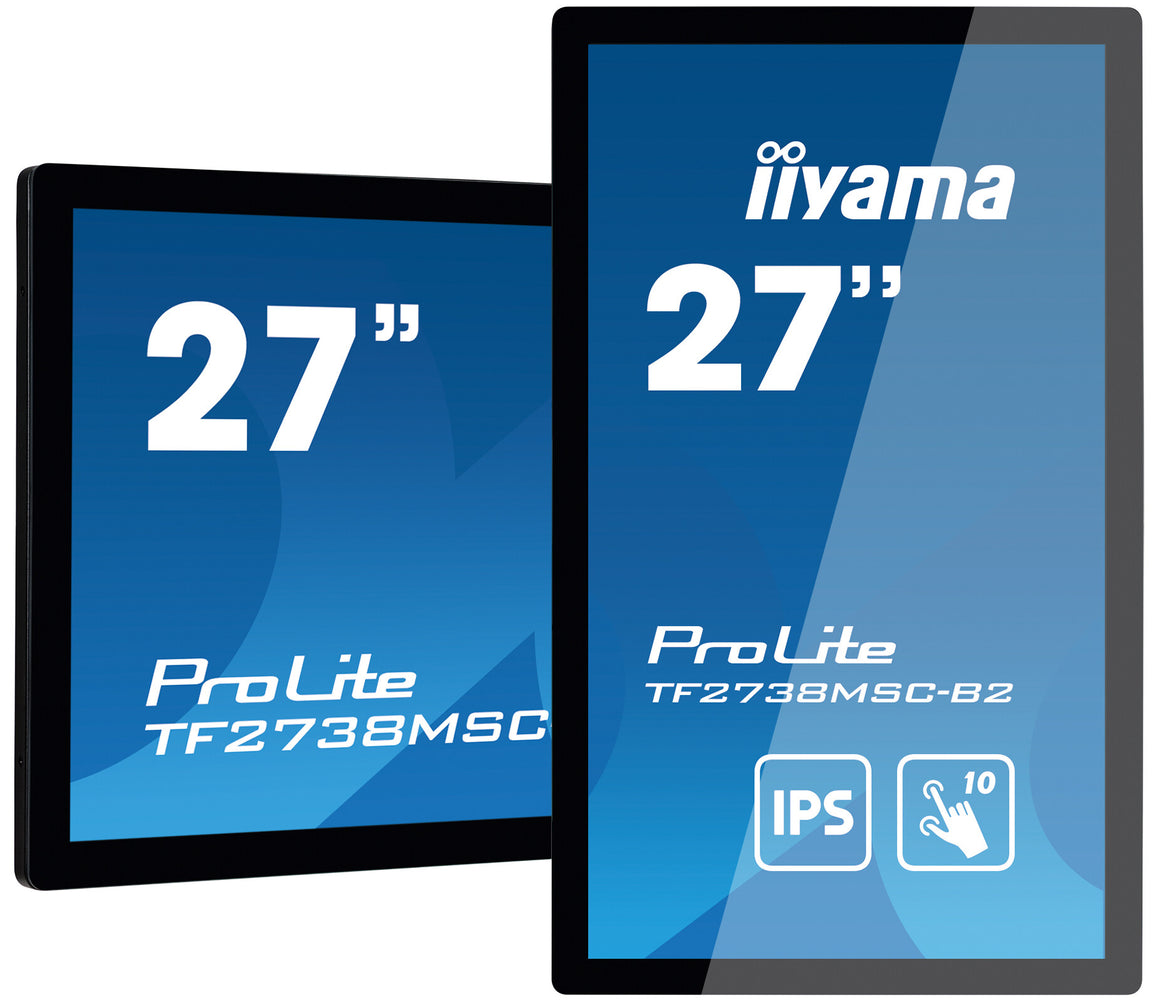

With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
| Display |
|---|
| Surface hardness |
6H |
| Display diagonal (metric) |
68.6 cm |
| Viewable size, vertical |
33.6 cm |
| Viewable size, horizontal |
59.8 cm |
| Horizontal scan range |
30 - 80 kHz |
| Pixel pitch |
0.311 x 0.311 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
12000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
5 ms |
| Display brightness |
500 cd/m² |
| Display brightness (typical) |
500 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
68.6 cm (27") |
| Performance |
|---|
| Operating hours (hours/days) |
16/7 |
| Low Blue Light technology |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| RMS rated power |
6 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Glass thickness |
3.6 mm |
| Front bezel colour |
Black |
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| DVI port |
Yes |
| USB Touch port |
Yes |
| Ergonomics |
|---|
| Number of OSD languages |
8 |
| On Screen Display (OSD) languages |
German, Dutch, English, French, Japanese, Polish, Russian |
| On Screen Display (OSD) |
Yes |
| Wall mountable |
Yes |

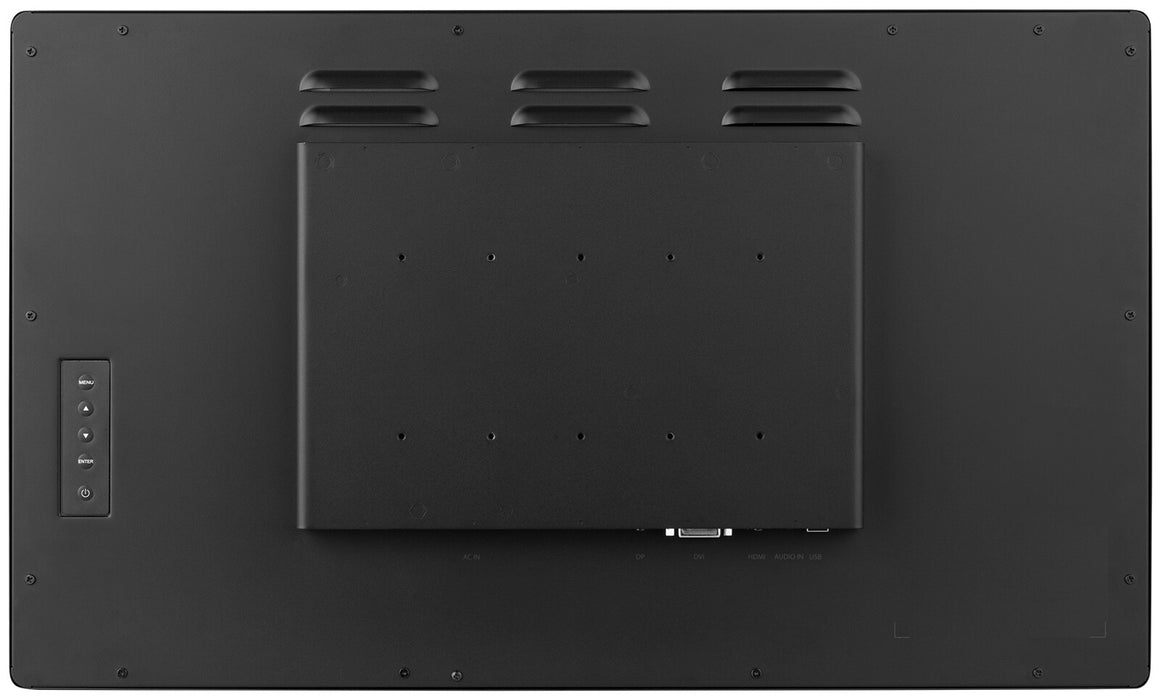

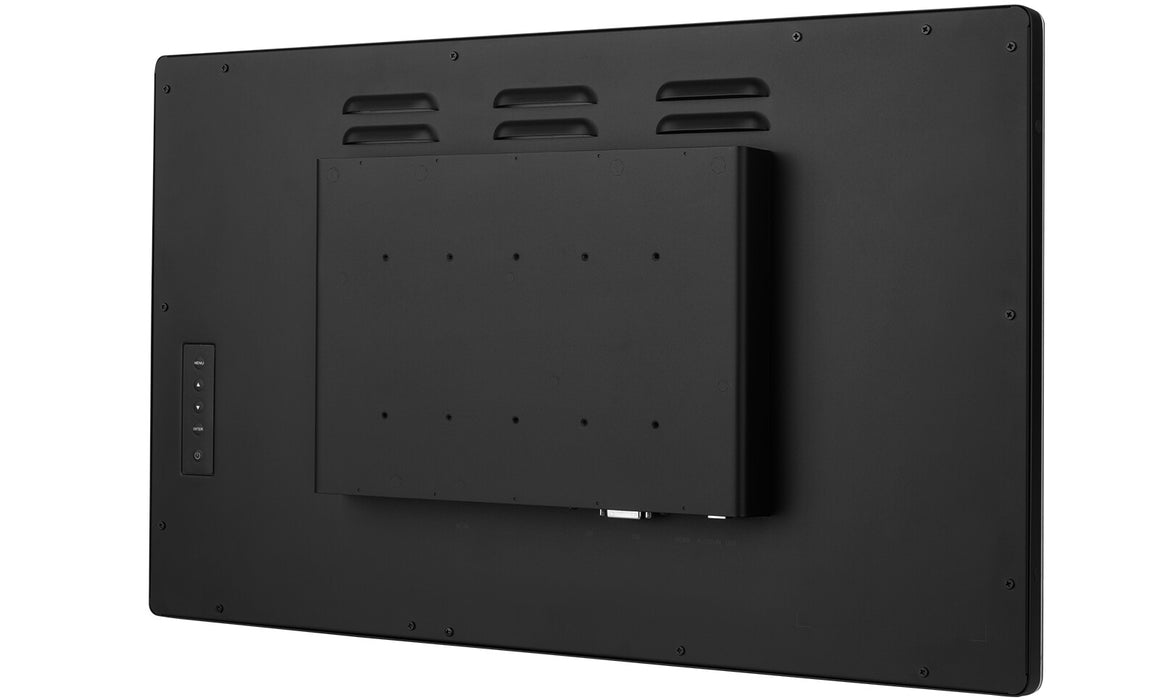

| Panel mounting interface |
200 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
426849 |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| AC input frequency |
50 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
25 W |
| Energy consumption (SDR) per 1000 hours |
24 kWh |
| Energy efficiency class (SDR) |
F |
| Weight & dimensions |
|---|
| Weight (without stand) |
8.3 kg |
| Height (without stand) |
386.5 mm |
| Depth (without stand) |
52 mm |
| Width (without stand) |
648.5 mm |
| Weight (with stand) |
8.3 kg |
| Height (with stand) |
386.5 mm |
| Depth (with stand) |
52 mm |
| Width (with stand) |
648.5 mm |
| Packaging data |
|---|
| Package weight |
9.4 kg |
| Package height |
500 mm |
| Package depth |
746 mm |
| Package width |
746 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, DisplayPort to Mini DisplayPort, HDMI, USB |
| Sustainability |
|---|
| Sustainability certificates |
ErP |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Certification |
CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Bezel width |
2.4 cm |
| Compliance certificates |
CE, REACH, RoHS |

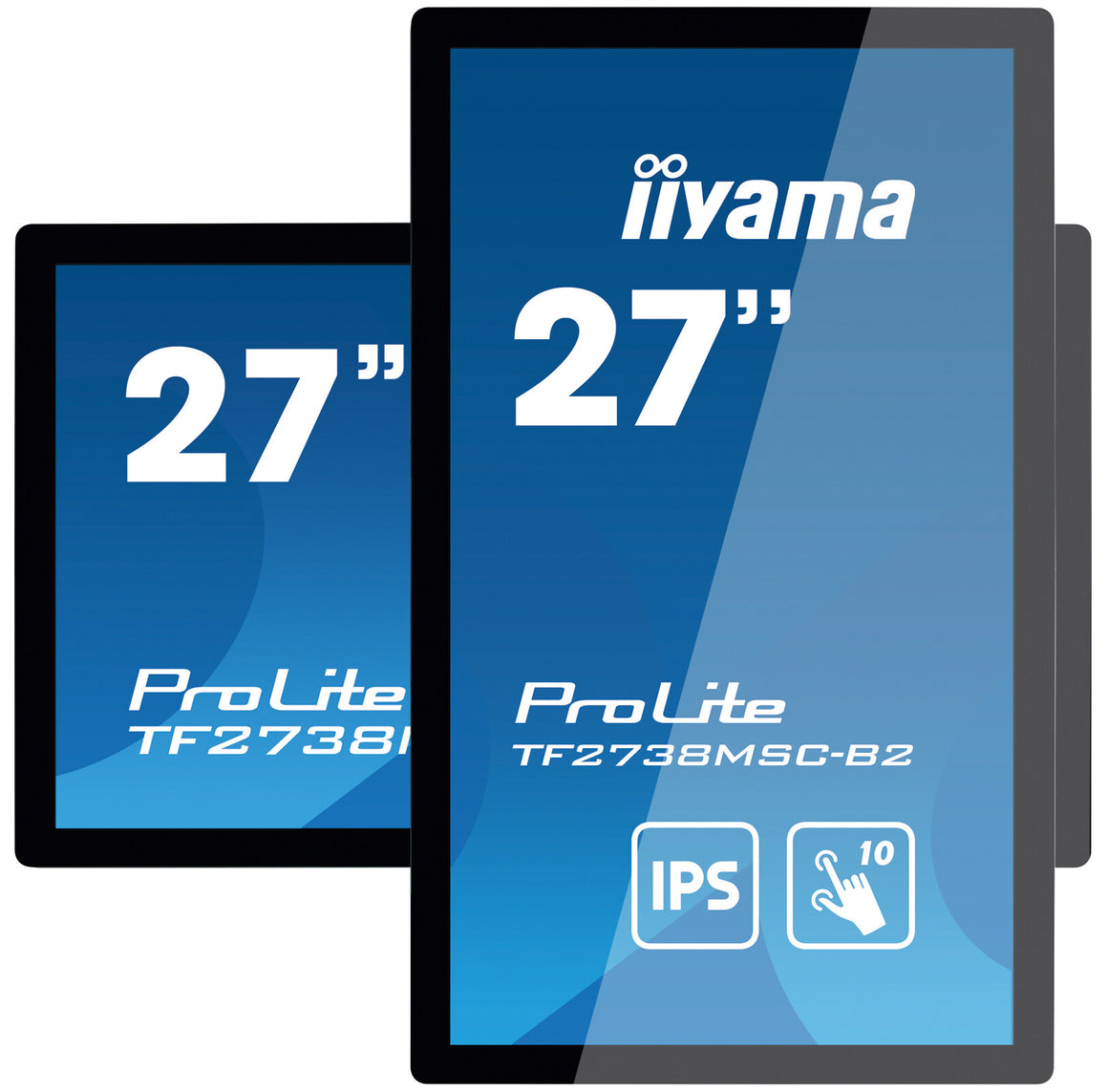

| Placement supported |
Horizontal/Vertical |
| Display viewable area (HxV) |
597.6 x 336.2 mm |
| International Protection (IP) code |
IP1X |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
