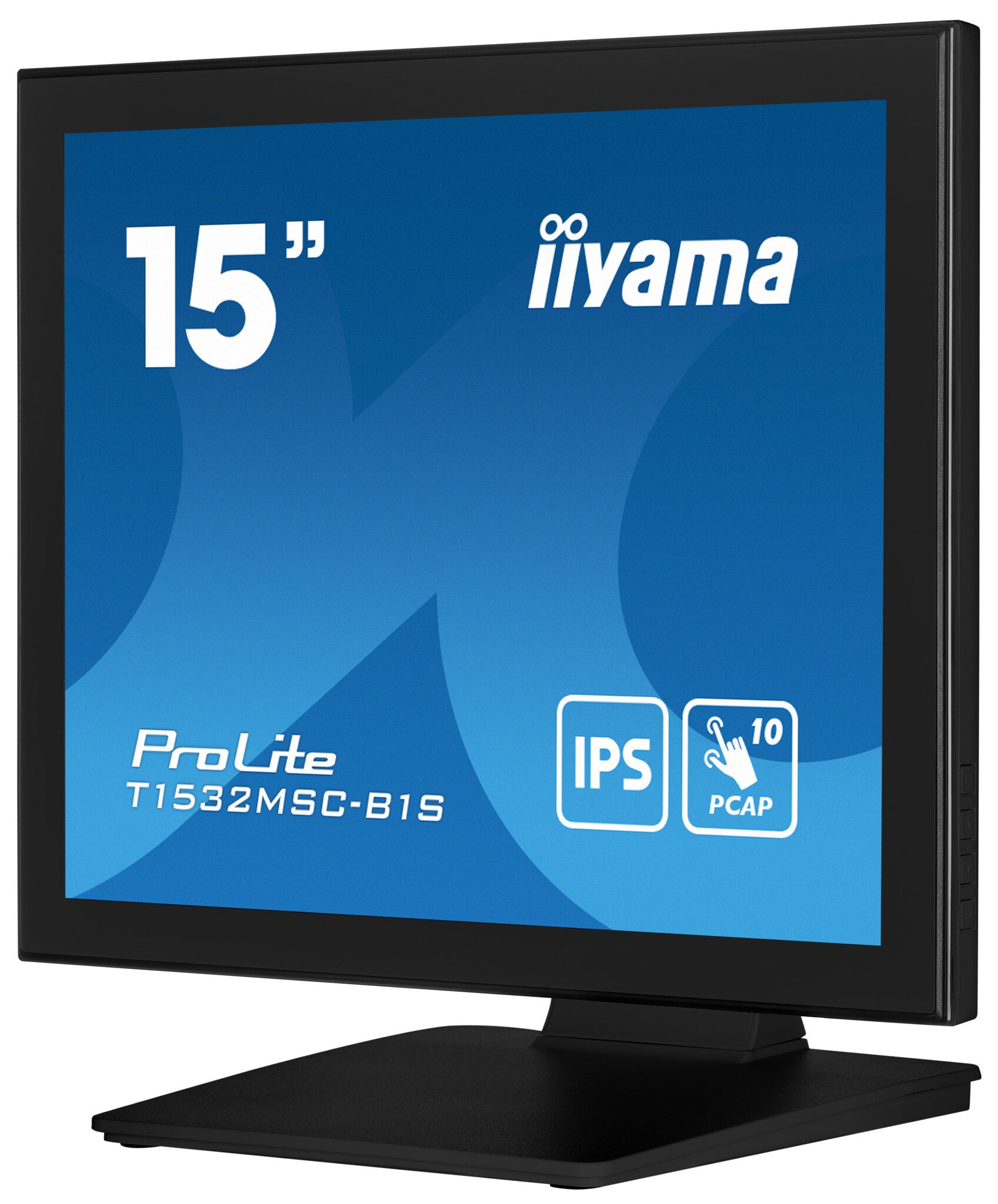

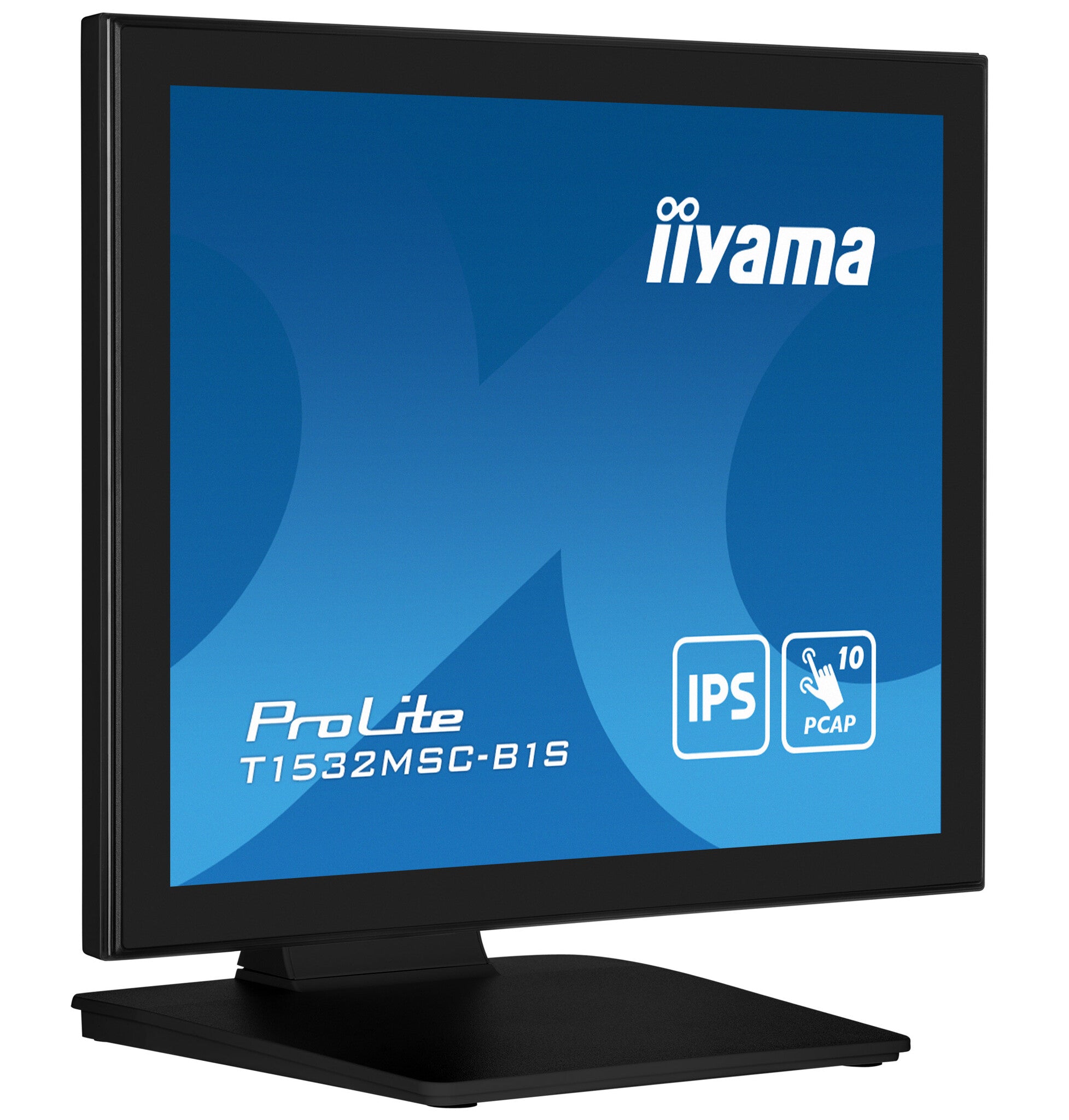

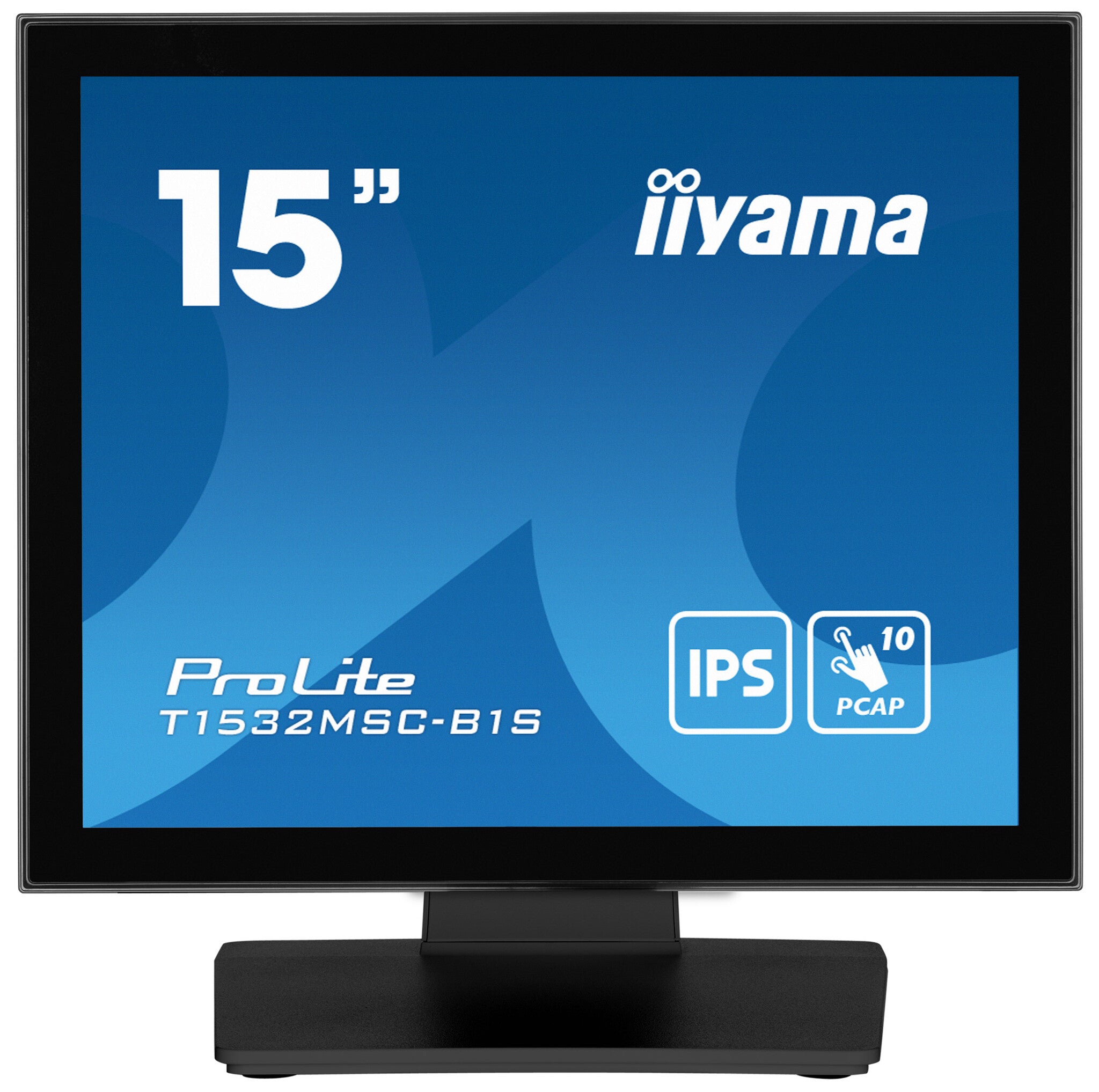

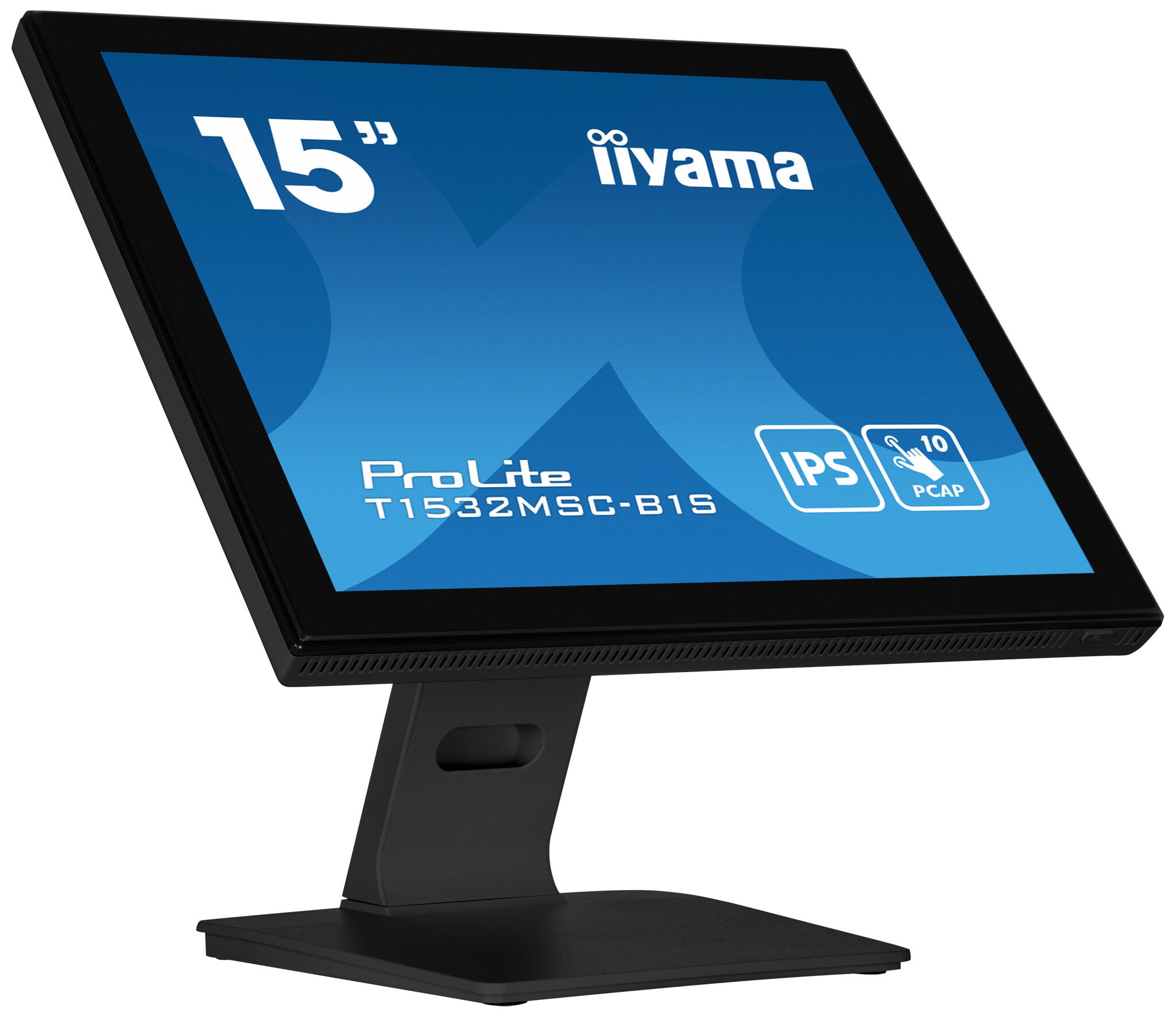

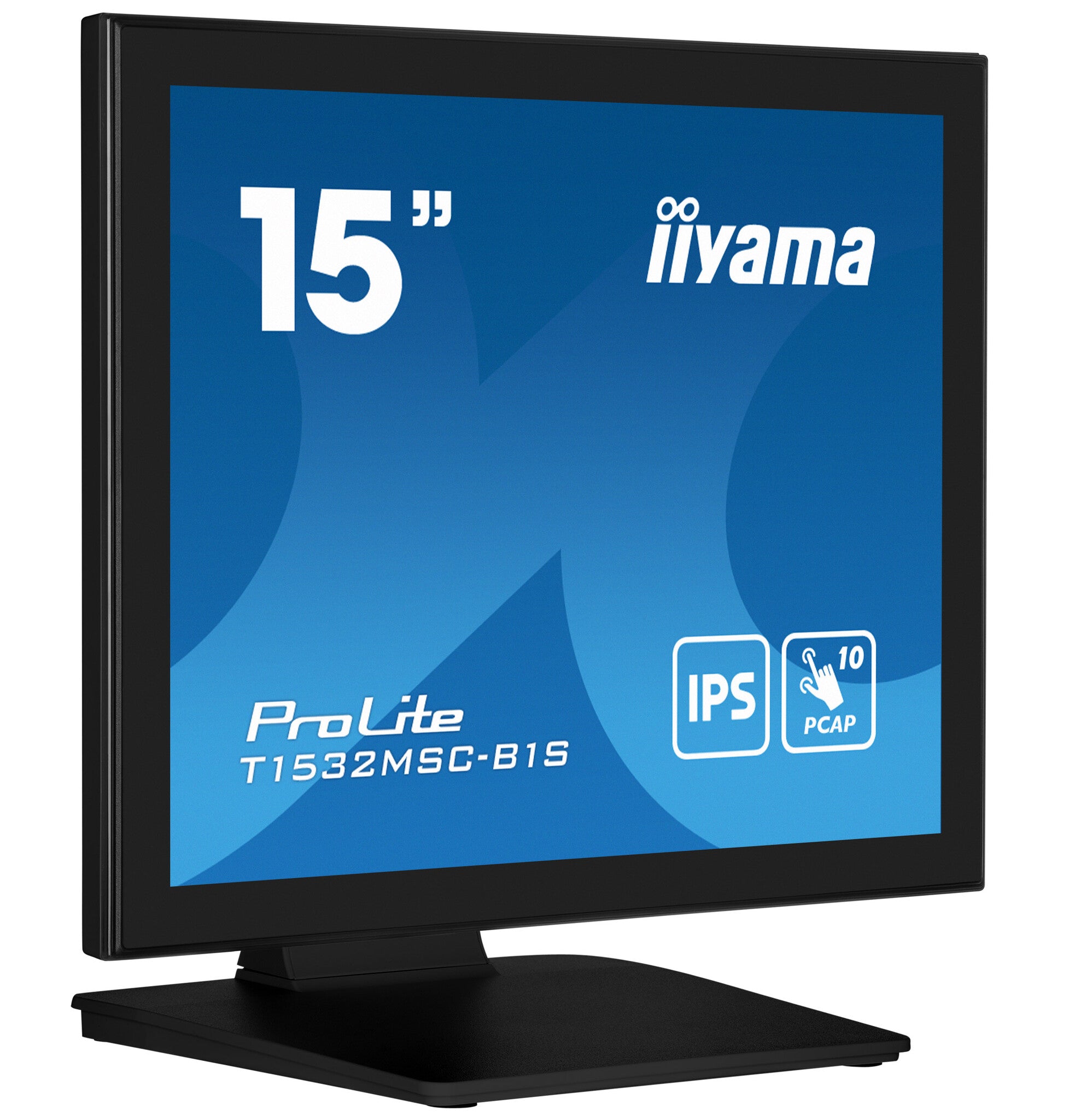

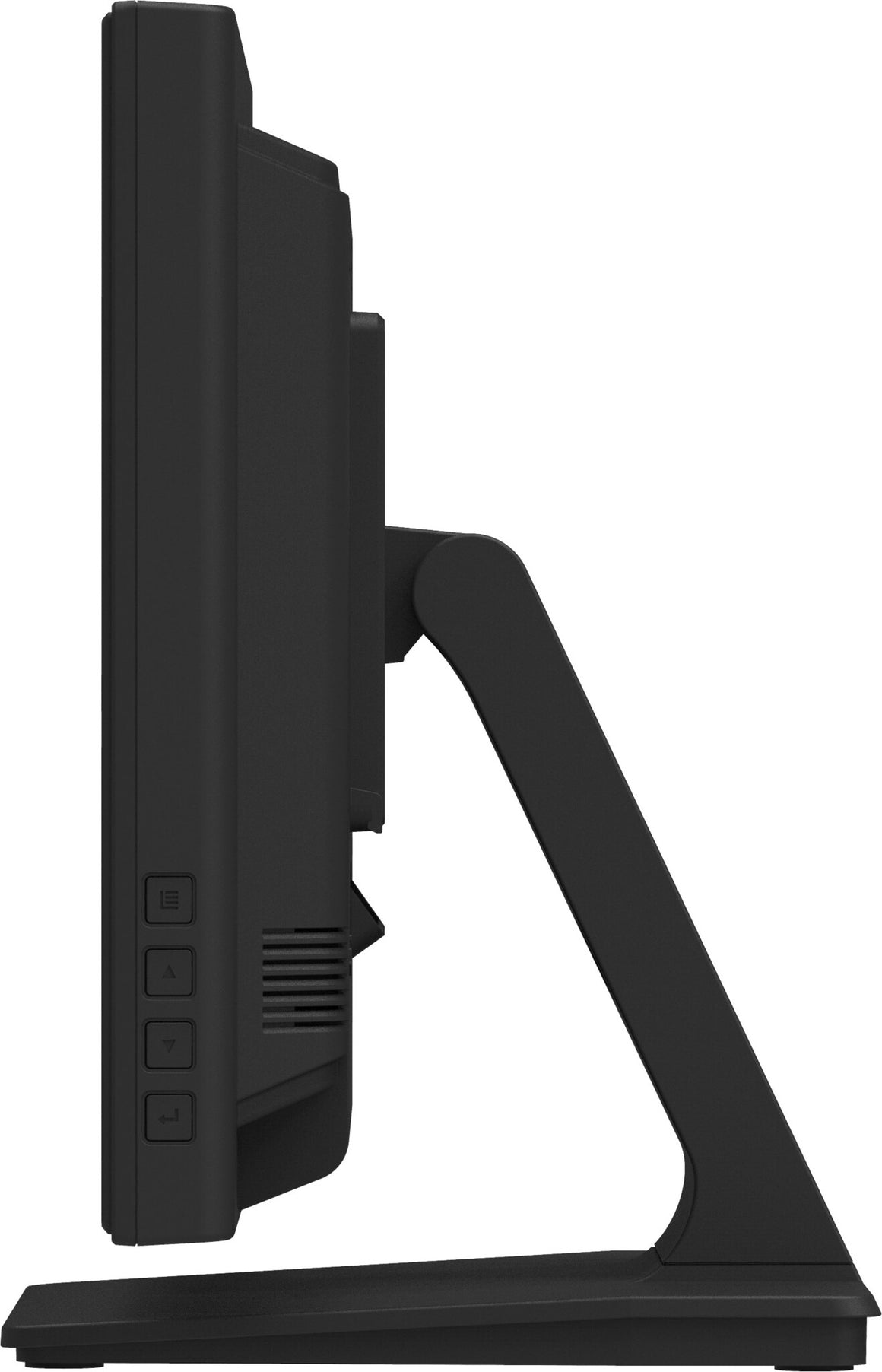

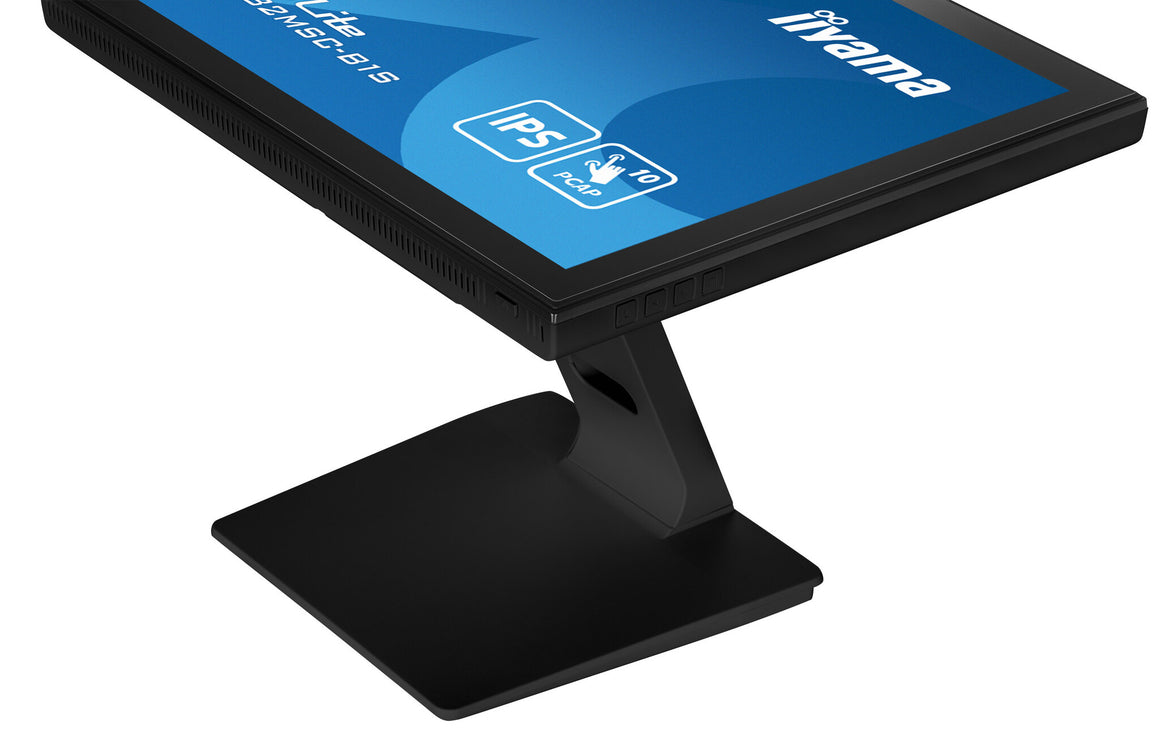

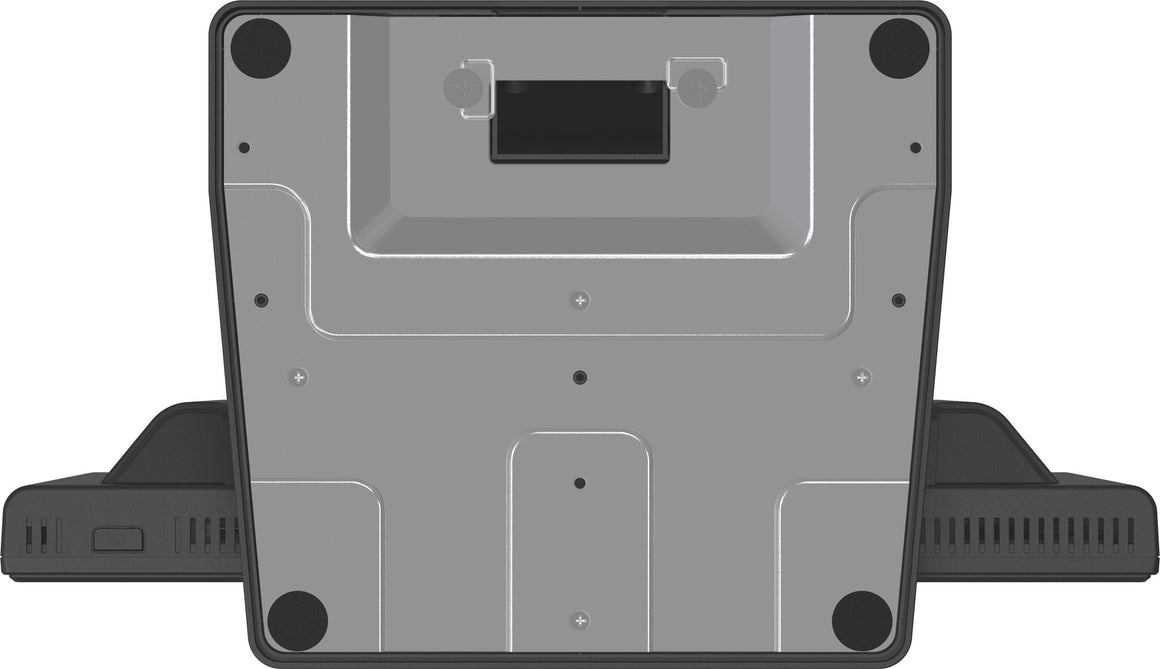

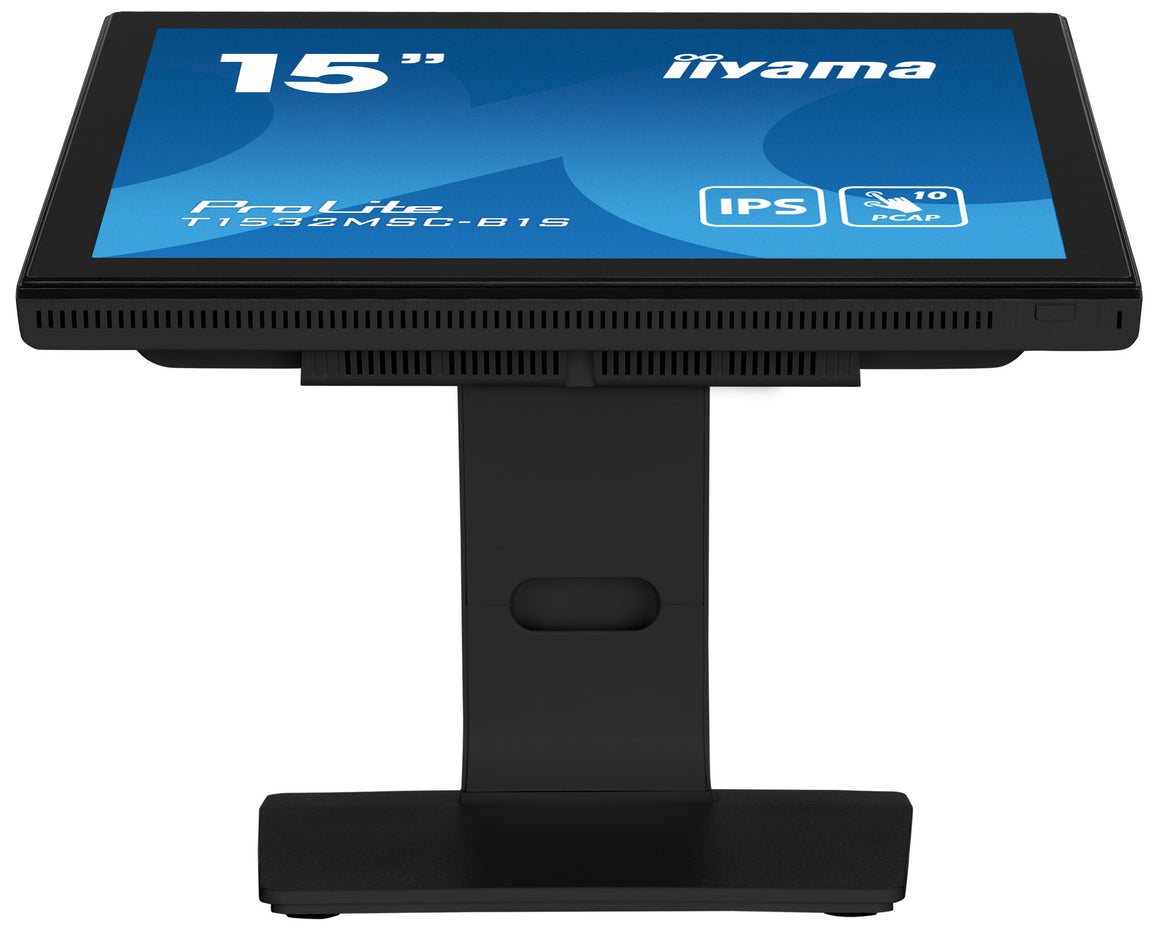

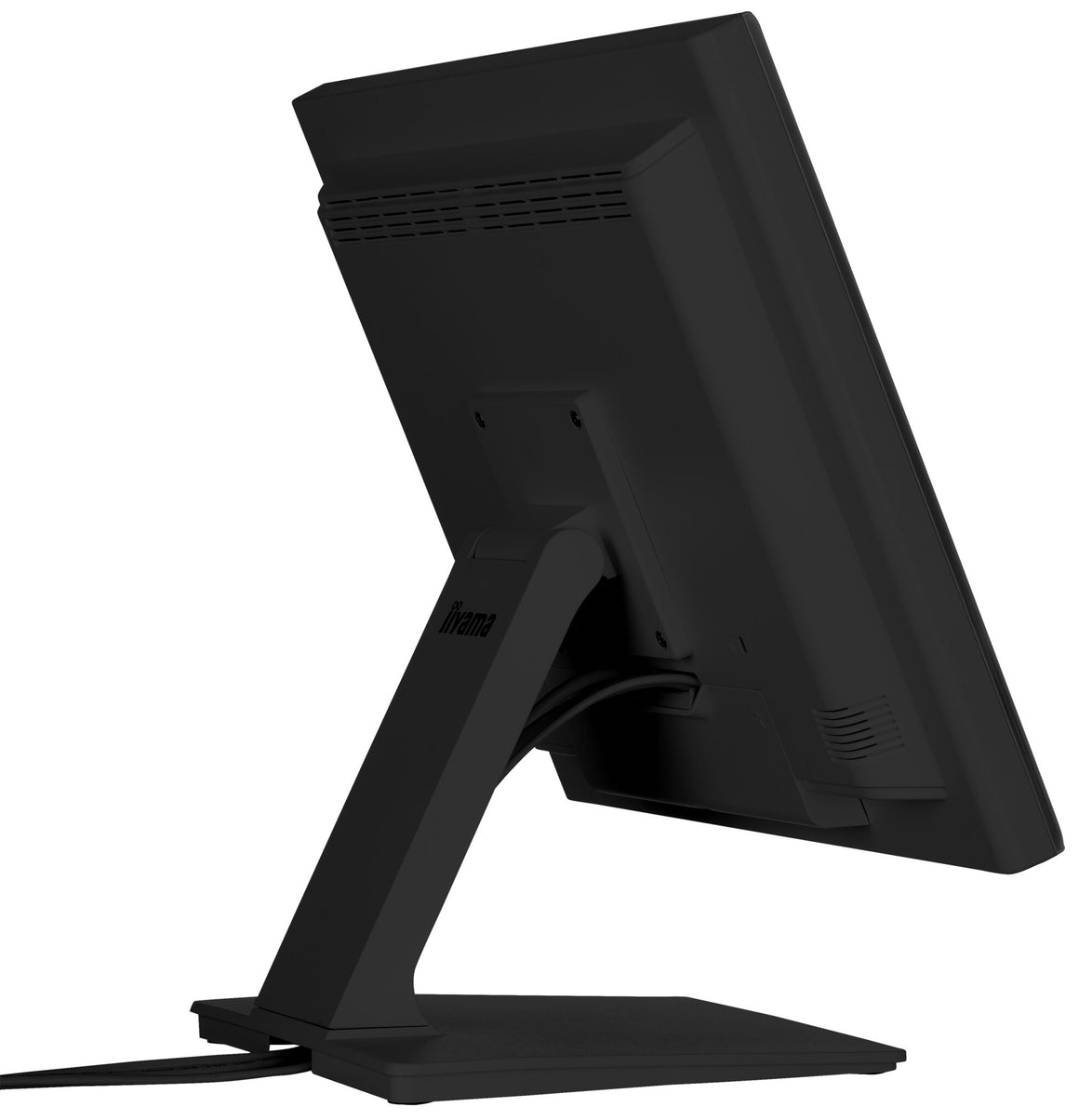

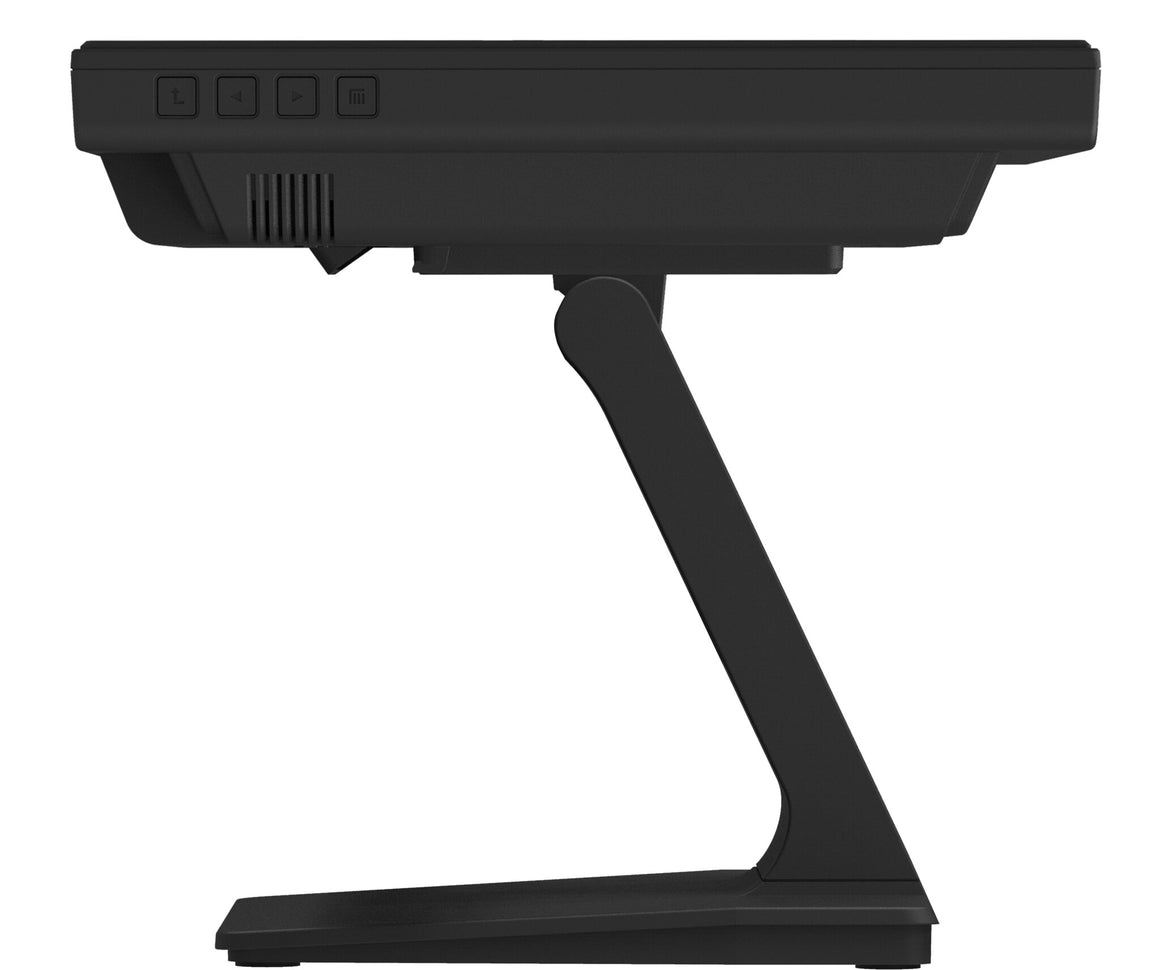

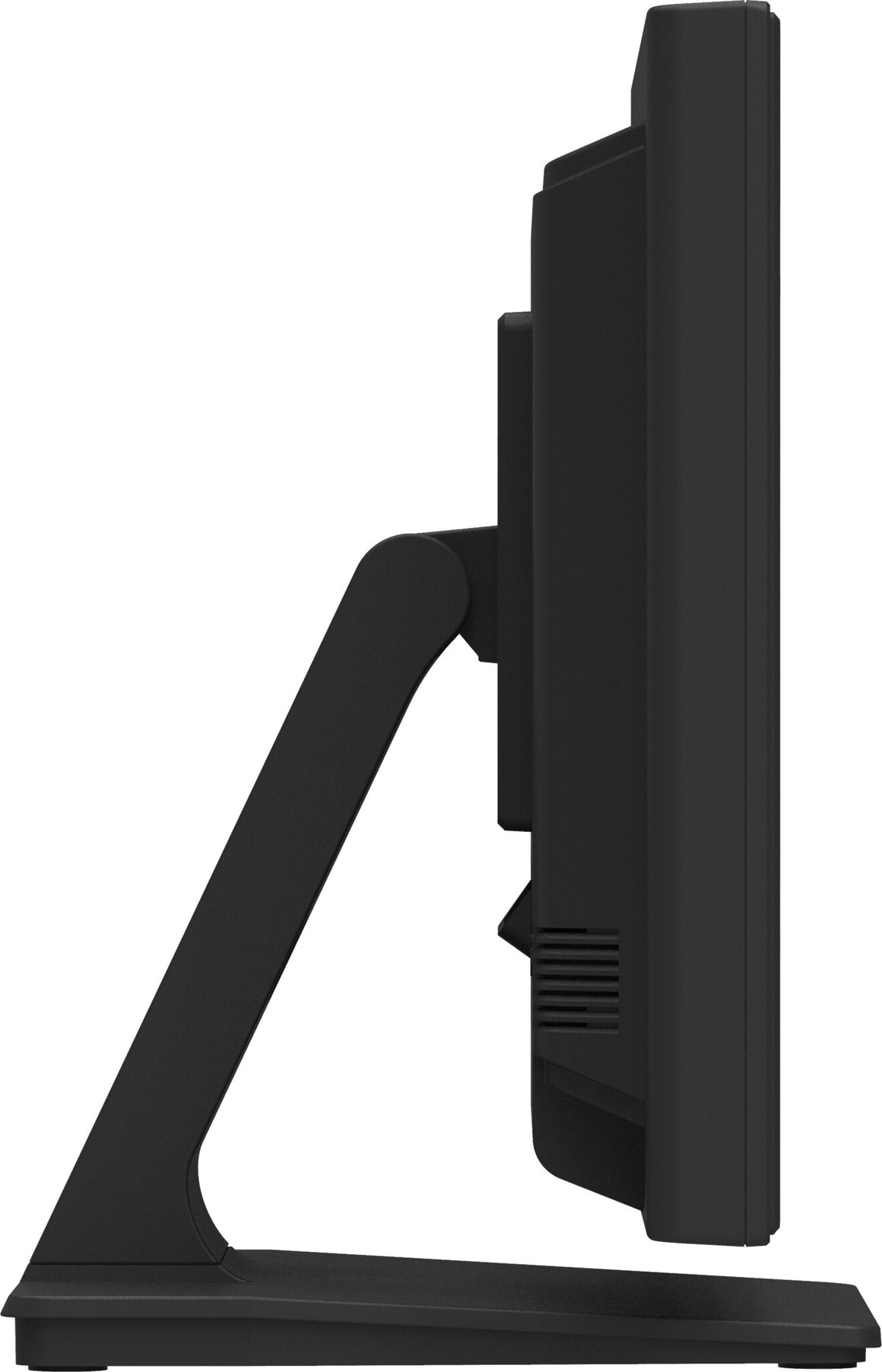

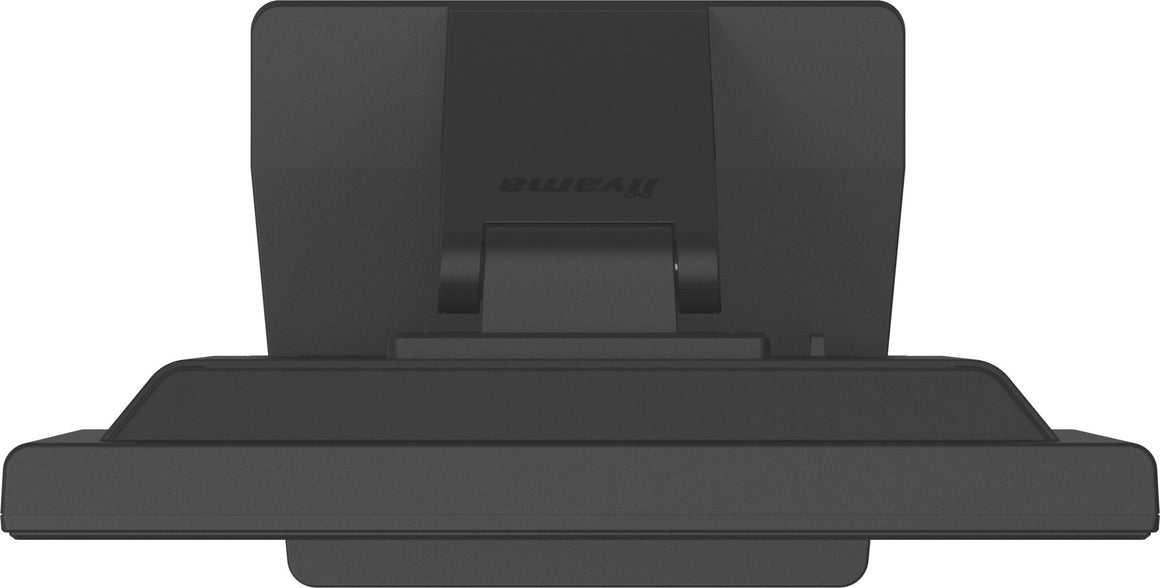

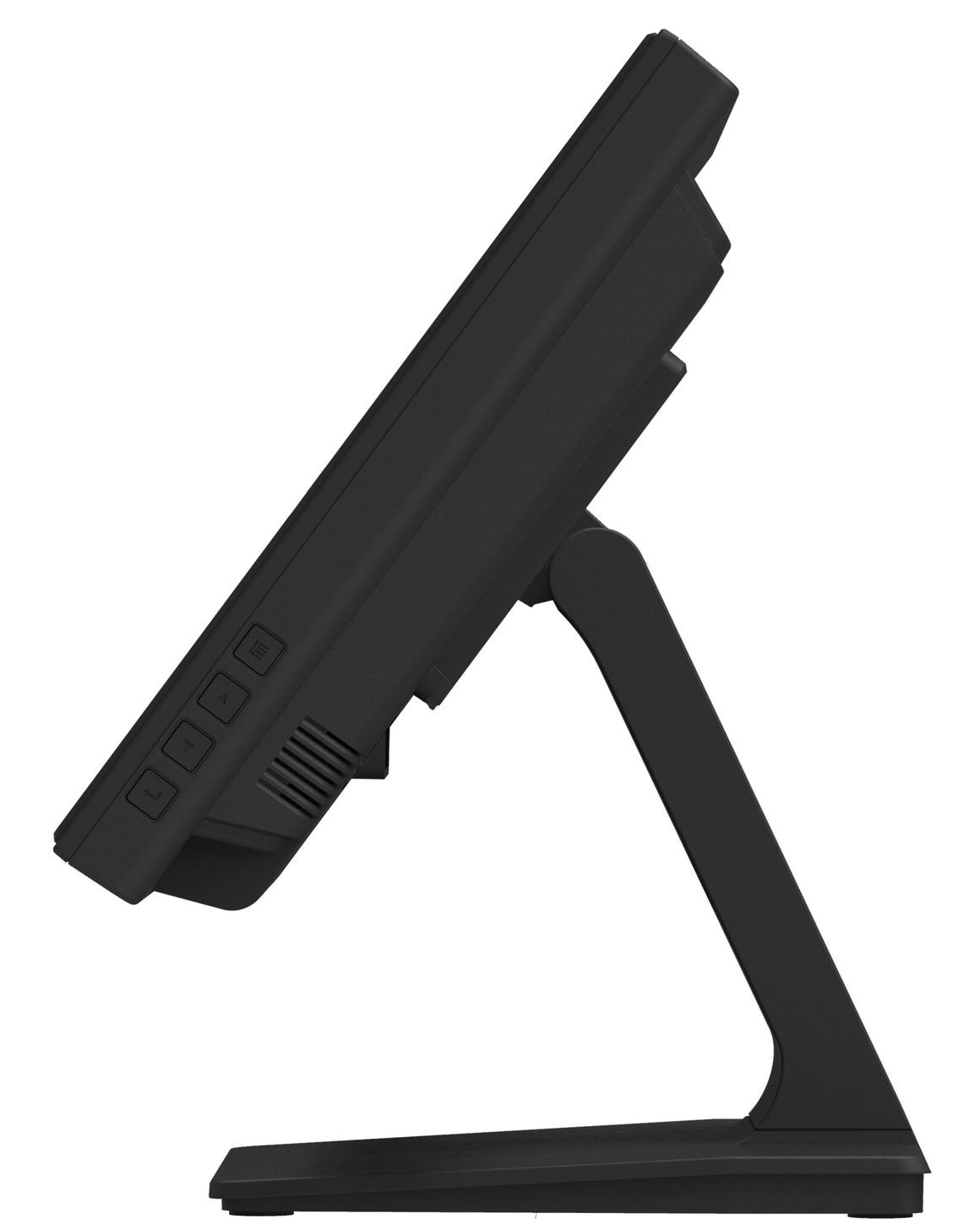

The ProLite T1532MSC-B1S 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
| Display |
|---|
| Digital horizontal frequency |
31 - 60 kHz |
| Viewable size, vertical |
22.8 cm |
| Viewable size, horizontal |
30.4 cm |
| Pixel pitch |
0.297 x 0.297 mm |
| Viewing angle, vertical |
176° |
| Viewing angle, horizontal |
176° |
| Contrast ratio (typical) |
800:1 |
| Screen shape |
Flat |
| Response time |
8 ms |
| Display brightness (typical) |
350 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Panel type |
TN |
| HD type |
XGA |
| Touchscreen |
Yes |
| Display technology |
LCD |
| Native aspect ratio |
4:3 |
| Display resolution |
1024 x 768 pixels |
| Display diagonal |
38.1 cm (15") |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in camera |
No |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| Headphone out |
No |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Built-in USB hub |
No |
| Ergonomics |
|---|
| Tilt angle range |
-5 - 90° |
| Tilt adjustment |
Yes |
| Height adjustment |
No |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Cable management |
Yes |

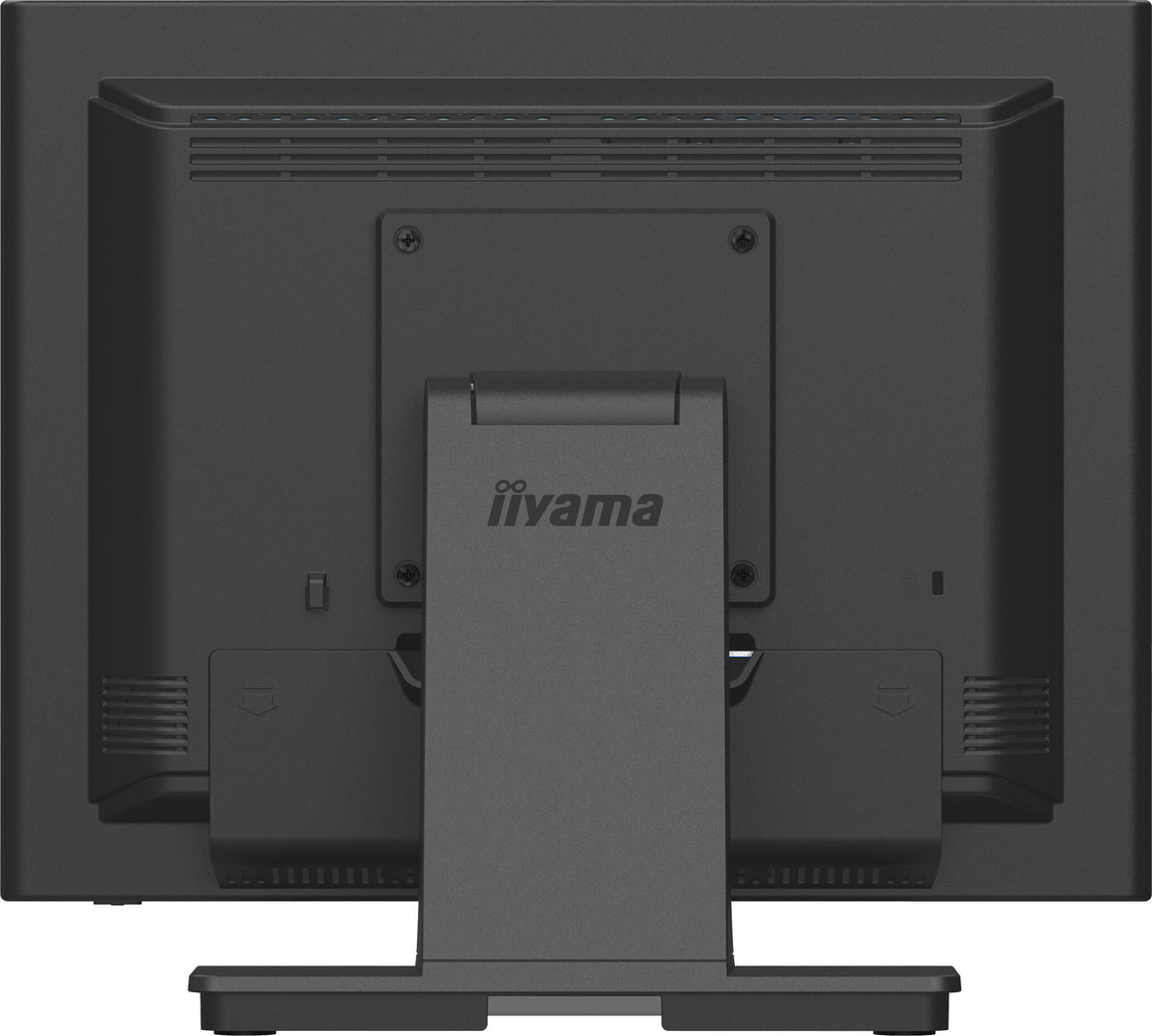

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
1547232 |
| Power supply type |
Internal |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
16 W |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
|---|
| Weight (with stand) |
3.7 kg |
| Height (with stand) |
306.5 mm |
| Depth (with stand) |
200 mm |
| Width (with stand) |
351 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
Audio, DisplayPort, HDMI, Power, USB |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| International Protection (IP) code |
IP54 |
