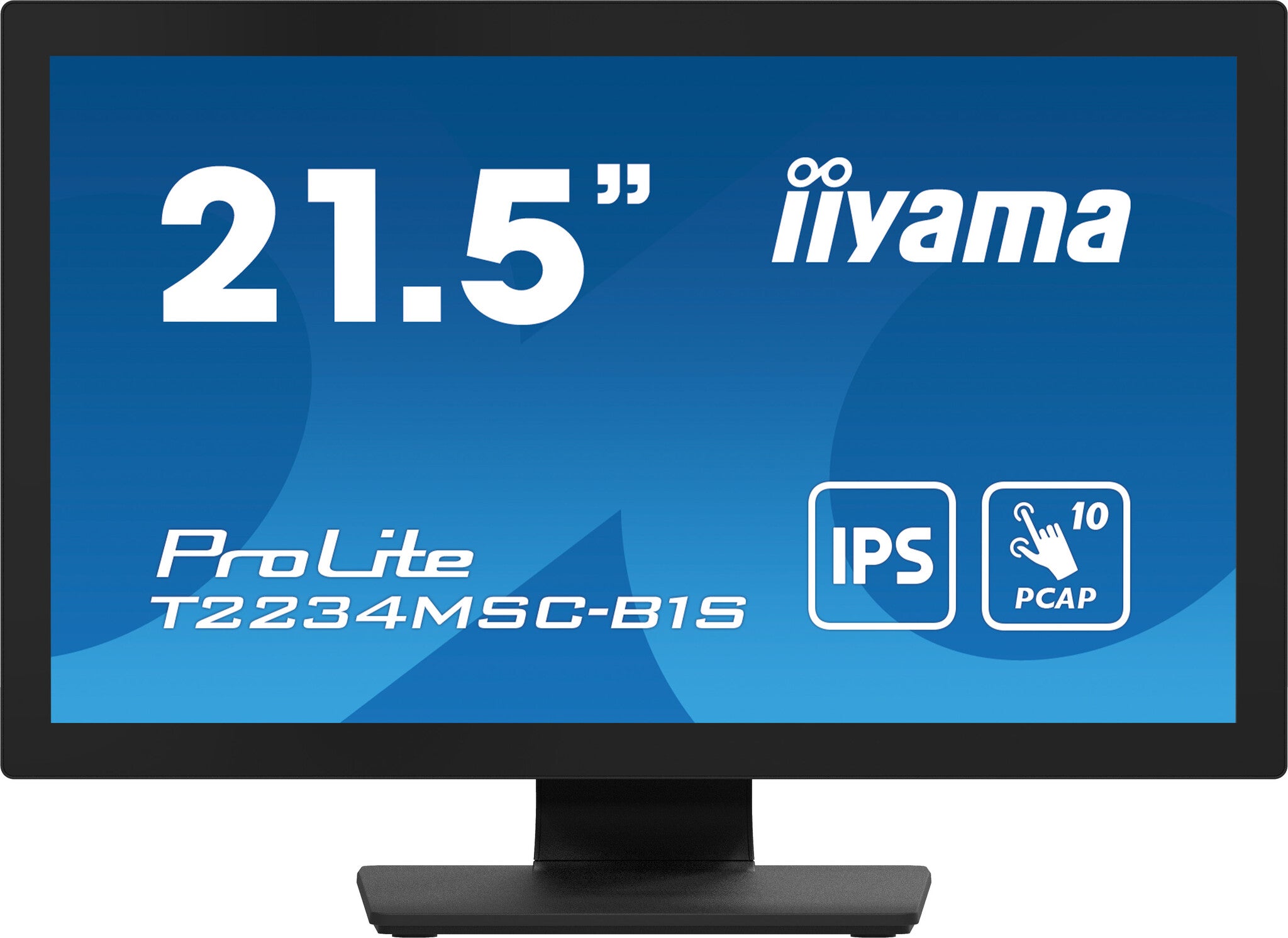

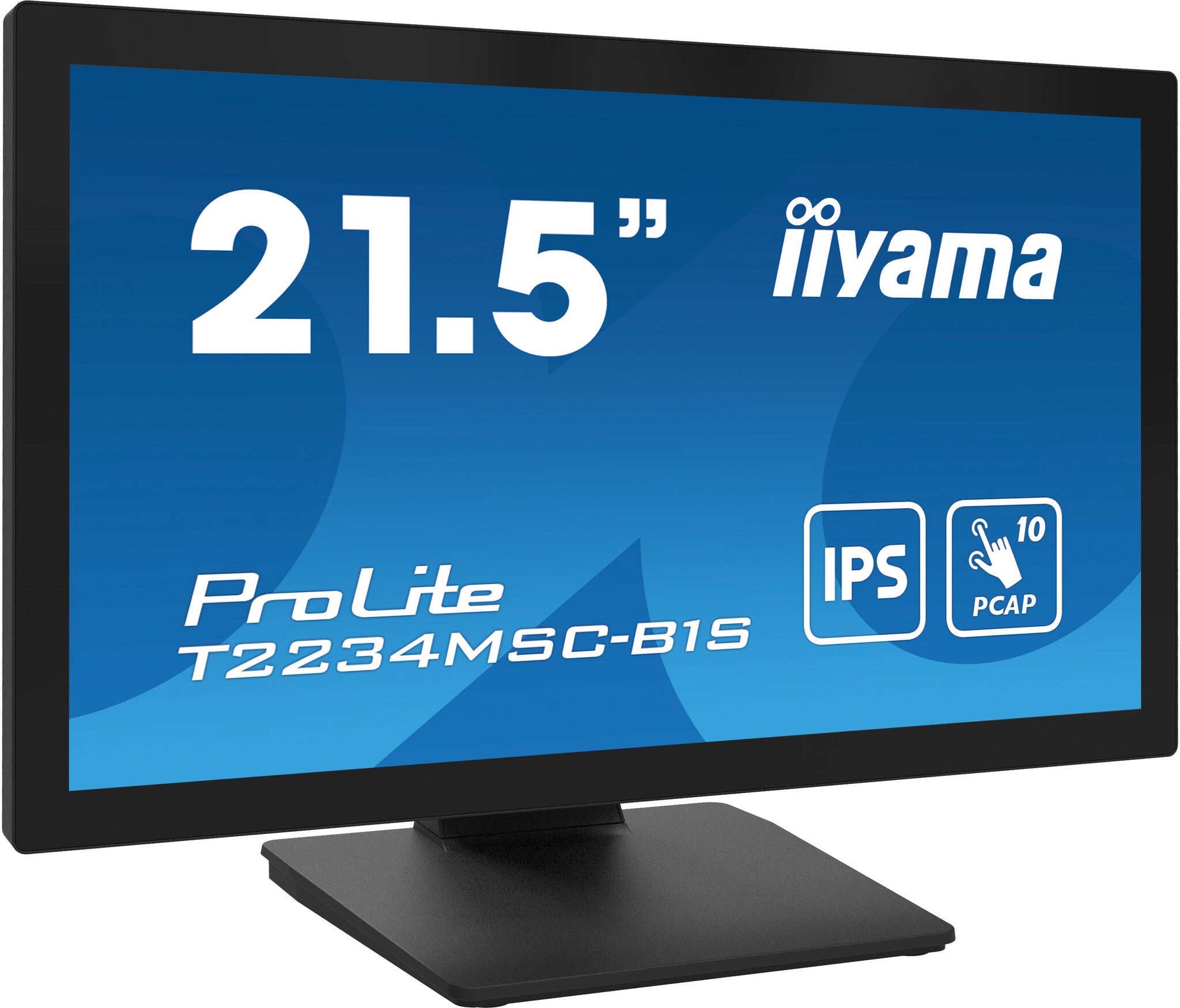

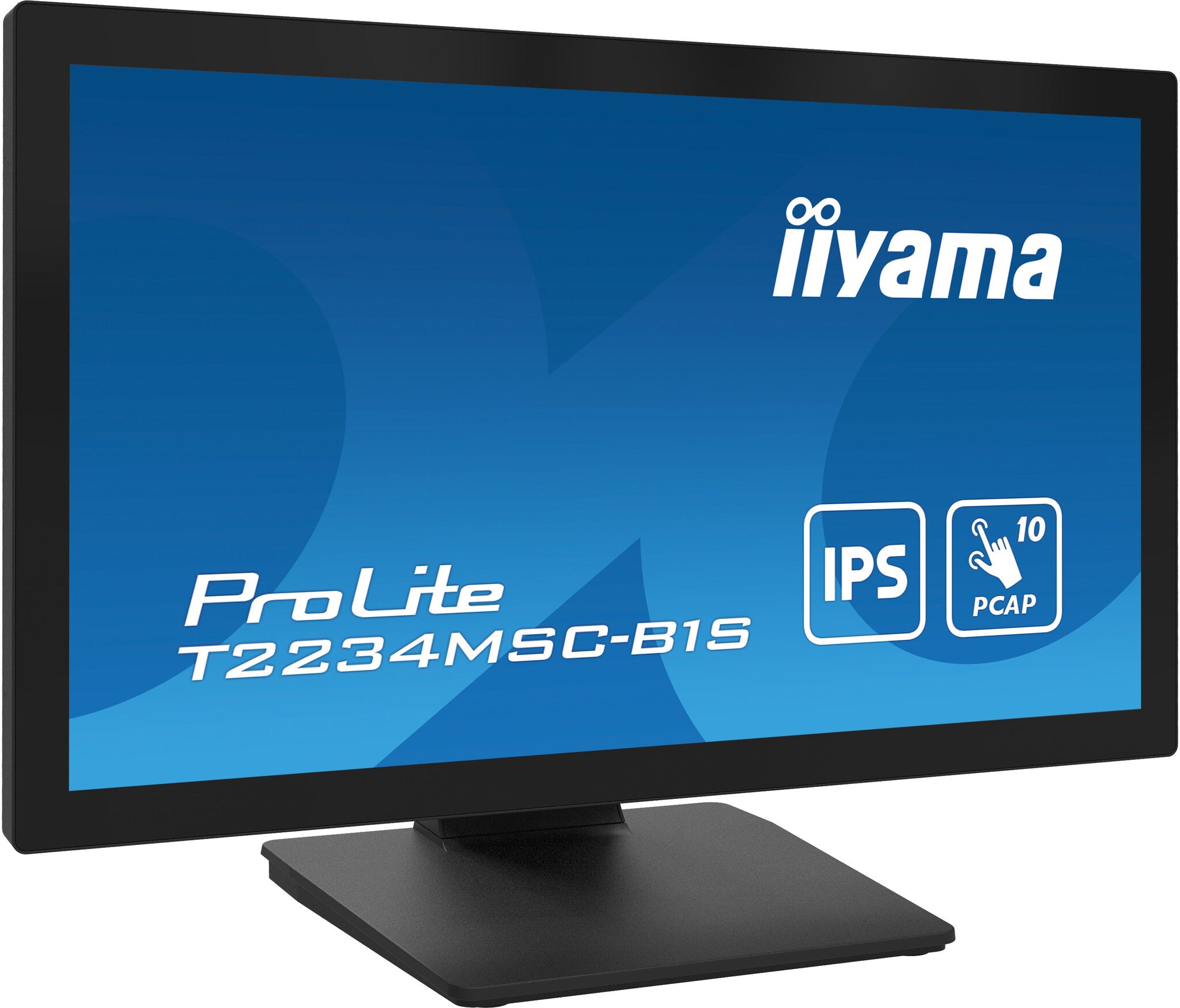

The ProLite T2234MSC-B1S uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail.
| Display |
|---|
| Surface hardness |
7H |
| Viewable size, vertical |
26.8 cm |
| Viewable size, horizontal |
47.6 cm |
| Horizontal scan range |
30 - 84 kHz |
| Pixel pitch |
0.247 x 0.247 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Response time |
8 ms |
| Display brightness (typical) |
305 cd/m² |
| Display brightness (peak) |
350 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5") |
| Performance |
|---|
| Palm rejection |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in camera |
No |
| RMS rated power |
6 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Glass thickness |
2.5 mm |
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Ergonomics |
|---|
| Tilt angle range |
-5 - 90° |
| Tilt adjustment |
Yes |
| Height adjustment |
No |
| Cable management |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
1531684 |
| Power supply type |
External |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
21 W |
| Energy consumption (SDR) per 1000 hours |
16 kWh |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
|---|
| Weight (with stand) |
5.9 kg |
| Height (with stand) |
374 mm |
| Depth (with stand) |
239.5 mm |
| Width (with stand) |
517.5 mm |
| Packaging content |
|---|
| Cables included |
Audio, DisplayPort, HDMI, Power, USB |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| International Protection (IP) code |
IP65 |
