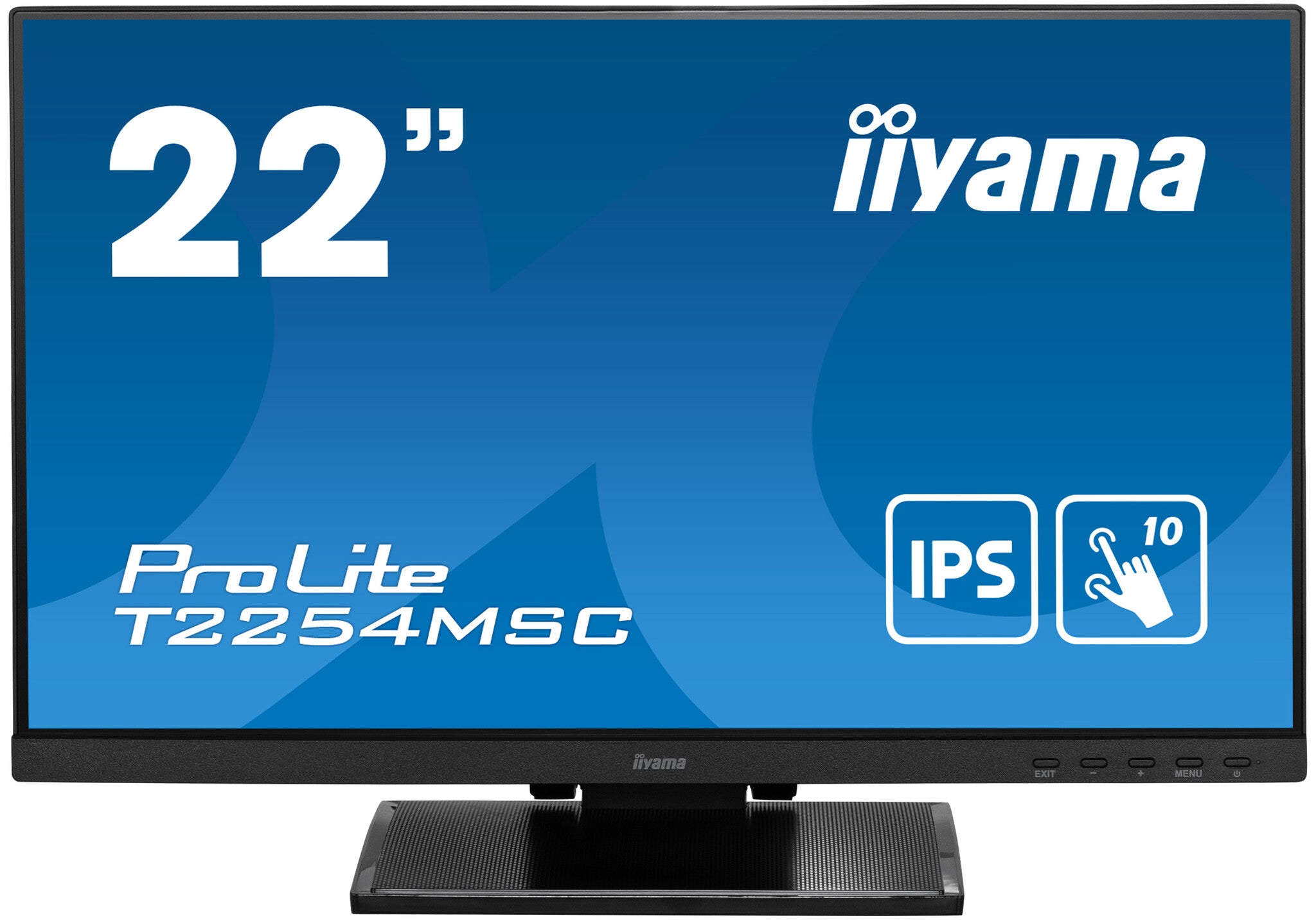

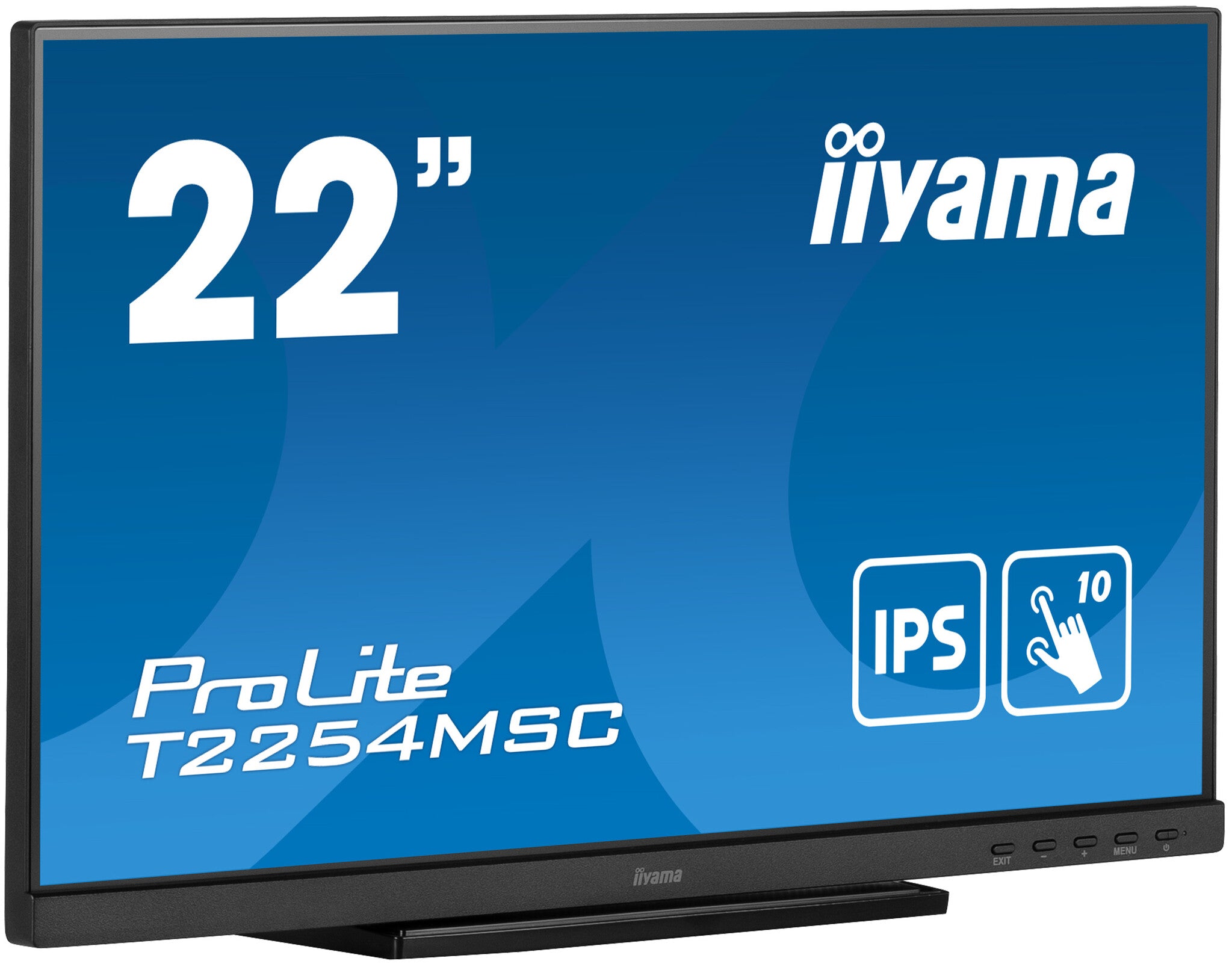

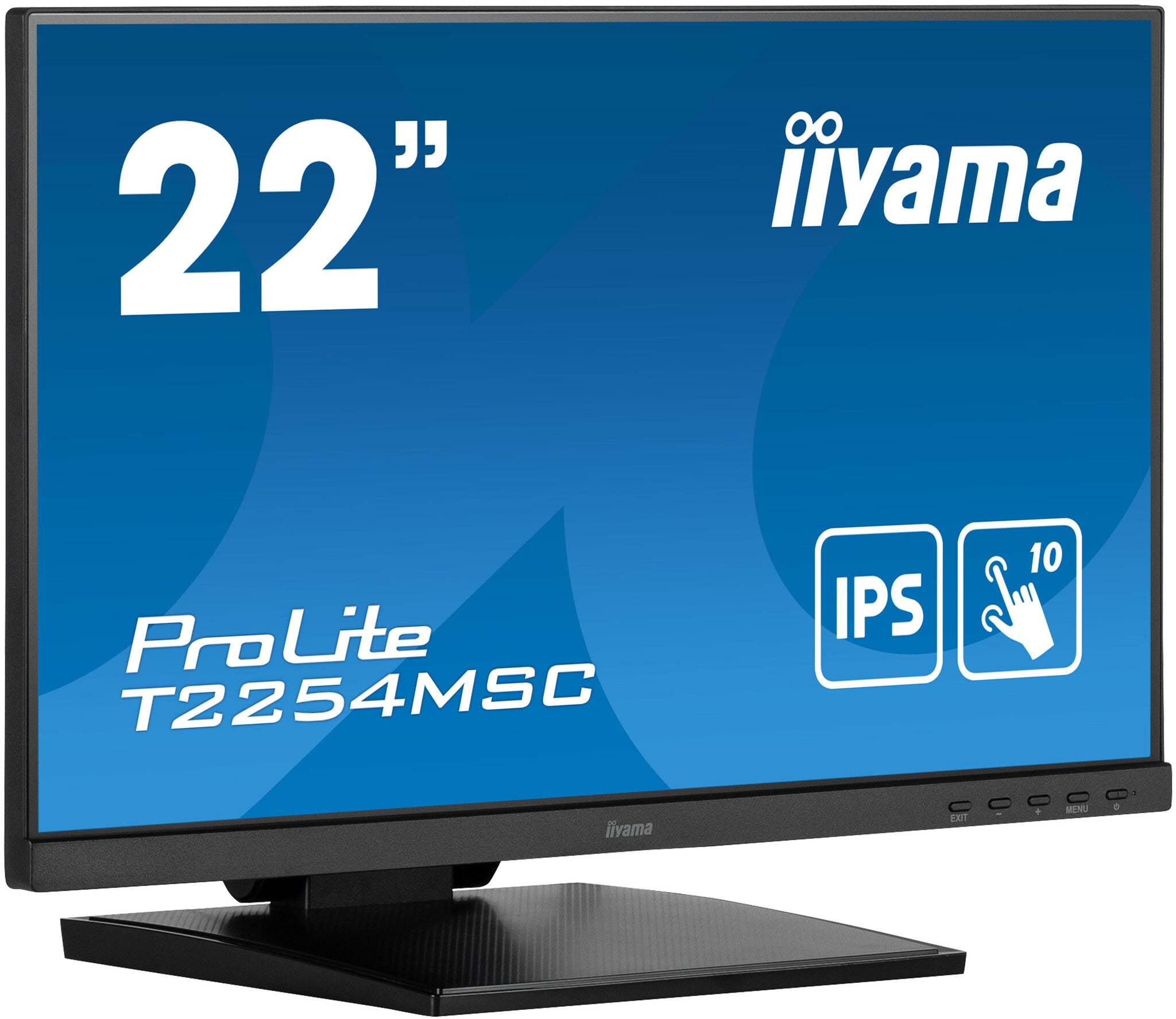

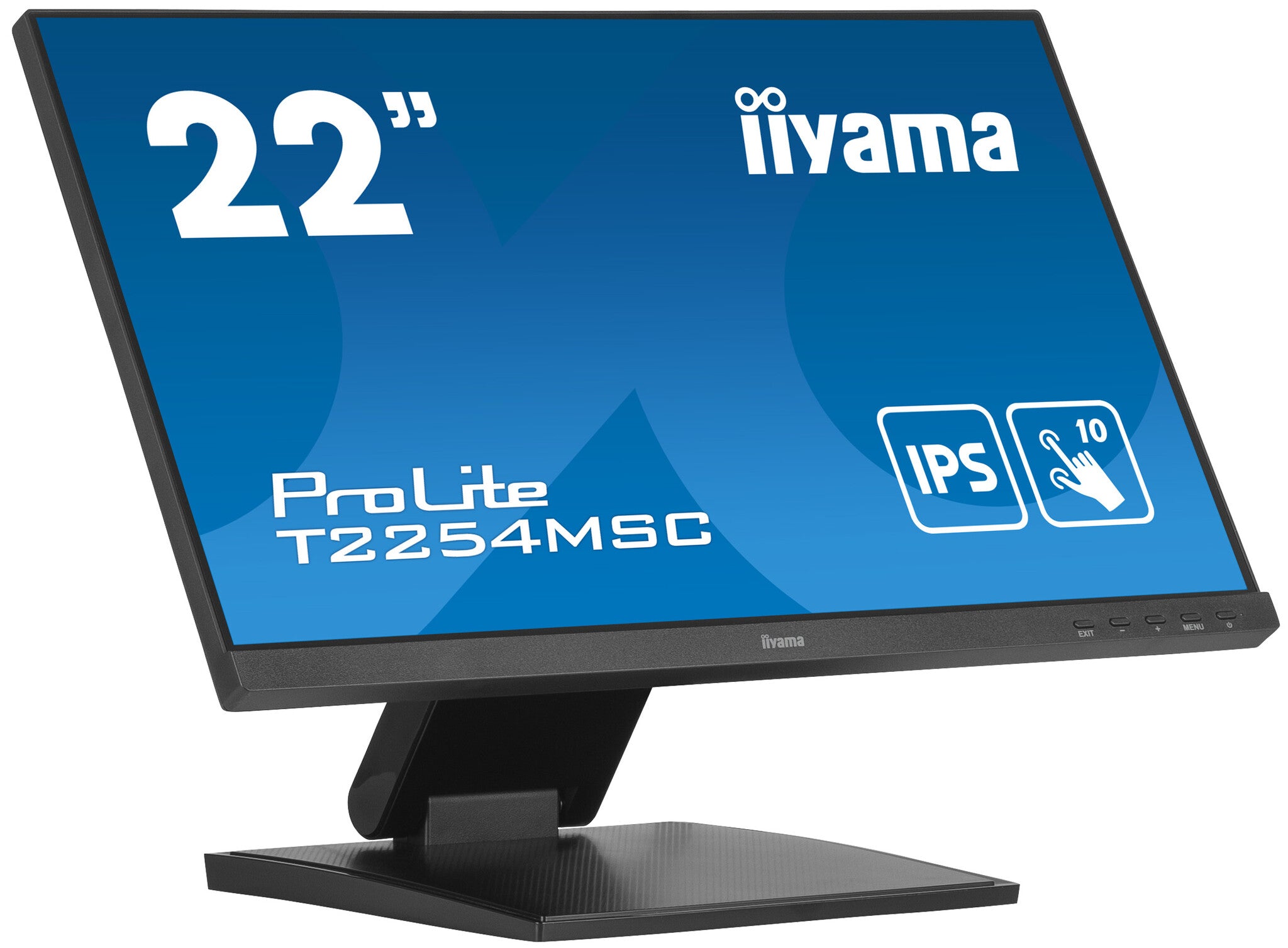

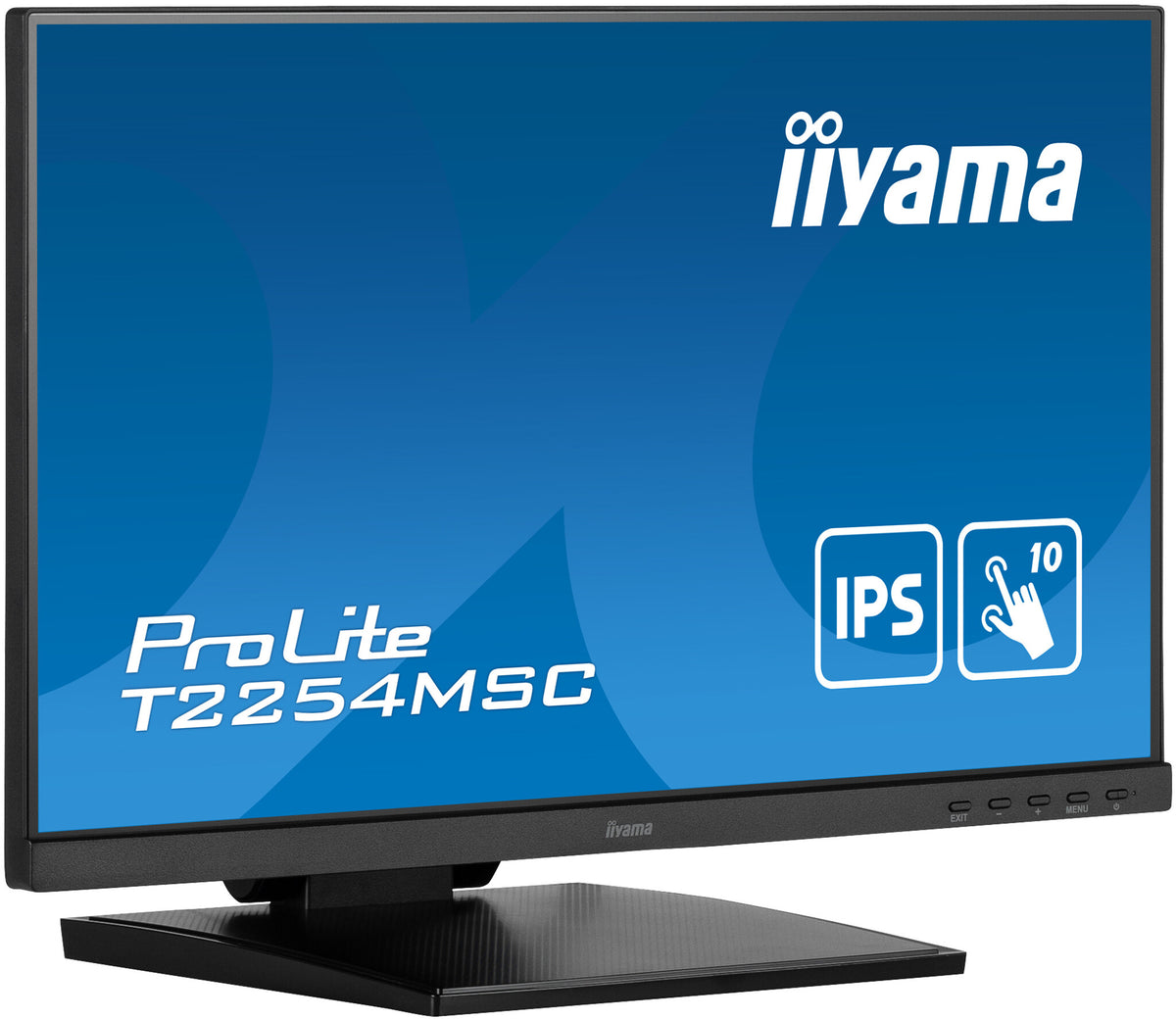

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2254MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2254MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
| Display |
|---|
| Display diagonal (metric) |
55 cm |
| Horizontal scan range |
30 - 83 kHz |
| Pixel pitch |
0.274 x 0.274 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (dynamic) |
50000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Response time |
4 ms |
| Display brightness (typical) |
250 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Capacitive |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5") |
| Performance |
|---|
| Flicker-free technology |
Yes |
| Multimedia |
|---|
| RMS rated power |
5 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| Headphone out |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| Number of upstream ports |
2 |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
3.5 - 85° |
| Adjustable height (max) |
34.3 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
1339100 |
| Energy efficiency scale |
A to G |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
19 W |
| Energy consumption (SDR) per 1000 hours |
16 kWh |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
|---|
| Weight (without stand) |
2.7 kg |
| Weight (with stand) |
4.9 kg |
| Height (with stand) |
343 mm |
| Depth (with stand) |
238.5 mm |
| Width (with stand) |
488.5 mm |
| Packaging data |
|---|
| Package weight |
6.9 kg |
| Package height |
389 mm |
| Package depth |
174 mm |
| Package width |
599 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
HDMI, USB |
| Stand included |
Yes |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA |
