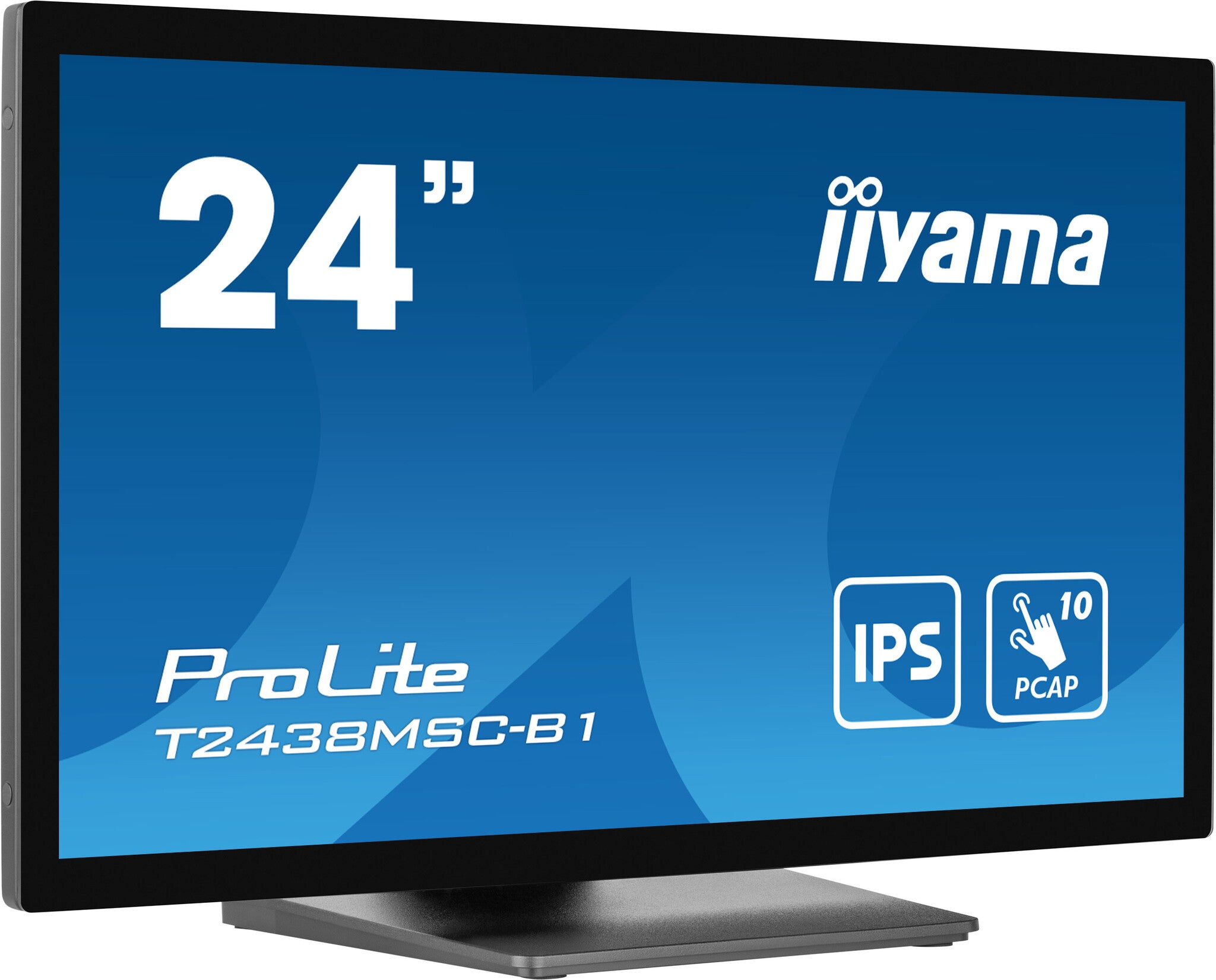

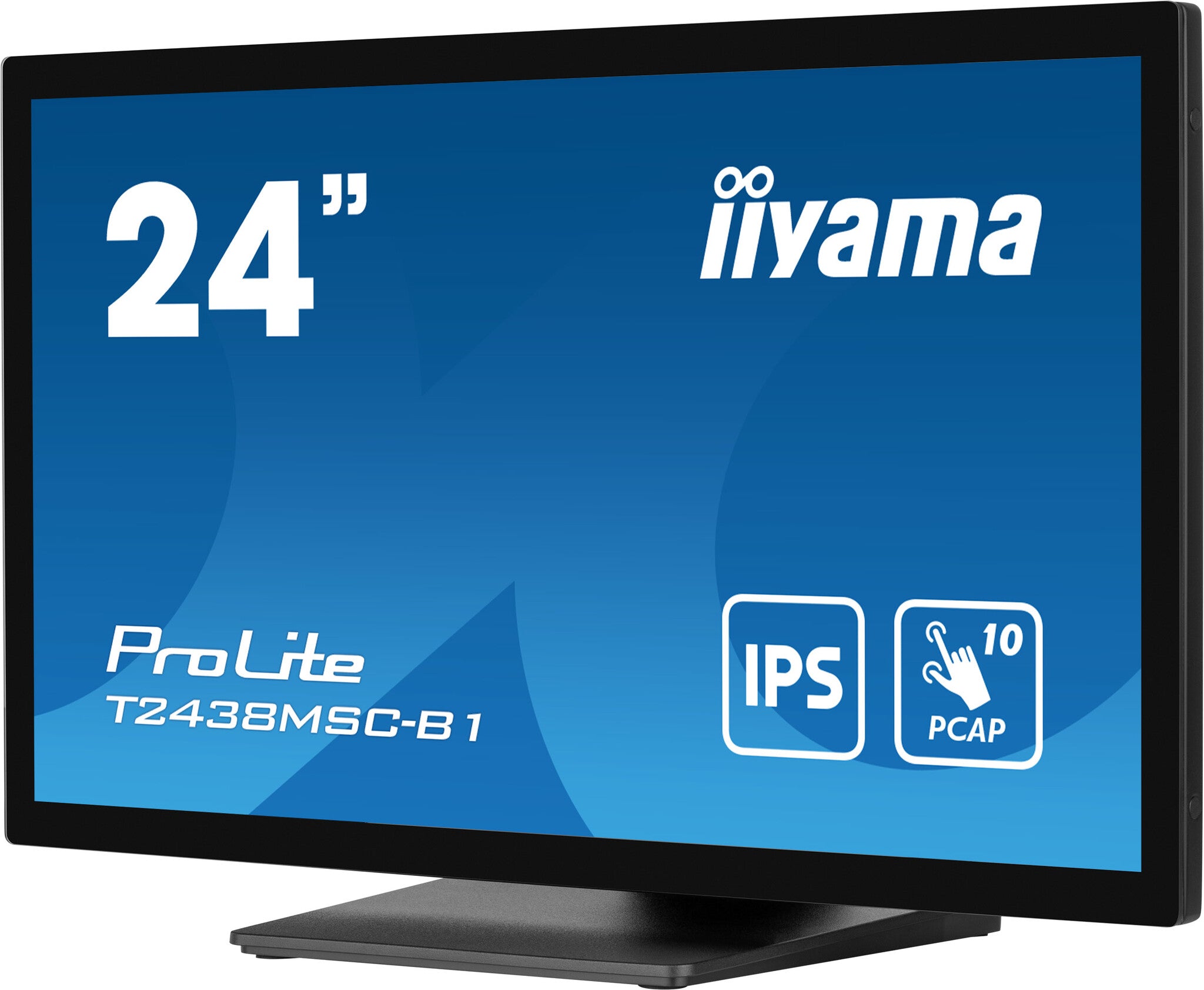

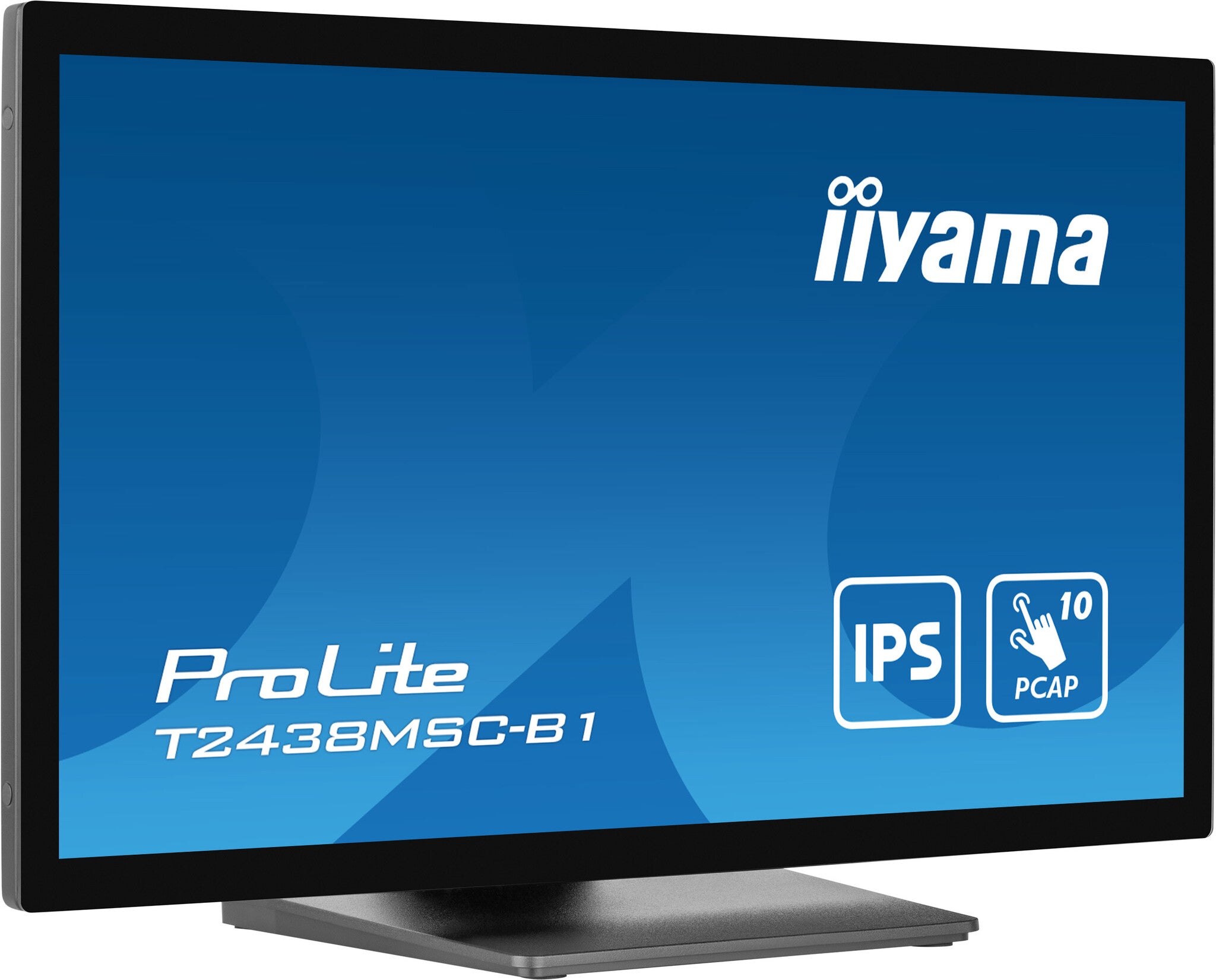

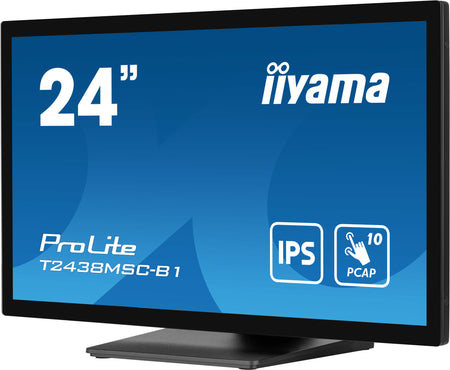

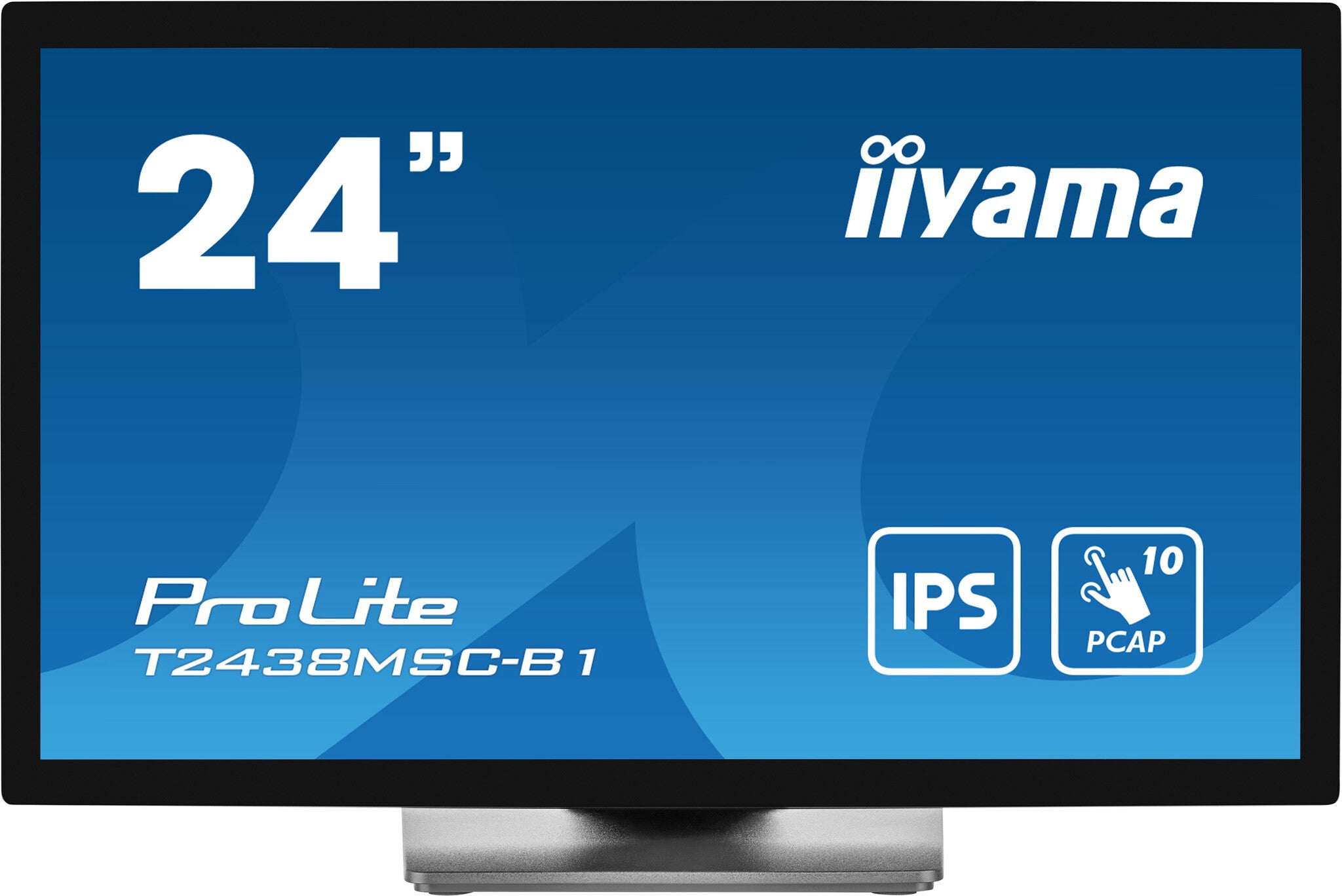

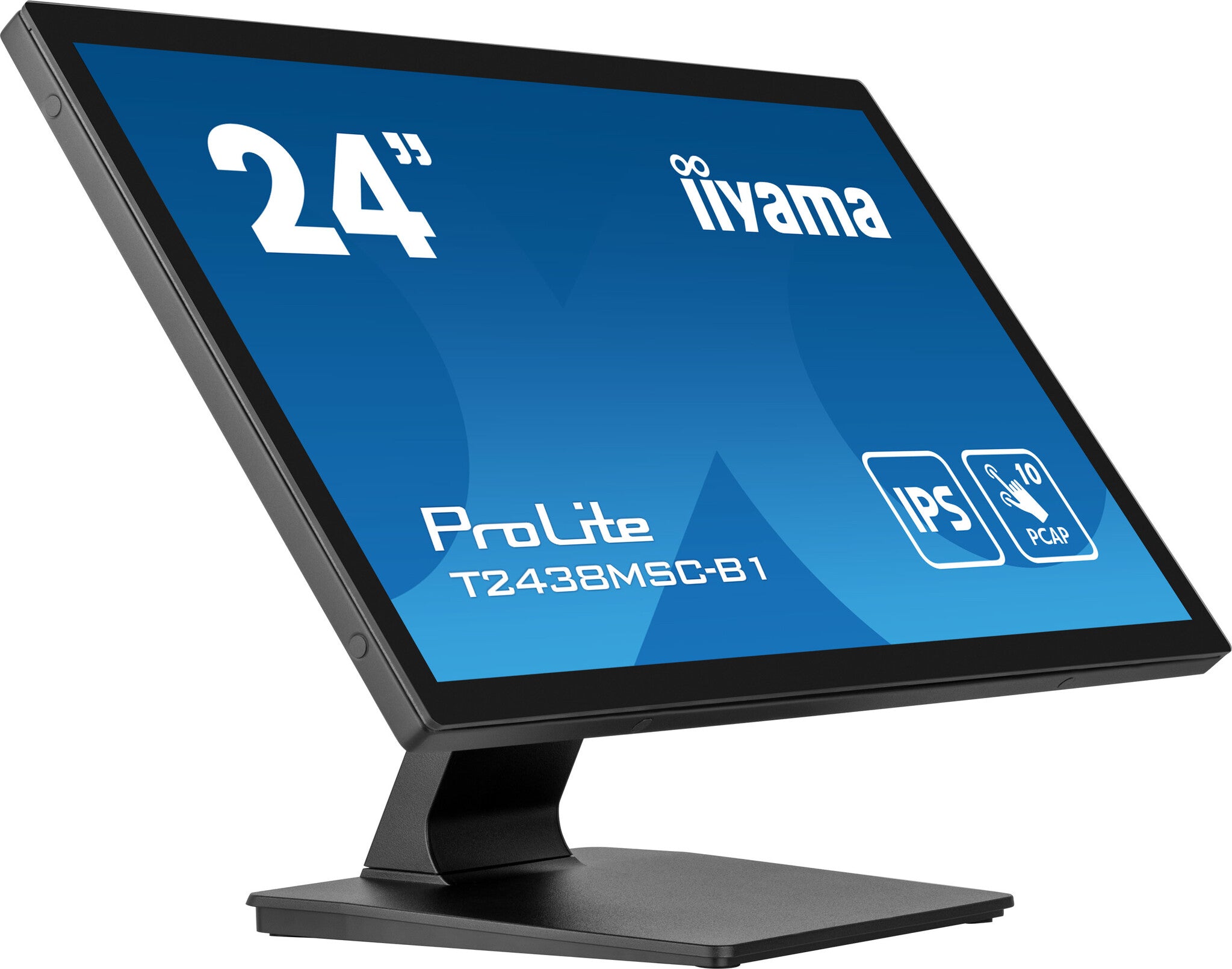

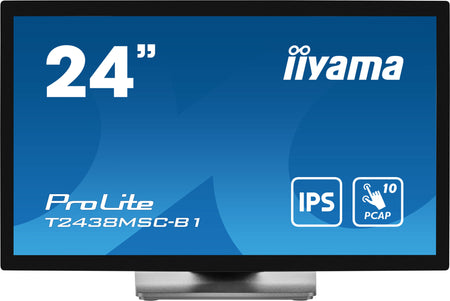

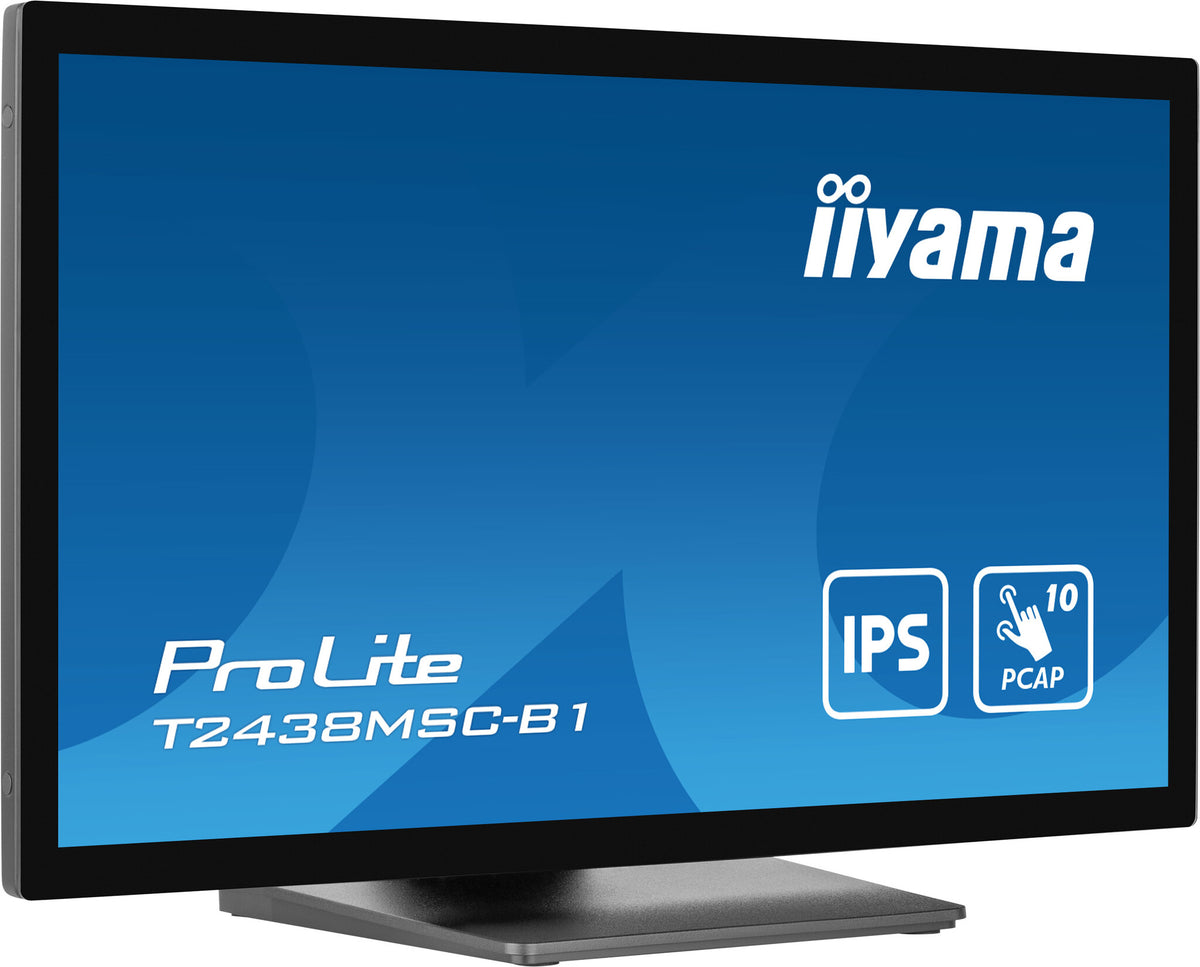

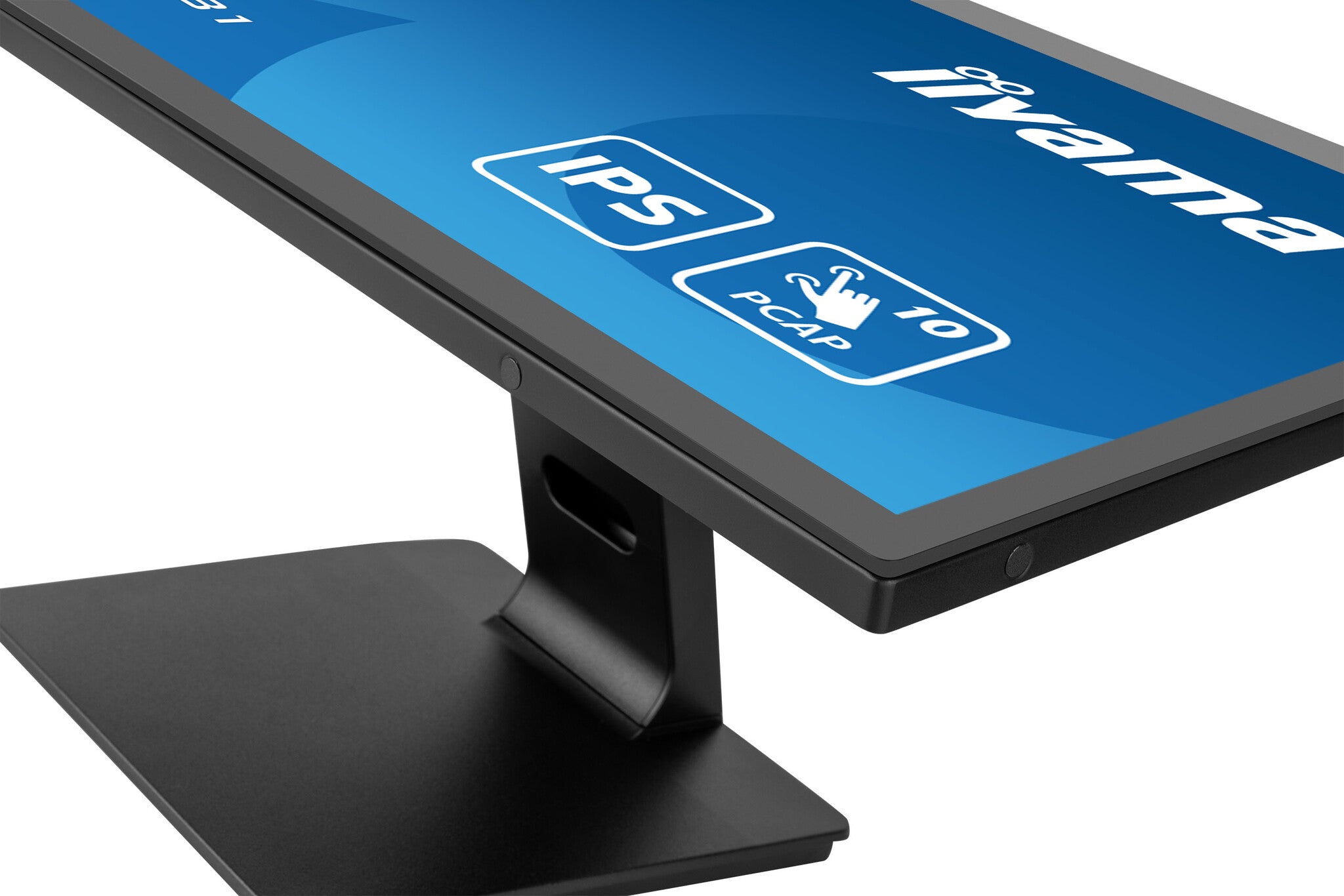

23.8” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
The Full HD (1920x1080) monitor ProLite T2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water.

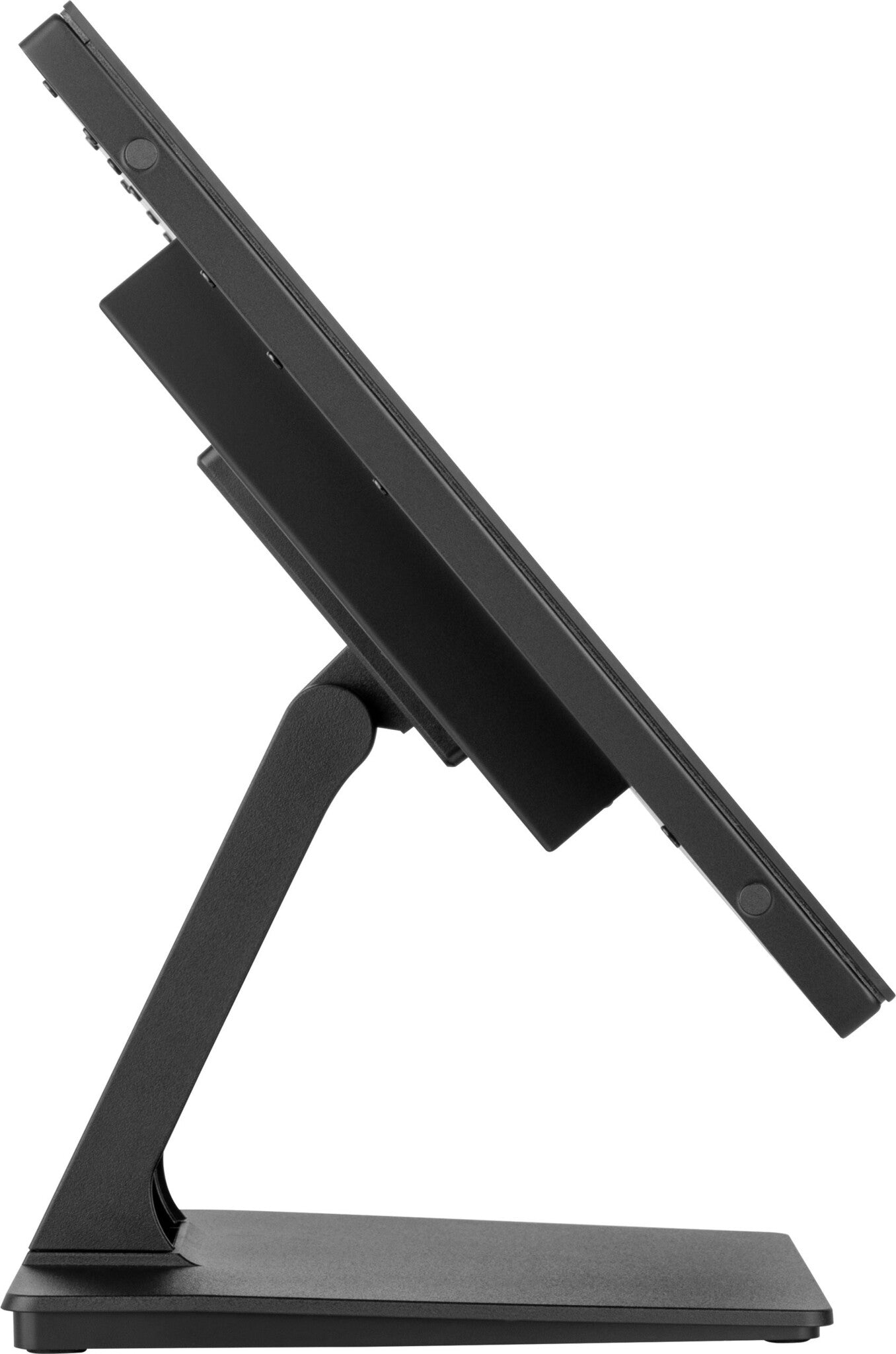

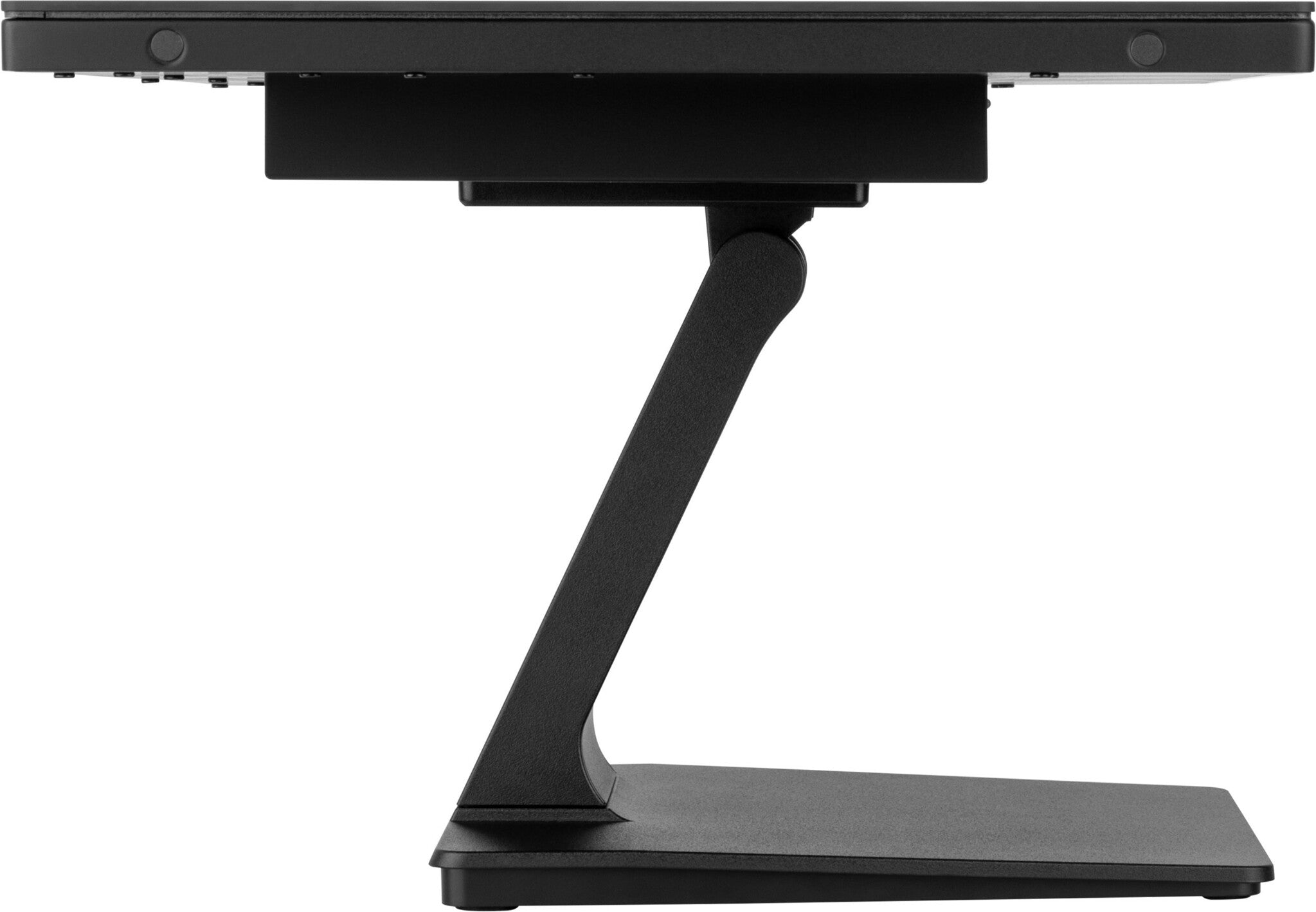

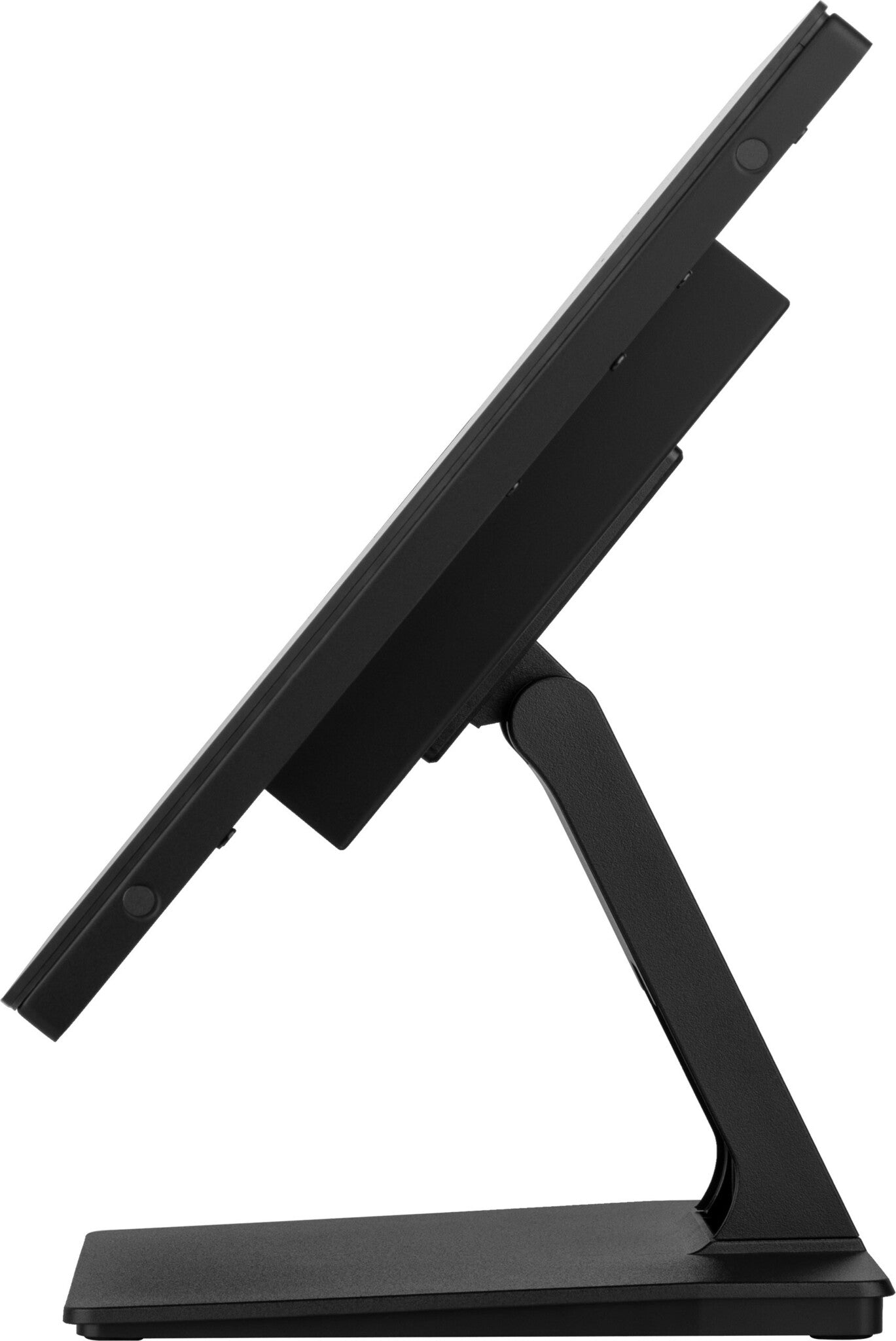

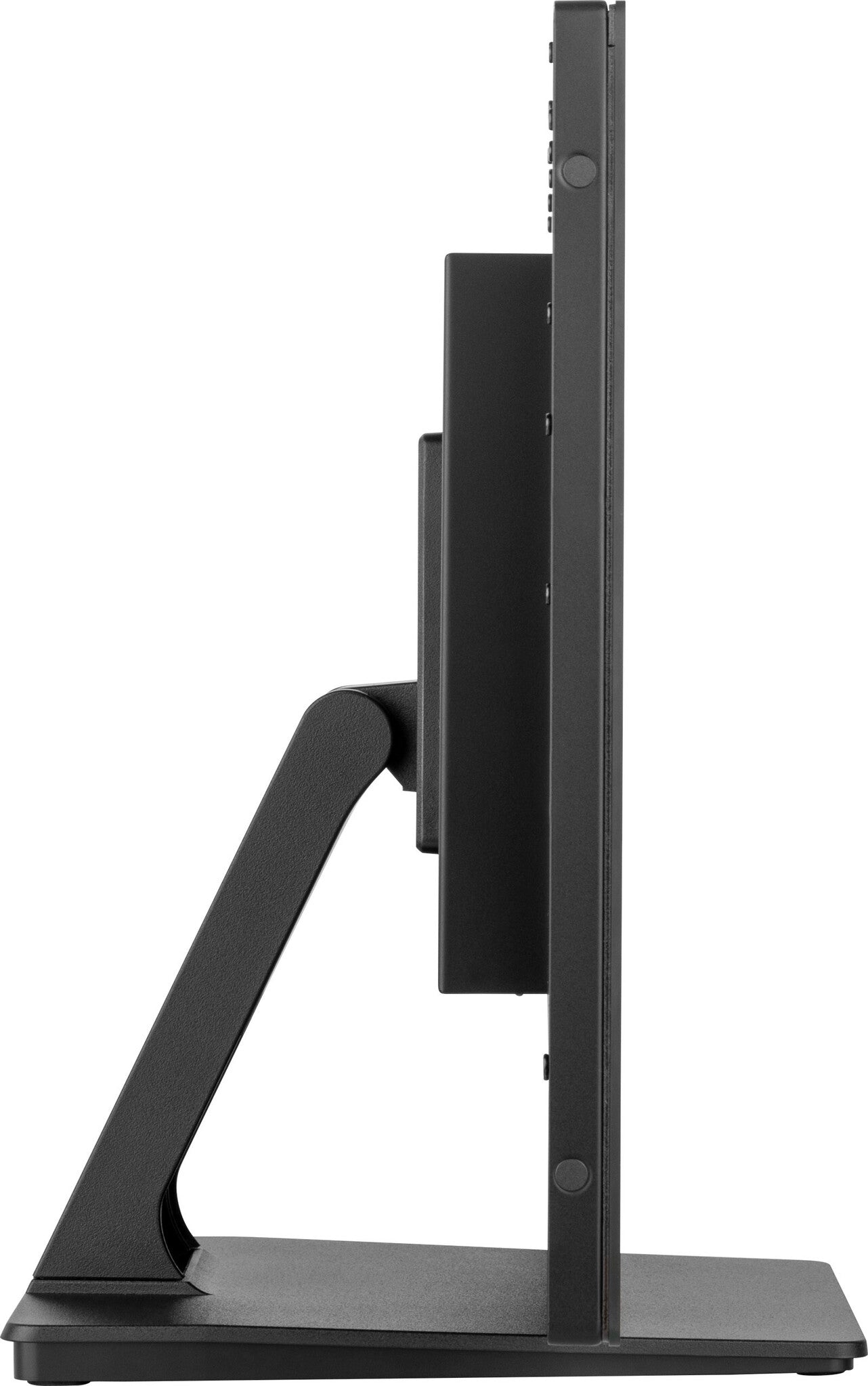

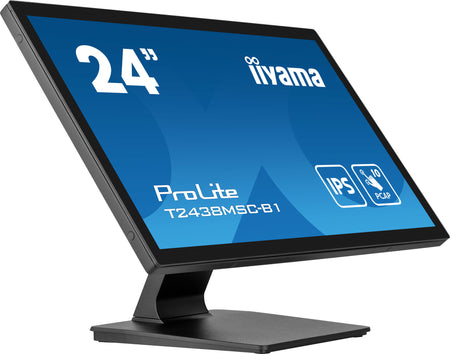

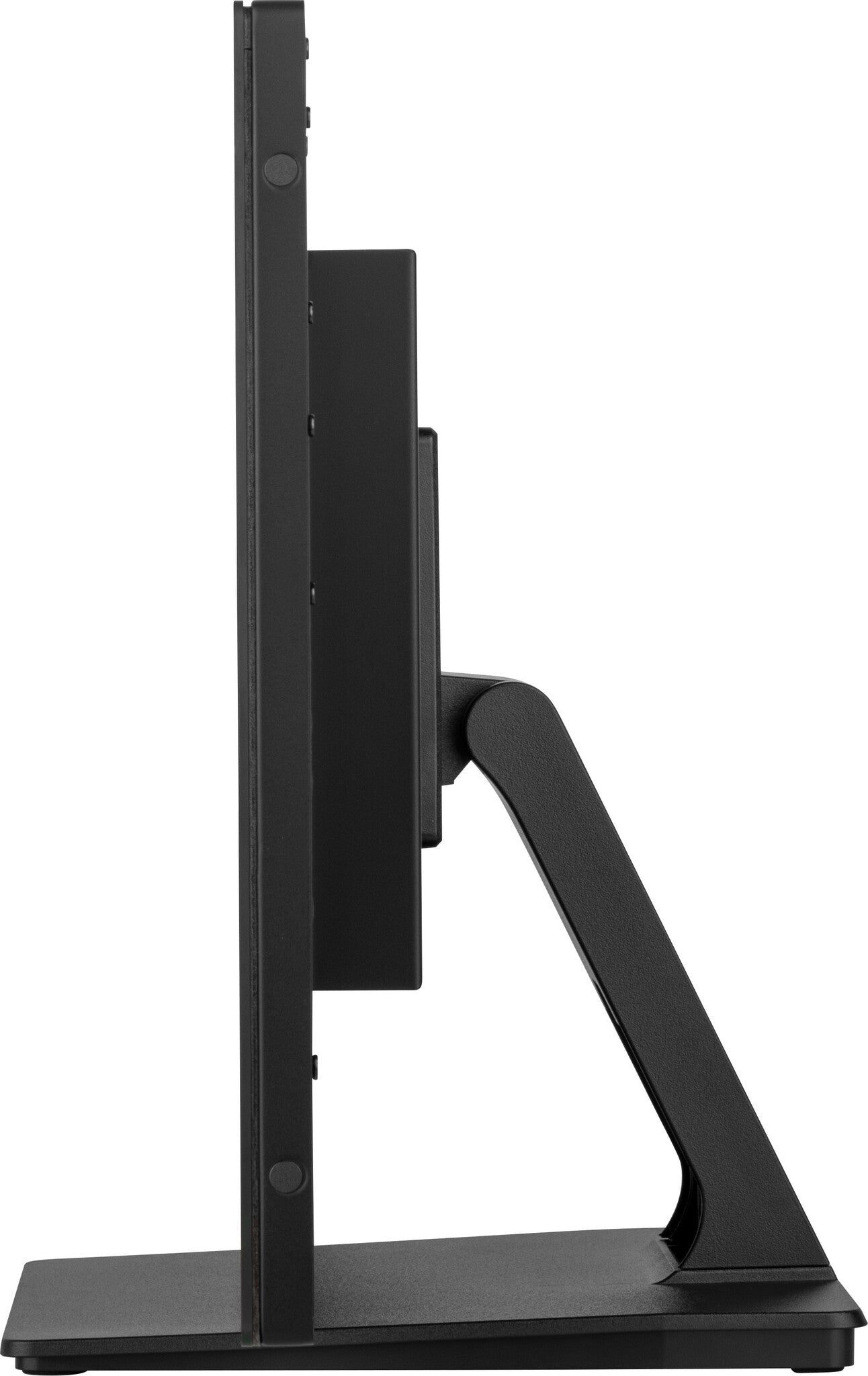

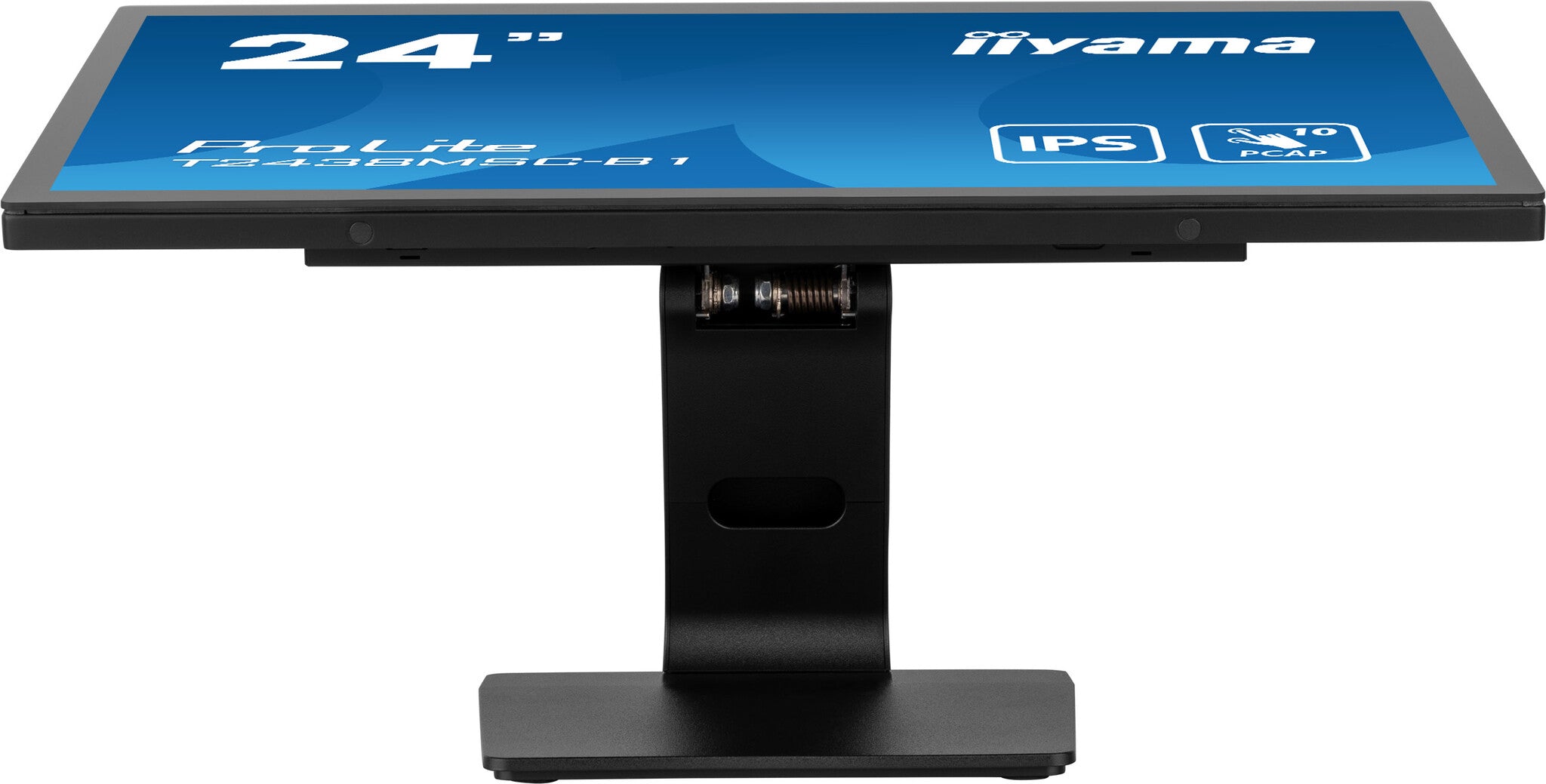

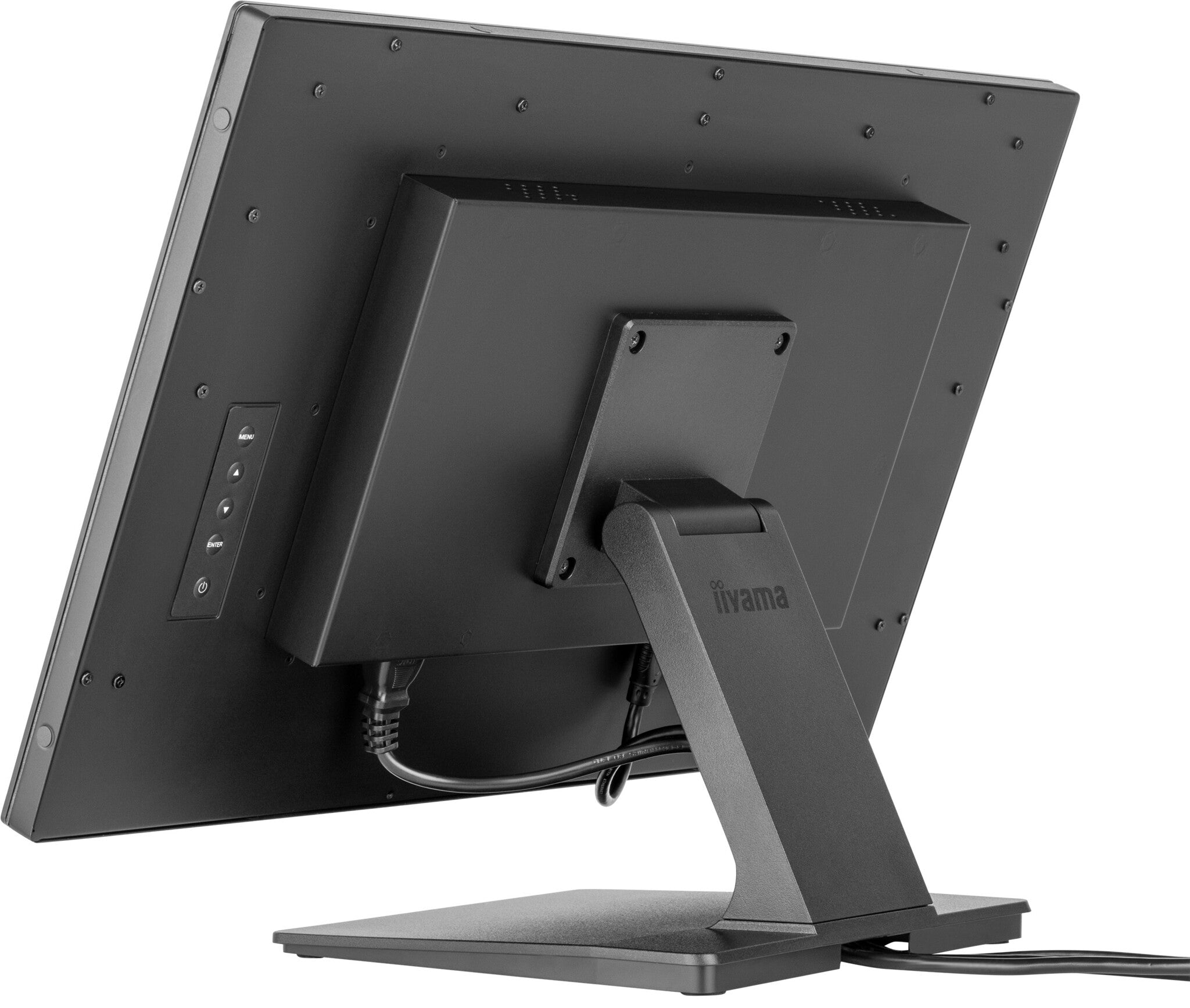

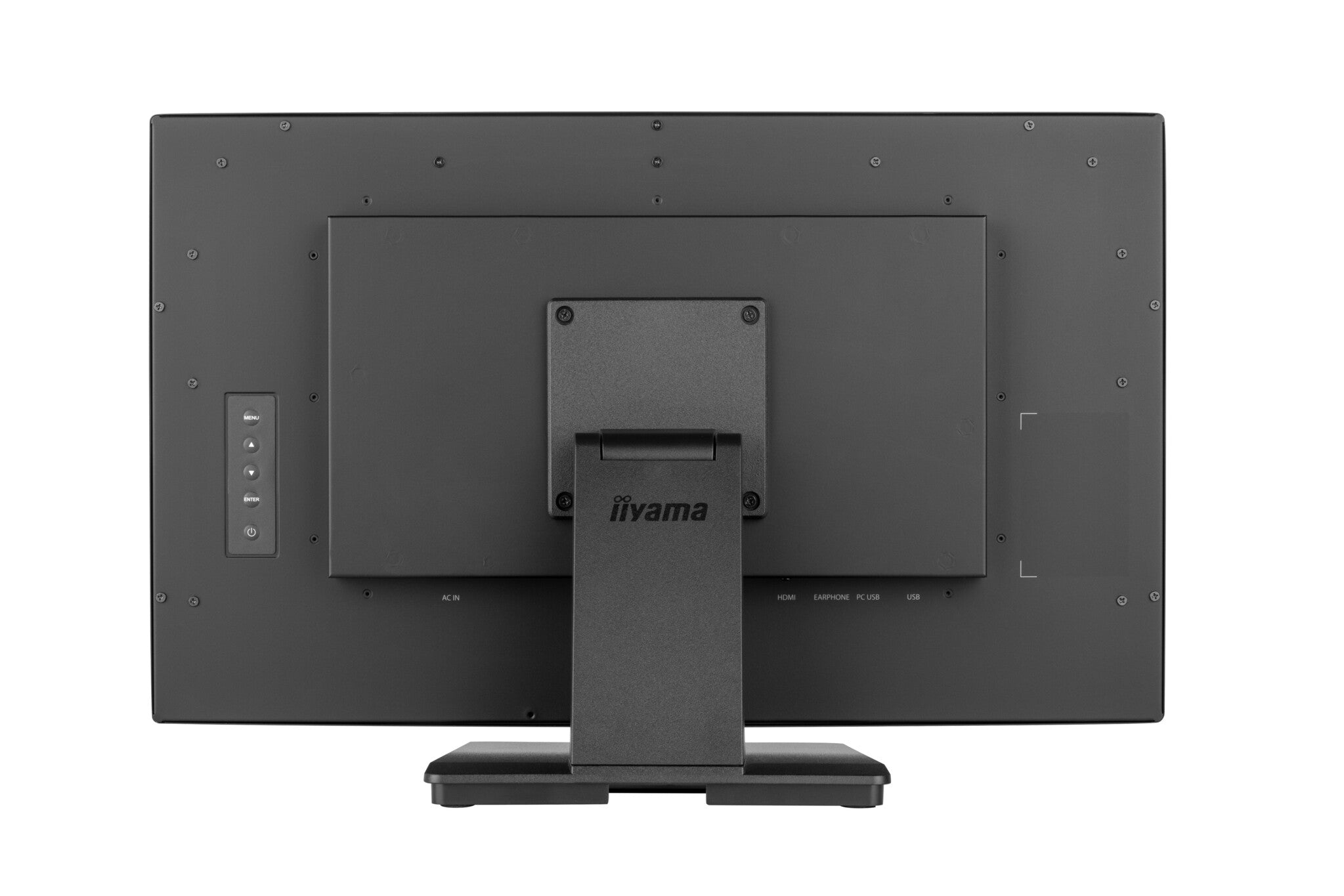

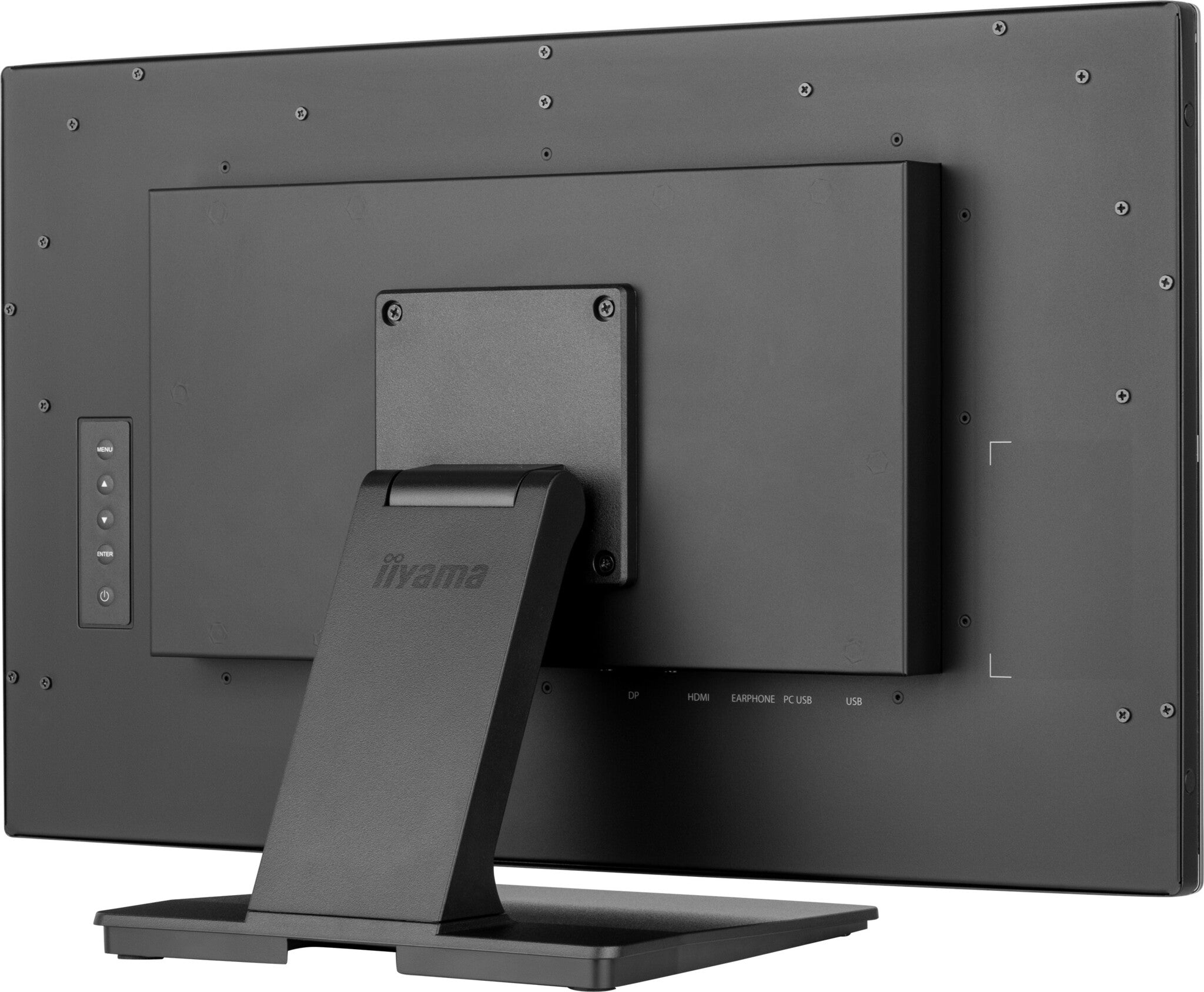

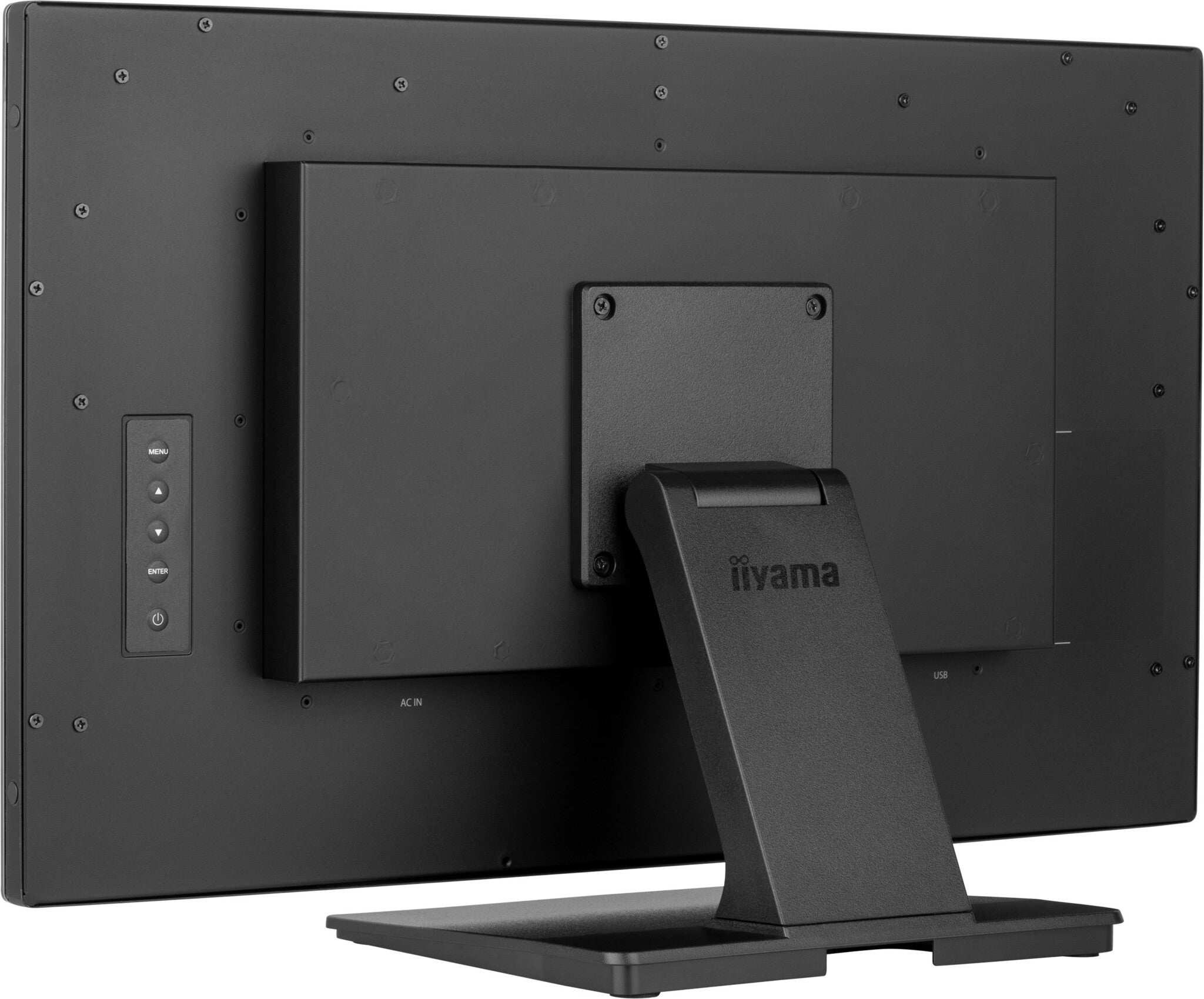

The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
| Display |
|---|
| Surface hardness |
7H |
| Display diagonal (metric) |
60.5 cm |
| Horizontal scan range |
30 - 83 kHz |
| Pixel pitch |
0.275 x 0.275 mm |
| Response time (fast) |
5 ms |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Screen shape |
Flat |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
5 ms |
| Display brightness (typical) |
525 cd/m² |
| Display brightness (peak) |
600 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in camera |
No |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Glass thickness |
3.6 mm |
| Product colour |
Black |

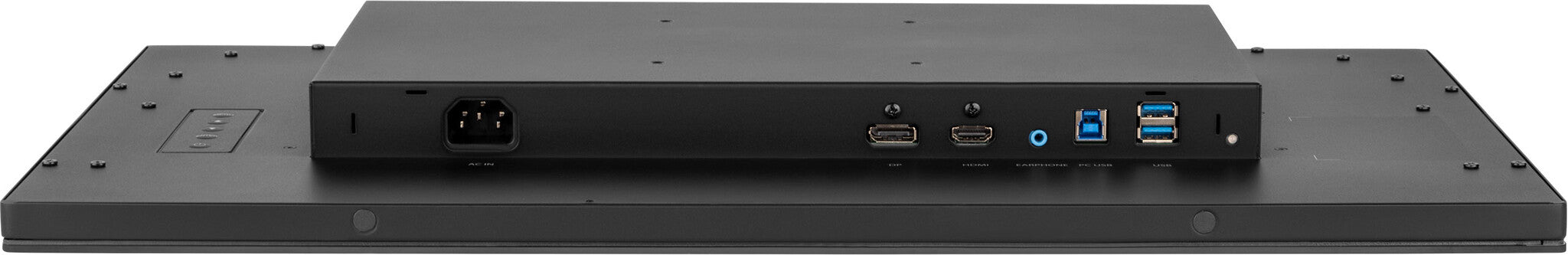

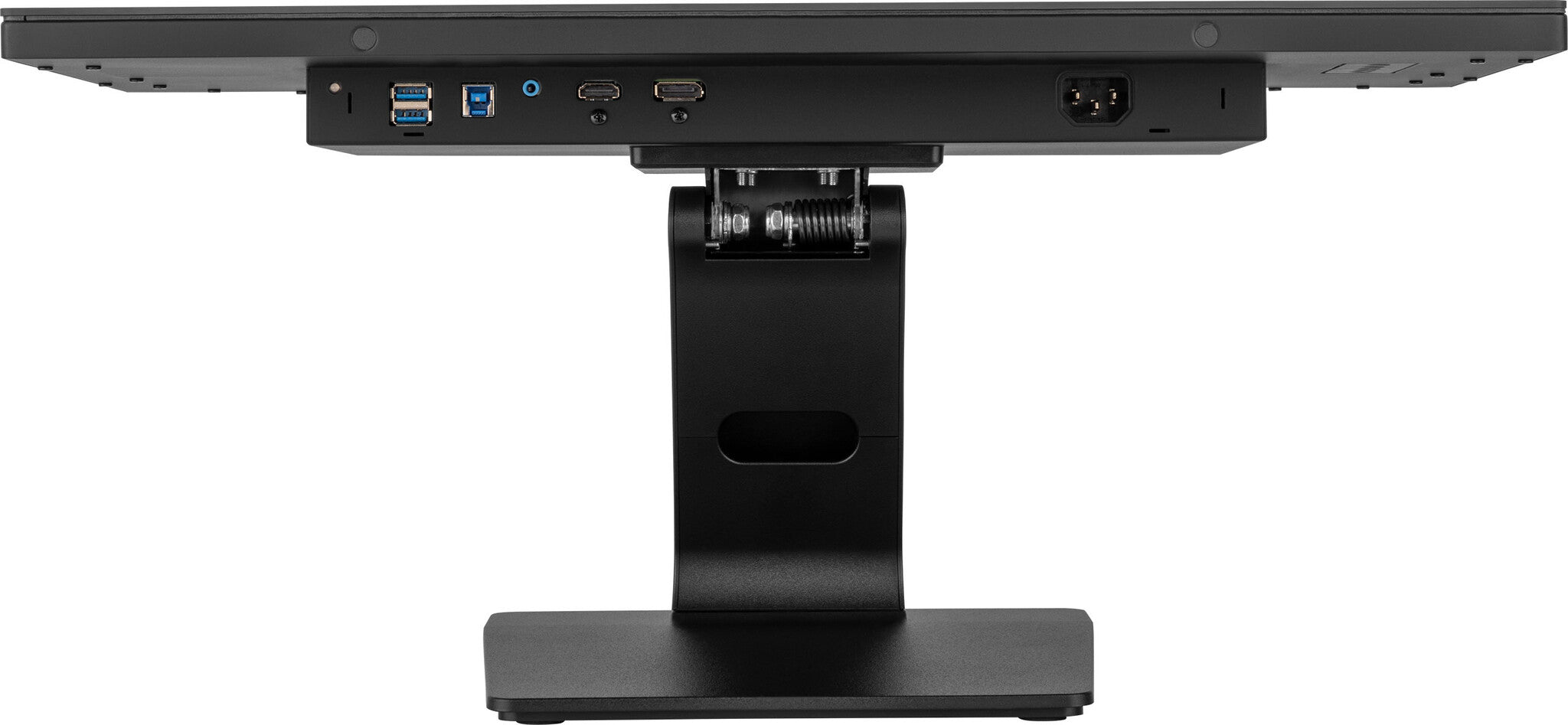

| Ports & interfaces |
|---|
| HDCP |
Yes |
| Headphone out |
No |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB Type-A downstream ports quantity |
2 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| Plug and Play |
Yes |
| On Screen Display (OSD) languages |
German, English, French, Japanese, Polish, Russian |
| On Screen Display (OSD) |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
1530357 |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
22 W |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
|---|
| Bezel width (bottom) |
2.03 cm |
| Bezel width (top) |
2.03 cm |
| Bezel width (side) |
1.73 cm |
| Weight (with stand) |
8.2 kg |
| Height (with stand) |
366 mm |
| Depth (with stand) |
239.5 mm |
| Width (with stand) |
561.5 mm |
| Packaging data |
|---|
| Package weight |
10 kg |
| Package height |
430 mm |
| Package depth |
155 mm |
| Package width |
650 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
HDMI, Power, USB |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Certification |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| International Protection (IP) code |
IP1X |
