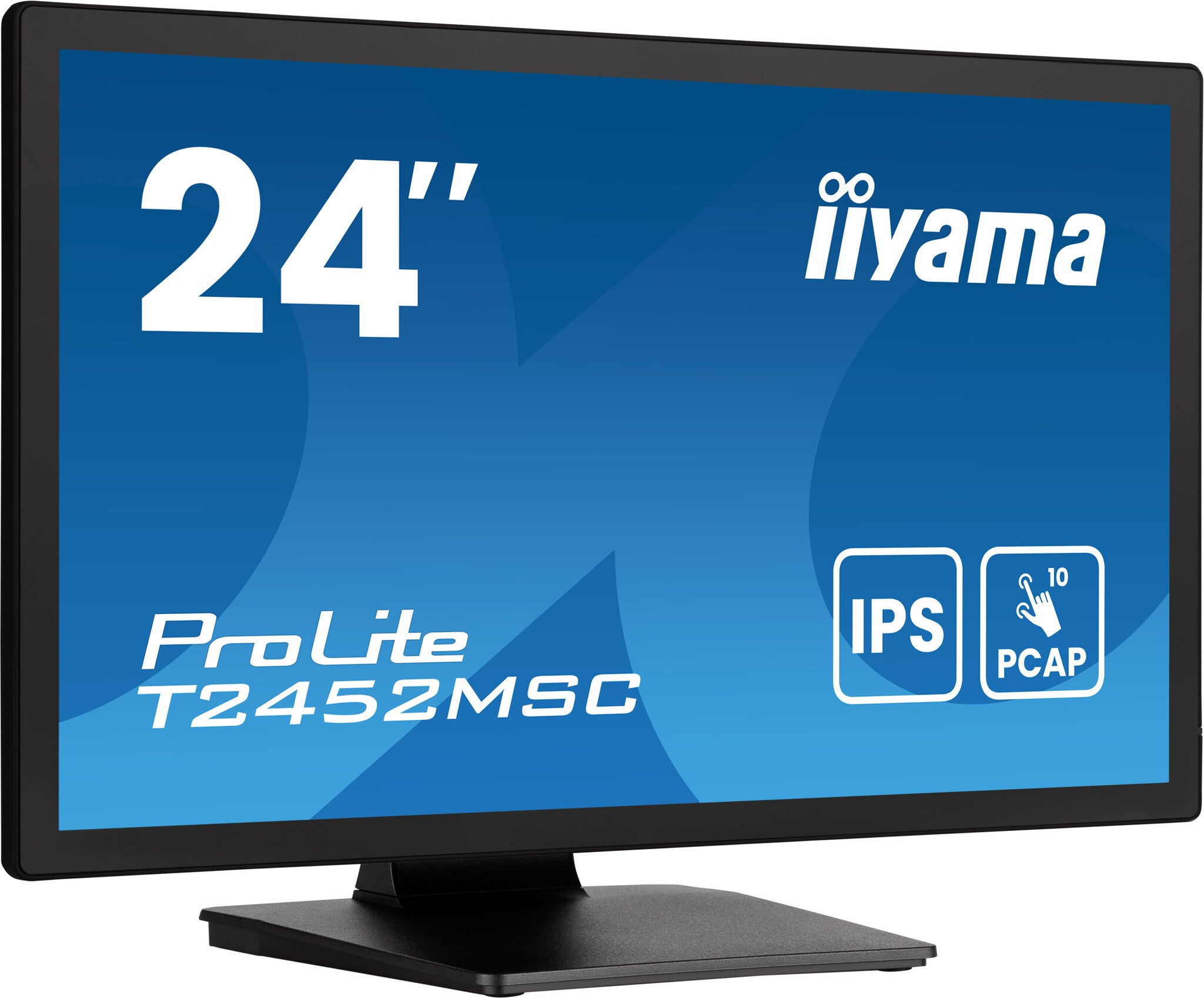

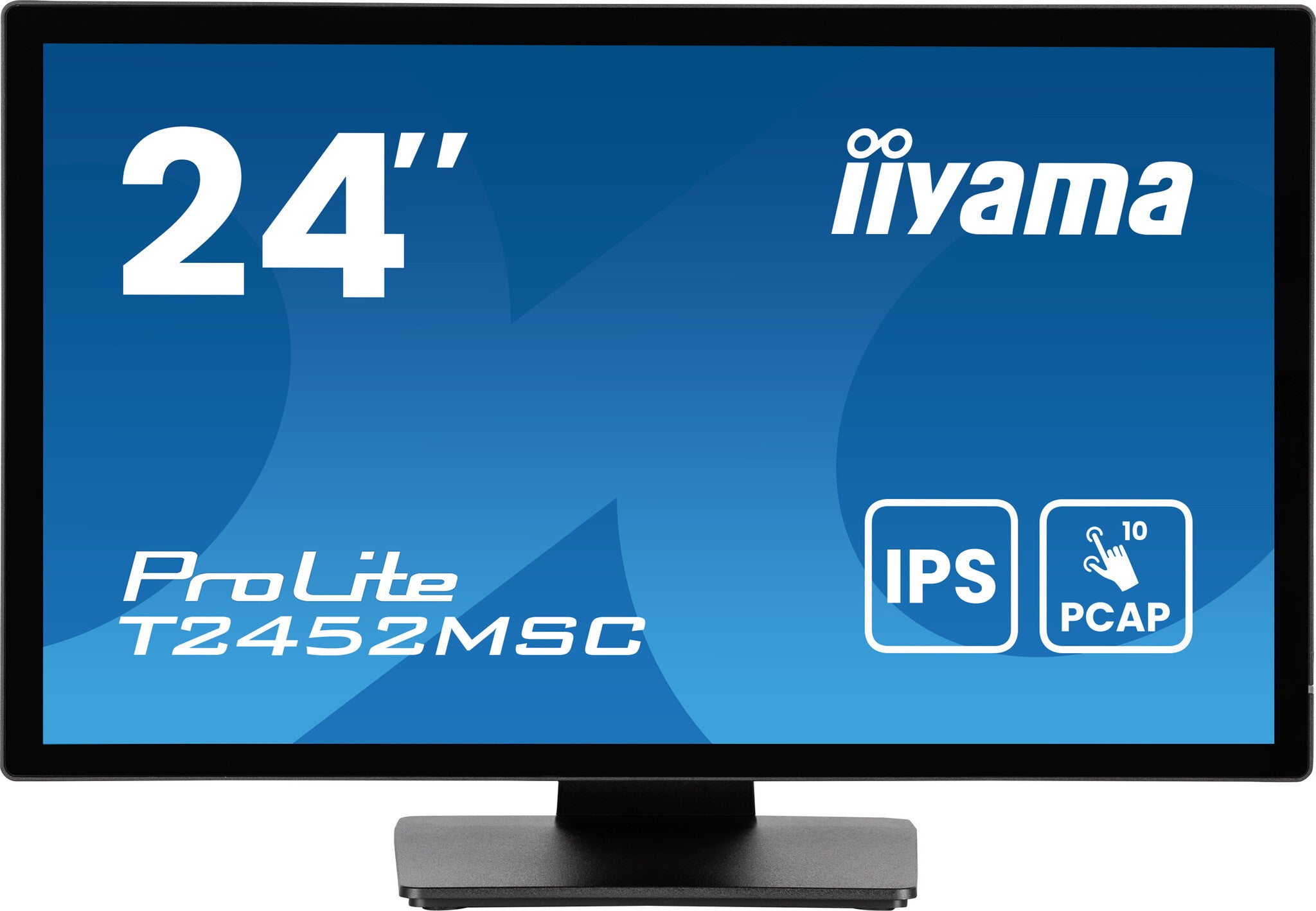

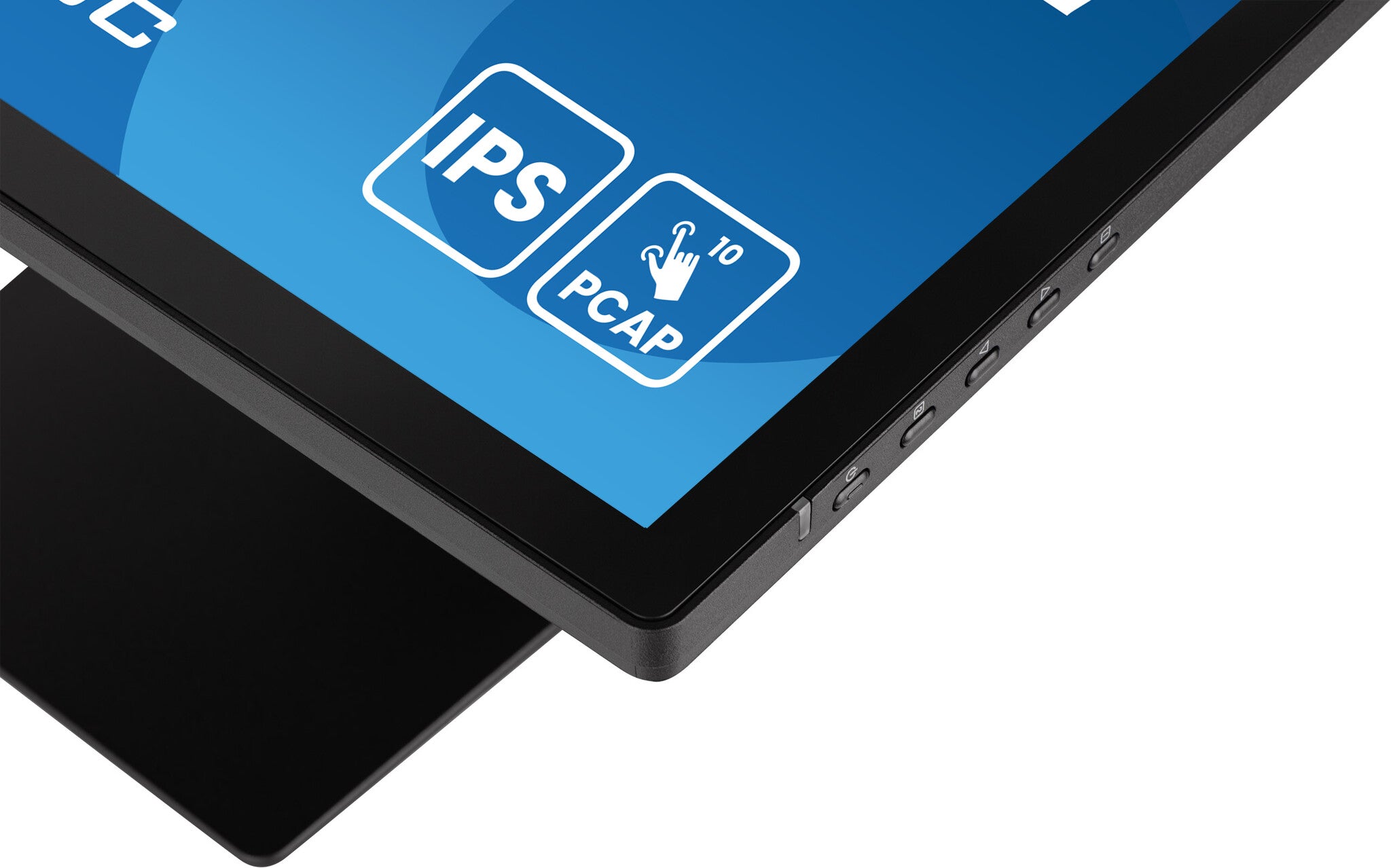

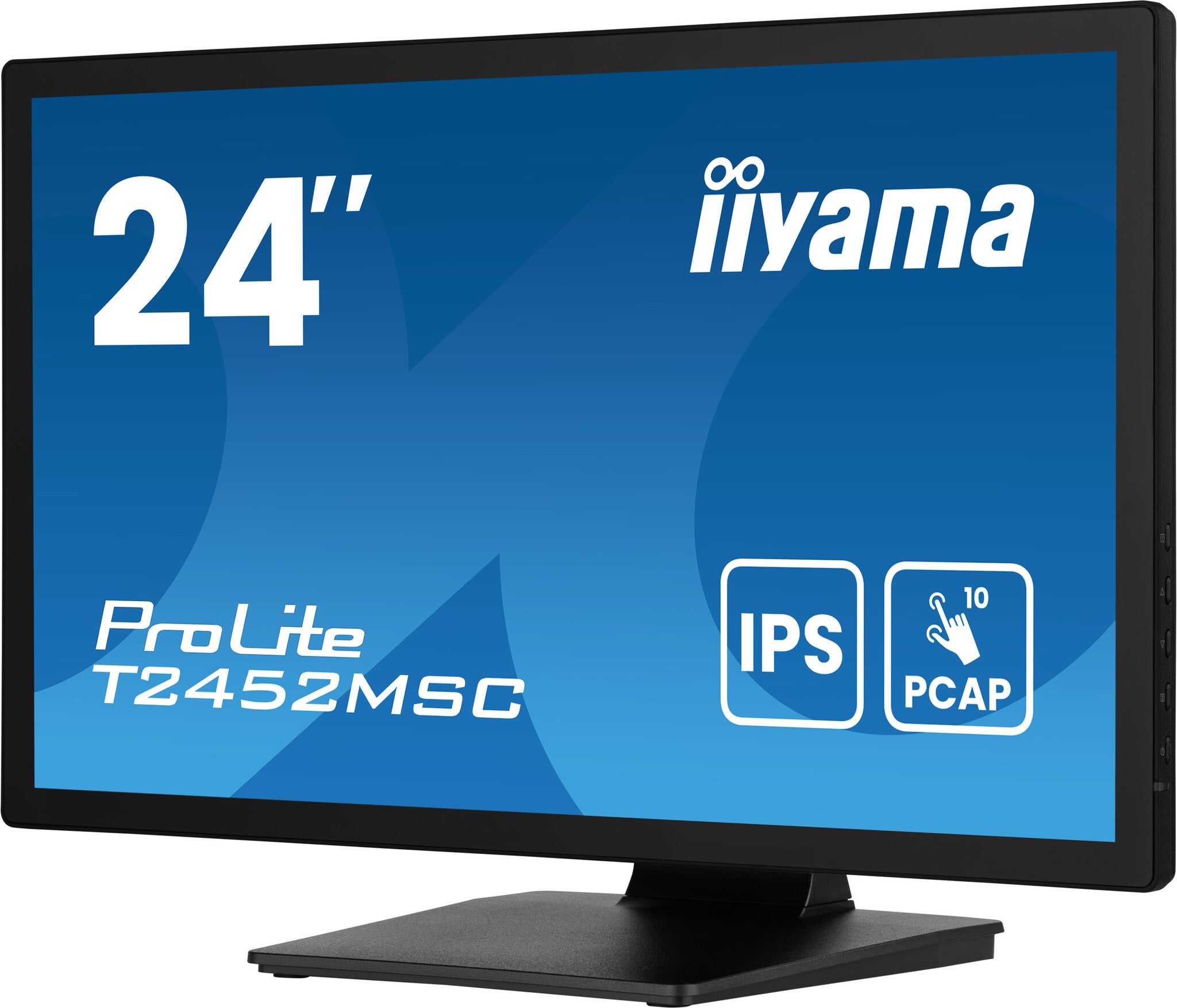

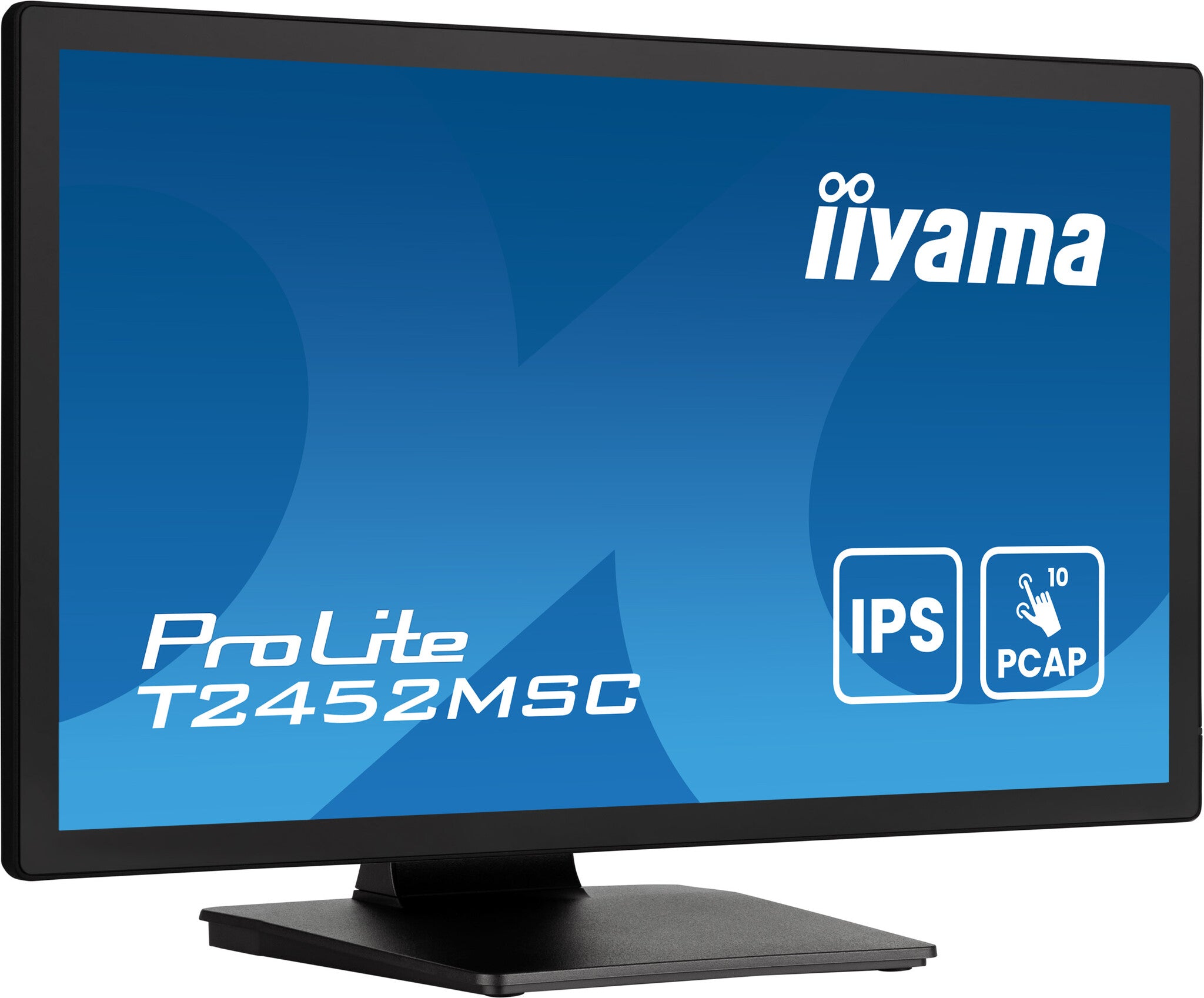

23.8” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti Anti Glare coating

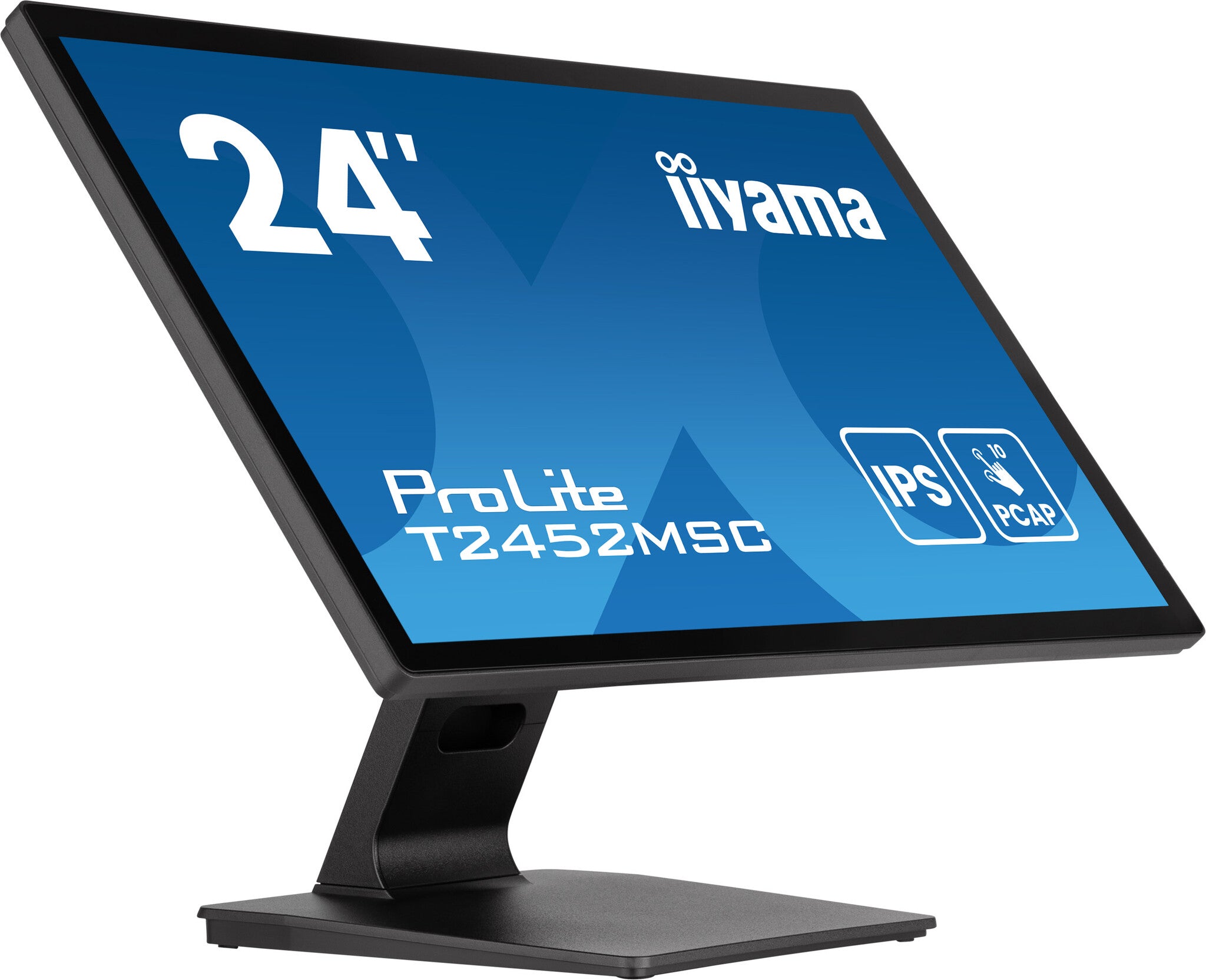

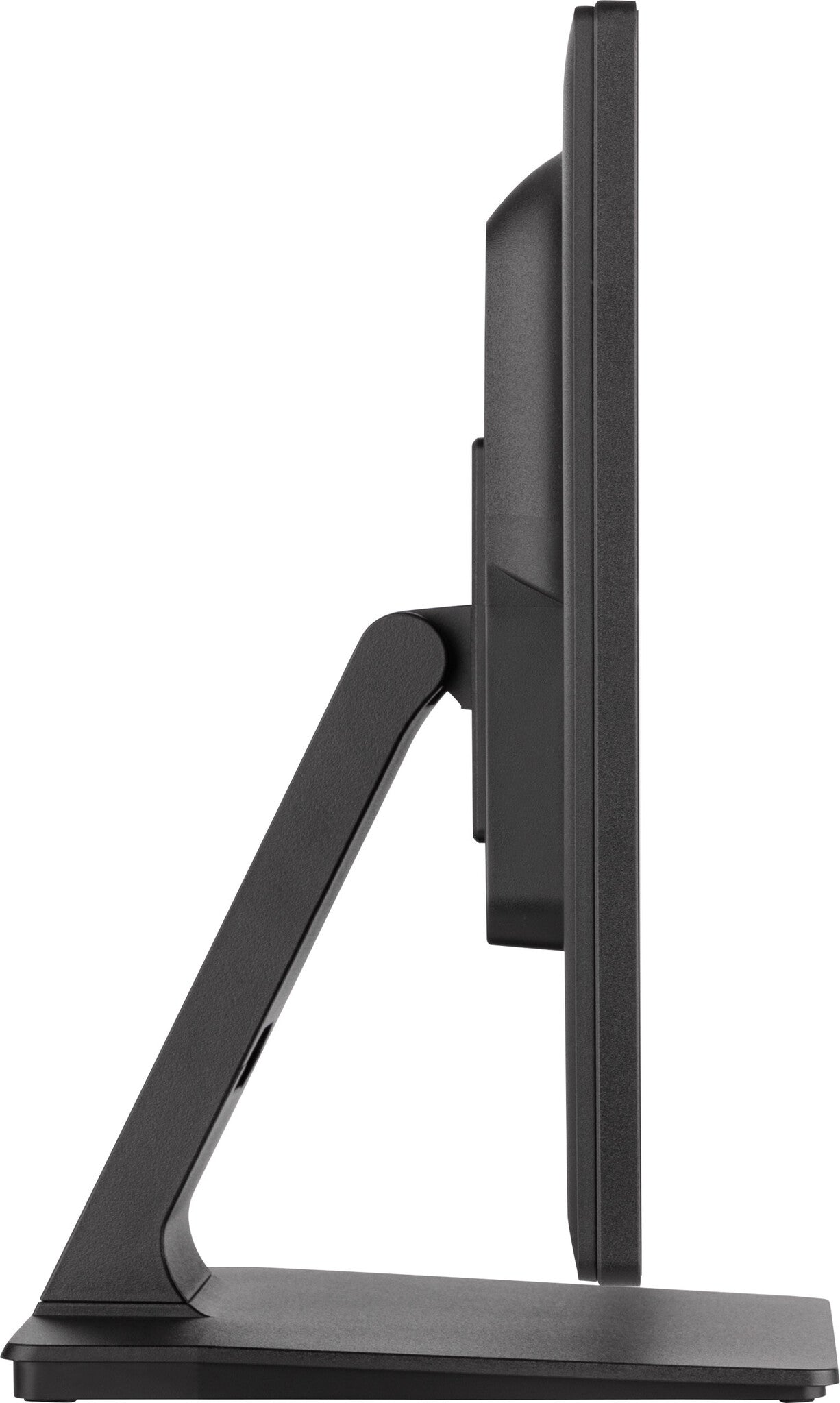

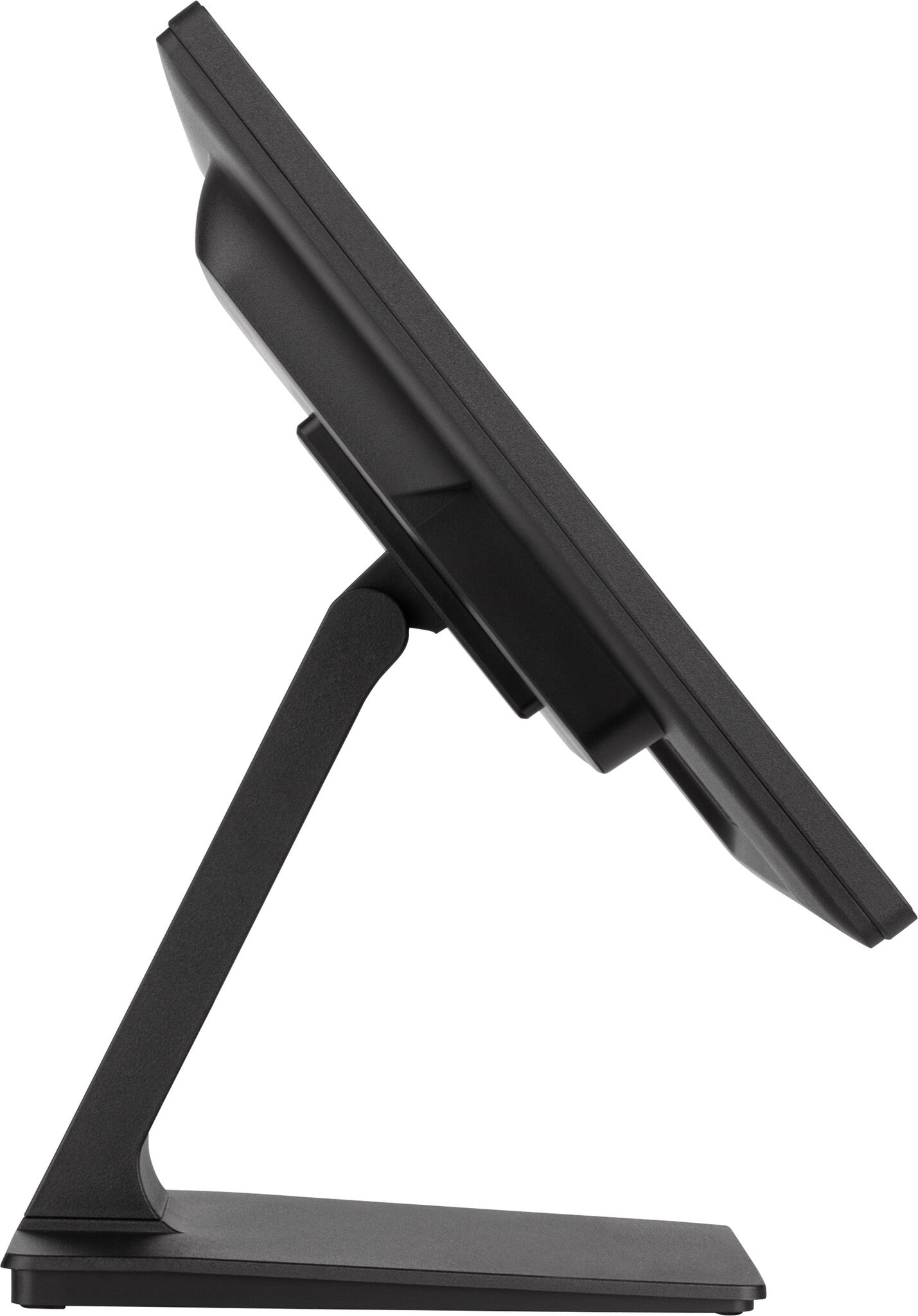

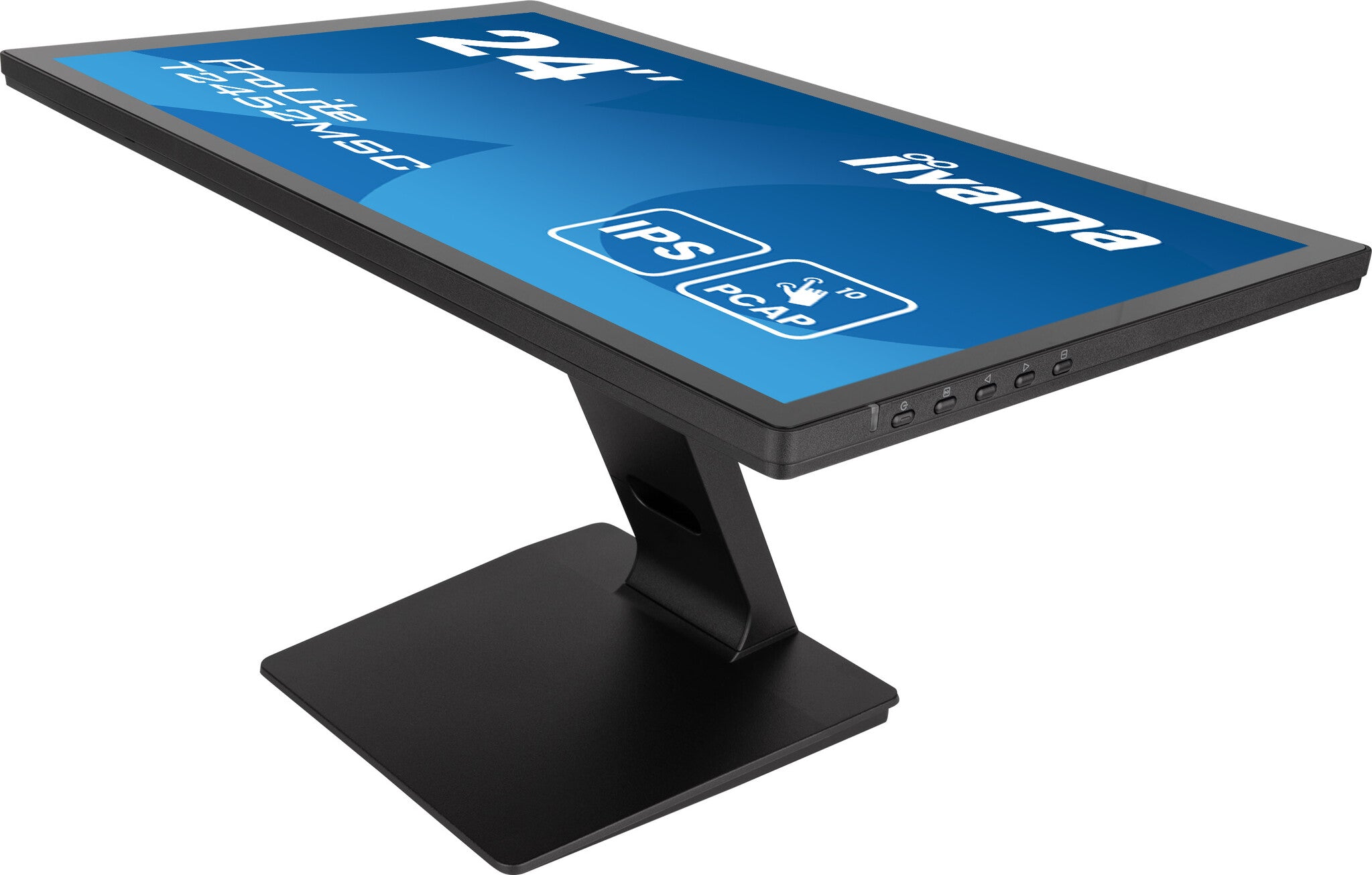

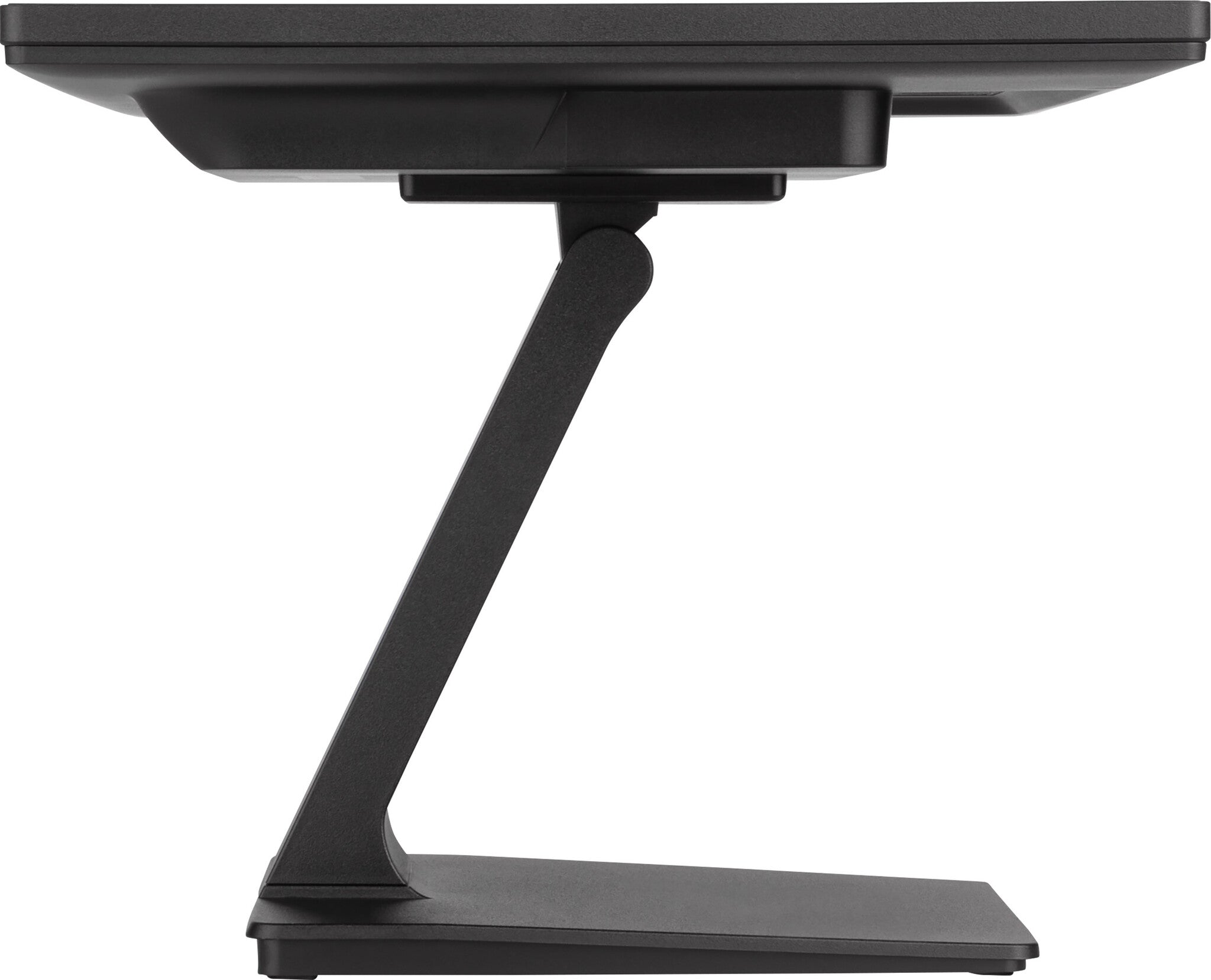

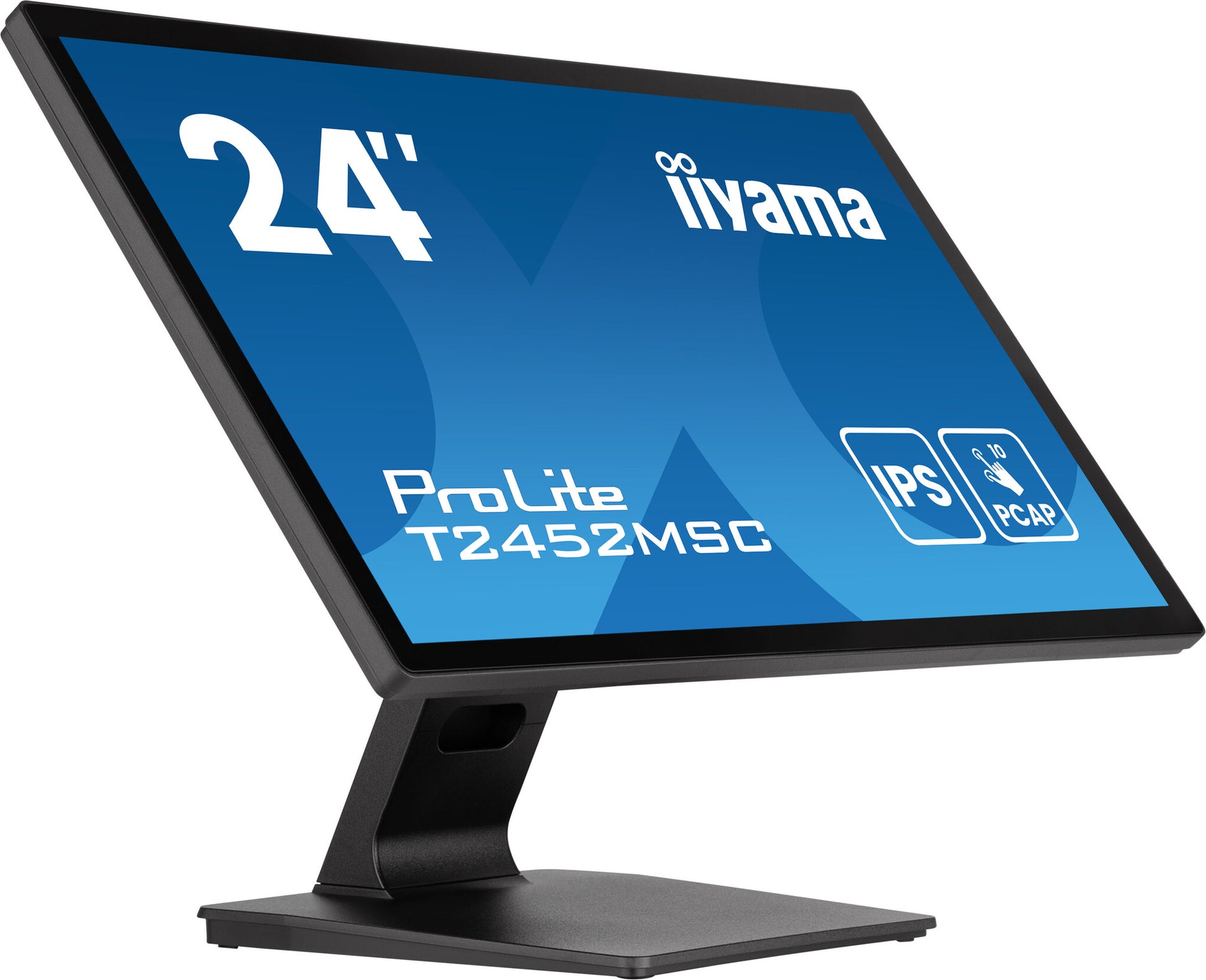

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2452MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The ProLite T2452MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
| Display |
|---|
| Colour gamut |
86% |
| Colour depth |
8 bit |
| Surface hardness |
7H |
| Display diagonal (metric) |
60.5 cm |
| Viewable size, vertical |
52.7 cm |
| Viewable size, horizontal |
29.6 cm |
| Horizontal scan range |
30 - 83 kHz |
| Pixel pitch |
0.274 x 0.274 mm |
| Display number of colours |
16.7 million colours |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
5 ms |
| Display brightness (typical) |
400 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Capacitive |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
|---|
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Multimedia |
|---|
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
|---|
| Audio output |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| Plug and Play |
Yes |
| On Screen Display (OSD) languages |
German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
5 - 90° |
| Tilt adjustment |
Yes |
| Height adjustment |
No |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| AC input voltage |
100 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
16 W |
| Energy consumption (SDR) per 1000 hours |
16 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
|---|
| Weight (with stand) |
5.6 kg |
| Height (with stand) |
385 mm |
| Depth (with stand) |
253.5 mm |
| Width (with stand) |
567 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
7.2 kg |
| Package height |
405 mm |
| Package depth |
143 mm |
| Package width |
635 mm |
| General |
|---|
| Product family |
ProLite |
