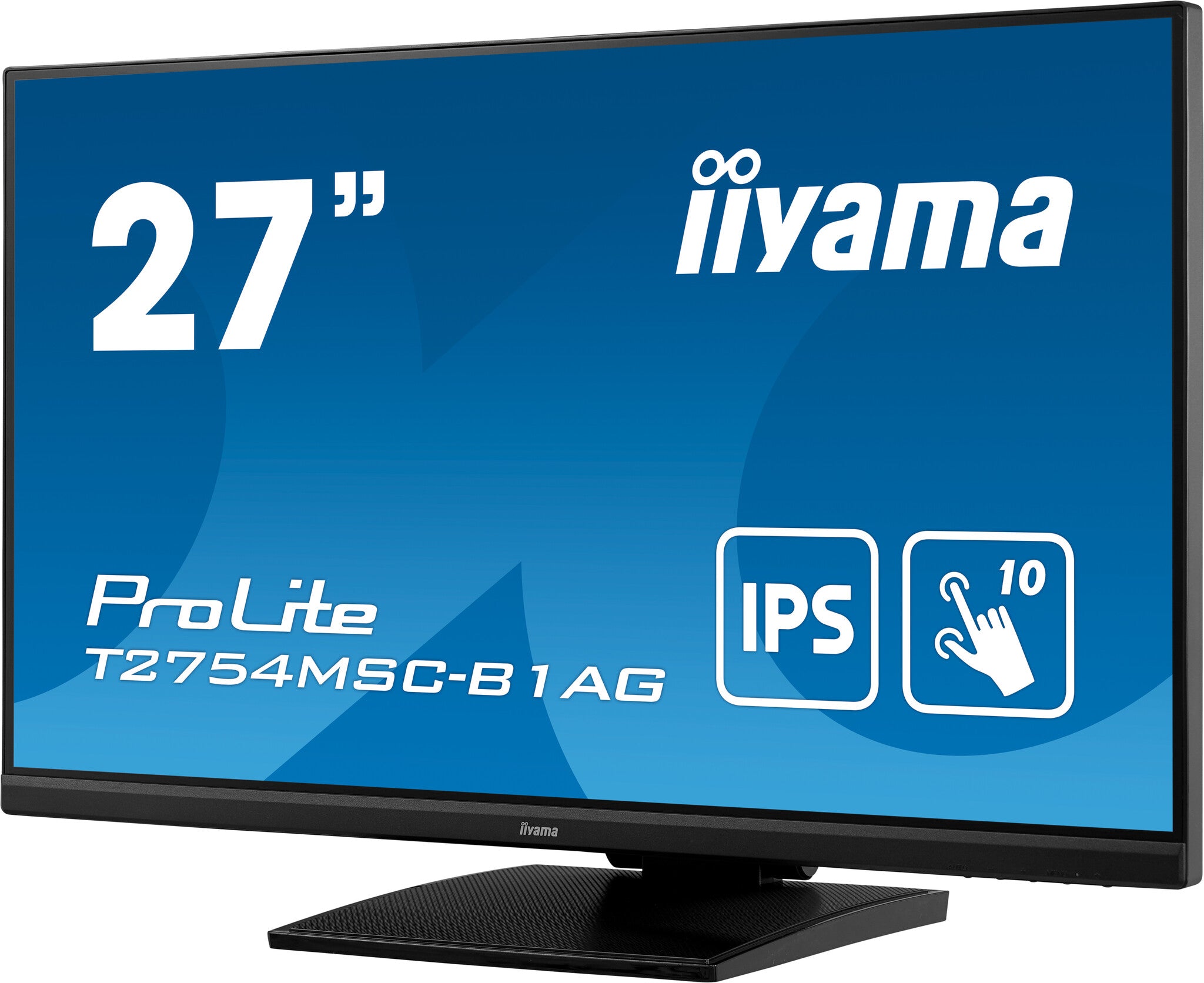

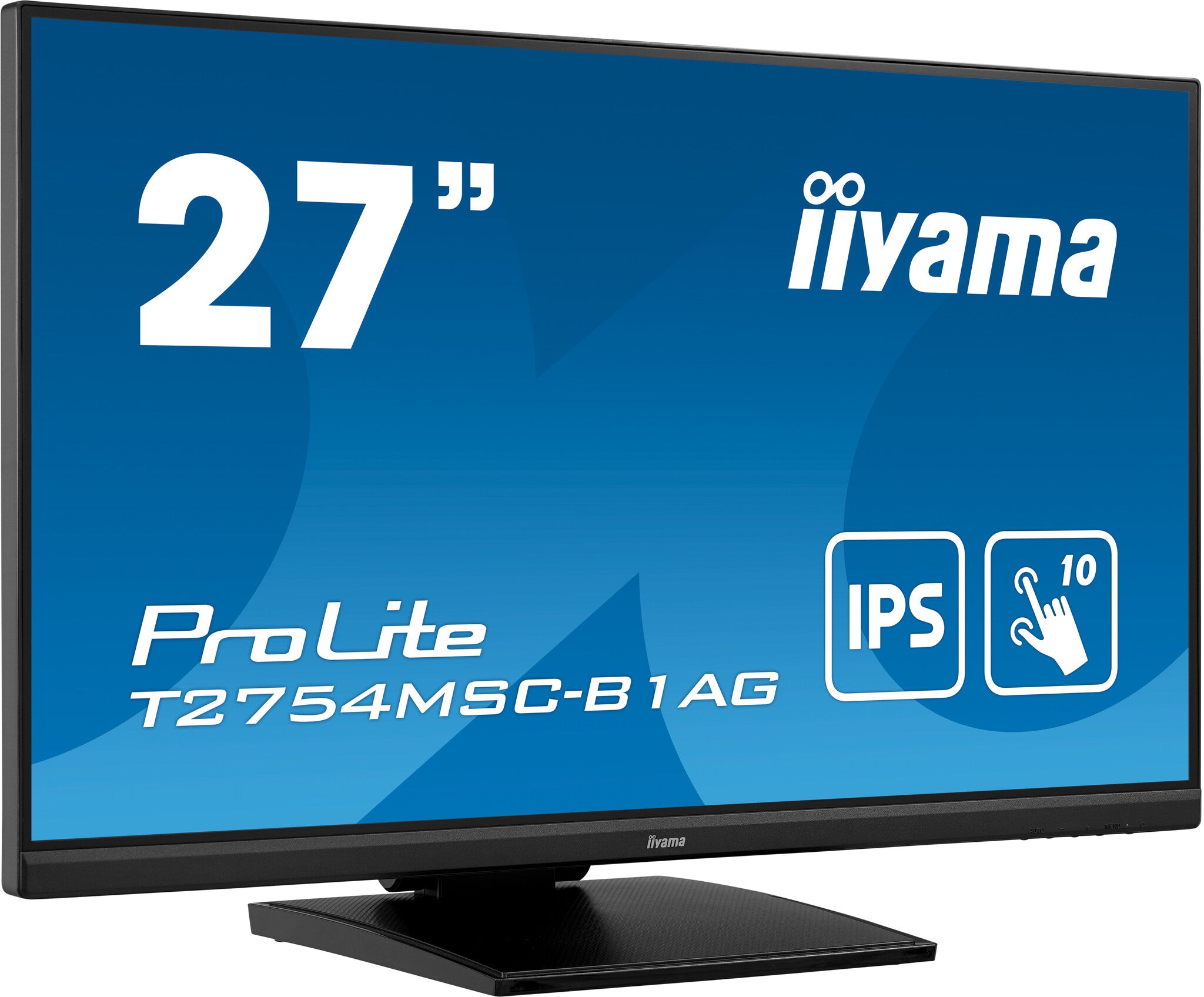

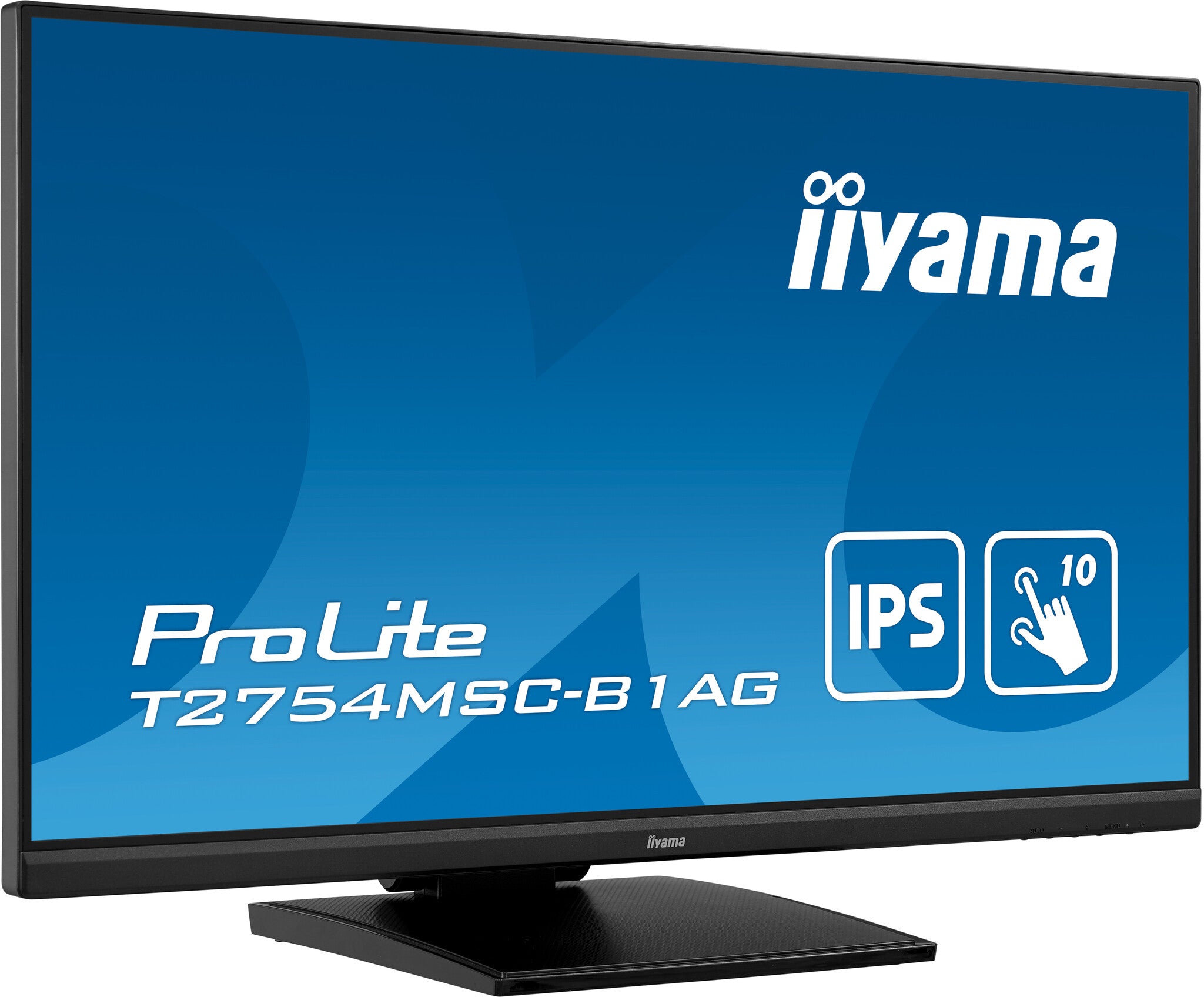

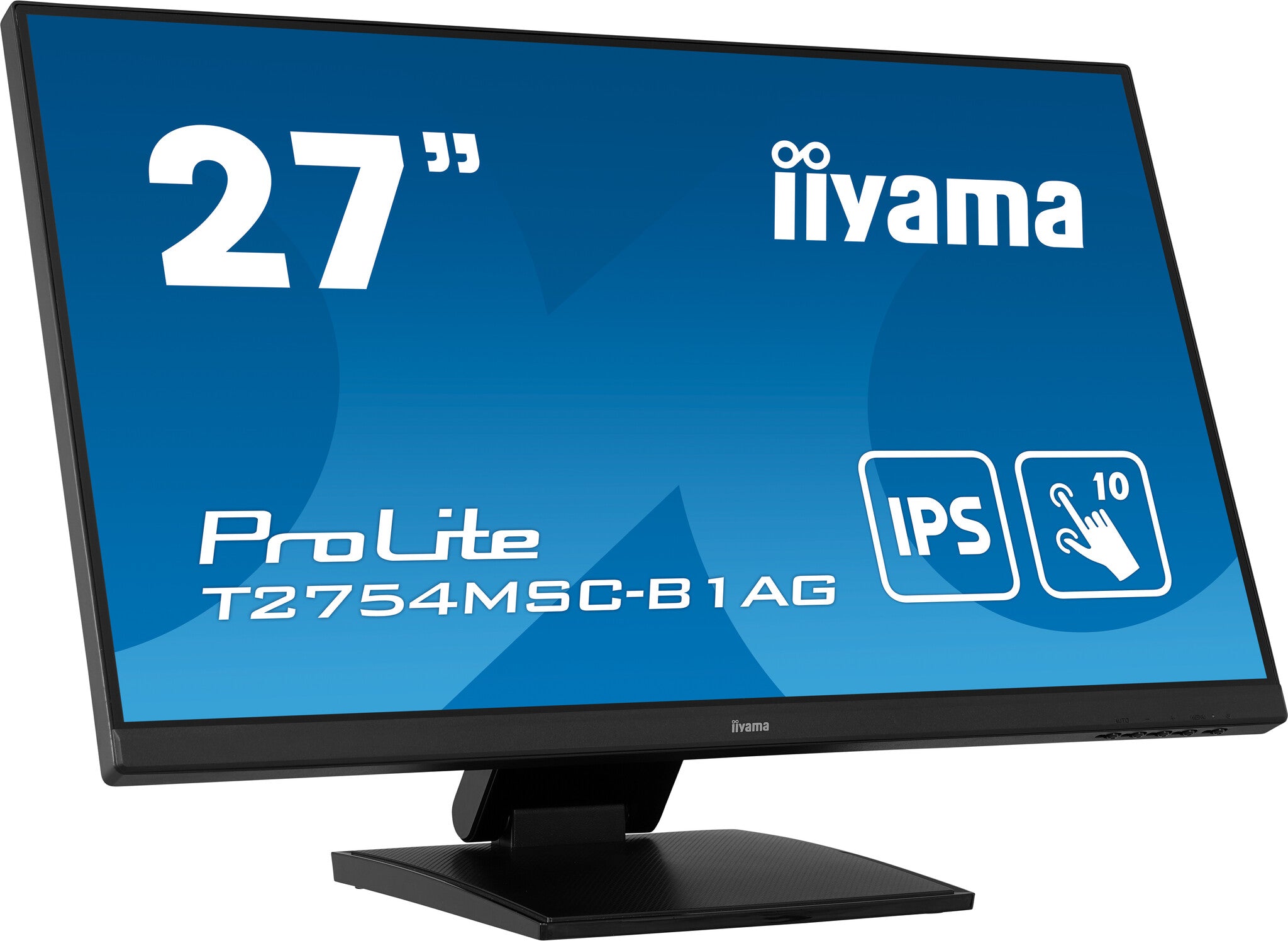

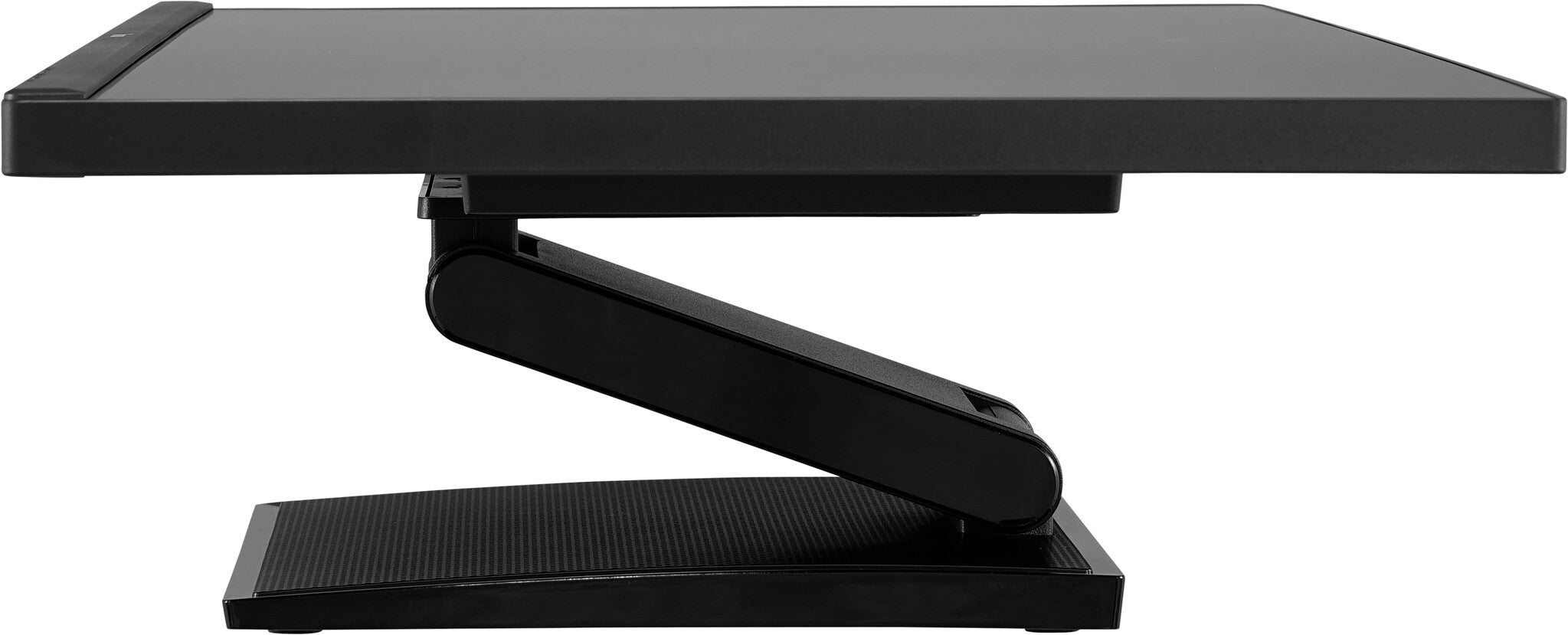

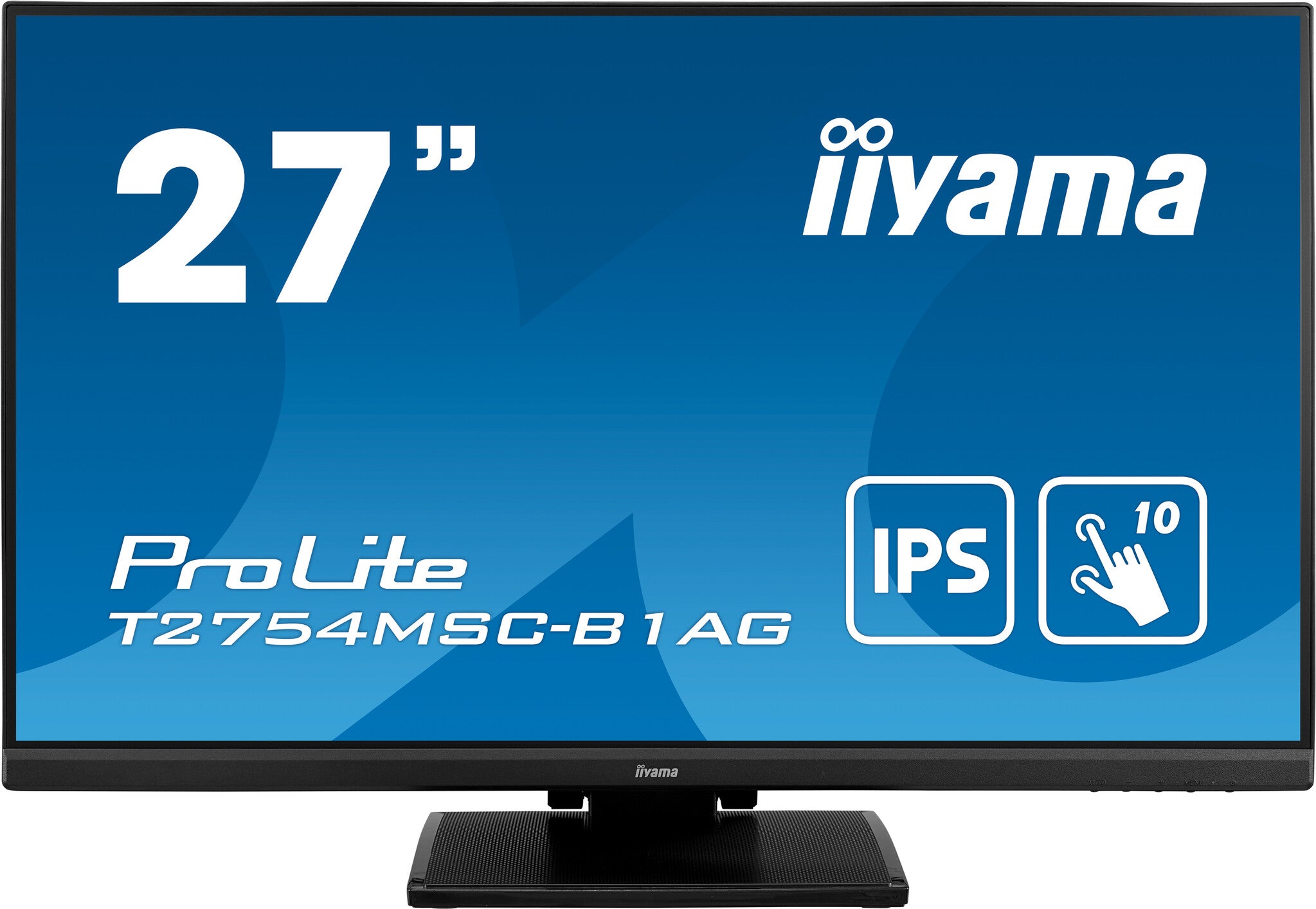

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2754MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2754MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
| Display |
|---|
| Display diagonal (metric) |
68.6 cm |
| Digital horizontal frequency |
30 - 83 kHz |
| Pixel pitch |
0.311 x 0.311 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (dynamic) |
80000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Response time |
4 ms |
| Display brightness |
300 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
68.6 cm (27") |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| Audio input |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| USB Type-A downstream ports quantity |
1 |
| Number of upstream ports |
1 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| Number of OSD languages |
10 |
| On Screen Display (OSD) languages |
German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| On Screen Display (OSD) |
Yes |

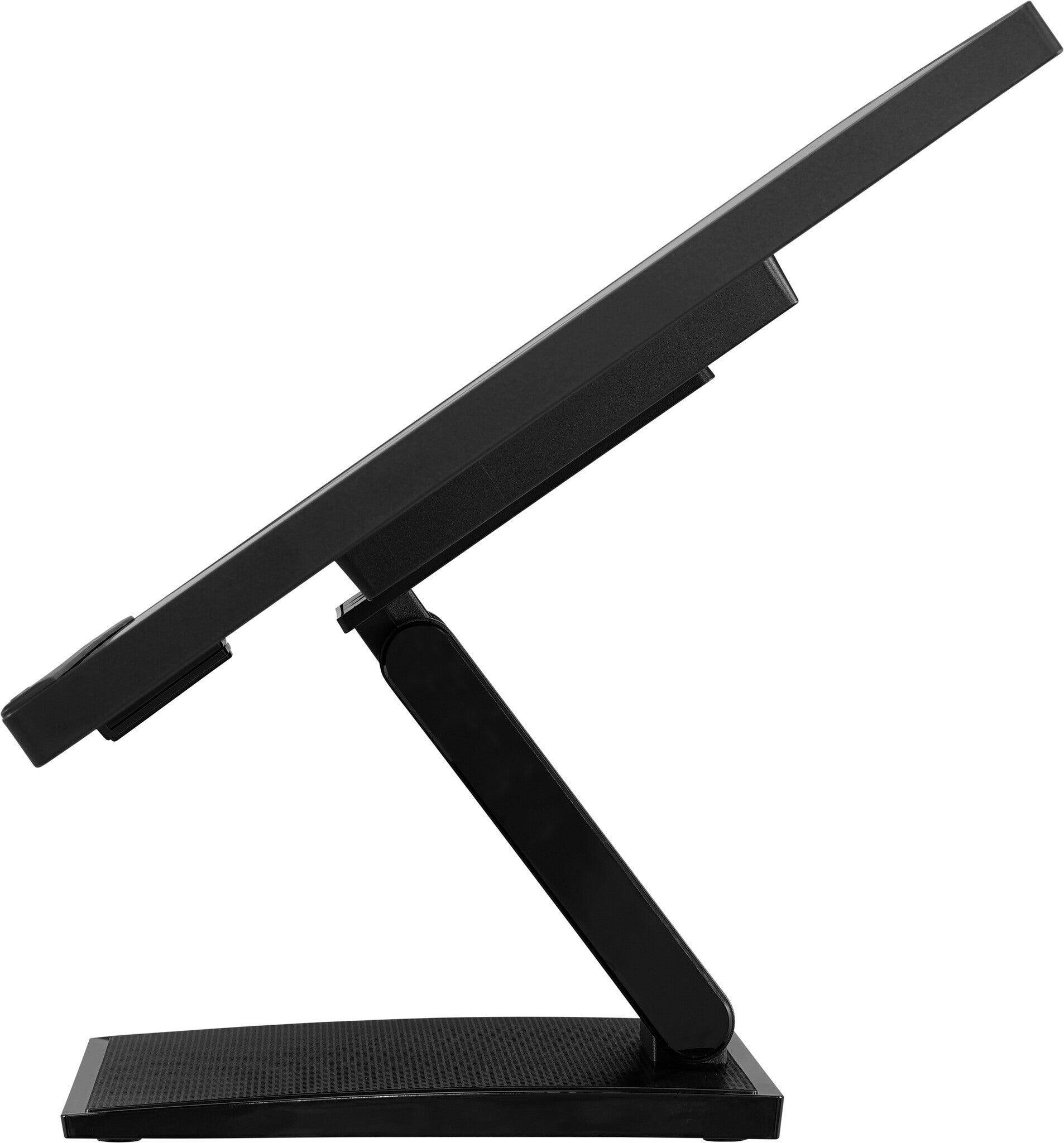

| Tilt angle range |
5 - 90° |
| Adjustable height (max) |
29.8 cm |
| Height adjustment |
Yes |
| Wall mountable |
Yes |

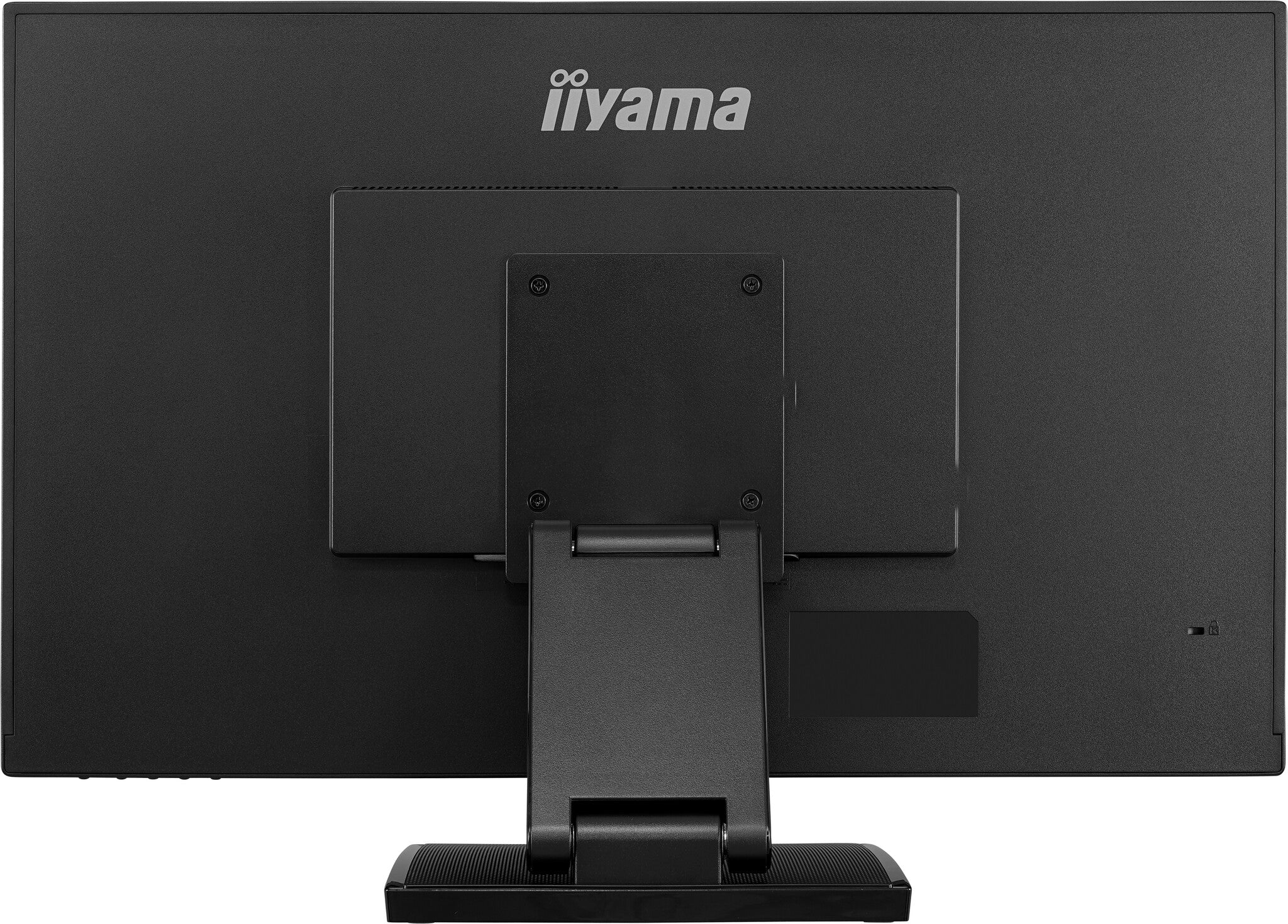

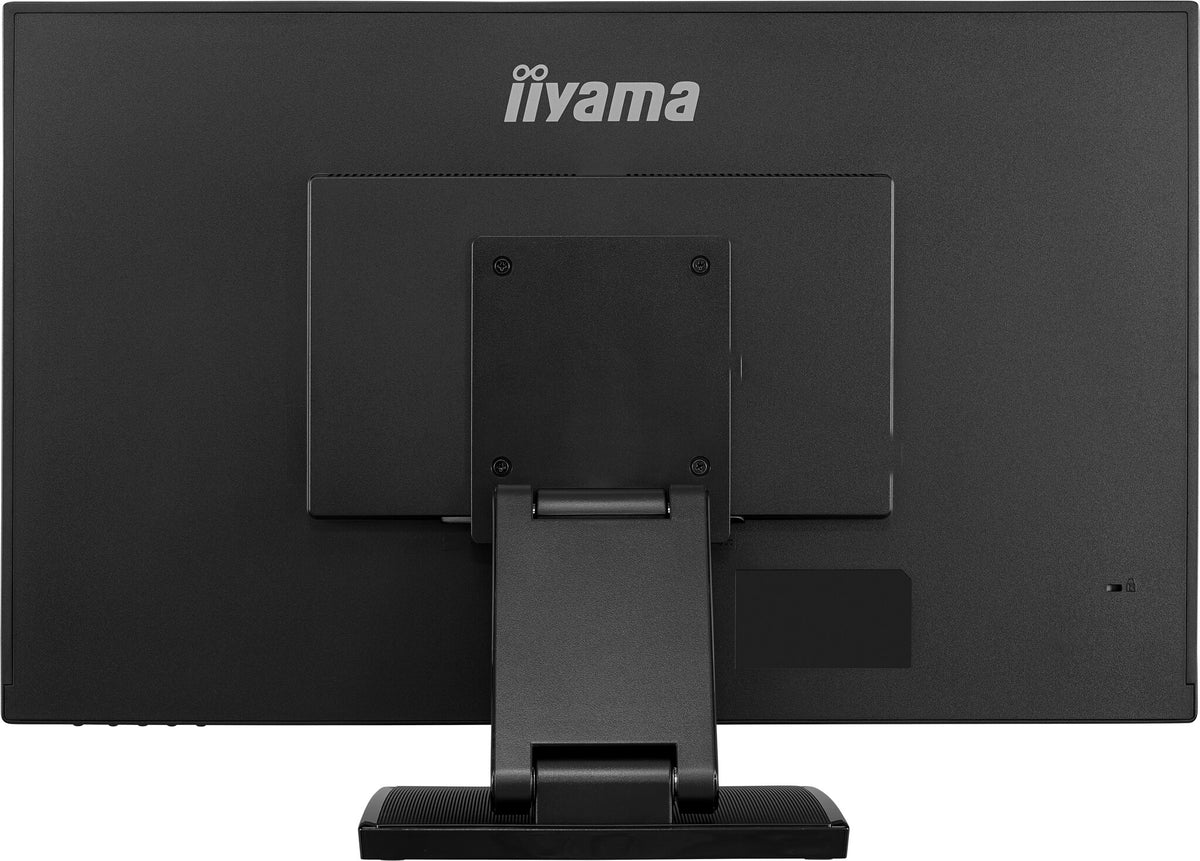

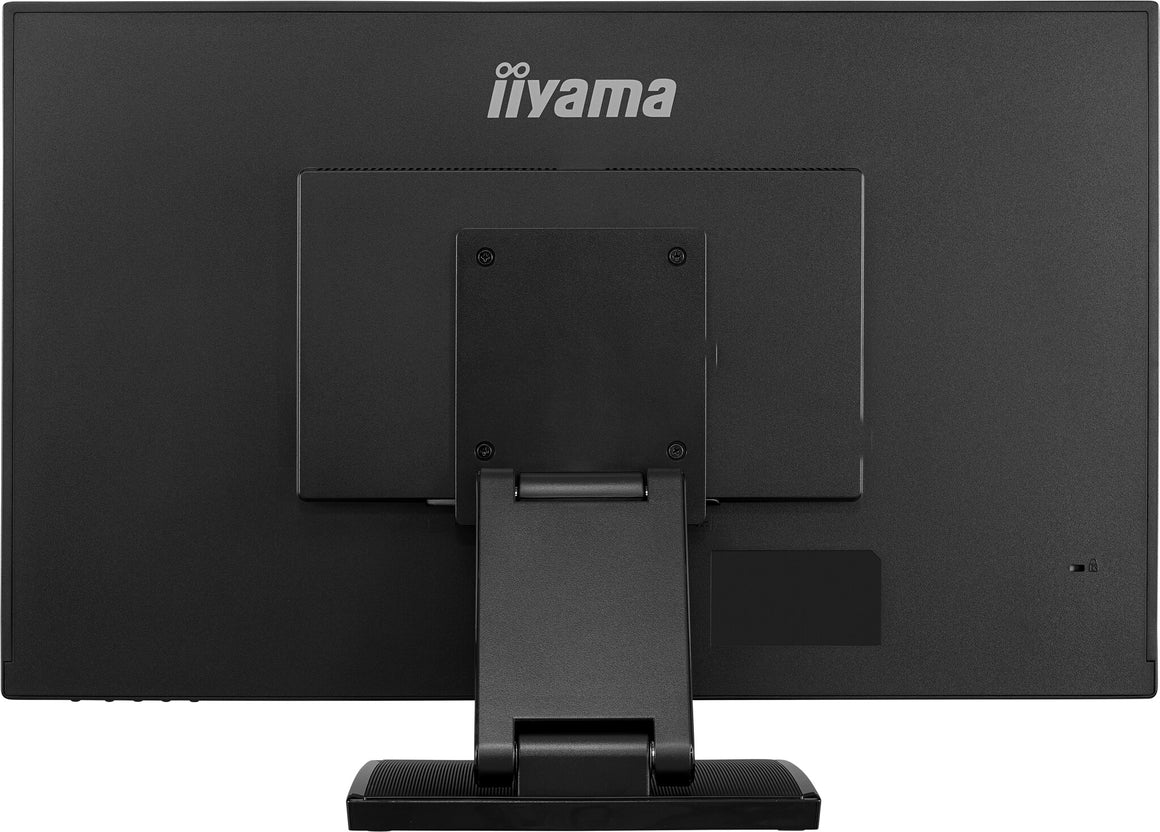

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
519606 |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
27 W |
| Energy consumption (SDR) per 1000 hours |
26 kWh |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Weight (with stand) |
6.6 kg |
| Height (with stand) |
418.5 mm |
| Depth (with stand) |
121 mm |
| Width (with stand) |
618 mm |
| Packaging data |
|---|
| Package weight |
8.4 kg |
| Package height |
477 mm |
| Package depth |
204 mm |
| Package width |
688 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI, USB |
| Sustainability |
|---|
| Sustainability certificates |
ErP |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Compliance certificates |
CE, REACH, RoHS, WEEE |
| Display viewable area (HxV) |
597.89 x 336.31 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
