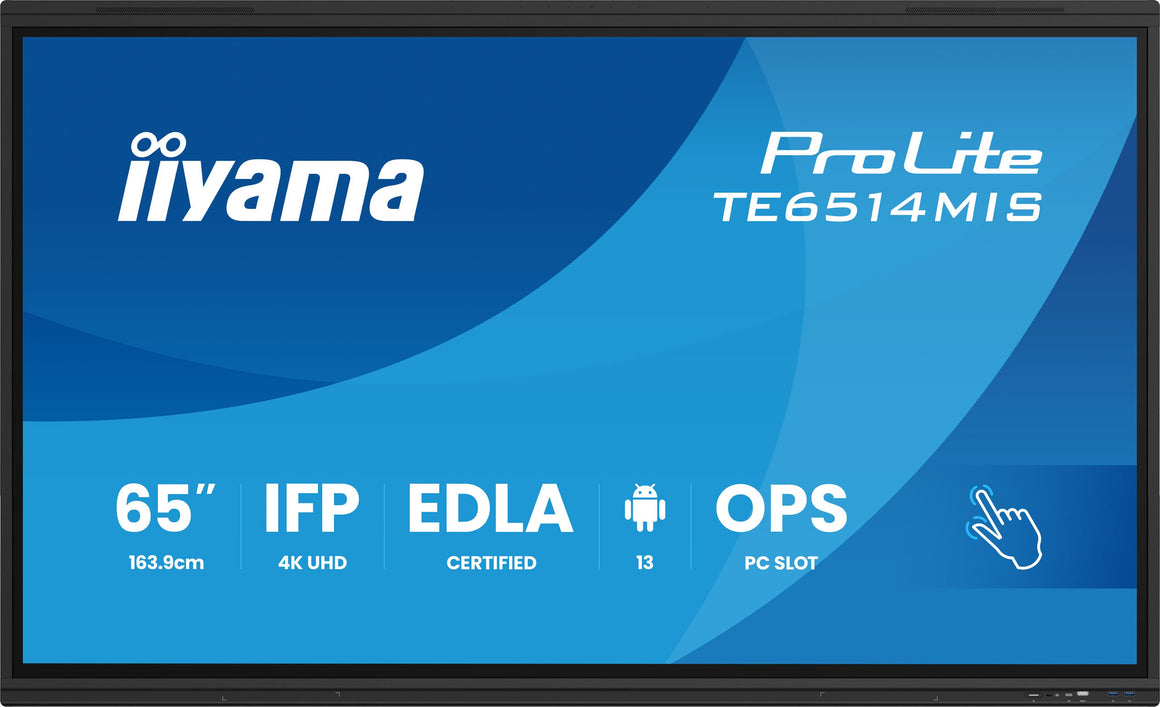

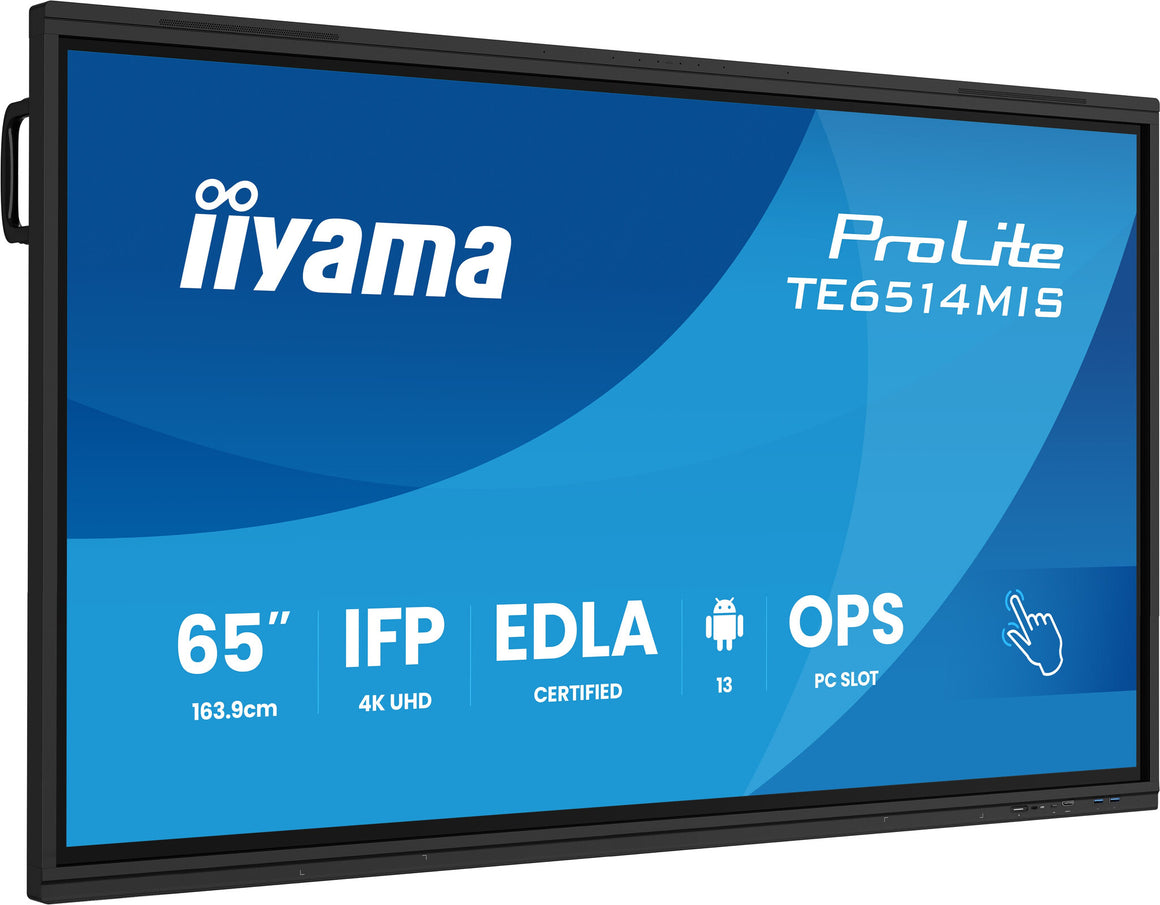

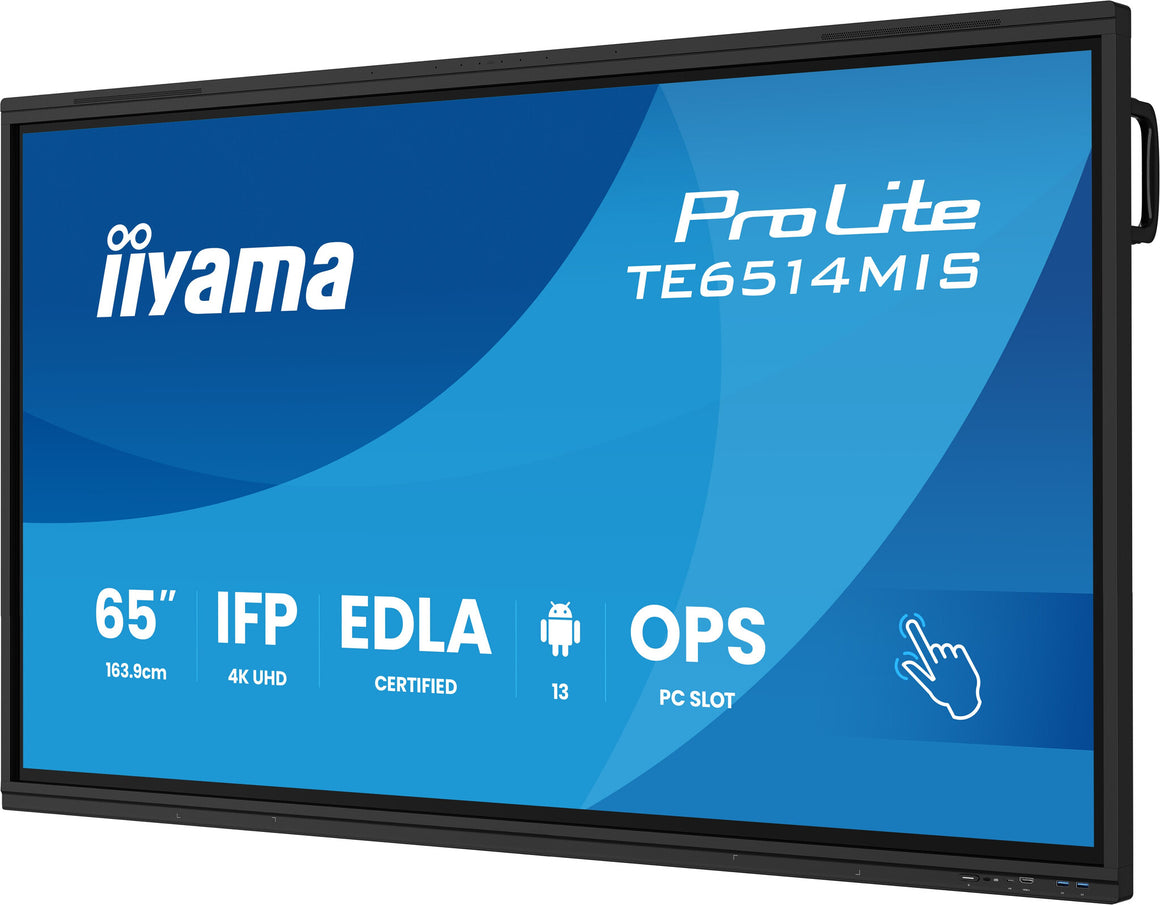

The TE6514MIS-B2AG is a visionary 4K UHD Google EDLA Certified interactive display that sets a new standard for ingenuity and performance. Crafted with precision, it features a Zero Airgap LCD screen that eradicates parallax, alongside the accurate PureTouch-IR+ with Palm Rejection, ensuring seamless interaction. Powered by iiWare 12E with Android 13 and equipped with WiFi connectivity, it effortlessly integrates into your ecosystem, supported by the iiyama (DMS) Device management platform. Experience unparalleled wireless sharing capabilities with the intuitive iiyama Share and EShare app, facilitating seamless brainstorming and effective collaboration within your enterprise or educational institution. With its innovative 4K Interface and customizable User Profiles , the TE6514MIS-B2AG offers a personalized experience, granting easy access to bespoke applications and Cloud Drives. Adapted to thrive in bustling hybrid environments, it becomes a tailored solution for diverse user needs, revolutionizing collaboration, communication, and engagement. Transforming modern workplaces, educational realms, and dynamic meeting spaces, this display emerges as an essential cornerstone, nurturing progress and connectivity beyond boundaries.
| Display |
|---|
| Native refresh rate |
60 Hz |
| Surface hardness |
7H |
| Glass thickness |
3 mm |
| Horizontal scan range |
30 - 135 kHz |
| Haze rate |
25% |
| Display diagonal (metric) |
163.9 cm |
| Active display area (W x H) |
1428 x 804 mm |
| Pixel pitch |
0.372 x 0.372 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
5000:1 |
| Contrast ratio (typical) |
4000:1 |
| Response time |
6.5 ms |
| Native aspect ratio |
16:9 |
| Number of simultaneous touchpoints (Android) |
40 |
| Multi-touch |
Yes |
| Number of simultaneous touchpoints |
50 |
| Touchscreen technology |
PureTouch-IR |
| Touchscreen |
Yes |
| HD type |
4K Ultra HD |
| Display brightness |
435 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
VA |
| Display technology |
LCD |
| Display diagonal |
165.1 cm (65") |

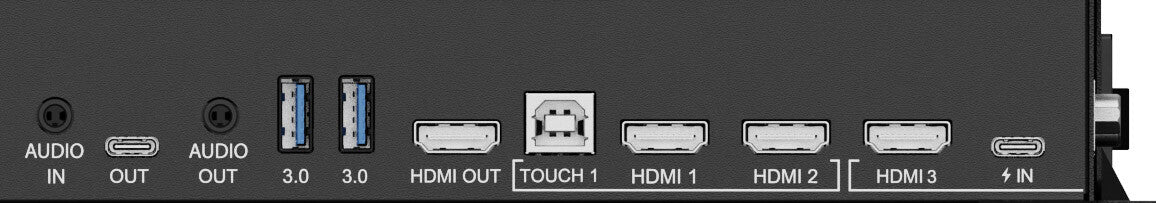

| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| Infrared data port |
Yes |
| RS-232C |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB connector type |
USB Type-C |
| USB ports quantity |
6 |
| USB port |
Yes |
| DisplayPort version |
2.1 |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
1 |
| HDMI output ports quantity |
1 |
| HDMI input ports quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
5 |
| Audio |
|---|
| RMS rated power |
54 W |
| Number of built-in speakers |
4 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Anti-glare screen |
Yes |
| Bezel colour |
Black |
| Bezel width (top) |
1.65 cm |
| Bezel width (side) |
1.65 cm |
| Bezel width (bottom) |
4.1 cm |

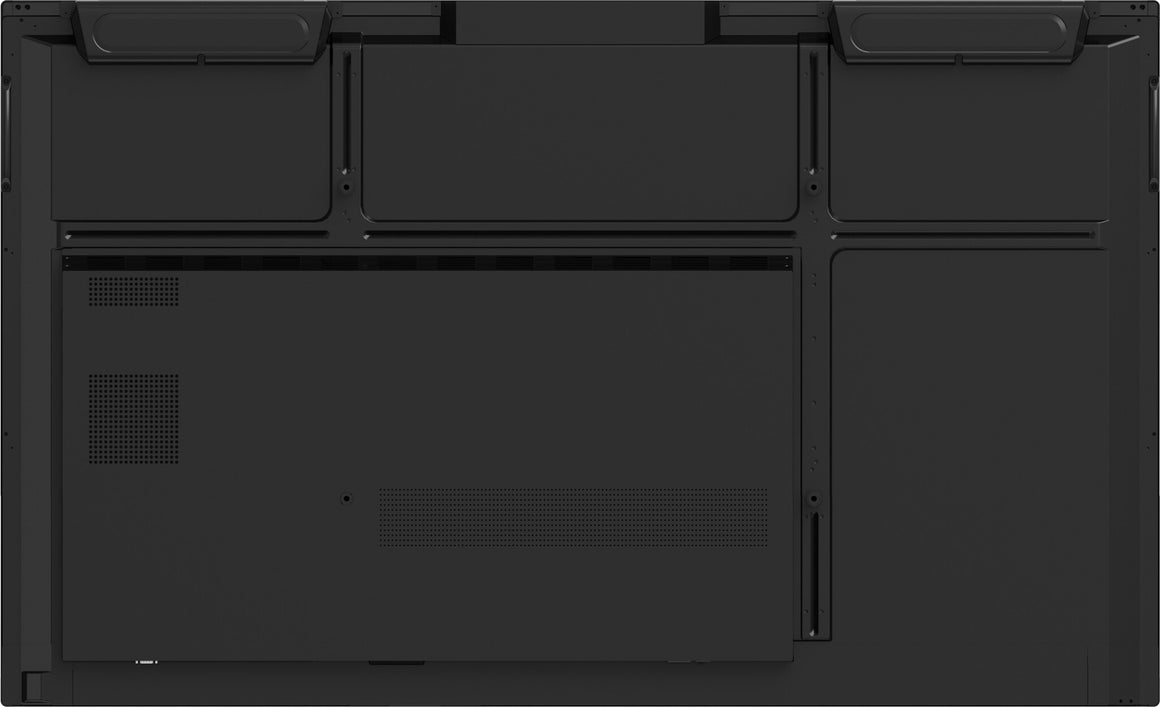

| Panel mounting interface |
600 x 400 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Orientation |
Horizontal |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
14 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
CAT, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Swedish |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
195 kWh |
| Energy efficiency class (SDR) |
G |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
150 W |
| Computer system |
|---|
| Operating system version |
13 |
| Operating system installed |
Android |
| Internal storage capacity |
64 GB |
| On-board graphics card model |
ARM Mali-G610 MP4 |
| Internal memory |
8 GB |
| Processor cores |
4 |
| Processor architecture |
ARM Cortex-A76+Cortex-A55 |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
39 kg |
| Display height |
908 mm |
| Display depth |
86 mm |
| Display width |
1488 mm |
| Packaging data |
|---|
| Package weight |
48.3 kg |
| Package height |
1005 mm |
| Package depth |
1628 mm |
| Package width |
1628 mm |
| Packaging content |
|---|

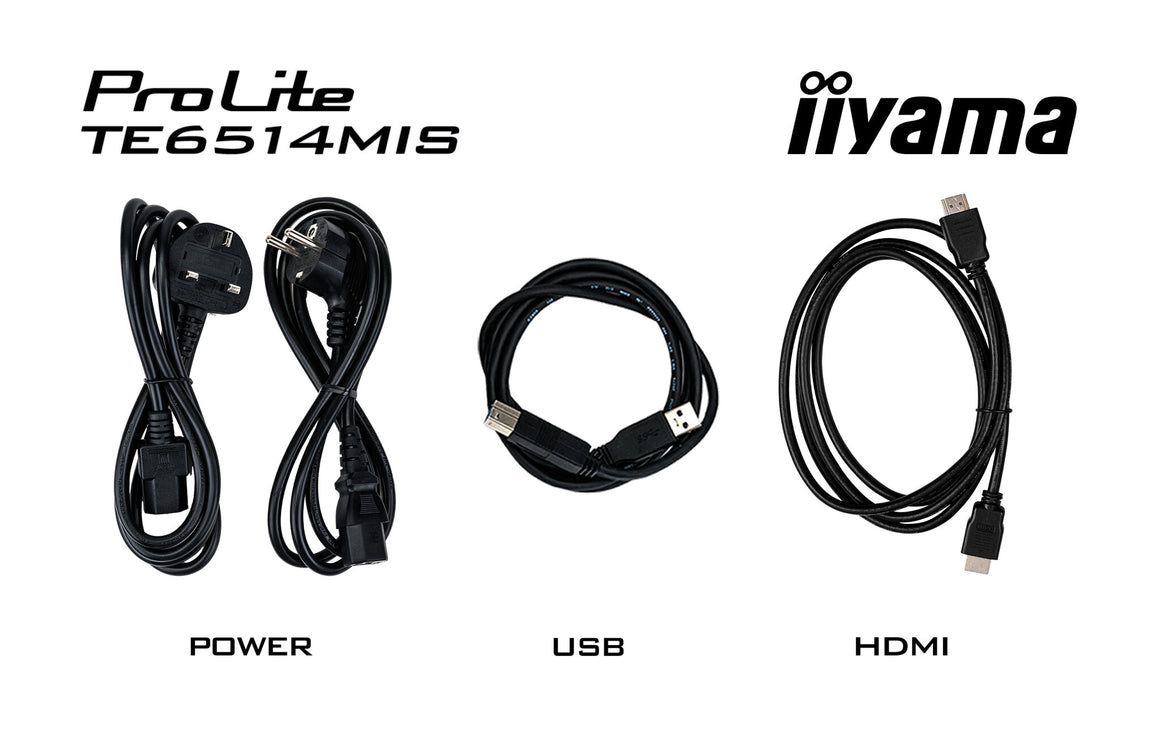

| Cables included |
AC, HDMI, USB |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, RoHS, WEEE, REACH |
