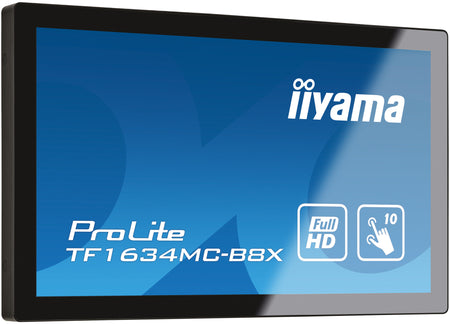

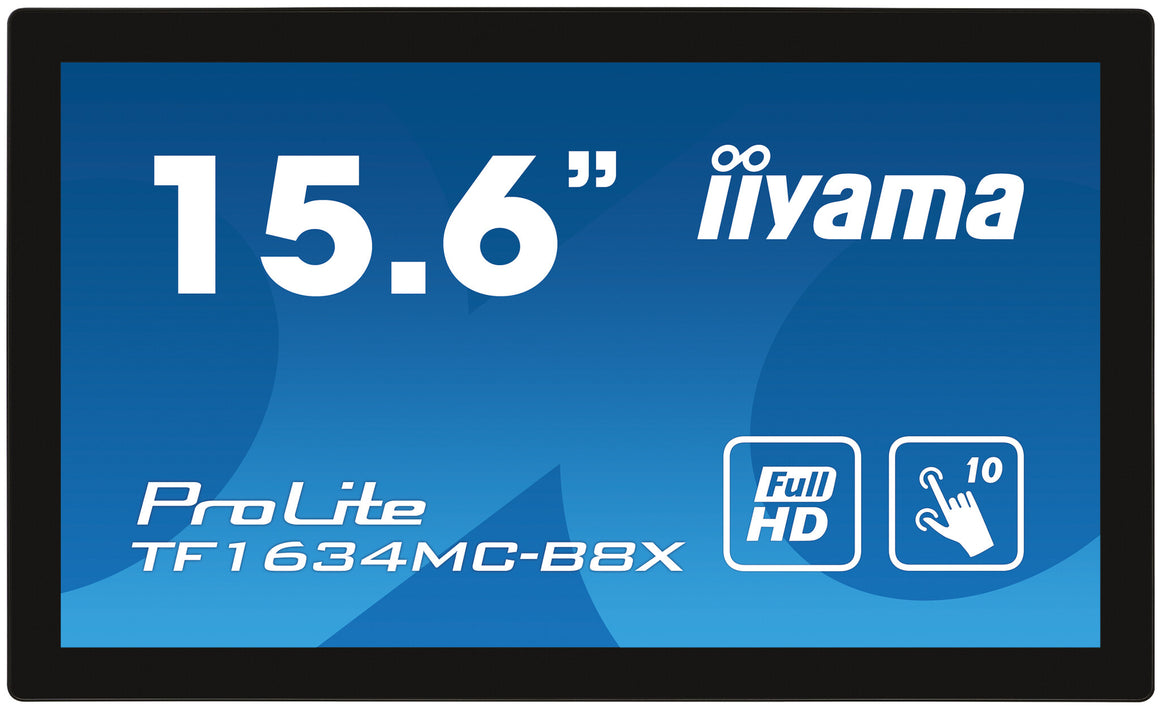

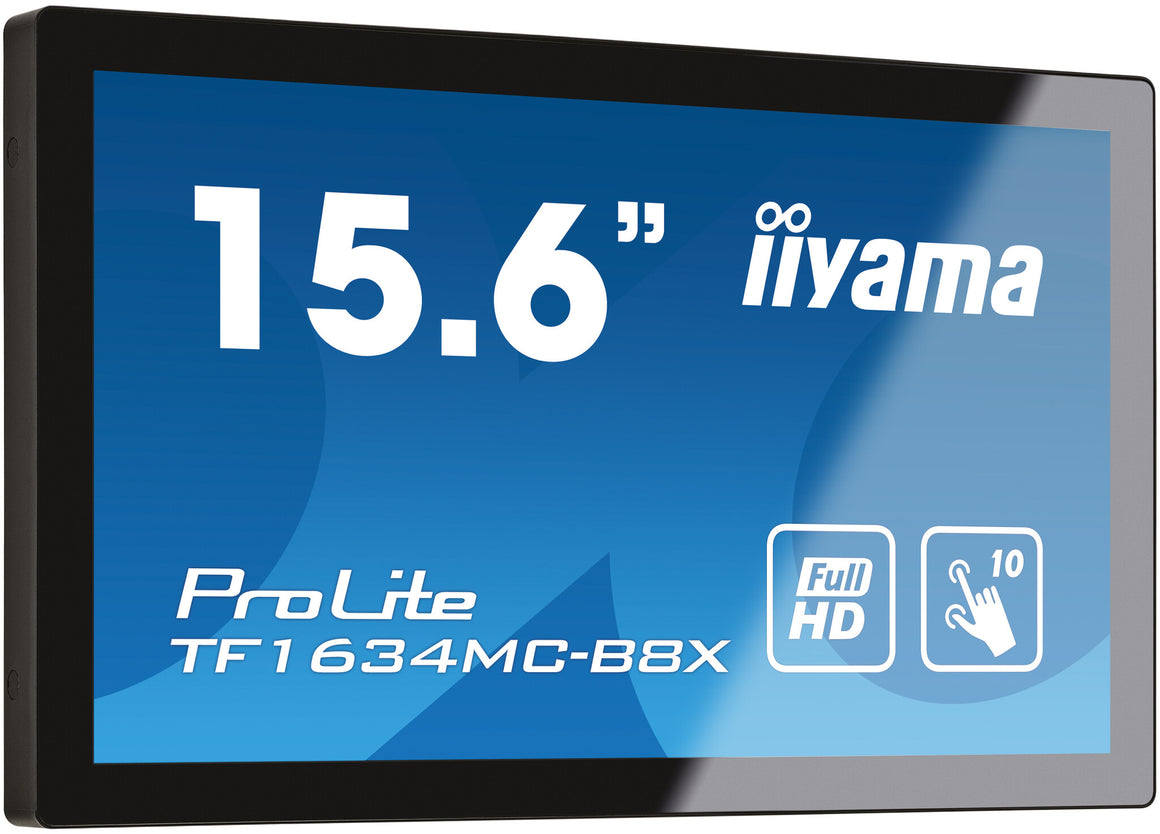

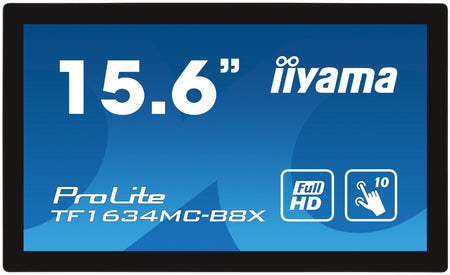

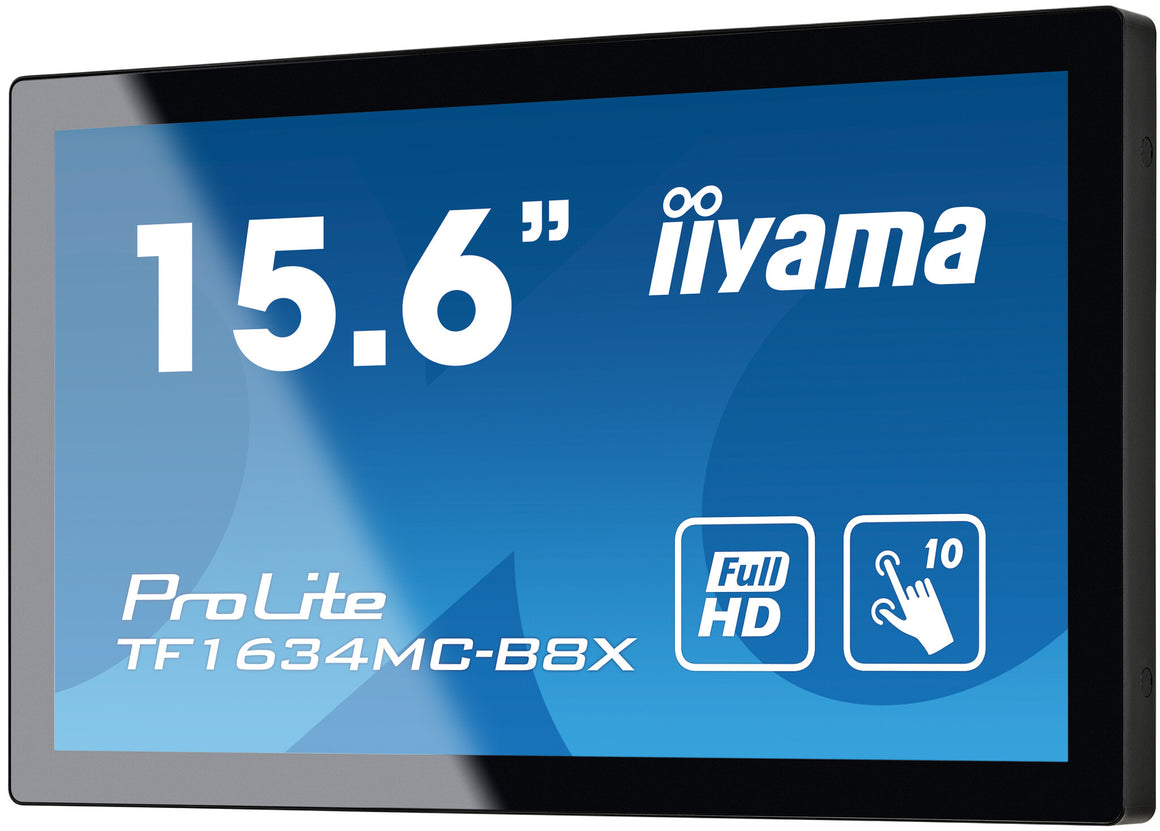

The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.
| Display |
|---|
| Surface hardness |
7H |
| Display diagonal (metric) |
39.5 cm |
| Viewable size, vertical |
19.4 cm |
| Viewable size, horizontal |
34.4 cm |
| Horizontal scan range |
30 - 84 kHz |
| Pixel pitch |
0.179 x 0.179 mm |
| Display number of colours |
16.2 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
700:1 |
| Screen shape |
Flat |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
25 ms |
| Display brightness |
450 cd/m² |
| Display brightness (typical) |
450 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
|---|
| Glass thickness |
2.4 mm |
| Front bezel colour |
Black |
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Ergonomics |
|---|
| Number of OSD languages |
7 |
| On Screen Display (OSD) |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
391713 |
| Power supply type |
External |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.6 W |
| Power consumption (typical) |
18 W |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
F |
| Weight & dimensions |
|---|
| Weight (without stand) |
2 kg |
| Height (without stand) |
230.5 mm |
| Depth (without stand) |
46 mm |
| Width (without stand) |
381 mm |
| Weight (with stand) |
2 kg |
| Height (with stand) |
230.5 mm |
| Depth (with stand) |
46 mm |
| Width (with stand) |
381 mm |
| Packaging data |
|---|
| Package weight |
3.9 kg |
| Package height |
365 mm |
| Package depth |
455 mm |
| Package width |
455 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Sustainability |
|---|
| Sustainability certificates |
ErP |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Compliance certificates |
CE, REACH, RoHS, WEEE |
| Placement supported |
Horizontal/Vertical |
| Display viewable area (HxV) |
344.2 x 193.5 mm |
| International Protection (IP) code |
IP65 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Pallet net height |
9.7 cm |
| Pallet net length |
20.4 cm |
| Pallet net width |
11.5 cm |
| Products per pallet |
78 pc(s) |
