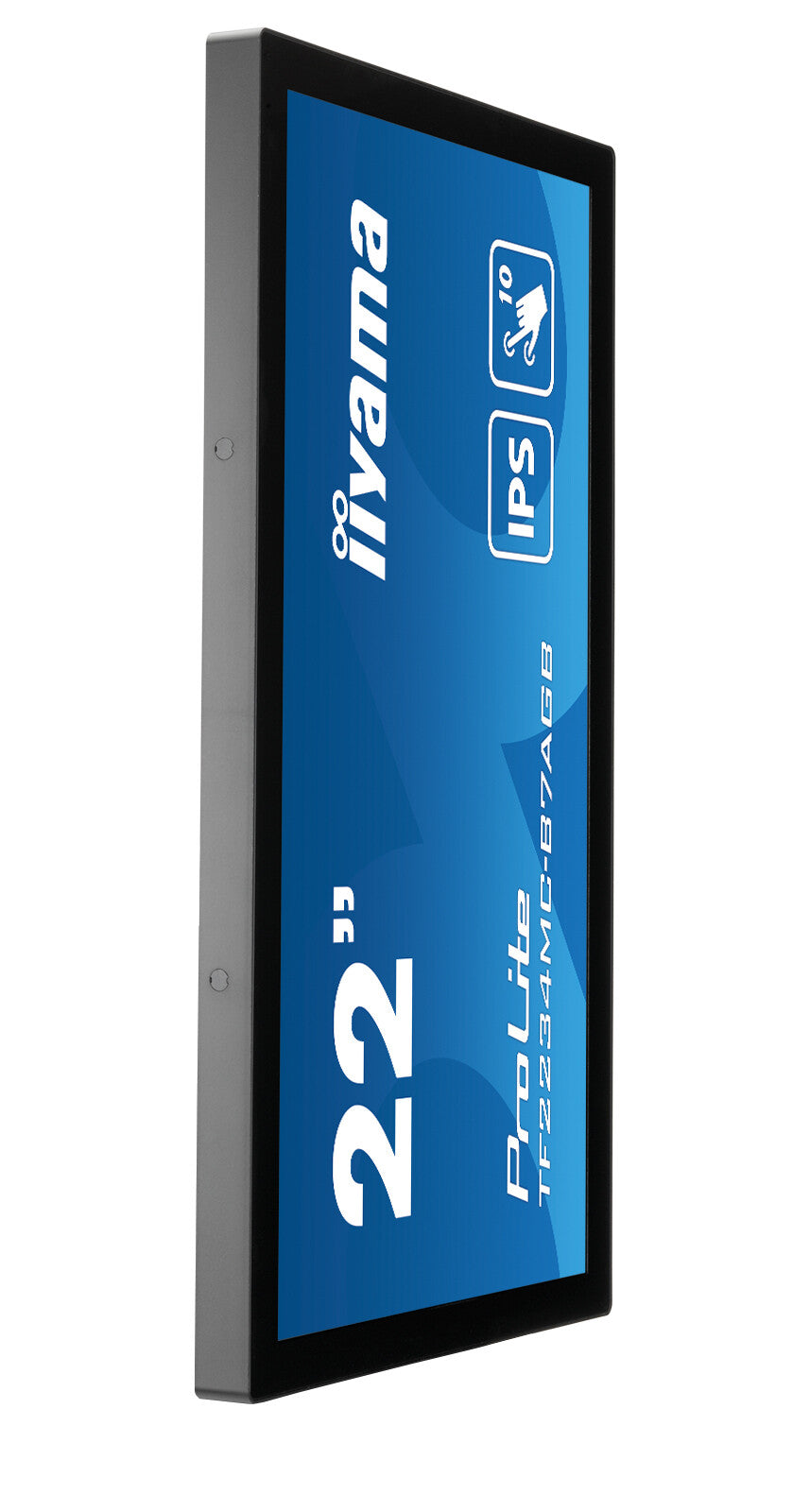

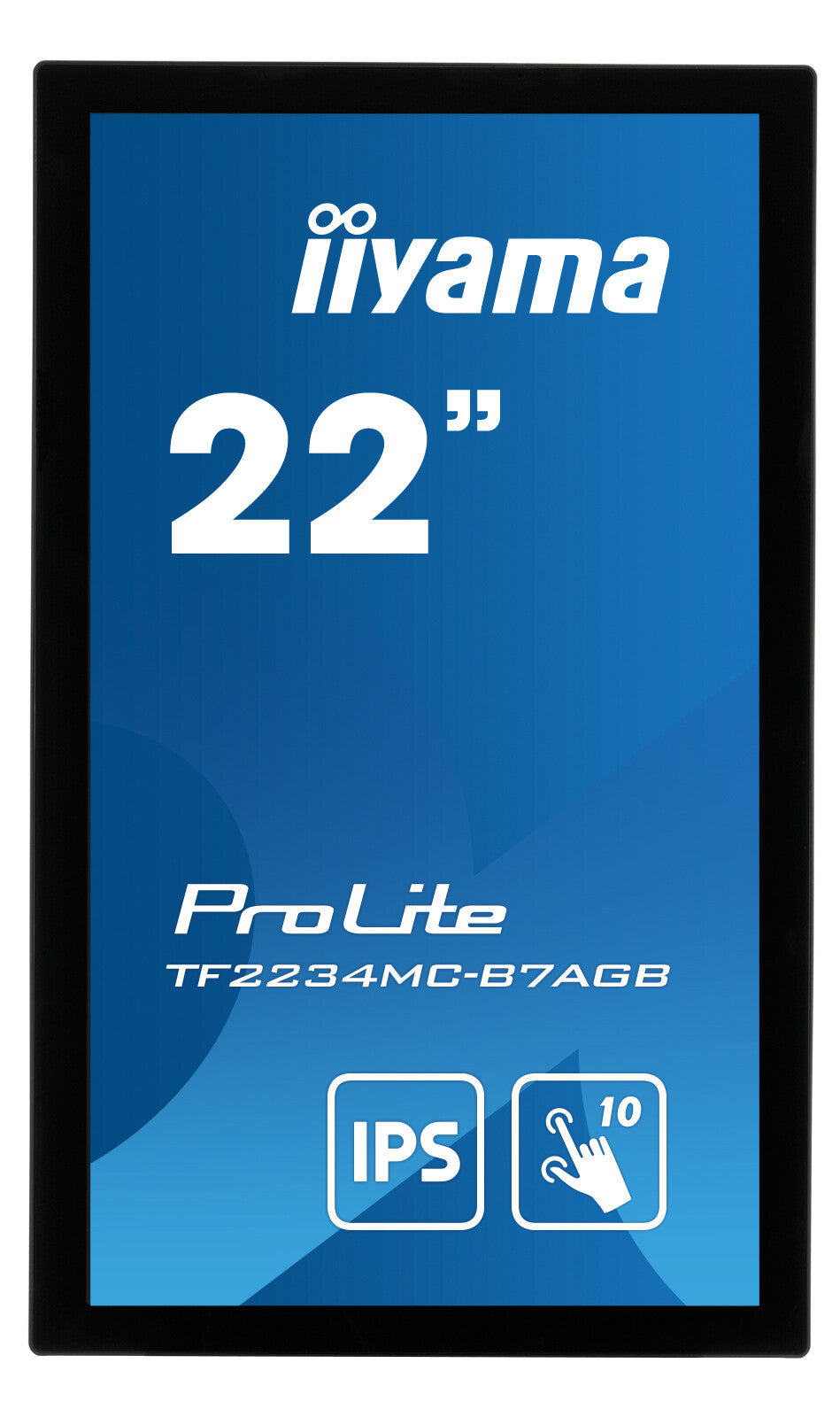

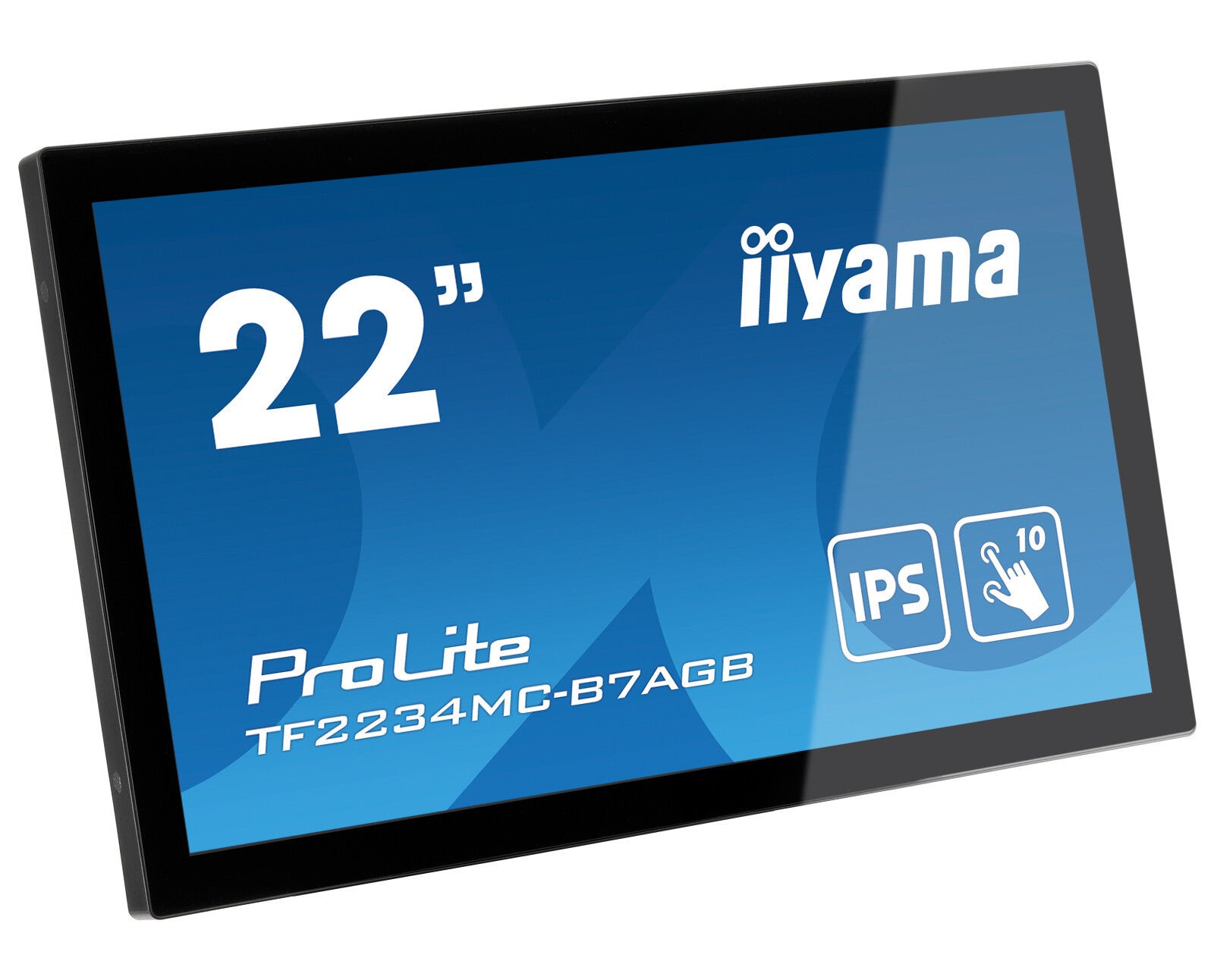

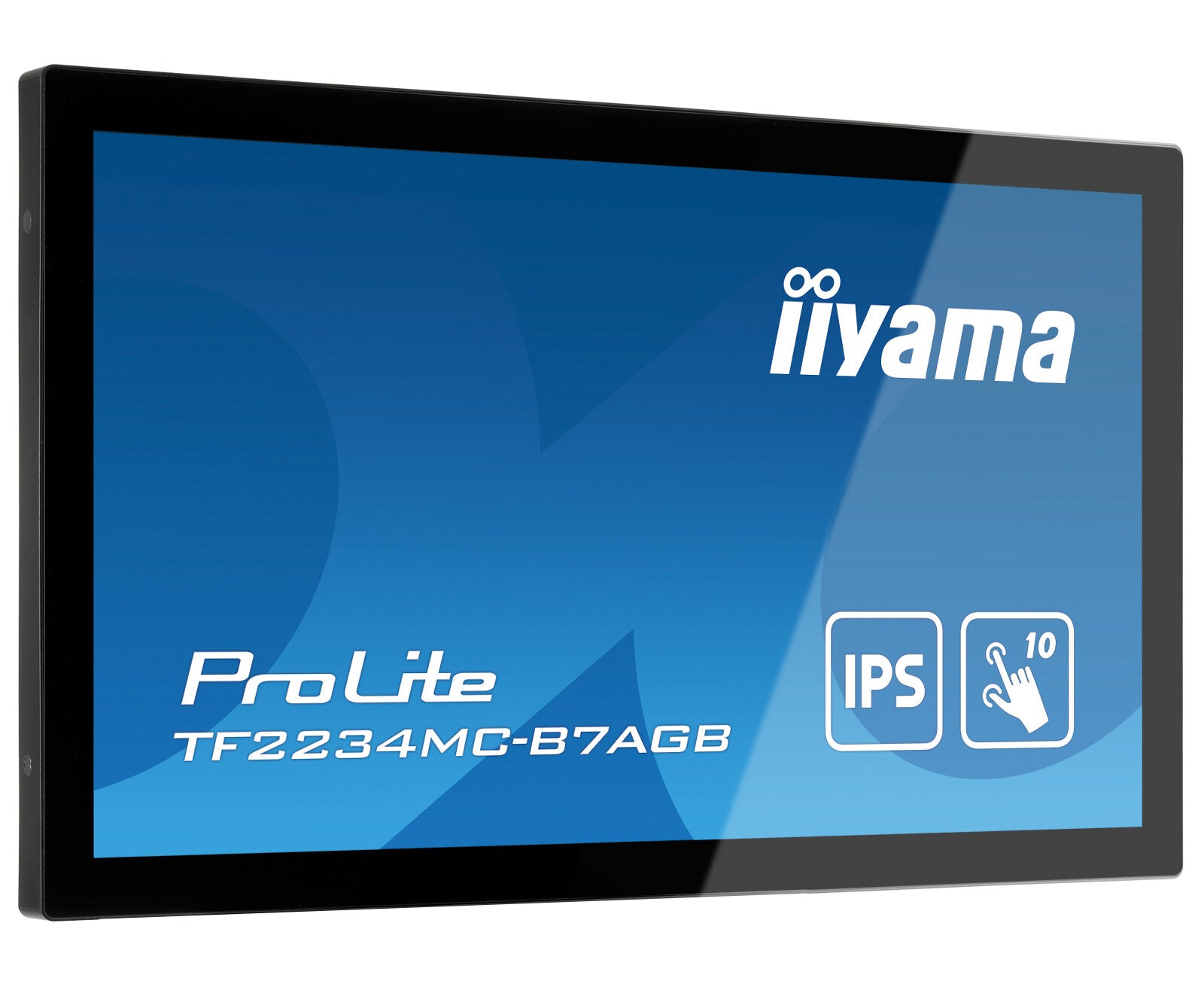

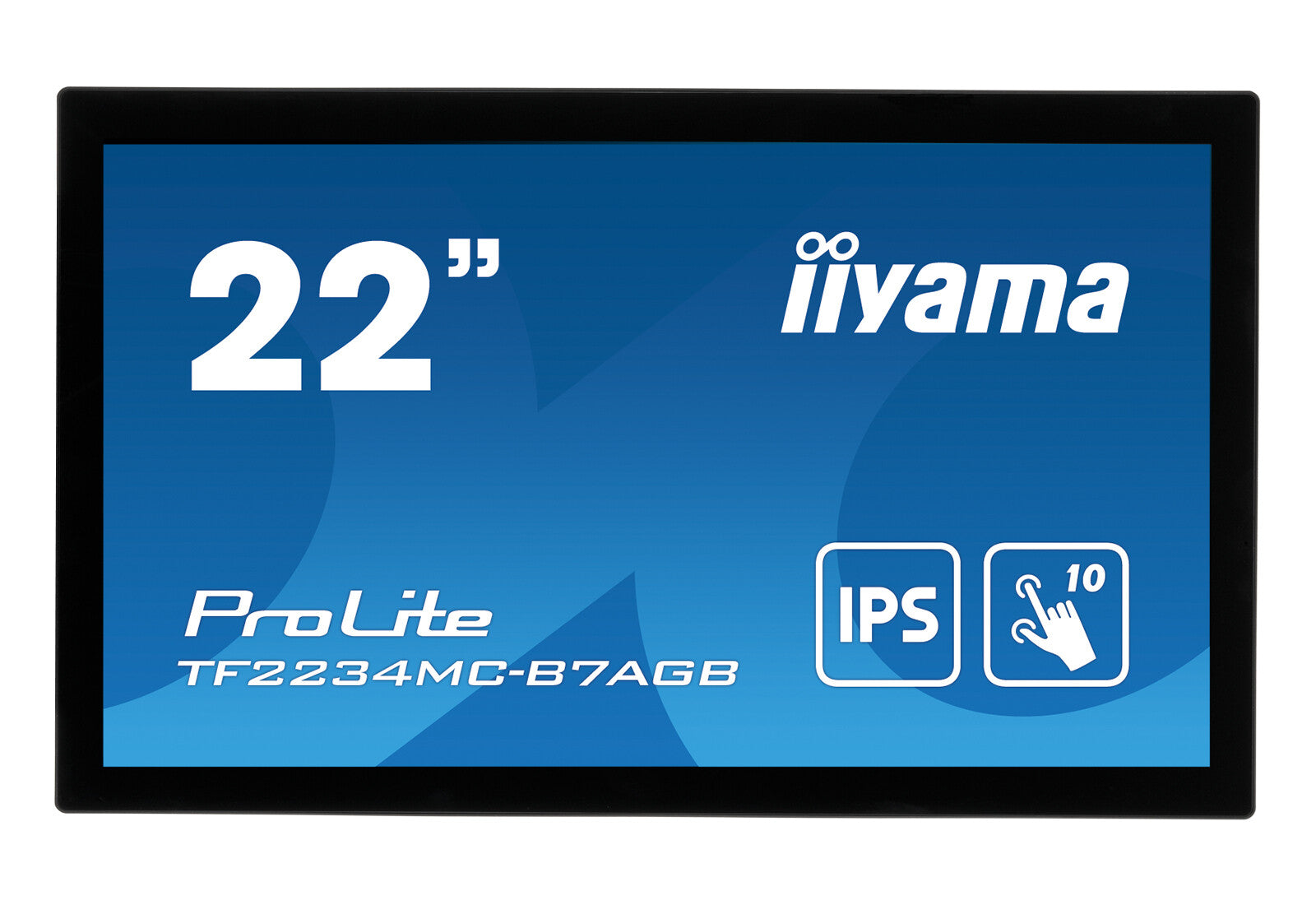

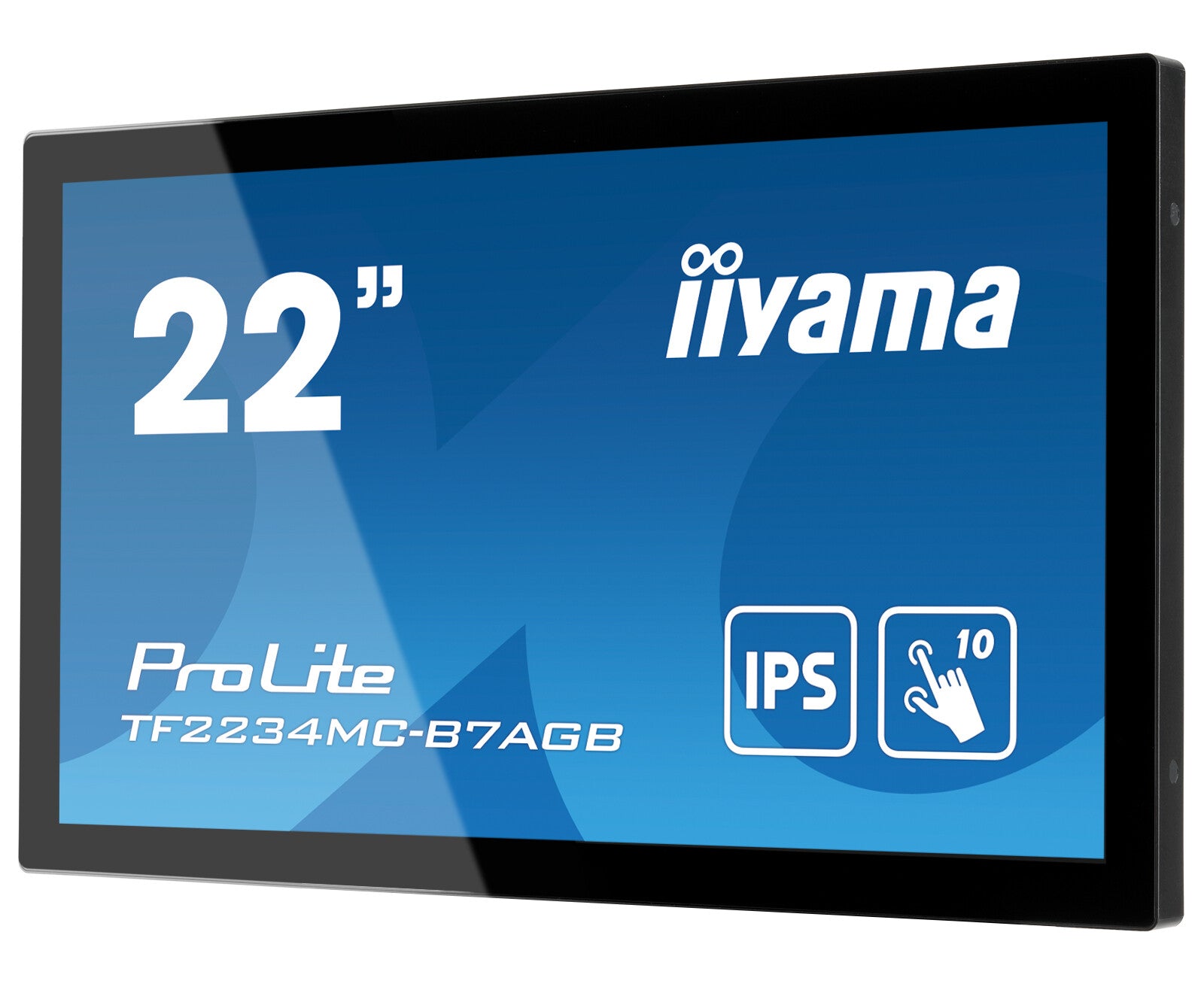

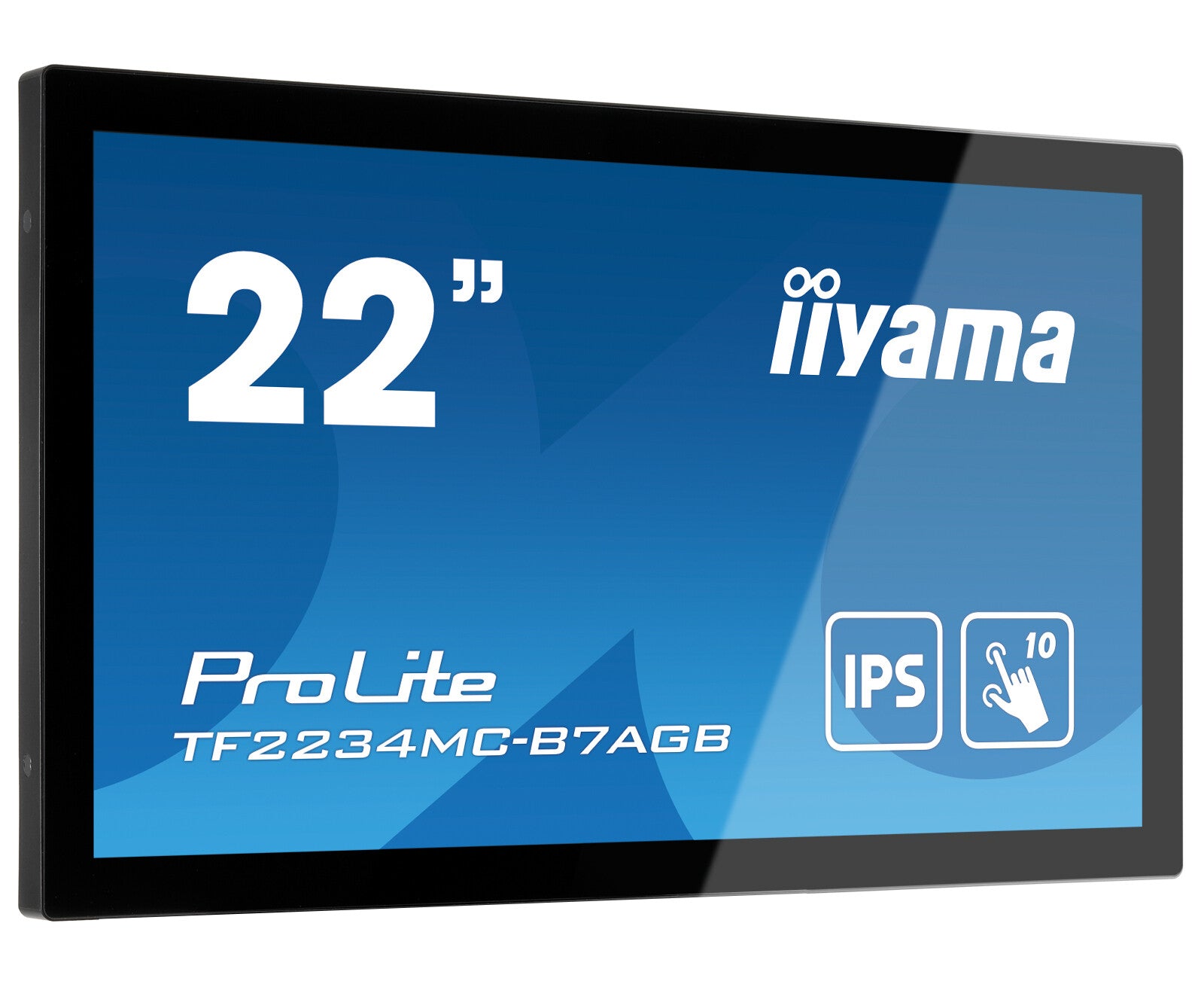

The ProLite TF2234MC-B7AGB uses PCAP Touch technology, and it is built into an eye-catching bezel with edge-to-edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles. The higher brightness ensures crispy and clear images, even in a bright environment. In addition to the superb image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and IP65 rating, meaning the monitor is dust and water resistant from the front. The Anti Glare Glass helps to avoid issues with reflections and external light sources affecting contrast and sharpness. The ProLite TF2234MC-B7AGB is the ideal screen for kiosk integrators and a superb display for use as Interactive Digital Signage, Instore Retail and Interactive Presentation display. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
| Display |
|---|
| Display diagonal (metric) |
56.4 cm |
| Horizontal scan range |
30 - 84 kHz |
| Pixel pitch |
0.247 x 0.247 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Response time |
8 ms |
| Display brightness |
350 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5") |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
|---|
| Glass thickness |
1.5 mm |
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Ergonomics |
|---|
| Number of OSD languages |
9 |
| On Screen Display (OSD) languages |
German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |

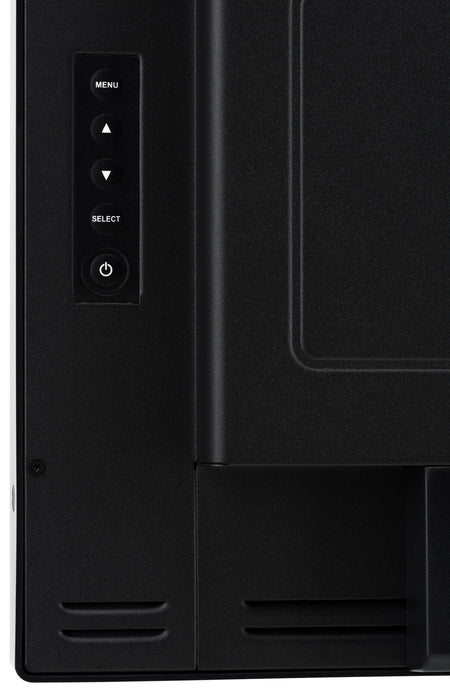

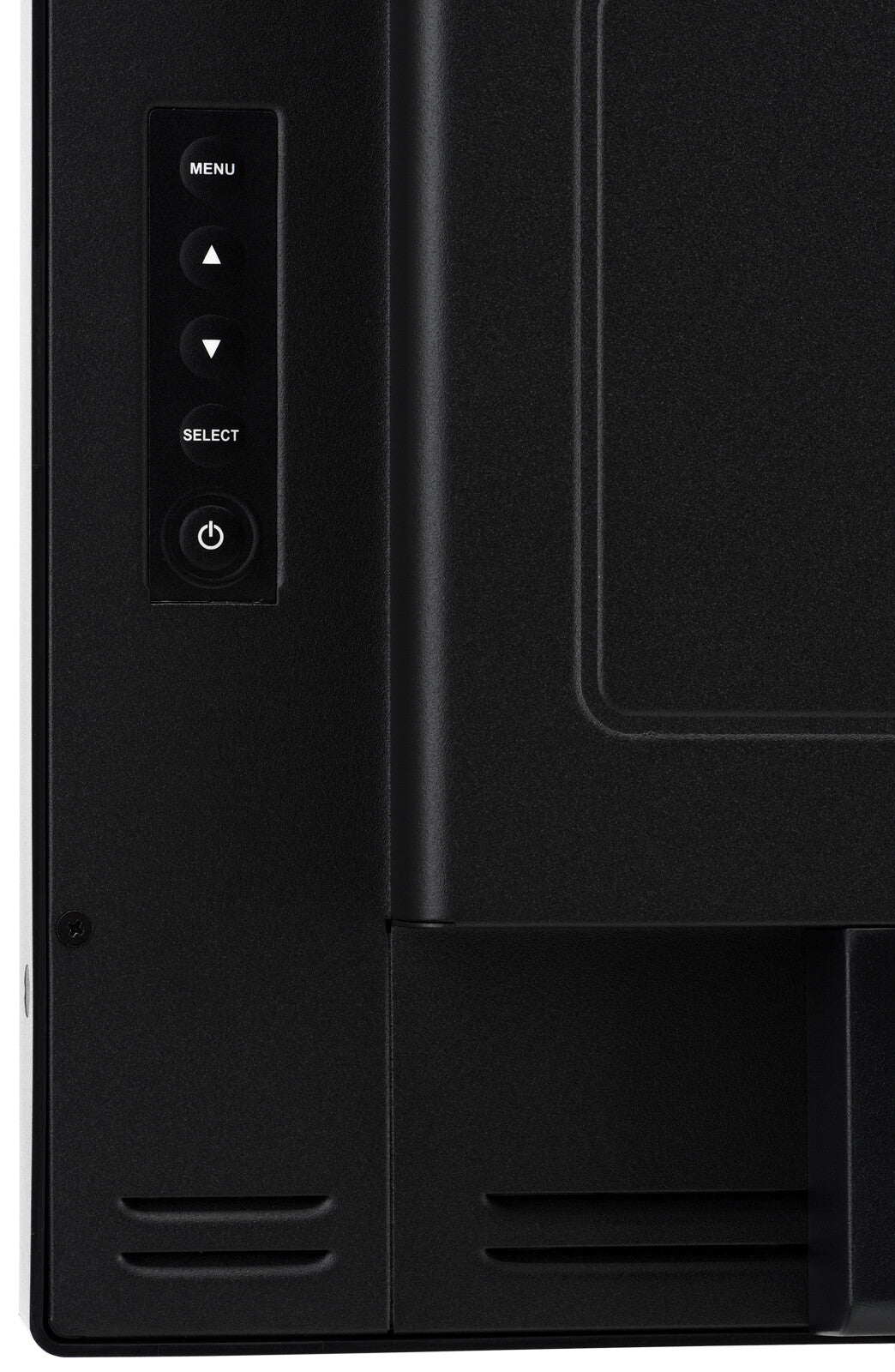

| On Screen Display (OSD) |
Yes |
| Wall mountable |
Yes |

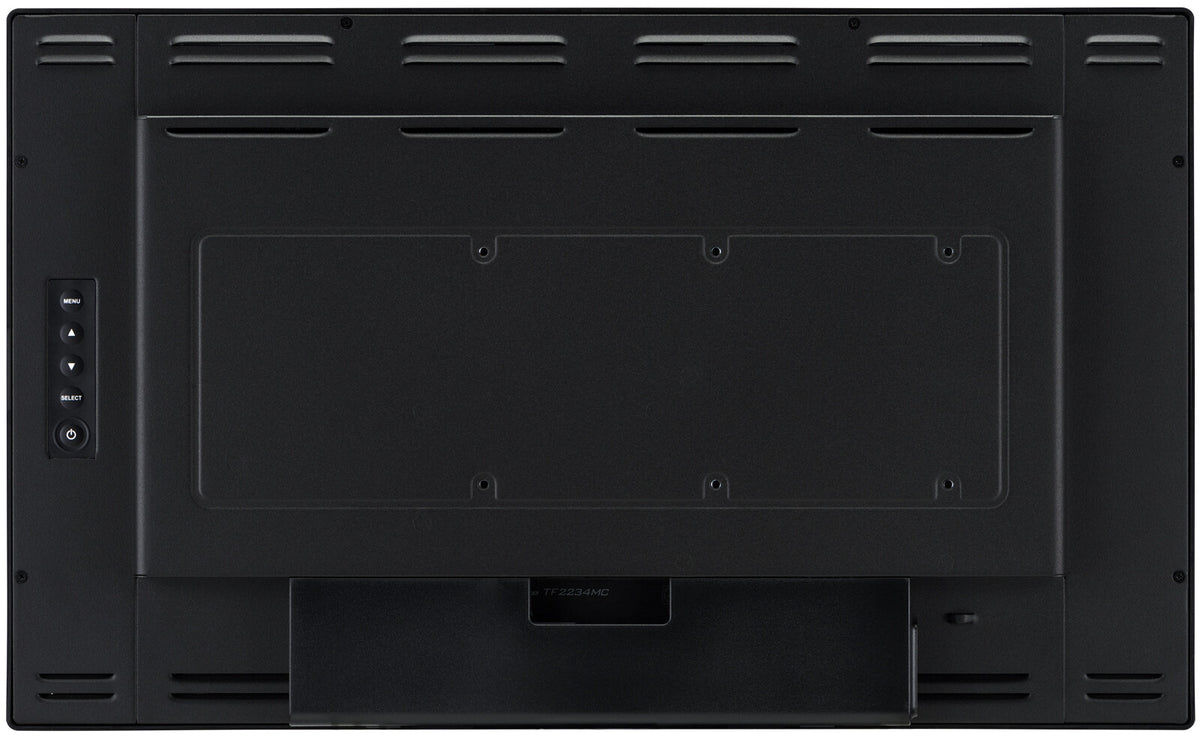

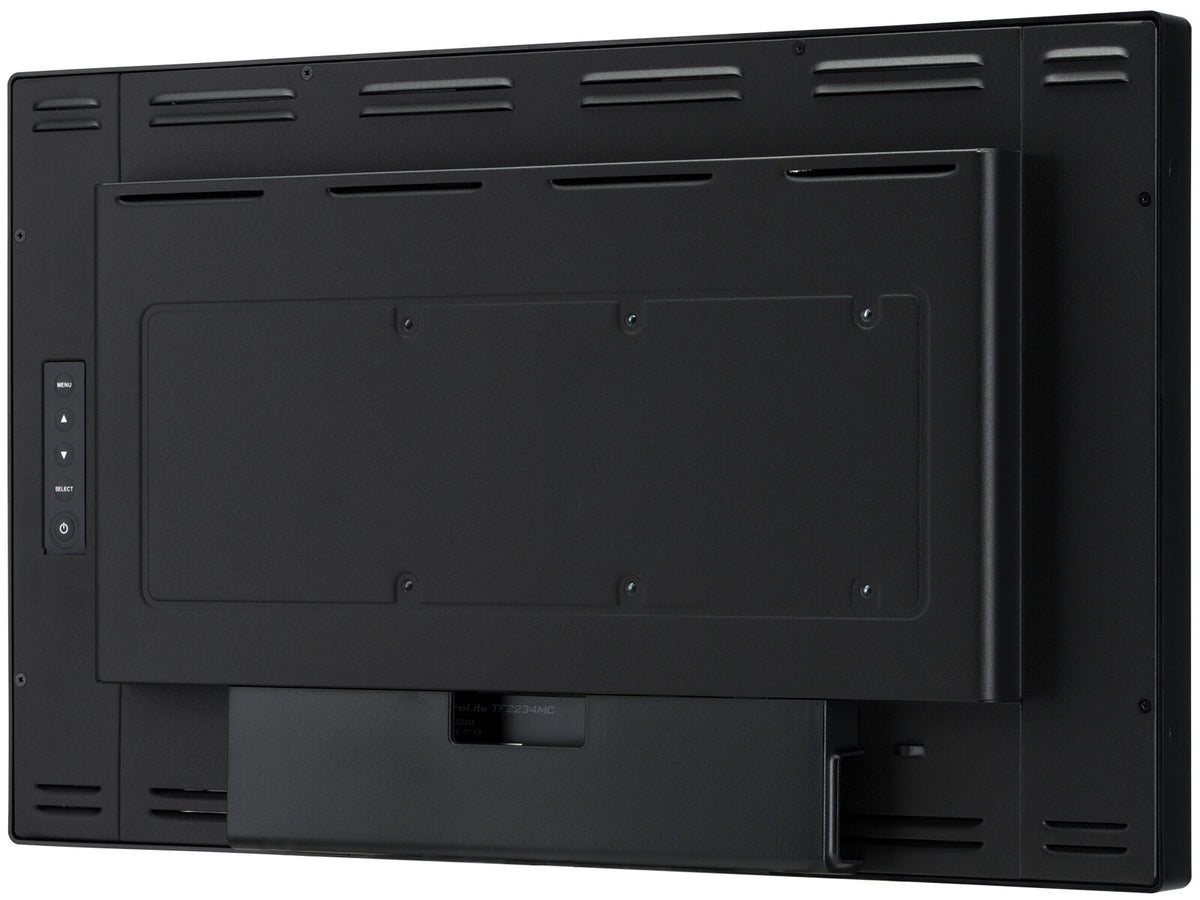

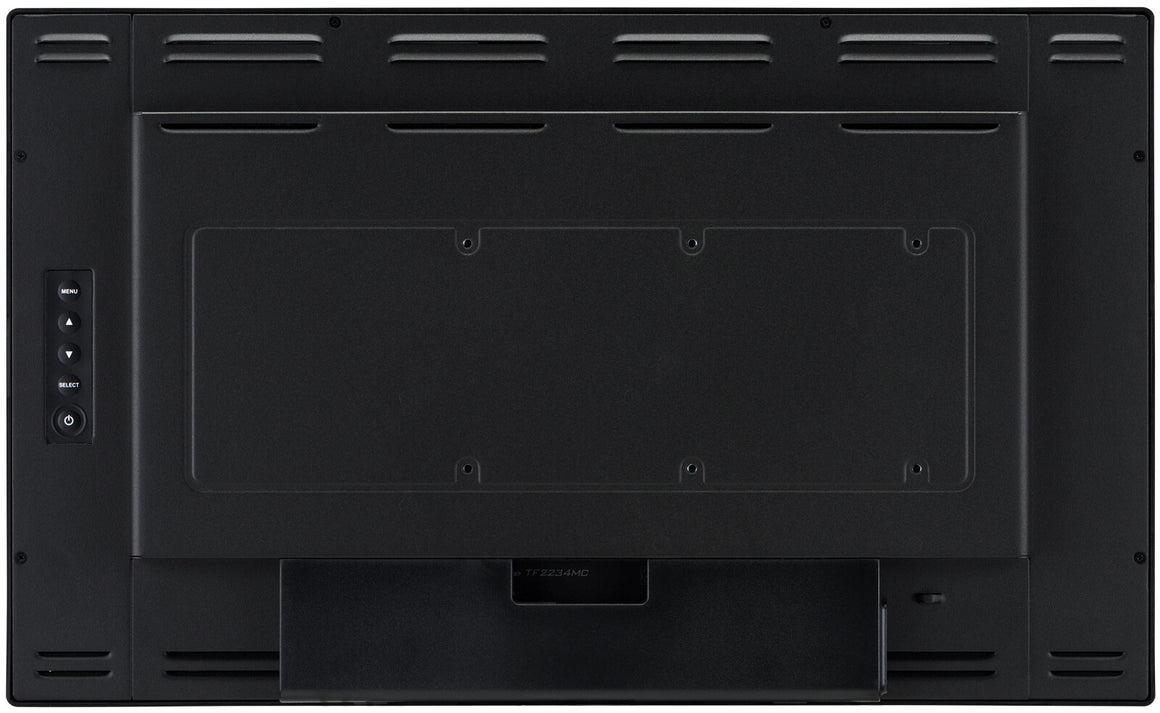

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
388782 |
| Energy efficiency scale |
A to G |
| Power supply type |
DC |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
18 W |
| Energy consumption (SDR) per 1000 hours |
19 kWh |
| Energy efficiency class (SDR) |
F |
| Weight & dimensions |
|---|
| Weight (without stand) |
4.4 kg |
| Height (without stand) |
313.5 mm |
| Depth (without stand) |
46 mm |
| Width (without stand) |
517.5 mm |
| Packaging data |
|---|
| Package weight |
6.8 kg |
| Package height |
405 mm |
| Package depth |
160 mm |
| Package width |
610 mm |

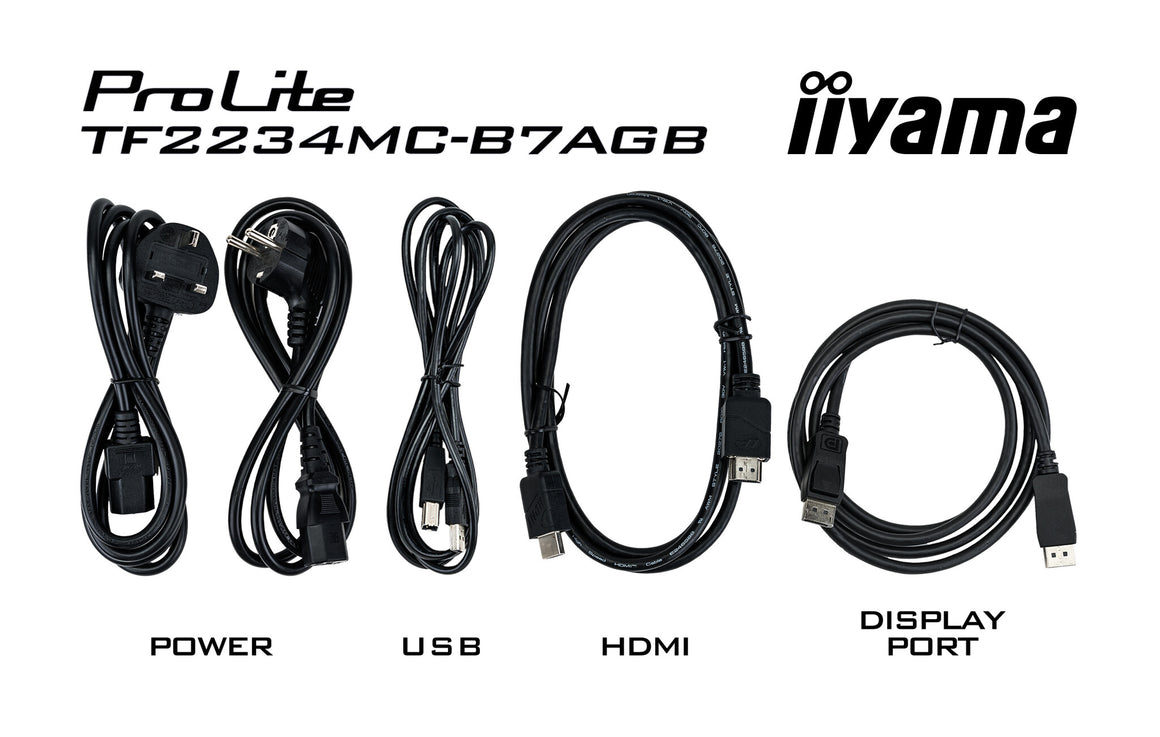

| Packaging content |
|---|
| Cables included |
AC, HDMI, USB |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Compliance certificates |
CE, REACH, RoHS, WEEE |
| Placement supported |
Horizontal/Vertical |
| Display viewable area (HxV) |
476 x 267.7 mm |
| International Protection (IP) code |
IP65 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
