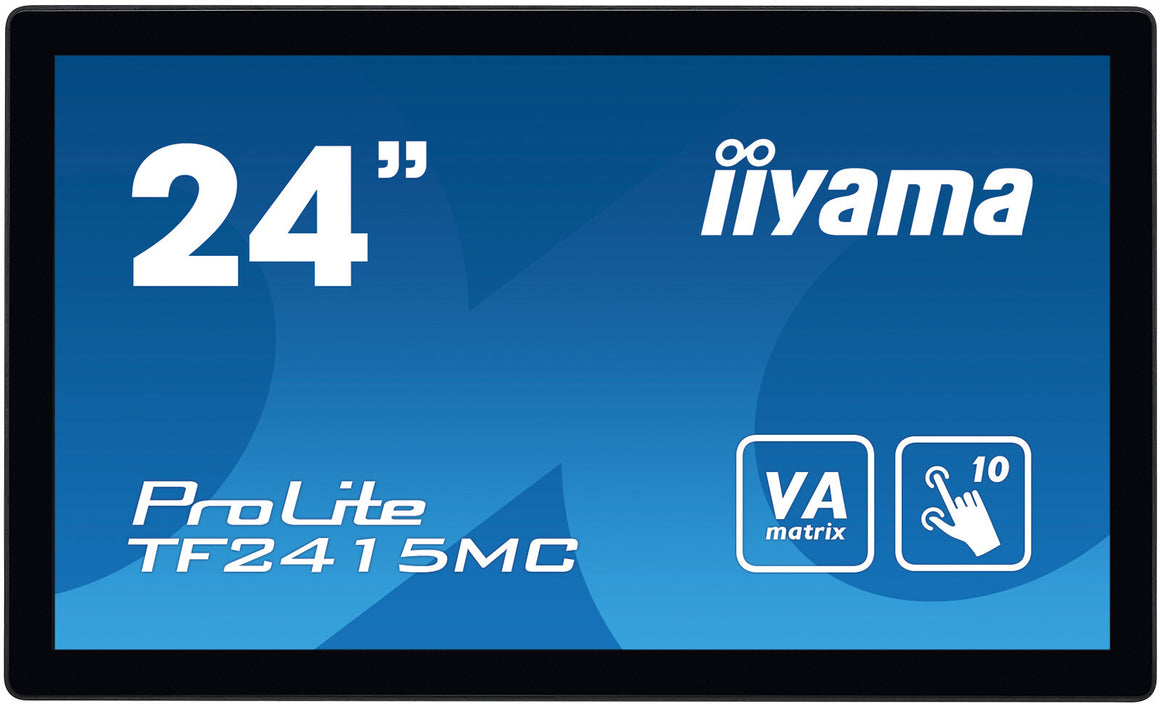

The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display |
|---|
| Separate H/V sync |
Yes |
| Surface hardness |
7H |
| Display diagonal (metric) |
60.5 cm |
| Viewable size, vertical |
29.6 cm |
| Viewable size, horizontal |
52.7 cm |
| Vertical scan range |
56 - 75 Hz |
| Horizontal scan range |
31.4 - 82 kHz |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
3000:1 |
| Aspect ratio |
16:9 |
| Screen shape |
Flat |
| Response time |
16 ms |
| Display brightness |
315 cd/m² |
| Display brightness (typical) |
350 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| Panel type |
VA |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
|---|
| OmniTapps Multitouch compatibility |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
|---|
| Front bezel colour |
Black |
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| Audio output |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Ergonomics |
|---|
| Plug and Play |
Yes |
| Number of OSD languages |
7 |
| On Screen Display (OSD) languages |
German, English, Spanish, French, Italian, Japanese |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
378595 |
| Energy efficiency scale |
A to G |
| Power supply type |
External |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.32 W |
| Power consumption (standby) |
1.06 W |
| Power consumption (typical) |
24.4 W |
| Energy consumption (SDR) per 1000 hours |
22 kWh |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight (without stand) |
5.8 kg |
| Height (without stand) |
347 mm |
| Depth (without stand) |
42.5 mm |
| Width (without stand) |
575 mm |
| Weight (with stand) |
5.8 kg |
| Height (with stand) |
347 mm |
| Depth (with stand) |
42.5 mm |
| Width (with stand) |
575 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Certification |
CB, CE, TÜV-Bauart, CU, cULus |
| Full HD |
Yes |
| Placement supported |
Horizontal/Vertical |
| Glass protection |
Yes |
| Display viewable area (HxV) |
527.04 x 296.46 mm |
| AC adapter included |
Yes |
| International Protection (IP) code |
IP65 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
