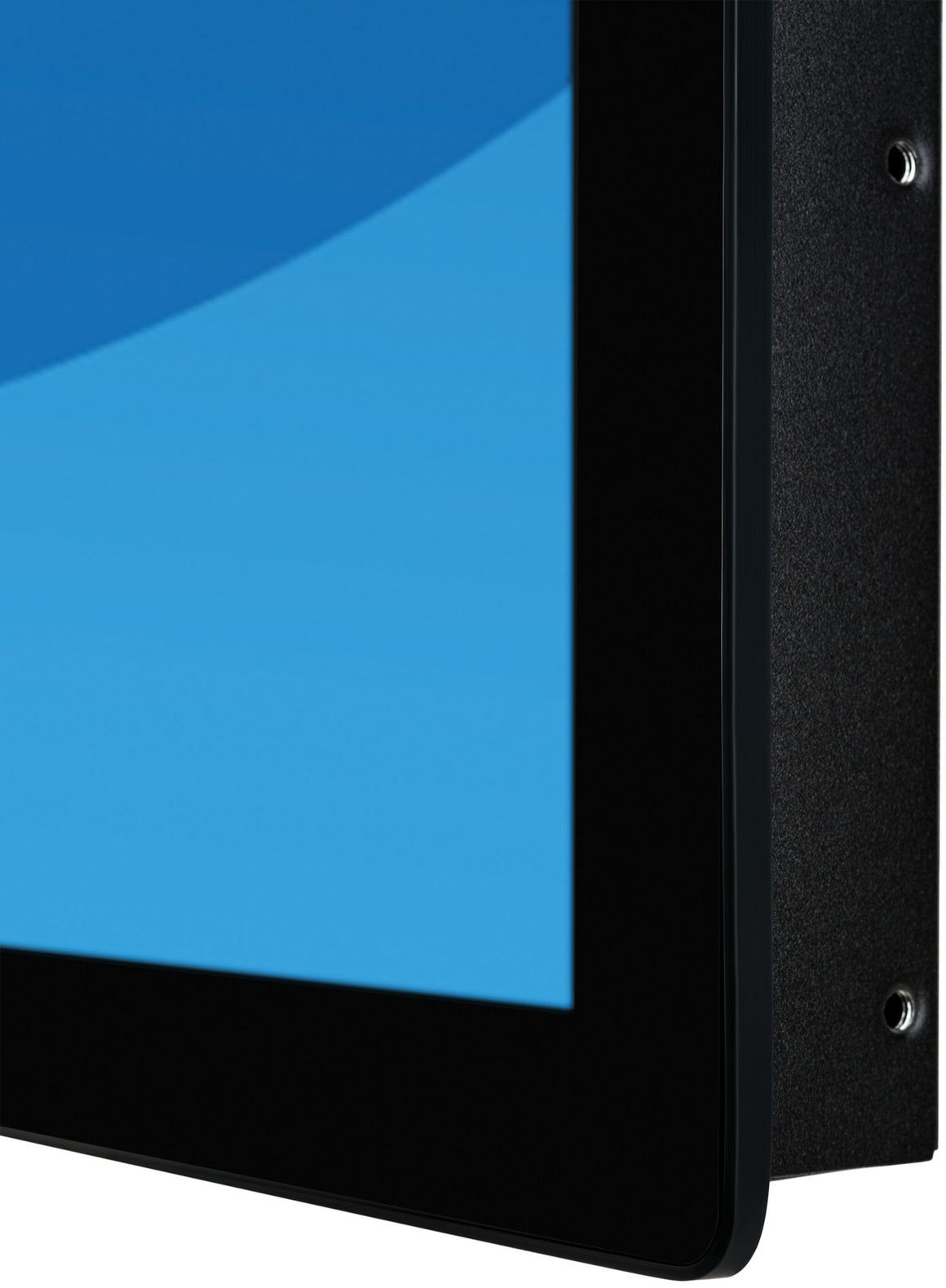

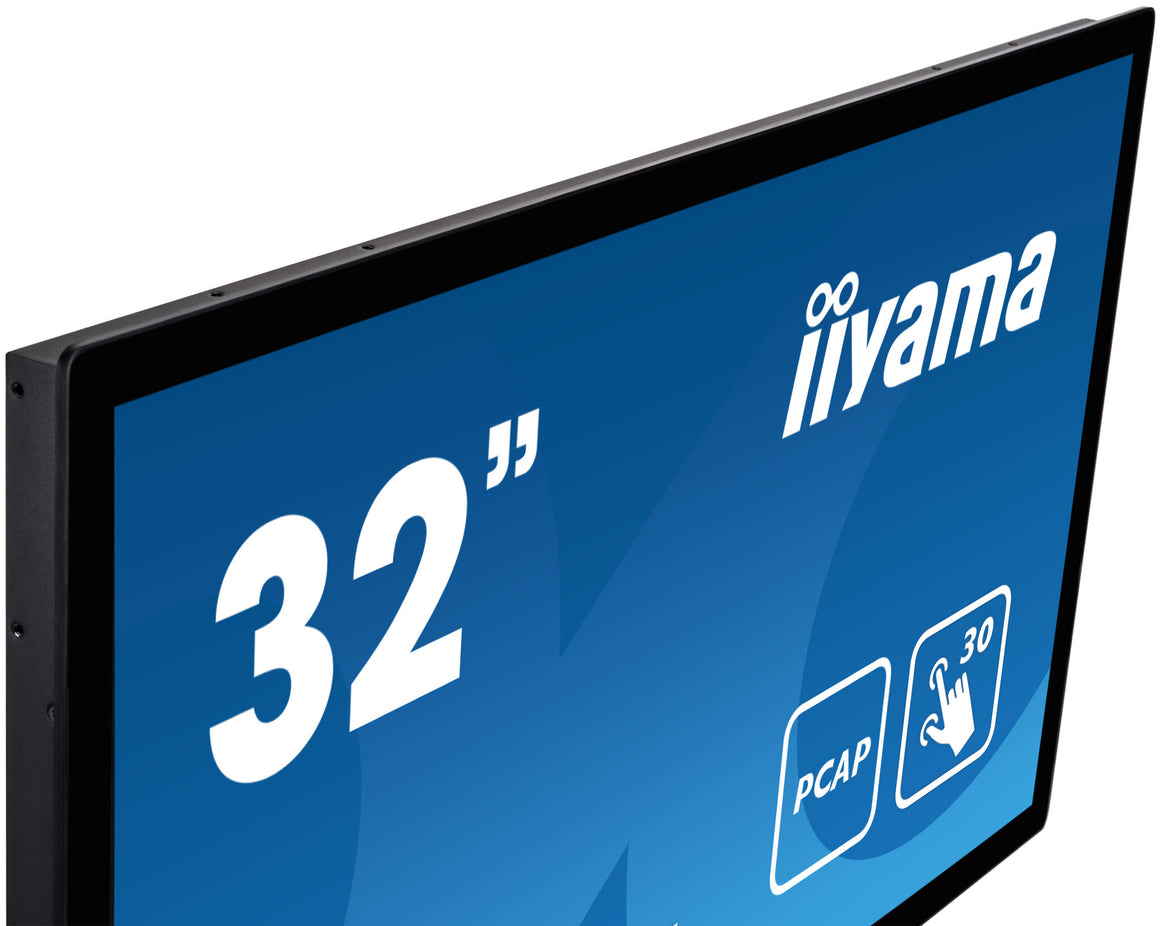

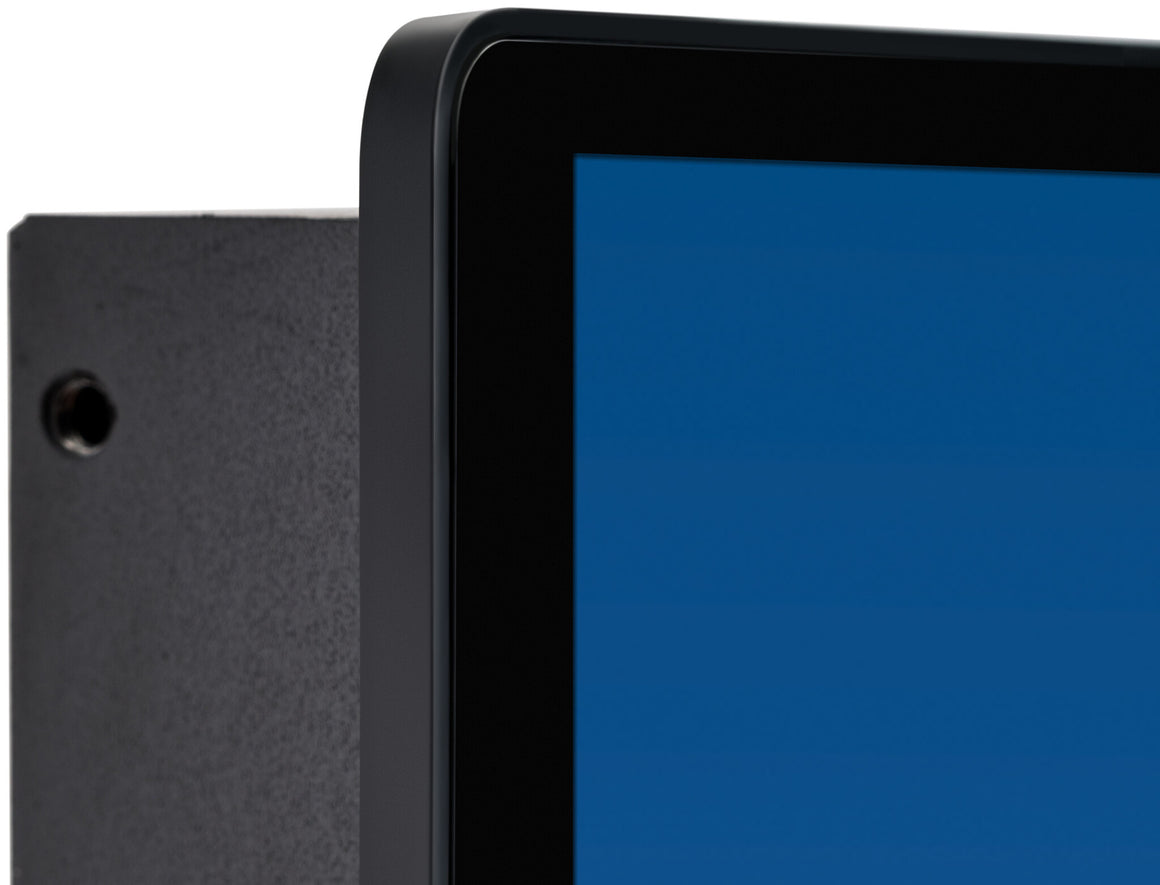

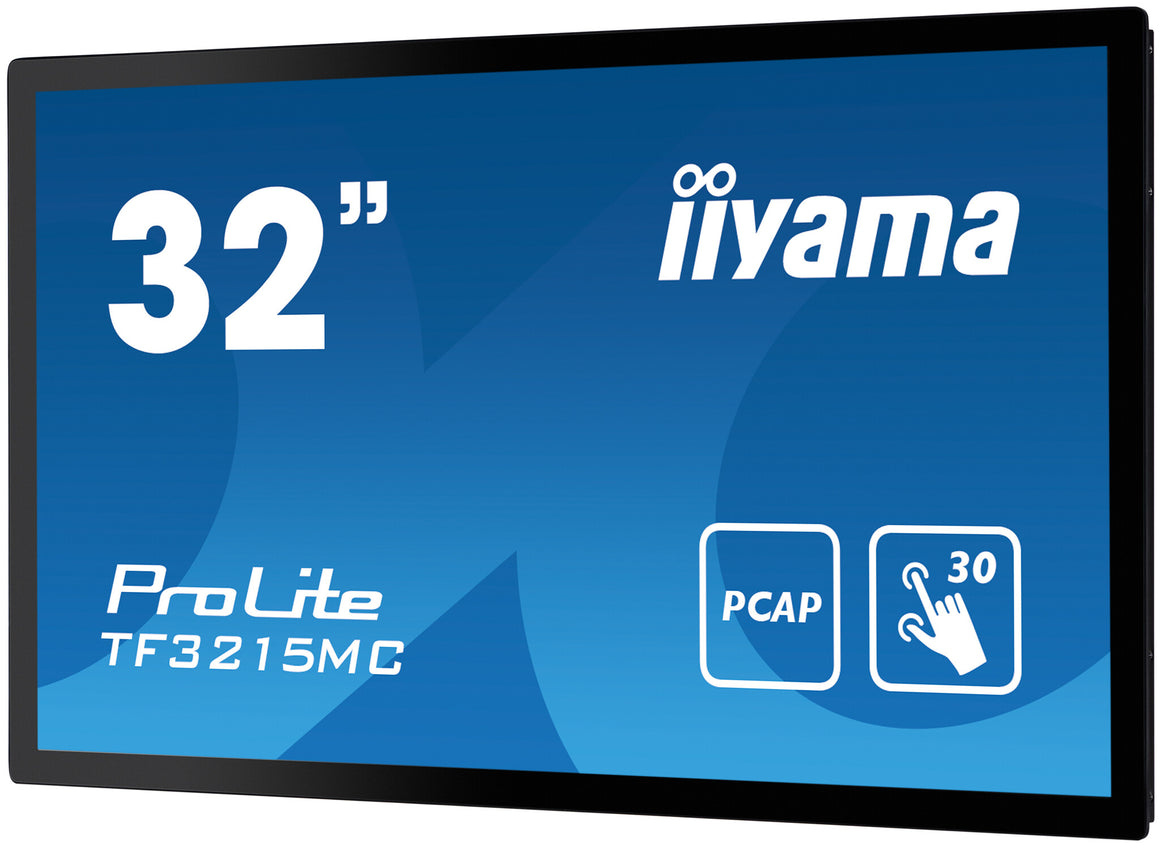

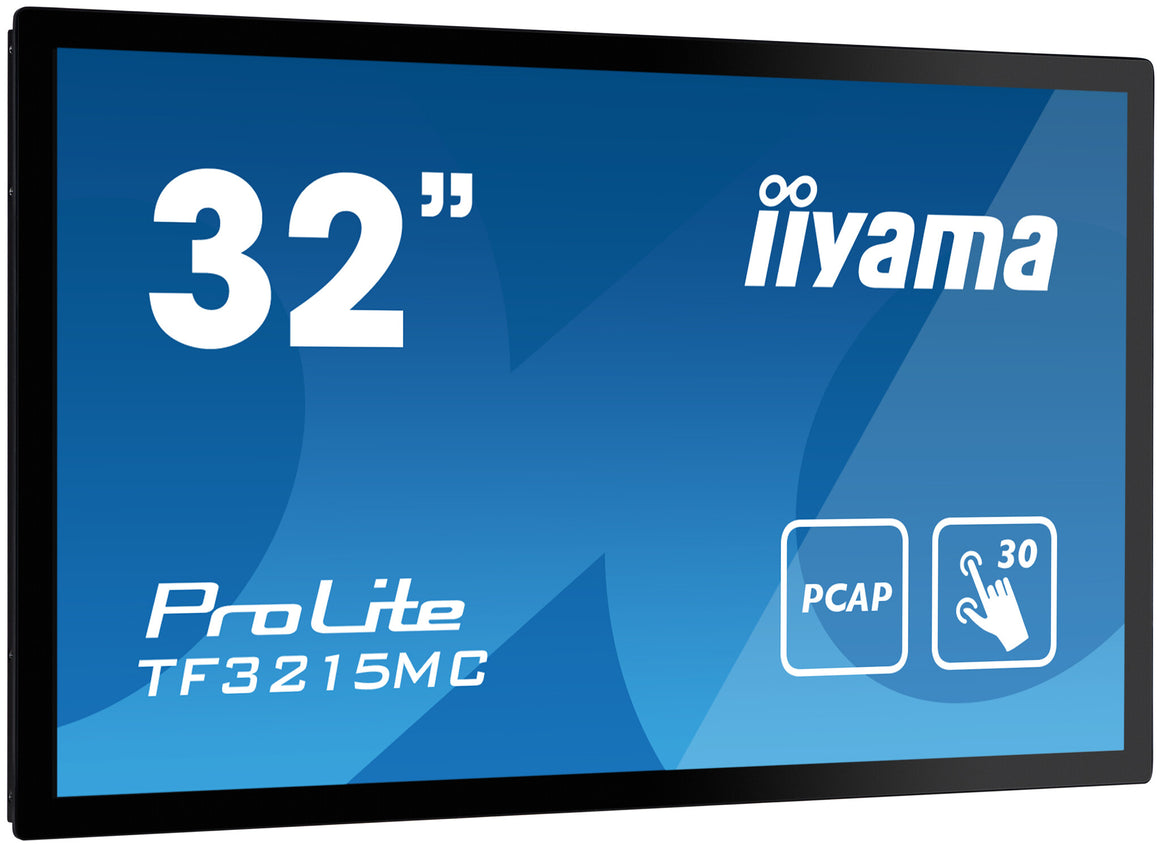

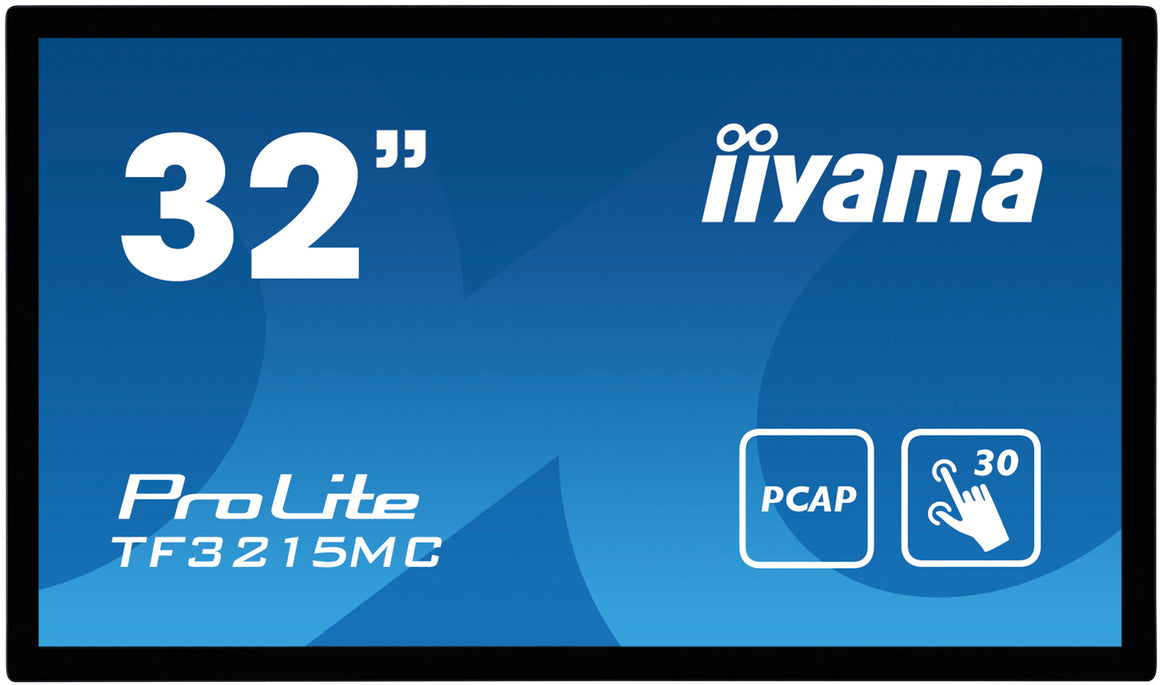

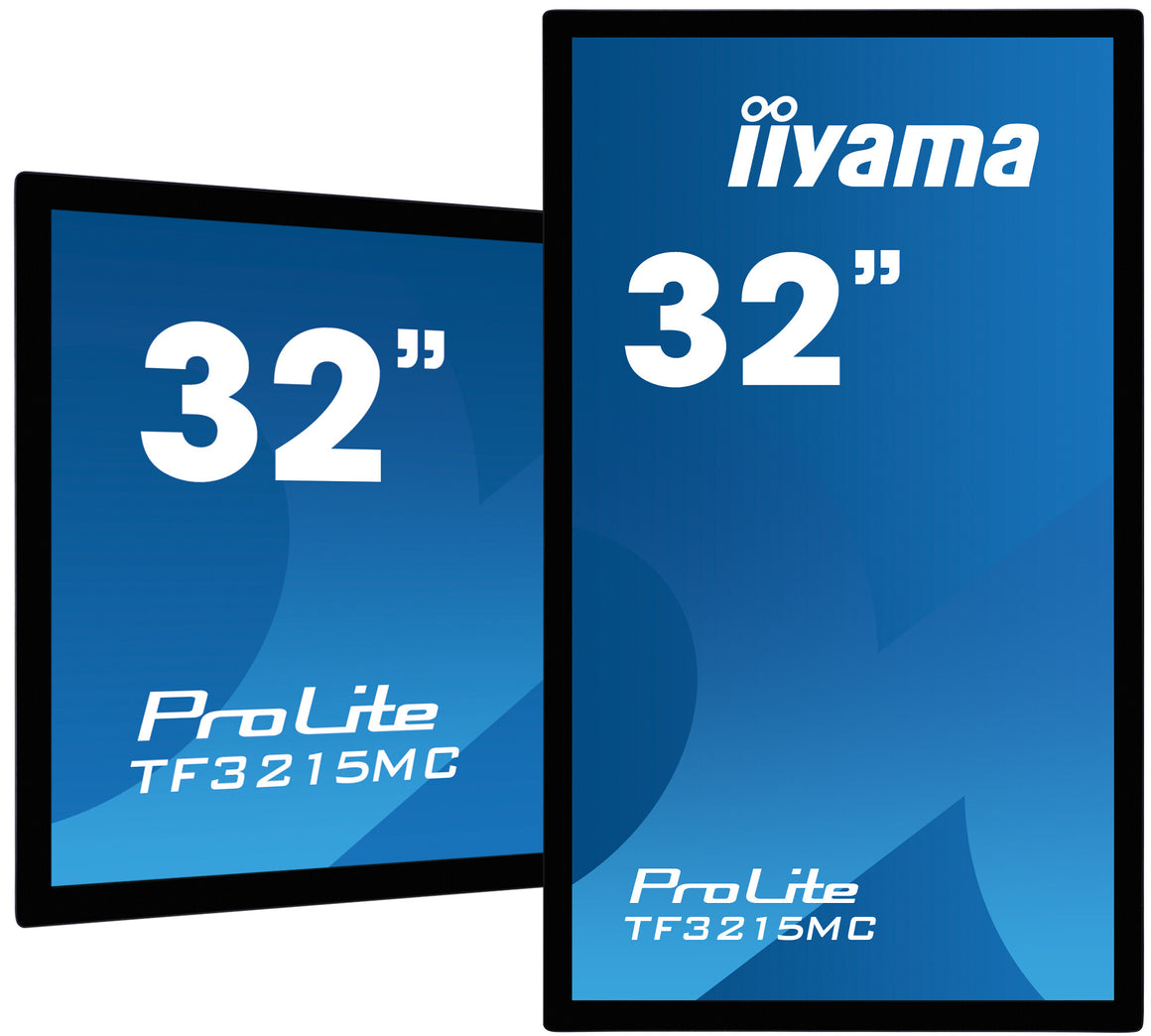

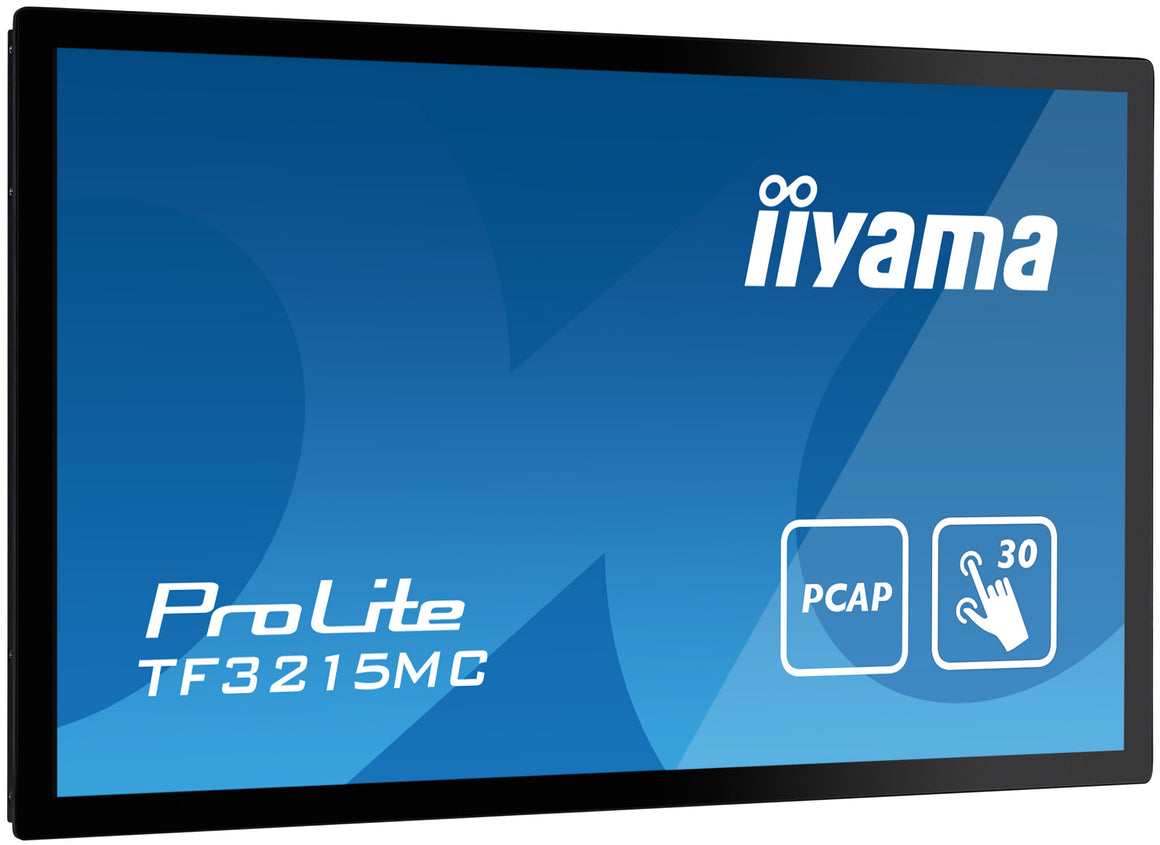

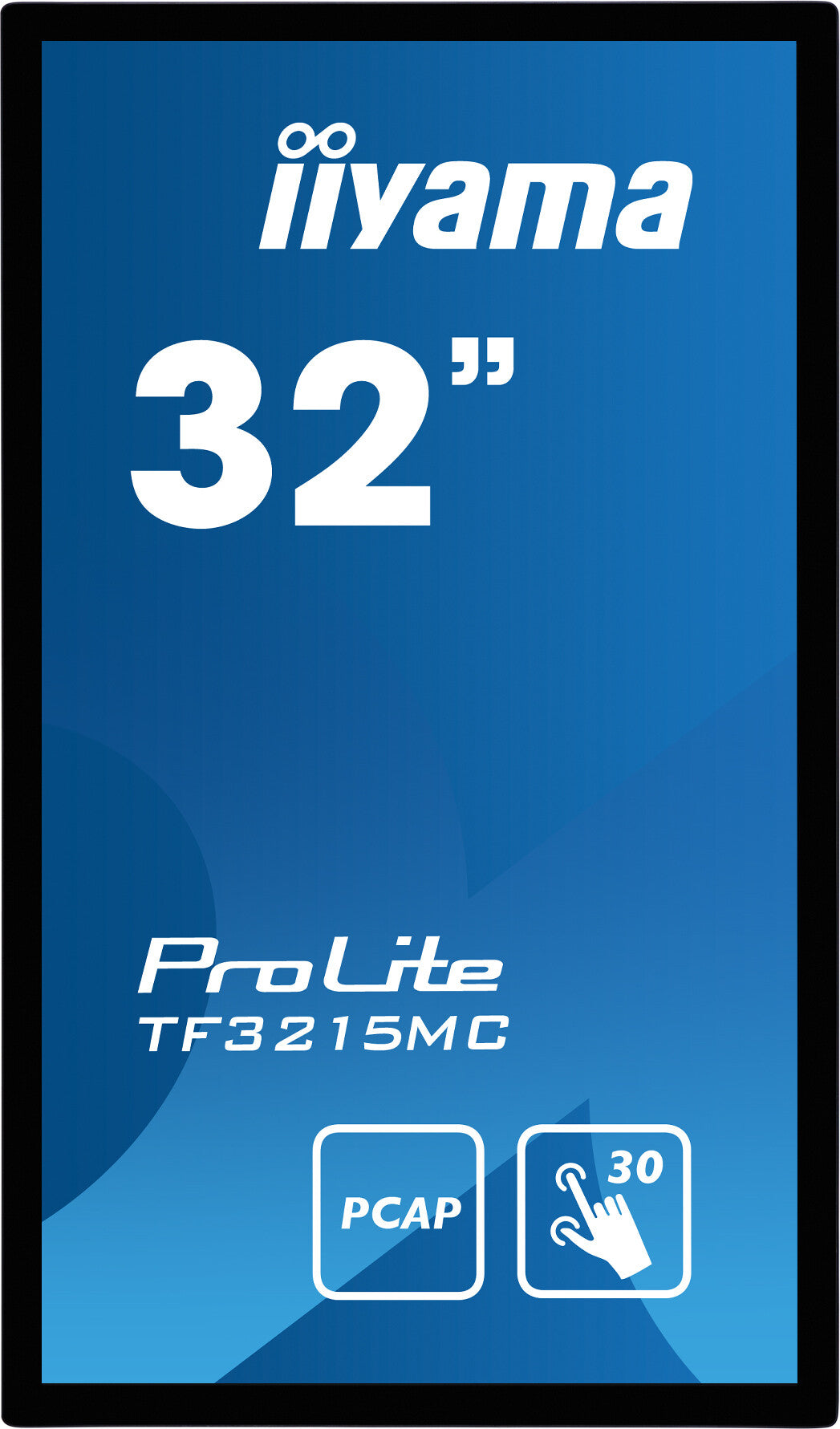

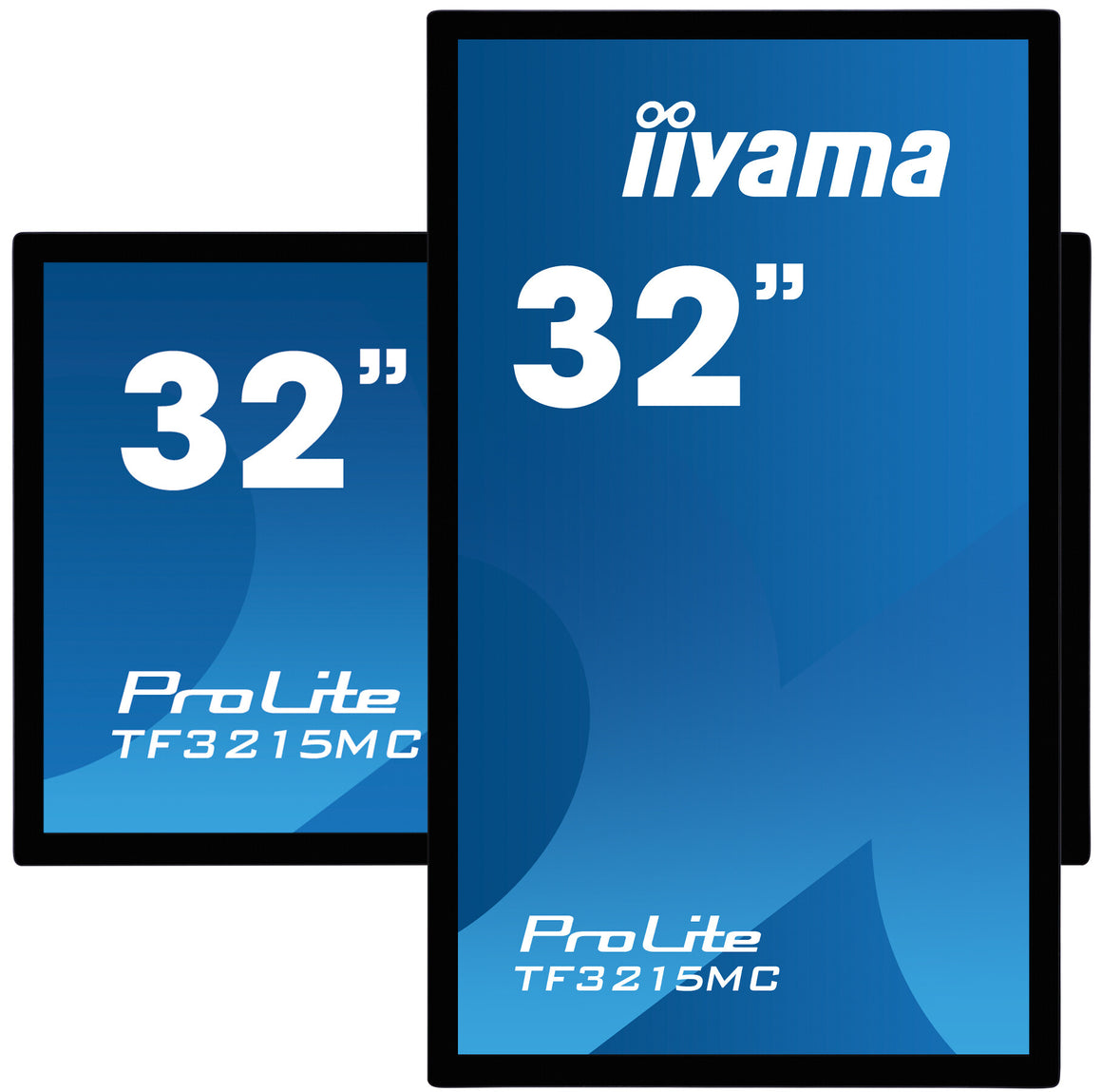

The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks. Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.
| Display |
|---|
| Colour depth |
8 bit |
| Surface hardness |
7H |
| Display diagonal (metric) |
80 cm |
| Viewable size, vertical |
39.3 cm |
| Viewable size, horizontal |
69.8 cm |
| Vertical scan range |
47 - 63 Hz |
| Horizontal scan range |
30 - 68 kHz |
| Pixel pitch |
0.3637 x 0.3637 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
3000:1 |
| Contrast ratio (typical) |
3000:1 |
| Screen shape |
Flat |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
8 ms |
| Display brightness (typical) |
500 cd/m² |
| Display brightness (peak) |
500 cd/m² |
| Number of simultaneous touchpoints |
30 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Kiosk |
| Panel type |
VA |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
80 cm (31.5") |
| Performance |
|---|
| Operating hours (hours/days) |
24/7 |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| Design |
|---|
| Glass thickness |
3 mm |
| Front bezel colour |
Black |
| Housing material |
Metal |
| Product colour |
Black |
| Market positioning |
Office |

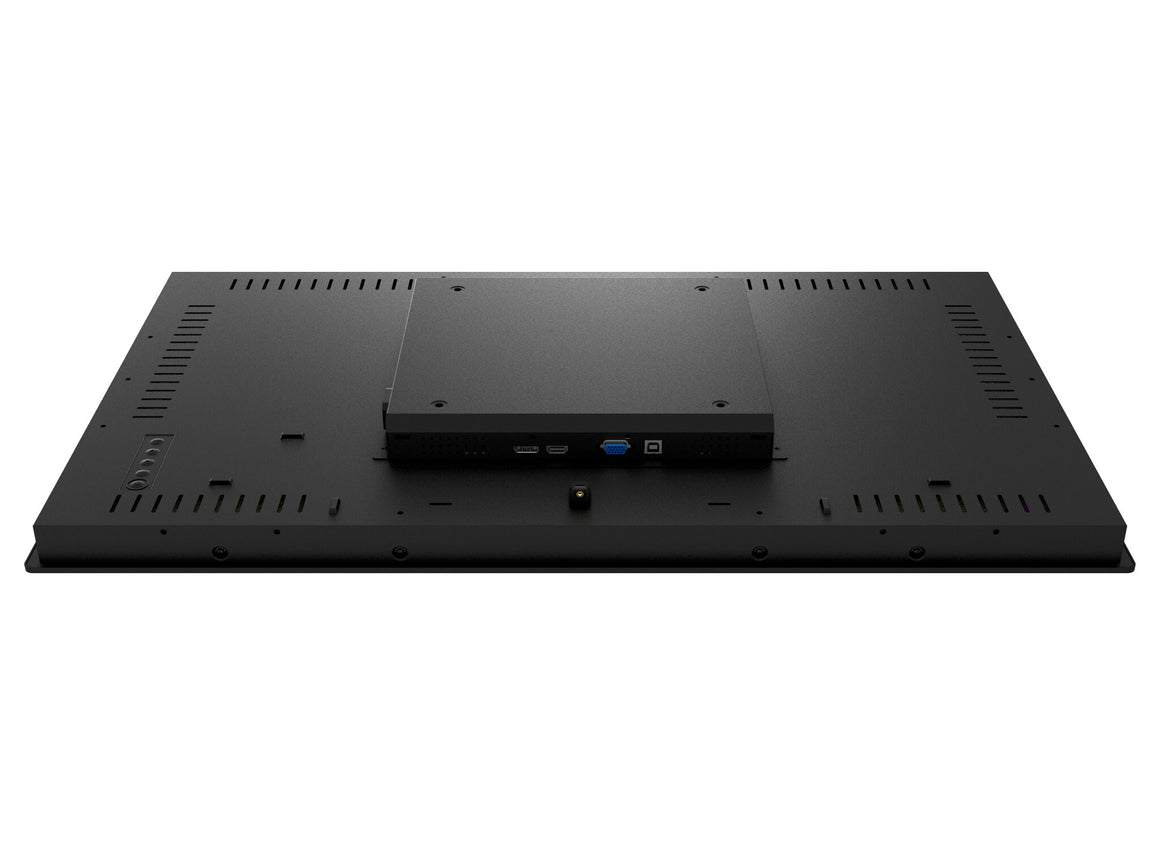

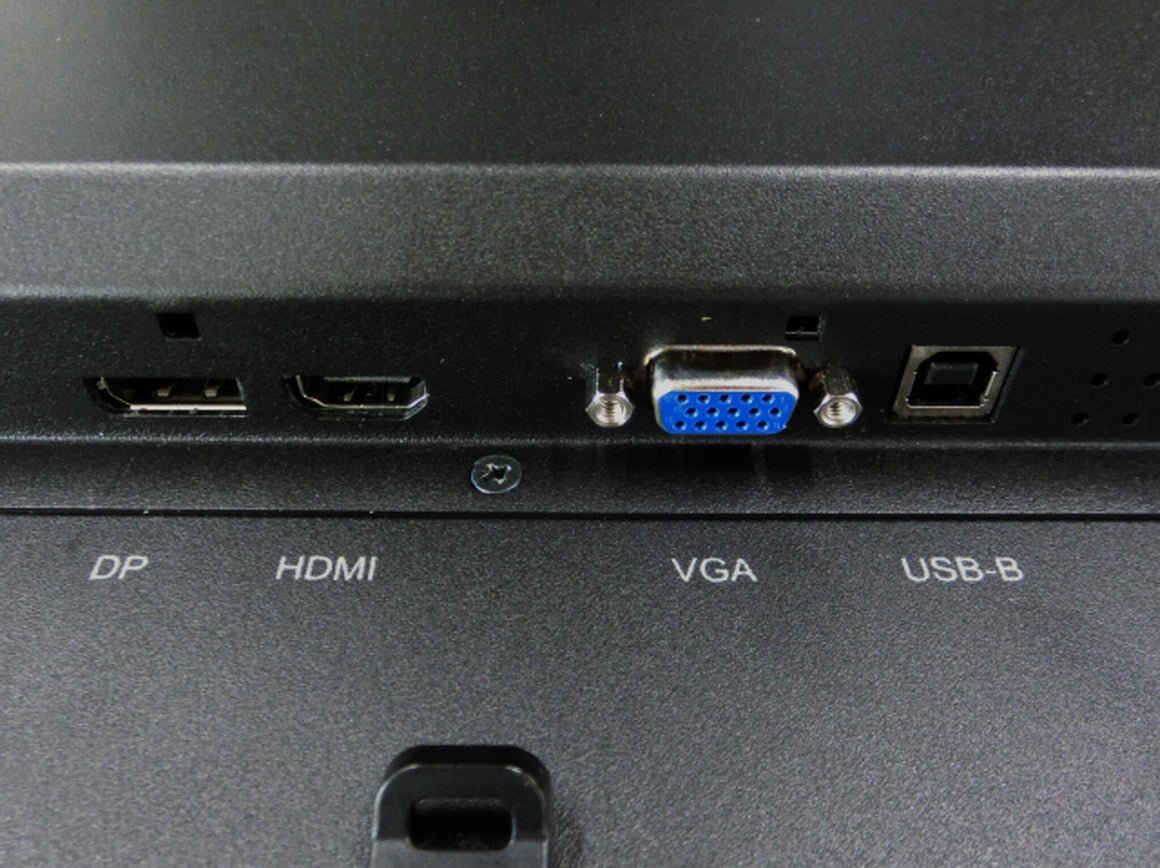

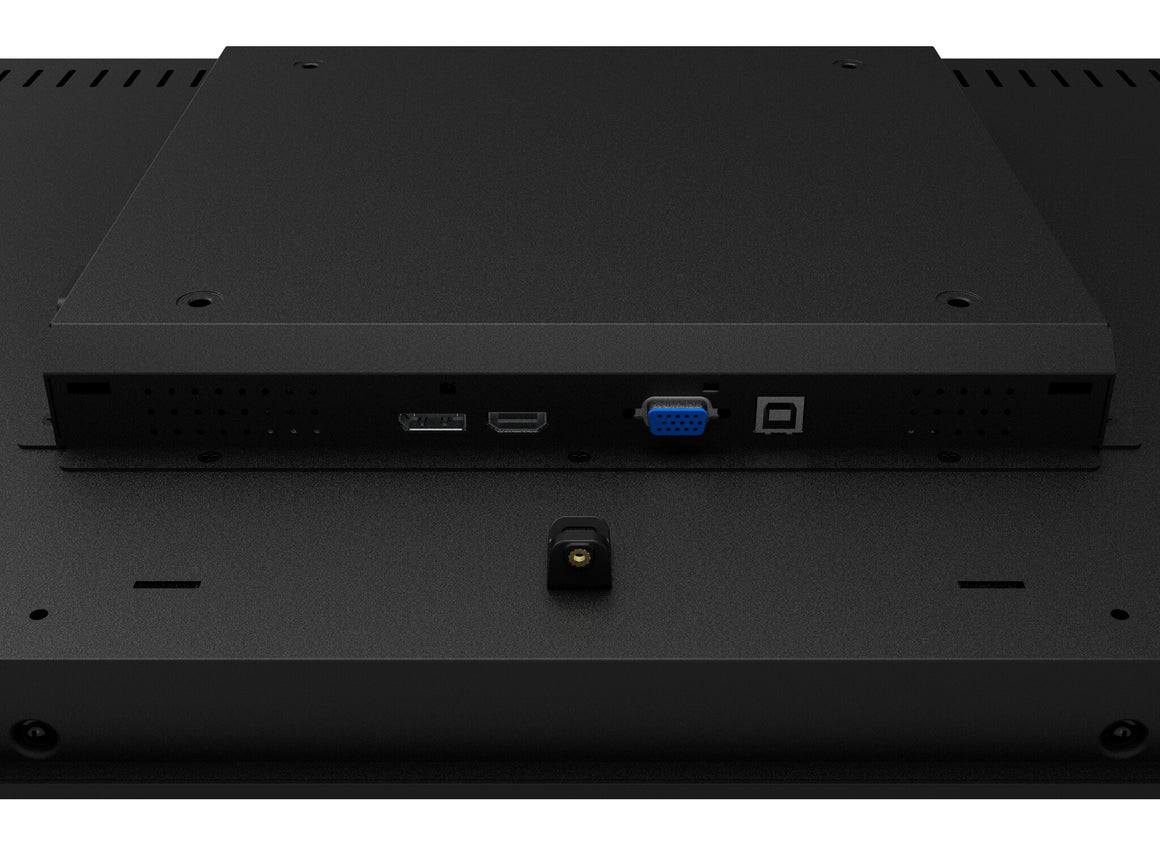

| Ports & interfaces |
|---|
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Ergonomics |
|---|
| Plug and Play |
Yes |
| Number of OSD languages |
7 |
| On Screen Display (OSD) languages |
German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) |
Yes |
| Cable lock slot |
No |
| Cable management |
Yes |
| Wall mountable |
Yes |

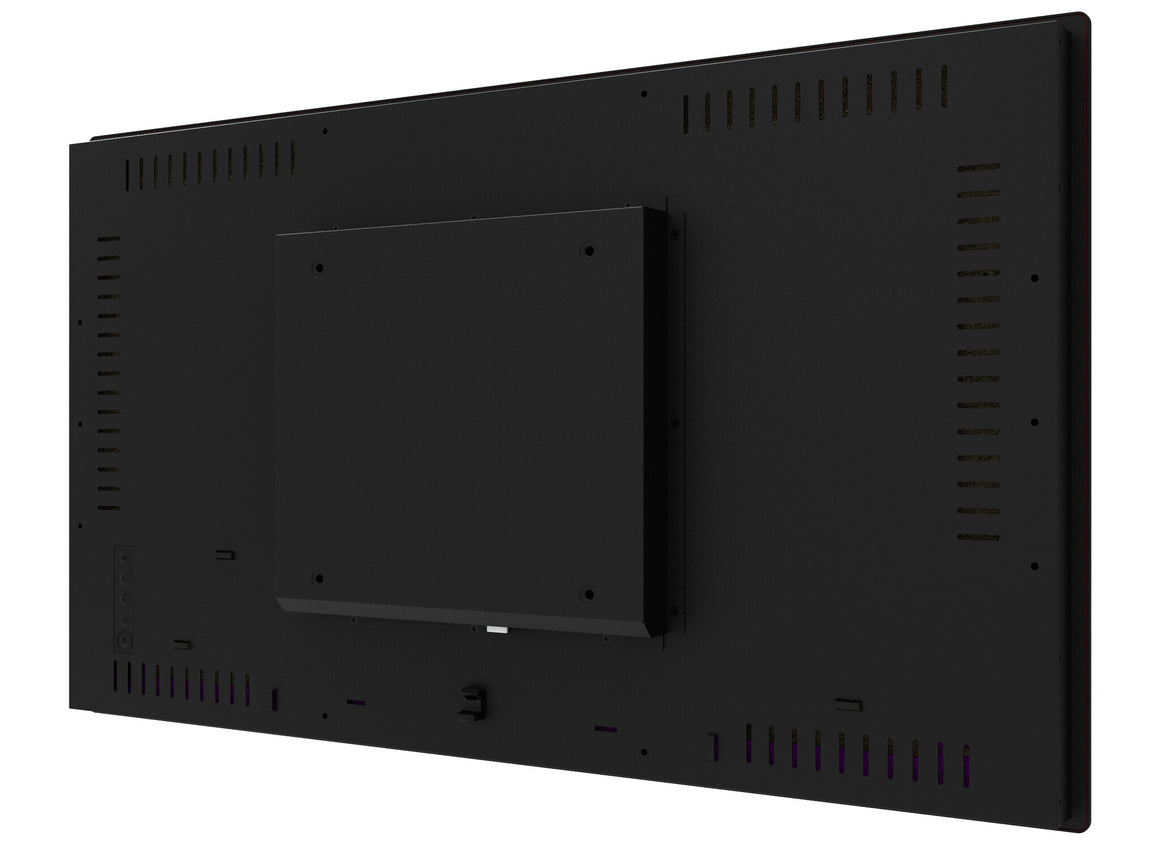

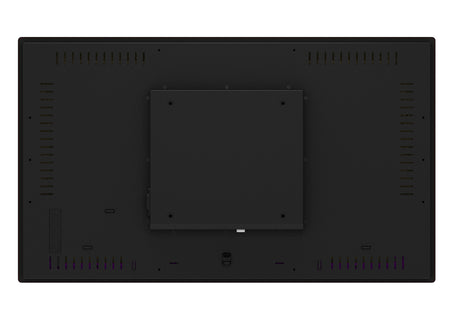

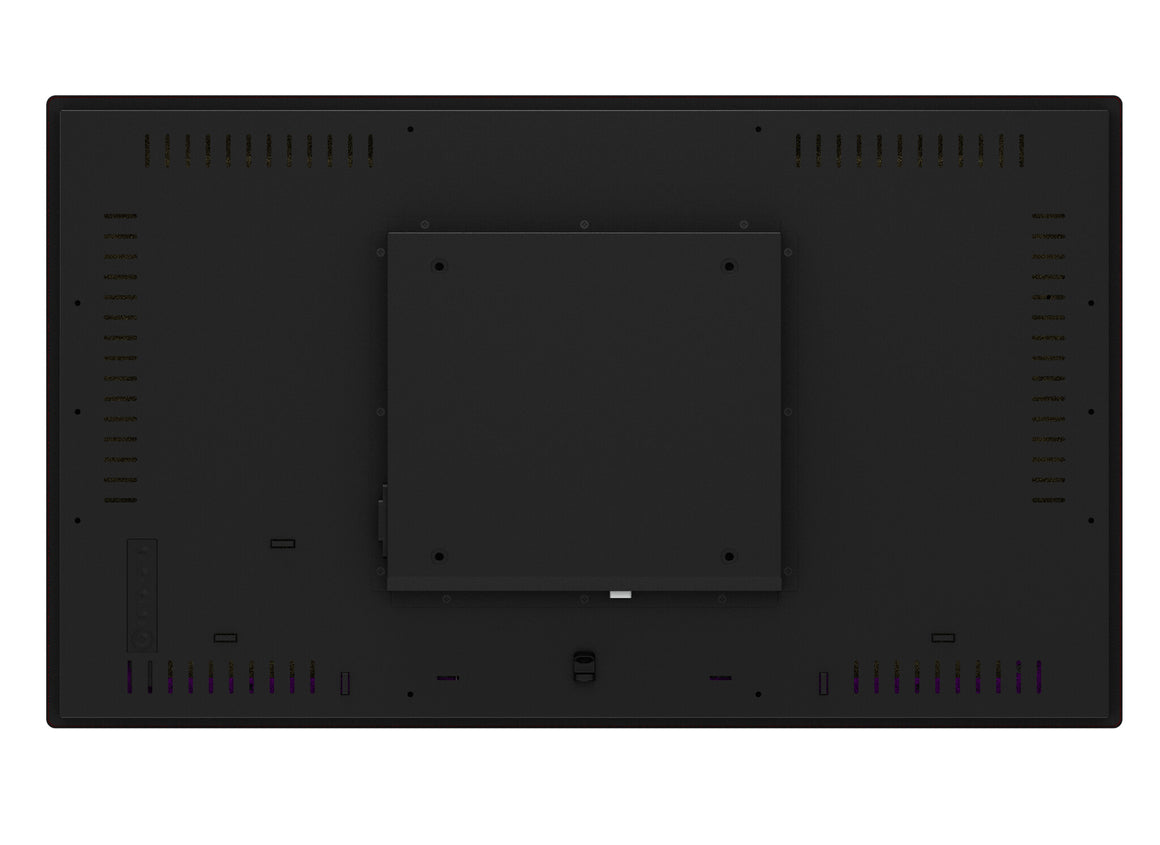

| Panel mounting interface |
200 x 200 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
466703 |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
32 W |
| Energy consumption (SDR) per 1000 hours |
31 kWh |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight (without stand) |
10 kg |
| Height (without stand) |
437 mm |

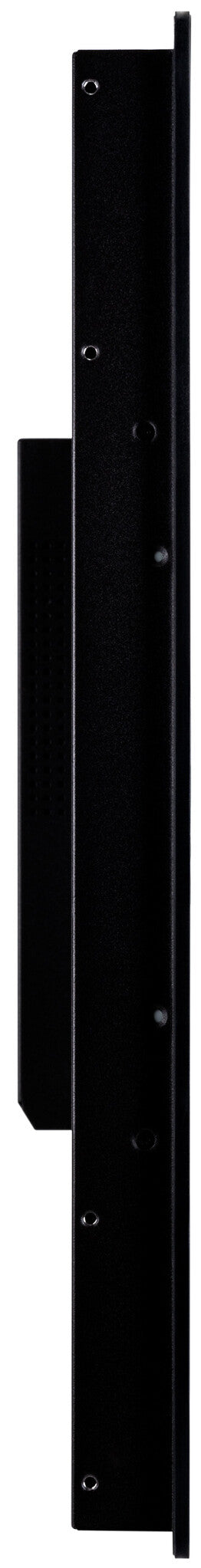

| Depth (without stand) |
61 mm |
| Width (without stand) |
742.5 mm |
| Weight (with stand) |
10 kg |
| Height (with stand) |
437 mm |
| Depth (with stand) |
61 mm |
| Width (with stand) |
743 mm |
| Packaging data |
|---|
| Package weight |
13.3 kg |
| Package height |
630 mm |
| Package depth |
890 mm |
| Package width |
890 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |

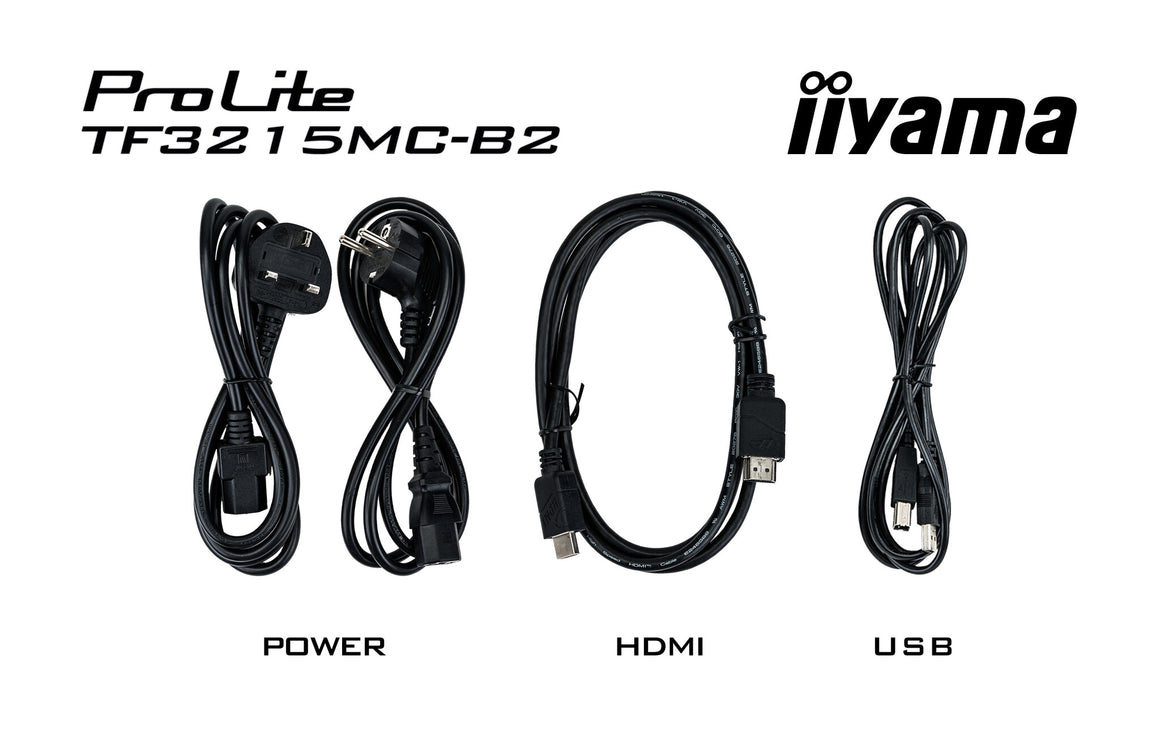

| Cables included |
AC, HDMI, USB |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Full HD |
Yes |
| Positional accuracy |
2 mm |
| International Protection (IP) code |
IP65 |
