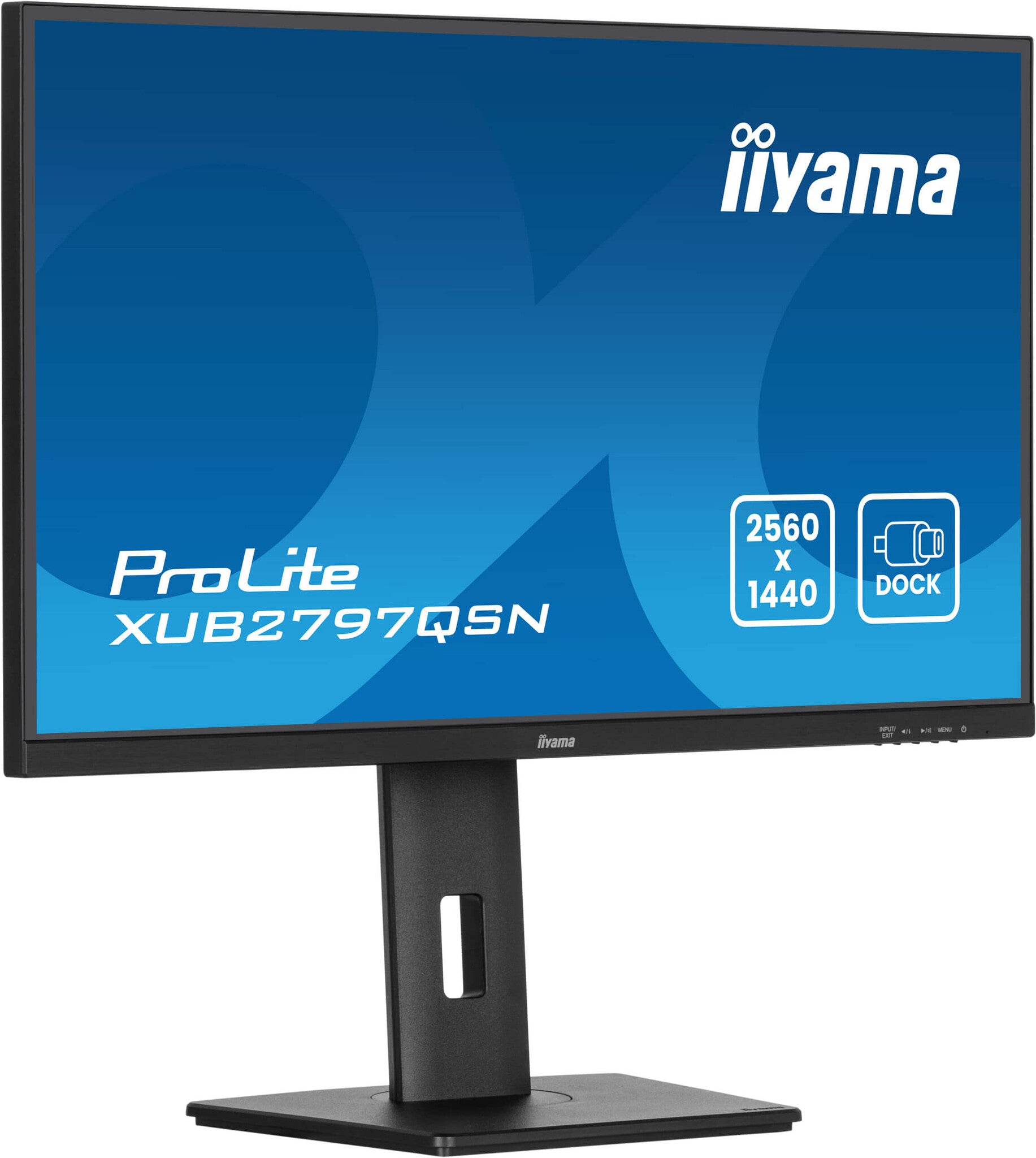

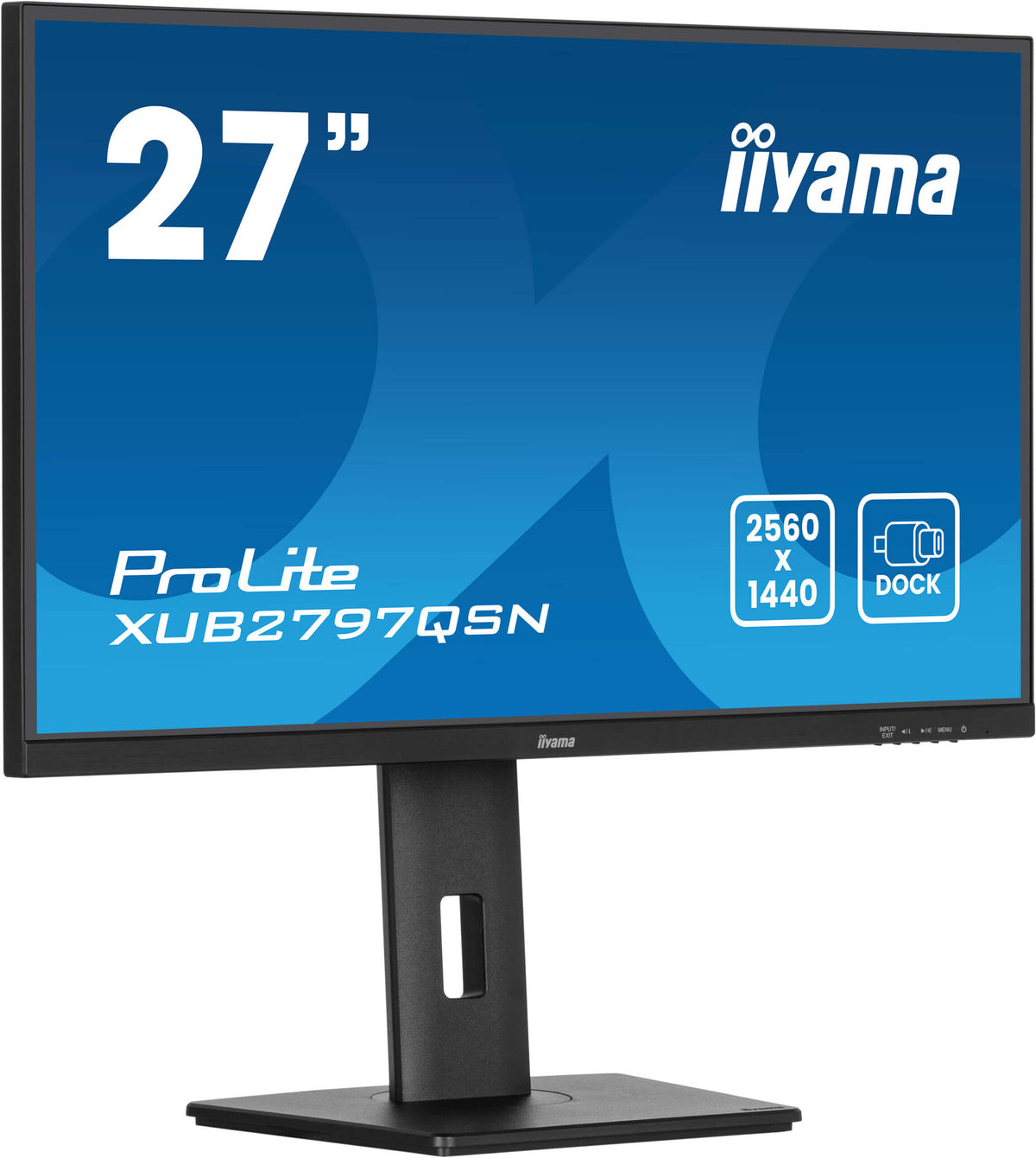

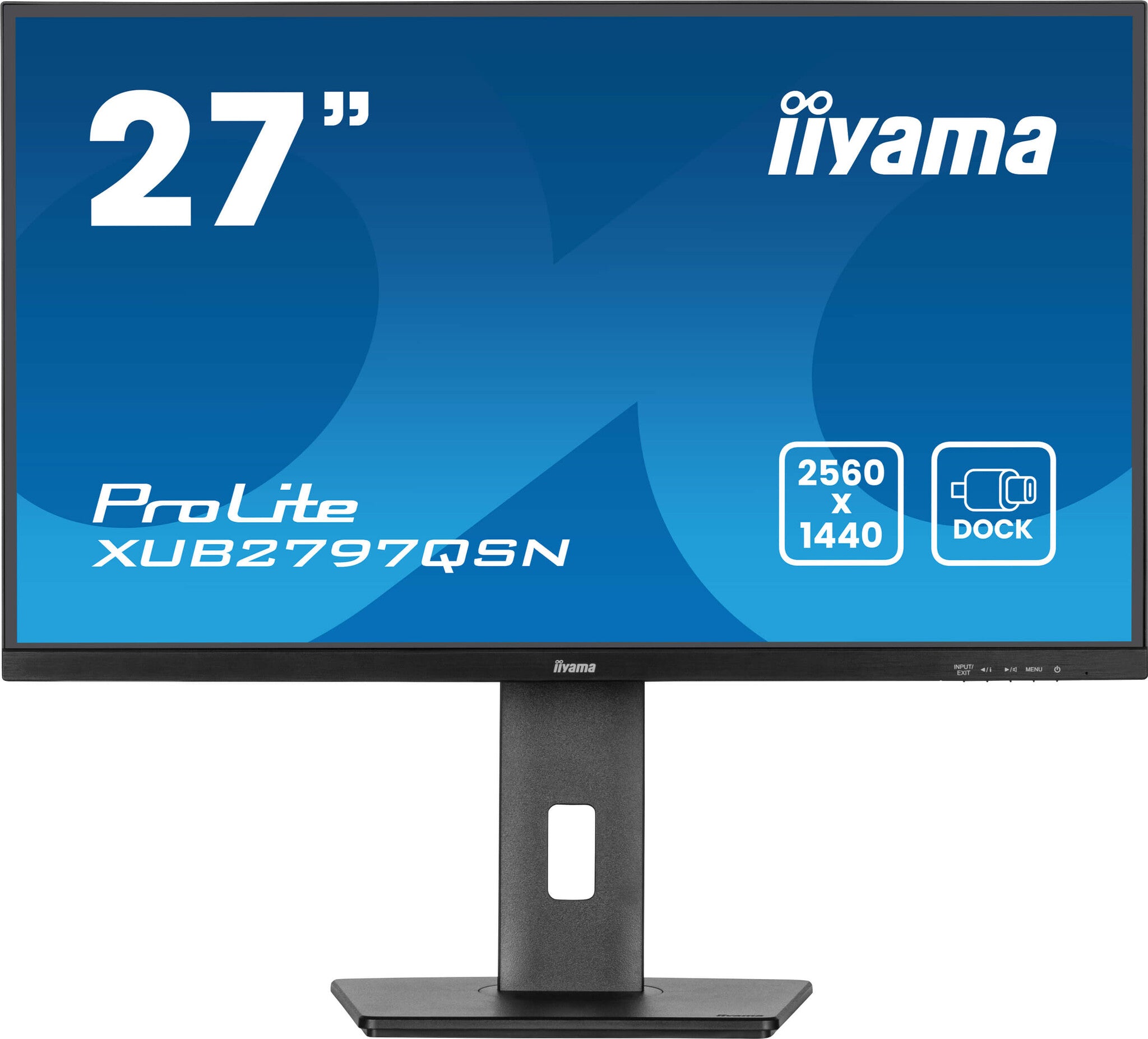

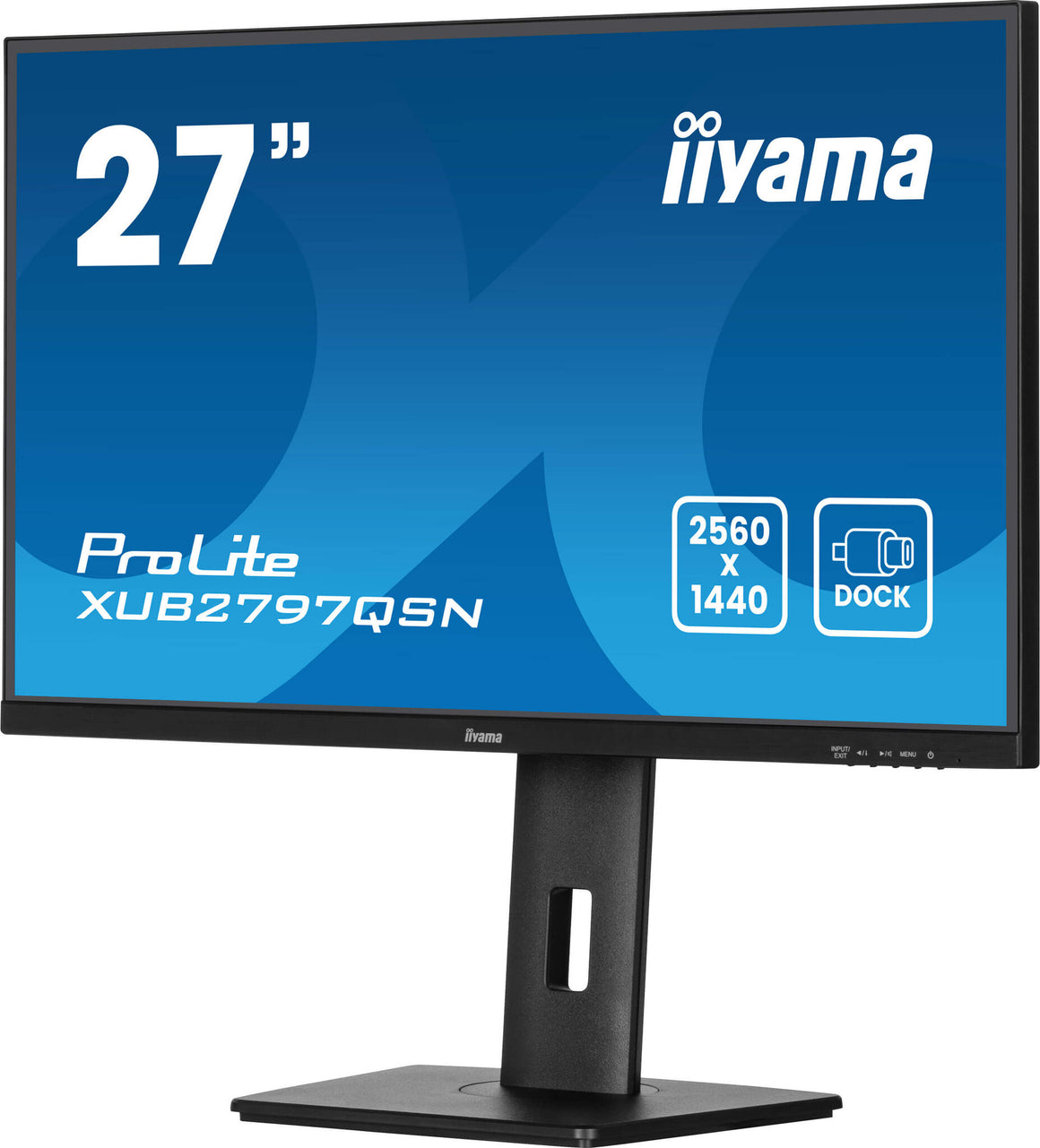

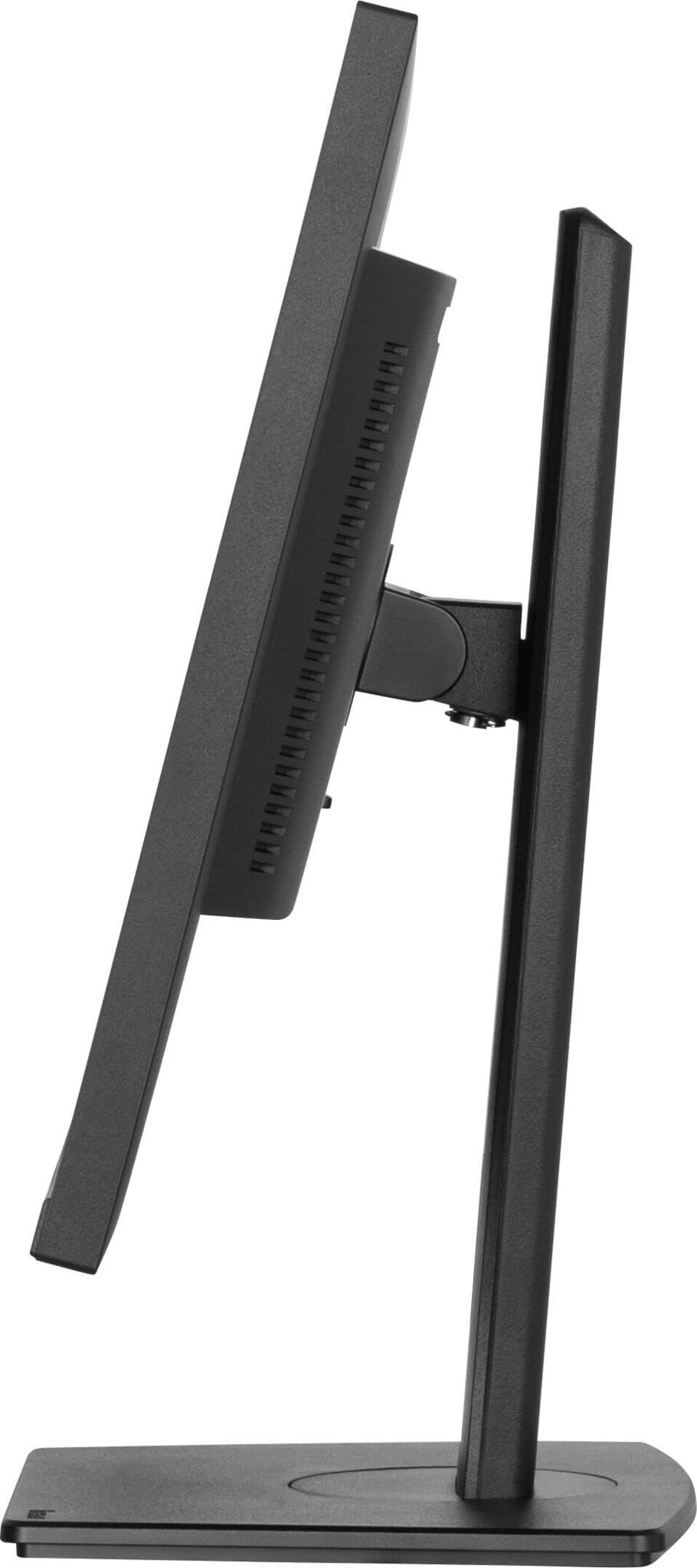

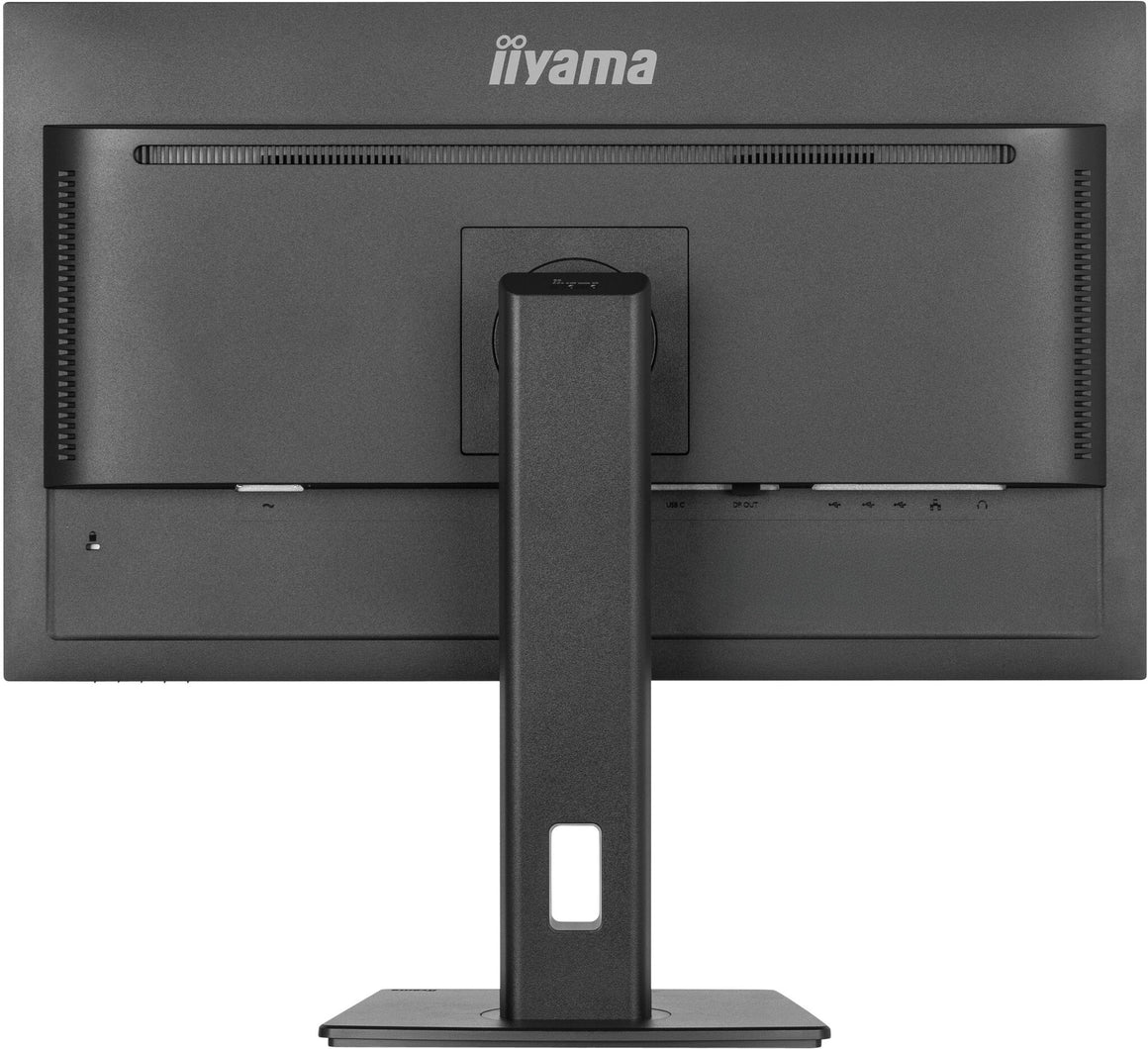

Equipped with a USB-C dock connector, the XUB2797QSN allows you to simplify your workspace by using a single cable to both send signal (audio, video and touch) from your notebook to your monitor whilst providing power and charge to the notebook. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. The IPS panel assures rich and accurate colours with wide viewing angles. QHD resolution, high contrast and brightness values mean the monitor provides excellent performance for photographic and web design. The ergonomic stand offers a height adjustment of 150mm and with the tilt and swivel mechanisms you can easily turn the monitor into portrait mode for more comfort while working on large data sheets. Available with 96W PD and KVM: XUB2797QSNP-B1 Available also without USB-C dock: XUB2797QSU-B2 .
| Display |
|---|
| NTSC coverage (typical) |
72% |
| sRGB coverage (typical) |
99% |
| Display diagonal (metric) |
68.5 cm |
| Viewable size, vertical |
33.6 cm |
| Viewable size, horizontal |
59.7 cm |
| Horizontal scan range |
30 - 151 kHz |
| Pixel pitch |
0.233 x 0.233 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
100 Hz |
| Contrast ratio (dynamic) |
80000000:1 |
| Contrast ratio (typical) |
1300:1 |
| Screen shape |
Flat |
| Display surface |
Matt |
| Response time |
1 ms |
| Display brightness (typical) |
300 cd/m² |
| Panel type |
IPS |
| HD type |
2K Ultra HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
2560 x 1440 pixels |
| Display diagonal |
68.6 cm (27") |
| Performance |
|---|
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| VESA Adaptive Sync support |
Yes |
| Multimedia |
|---|
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| Headphone out |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB Power Delivery up to |
65 W |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C downstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
3 |
| Number of USB Type-C upstream ports quantity |
1 |
| Number of upstream ports |
1 |
| USB upstream port type |
USB Type-C |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| Number of OSD languages |
10 |
| On Screen Display (OSD) languages |
Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| On Screen Display (OSD) |
Yes |

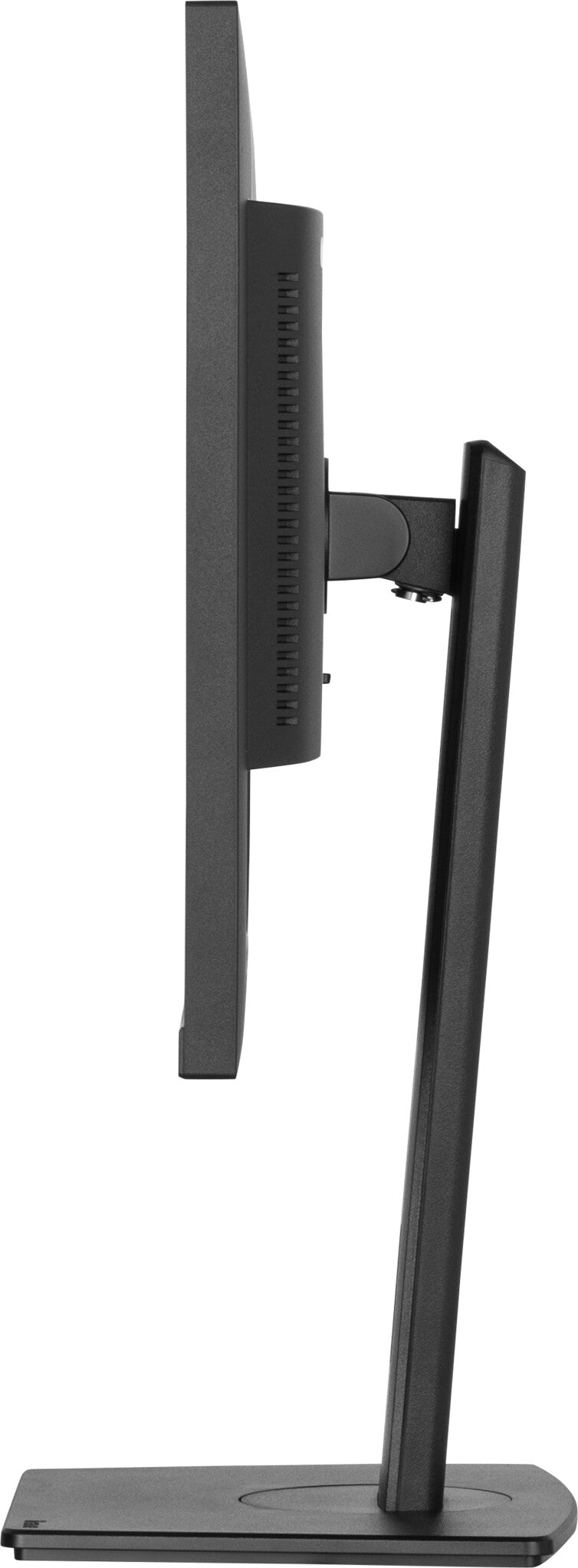

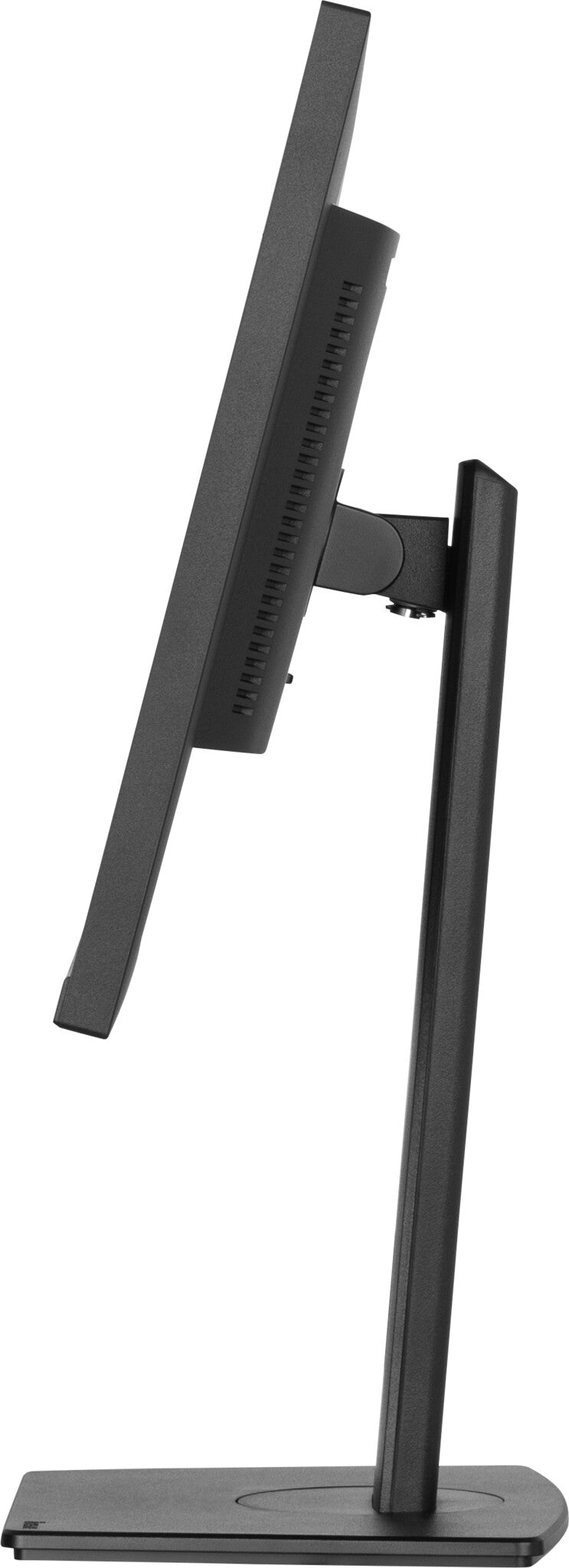

| Tilt angle range |
-5 - 23° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-45 - 45° |
| Swivelling |
Yes |

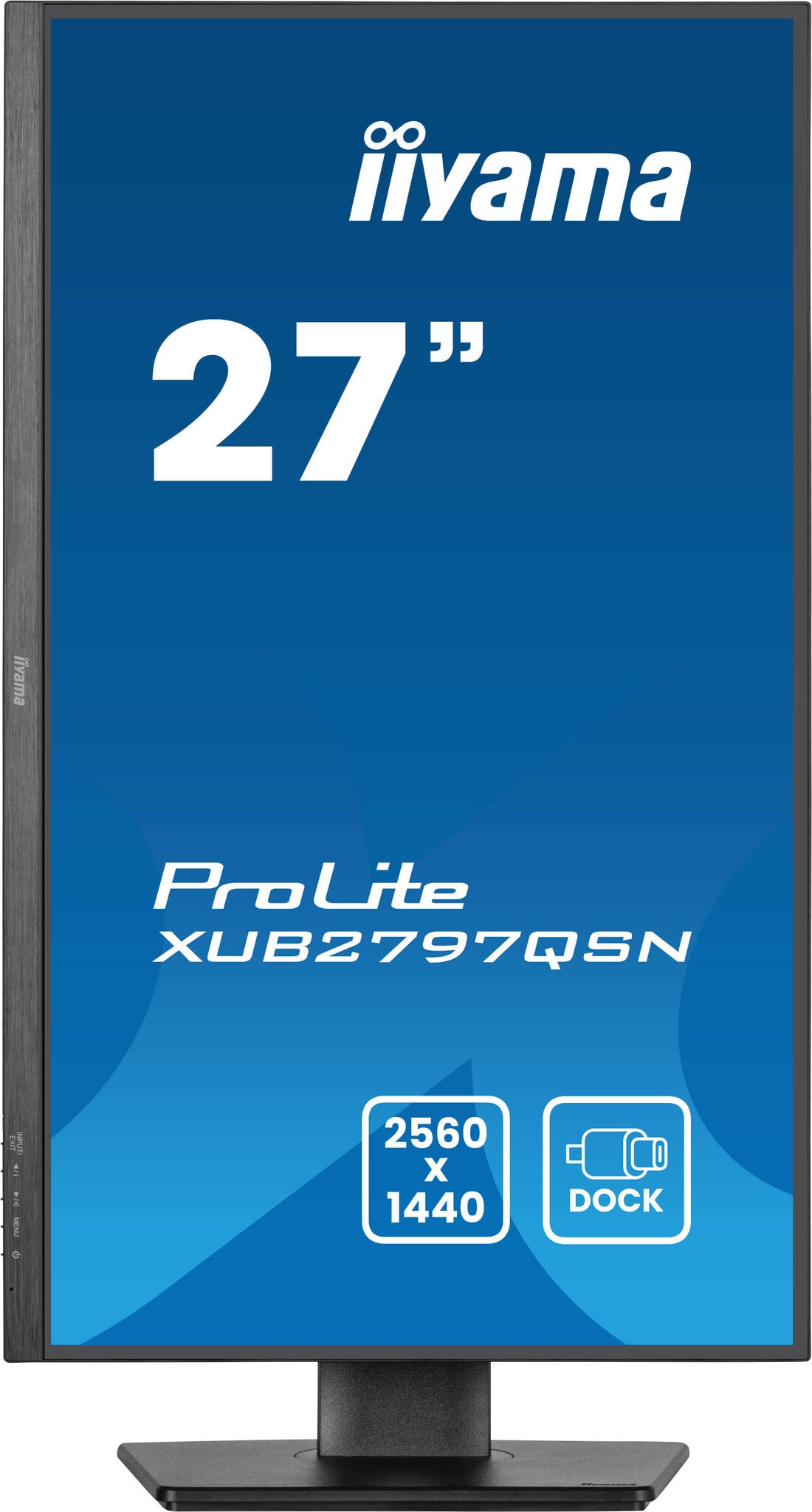

| Pivot angle |
0 - 90° |
| Pivot |
Yes |
| Adjustable height (max) |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Cable management |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
26 W |
| Energy consumption (SDR) per 1000 hours |
22 kWh |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
|---|
| Height (without stand) |
364 mm |
| Depth (without stand) |
209.5 mm |
| Width (without stand) |
613.5 mm |
| Weight (with stand) |
6.1 kg |
| Height (with stand) |
403.5 mm |
| Depth (with stand) |
209.5 mm |
| Width (with stand) |
613.5 mm |
| Packaging data |
|---|
| Package weight |
8.7 kg |
| Package height |
427 mm |
| Package depth |
130 mm |
| Package width |
679 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB Type-C |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| Certification |
TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |

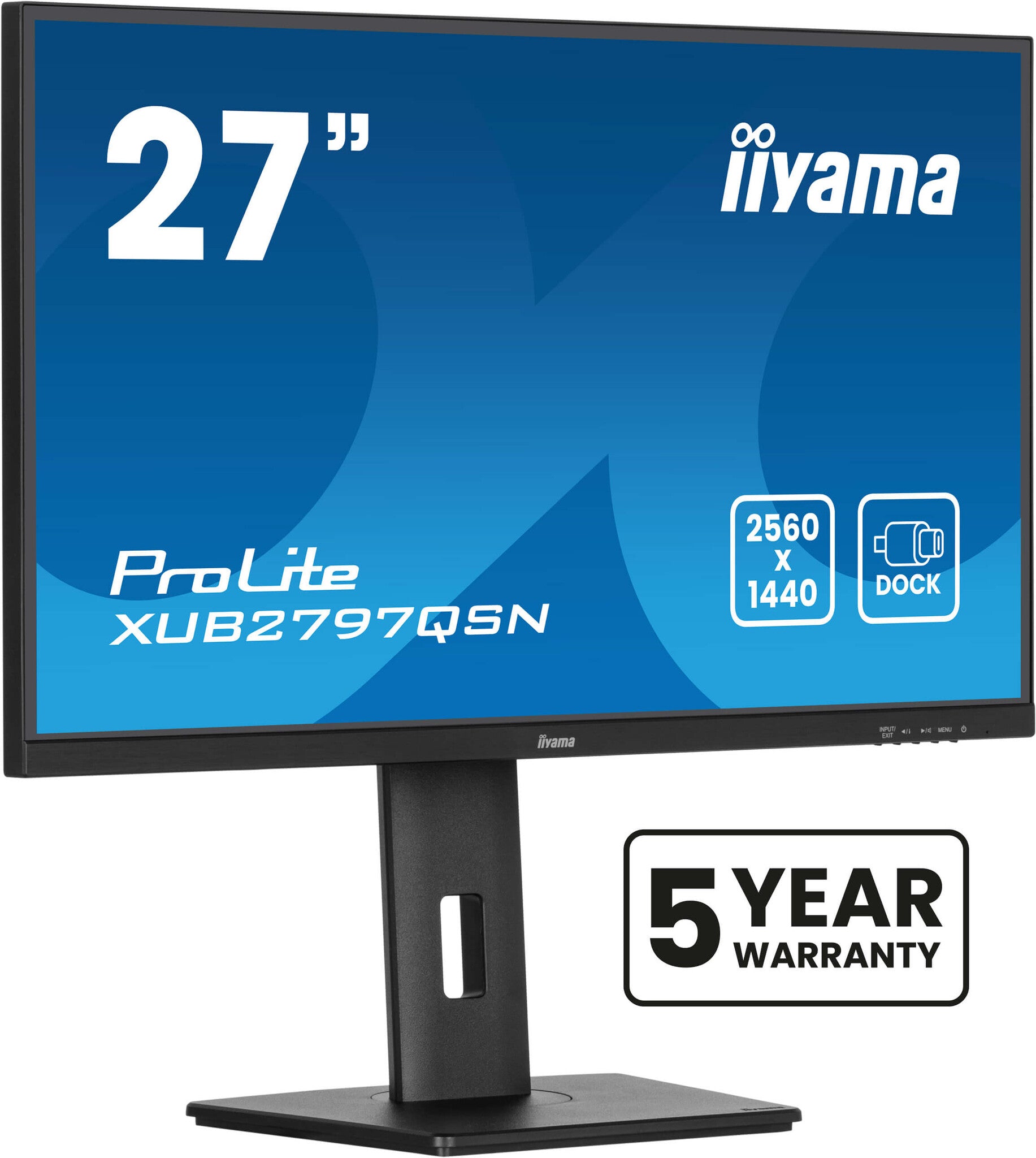

| Warranty period |
5 year(s) |
