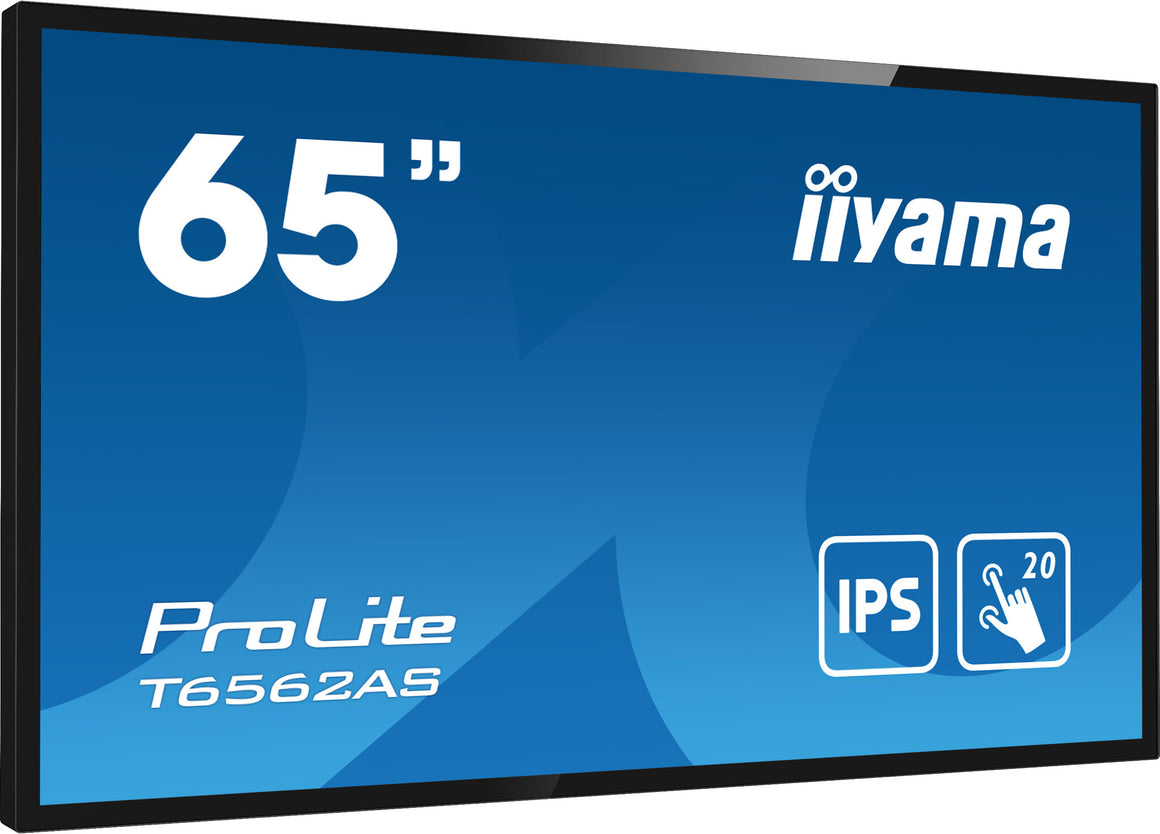

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined design of the T6562AS-B1 lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before. EOL, Successor: ProLite T6529AS-B1
| Display |
|---|
| NTSC coverage (typical) |
72% |
| Surface hardness |
6H |
| Display diagonal (metric) |
164 cm |
| Viewable size, horizontal |
80.3 cm |
| Horizontal scan range |
30 - 135 kHz |
| Pixel pitch |
0.372 x 0.372 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
8 ms |
| Display brightness |
500 cd/m² |
| Display brightness (typical) |
500 cd/m² |
| Number of simultaneous touchpoints |
20 |
| Touchscreen technology |
Projected capacitive system |
| Panel type |
IPS |
| HD type |
4K Ultra HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
3840 x 2160 pixels |
| Display diagonal |
163.8 cm (64.5") |
| Performance |
|---|
| Operating system installed |
Android 8.0 |
| Operating hours (hours/days) |
24/7 |
| Multimedia |
|---|
| RMS rated power |
20 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Glass thickness |
2.5 mm |
| Front bezel colour |
Black |
| Product colour |
Black |
| Ports & interfaces |
|---|
| RS-232C |
Yes |
| HDCP version |
2.2 |
| HDCP |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
No |
| USB Touch port |
Yes |
| USB version |
2.0 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ergonomics |
|---|
| Number of OSD languages |
8 |
| On Screen Display (OSD) languages |
German, Dutch, English, Spanish, French, Japanese, Polish, Russian |
| On Screen Display (OSD) |
Yes |

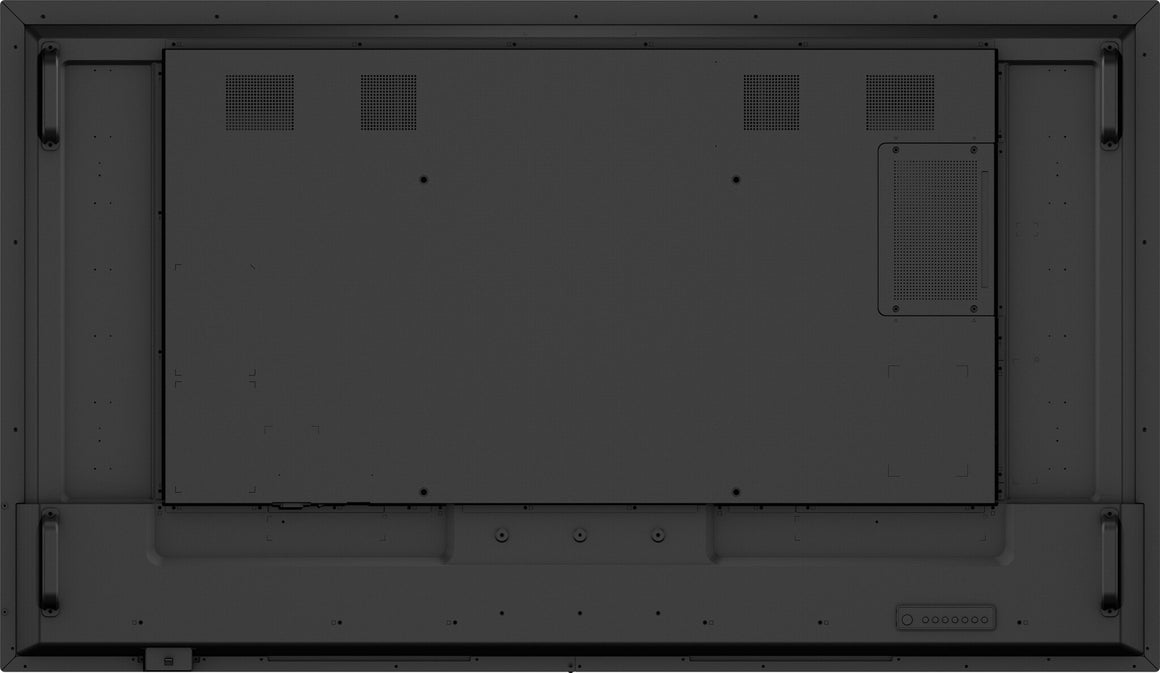

| Panel mounting interface |
400 x 400 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Power supply type |
Internal |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
165 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight (with stand) |
38.4 kg |
| Height (with stand) |
860 mm |
| Depth (with stand) |
71.8 mm |
| Width (with stand) |
1485 mm |
| Packaging data |
|---|
| Package weight |
46 kg |
| Package height |
1021 mm |
| Package depth |
1649 mm |
| Package width |
1649 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Remote control batteries included |
Yes |
| Remote control included |
Yes |

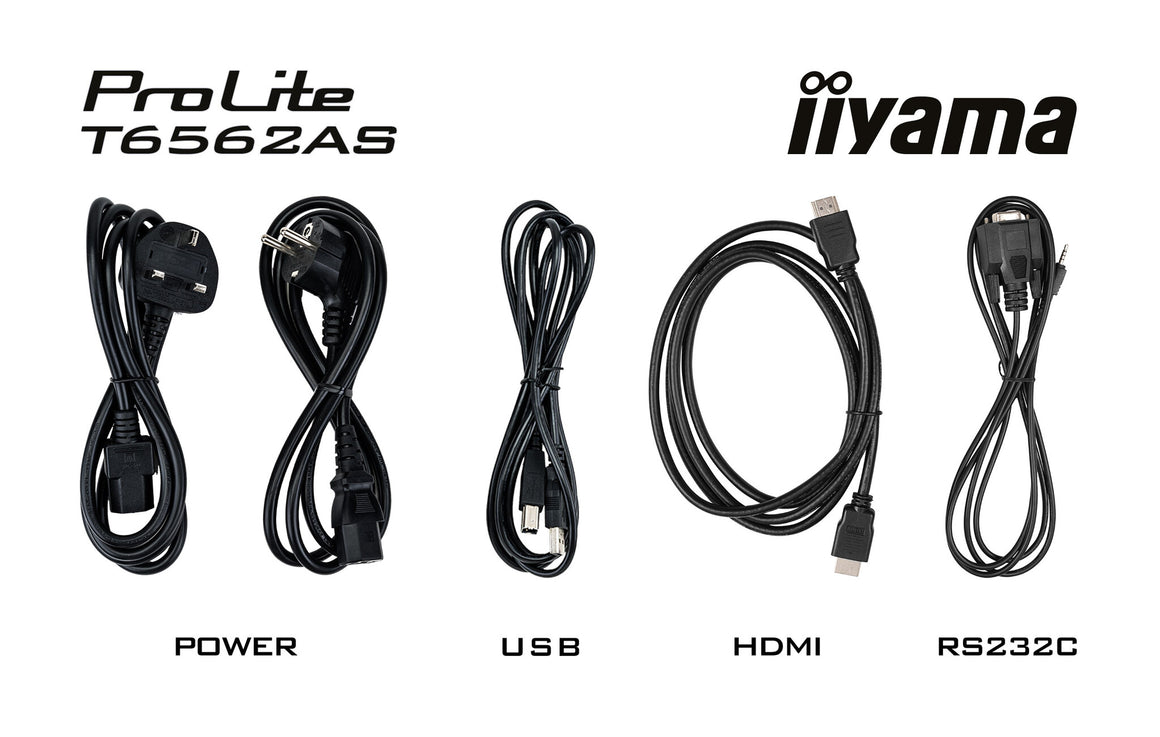

| Cables included |
AC, HDMI, RS-232, USB |
| Sustainability |
|---|
| Sustainability certificates |
ErP |
| Other features |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Mean time between failures (MTBF) |
50000 h |
| Built-in processor |
Yes |
| Active display area (W x H) |
1422.4 x 802.6 mm |
| Multi-touch |
Yes |
| Height |
860 mm |
| Width |
1485 mm |
| Depth |
71.8 mm |
| USB ports quantity |
2 |
| Compliance certificates |
CE, REACH, RoHS, WEEE |
| Placement supported |
Indoor |
| Weight |
38.4 kg |
| Logistics data |
|---|
| Pallet net height |
13 cm |
| Pallet net length |
114 cm |
| Pallet net width |
166 cm |
