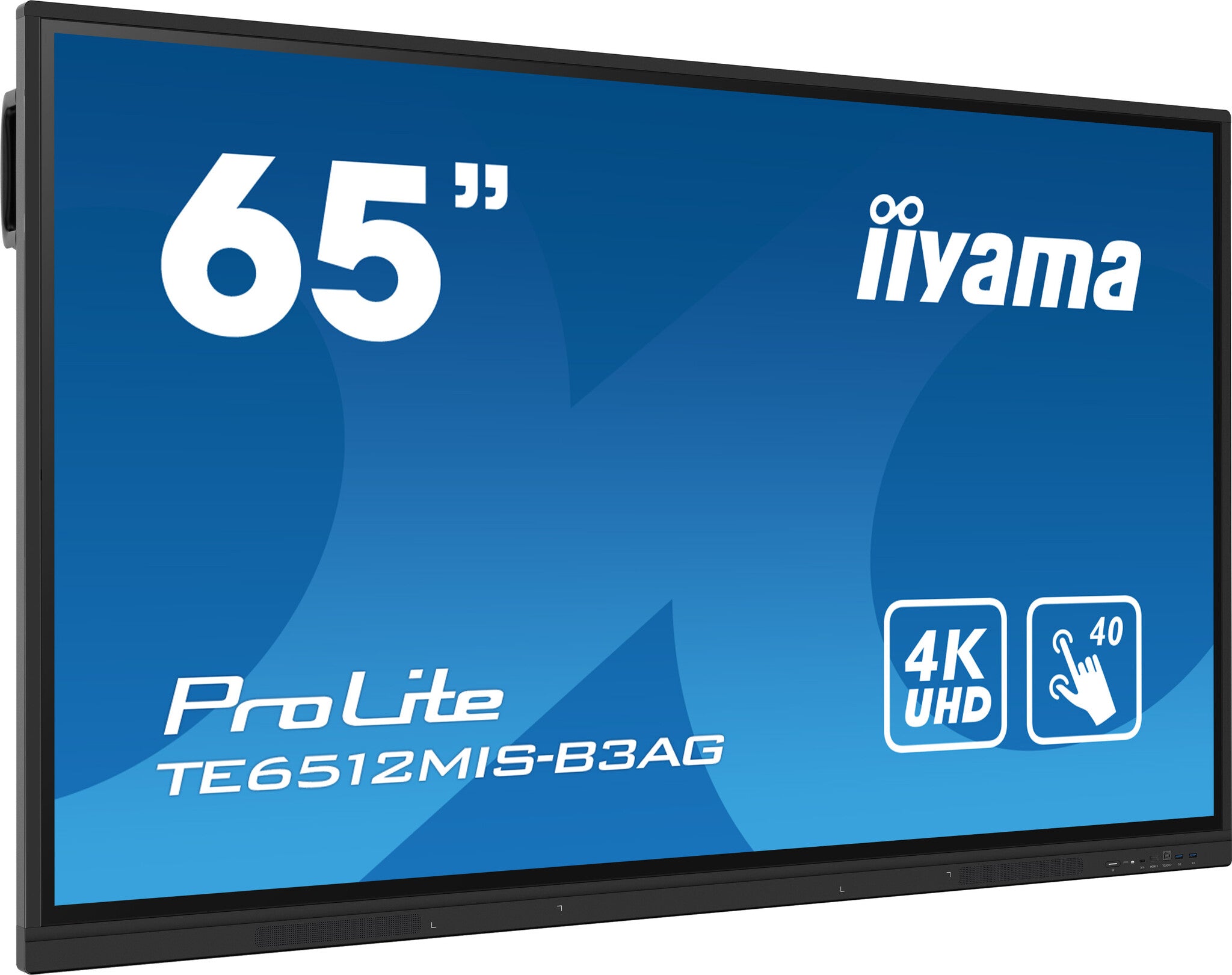

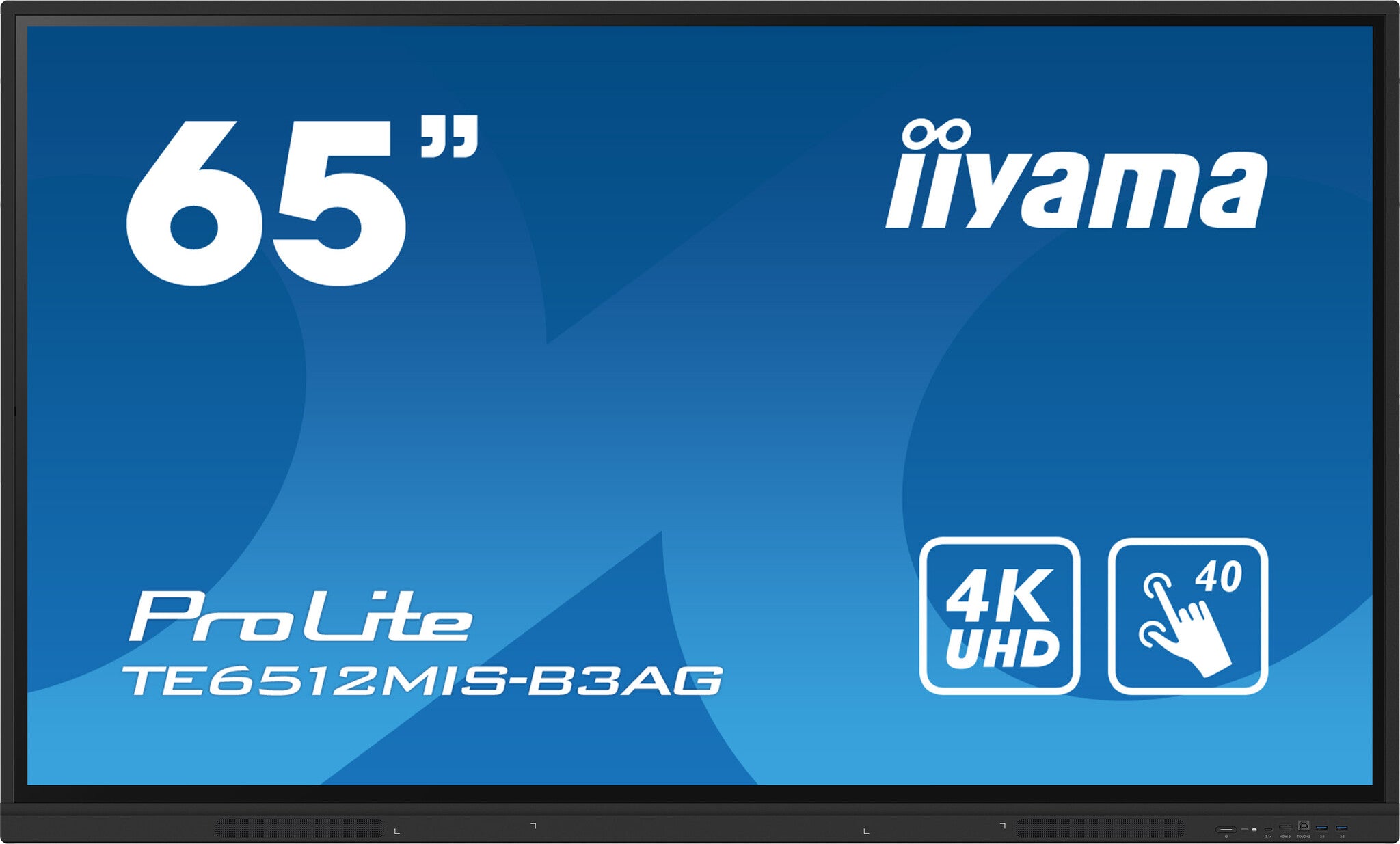

65" Interactive 4K UHD Touchscreen elevating interactive collaboration

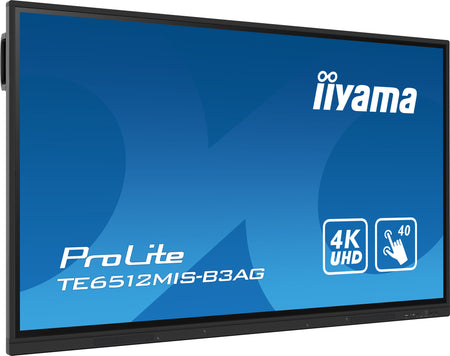

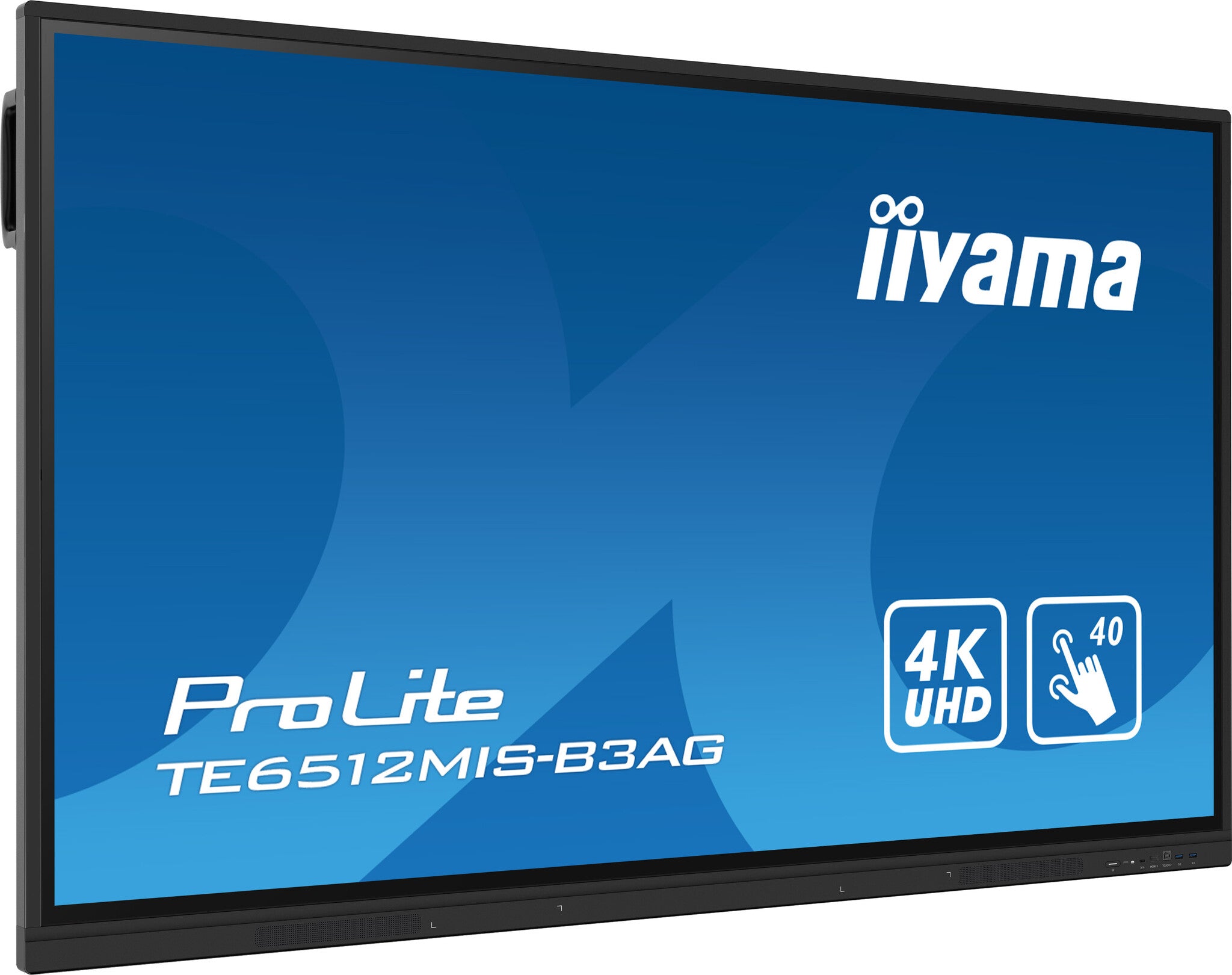

The TE6512MIS-B3AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR, iiWare 10 with Android 11, WiFi, and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings.
Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE6512MIS-B3AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users.
Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.
IIWARE
iiWare 10 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.
| Display |
|---|
| Surface hardness |
7H |
| Glass film |
AG/AR Film |
| Glass thickness |
3 mm |
| Horizontal scan range |
30 - 135 kHz |
| Display diagonal (metric) |
163.9 cm |
| Active display area (W x H) |
1428.5 x 803.5 mm |
| Pixel pitch |
0.372 x 0.372 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
4000:1 |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Number of simultaneous touchpoints |
40 |
| Touchscreen technology |
PureTouch-IR |
| Touchscreen |
Yes |
| HD type |
4K Ultra HD |
| Display brightness |
400 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
IPS |
| Display technology |
LCD |
| Display diagonal |
165.1 cm (65") |

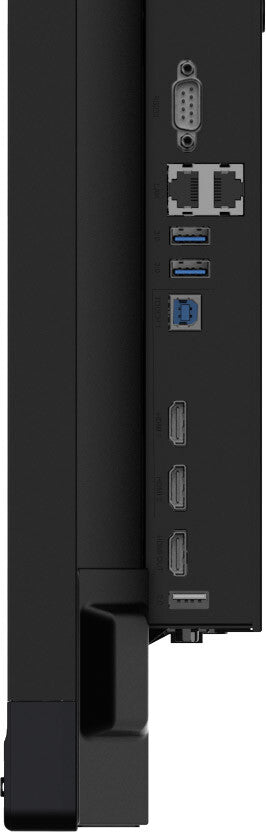

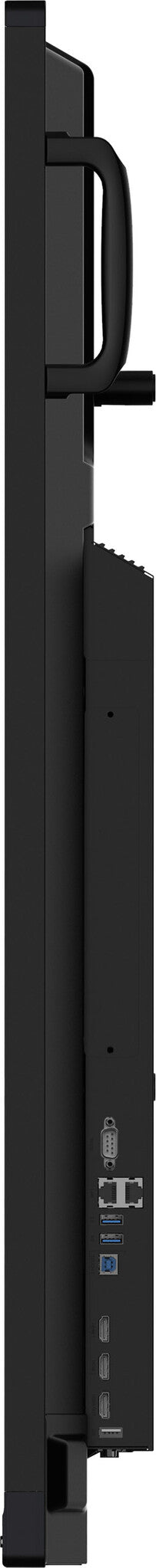

| Ports & interfaces |
|---|
| Audio Return Channel (ARC) |
Yes |
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| RS-232 interface |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
5 |
| USB port |
Yes |

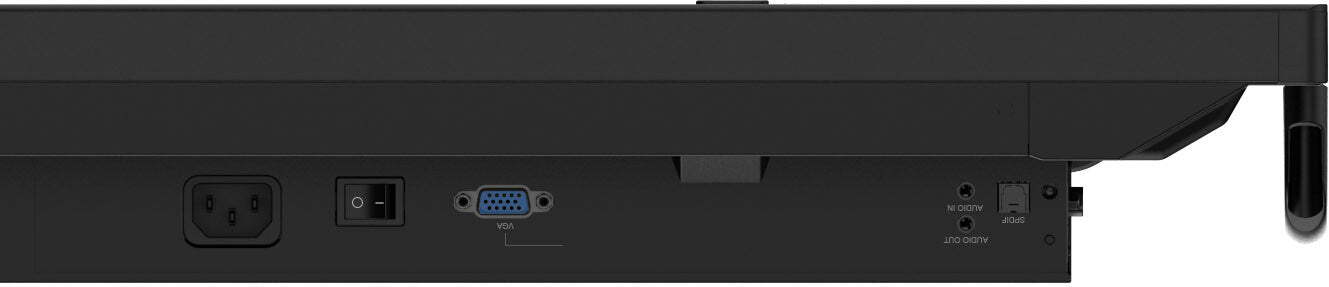

| VGA (D-Sub) input ports |
1 |
| DVI port |
No |
| HDMI output ports quantity |
1 |
| HDMI input ports quantity |
3 |
| HDMI version |
2.0 |
| HDMI ports quantity |
4 |
| Audio |
|---|
| RMS rated power |
32 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Bezel width (top) |
1.65 cm |
| Bezel width (side) |
1.65 cm |
| Bezel width (bottom) |
4.5 cm |

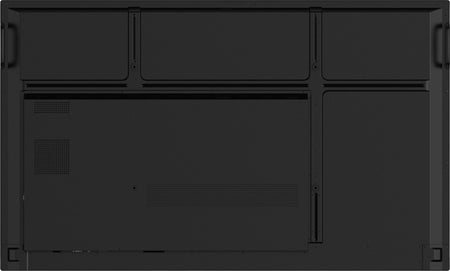

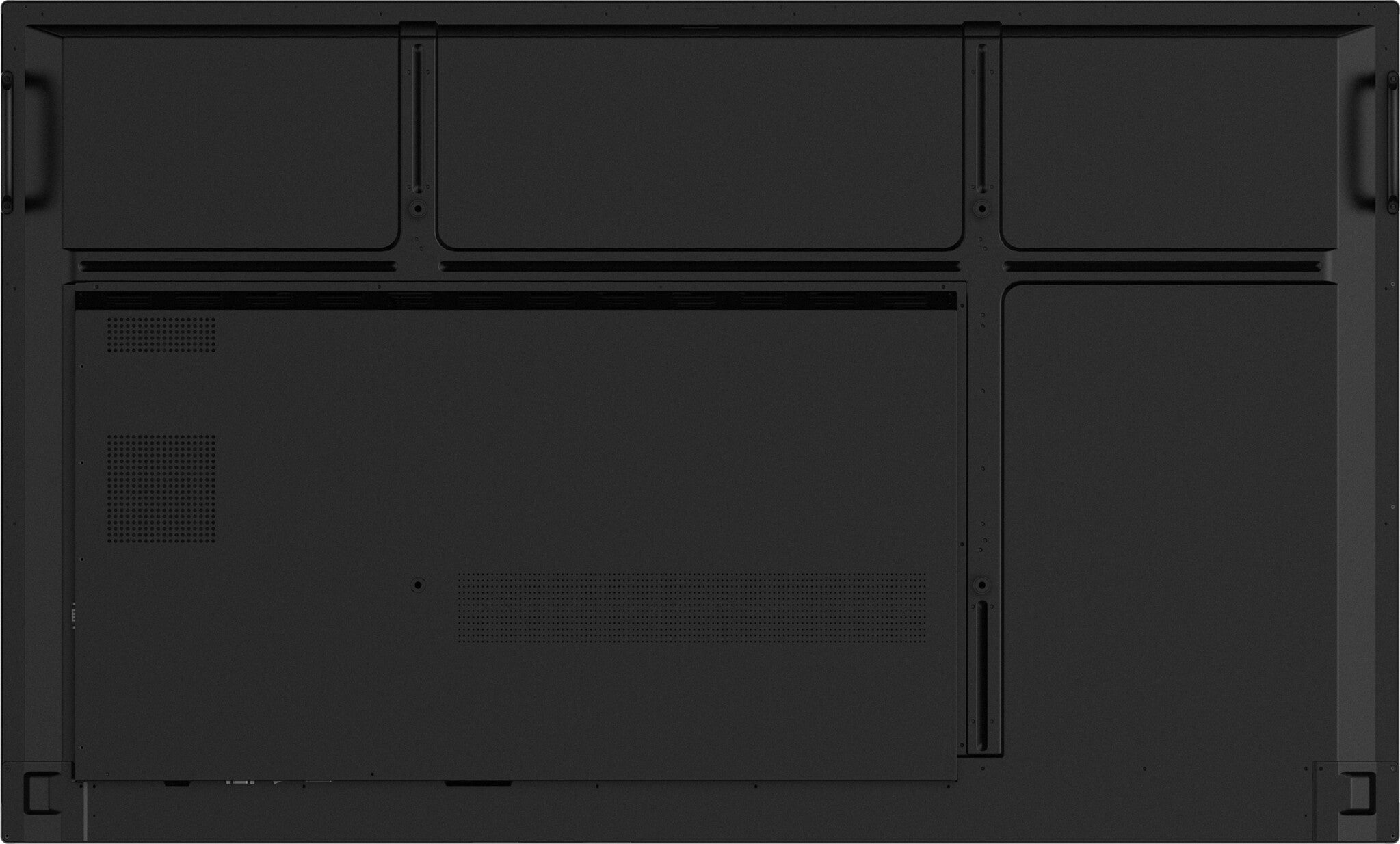

| Panel mounting interface |
600 x 400 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Kiosk design |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Czech, Danish, German, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian |
| Purpose |
Commercial |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
138 W |
| Computer system |
|---|
| Operating system installed |
Android 11 |
| Internal storage capacity |
32 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
8 GB |
| Processor cores |
4 |
| Processor architecture |
ARM Cortex-A55 |
| Processor model |
A55 |
| Processor family |
ARM Cortex |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Weight (with stand) |
35 kg |
| Height (with stand) |
896.5 mm |
| Depth (with stand) |
87.5 mm |
| Width (with stand) |
1488.5 mm |
| Packaging data |
|---|
| Package volume |
44700 cm³ |
| Package height |
1005 mm |
| Package depth |
208 mm |
| Package width |
1628 mm |
| Packaging content |
|---|
| Cables included |
HDMI, Power, USB |
| Wi-Fi module included |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
-20 - 60% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0 |
