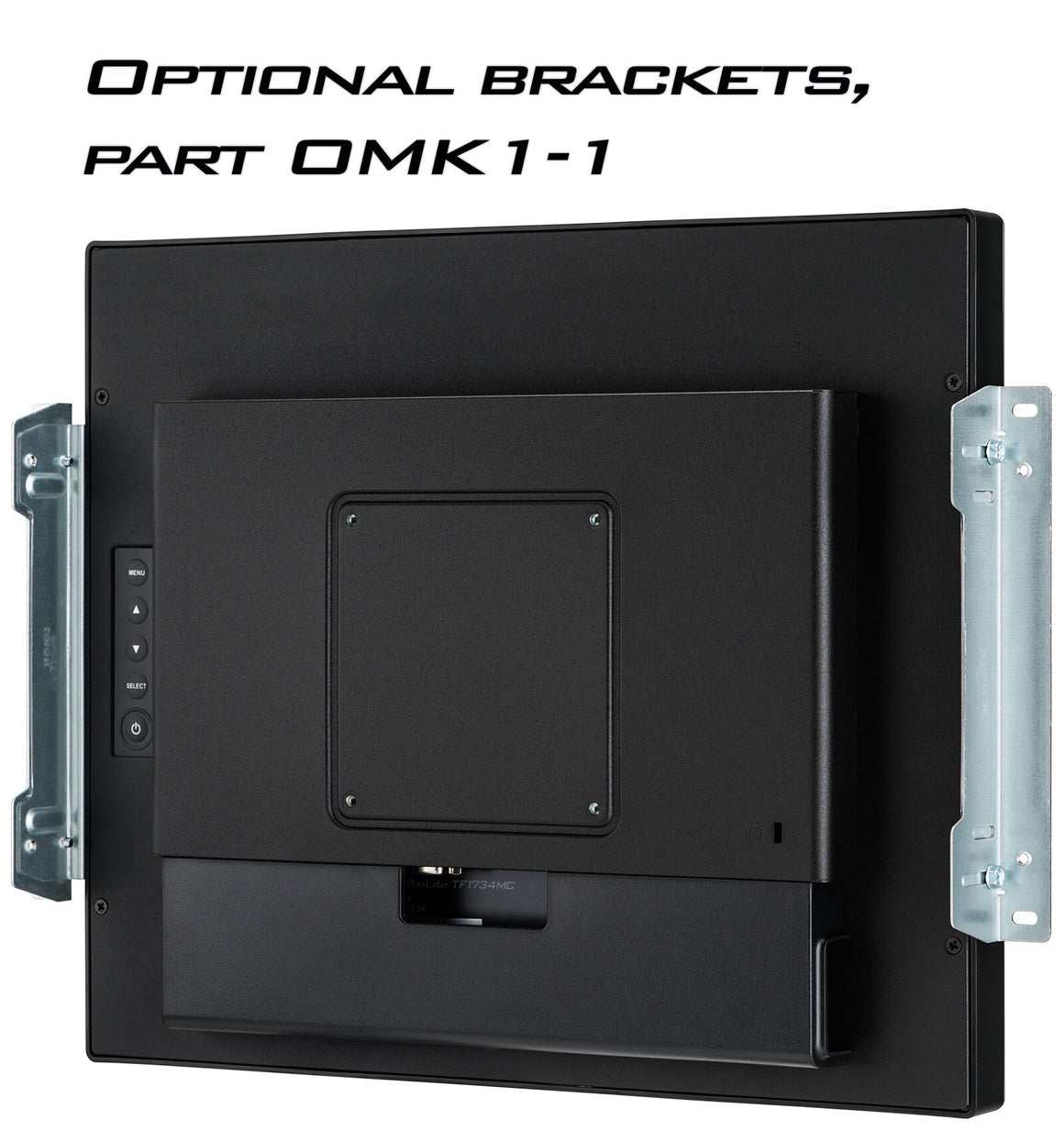

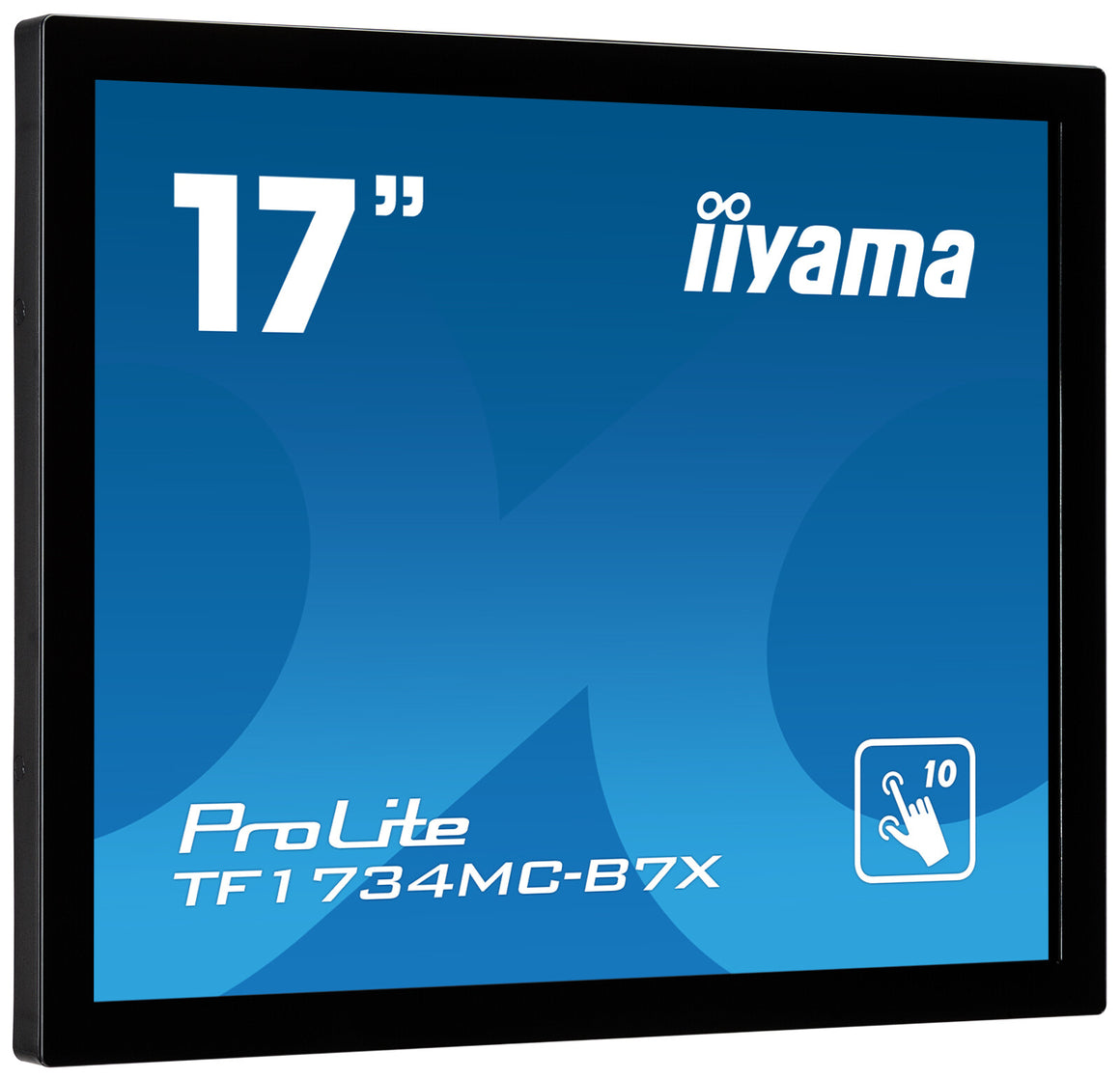

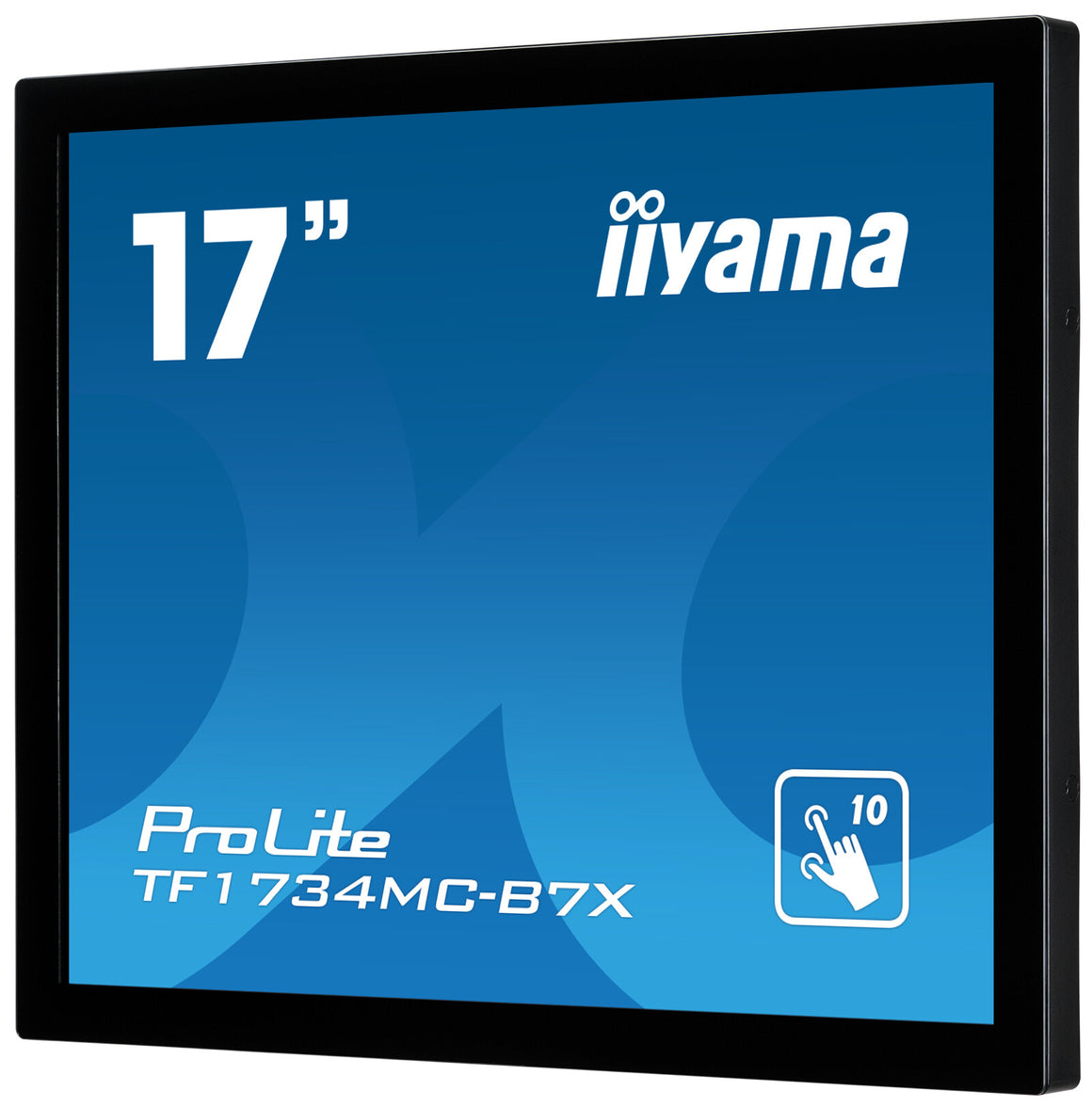

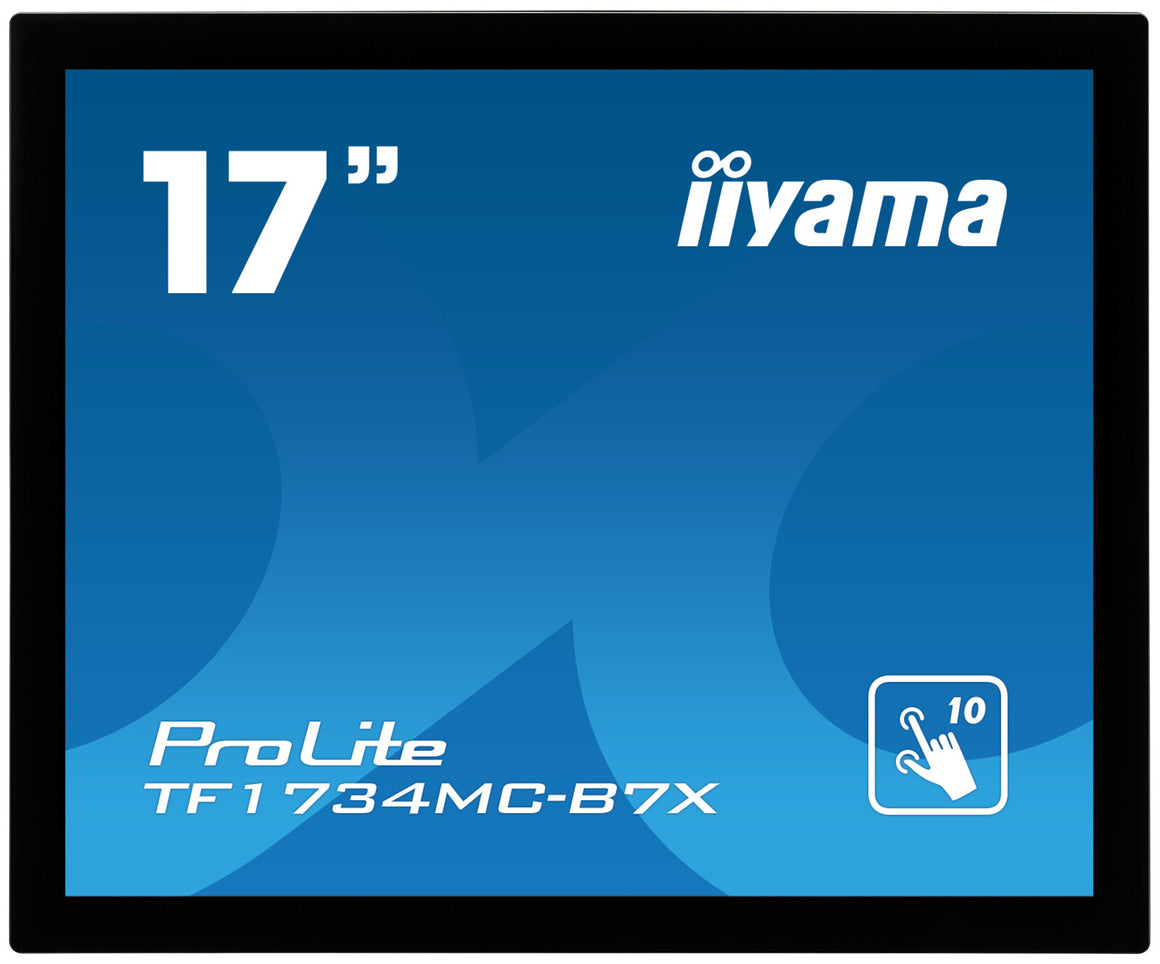

The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
| Display |
|---|
| Colour depth |
8 bit |
| Display diagonal (metric) |
43 cm |
| Viewable size diagonal |
43 cm |
| Viewable size, vertical |
27.1 cm |
| Viewable size, horizontal |
33.8 cm |
| Horizontal scan range |
31.4 - 80 kHz |
| Pixel pitch |
0.264 x 0.264 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
160° |
| Viewing angle, horizontal |
170° |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
5:4 |
| Supported video modes |
1024p |
| Supported graphics resolutions |
1280 x 1024 (SXGA) |
| Screen shape |
Flat |
| Response time |
5 ms |
| Display brightness |
350 cd/m² |
| Display brightness (typical) |
350 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Panel type |
TN |
| HD type |
SXGA |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
5:4 |
| Display resolution |
1280 x 1024 pixels |
| Display diagonal |
43.2 cm (17") |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
|---|
| Glass thickness |
3 mm |
| Front bezel colour |
Black |
| Product colour |
Black |

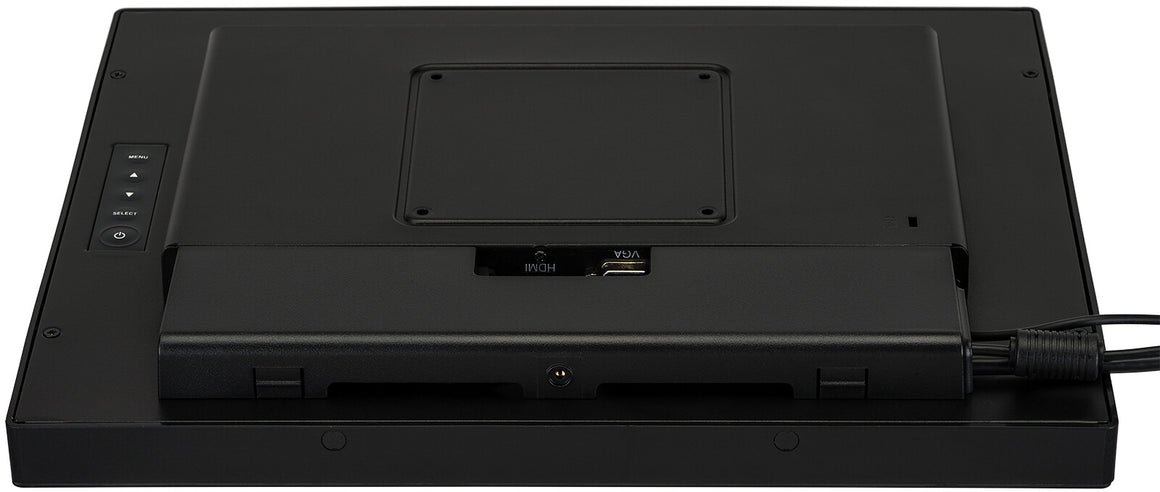

| Ports & interfaces |
|---|
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch ports quantity |
1 |
| USB Touch port |
Yes |
| USB required |
Yes |
| Ergonomics |
|---|
| Plug and Play |
Yes |
| Number of OSD languages |
7 |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) |
Yes |

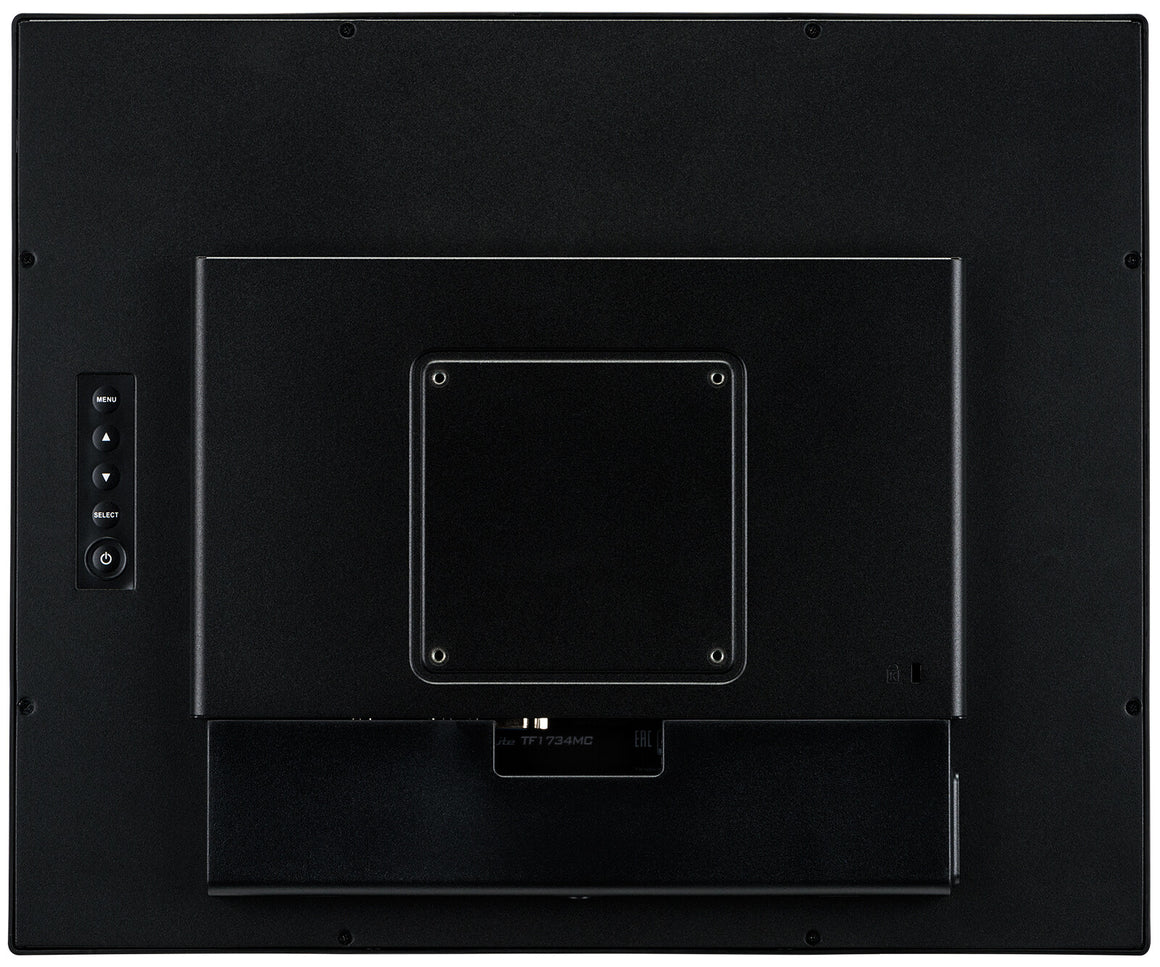

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Energy efficiency scale |
A to G |
| Power supply type |
External |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.6 W |
| Power consumption (typical) |
13 W |
| Energy consumption (SDR) per 1000 hours |
11 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
|---|
| Weight (without stand) |
3.6 kg |
| Height (without stand) |
307 mm |
| Depth (without stand) |
47.5 mm |
| Width (without stand) |
369 mm |
| Weight (with stand) |
3.6 kg |
| Height (with stand) |
307 mm |
| Depth (with stand) |
47.5 mm |
| Width (with stand) |
369 mm |
| Packaging data |
|---|
| Package weight |
4.9 kg |
| Package height |
387 mm |
| Package depth |
455 mm |
| Package width |
455 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |

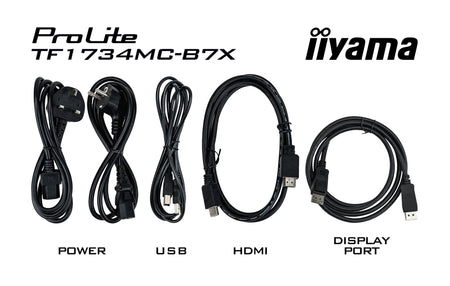

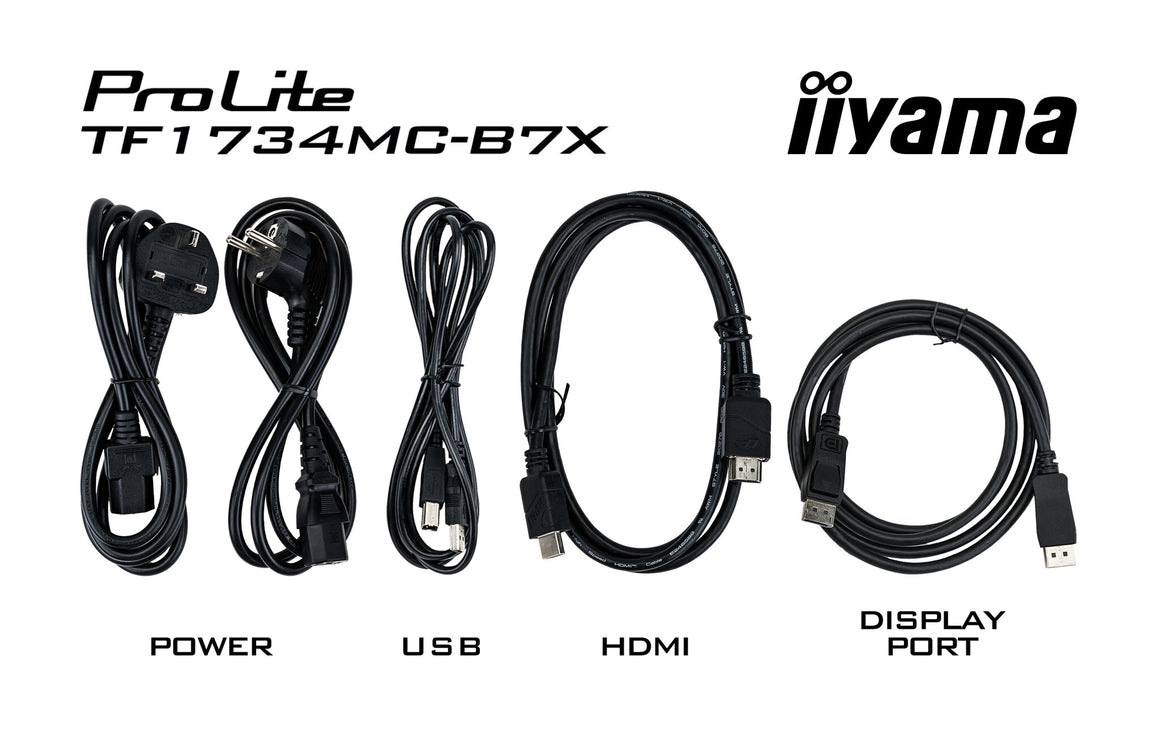

| Cables included |
AC, DisplayPort, HDMI, USB |
| Other features |
|---|
| Certification |
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| Connection to PC |
Yes |
| Placement supported |
Horizontal/Vertical |
| Display viewable area (HxV) |
338 x 270 mm |
| International Protection (IP) code |
IP65 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
