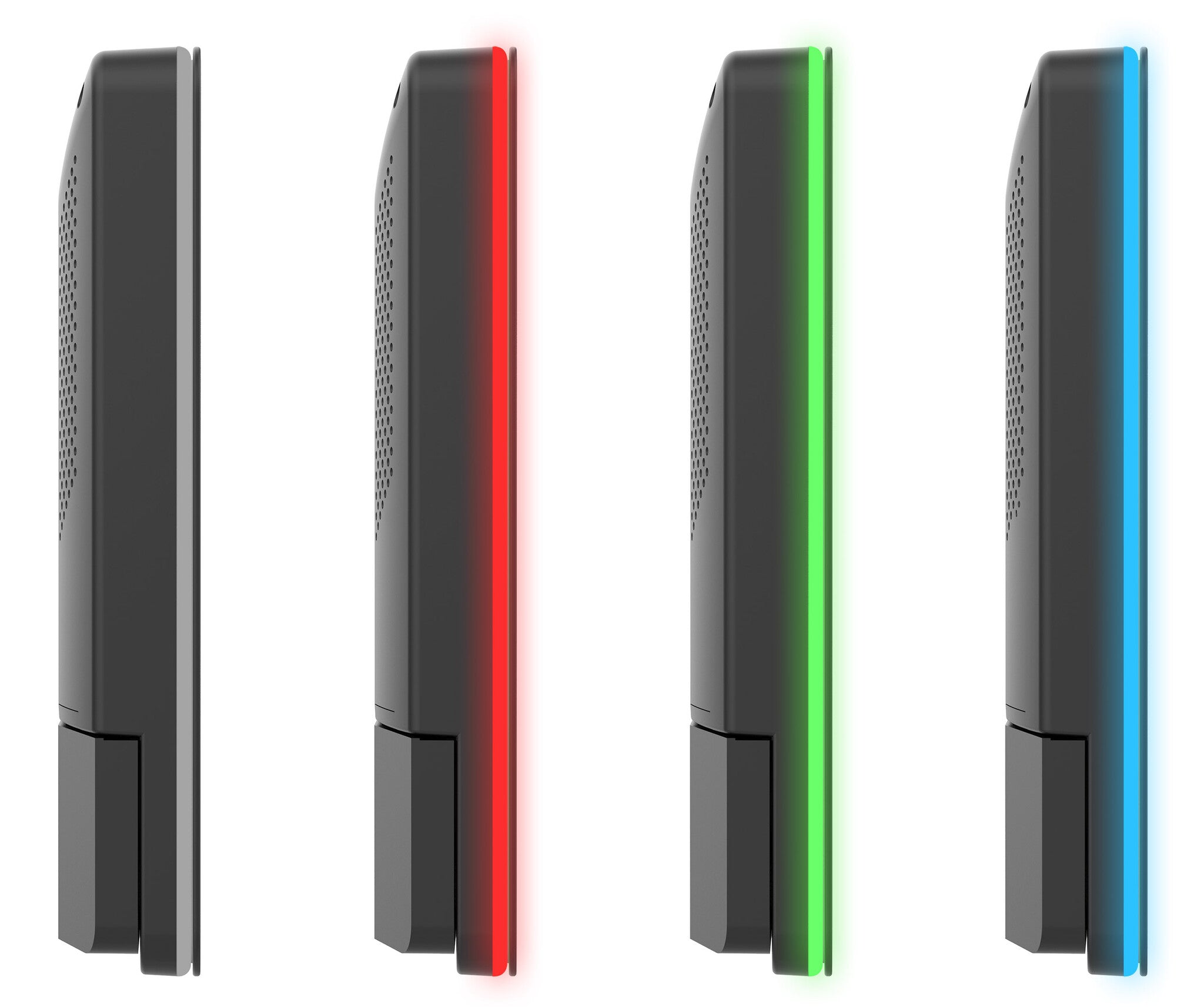

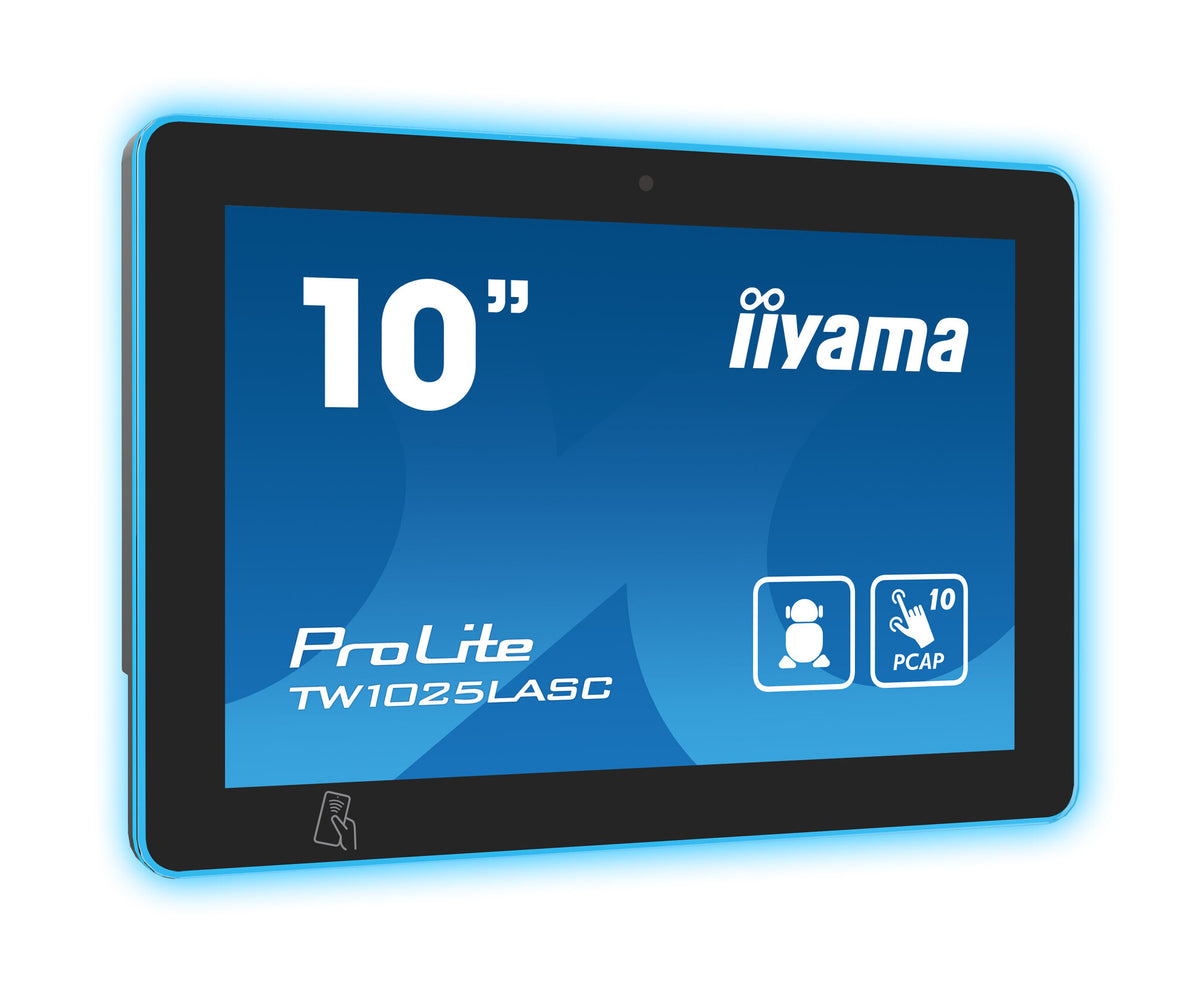

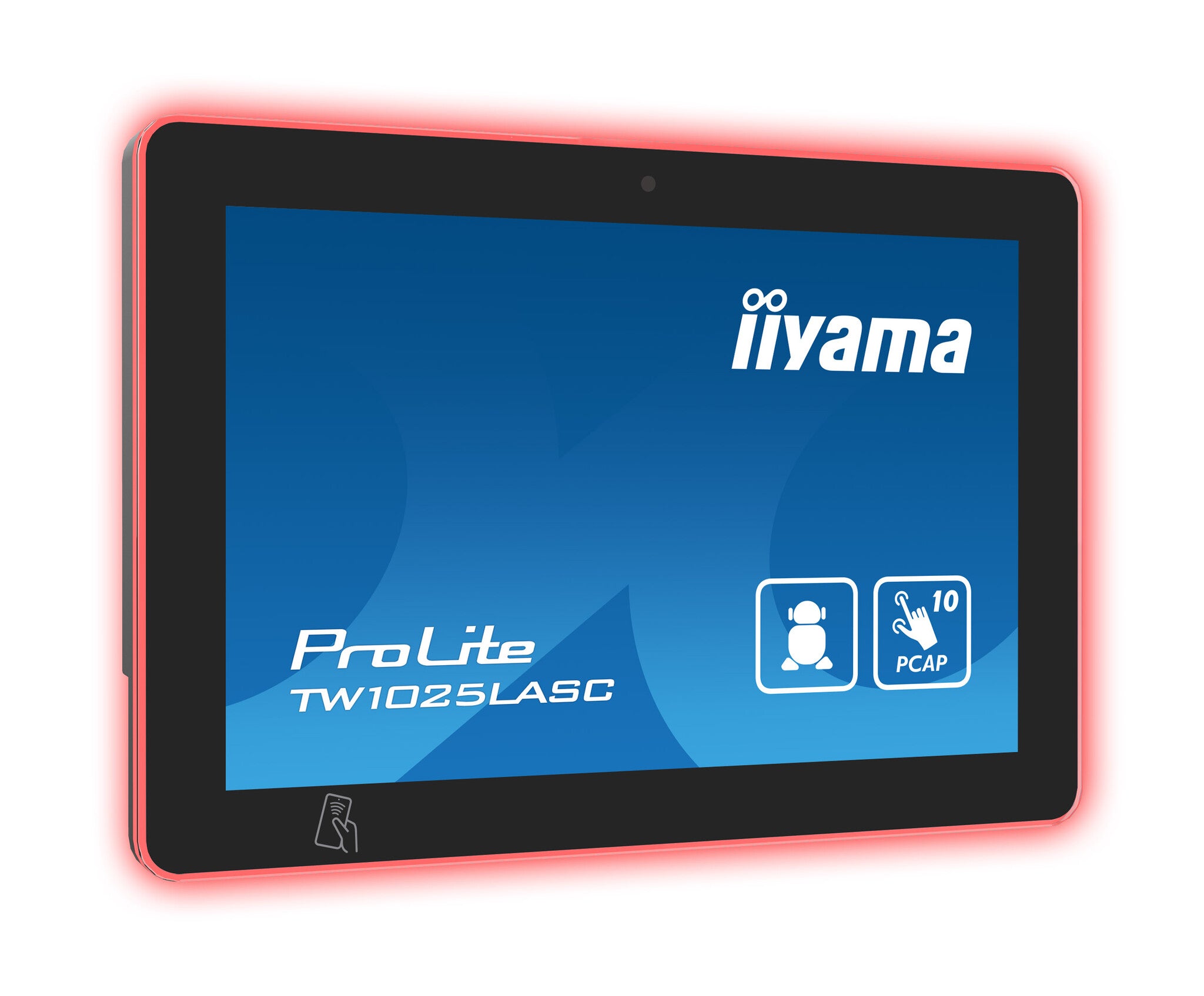

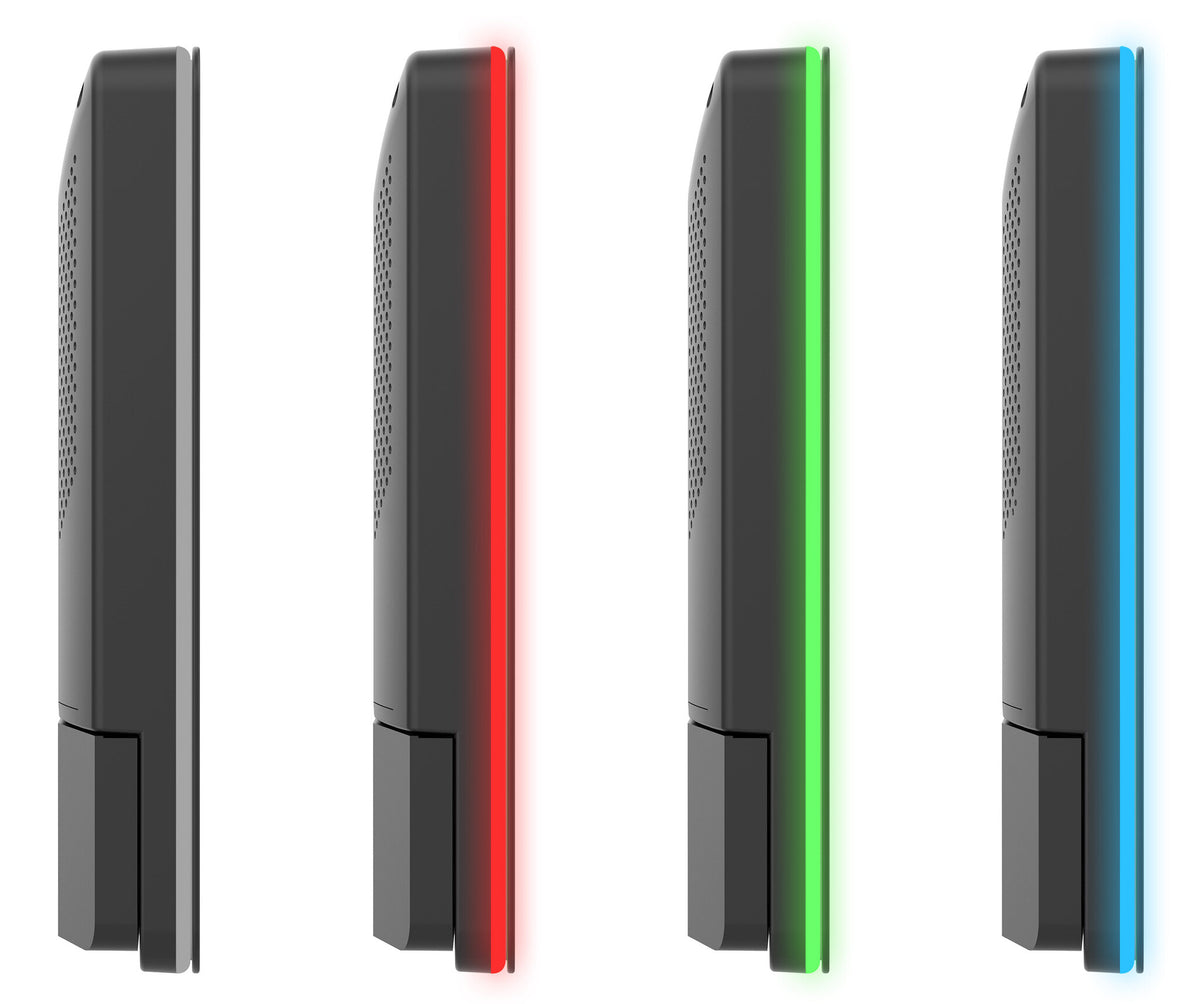

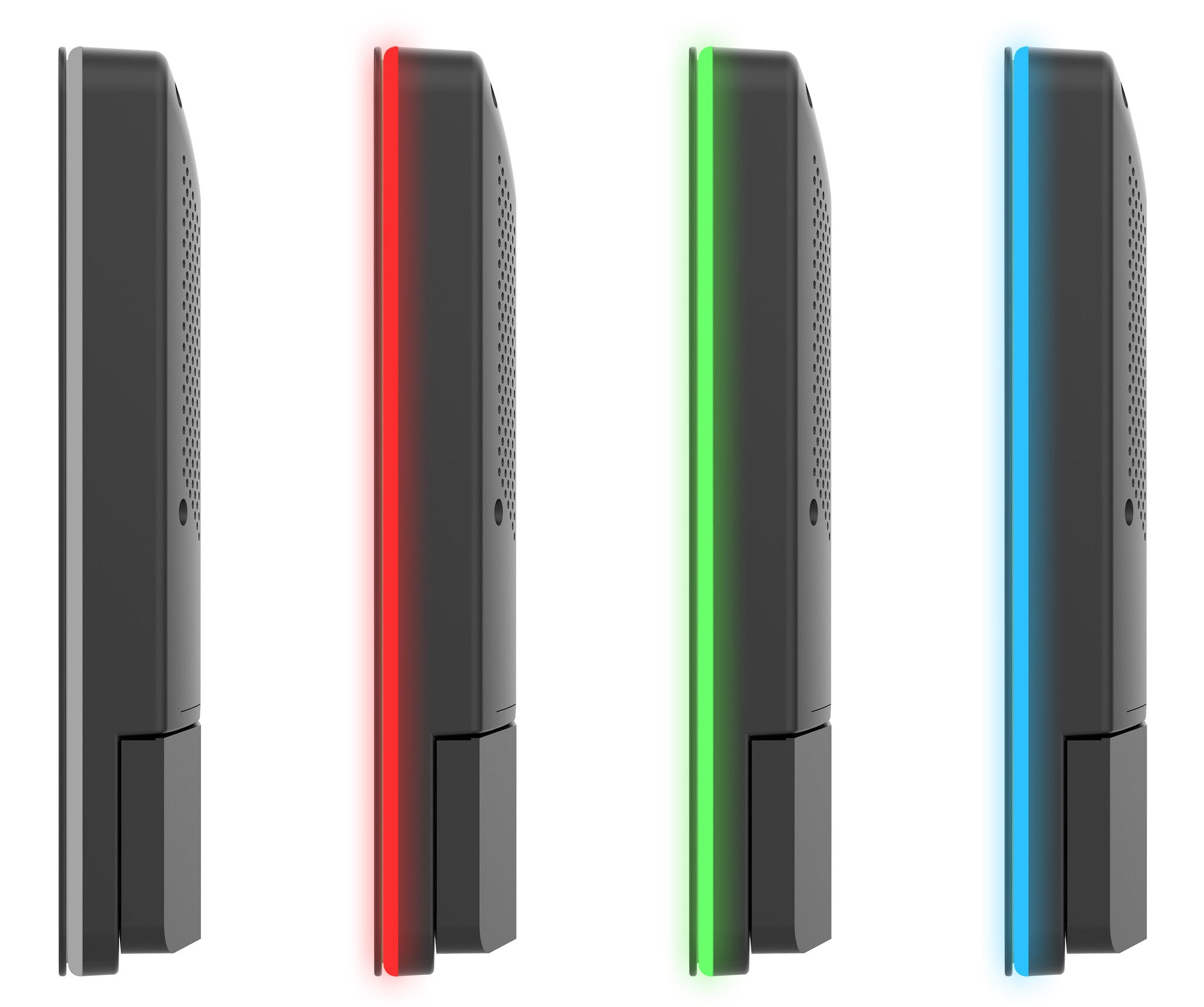

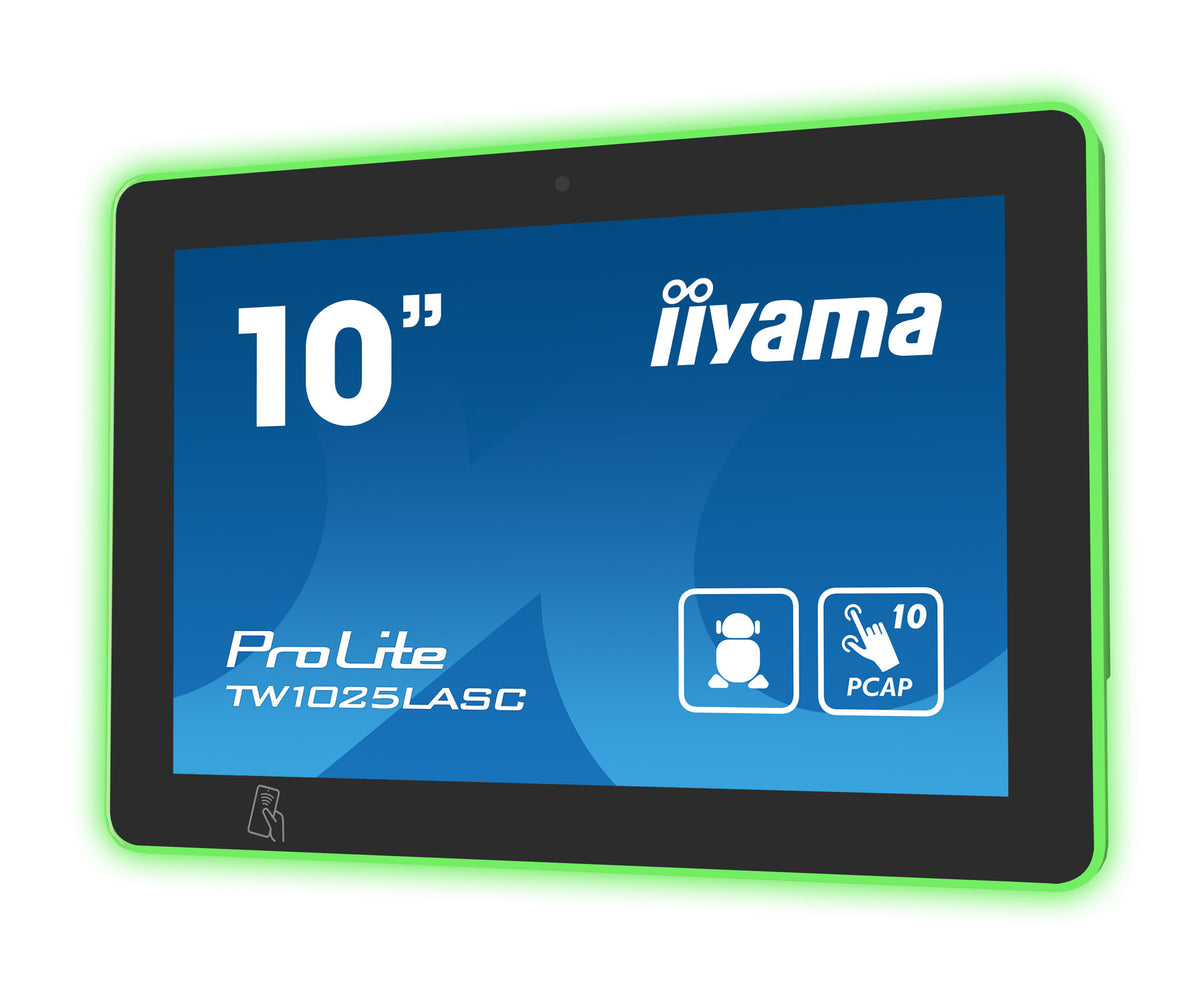

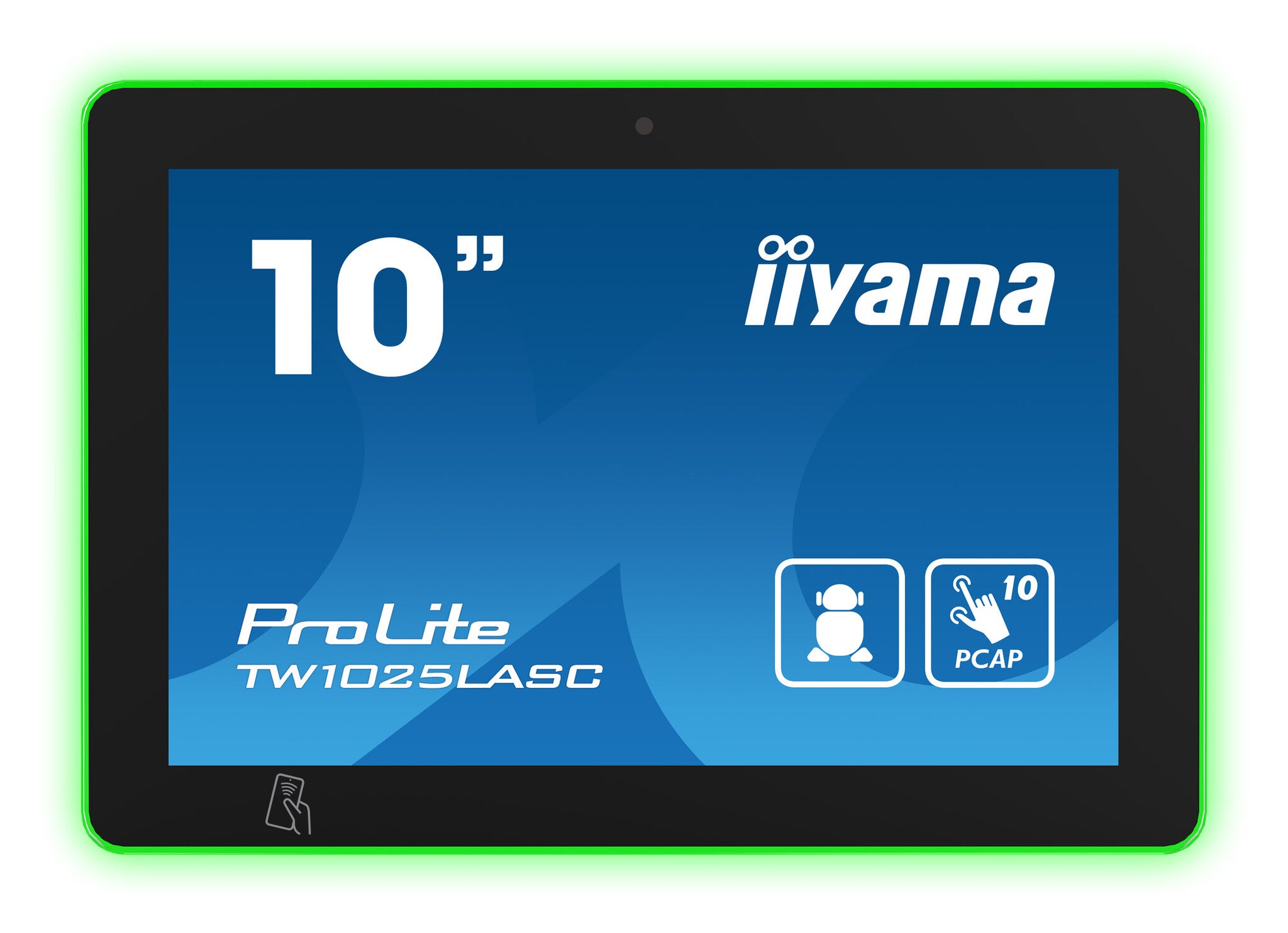

The ProLite TW1025LASC-B1PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
| Display |
|---|
| Fingerprint resistant |
Yes |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen |
Yes |
| Contrast ratio (typical) |
1000:1 |
| Display brightness |
450 cd/m² |
| Response time |
25 ms |
| Aspect ratio |
16:10 |
| Pixel pitch |
0.1692 x 0.1692 mm |
| Display resolution |
1280 x 800 pixels |
| Display technology |
LED |
| Display diagonal |
25.6 cm (10.1") |
| Design |
|---|
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |

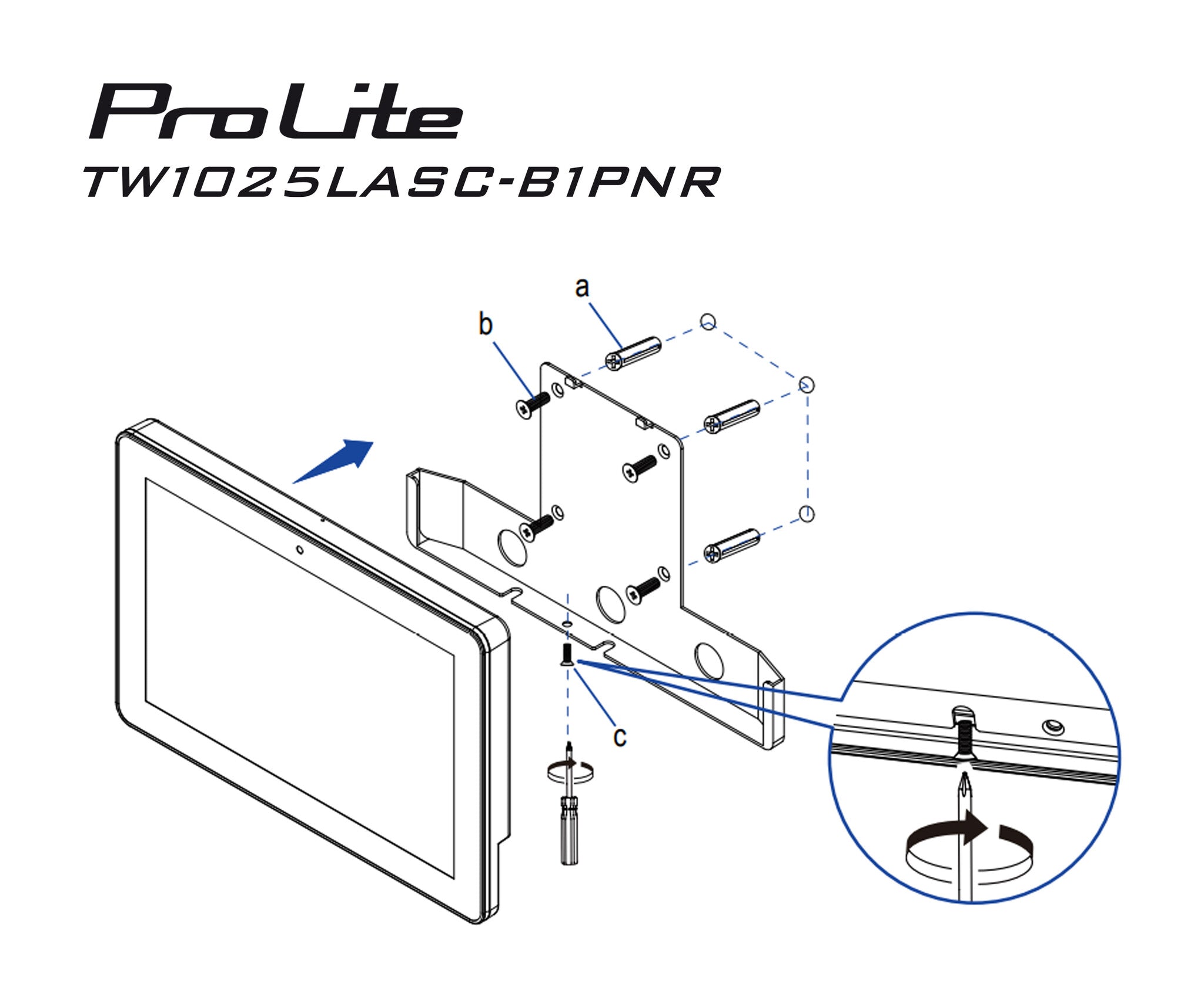

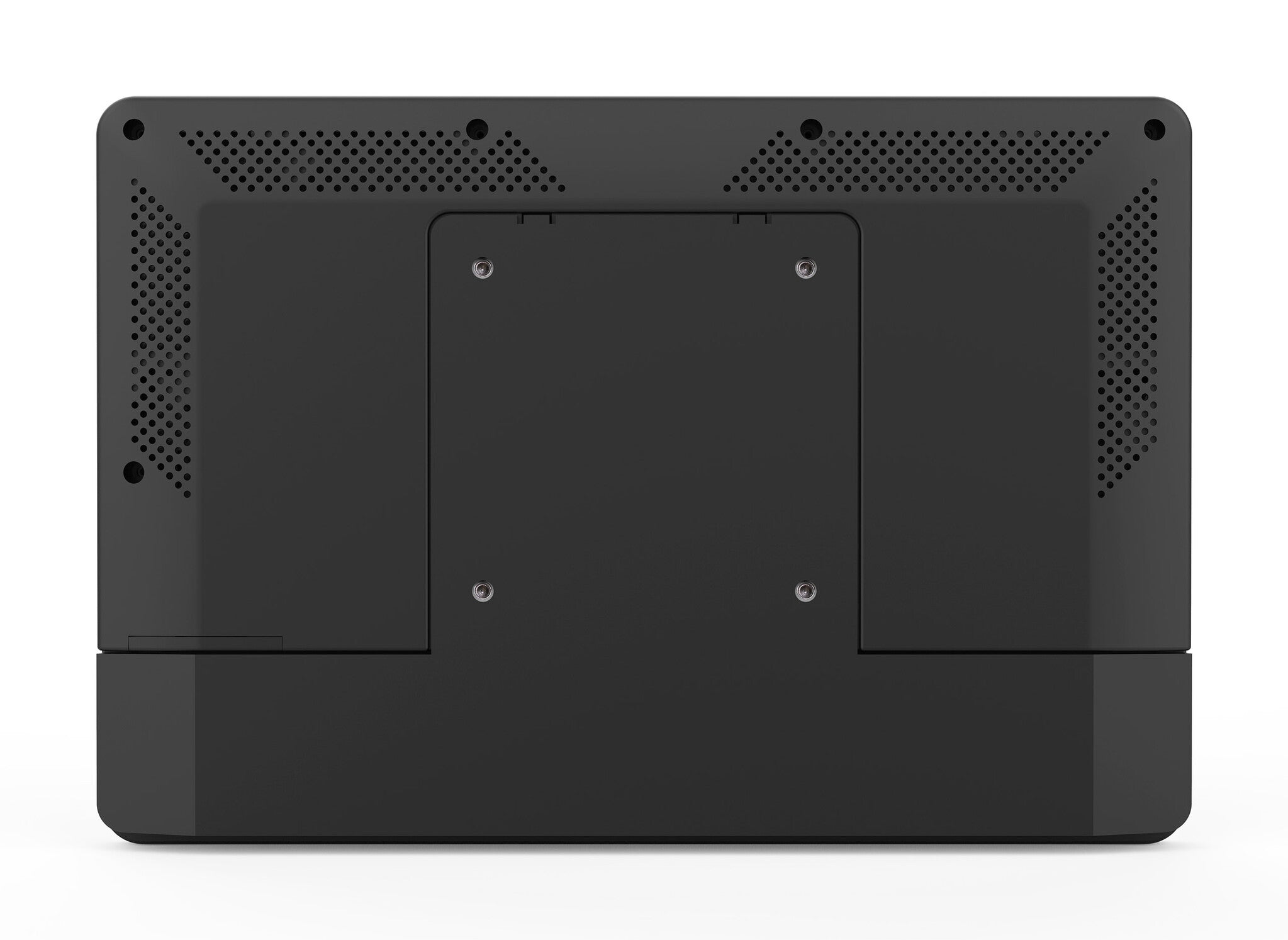

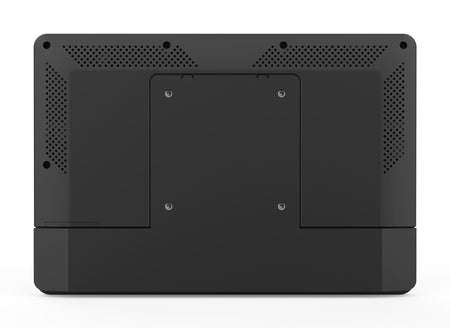

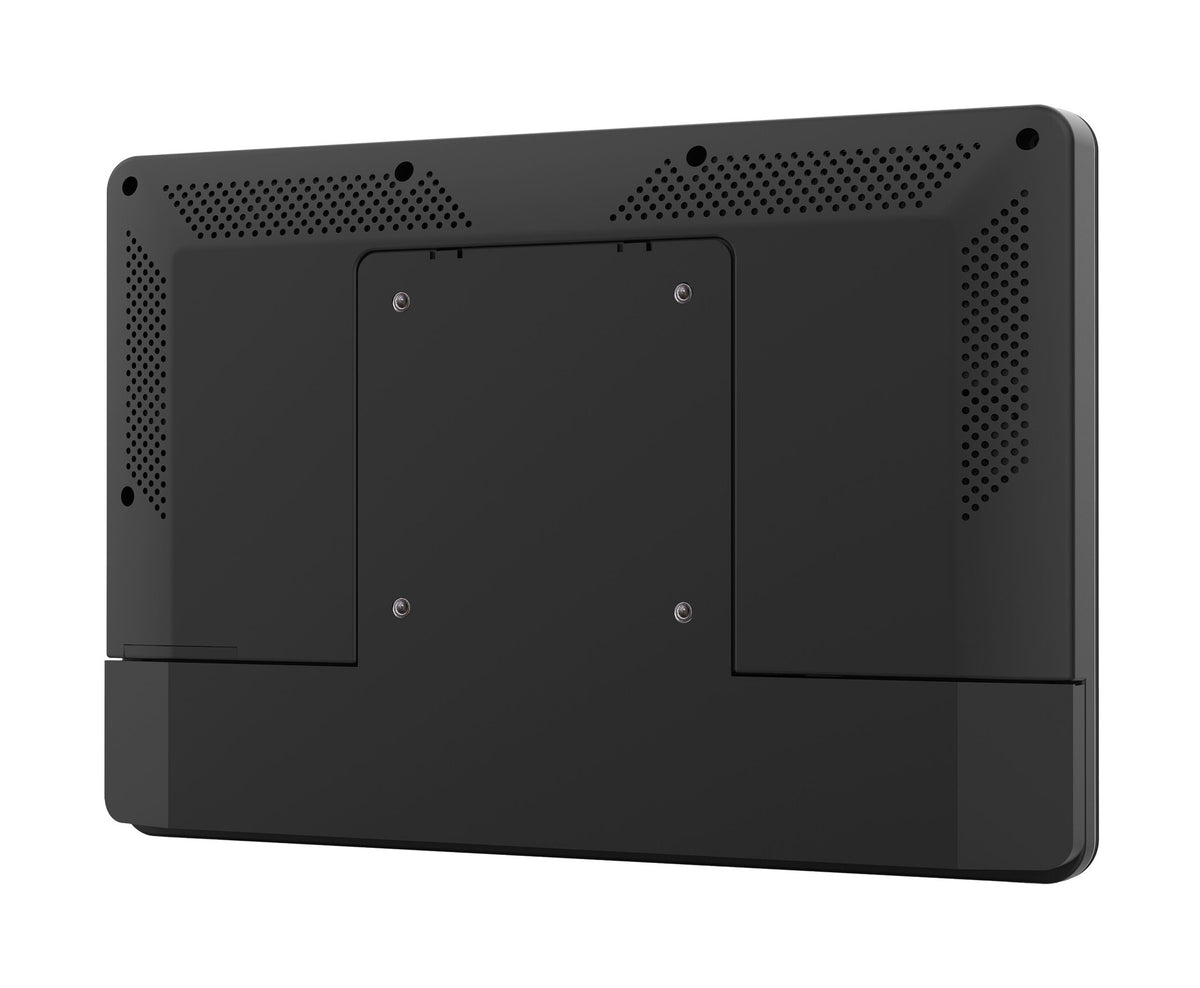

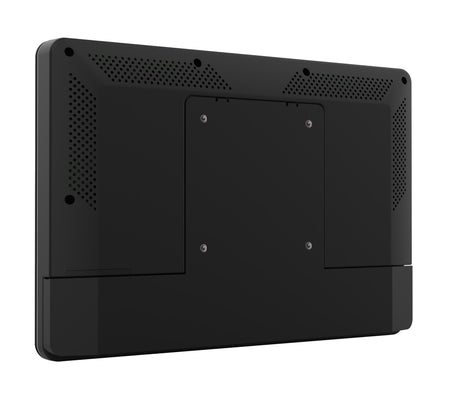

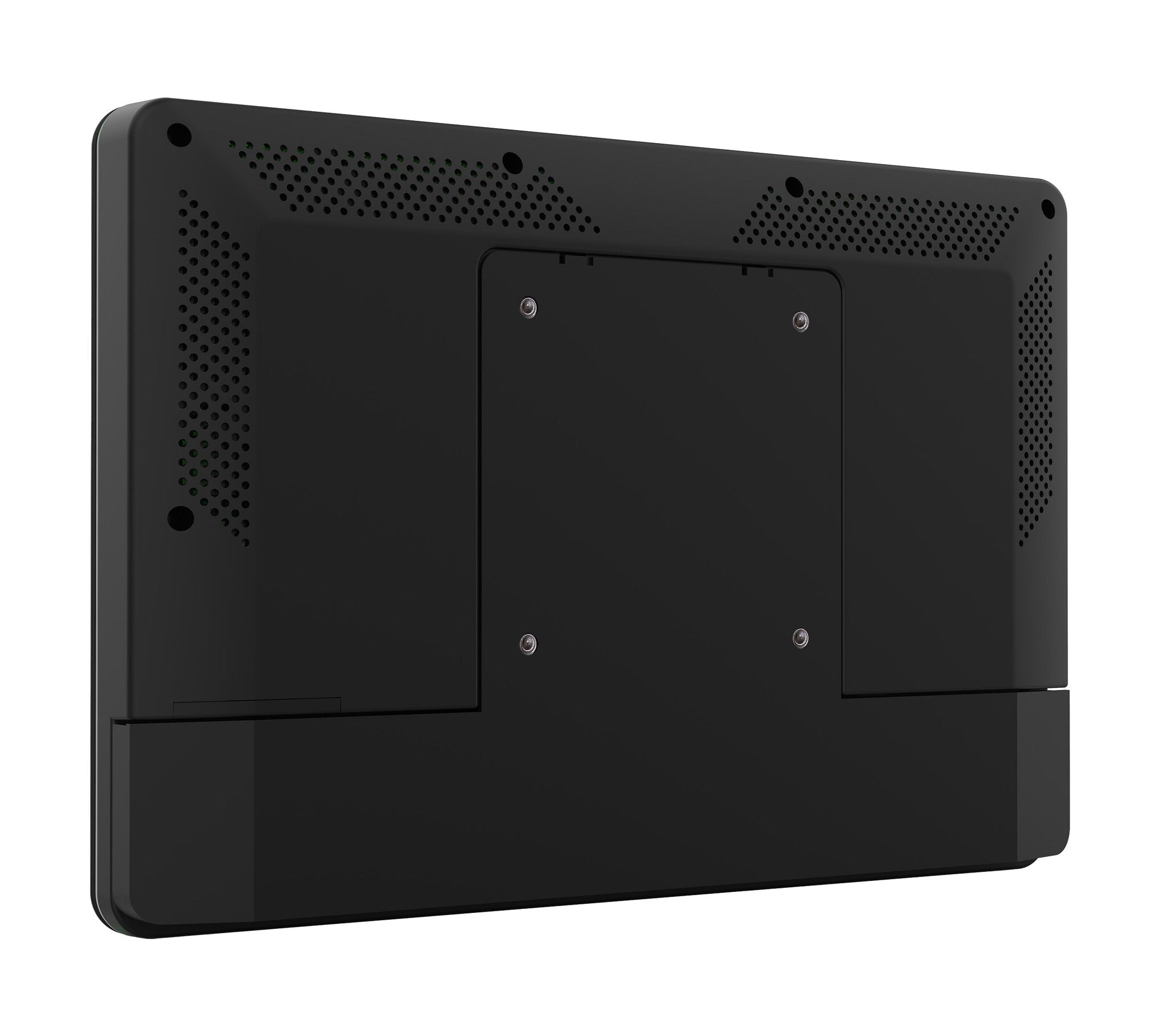

| Panel mounting interface |
75 x 75 mm |
| VESA mounting |
Yes |
| Housing material |
Plastic |
| Housing colour |
Black |
| Performance |
|---|
| Operating system installed |
Android |
| Storage capacity |
32000 MB |
| RAM capacity |
4 GB |
| Processor manufacturer |
Rockchip |
| Built-in processor |
Yes |
| Audio |
|---|
| Number of microphones |
1 |
| Speaker power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Camera |
|---|
| Total megapixels |
5 MP |
| Built-in camera |
Yes |
| Network |
|---|
| Near Field Communication (NFC) |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN |
Yes |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |

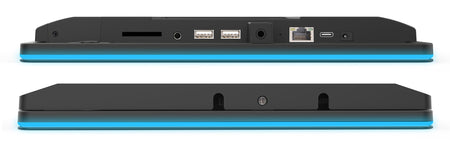

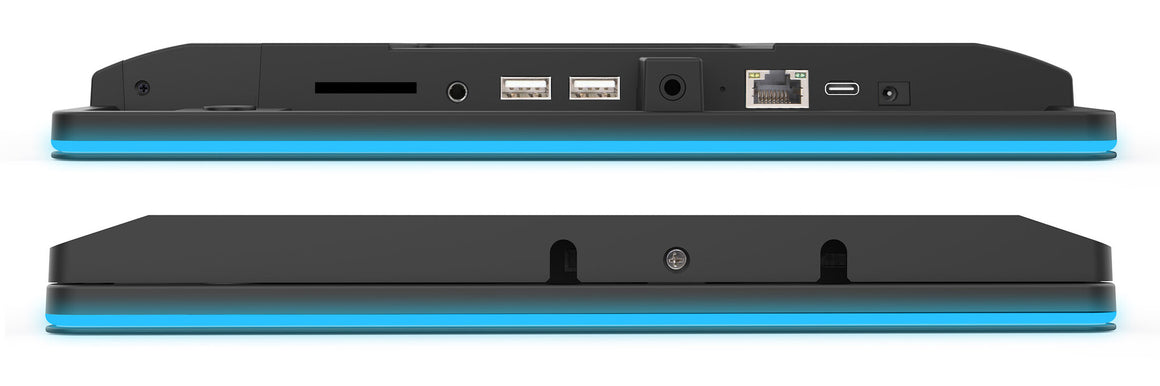

| Ports & interfaces |
|---|
| USB 2.0 Type-A ports quantity |
1 |
| USB port type |
USB Type-A |
| USB port |
Yes |
| Power |
|---|
| Power consumption (idle) |
18 W |
| Input voltage |
12 V |
| Power source type |
DC |
| Weight & dimensions |
|---|
| Weight |
1.1 kg |
| Height |
178.5 mm |
| Depth |
28 mm |
| Width |
259.5 mm |
| Packaging data |
|---|
| Package height |
225 mm |
| Package depth |
363 mm |
| Package width |
363 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
