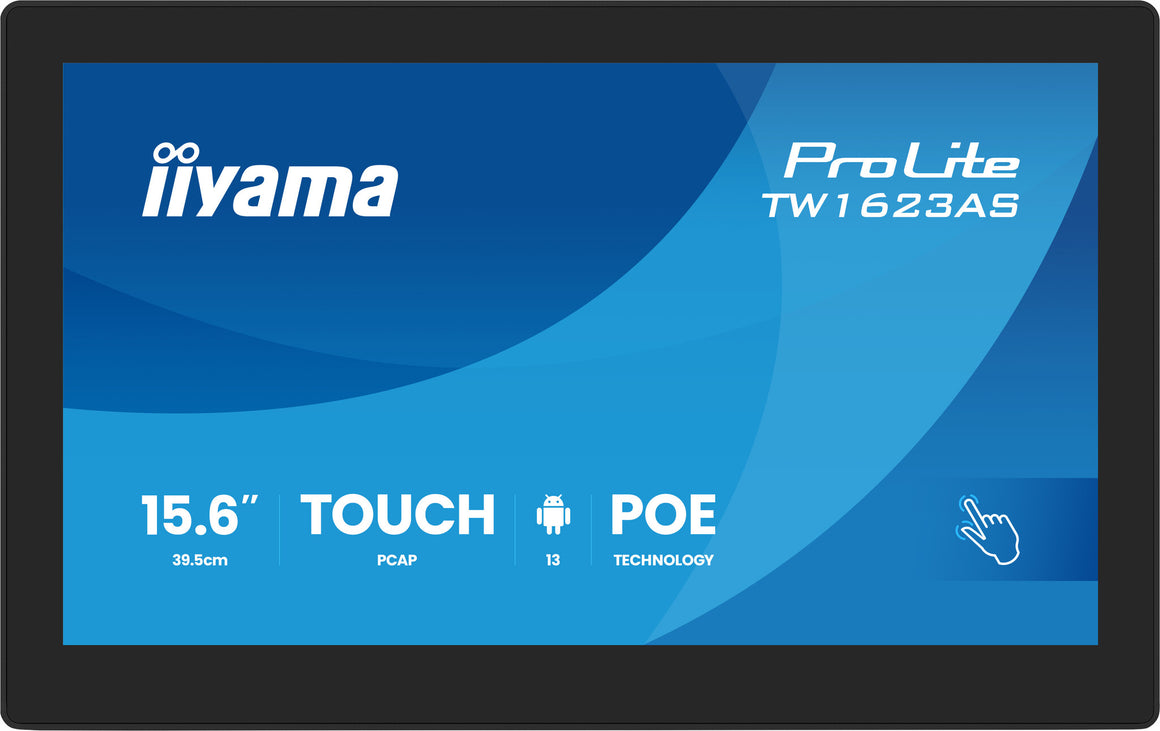

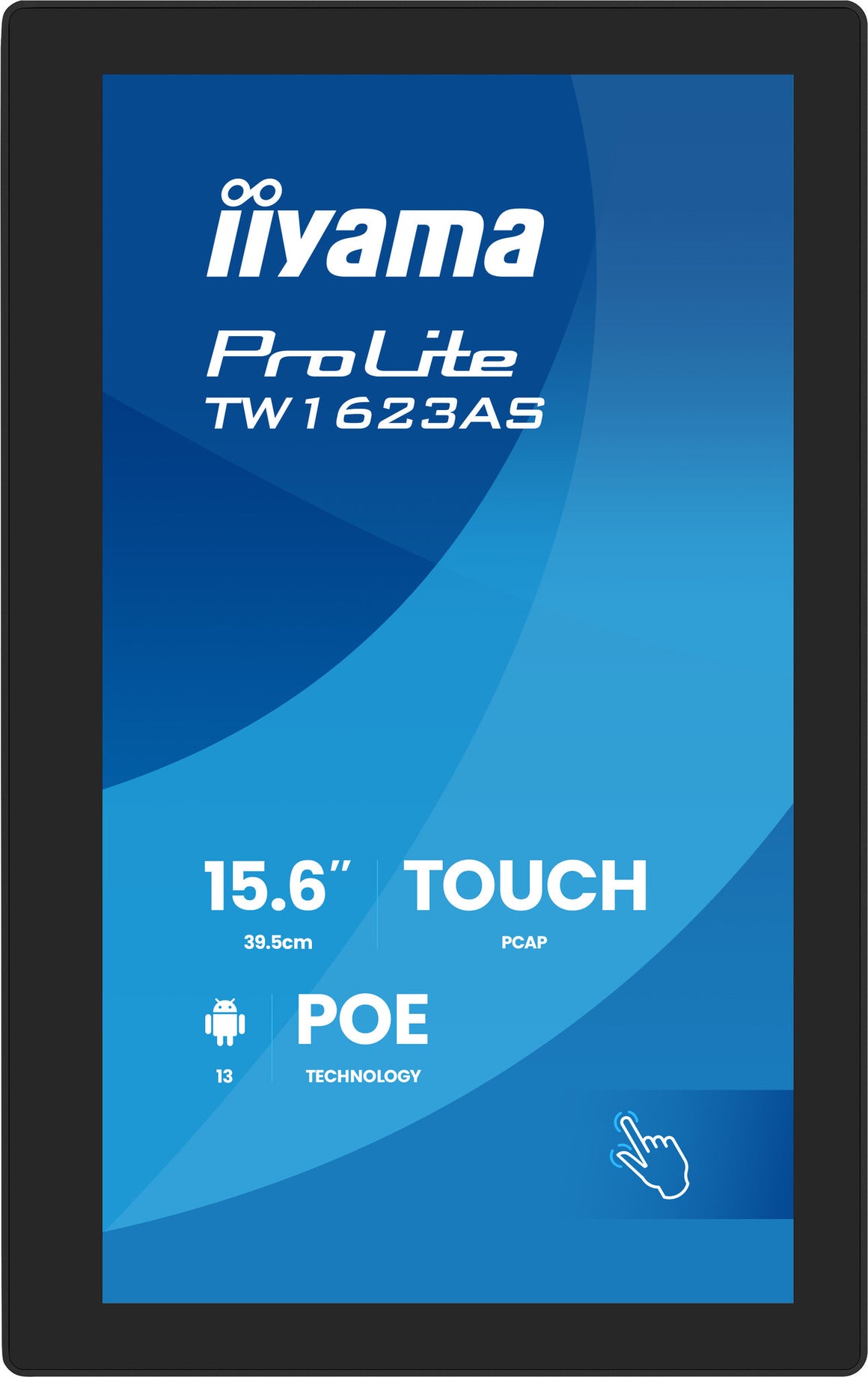

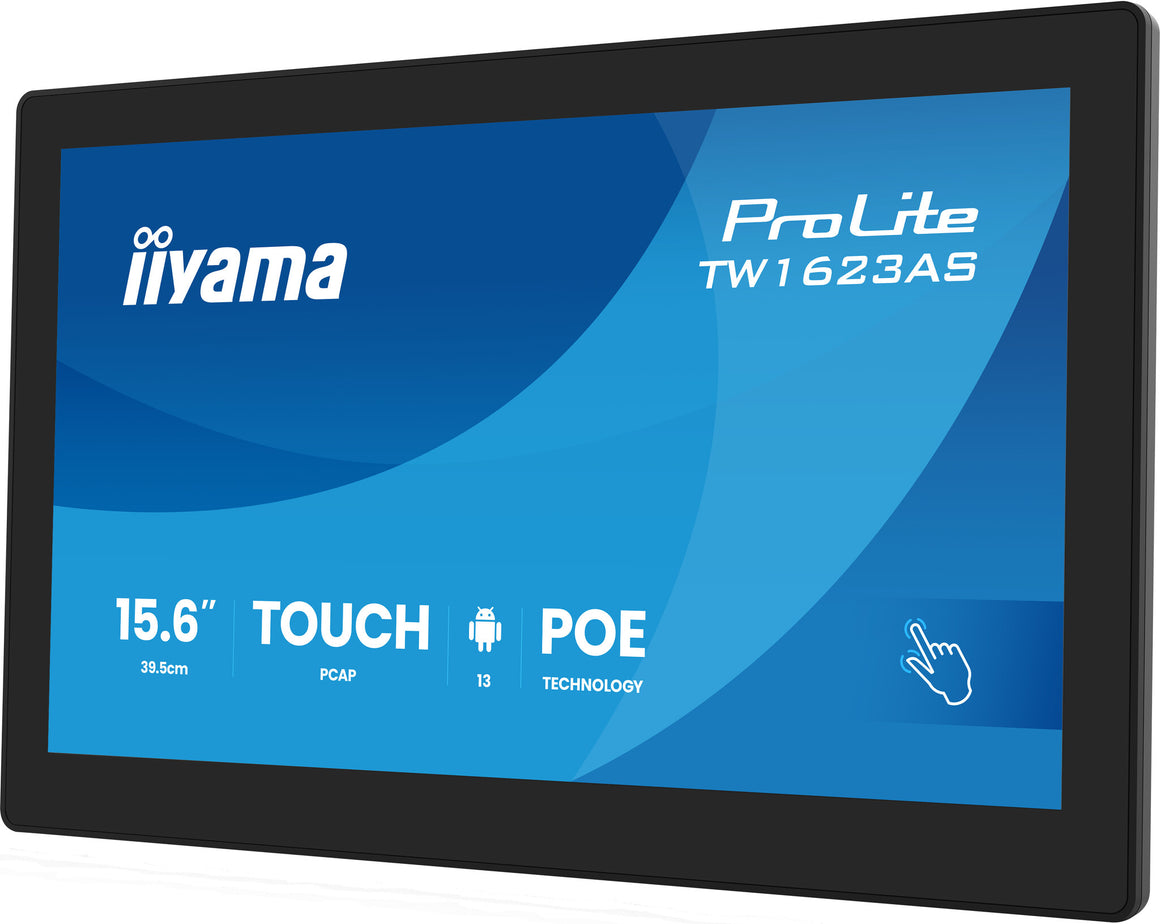

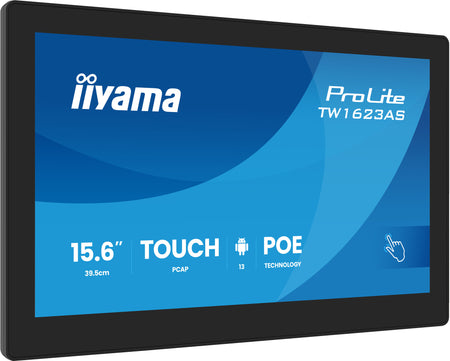

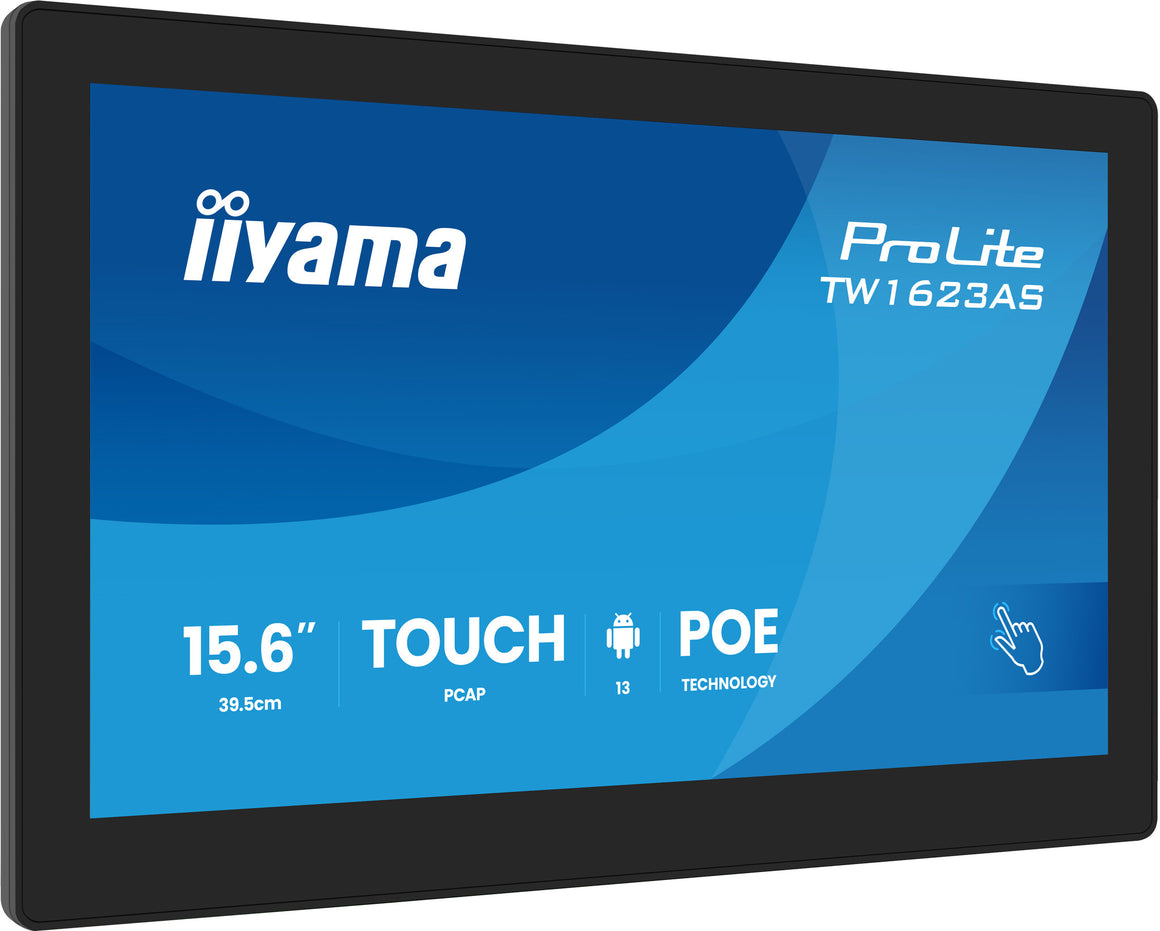

The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
| Display |
|---|
| Colour depth |
8 bit |
| Surface hardness |
6H |
| Display diagonal (metric) |
39.5 cm |
| Viewable size, vertical |
19.4 cm |
| Viewable size, horizontal |
34.4 cm |
| Pixel pitch |
0.1792 x 0.1792 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
170° |
| Viewing angle, horizontal |
170° |
| Contrast ratio (typical) |
1000:1 |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
30 ms |
| Display brightness |
450 cd/m² |
| Display brightness (typical) |
450 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Performance |
|---|
| Operating system version |
13 |
| Operating system installed |
Android |
| Operating hours (hours/days) |
24/7 |
| Multimedia |
|---|
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Glass thickness |
1.8 mm |
| Front bezel colour |
Black |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| HDCP |
Yes |
| Microphone in |
Yes |
| Audio input |
Mini Jack |
| Mini HDMI ports quantity |
1 |
| HDMI ports quantity |
1 |
| USB Touch port |
Yes |
| USB version |
2.0 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ergonomics |
|---|
| On Screen Display (OSD) |
Yes |
| Cable management |
Yes |

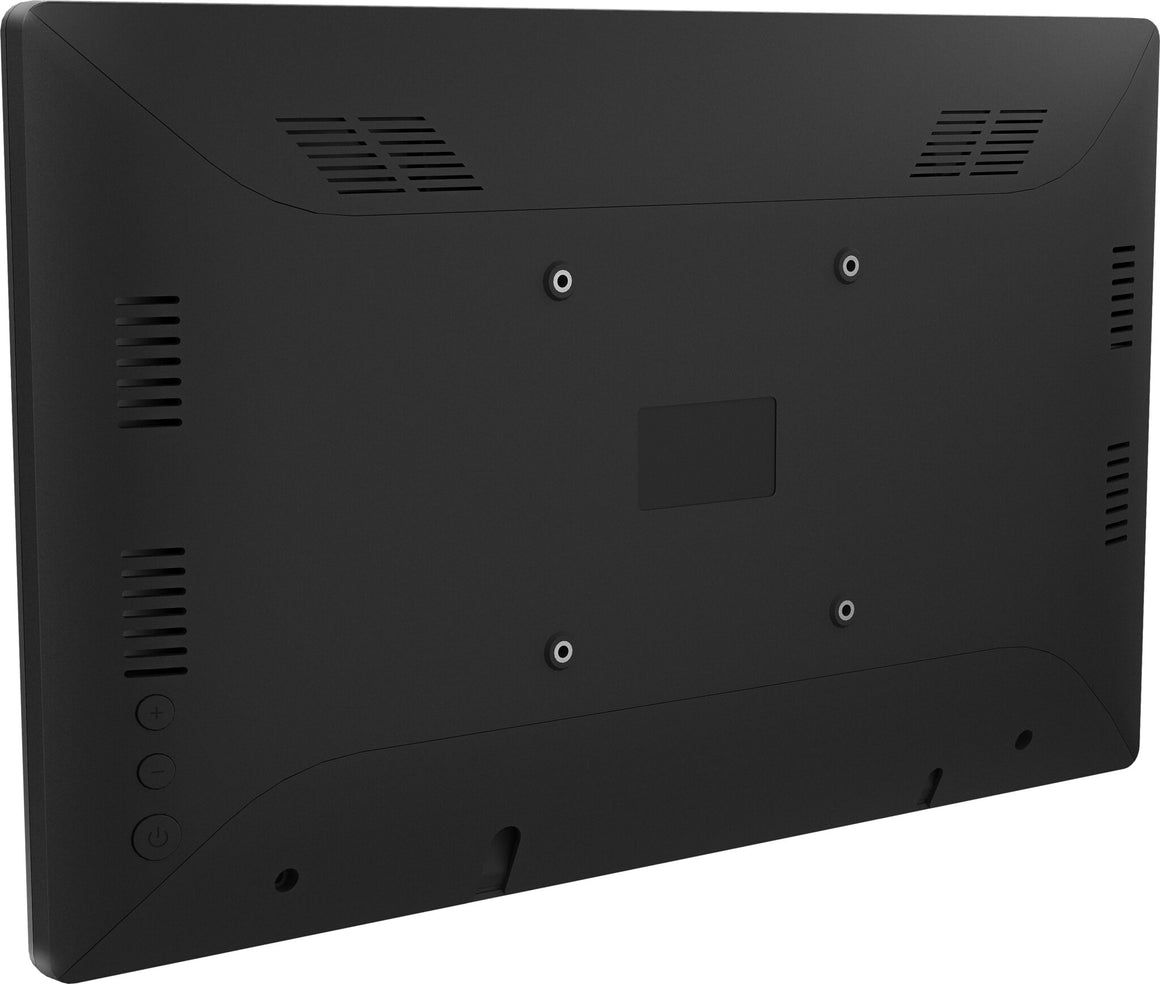

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Power supply type |
External |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
9 W |
| Weight & dimensions |
|---|
| Weight (with stand) |
1.5 kg |
| Height (with stand) |
244 mm |
| Depth (with stand) |
30.5 mm |
| Width (with stand) |
387 mm |
| Packaging data |
|---|
| Package weight |
2.45 kg |
| Package height |
298 mm |
| Package depth |
477 mm |
| Package width |
477 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Power adapter included |
Yes |
| Other features |
|---|
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Ethernet LAN (RJ-45) ports |
1 |
| Built-in processor |
Yes |
| Active display area (W x H) |
344.2 x 193.6 mm |
| Multi-touch |
Yes |
| USB ports quantity |
3 |
| Placement supported |
Indoor |
| Thin Client |
|---|
| Processor frequency |
2 GHz |
| Processor cores |
4 |
| Processor model |
RK3568 |
| Processor architecture |
ARM Cortex-A55 |
| Processor family |
ARM Rockchip |
