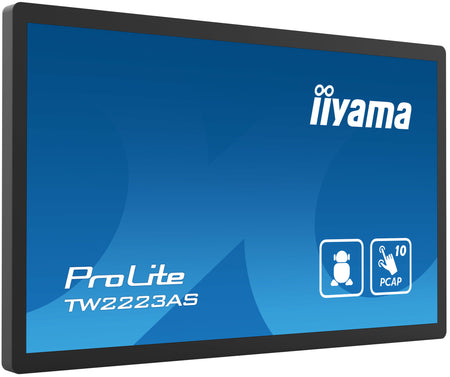

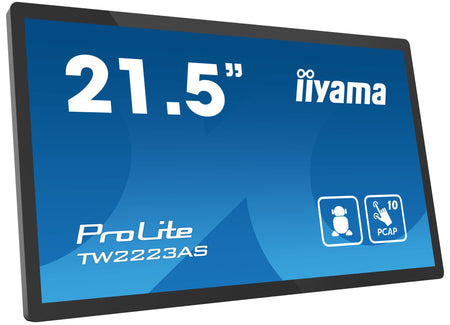

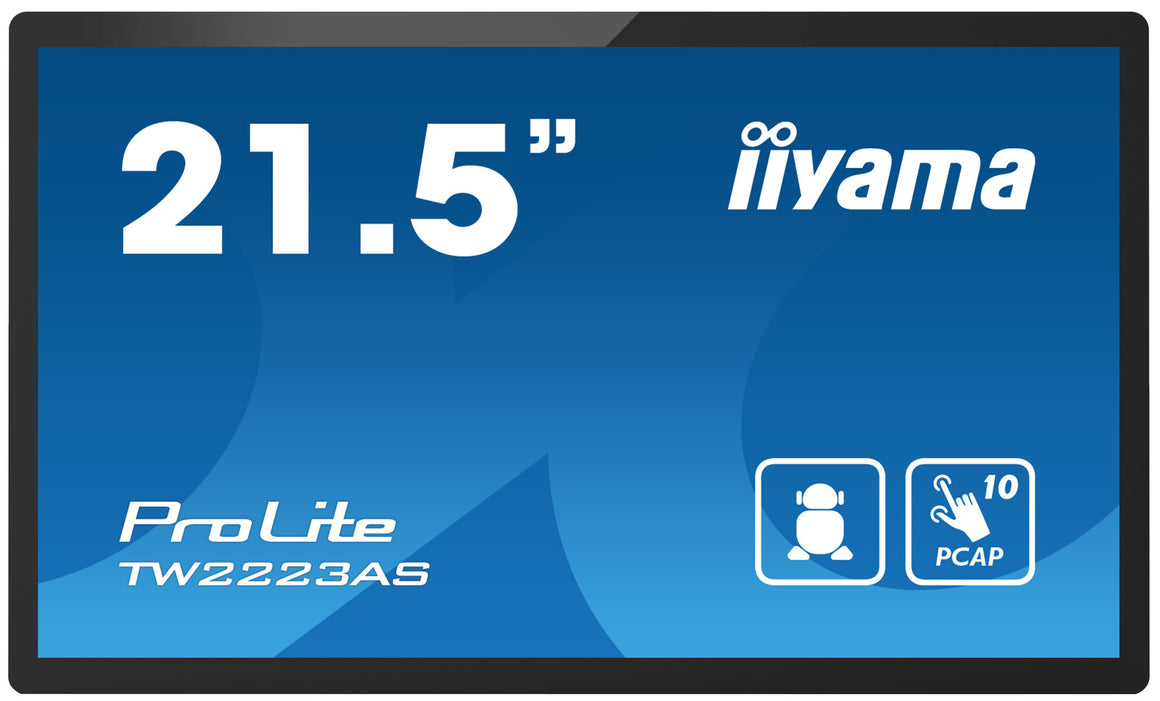

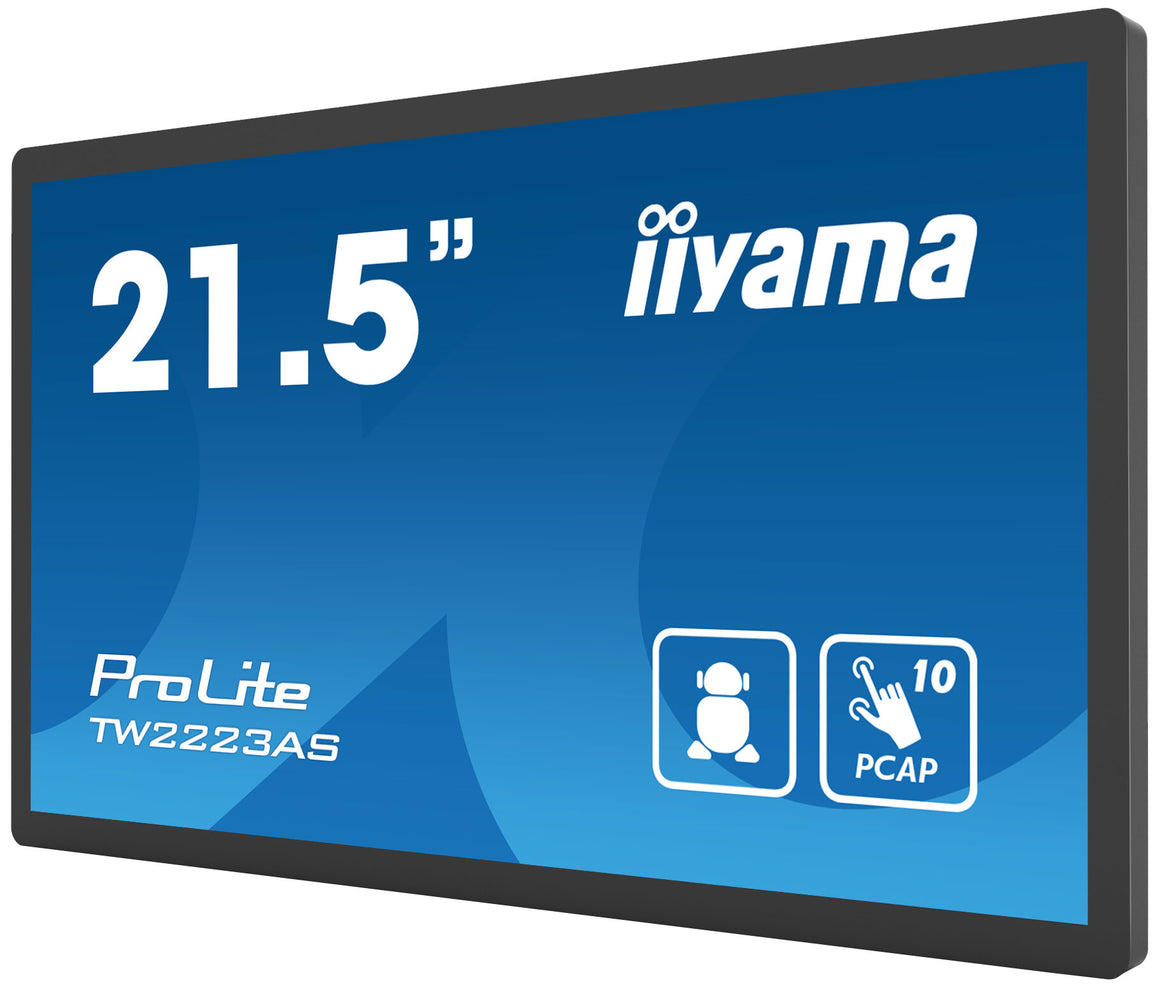

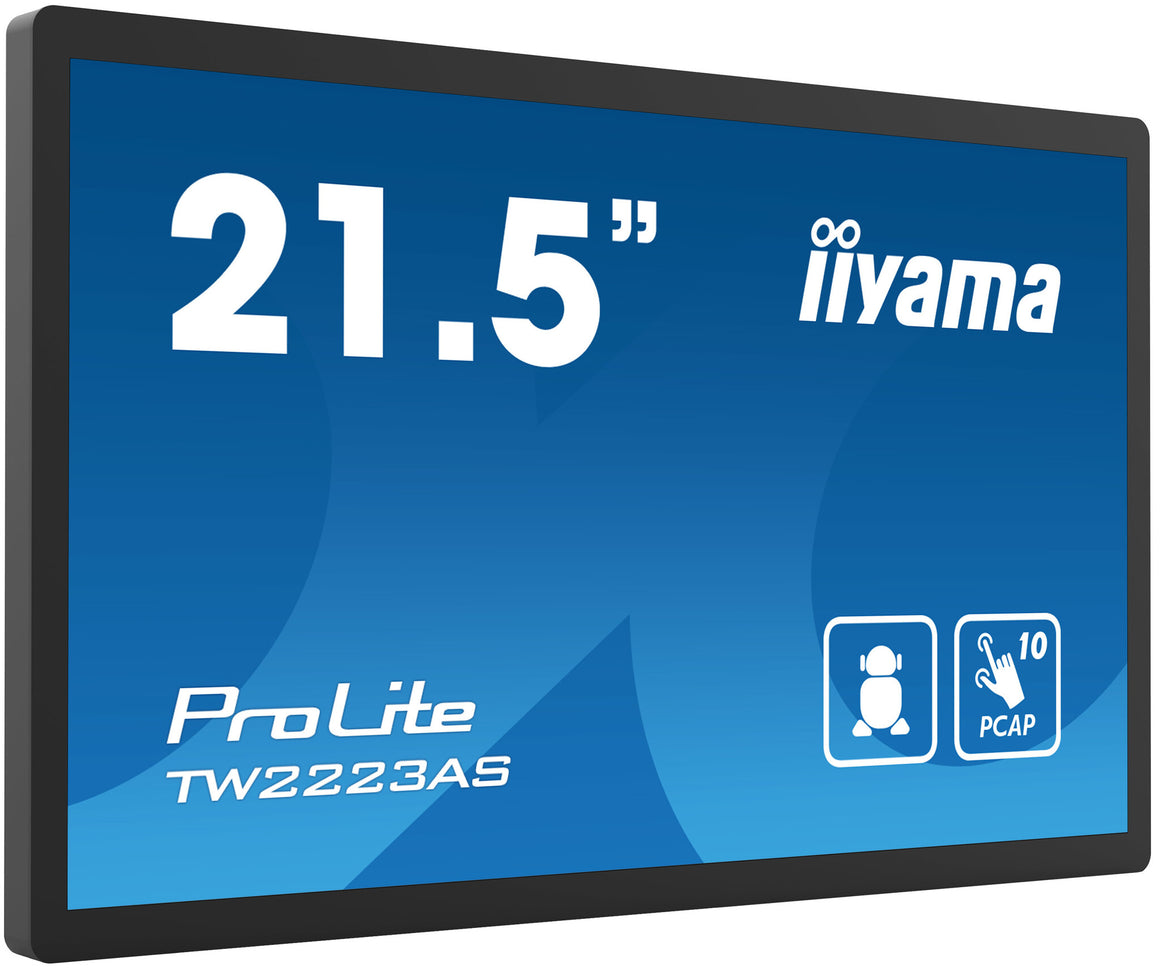

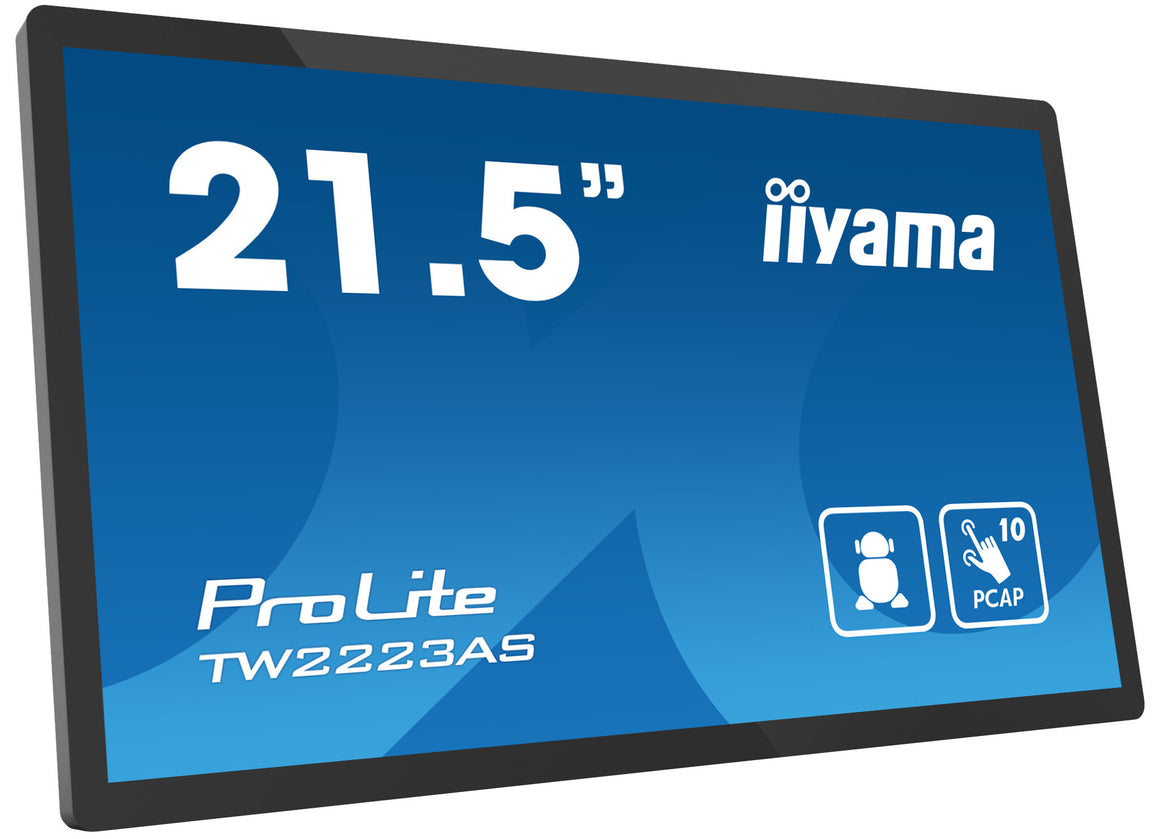

The ProLite TW2223AS-B2 interactive Touch Panel PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate 24/7 in landscape, portrait and face-up orientation. Thanks to the pre-installed Android 12 operating system it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
| Display |
|---|
| Surface hardness |
6H |
| Display diagonal (metric) |
54.6 cm |
| Digital horizontal frequency |
30 - 84 kHz |
| Viewable size, vertical |
26.9 cm |
| Viewable size, horizontal |
47.8 cm |
| Horizontal scan range |
30 - 84 kHz |
| Pixel pitch |
0.248 x 0.248 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
3000:1 |
| Screen shape |
Flat |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
18 ms |
| Display brightness |
400 cd/m² |
| Display brightness (typical) |
400 cd/m² |
| Display brightness (peak) |
400 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Panel type |
VA |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5") |
| Performance |
|---|
| Operating system installed |
Android 12 |
| Operating hours (hours/days) |
24/7 |
| Flicker-free technology |
Yes |
| Multimedia |
|---|
| Built-in camera |
No |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Glass thickness |
2.9 mm |
| Front bezel colour |
Black |
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
|---|
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| HDCP |
Yes |
| Headphone out |
Yes |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB Touch port |
Yes |
| USB Type-A downstream ports quantity |
5 |
| USB hub version |
2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ergonomics |
|---|
| Cable management |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Power supply type |
External |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
23 W |
| Weight & dimensions |
|---|
| Weight (without stand) |
3.61 kg |
| Height (without stand) |
302 mm |
| Depth (without stand) |
32 mm |
| Width (without stand) |
504.5 mm |
| Weight (with stand) |
3.61 kg |
| Height (with stand) |
302 mm |
| Depth (with stand) |
32 mm |
| Width (with stand) |
504.5 mm |
| Packaging data |
|---|
| Package weight |
5.98 kg |
| Package height |
410 mm |
| Package depth |
640 mm |
| Package width |
640 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC |
| Other features |
|---|
| Audio out (mini jack) |
1 |
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Mean time between failures (MTBF) |
50000 h |
| Built-in processor |
Yes |
| Active display area (W x H) |
478 x 269.5 mm |
| USB ports quantity |
5 |
| Placement supported |
Indoor |
| Positional accuracy |
2 mm |
| Thin Client |
|---|
| Processor frequency |
1.8 GHz |
| Processor cores |
2 |
| Processor family |
ARM Rockchip |
