The INOGENI CAM230 is a USB and HDMI multi-camera switcher that helps improve meeting equity in virtual meetings. With its easy-to-use camera switching capabilities and support for bidirectional audio with videobars, facilitators can ensure that all participants have equal opportunities to speak and contribute.
The CAM230 also supports whiteboard and document cameras for added collaboration and productivity.
How it works
The INOGENI CAM230 is a multi-camera switcher that allows users to easily switch between up to three video cameras during a virtual meeting or presentation. The CAM230 connects to 2x USB 3.0/2.0 cameras and 1x HDMI camera and outputs a single video stream on USB 2.0 MJPEG and HDMI 2.0. With its easy-to-use push-button or via control pad switching, facilitators can ensure all participants are given equal opportunities to speak and contribute to the conversation while supporting whiteboard and document cameras for added collaboration and productivity.

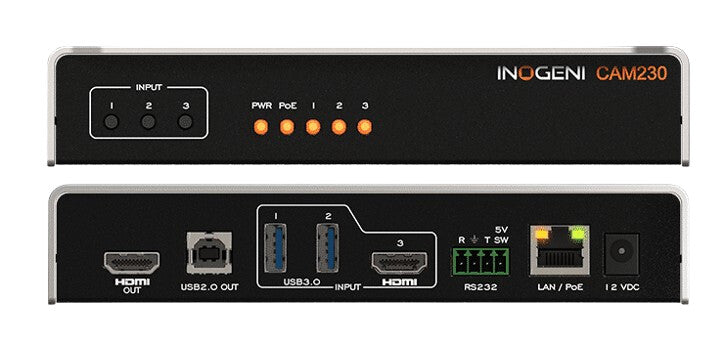

- Connects to 2x USB 3.0/2.0 and 1x HDMI cameras
- Video output on USB 2.0 and HDMI 2.0
- Easy push-button switching or via control pad for seamless camera transitions
- Supports whiteboard and document cameras for more efficient collaboration
- Cost-effective, versatile, and easy to use for improved meeting equity in virtual settings
The INOGENI CAM230 offers a range of features for a smooth and seamless multi-camera switching experience:
- Change camera and video configurations without interrupting the presentation
- Ideal for remote education, collaborative meetings, webinars, and live-streaming
- Cost-effective, reliable, and easy to install and connect (no drivers required)
- 3 video sources clean switcher into a single video flow
- 2x USBs (3.0/2.0 or MJPEG)
- 1x HDMI (1080p60)
- OUTPUT switch into a single interface
- HDMI 1.4 up to 4K30 with embedded audio for CODECs, matrixes or monitors
- USB 2.0 MJPEG – 1080p30 with PTZ control
Unmatched clarity and detail with our UVC MJPEG 1080p30 High-Quality Video
SWITCHING CONTROL:
- RS-232 and IP control
- Easy push button
- SUPPORT:
- Bidirectional audio for videobars, such as Cisco, Poly, Logitech and Bose
- PoE LAN
- Multiple mounting options
- Visual LED status
- Controllable by RS-232 and IP
- Switch cameras via your videoconferencing pad or with the push button
- Audio I/O via the INOGENI Control App
- Embedded audio in USB and HDMI
- Advanced video quality
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Supports multiple devices on the same host
- Device configuration via the INOGENI Control App
- Firmware upgrade available via the INOGENI Control App
- Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
- Compatible with the Q-SYS Core processors
- See Q-SYS/INOGENI CAM230 application notes
- Nureva’s audioconferencing system + INOGENI’s CAM230 enable easy multi-camera switching in larger spaces.
- Read the press release.
- Discover the Nureva + SONY + CAM230 ecosystem integration
- See Nureva/Sony/INOGENI CANM230 application notes

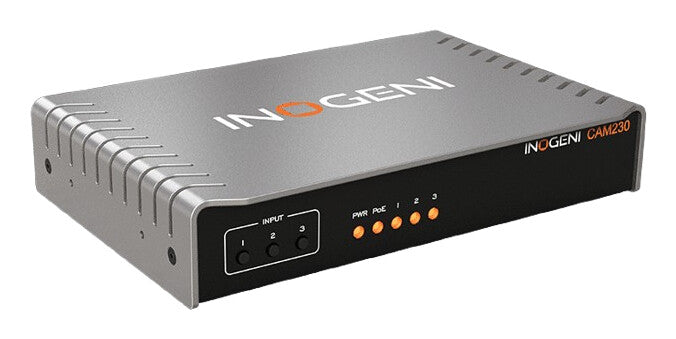

- Compact and robust design with an aluminum enclosure
- Designed and manufactured in Canada
- TAA-compliant
Plug & Go with the INOGENI CAM230
This easy-to-use multi-camera switcher requires no drivers for seamless and effortless switching between 2x USB and 1x HDMI cameras. Capture, mix, and switch with INOGENI’s professional camera selectors for a dynamic and engaging presentation experience. Compatible with Barco ClickShare and Q-SYS.
Compatible with all USB &HDMI cameras
FOR MAXIMUM VERSATILITY
This pro AV camera switcher is fully compatible with all USB and HDMI cameras, including professional-caliber equipment, such as Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.
| Design |
|---|
| Certification |
FCC, CE, RoHS, IEC62368, SoV, NOM |
| Display |
|---|
| Built-in display |
No |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| RS-232 ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB ports quantity |
3 |
| USB connector type |
USB Type-B |
| HDMI output ports quantity |
1 |
| HDMI input ports quantity |
1 |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
100-240 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-40 - 105 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Package type |
Box |
| Weight |
570 g |
| Height |
41 mm |
| Depth |
116 mm |
| Width |
173 mm |
