SKU: INO-SDI2USB3

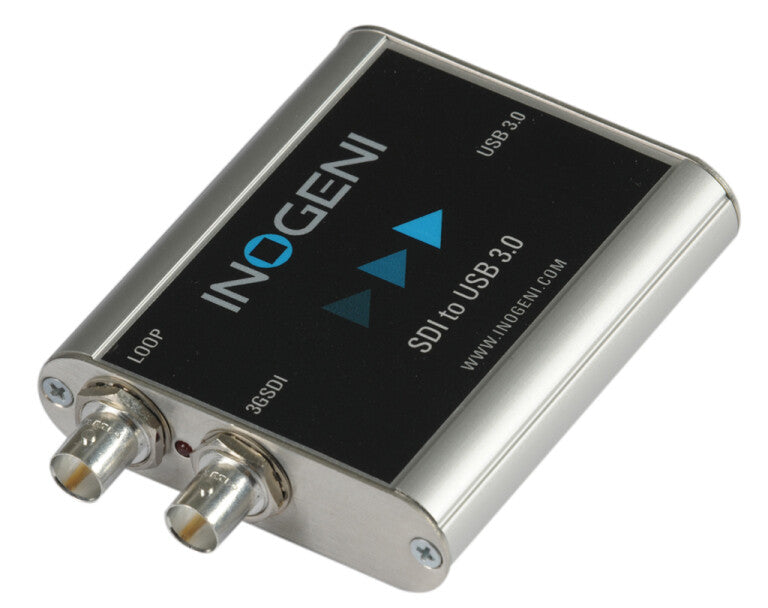

INOGENI SDI2USB3 Active video converter

INOGENI
£538.87
Price history

Price changes in the past 30 days

November 29, 2025 £538.87 GBP
  • 3GSDI capture to USB 3.0
  • Active loop output connector
  • Supports 1080p, 1080i, 720p, 480p, 576p, NTSC and PAL at up to 60 fps
  • All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0
  • Embedded audio extraction and output as two-channel LPCM
  • Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
  • Hardware-based color space and sampling conversion
  • Automatic scaling and frame rate conversion
  • Customizable video processing functions
  • Supports multiple devices on the same PC
  • Powered from a USB 3.0 port
  • Compatible with Compatible with Windows, Mac OSX, Linux and Android

SDI2USB3 Converter is the most easy and reliable tool to capture uncompressed 3GSDI video with embedded audio for your PC for recording, editing, videoconferencing and streaming applications. No driver installation is necessary. It features a 3GSDI input with active loop output and supports SD and HDTV video formats, up to 1080p60. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux and Android operating systems and is UVC-compliant, so it will work with all DirectShow compatible software.

Features
Product colour Black, Silver
Converter type Active video converter
Video
Bandwidth 148.5 MHz
Analog signal format system NTSC, PAL
Supported video modes 480p, 576p, 720p, 1080p
Audio
Audio output channels 2.0 channels
Ports & interfaces
Host interface USB 3.2 Gen 1 (3.1 Gen 1)
Output interface BNC
Power
Operating voltage 5 V
Operating current 0.53 A
Operational conditions
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -40 - 105 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 139 g
Height 19 mm
Depth 73.6 mm
Width 81.2 mm
Packaging data
Quantity 1
