SKU: 560443

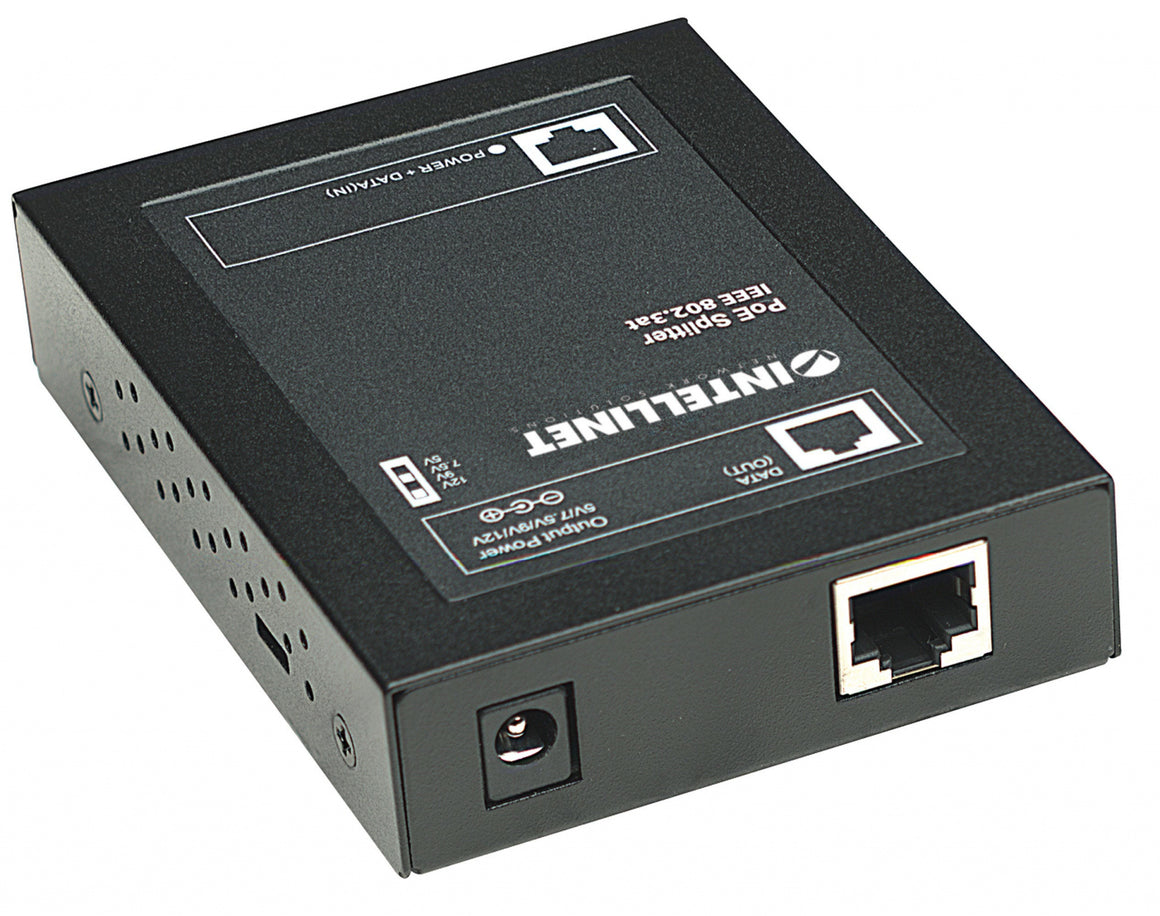

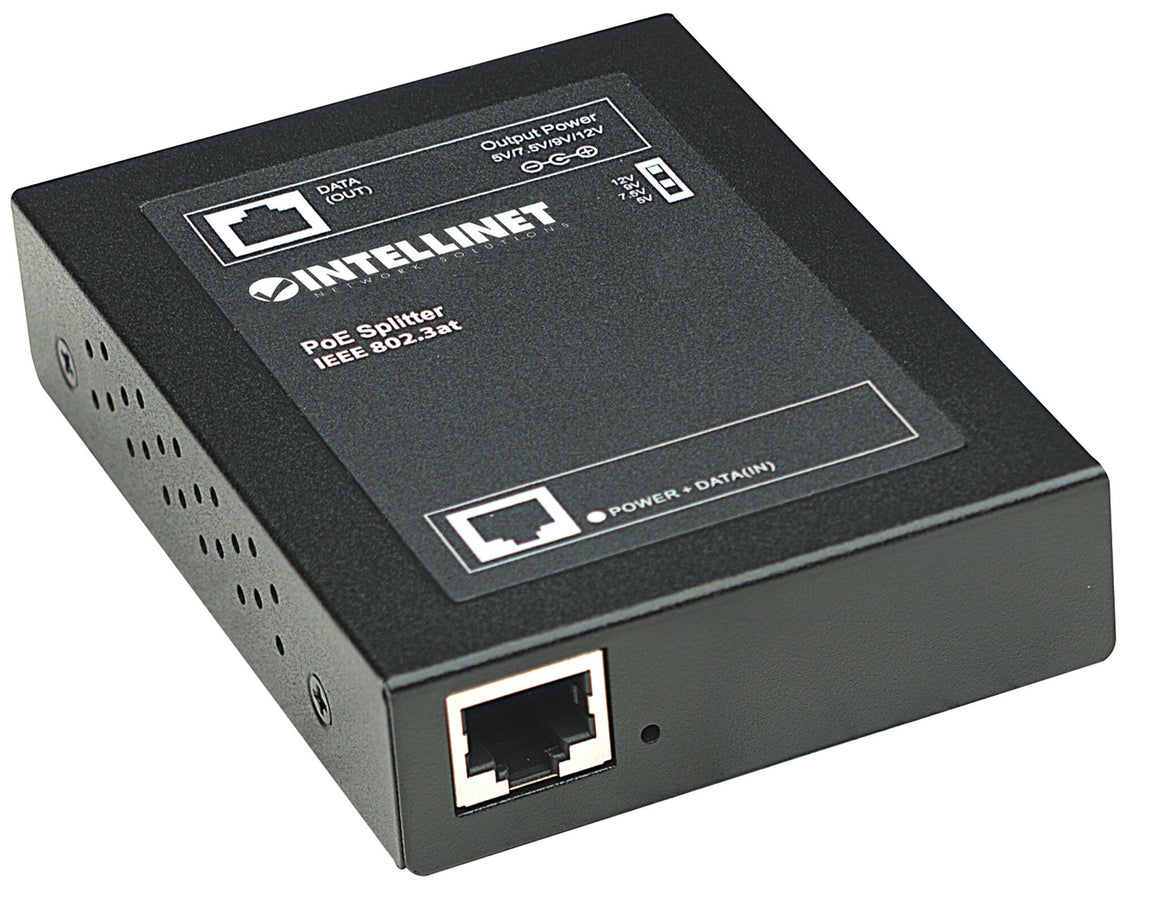

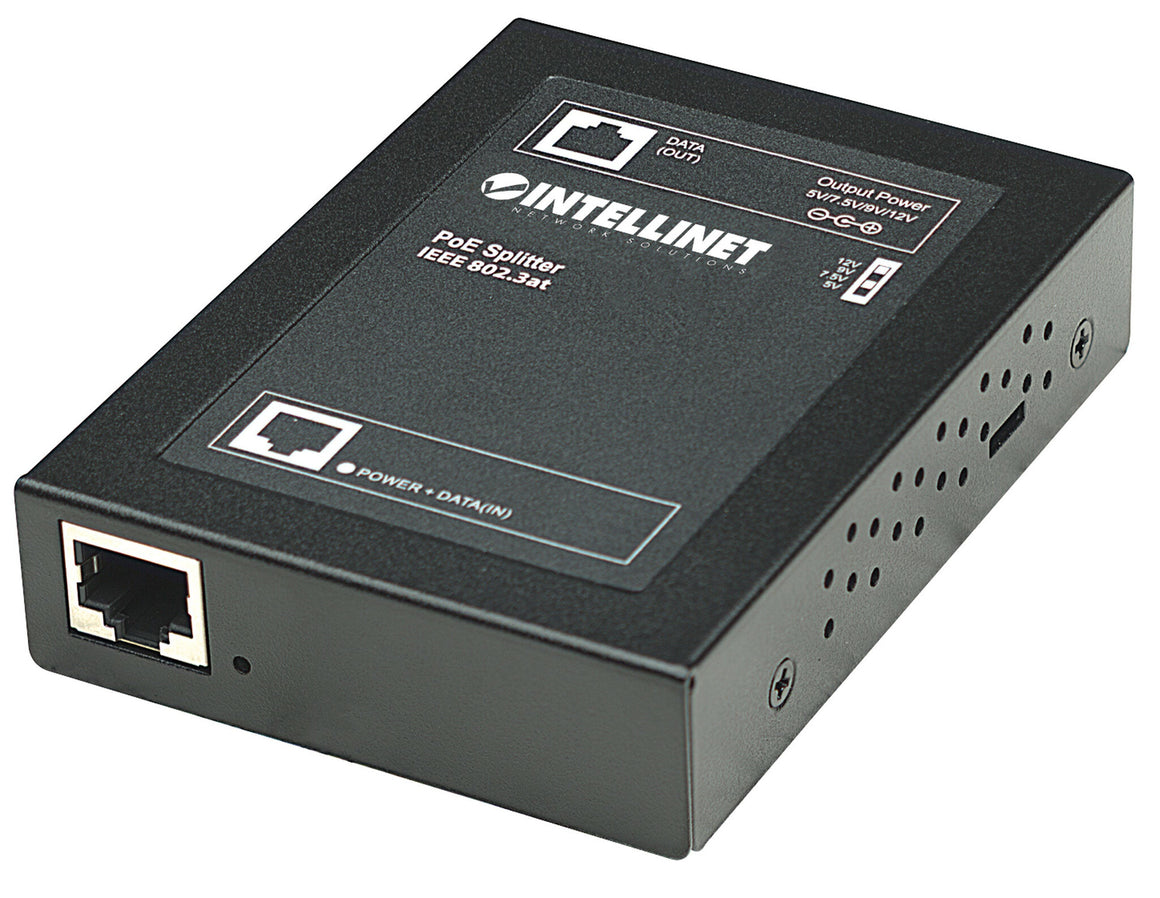

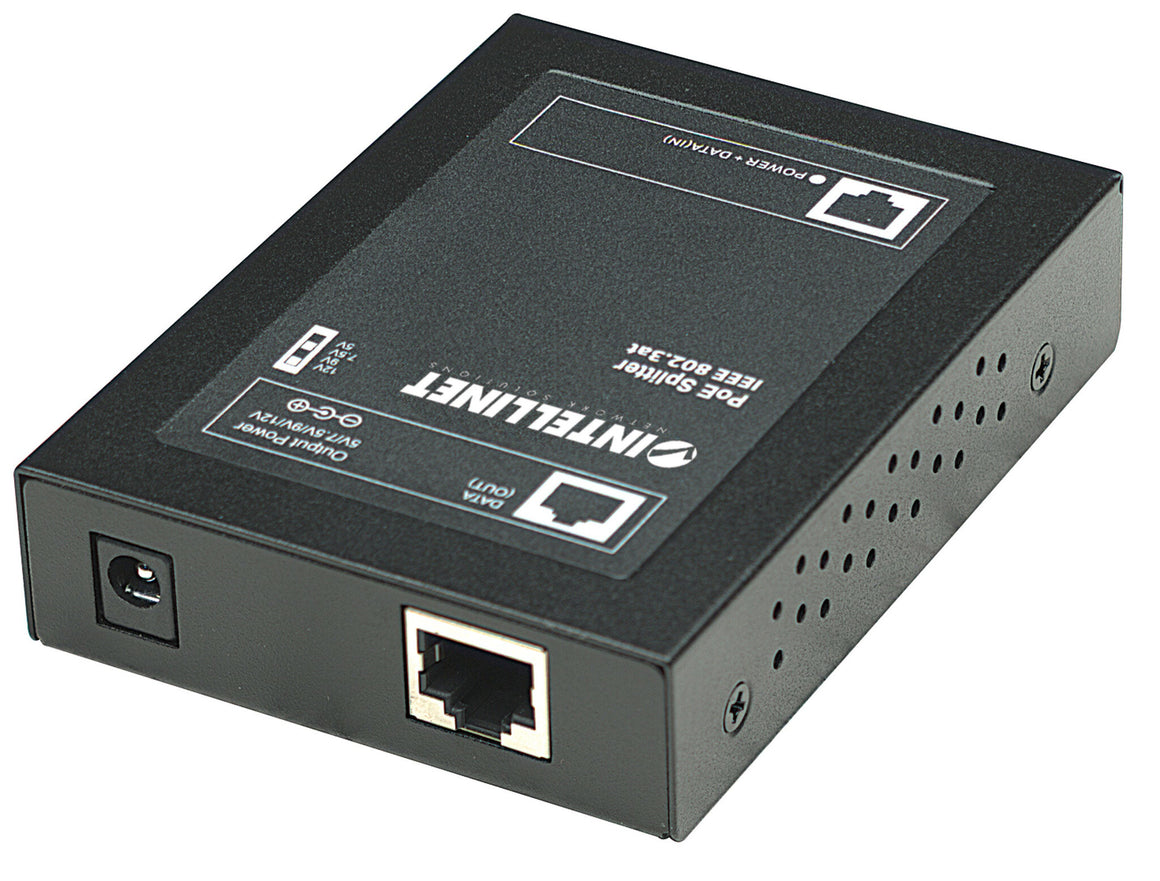

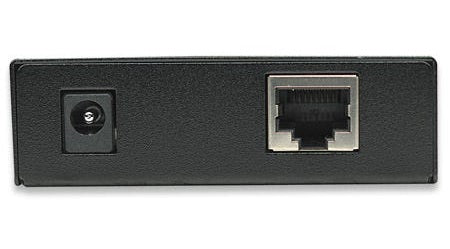

Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage

Intellinet
£53.30
iFrame
  • Can be used to connect non-PoE IEEE 802.3af/t-compliant devices to a PoE injector or PoE switch
  • Output voltage, selectable: 5, 7.5, 9 or 12 V DC
  • Power output: 5 V / 4 A, 7.5 V / 2.7 A, 9 V / 2.3 A and 12 V / 1.7 A
  • 10/100 auto-sensing input port automatically detects optimal network speeds

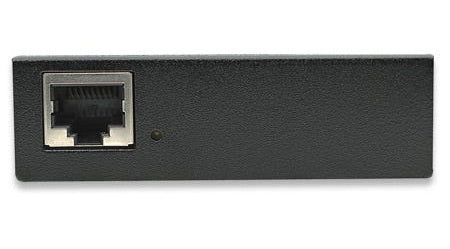

  • RJ45 input port with Auto-MDIX and NWay auto-negotiation support
  • Full/half duplex operation
  • Compact metal case
  • LED for link on PoE input port
  • Three-Year Warranty

Deliver Power over Ethernet to remote devices. _x000D_
_x000D_
The INTELLINET NETWORK SOLUTIONS PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points*, where power outlets are not readily available. _x000D_
_x000D_
Simplify Installation for an Ethernet-based Device _x000D_
Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** from a power source. The PoE Splitter is simple to install and requires no tools or software. _x000D_
_x000D_
802.3af Compliant Power over Ethernet _x000D_
The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches. _x000D_
_x000D_
Adjustable Power Output _x000D_

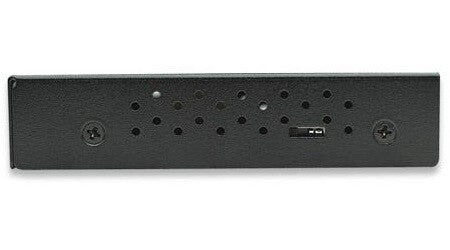

During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side. _x000D_
_x000D_
* Contact your INTELLINET NETWORK SOLUTIONS reseller for ordering information. _x000D_
** Maximum distance per 802.3u specifications.

Features
Housing material Metal
Product colour Black
Cable standard Cat5
Power over Ethernet (PoE) Yes
Cabling technology 10Base-T, 100Base-TX
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ports & interfaces
Connector gender Female
Ethernet LAN (RJ-45) ports 2
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) -20 - 90 °C
Operating relative humidity (H-H) 10 - 90%
Certificates
Certification FCC Class A, CE
Weight & dimensions
Weight 445 g
Height 22 mm
Depth 102 mm
Width 74 mm
Packaging content
Quantity per pack 1 pc(s)
Cables included AC
Power
Output power 25.4 W
Output voltage 12 V
