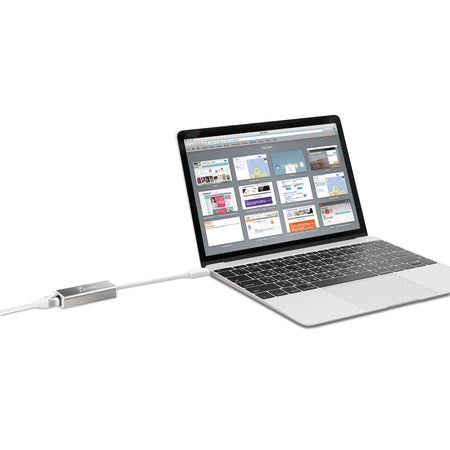

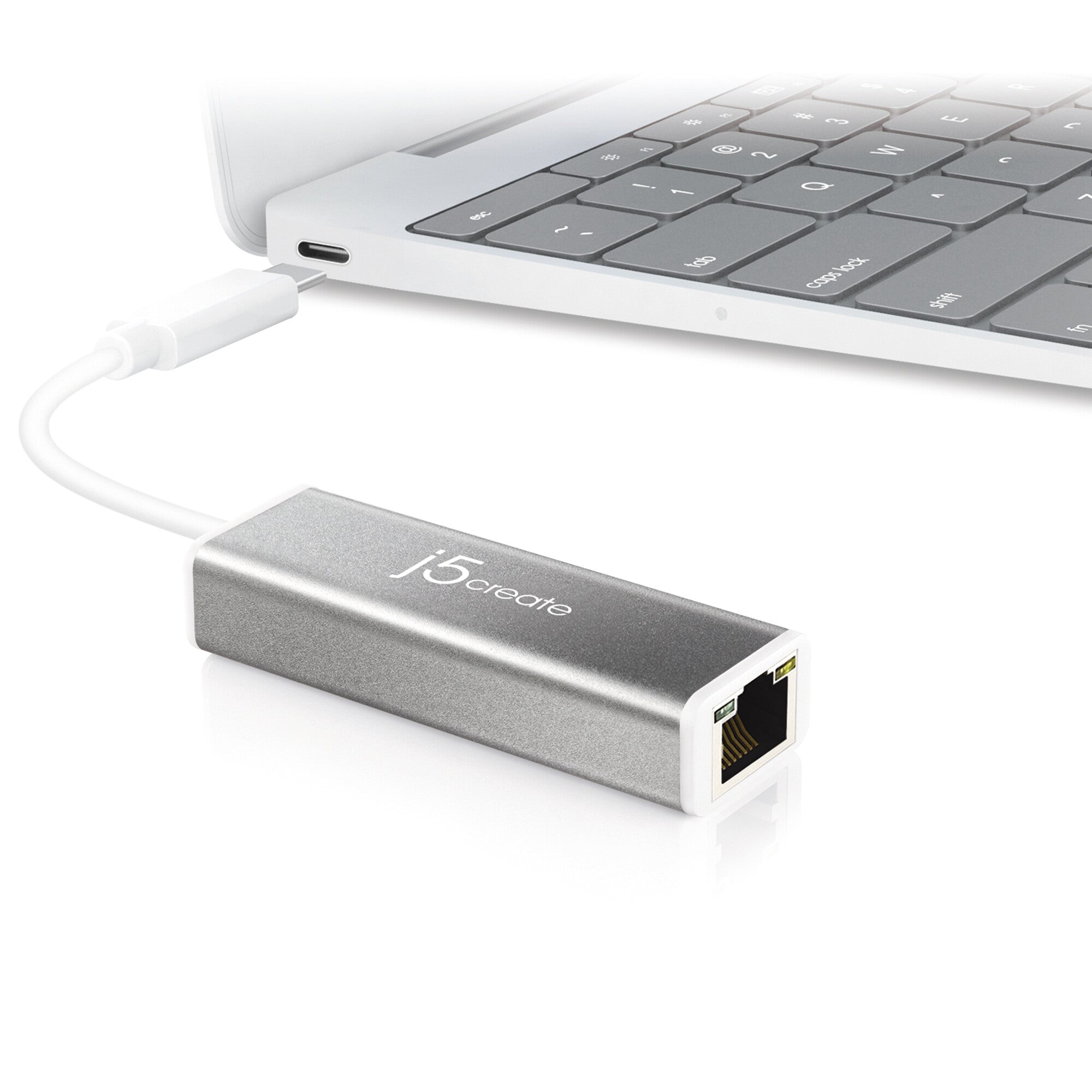

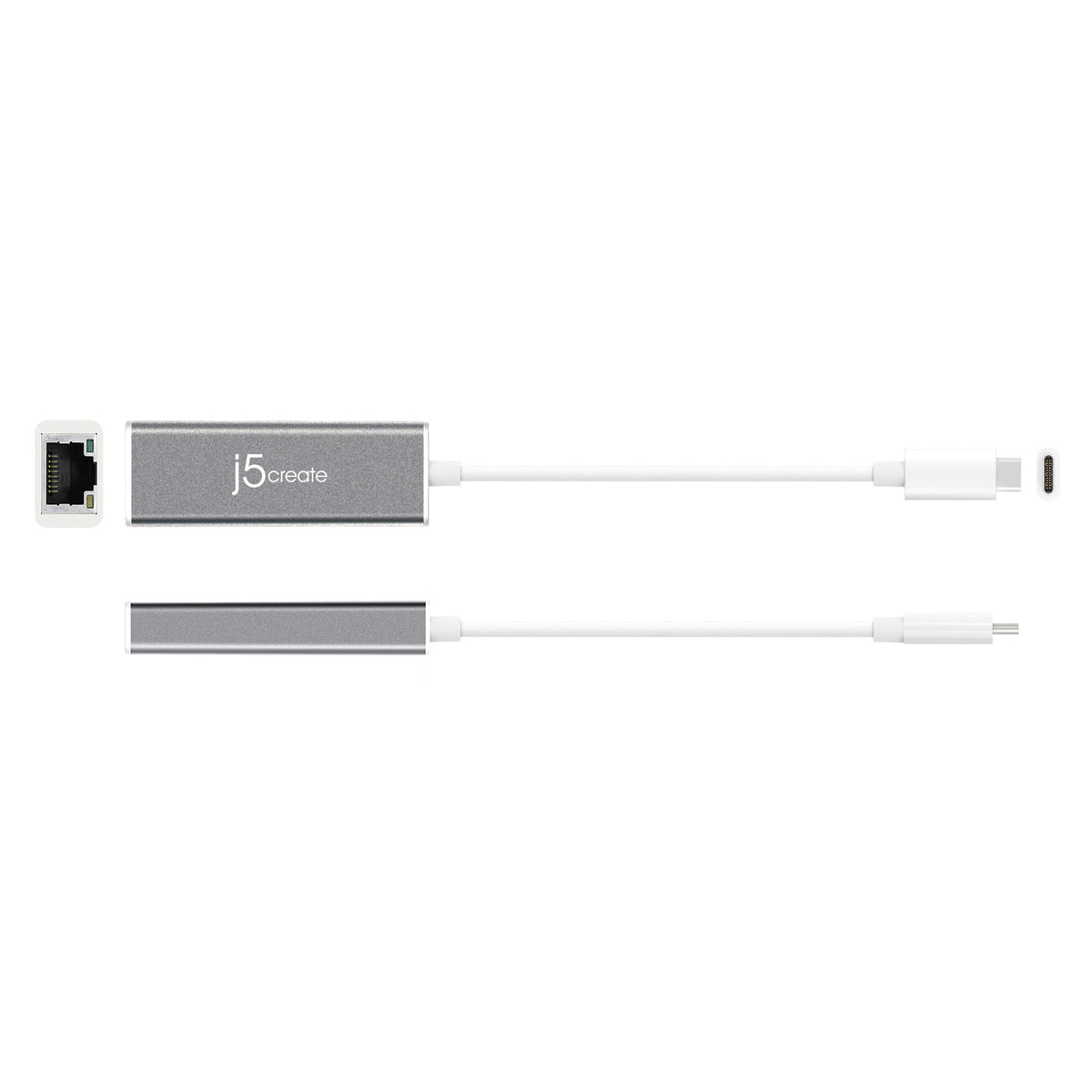

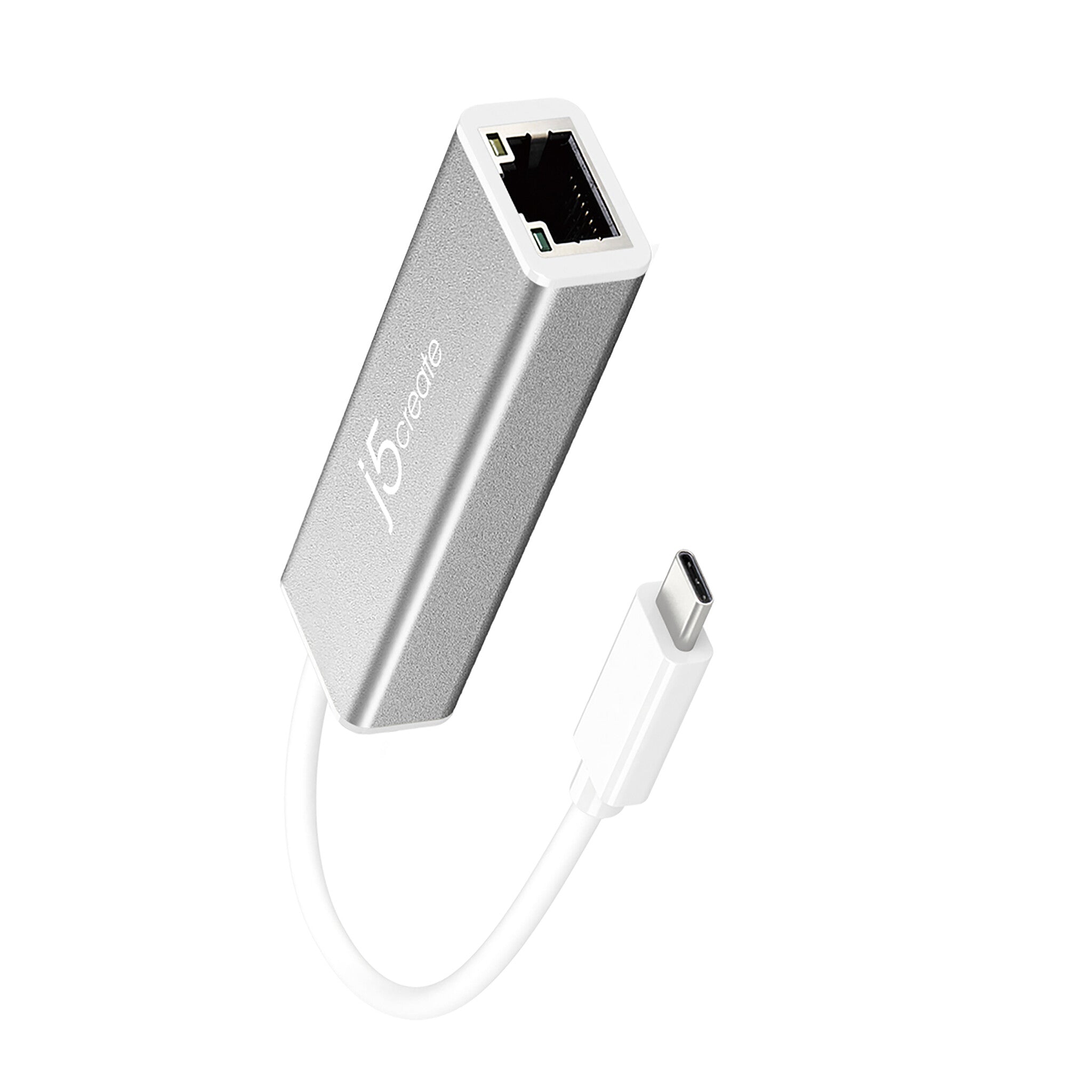

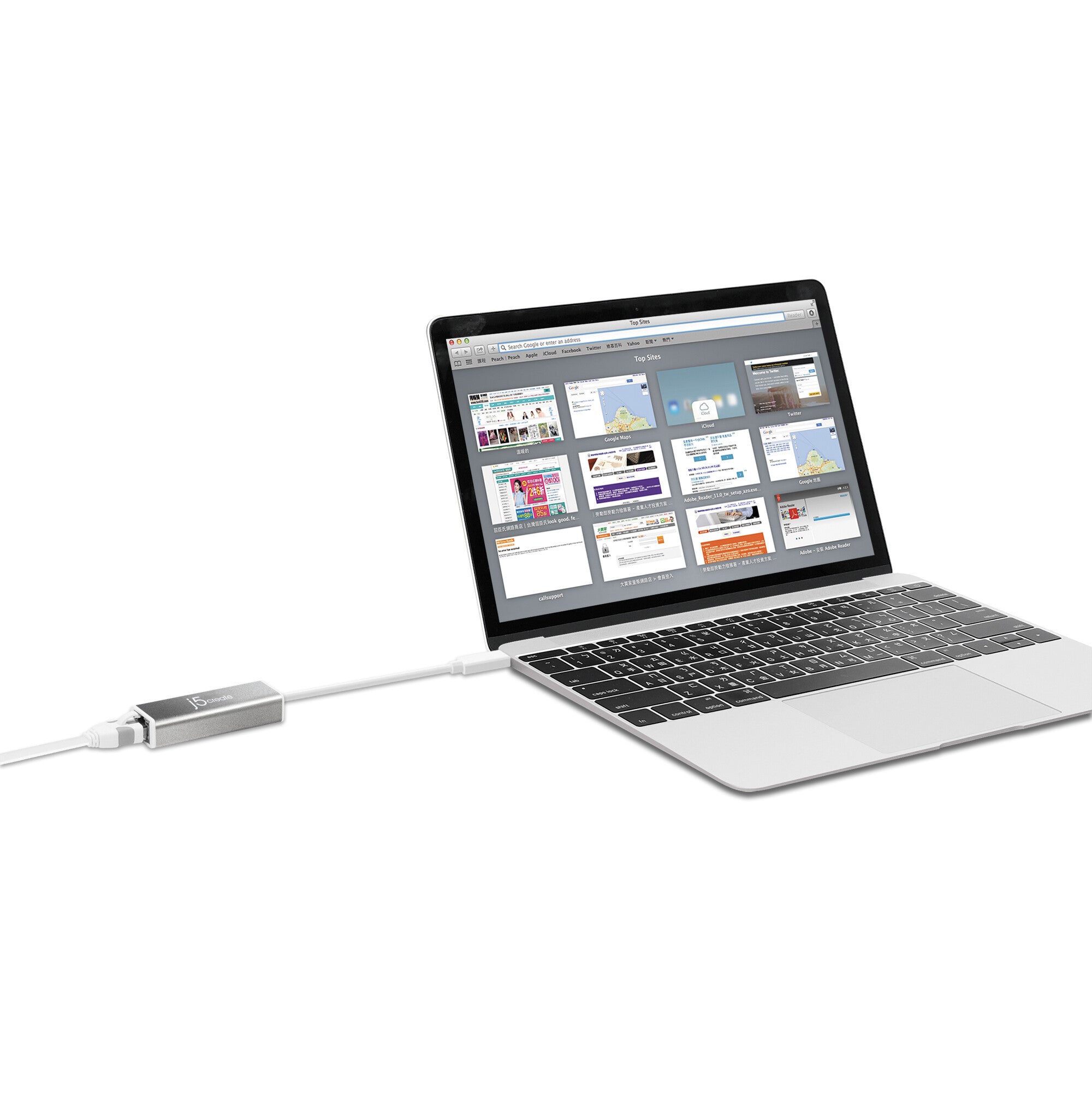

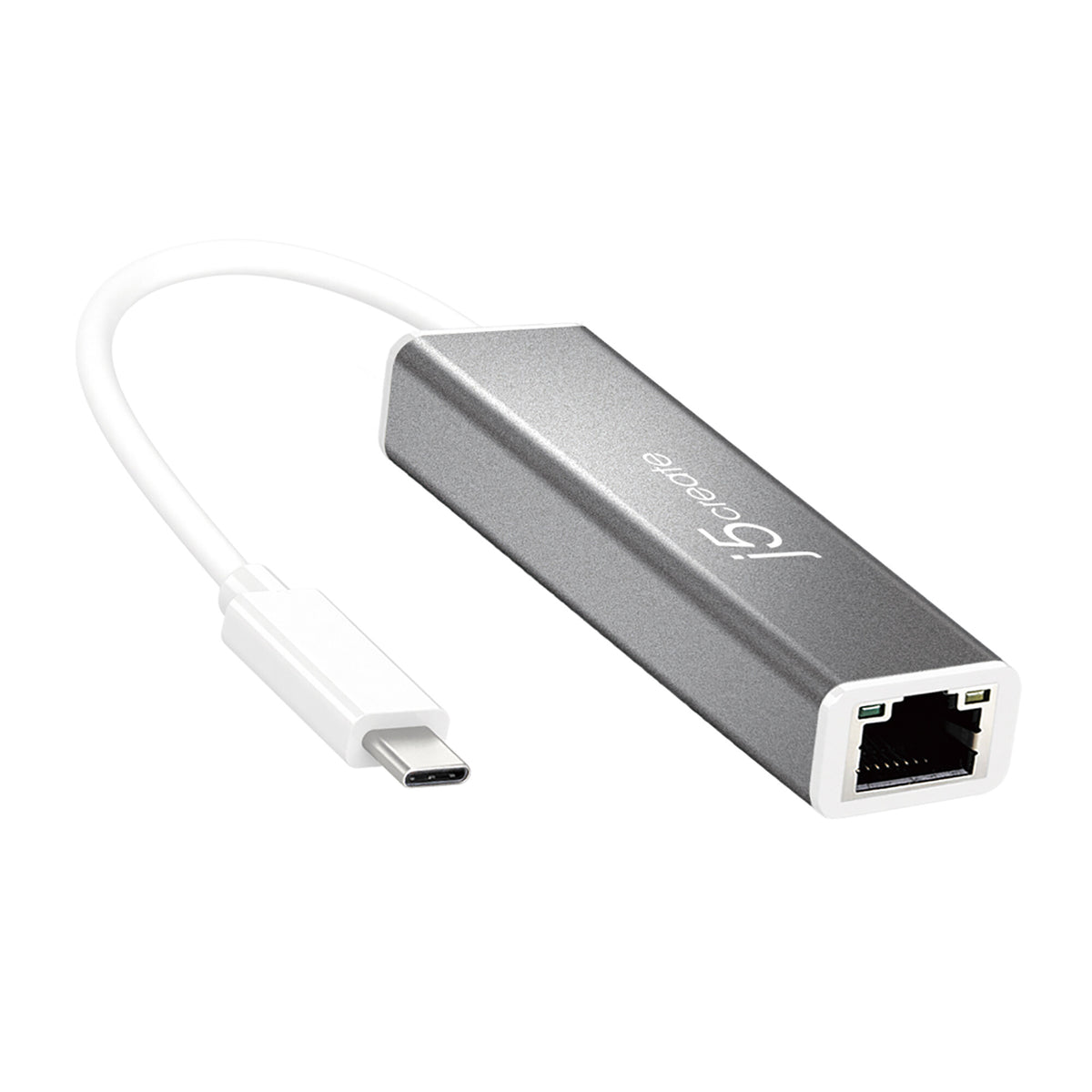

j5create’s JCE133G is a simple, one-piece external adapter that plugs into the USB-C™ port on your Ultrabook™ or MacBook®. The JCE133G is the ultimate solution if you do not have an Ethernet port or if you just want to increase your speed. The elegantly designed JCE133G uses an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance. The JCE133G allows you to add networking capabilities to a computer without them through a Wi-Fi connection.
| Ports & interfaces |
|---|
| USB connector form factor |
Straight |
| Ethernet LAN (RJ-45) ports |
1 |
| Interface |
Ethernet |
| Host interface |
USB Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Wake-on-LAN ready |
Yes |
| Cabling technology |
10/100/1000BaseT(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Maximum data transfer rate |
1000 Mbit/s |
| Design |
|---|
| Country of origin |
Taiwan |
| LED indicators |
Activity, Link |
| Plug and Play |
Yes |
| Product colour |
Grey, White |
| Component for |
PC/Laptop |
| Internal |
No |
| Power |
|---|
| USB powered |
Yes |
| Power consumption |
180 mA |
| Power consumption (typical) |
0.9 W |
| Output voltage |
5 V |
| System requirements |
|---|
| Other operating systems supported |
ChromeOS |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10 |
| Compatible operating systems |
Windows® 10Windows Server™ 2016/2012/2008R2/2008macOS® 10.6 laterLinux® Kernel up to 4.15Chrome OS™Native Driver Support, no additional driver needed in Windows® 10, macOS® 10.6 later, or Chrome OS™ |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 85% |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage temperature (T-T) |
-10 - 65 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
33.4 g |
| Height |
23 mm |
| Depth |
14.5 mm |
| Width |
68 mm |
| Packaging data |
|---|
| Package weight |
86 g |
| Package height |
25 mm |
| Package depth |
97 mm |
| Package width |
120 mm |
| Packaging content |
|---|
| Packaging content |
1 x USB Type-C™ to Gigabit Ethernet Adapter, 1 x Quick Installation Guide |
| Quick installation guide |
Yes |
| Cables included |
USB |
| Technical details |
|---|
| Warranty period |
2 year(s) |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case gross weight |
2.14 kg |
| Master (outer) case height |
145 mm |
| Master (outer) case length |
210 mm |
| Master (outer) case width |
280 mm |
| Master (outer) case GTIN (EAN/UPC) |
24712795083563 |
| Other features |
|---|
| Data transfer rate |
5 Gbit/s |
| Cable length |
0.1 m |
| Export Control Classification Number (ECCN) |
EAR99 |
| Commodity Classification Automated Tracking System (CCATS) |
8471.80.0000 |
| Cable connection |
USB |
| USB cable |
USB-C |
| Maximum operating temperature |
40 °C |
| Minimum operating temperature |
0 °C |
| Housing material |
Aluminium |
