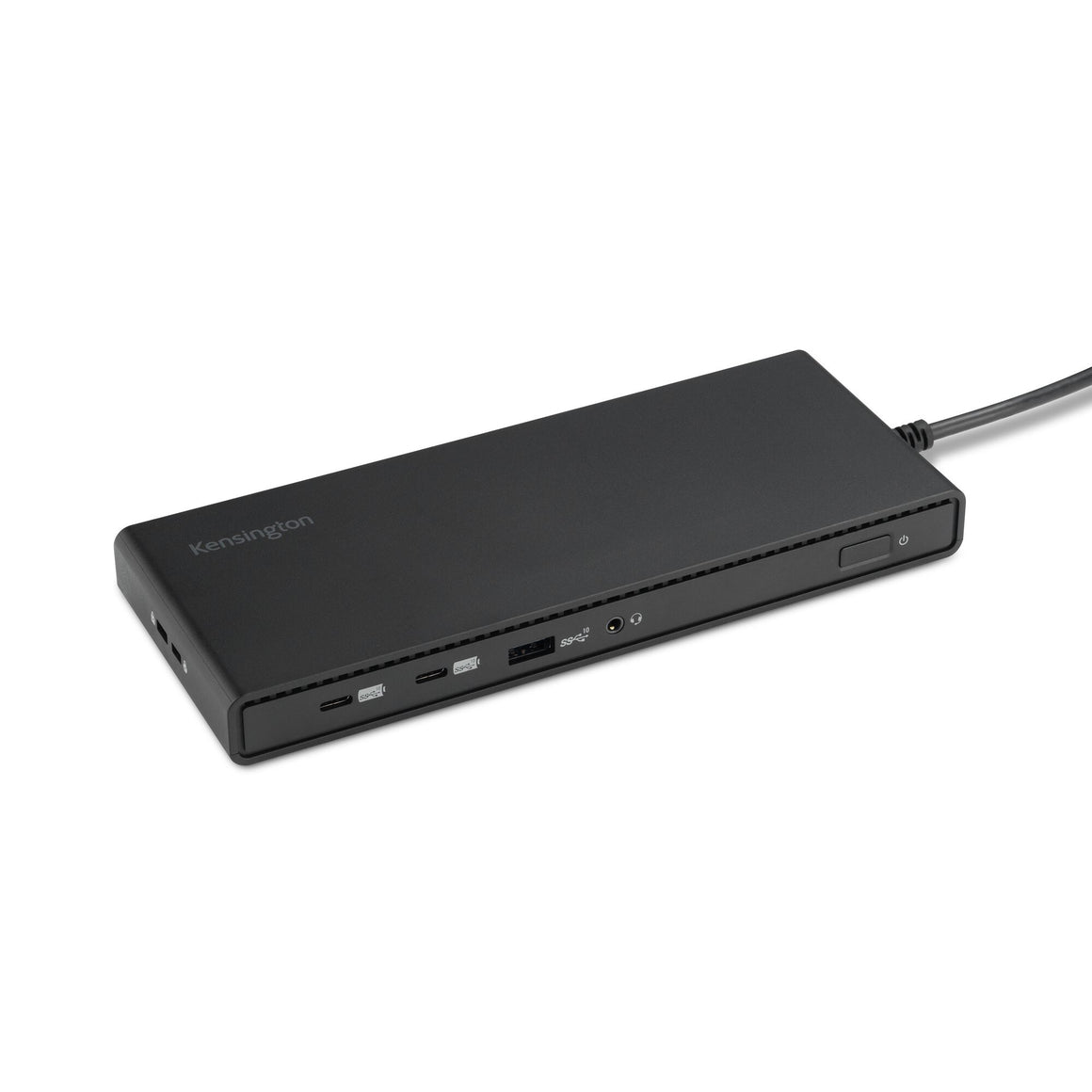

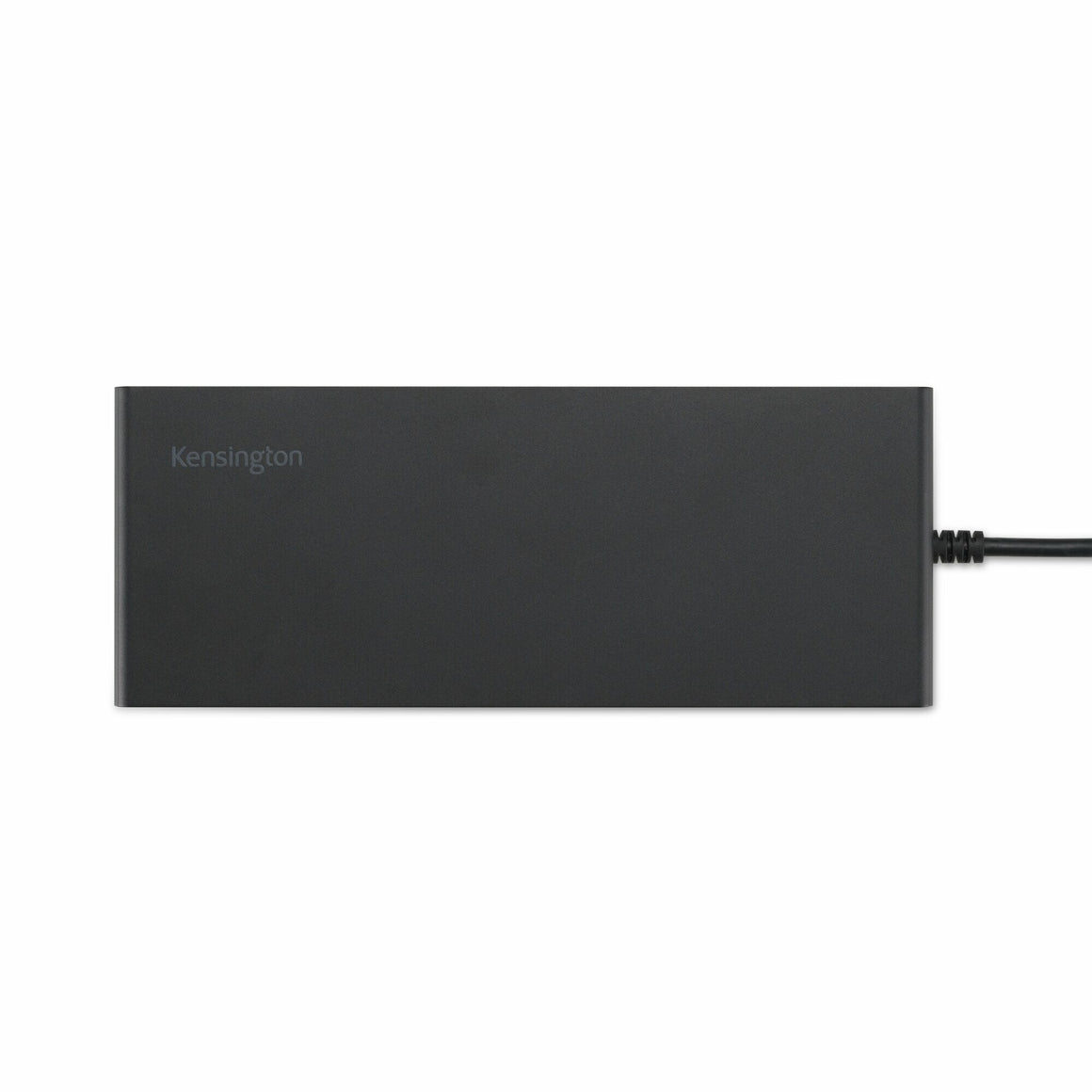

Ideal for professionals requiring a plug-and-play docking solution for USB-C laptops and organizations putting sustainability at the forefront, the SD4842P USB-C® 10Gbps Triple Video Docking Station amplifies visual productivity.

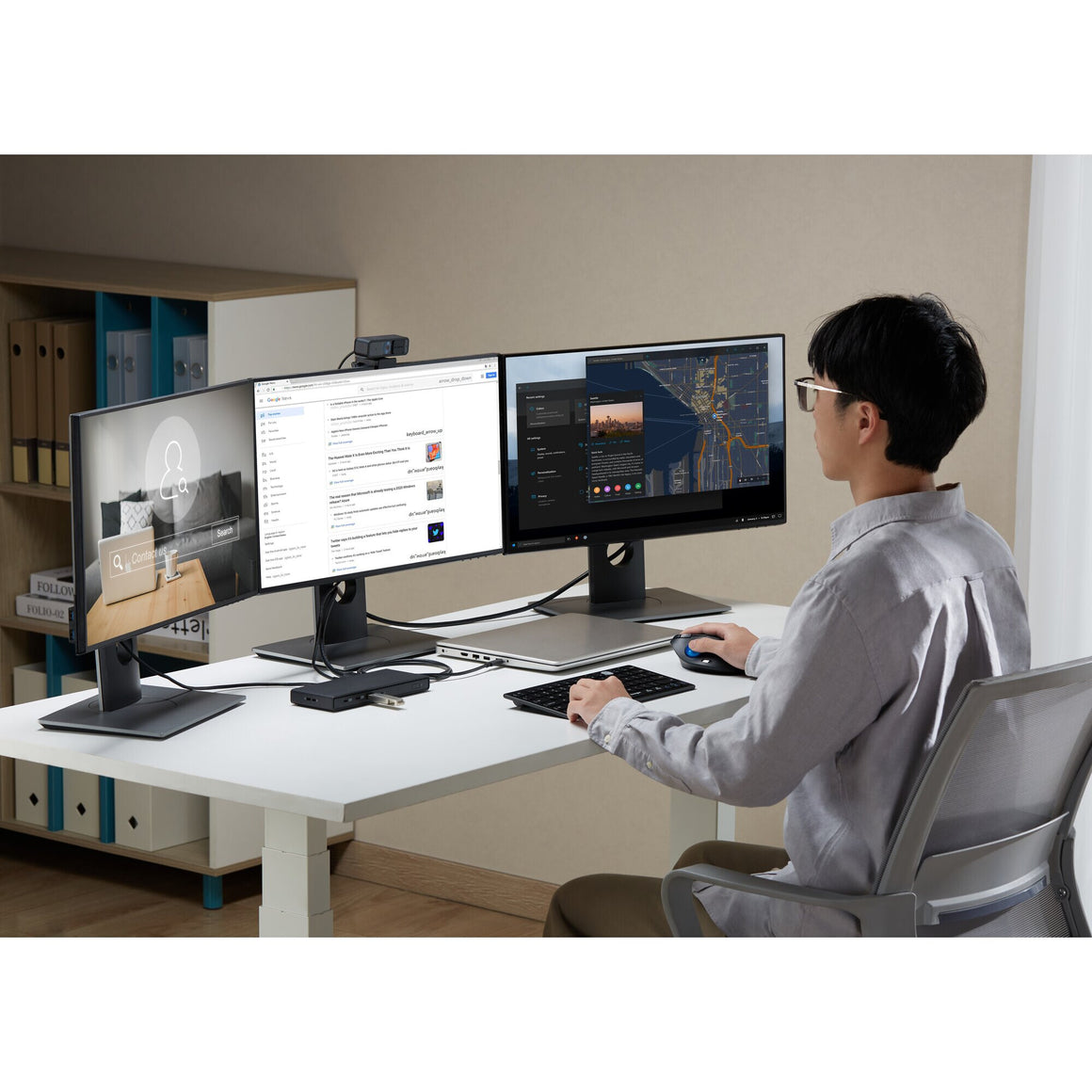

Aimed at reducing our environmental impact, all the plastic material used in the SD4842P is composed of up to 70% post-consumer recycled content (PCR). The SD4842P supports up to 3 external Full HD monitors (1080p @ 120Hz) via 1 x DP and 2 x HDMI® connections. The dock also eliminates the need for cumbersome adapters, charging connected accessories without relying on a host laptop connection.
Expand your screens with an effortless dock that will enhance your workflow.

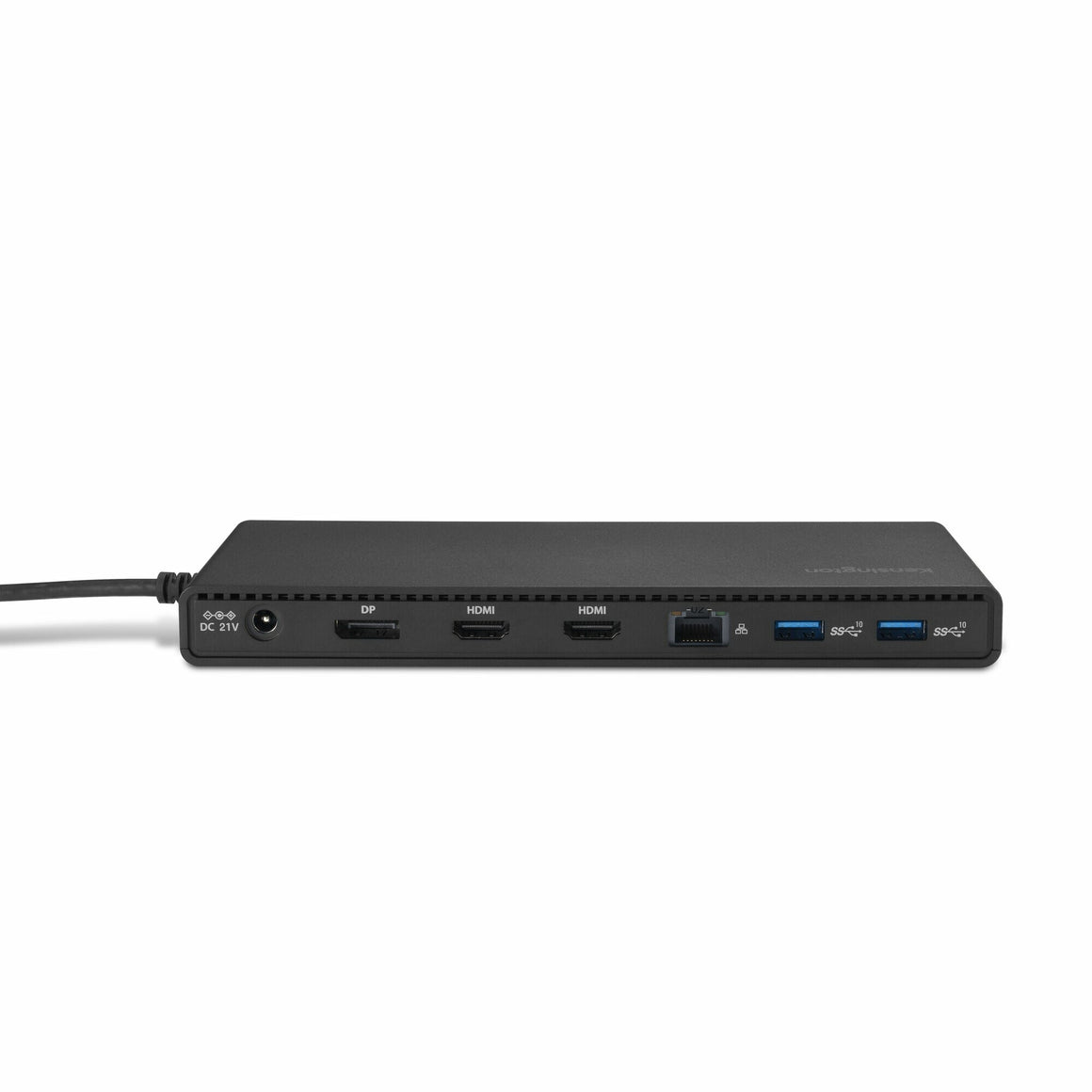

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| HDCP |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Connectivity technology |
Docking |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Country of origin |
Vietnam |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| On/off switch |
Yes |

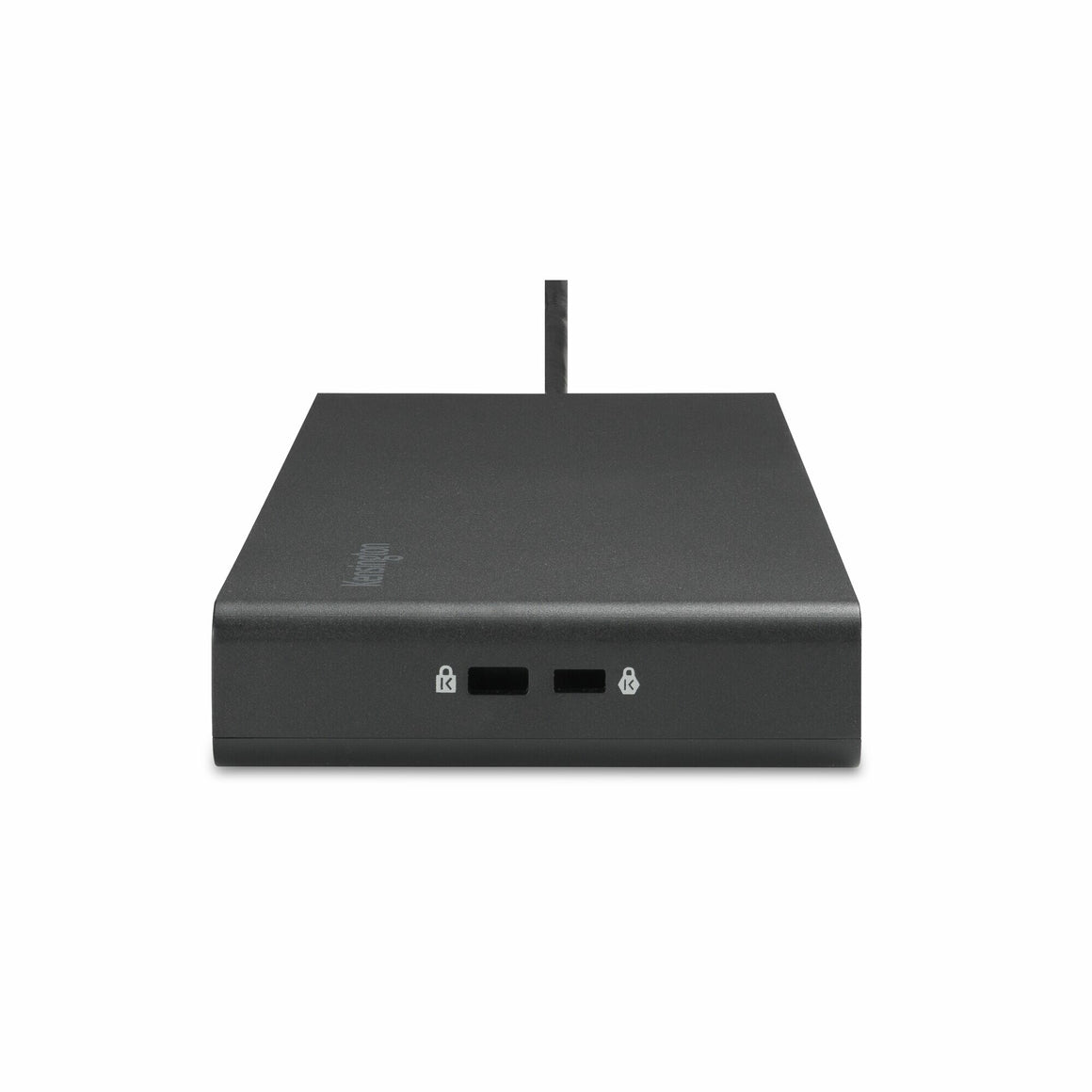

| Cable lock slot type |
Kensington, Nano |
| Cable lock slot |
Yes |
| Maximum refresh rate |
120 Hz |
| Number of displays supported |
3 |
| HD type |
8K Ultra HD |
| Data transfer rate |
10 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Black |
| Power |
|---|
| Compatible power plug types |
EU, UK |
| Output voltage |
21 V |
| Output current |
7.1 A |
| Input current |
2.5 A |
| AC input voltage |
100 - 240 V |
| Power source type |
DC |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 55% |
| Storage temperature (T-T) |
-18 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
ErP |
| Weight & dimensions |
|---|
| Weight |
293 g |
| Height |
36 mm |
| Depth |
104 mm |
| Width |
195 mm |
| Packaging data |
|---|
| Package weight |
1.15 kg |
| Package height |
100 mm |
| Package depth |
110 mm |
| Package width |
245 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC |

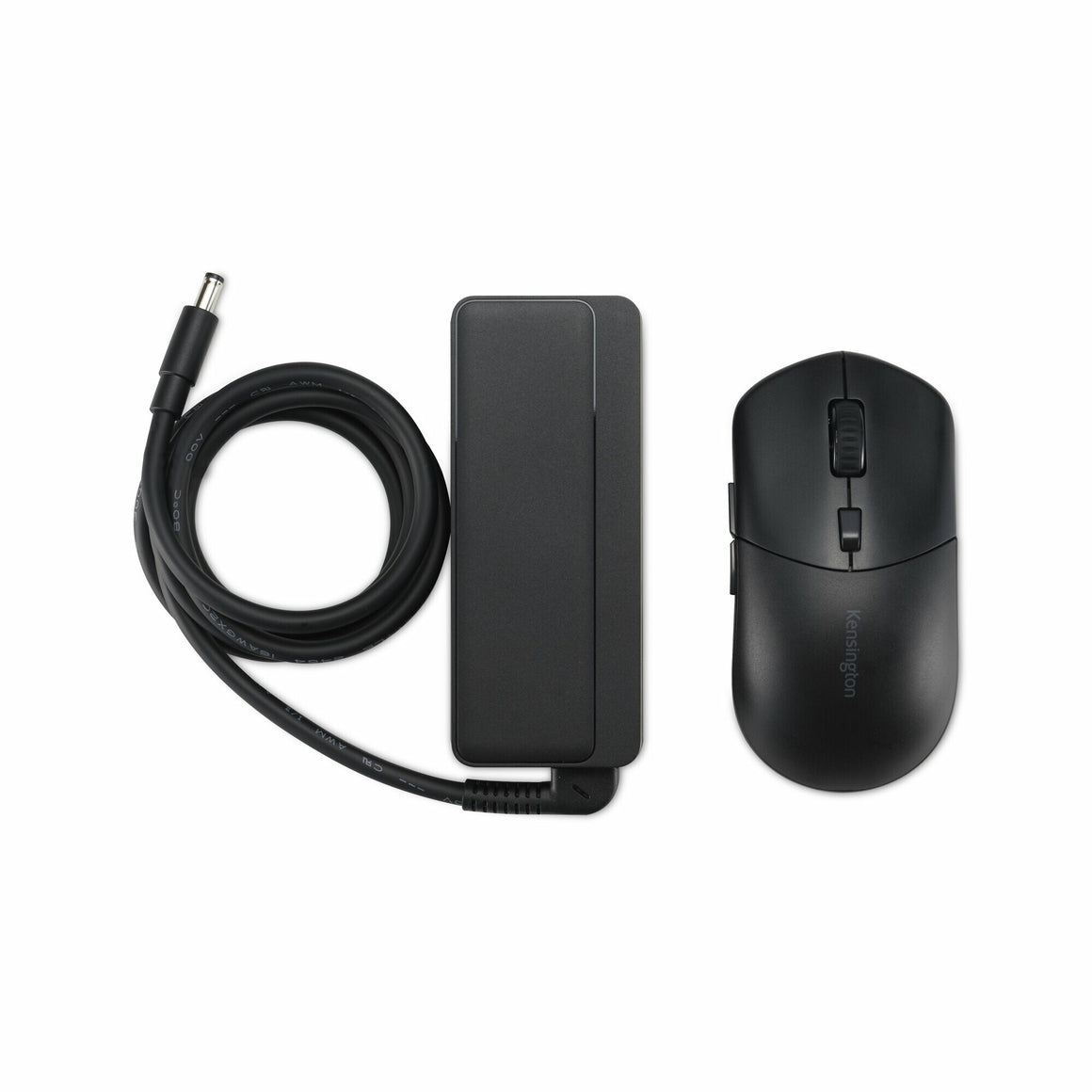

| AC adapter included |
Yes |
| Warranty card |
Yes |
| Technical details |
|---|
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Logistics data |
|---|
| Products per master (outer) case |
6 pc(s) |
| Other features |
|---|
| Minimum system requirements |
CPU: Intel Core i5 6th generation or aboveMemory: 8Gb or aboveGPU: Intel HD Graphics 620 or above |
