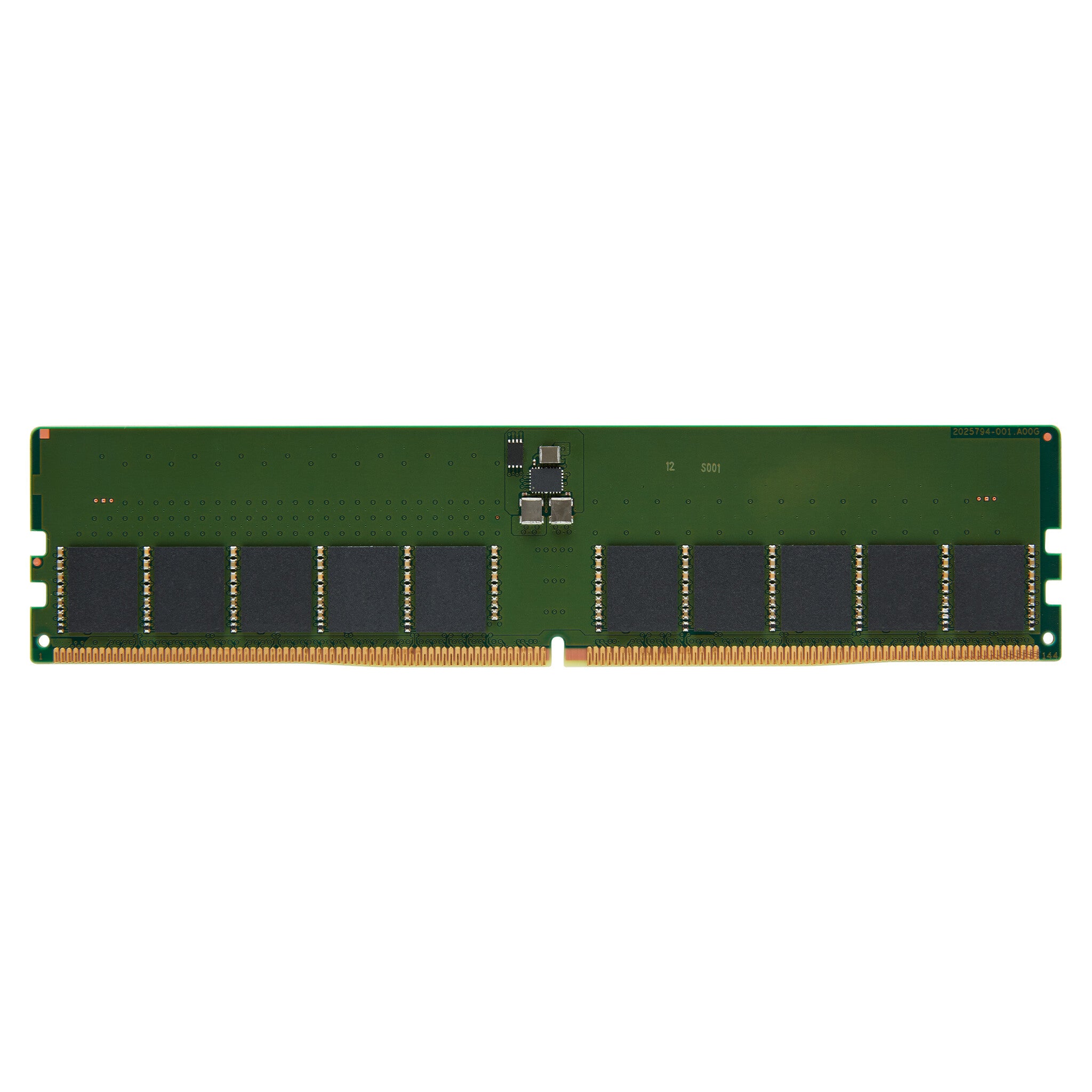

Kingston Technology KSM56E46BD8KM-32HA memory module 32 GB 1 x 32 GB DDR5 ECC

SKU: KSM56E46BD8KM-32HA

£173.22 inc. VAT

Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
x72 ECC (x36, 2 independent I/O sub channels)
32 internal banks
Hard/Soft Post Package Repair
Sideband access with I3C/I2C
PCB: Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free

Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
JEDEC standard	Yes
Lead plating	Gold
Product colour	Black, Green
Programming power voltage (VPP)	1.8 V
SPD profile	Yes
Row Precharge Time (TRP)	16
Row active time	32 ns
Refresh row cycle time	295 ns
Row cycle time	48 ns
Module configuration	4096M x 72
Memory voltage	1.1 V
Memory ranking	2
CAS latency	46
On-Die ECC	Yes
ECC	Yes
Memory form factor	288-pin DIMM
Component for	Server
Internal memory type	DDR5
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Buffered memory type	Unregistered (unbuffered)

Operational conditions
Storage temperature (T-T)	-55 - 100 °C
Operating temperature (T-T)	0 - 95 °C

Technical details
Compliance certificates	RoHS

Sustainability
Sustainability compliance	Yes
Doesn't contain	Halogen

Weight & dimensions
Height	31.2 mm
Width	133.3 mm
