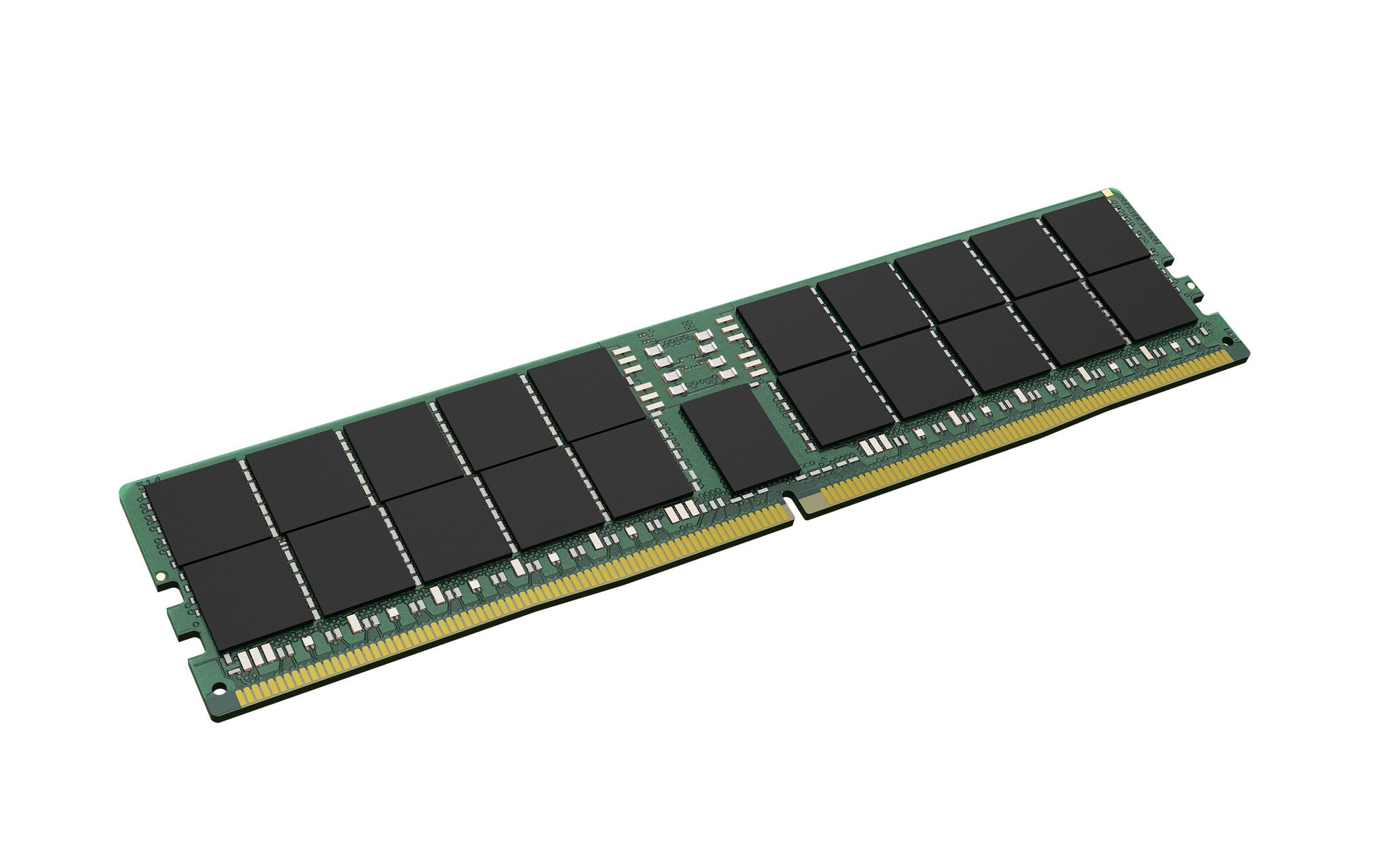

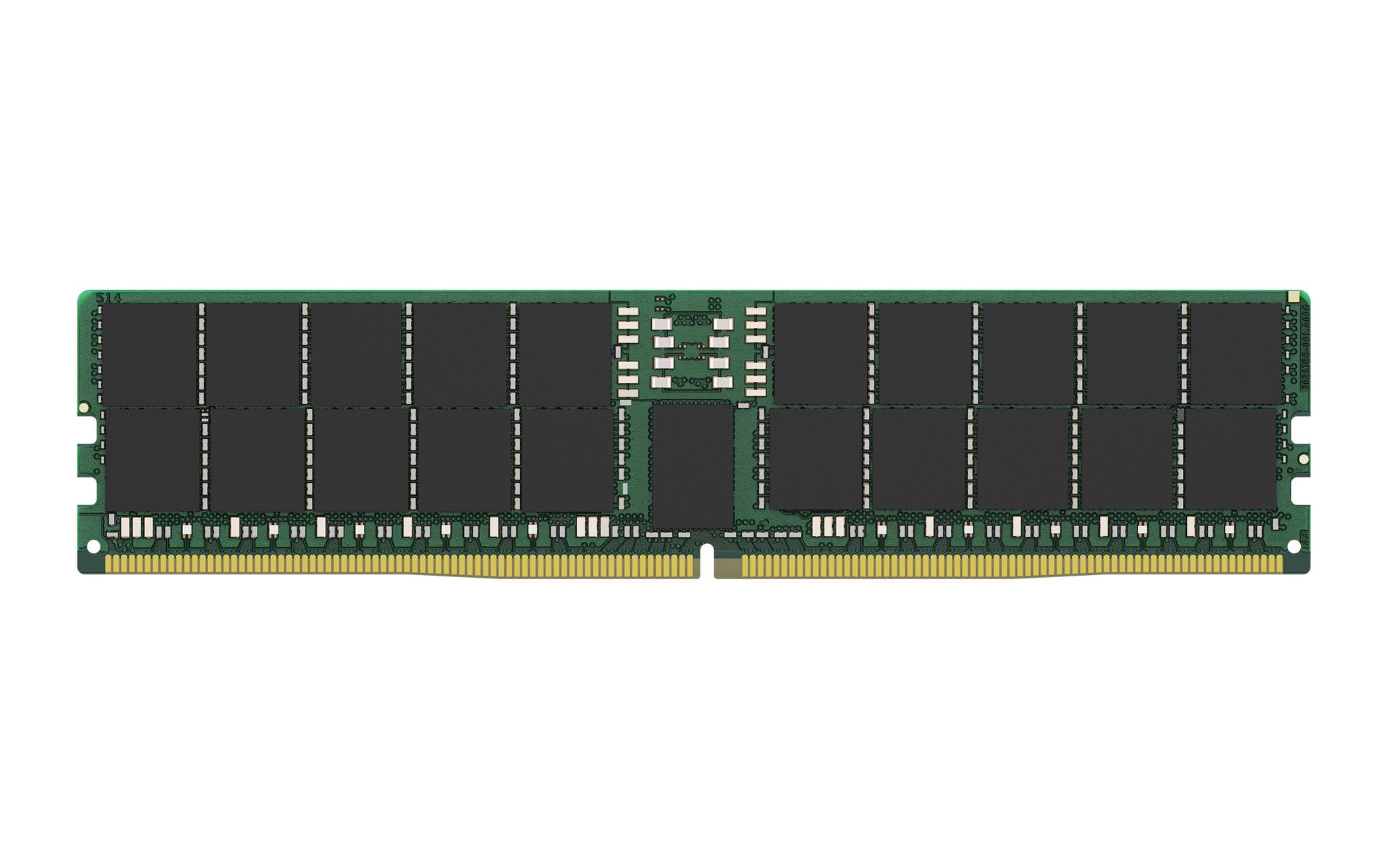

Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s ECC

SKU: KSM56R46BD4PMI-96MBI

£536.40 inc. VAT

On-Die ECC
x80 ECC (x40, 2 independent I/O sub channels)
32 internal banks
Hard/Soft Post Package Repair
Sideband access with I3C/I2C
RoHS Compliant and Halogen-Free

Kingston's KSM56R46BD4PMI-96MBI is a 12G x 80-bit (96GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
JEDEC standard	Yes
Backlight	No
Lead plating	Gold
Programming power voltage (VPP)	1.8 V
SPD profile	Yes
Row active time	32 ns
Refresh row cycle time	295 ns
Row cycle time	48 ns
Module configuration	12288M x 80
Memory voltage	1.1 V
Memory ranking	2
Memory data transfer rate	5600 MT/s
CAS latency	46
On-Die ECC	Yes
ECC	Yes
Memory form factor	288-pin DIMM
Component for	PC/Server
Internal memory type	DDR5
Memory layout (modules x size)	1 x 96 GB
Internal memory	96 GB
Buffered memory type	Registered (buffered)

Operational conditions
Storage temperature (T-T)	-55 - 100 °C
Operating temperature (T-T)	0 - 95 °C

Technical details
Compliance certificates	RoHS

Sustainability
Sustainability compliance	Yes
Doesn't contain	Halogen

Weight & dimensions
Height	31.2 mm
Width	133.3 mm
