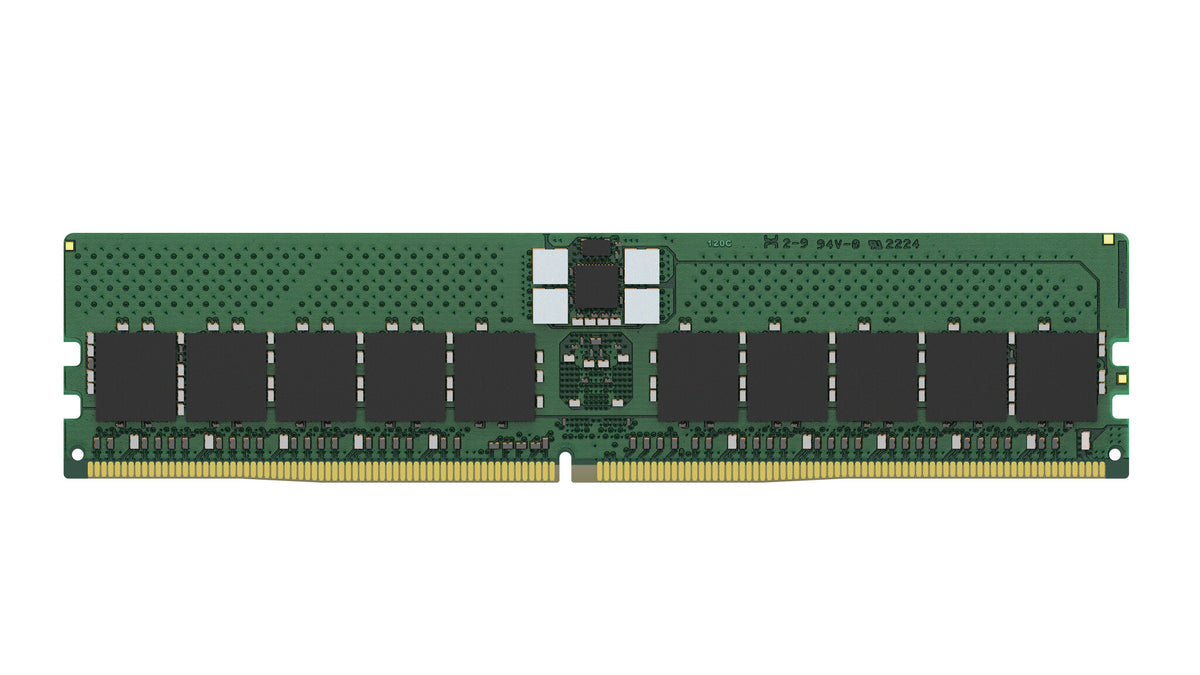

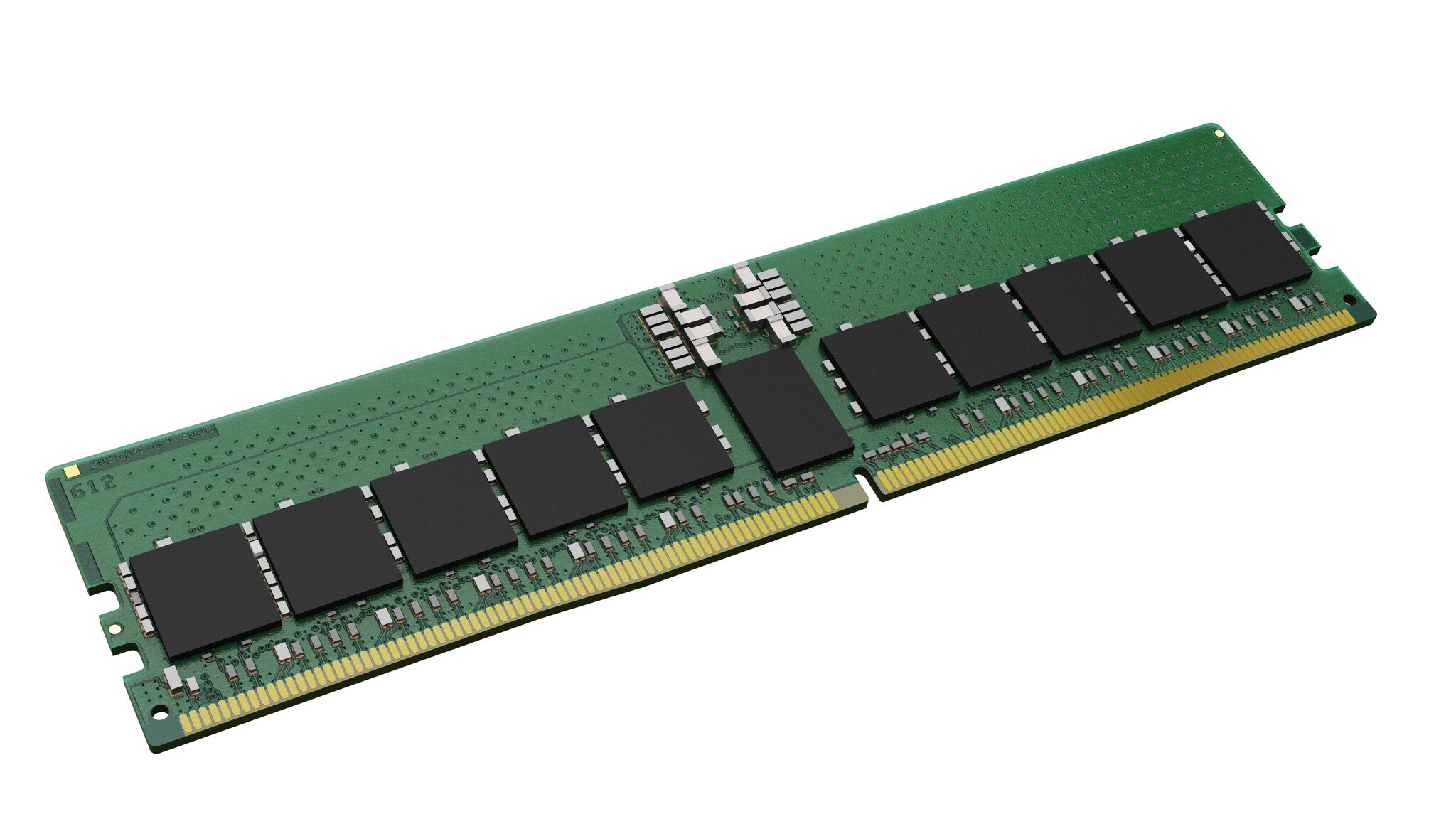

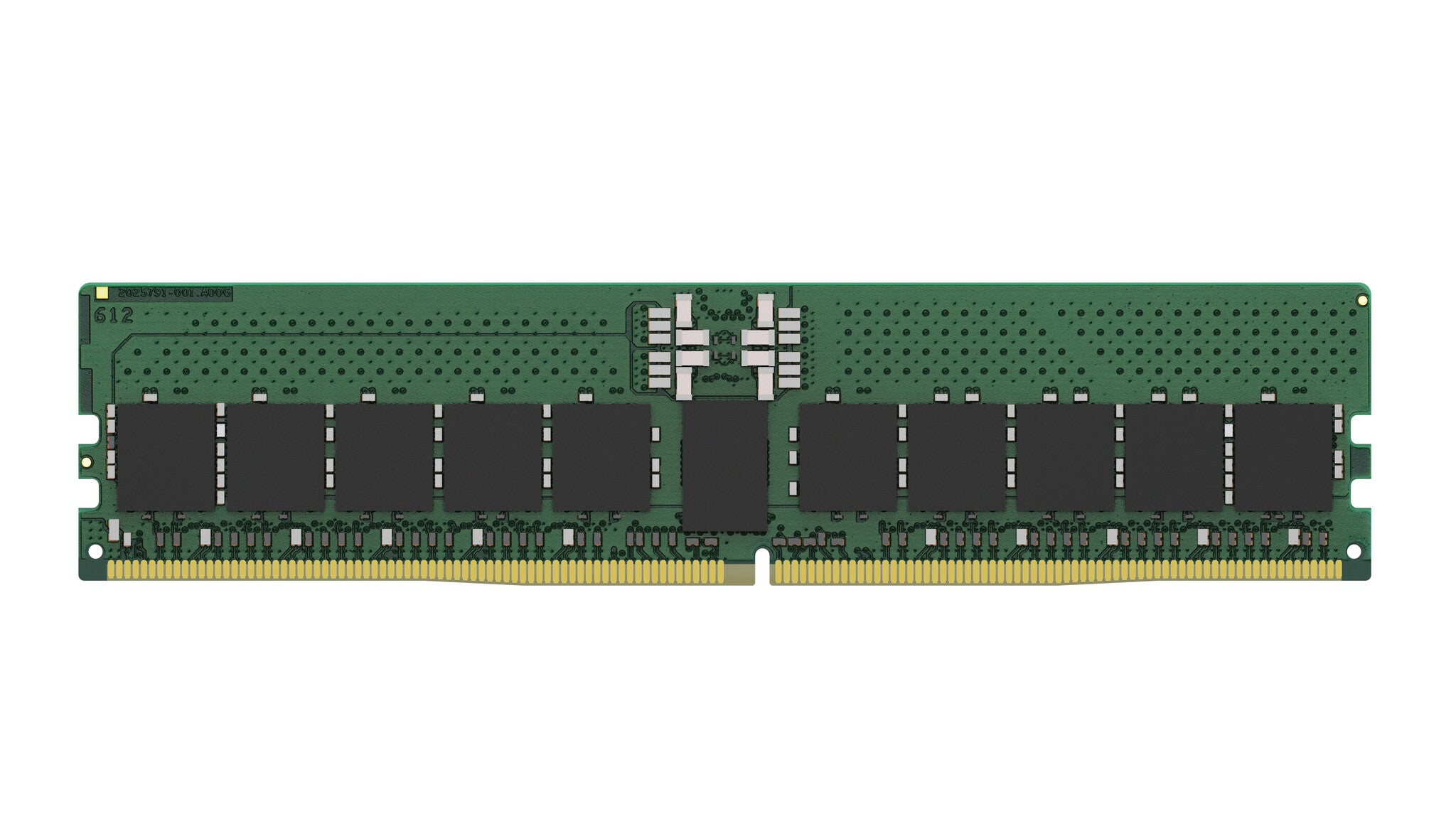

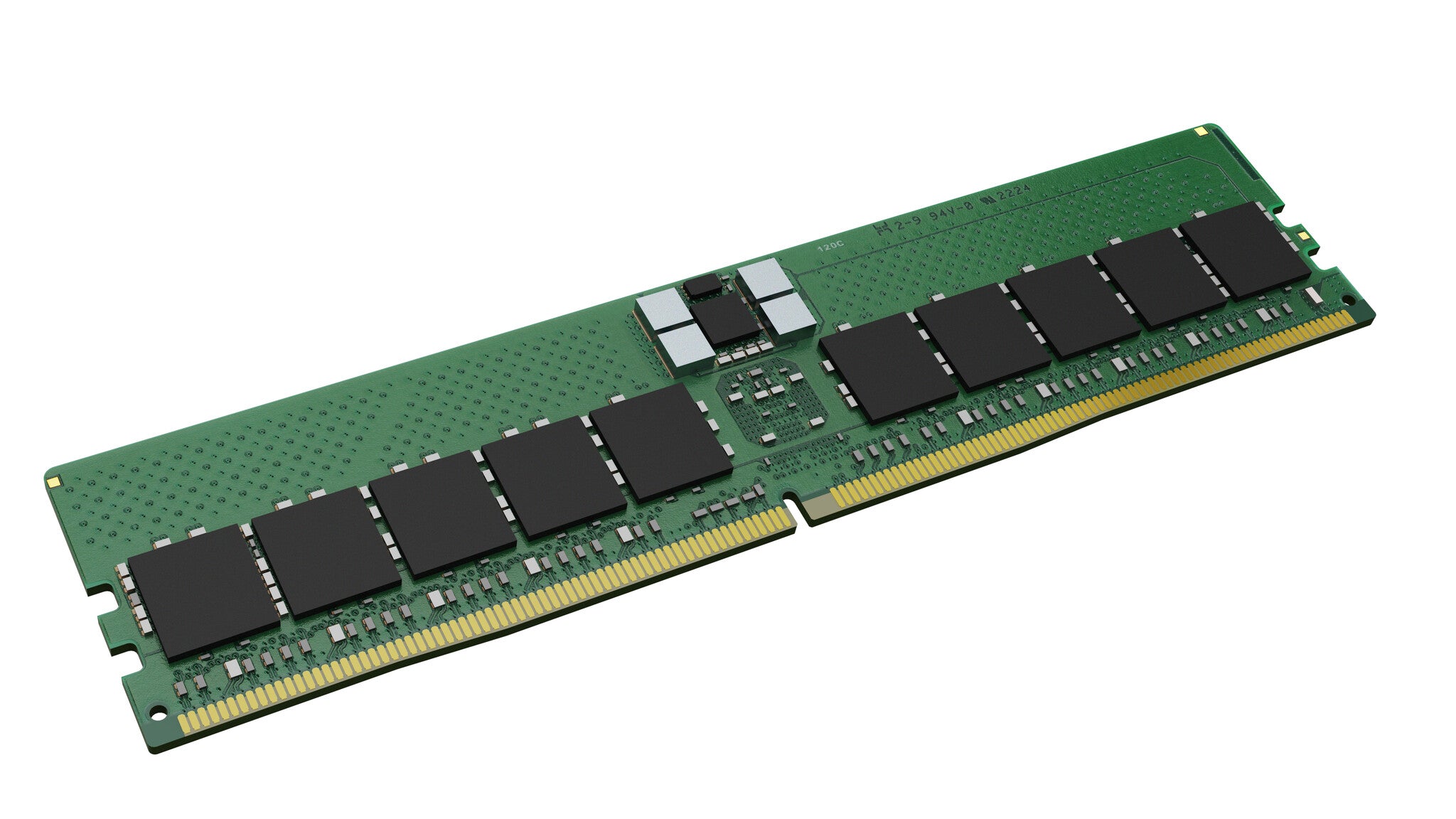

Kingston Technology KSM56R46BD8-32MD memory module 32 GB 1 x 32 GB DDR5 5600 MT/s

SKU: KSM56R46BD8-32MD

£183.72 inc. VAT

PC/Server 32 GB DDR5 5600 MT/s
288-pin DIMM 1 x 32 GB
CAS latency: 46
1.1 V

Kingston memory is designed, manufactured and rigorously tested to meet the exact specifications of each brand name system.

Features
JEDEC standard	Yes
Lead plating	Gold
Programming power voltage (VPP)	1.8 V
SPD profile	Yes
Row Precharge Time (TRP)	16
Row active time	32 ns
Refresh row cycle time	295 ns
Row cycle time	48 ns
Module configuration	4096M x 80
Memory voltage	1.1 V
Memory ranking	2
Memory data transfer rate	5600 MT/s
CAS latency	46
On-Die ECC	Yes
ECC	No
Memory form factor	288-pin DIMM
Component for	PC/Server
Internal memory type	DDR5
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Buffered memory type	Registered (buffered)

Operational conditions
Storage temperature (T-T)	-55 - 100 °C
Operating temperature (T-T)	0 - 95 °C

Technical details
Compliance certificates	RoHS

Sustainability
Doesn't contain	Halogen

Weight & dimensions
Height	31.2 mm
Width	133.3 mm
