SKU: KVR32S22S8/16

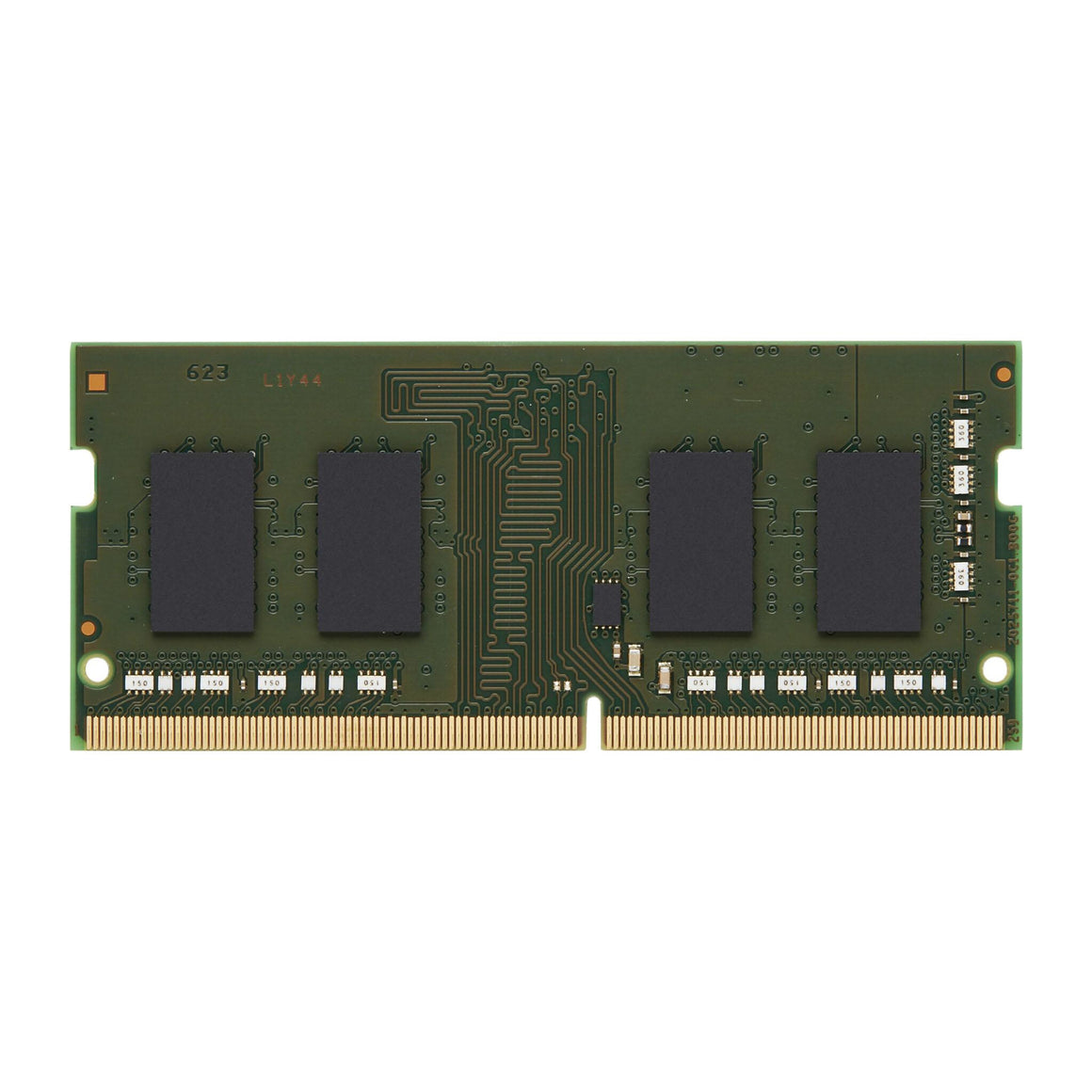

Kingston Technology ValueRAM memory module 16 GB 1 x 16 GB DDR4 3200 MT/s

Kingston Technology
£73.08
iFrame
  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for
  • data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8
  • via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free

ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.

Features
Country of origin Taiwan
Memory data transfer rate 3200 MT/s
CAS latency 22
ECC No
Memory form factor 260-pin SO-DIMM
Component for Laptop
Internal memory type DDR4
Memory layout (modules x size) 1 x 16 GB
Internal memory 16 GB
Buffered memory type Unregistered (unbuffered)
General
Product family ValueRAM
Weight & dimensions
Height 30 mm
Width 69.6 mm
Logistics data
Harmonized System (HS) code 84733020
