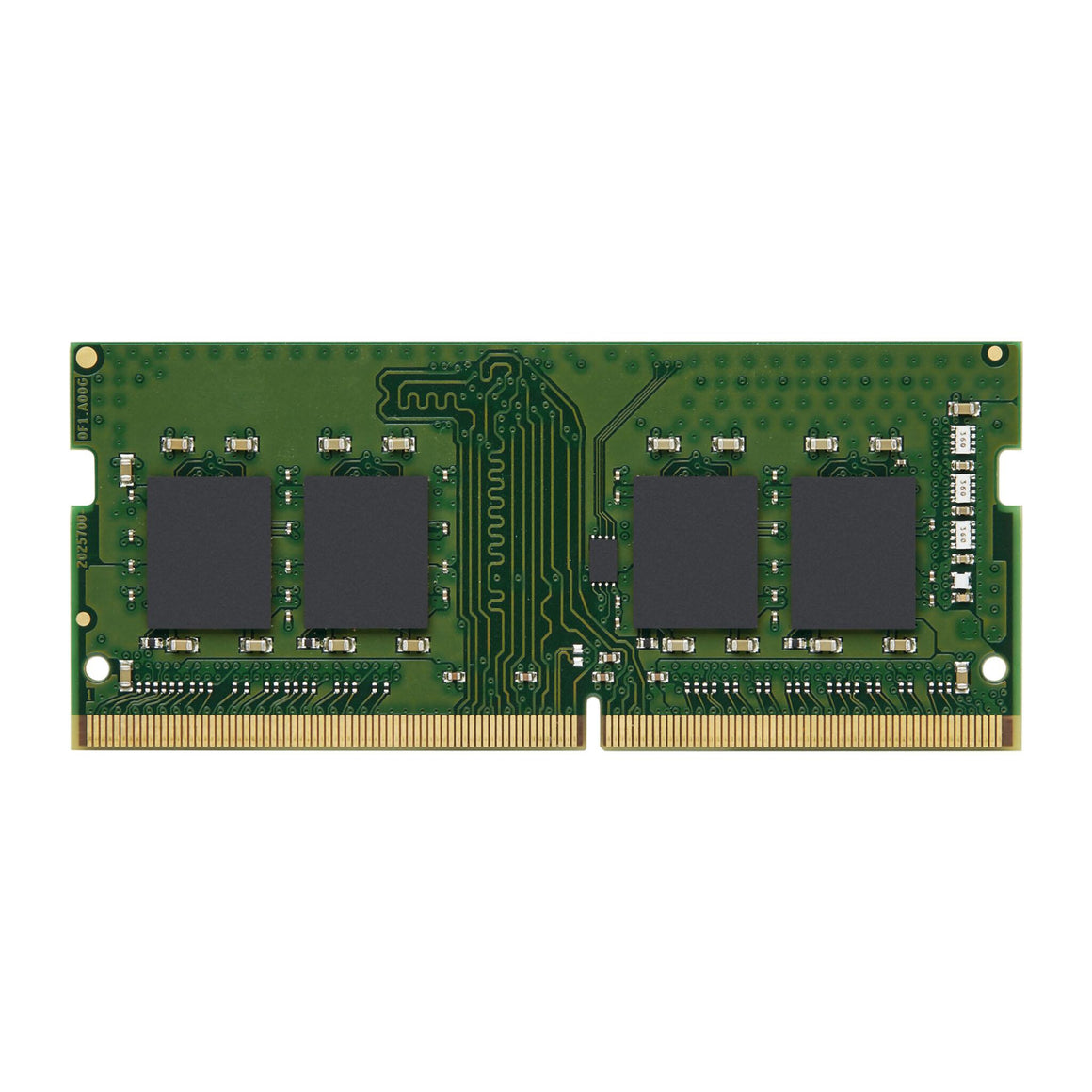

Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4

SKU: KVR32S22S8/8

£34.97 inc. VAT

Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free

ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.

Features
Lead plating	Gold
Country of origin	Taiwan
Row active time	32 ns
Refresh row cycle time	350 ns
Row cycle time	45.75 ns
Memory voltage	1.2 V
CAS latency	22
ECC	No
Memory form factor	260-pin SO-DIMM
Component for	Laptop
Internal memory type	DDR4
Memory layout (modules x size)	1 x 8 GB
Internal memory	8 GB
Buffered memory type	Unregistered (unbuffered)

Operational conditions
Storage temperature (T-T)	-55 - 100 °C
Operating temperature (T-T)	0 - 85 °C

General
Product family	ValueRAM

Technical details
Compliance certificates	RoHS

Sustainability
Doesn't contain	Halogen

Weight & dimensions
Height	30 mm
Width	69.6 mm

Logistics data
Harmonized System (HS) code	84733020
