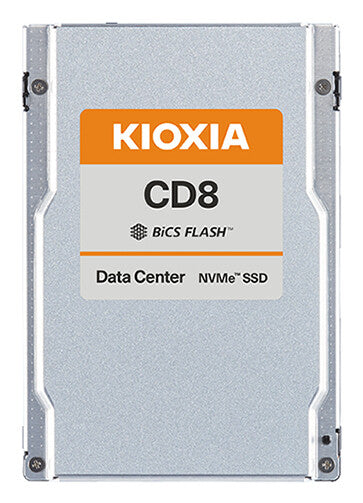

Data Center NVMe Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
| Features |
|---|
| Mean time between failures (MTBF) |
2500000 h |
| PCI Express interface data lanes |
x4 |
| Random write (4KB) |
195000 IOPS |
| Random read (4KB) |
1250000 IOPS |
| Write speed |
3800 MB/s |
| Read speed |
7200 MB/s |
| Component for |
Server/workstation |
| Memory type |
BiCS FLASH TLC |
| NVMe version |
1.4 |
| NVMe |
Yes |
| Interface |
PCI Express 4.0 |
| SSD form factor |
2.5" |
| SSD capacity |
3.84 TB |
| Power |
|---|
| Power consumption (max) |
14 W |
| Operating voltage |
12 V |
| Weight & dimensions |
|---|
| Weight |
130 g |
| Height |
15 mm |
| Depth |
100.5 mm |
| Width |
69.8 mm |
| Operational conditions |
|---|
| Operating shock |
1000 G |
| Operating vibration |
2.17 G |
| Operating relative humidity (H-H) |
5 - 95% |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
74 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 74 °C |
| Other features |
|---|
| Warranty period |
5 year(s) |
