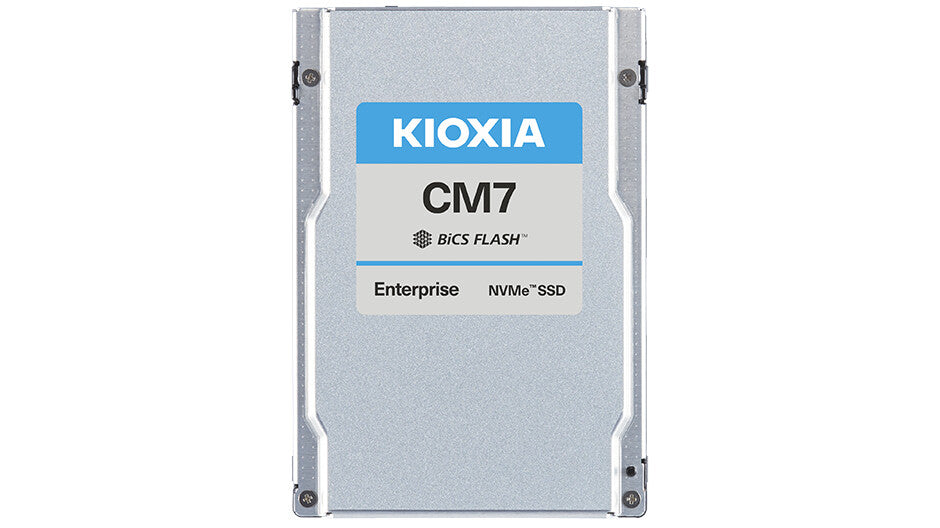

KIOXIA CM7-R Series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 (for U.3 host: PCIe® 4.0) and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs delivers 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read-intensive enterprise applications.
| Features |
|---|
| Mean time between failures (MTBF) |
2500000 h |
| PCI Express interface data lanes |
x4 |
| Random write (4KB) |
300000 IOPS |
| Random read (4KB) |
2450000 IOPS |
| Write speed |
6750 MB/s |
| Read speed |
14000 MB/s |
| Component for |
Server/workstation |
| Memory type |
BiCS FLASH TLC |
| NVMe version |
2.0 |
| NVMe |
Yes |
| Interface |
PCI Express 5.0 |
| SSD form factor |
2.5" |
| SSD capacity |
7.68 TB |
| Power |
|---|
| Power consumption (max) |
25 W |
| Operating voltage |
12 V |
| Weight & dimensions |
|---|
| Weight |
130 g |
| Height |
15 mm |
| Depth |
100.5 mm |
| Width |
69.8 mm |
| Operational conditions |
|---|
| Operating shock |
1000 G |
| Operating vibration |
2.17 G |
| Operating relative humidity (H-H) |
5 - 95% |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
73 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 73 °C |
| Other features |
|---|
| Warranty period |
5 year(s) |
