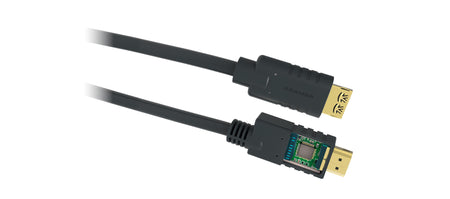

CA−HM active HDMI copper cable provides a perfect cable solution for delivering HDMI signals over long distances: 18Gbps up to 20m (66ft) and 10.2 Gbps up to 30m (98ft). The innovative technology utilized in the cable’s connector features superior equalizing and signal compensation to meet the most demanding challenges in Pro AV installations.
This unique solution simplifies long distance installations by using a true plug & play cable that draws power from the HDMI source. There is no need for an external power source.
CA−HM features the Kramer exclusive K−Lock HDMI connector, that prevents cables in your installation from unintentionally disconnecting, eliminating cable−related service calls. Additionally, an LED on the connector indicates when the signal is transmitted successfully.
| Features |
|---|
| Plug and Play |
Yes |
| Magnetically shielded |
Yes |
| Cable material |
Copper |
| Connector contacts plating |
Gold |
| Data transfer rate |
18 Gbit/s |
| HDCP |
Yes |
| HDMI Ethernet channel |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Dolby technologies |
DTS-HD, Dolby TrueHD |
| 3D |
Yes |
| Product colour |
Black |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 |
HDMI Type A (Standard) |
| Cable length |
10.7 m |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
