SKU: 99-9210180

Kramer Electronics CON-FIELD RJ45 Silver

Kramer Electronics
£20.58
iFrame
  • CON–FIELD — Fixed connector
  • Robust Zinc Die–cast Housing — For industrial use and a protected latch
  • Compact Design — Makes the connector multiport–capable while being fully shielded
  • Easy Assembly — Strain relief snapped on directly to stuffer cap and protected catch, no crimping tool needed
  • Reconnectable for Reuse
  • Transmission Characteristics — CAT 6A per ISO/IEC 11801 Ed.2.2:2011–06
  • Wide Uses — Suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT
  • Availability — Both connectors sold in packages of 10

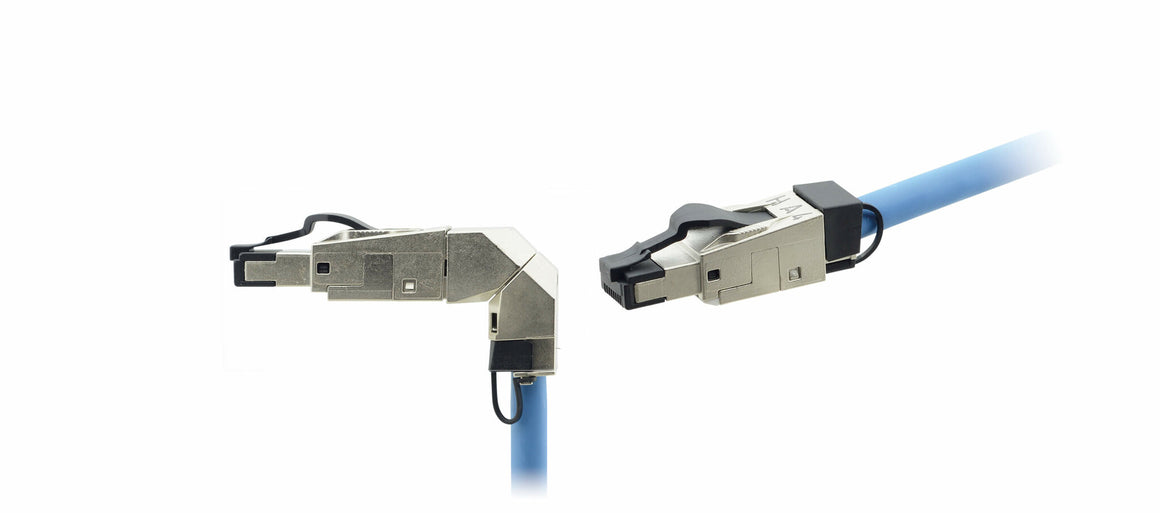

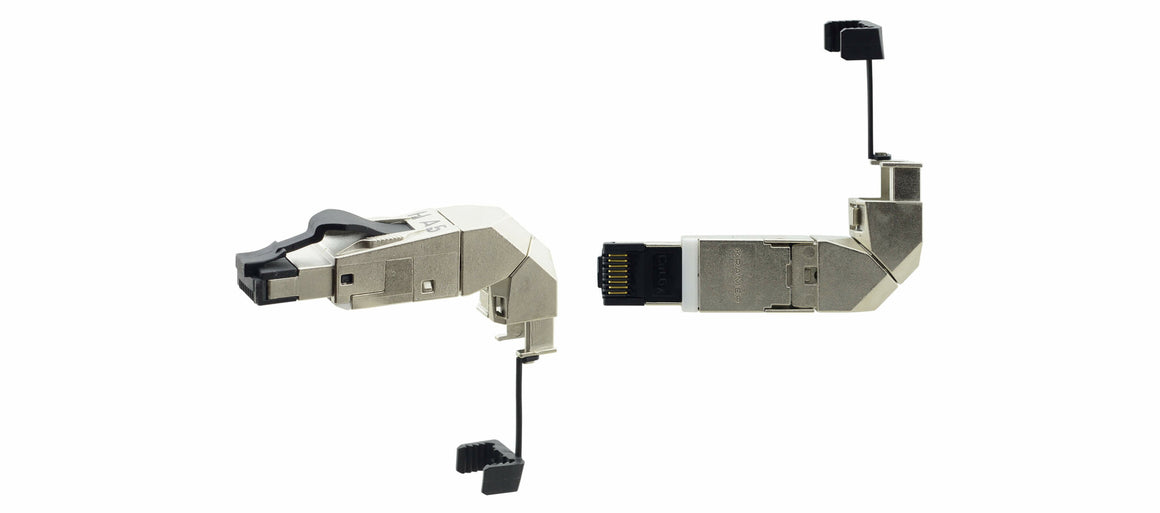

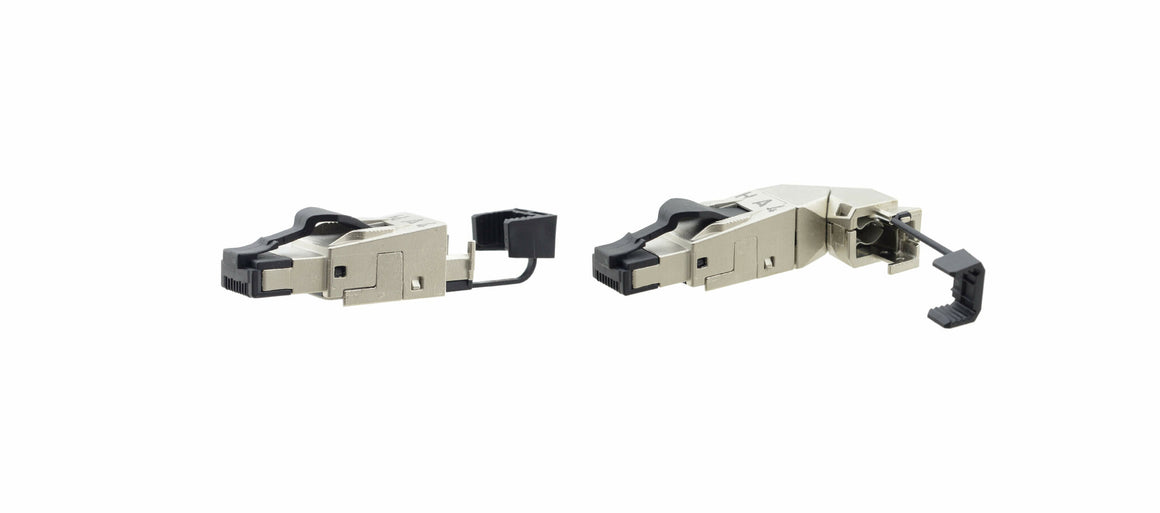

CON−FIELD and CON−FIELD−360 are high−bandwidth, shielded RJ−45 connectors used for terminating Kramer LAN cables. This connector requires no crimping tool to install, and provides fast and reliable termination of shielded twisted−pair cables in the field. The connector is suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE) and HDBaseT.

Features
Withdrawal force 20 N
Insertion force 20 N
Current 1 A
Voltage 50 V
Contact resistance 20 mΩ
Connector shielding Yes
Connector contacts plating Nickel/Gold
Material Zinc
Product colour Silver
Connector form factor Angled
Connector gender Male
Connector(s) RJ45
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -40 - 70 °C
Sustainability
Sustainability compliance Yes
Certificates
Compliance certificates CE, RoHS
Weight & dimensions
Weight 2.812 g
Packaging data
Quantity per pack 10 pc(s)
