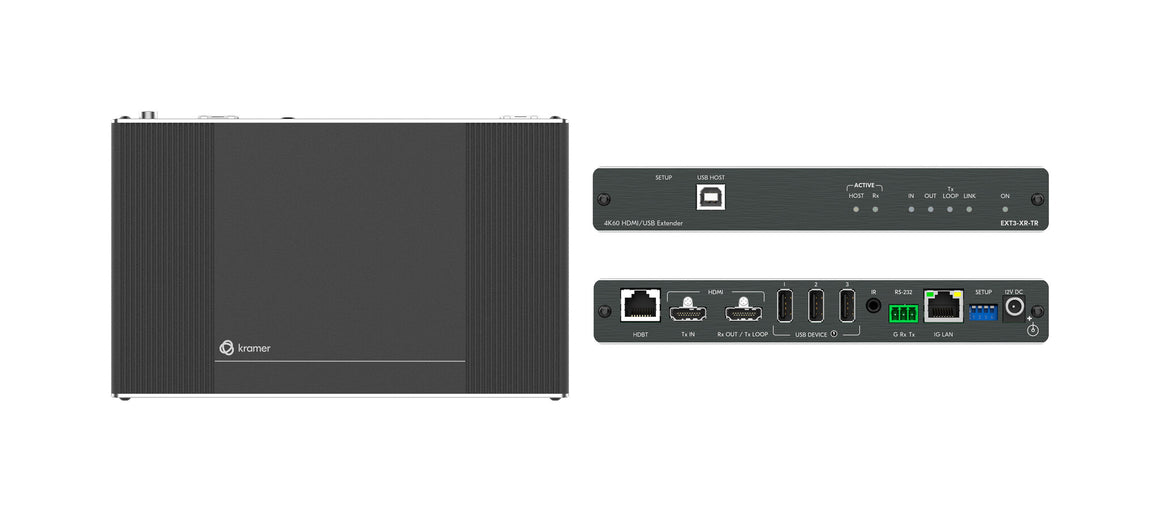

EXT3−XR−TR is a high−performance, extended−reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals over twisted pair, flexibly set as transmitter−side or receiver−side device. EXT3−XR−TR transmitter−side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3−XR−TR receiver−side receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.
High Performance Standard Extender — Professional HDBaseT extender for providing extended–reach signals over twisted–pair copper infrastructures. EXT3–XR–TR is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
HDMI Signal Extension — HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
HDMI Mirroring — Transmitter–side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain.
Flexible USB 2.0 Extension — An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.
Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
Cost–effective Maintenance — Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting.
Easy and Elegant Installation — MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
| Features |
|---|
| HDBaseT certified |
Yes |
| Resolution |
3840 x 2160 pixels |
| Supported graphics resolutions |
3840 x 2160 |
| Material |
Aluminium |
| HDCP |
Yes |
| Bandwidth |
18 Gbit/s |
| Maximum refresh rate |
60 Hz |
| Maximum transfer distance |
100 m |
| Maximum resolution |
3840 x 2160 pixels |
| Type |
AV transmitter & receiver |
| Ports & interfaces |
|---|
| 3.5 mm (1/8-inch) out |
Yes |
| Remote (IR) output |
1 |
| RS-232 output ports |
1 |
| USB connector type |
USB Type-A, USB Type-B |
| USB version |
2.0 |
| USB ports quantity |
4 |
| HDMI version |
2.0b |
| HDMI in |
1 |
| Number of HDMI outputs |
2 |
| HDBaseT port |
Yes |
| RJ-45 output ports |
1 |
| RJ-45 input ports |
1 |
| Ethernet LAN |
Yes |
| Power |
|---|
| Current |
2 A |
| USB powered |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| Input current |
5 A |
| Operating voltage |
12 V |
| Power source type |
DC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
600 g |
| Height |
27 mm |
| Depth |
116 mm |
| Width |
190 mm |
| Packaging data |
|---|
| Package weight |
1.11 kg |
| Package height |
52 mm |
| Package depth |
165 mm |
| Package width |
345 mm |
| Quantity per pack |
1 pc(s) |
