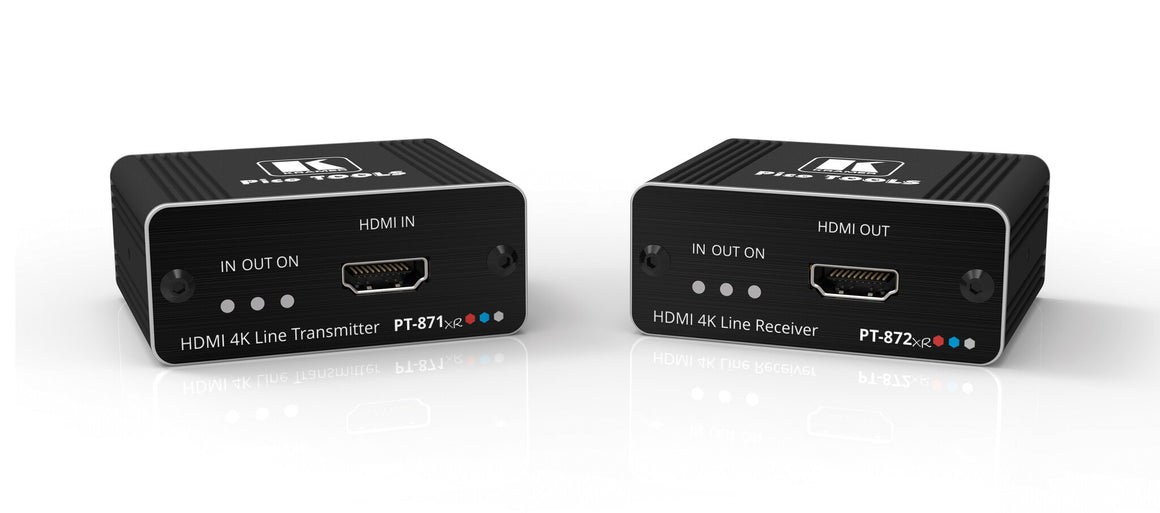

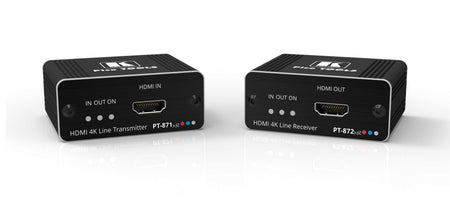

PT−871/2xr−KIT is a high−performance, long−reach DGKat™ 2.0 extender kit for 4K@60Hz (4:4:4) HDR HDMI and HDCP 2.2 signals and 2−way powering over twisted pair. The PT−871xr transmitter converts the HDMI input signal into a DGKat™ 2.0 signal. The PT−872xr receiver converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT−871/2xr−KIT extends video signals to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
| Features |
|---|
| Product colour |
Black |
| HDCP |
Yes |
| Bandwidth |
18 Gbit/s |
| HDCP version |
2.2 |
| Maximum refresh rate |
60 Hz |
| Maximum transfer distance |
70 m |
| Maximum resolution |
3840 x 2160 pixels |
| Type |
AV transmitter & receiver |
| Ports & interfaces |
|---|
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| RJ-45 output ports |
1 |
| RJ-45 input ports |
1 |
| Connectivity technology |
Wired |
| Power |
|---|
| Input current |
2 A |
| Operating voltage |
12 V |
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
200 g |
| Height |
24.4 mm |
| Depth |
51.8 mm |
| Width |
62.2 mm |
| Packaging data |
|---|
| Package weight |
600 g |
| Package height |
87 mm |
| Package depth |
120 mm |
| Package width |
157 mm |
| Packaging content |
|---|
| Cables included |
AC |
